![At [url=http://www.supermotors.net/registry/2742/71223-4]OCBR09[/url], I blew the caps off the U-joi...](https://www.supermotors.net/getfile/764855/thumbnail/01axleshafts.jpg)
Hits: 2916
Size: 124.33 KB
Posted: 10/26/09

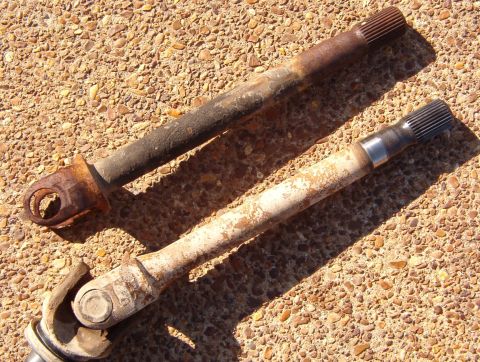

At [url=http://www.supermotors.net/registry/2742/71223-4]OCBR09[/url], I blew the caps off the U-joi... | ![Everything up to this point is shown in the [url=http://www.supermotors.net/registry/2742/12739-4]Br...](https://www.supermotors.net/getfile/764859/thumbnail/02tre.jpg)
Hits: 3370
Size: 78.6 KB
Posted: 10/26/09

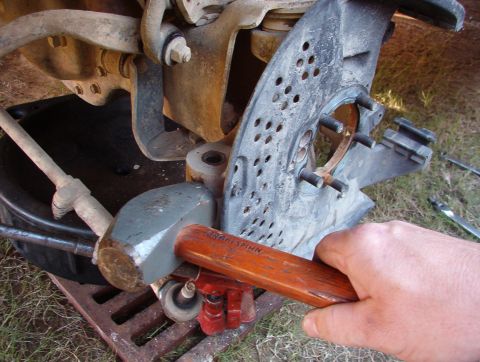

Everything up to this point is shown in the [url=http://www.supermotors.net/registry/2742/12739-4]Br... | ![Loosen, but don't remove, the lower BJ nut ([url=https://www.amazon.com//dp/B000C5HPRO/]MotorCraft M...](https://www.supermotors.net/getfile/764862/thumbnail/03lowerbjnut.jpg)
Hits: 3204
Size: 90.58 KB
Posted: 10/26/09

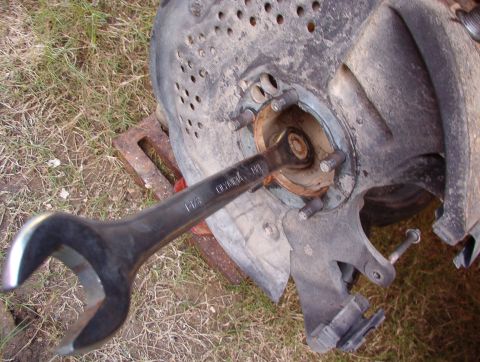

Loosen, but don't remove, the lower BJ nut ([url=https://www.amazon.com//dp/B000C5HPRO/]MotorCraft M... |
Hits: 3349
Size: 62.46 KB
Posted: 10/26/09

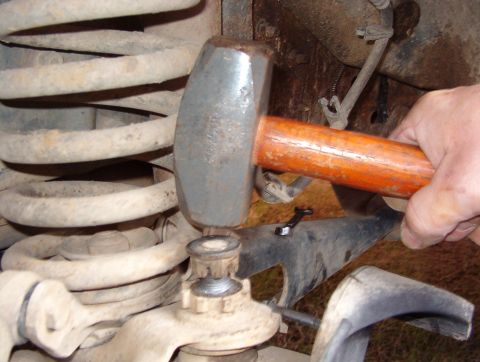

Flip the upper BJ nut and set it flush with the stud. This not only prevents the stud from mushroom... |
Hits: 7033
Size: 66.75 KB
Posted: 7/10/03

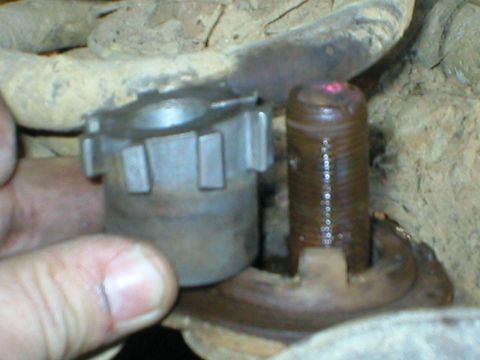

Factory solid Camber Cam ~'90-96 1/2-ton 4WD
I now have these to replace them:
[url=http://www.sup... |
Hits: 4774
Size: 67.01 KB
Posted: 7/10/03

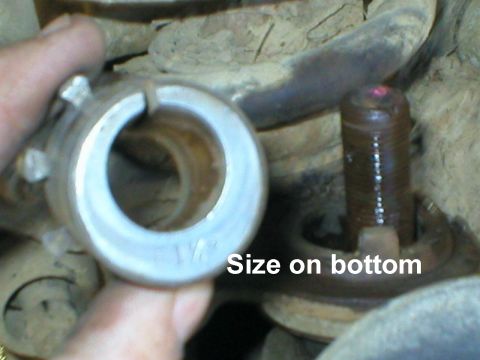

92-96 Camber Cam size
Read the NEXT several captions... |
Hits: 3632
Size: 63.44 KB
Posted: 10/26/09

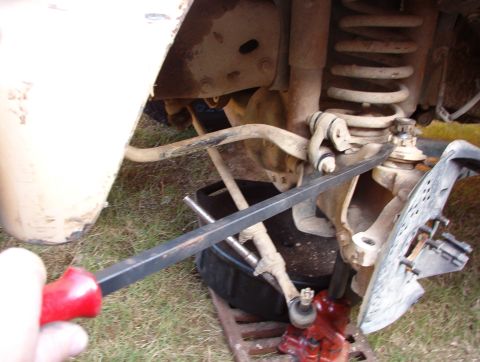

Once the taper is loose, pry up the camber cam (if installed). The older style has different indexi... | ![The lower BJ ([url=https://www.amazon.com//dp/B000C5HPRO/]MotorCraft MCS-10253[/url]) had never been...](https://www.supermotors.net/getfile/764865/thumbnail/06knuckle.jpg)
Hits: 2893
Size: 79.19 KB
Posted: 10/26/09

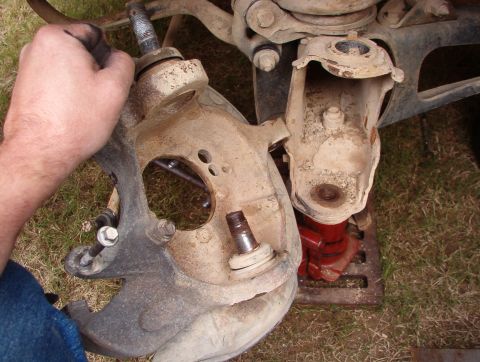

The lower BJ ([url=https://www.amazon.com//dp/B000C5HPRO/]MotorCraft MCS-10253[/url]) had never been... |
Hits: 2783
Size: 71.42 KB
Posted: 10/26/09

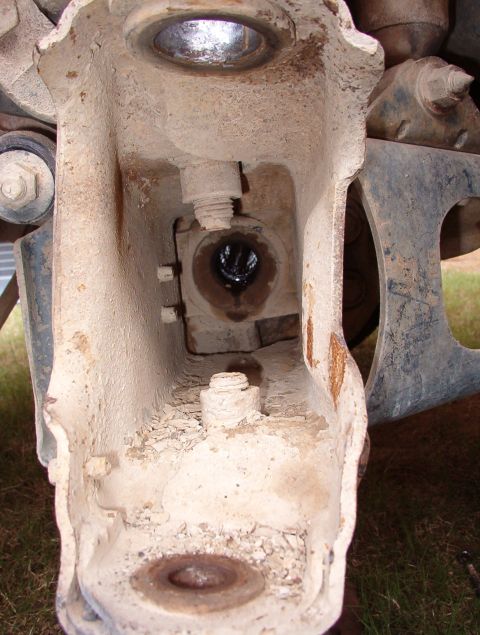

Nothing to see here - move along.
For another little TTB-specific job, see this:
[url=http://www.s... |
Hits: 2931
Size: 70.01 KB
Posted: 10/26/09

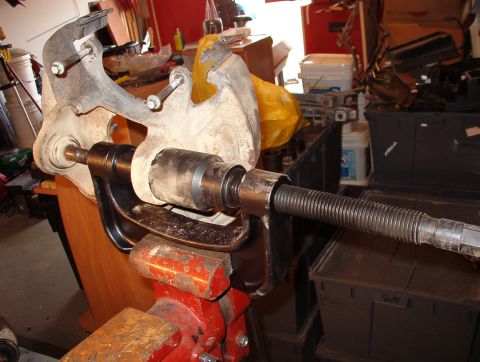

This [url=http://buy1.snapon.com/catalog/item.asp?P65=&tool=all&item_ID=75395&group_ID=1631&store=sn... |
Hits: 2518
Size: 71.8 KB
Posted: 10/26/09

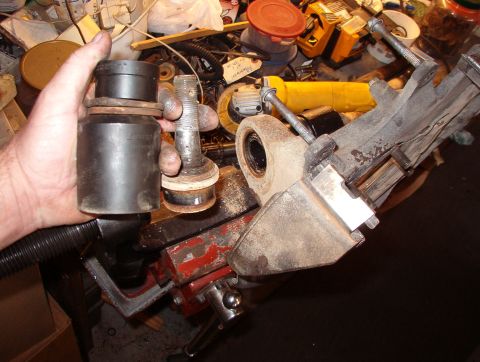

Halfway thru, I had to add some washers between the adapters on the ram.
Upper BJ: [url=https://www.... | ![Installing the new BJ ([url=https://www.amazon.com/dp/B000C5HPUG/]MotorCraft MCS-10339[/url]) also t...](https://www.supermotors.net/getfile/764869/thumbnail/10pressin.jpg)
Hits: 2715
Size: 80.14 KB
Posted: 10/26/09

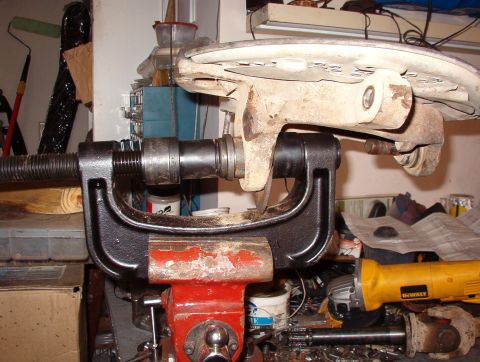

Installing the new BJ ([url=https://www.amazon.com/dp/B000C5HPUG/]MotorCraft MCS-10339[/url]) also t... |
Hits: 2628
Size: 62.16 KB
Posted: 10/26/09

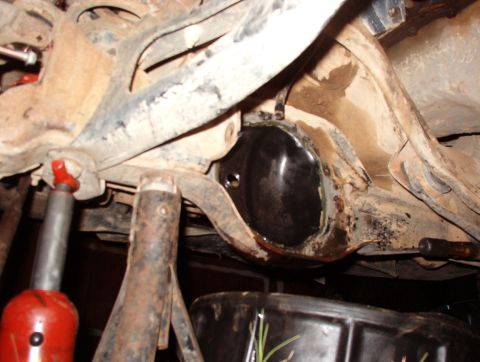

After putting the knuckle back on, I got down to the REAL problem.
For another little TTB-specific ... |
Hits: 2651
Size: 74.69 KB
Posted: 10/26/09

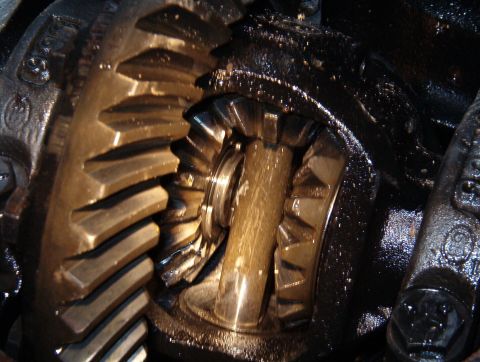

Do you notice what's missing? |
Hits: 2477
Size: 80.42 KB
Posted: 10/26/09

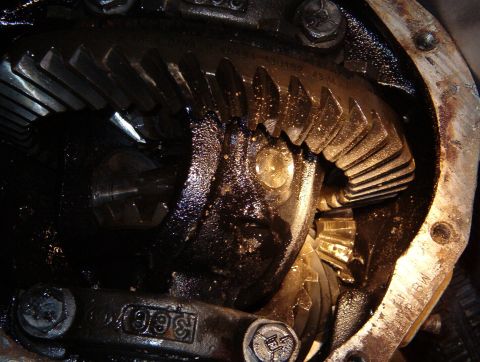

THERE it is! Well, at least 1/3 of it... |
Hits: 3815
Size: 102.54 KB
Posted: 10/26/09

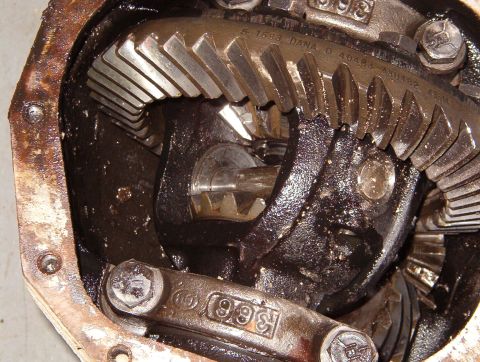

If you don't know your gear ratio, try to get a look at the edge of the ring gear. Some have the ra... |
Hits: 2423
Size: 76.92 KB
Posted: 10/26/09

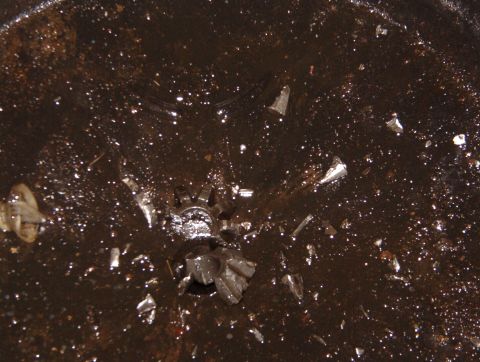

What a mess...
I had guessed it was a side gear that shattered, based on the noise it made. I'm ... |
Hits: 2884
Size: 87.9 KB
Posted: 10/26/09

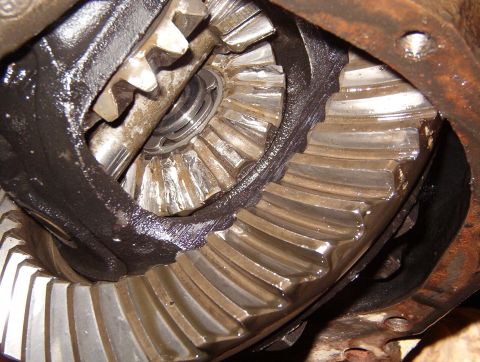

The E-ring barely visible on the end of the axleshaft is what makes this job a pain. This time, I j... |
Hits: 2560
Size: 79.61 KB
Posted: 10/26/09

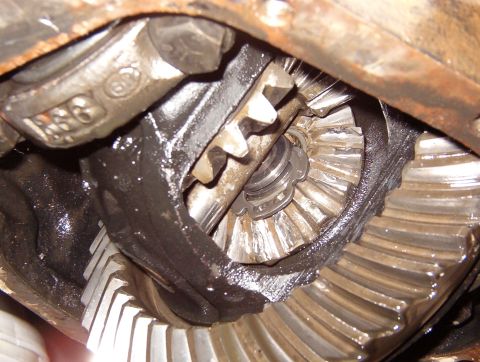

I think if I had tried, it would have been easy to remove this C-clip through the fill hole in the f... |
Hits: 2268
Size: 67.59 KB
Posted: 10/30/09

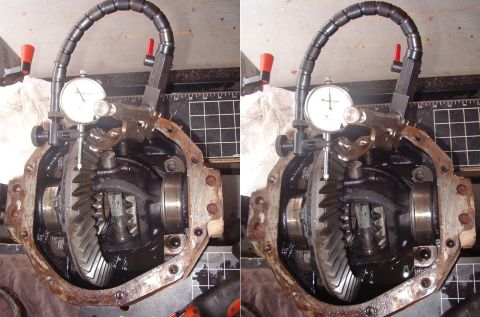

After beginning to tear it down, I decided to check the backlash. It's within spec. |
Hits: 2221
Size: 73.65 KB
Posted: 10/30/09

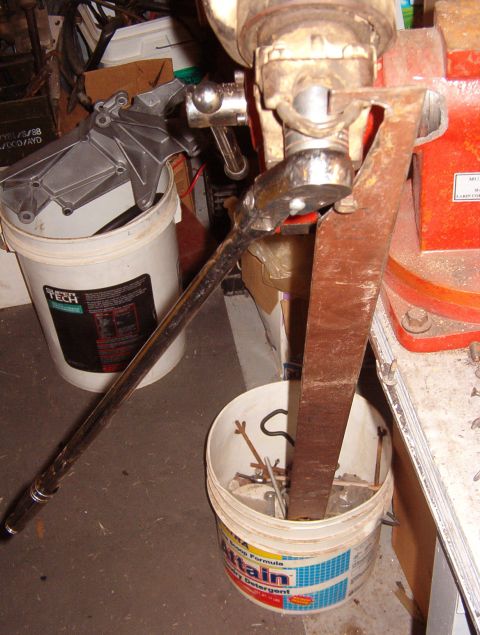

This tool is something I made for fan clutches & pinion nuts, and it works. The big ratchet is also... |
Hits: 2277
Size: 93.42 KB
Posted: 10/30/09

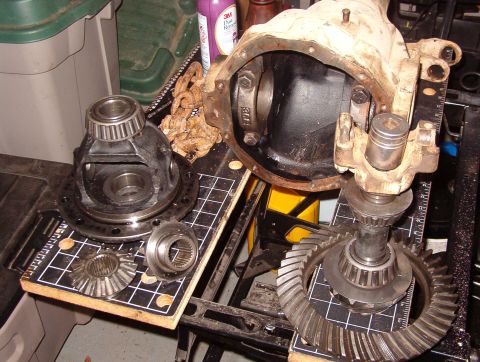

Everything is stripped down & cleaned for welding, except for sandblasting inside the carrier. I wo... |
Hits: 2218
Size: 69.93 KB
Posted: 11/1/09

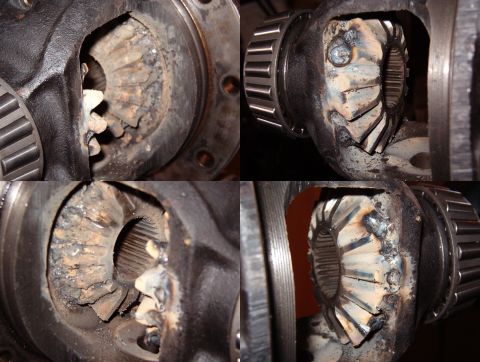

The welds are a little rough, but my welder (my g/f's nephew) just had rotator cuff surgery & his R ... |
Hits: 330
Size: 49.26 KB
Posted: 9/3/22

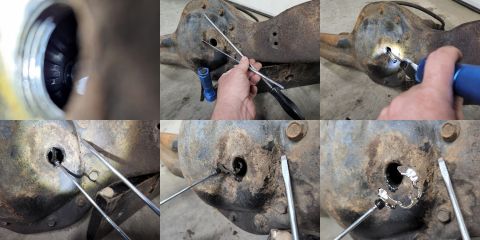

The E-clip for the right inboard shaft of a Dana 44IFS can be picked through the fill hole. I tried ... |
Hits: 3362
Size: 73.26 KB
Posted: 11/3/09

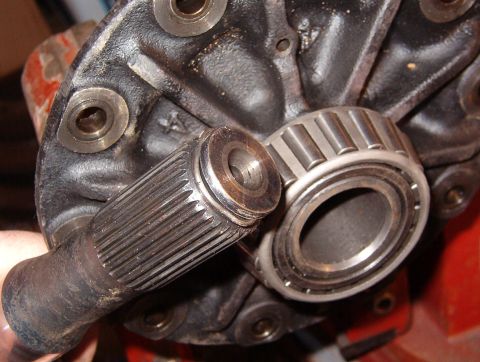

Because the factory E-ring is such a hassle, many people weld the slip yoke cap & install a spring t... |
Hits: 2633
Size: 63.95 KB
Posted: 11/3/09

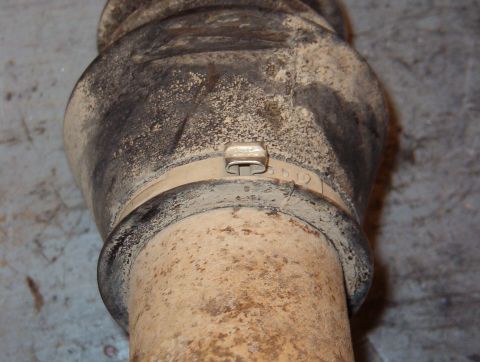

I straightened & then reset the keystone clamps on the slip yoke boot. |
Hits: 2473
Size: 113.67 KB
Posted: 11/3/09

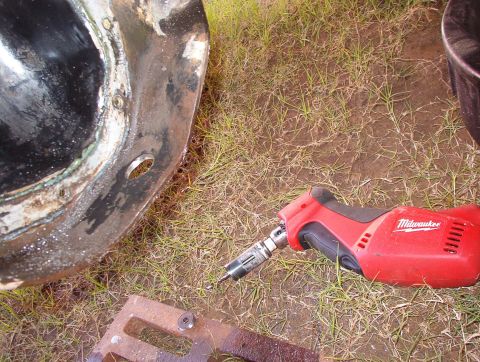

To make draining easier & cleaner, I cut a hole in the bottom of the beam below the lowest point of ... |
Hits: 2816
Size: 74.99 KB
Posted: 11/3/09

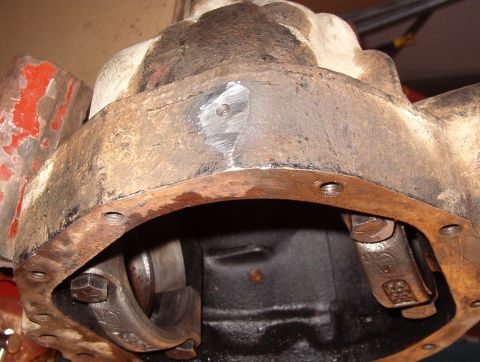

I started with a 1/4" bit, then 1/2", then 3/4" to make the drain hole in the 3rd mem... |
Hits: 2842
Size: 75.36 KB
Posted: 11/3/09

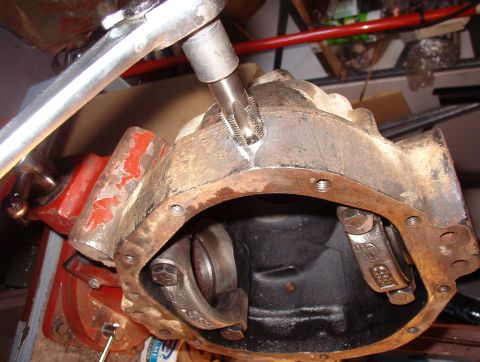

It took a lot of driving to find this 1/2"-14 NPT tap to match the stock diff plug that I'm goi... |
Hits: 2346
Size: 65.56 KB
Posted: 11/3/09

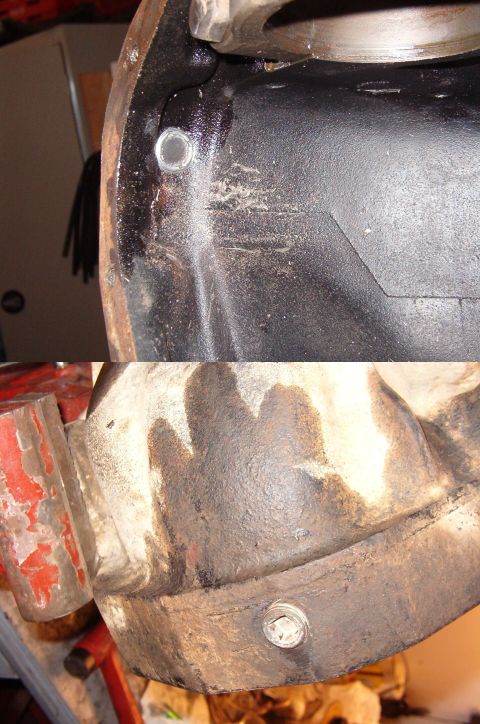

This factory magnetic diff plug should collect any welding spatter that I didn't knock off, and it's... |
Hits: 2601
Size: 82.92 KB
Posted: 11/3/09

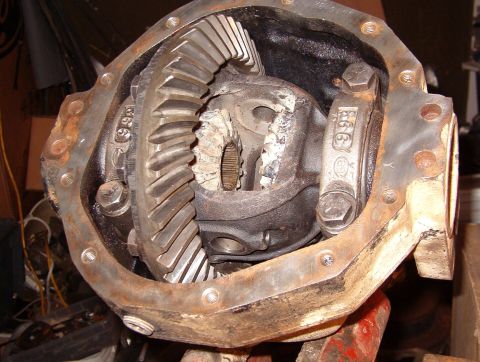

All slapped together & ready to go back! I'm putting the slip yoke back onto the outer shaft first,... |
Hits: 2475
Size: 68.36 KB
Posted: 11/4/09

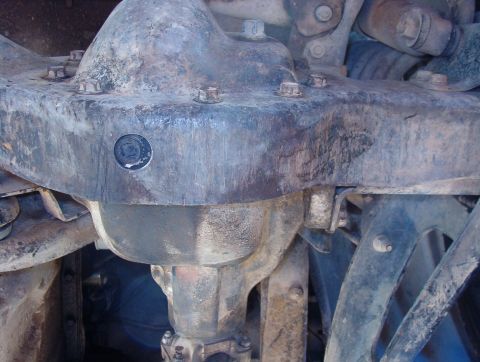

I knew it wouldn't be exactly aligned, so I'll widen the hole with a burr one of these days.
[url=h... |
Hits: 2441
Size: 105.27 KB
Posted: 12/2/10

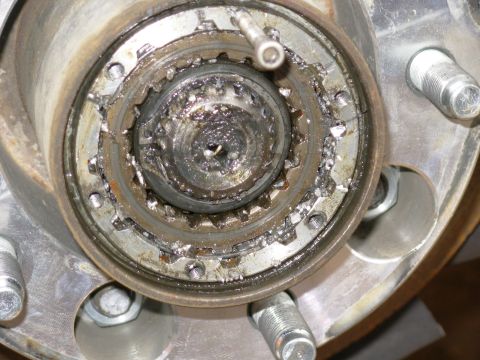

Well, I THOUGHT my gorilla welds had broken at OCBR, but apparently not... Both hub locks are shatt... |
Hits: 2287
Size: 93.77 KB
Posted: 12/2/10

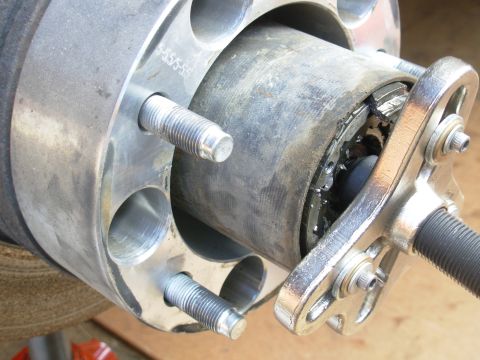

The debris in the splines caught in the outer ring's groove, preventing the lock body from sliding o... |
Hits: 2344
Size: 109.71 KB
Posted: 12/2/10

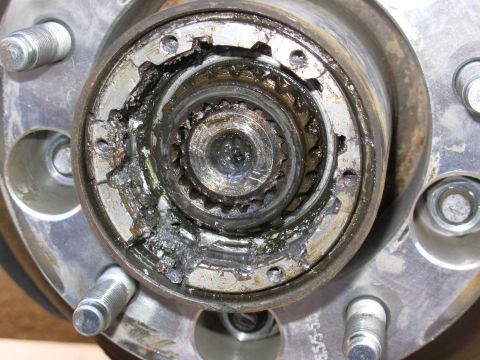

Eventually, most of the sections with threads had pulled out. |
Hits: 2484
Size: 77.67 KB
Posted: 12/2/10

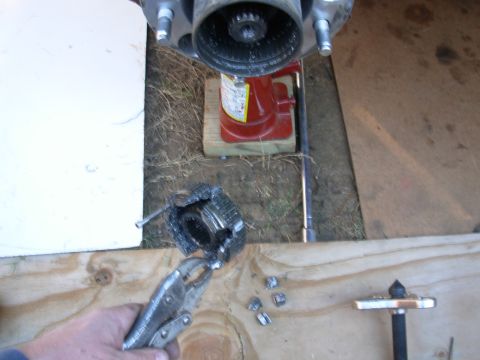

Fortunately, there was just enough to grab, and it finally came out.
[url=https://www.supermotors.n... |
Hits: 2503
Size: 84.42 KB
Posted: 12/2/10

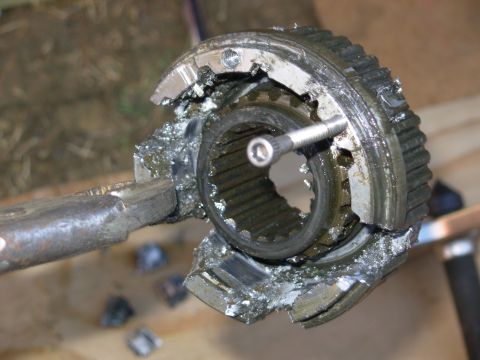

The other side wasn't nearly this bad, but I still had my O'Reilly's receipt from 1999, and they swa... |
Hits: 2647
Size: 75.66 KB
Posted: 8/30/13

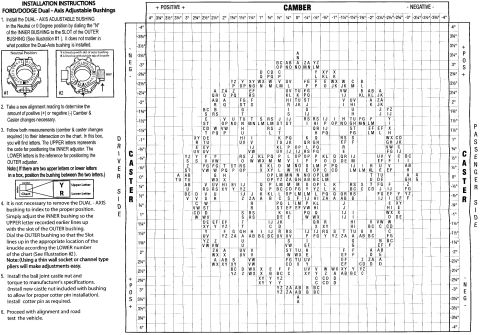

Installation & Adjustment for (Moog K80108 ) 3 1/4-degree dual-axis camber cams
[url=https://www.su... |
Hits: 1403
Size: 119.66 KB
Posted: 10/24/14

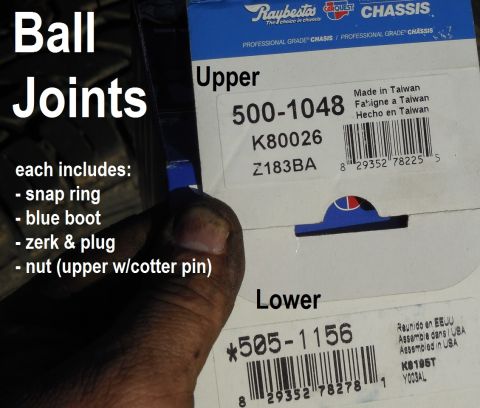

Raybestos Ball Joints for most D44IFS TTBs; Ford/MotorCraft are better, and not substantially more e... | ![Pressing the upper BJ ([url=https://www.amazon.com/dp/B000C5HPUG/]MotorCraft MCS-10339[/url]) in fir...](https://www.supermotors.net/getfile/1040080/thumbnail/bjupper.jpg)
Hits: 1351
Size: 119.59 KB
Posted: 10/24/14

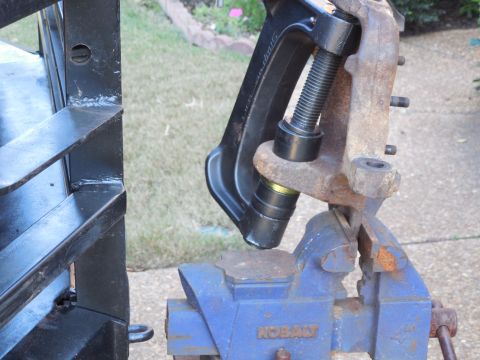

Pressing the upper BJ ([url=https://www.amazon.com/dp/B000C5HPUG/]MotorCraft MCS-10339[/url]) in fir... |

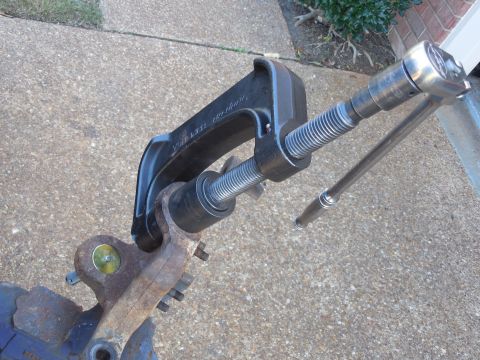

![Pressing the lower BJ ([url=https://www.amazon.com/dp/B000C5HPRO/]MotorCraft MCS-10253[/url]) in las...](https://www.supermotors.net/getfile/1040079/thumbnail/bjlower.jpg)
Hits: 1241
Size: 139.36 KB
Posted: 10/24/14
Pressing the lower BJ ([url=https://www.amazon.com/dp/B000C5HPRO/]MotorCraft MCS-10253[/url]) in las... | ![Upper Ball Joint: Ford F6TZ3V049AA, MC MCS10339, [url=https://www.amazon.com/dp/B018OGIIKK]Spicer 20...](https://www.supermotors.net/getfile/1169484/thumbnail/bjscc.jpg)
Hits: 640
Size: 43.69 KB
Posted: 6/17/22

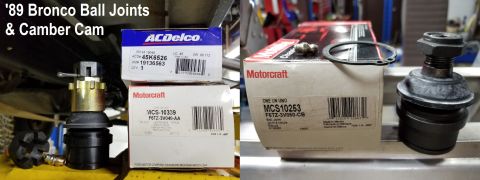

Upper Ball Joint: Ford F6TZ3V049AA, MC MCS10339, [url=https://www.amazon.com/dp/B018OGIIKK]Spicer 20... |
Hits: 471
Size: 81.05 KB
Posted: 8/29/22

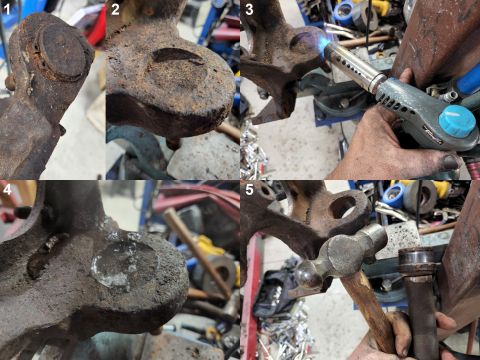

Ball Joint Removal with a torch
IF THE IMAGE IS TOO SMALL, click it.
Ball joint presses are cumbers... | ![JY '90 F150 Dana44IFS TTB Tag
[url=http://www.supermotors.net/registry/media/1046322][img]http://ww...](https://www.supermotors.net/getfile/1046321/thumbnail/diff90f410.jpg)
Hits: 1034
Size: 95.21 KB
Posted: 1/9/15

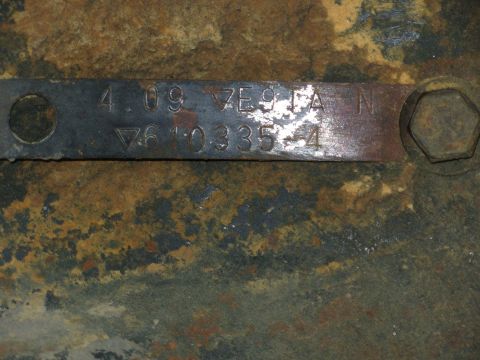

JY '90 F150 Dana44IFS TTB Tag
[url=http://www.supermotors.net/registry/media/1046322][img]http://ww... | |
