Hits: 2085
Size: 85.58 KB
Posted: 2/22/12

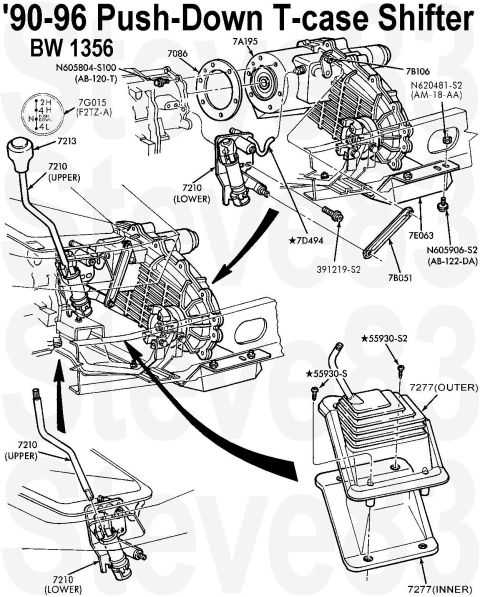

Push-Down Shifter Installation
The wells in the outer boot bezel ([url=https://www.amazon.com/dp/B0... |
Hits: 1610
Size: 60.76 KB
Posted: 2/22/12

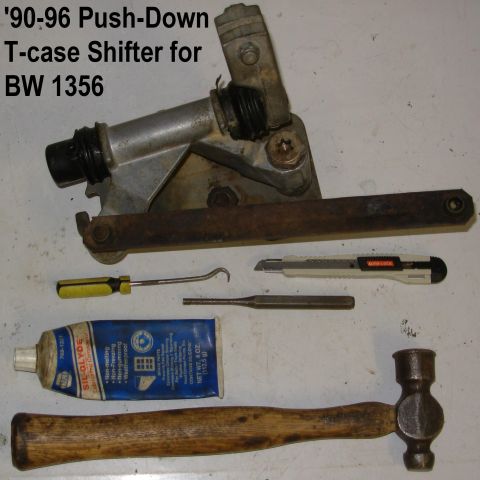

This style of shifter is known to seize & break, and its proper use isn't intuitive (despite the ins... |
Hits: 1390
Size: 94.61 KB
Posted: 3/15/12

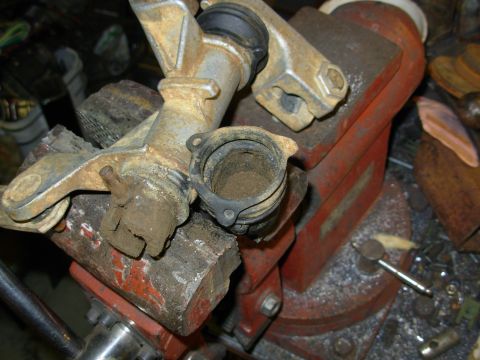

This is a VERY common problem with this style of shifter: the boots crack, allowing water & dirt ins... |
Hits: 1486
Size: 49.06 KB
Posted: 2/22/12

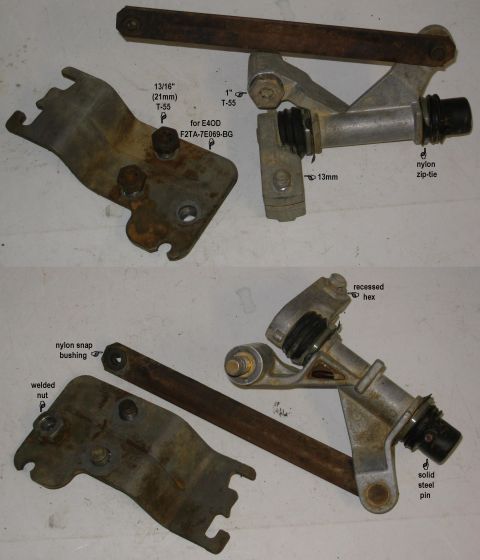

Push-Down Shifter Parts
Recently, Dorman has begun offering this shifter as 600-602; ~$90 on [url... |
Hits: 1207
Size: 42.85 KB
Posted: 2/22/12

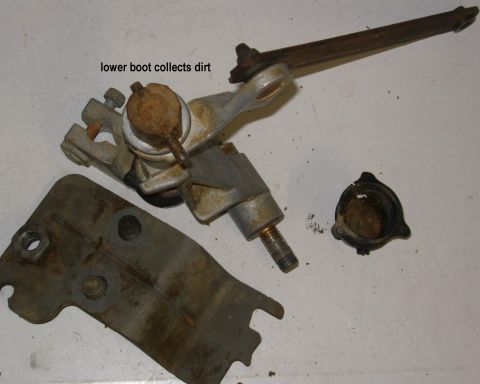

To begin, carefully cut the nylon zip-ties around the rubber boots, being careful not to cause furth... |
Hits: 1222
Size: 76.82 KB
Posted: 3/15/12

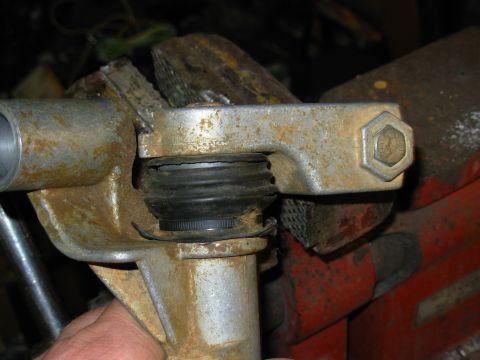

The upper boot cracks similarly. |
Hits: 1138
Size: 81.81 KB
Posted: 3/15/12

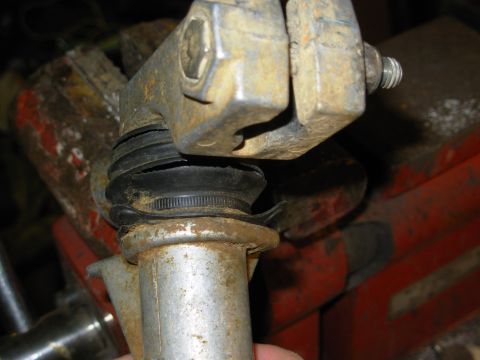

The upper boot cracks similarly. |
Hits: 1144
Size: 68.69 KB
Posted: 3/15/12

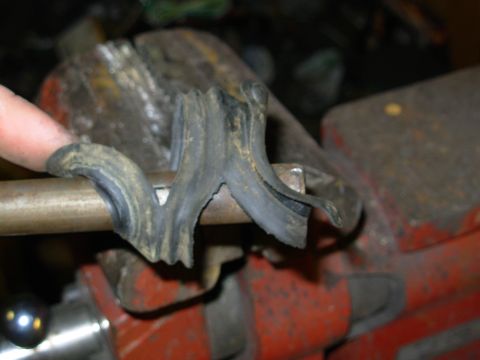

Both cracks have torn halfway round. Replacement boots are NOT available, but Dorman has recently b... |
Hits: 1135
Size: 39 KB
Posted: 2/22/12

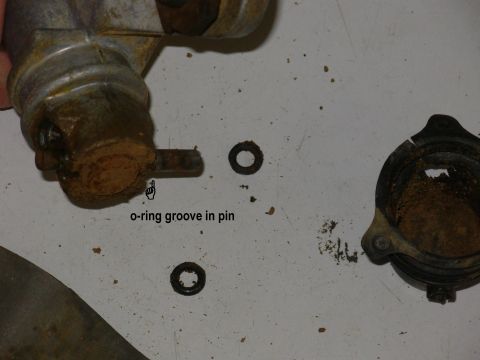

Clean enough dirt away to allow the o-rings to be slid out of their grooves & off the pin. |
Hits: 1153
Size: 39.96 KB
Posted: 2/22/12

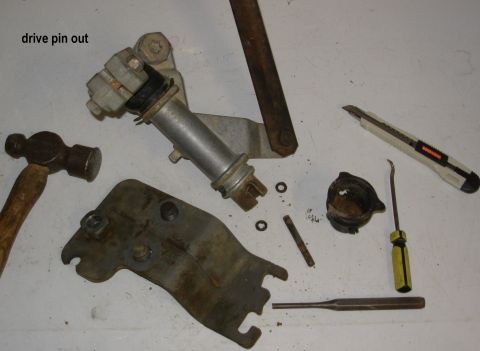

If the shifter is seized, soak it with penetrating oil and carefully tap it down with a SMALL hammer... |
Hits: 1150
Size: 41.8 KB
Posted: 2/22/12

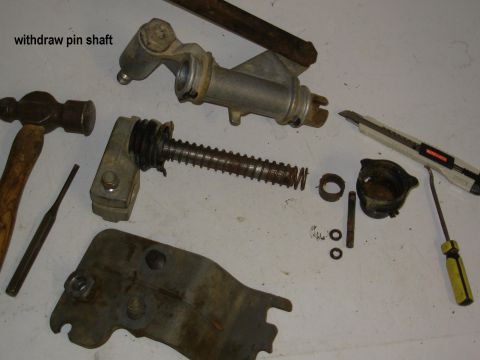

The shaft can now be rotated (if necessary) to withdraw it from the shift lever tube. Collect the l... |
Hits: 1083
Size: 79.72 KB
Posted: 2/22/12

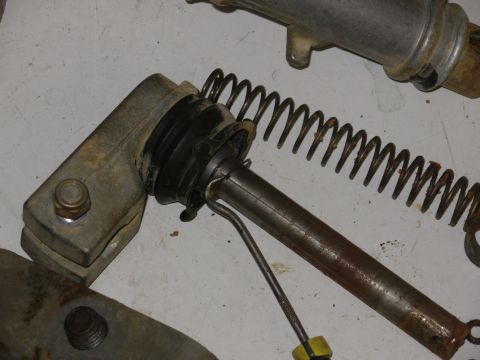

Gently pry each retainer tab up SLIGHTLY to reduce its grip on the shaft, then slide it off the shaf... |
Hits: 1076
Size: 73.13 KB
Posted: 2/22/12

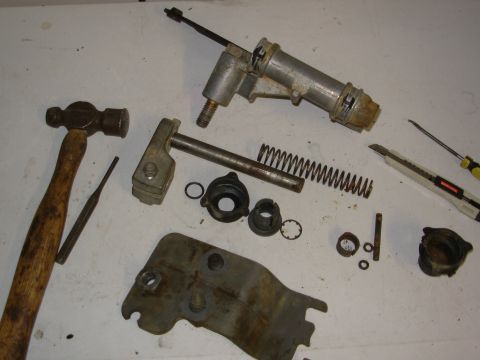

Slide the top bushing, top boot, & top o-ring off the shaft.
Recently, Dorman has begun offering ... |
Hits: 1081
Size: 79.22 KB
Posted: 3/15/12

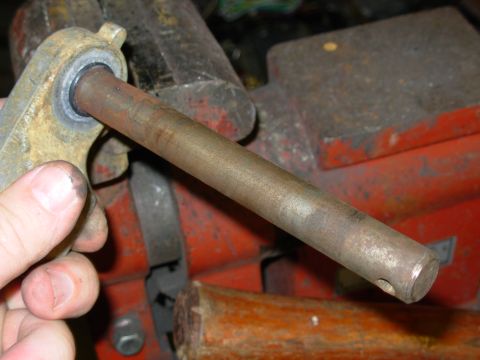

This shaft hasn't rusted severely yet, and it hadn't even jammed. But it would have... |
Hits: 1199
Size: 51.27 KB
Posted: 2/22/12

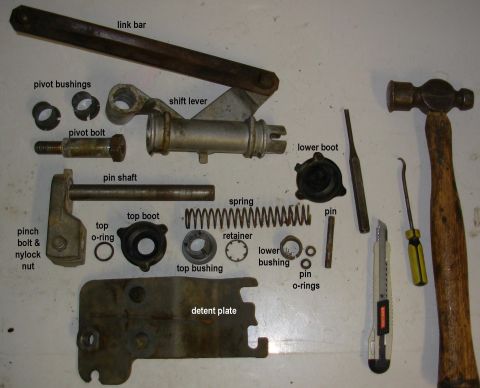

Clean, repair, and lubricate all parts as needed, then reassemble in reverse order.
If the boots ... |
Hits: 2434
Size: 51.3 KB
Posted: 9/11/04

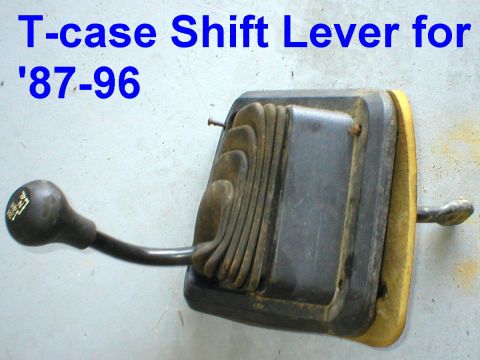

SOLD T-Case shift lever for 87-89
'90-96 use a lever with a round base, and a knob that says "... | ![SOLD T-Case Shifter '92-96
[url=http://www.supermotors.net/registry/media/249572][img]http://www.su...](https://www.supermotors.net/getfile/183099/thumbnail/tcase-shifter-8796.jpg)
Hits: 4942
Size: 40.29 KB
Posted: 3/5/05

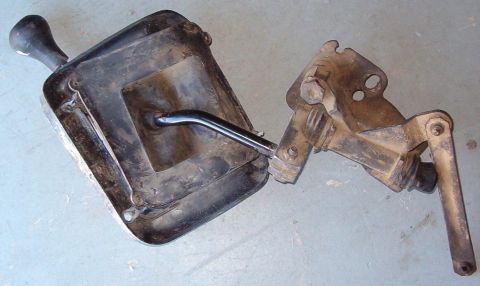

SOLD T-Case Shifter '92-96
[url=http://www.supermotors.net/registry/media/249572][img]http://www.su... |
Hits: 1822
Size: 55.6 KB
Posted: 7/13/07

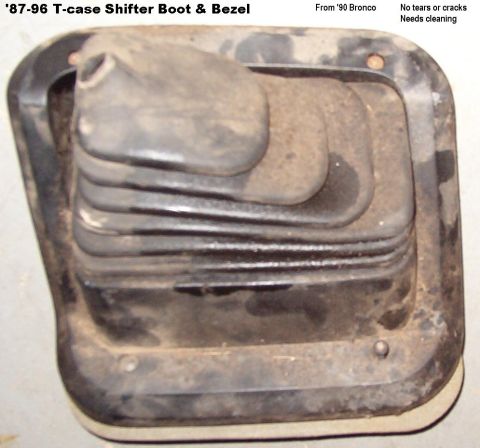

SOLD Shift Boot for '87-96 Transfer Case
(SEE THIS PIC: http://www.supermotors.net/vehicles/registr... |
Hits: 1772
Size: 71.74 KB
Posted: 10/20/07

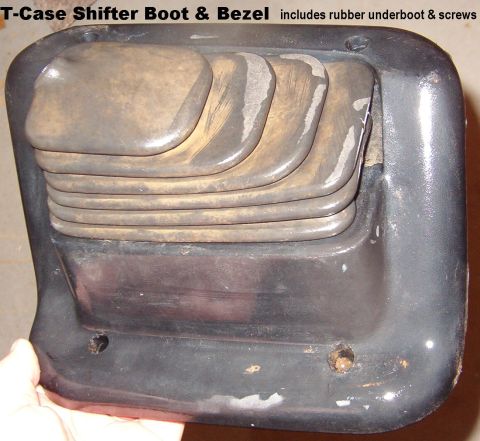

SOLD T-case Shift Boot & Bezel fits '87-96 (side of the hump) |
Hits: 764
Size: 120.22 KB
Posted: 9/3/14

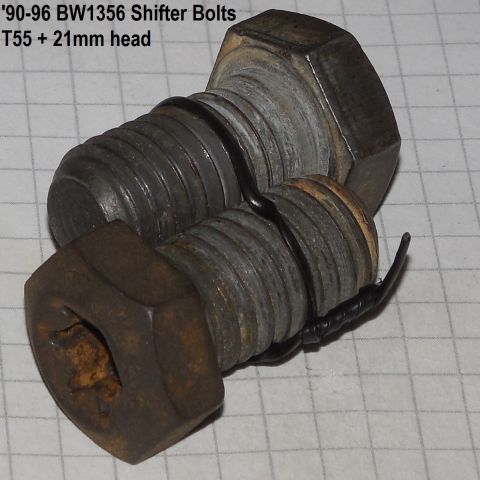

SOLD '92-96 BW1356 Shifter Bolts |
Hits: 1582
Size: 48.26 KB
Posted: 8/20/11

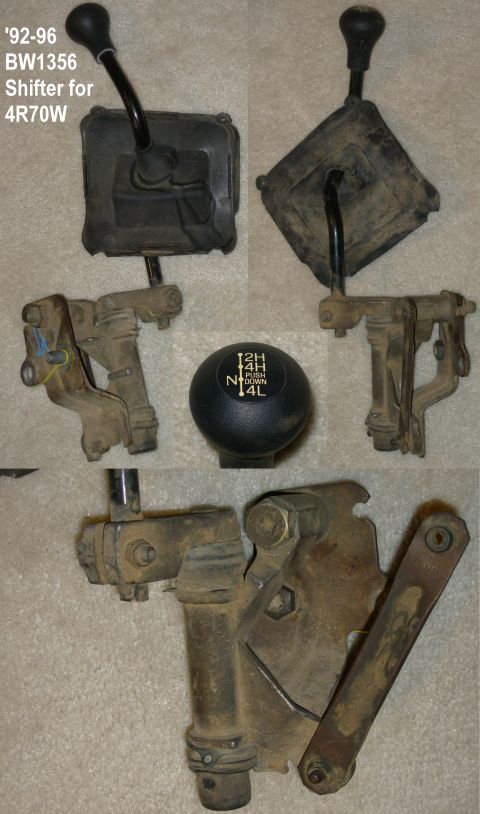

SOLD T-case Shifter for '92-96 BW1356 with mounting plate & link bar for 4R70W
IF THE IMAGE IS TOO S... | | | | |
T-case Push-Down Shifter
