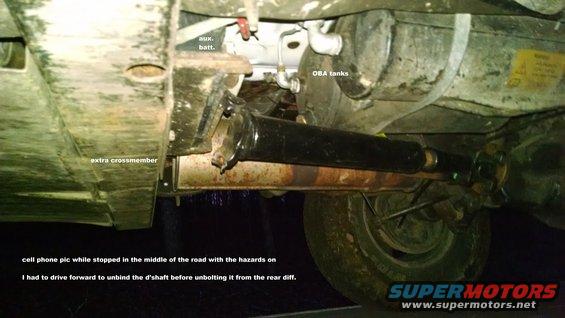

It's hard against the aux. battery tray, just a fraction of an inch from busting the battery case.  .
|
|
|

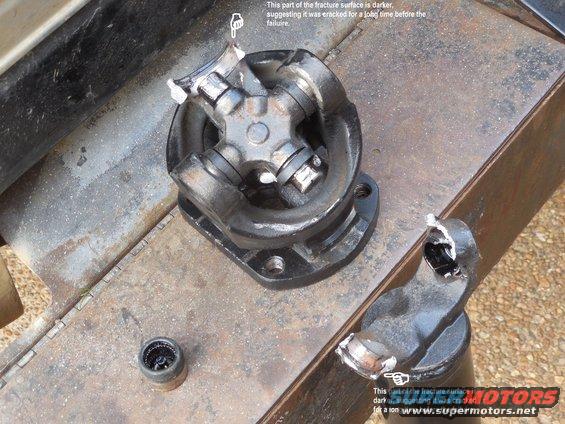

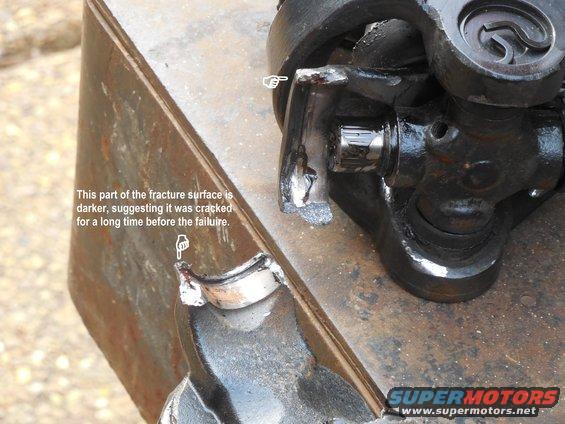

It appears the flattened-out side of the yoke was cracked for a while before the whole thing came apart. Considering that I've only had this driveshaft for 8 months, it must have been cracked when I got it. And since I have 3 other vehicles to drive, this one hasn't been used every day.
I found that cap in the dirt where I had shifted out of 4 just before pulling out onto the pavement. All the needles appear to still be in it, along with that plug of grease in the center.

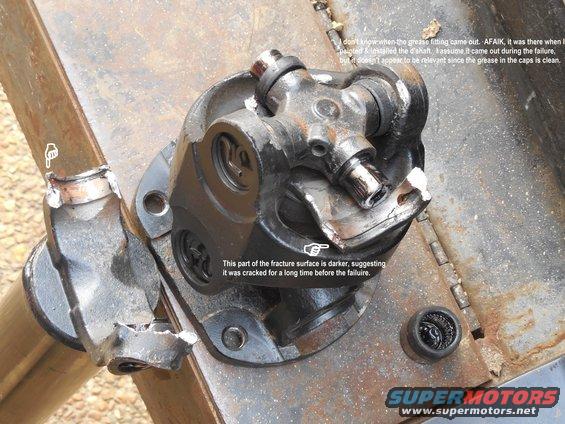

I have no idea where or when the Zerk fell out (assuming it was even installed), but since this failure has nothing to do with grease, it's irrelevant.
|
|
|
This was the final failure - once the other side had opened up & spit out the cap, this side twisted & fractured.
|
|
|
It appears the flattened-out side of the yoke was cracked for a while before the whole thing came apart. Considering that I've only had this driveshaft for 8 months, it must have been cracked when I got it. And since I have 3 other vehicles to drive, this one hasn't been used every day.
I found that cap in the dirt where I had shifted out of 4 just before pulling out onto the pavement. All the needles appear to still be in it, along with that plug of grease in the center.
I have no idea where or when the Zerk fell out (assuming it was even installed), but since this failure has nothing to do with grease, it's irrelevant.
|
|
|
It appears the flattened-out side of the yoke was cracked for a while before the whole thing came apart. Considering that I've only had this driveshaft for 8 months, it must have been cracked when I got it. And since I have 3 other vehicles to drive, this one hasn't been used every day.
I have no idea where or when the Zerk fell out (assuming it was even installed), but since this failure has nothing to do with grease, it's irrelevant.
|
|
|
It appears the flattened-out side of the yoke was cracked for a while before the whole thing came apart. Considering that I've only had this driveshaft for 8 months, it must have been cracked when I got it. And since I have 3 other vehicles to drive, this one hasn't been used every day.
I found that cap in the dirt where I had shifted out of 4 just before pulling out onto the pavement. All the needles appear to still be in it, along with that plug of grease in the center.
I have no idea where or when the Zerk fell out (assuming it was even installed), but since this failure has nothing to do with grease, it's irrelevant.
|
|
|

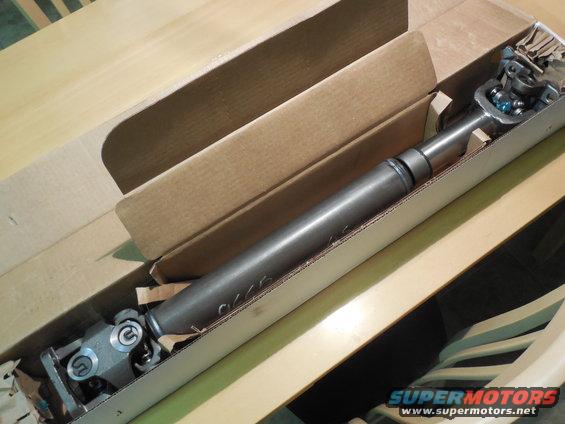

The replacement showed up while I was pushing a tree over in FWD.
|
|
|
This is now the 4th driveshaft JBG has sent me.
UPDATE: It didn't last a year.
|
|
|
 IMG_20161017_115746944.jpg | Hits: 517 | Size: 71.46 KB | Posted on: 10/18/16 | Link to this image

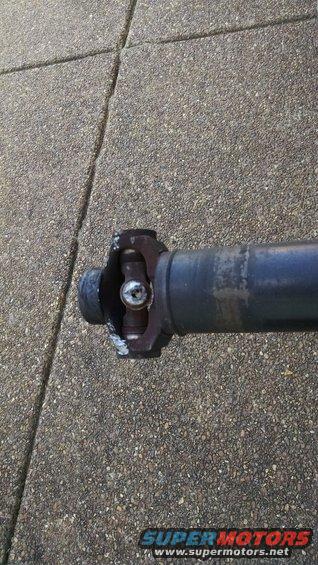

It broke AGAIN because the builder didn't grease the 2nd front U-joint.
|
|
|
 IMG_20161018_092035463.jpg | Hits: 600 | Size: 127.09 KB | Posted on: 10/18/16 | Link to this image

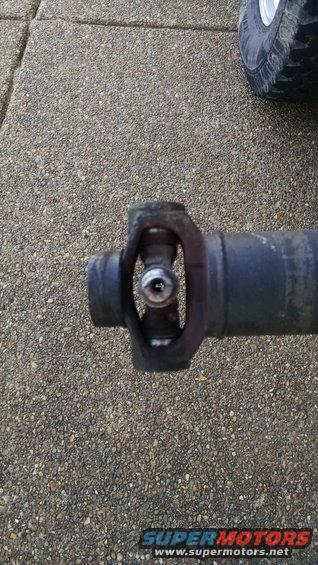

It broke AGAIN because the builder didn't grease the 2nd front U-joint.
|
|
|
 IMG_20161018_092113105.jpg | Hits: 550 | Size: 125.92 KB | Posted on: 10/18/16 | Link to this image
It broke AGAIN because the builder didn't grease the 2nd front U-joint.
|
|
|
 20170918_172357.jpg | Hits: 502 | Size: 66.74 KB | Posted on: 9/19/17 | Link to this image
!(°))@&$#!

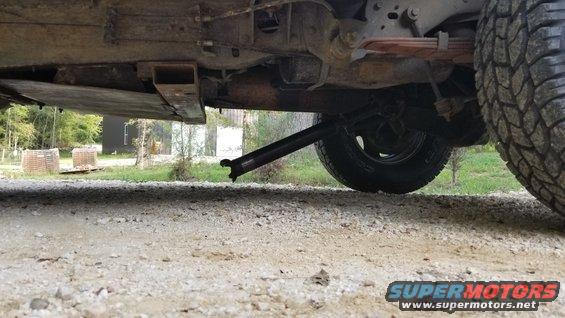

At least it happened AFTER towing a loaded trailer home, and backing it through the yard.
At this rate, I'll either have to get an all-new one built locally for ~$600 (using Spicer components) or take a chance with another online supplier.
UPDATE: Later today, I ordered a new shaft from Tom Woods. Then, I broke my leg.
|
