01Switches.JPG | Hits: 1865 | Size: 92.6 KB | Posted on: 5/17/11 | Link to this image


The original turn signal switch in the '88 column finally gave out. If you compare its top to its bottom (or the new switch), you can see there's a tooth missing from the top of the cancel cam, near the dark blue wire. The new switch is an aftermarket one that cost ~$45 sh from RockAuto.

For steering wheel removal, see:
.

Share This
Url
Tag
Thumb

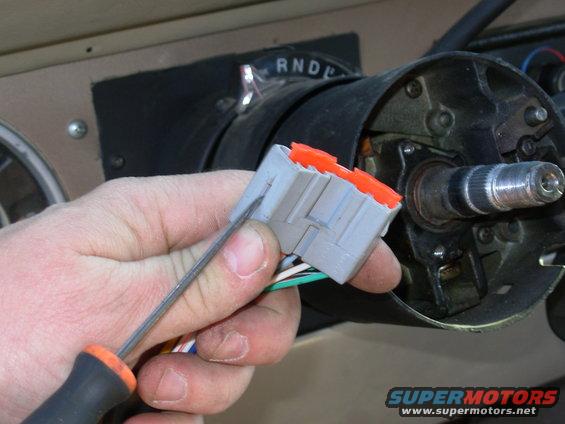

02Lock.JPG | Hits: 1455 | Size: 75.68 KB | Posted on: 5/17/11 | Link to this image


To get the switch out of the column without totally disassembling the column, just pull the wire terminals out of the connector shell & feed them through the column. To start, pry out the locking key.

For steering wheel removal, see:

Share This
Url
Tag
Thumb

03Release.JPG | Hits: 1308 | Size: 70.84 KB | Posted on: 5/17/11 | Link to this image


AFTER MARKING each terminal's wire colors on the connector shell, release them by gently prying each one's catch tab away from the terminal & pulling the wire out of the shell.

If you look closely at the original-(SUPER)size image, you can see that I've scratched the wire colors into the plastic shell.

Share This
Url
Tag
Thumb

04Releasing.JPG | Hits: 1284 | Size: 77.37 KB | Posted on: 5/17/11 | Link to this image


They're almost invisible in the pic, but the wire colors are scratched into the plastic shell. Do this to BOTH the old & new shells, just to be sure. Not all connectors are pinned the same, and you might find yourself moving pins around, or using the shell from the other switch.

Share This
Url
Tag
Thumb

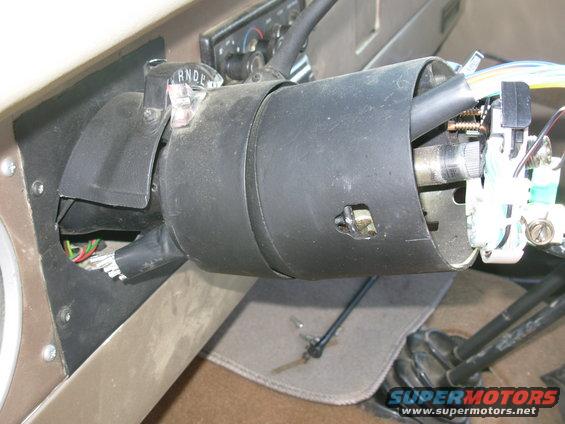

05Pull.JPG | Hits: 1460 | Size: 82.96 KB | Posted on: 5/17/11 | Link to this image


Once the shell is removed, feed the wires through the column and remove the switch. Then feed the new switch's wires right back in.

For steering wheel removal, see:
.

Share This
Url
Tag
Thumb

06Out.JPG | Hits: 1268 | Size: 90.55 KB | Posted on: 5/17/11 | Link to this image


Hang onto the old switch at least until the new switch is fully connected & tested working.

For steering wheel removal, see:
.

Share This
Url
Tag
Thumb

07Grease.JPG | Hits: 1195 | Size: 85.02 KB | Posted on: 5/17/11 | Link to this image


Apply a thin film of electrical grease to the 2 horn/cruise sliding contacts.

For steering wheel removal, see:

Share This
Url
Tag
Thumb

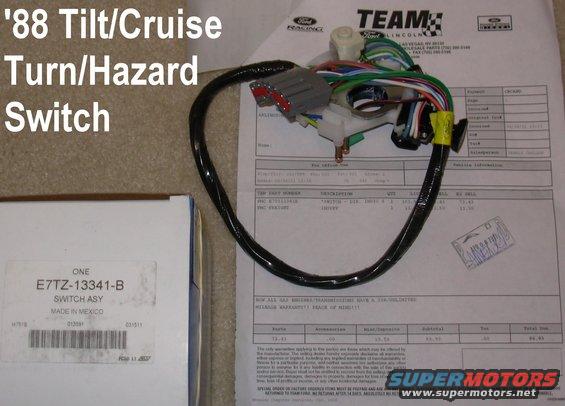

08Ford.JPG | Hits: 1355 | Size: 50.78 KB | Posted on: 5/17/11 | Link to this image


The aftermarket switch from RockAuto was junk, and is beginning to sag enough to turn on the L blinker by itself, so we're swapping to a Ford switch at roughly double the price from TeamFordParts.com .

Share This
Url
Tag
Thumb

09FordIn.JPG | Hits: 1596 | Size: 82.85 KB | Posted on: 5/17/11 | Link to this image


This one even feels better - the aftermarket one required a LOT of force to get onto the catches, but this one works just like you'd expect.

For steering wheel removal, see:
.
