All pics from other FSB members
|
|
|
Steve83 pic for reference
|
|
|
 overhead console and rearview mirror.jpg | Hits: 3029 | Size: 54.31 KB | Posted on: 4/2/11 | Link to this image

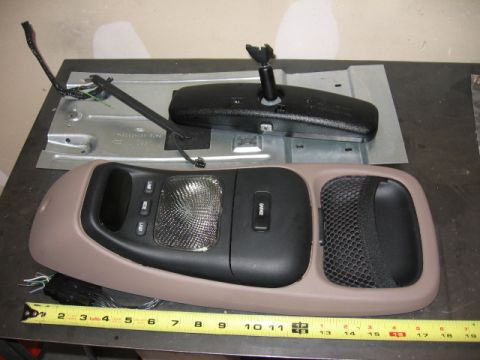

Finally scored the Bronco EB console, tin backer and electrochromatic rearview mirror for a good price. Also have a bronco temp sensor on it's way. So now I just need the harness and I'm ready for the install.
|
|
|

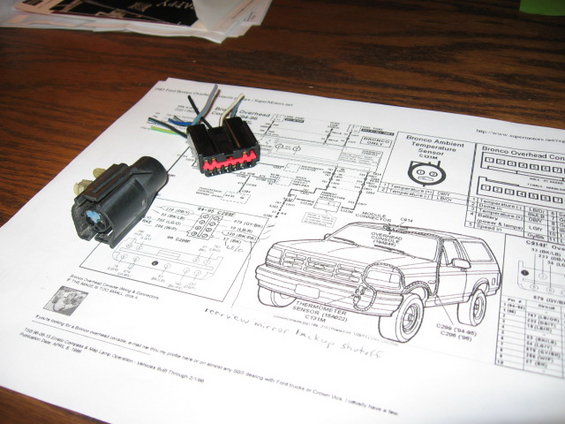

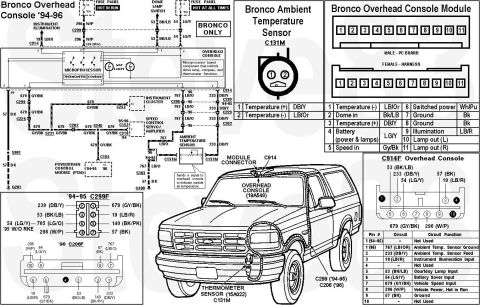

This is a fantastic view of the whole wiring for a bronco overhead console, and note the wiring is a little different at the kick panel 94-95 vs. 96. This is from Steve83's site, he is the best for details. I only post here for my knowledge if I want to review in the future and to help anyone else wanting to do a nice Bronco OHC installs.
|
|
|
 misc bronco upgrades 006.jpg | Hits: 1780 | Size: 62.38 KB | Posted on: 4/7/11 | Link to this image
|
|
|
 misc bronco upgrades 008.jpg | Hits: 1661 | Size: 44.41 KB | Posted on: 4/8/11 | Link to this image

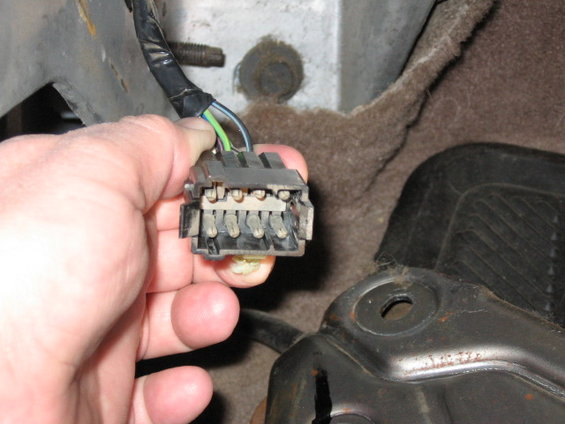

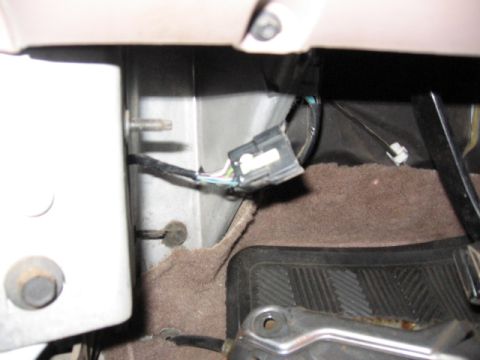

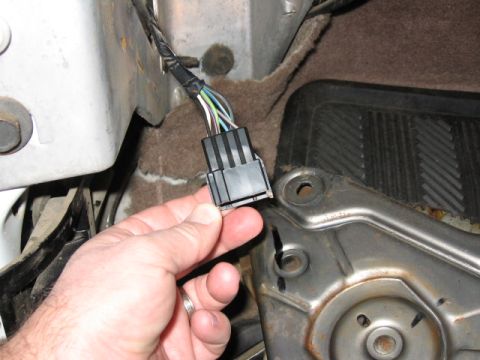

remove drivers kick panel, and the 3 small bolts for the emergency brake and pull that out of the way and you will find the plug. Then you just need the harness going up to the overhead console to plug into this.
|
|
|
 misc bronco upgrades 011.jpg | Hits: 1672 | Size: 31.19 KB | Posted on: 4/8/11 | Link to this image
|
|
|
 misc bronco upgrades 012.jpg | Hits: 1882 | Size: 60.45 KB | Posted on: 4/8/11 | Link to this image
|
|
|
 misc bronco upgrades 013.jpg | Hits: 1960 | Size: 52.97 KB | Posted on: 4/8/11 | Link to this image
|
|
|
 overhead console and rearview mirror 001.jpg | Hits: 1759 | Size: 82.21 KB | Posted on: 4/21/11 | Link to this image

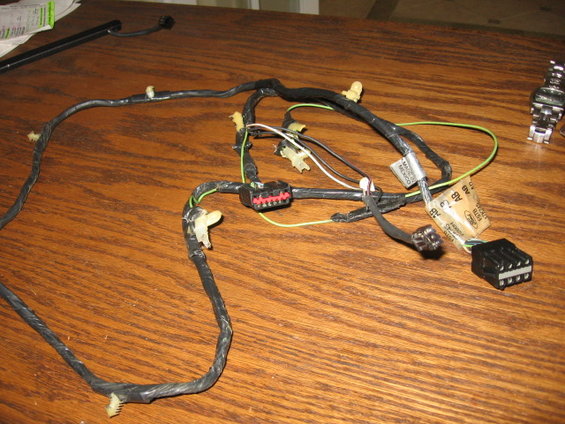

This is the factory 94-95 OHC wiring harness I got from Steve83.
|
|
|
 overhead console and rearview mirror 002.jpg | Hits: 1704 | Size: 44.15 KB | Posted on: 4/21/11 | Link to this image

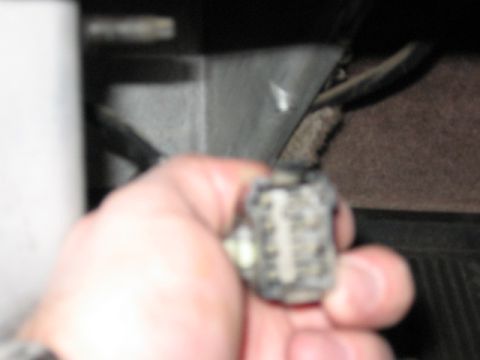

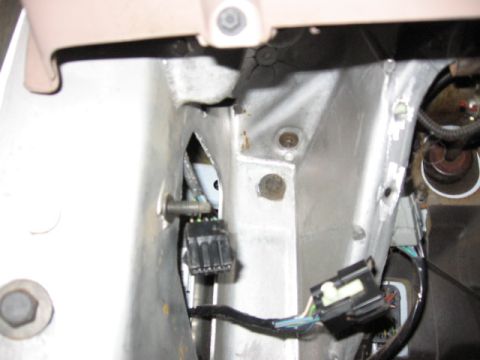

just showing the plugs down at the kick panel drivers side.
|
|
|
 overhead console and rearview mirror 003.jpg | Hits: 1706 | Size: 53.15 KB | Posted on: 4/21/11 | Link to this image

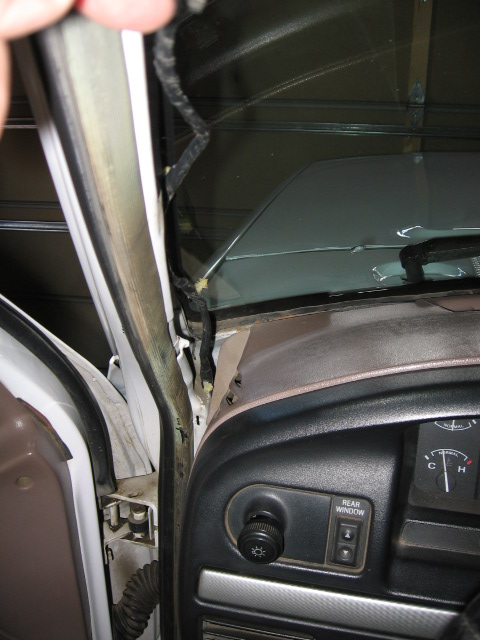

after I dropped the plug through from above I had to fish it out down below. Pillar already has the holes for the push holders if you get a harness that still has them intact.
|
|
|
 overhead console and rearview mirror 004.jpg | Hits: 2236 | Size: 58.54 KB | Posted on: 4/21/11 | Link to this image

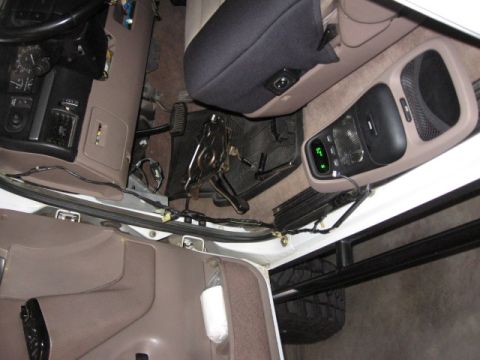

testing OHC before going further
|
|
|
 overhead console and rearview mirror 005.jpg | Hits: 2117 | Size: 64.12 KB | Posted on: 4/21/11 | Link to this image

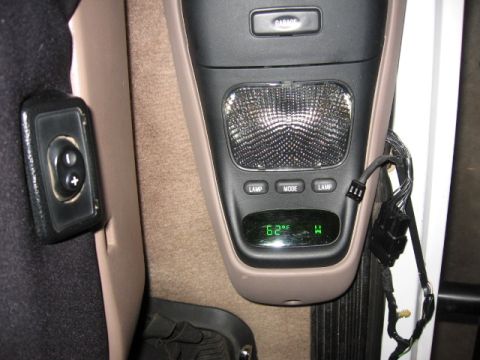

no issues, after driving around later temp and compass are accurate.
|
|
|
 overhead console and rearview mirror 006.jpg | Hits: 1838 | Size: 35.67 KB | Posted on: 4/21/11 | Link to this image

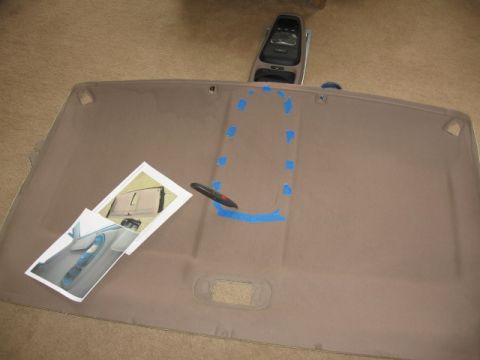

getting ready to cut my headliner
|
|
|
 overhead console and rearview mirror 007.jpg | Hits: 1764 | Size: 35.71 KB | Posted on: 4/21/11 | Link to this image

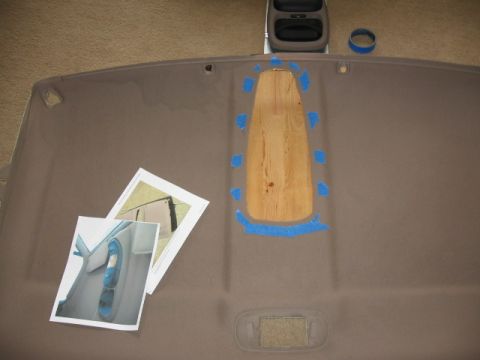

headliner cut
|
|
|
 overhead console and rearview mirror 008.jpg | Hits: 1915 | Size: 51.54 KB | Posted on: 4/21/11 | Link to this image

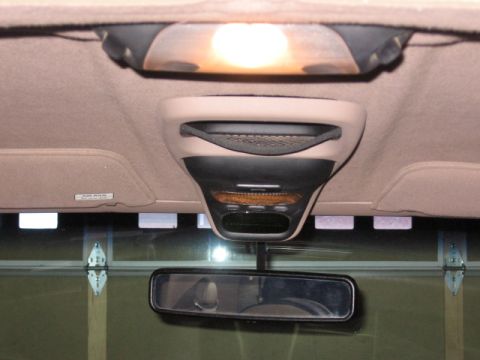

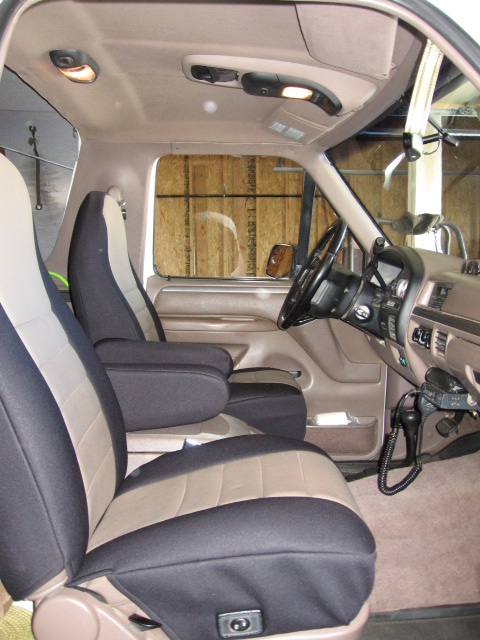

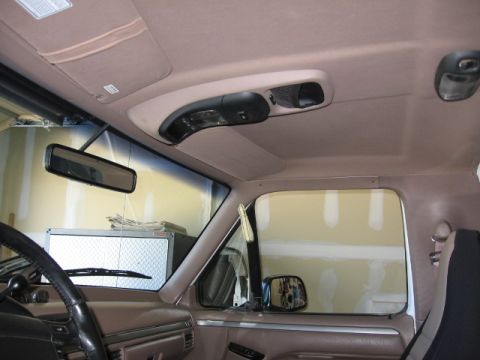

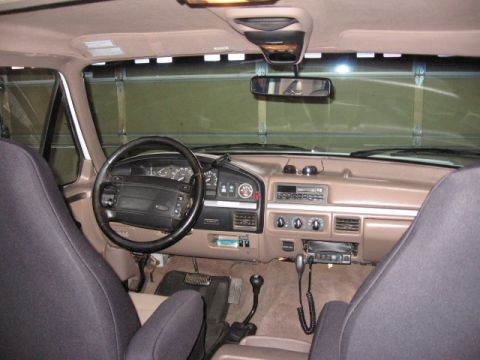

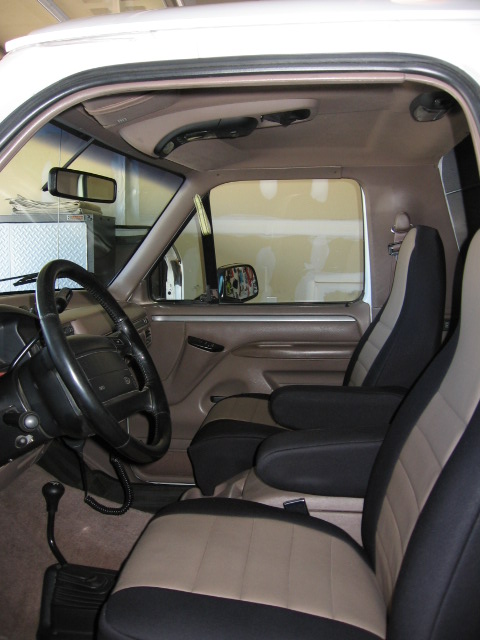

all put back together, including the auto dim mirror and wiring.
|
|
|
 overhead console and rearview mirror 009.jpg | Hits: 2546 | Size: 49.07 KB | Posted on: 4/21/11 | Link to this image
|
|
|
 overhead console and rearview mirror 010.jpg | Hits: 2027 | Size: 62.98 KB | Posted on: 4/21/11 | Link to this image
|
|
|
 overhead console and rearview mirror 011.jpg | Hits: 1950 | Size: 46.26 KB | Posted on: 4/21/11 | Link to this image
|
|
|
 overhead console and rearview mirror 012.jpg | Hits: 2336 | Size: 61.83 KB | Posted on: 4/21/11 | Link to this image
|
Bronco Overhead Console (DONE)
