 F Code with spacer.JPG | Hits: 743 | Size: 67.02 KB | Posted on: 6/6/07 | Link to this image
This shows the stance of my modded F code springs with the 1/8" shim and 5/8" thick spacer included in the spring pack. (Half a tank of gas).
|
|
|
 F code with spacer-front.JPG | Hits: 814 | Size: 74.25 KB | Posted on: 6/6/07 | Link to this image
This shows the stance of my modded F code springs with the 1/8" shim and 5/8" thick spacer included in the spring pack. (Half a tank of gas). Note that the variable rate leaf is almost fully engaged.
|
|
|

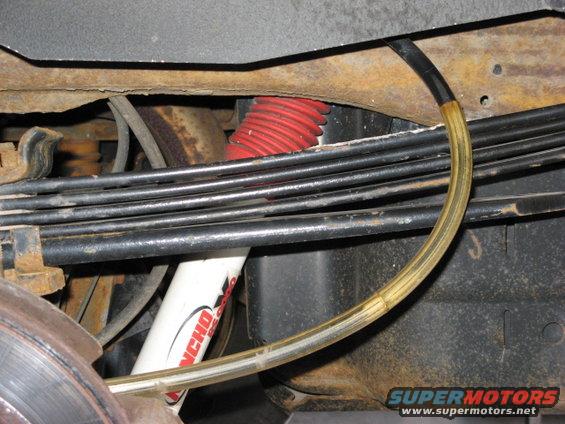

 F code with spacer-rear.JPG | Hits: 727 | Size: 77.85 KB | Posted on: 6/6/07 | Link to this image
This shows the stance of my modded F code springs with the 1/8" shim and 5/8" thick spacer included in the spring pack. (Half a tank of gas). Not much of a problem here.
|
|
|

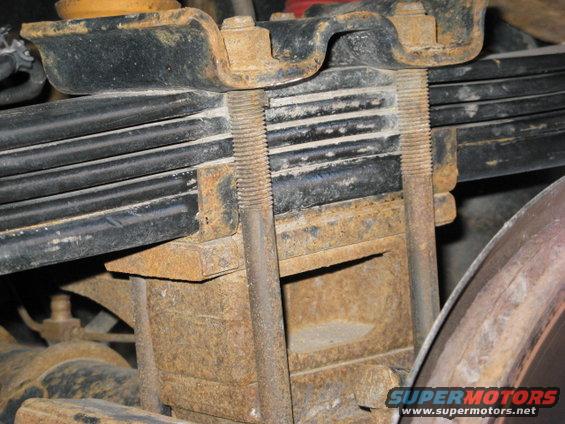

 F code with spacer at u-bolts.JPG | Hits: 791 | Size: 81.26 KB | Posted on: 6/6/07 | Link to this image
Here you can see the piece of the original 5/8" thick anti-wrap leaf and 1/8" shim placed in the F code spring pack. This yielded an overall increase of 1.5" over stock.
|
F Code Rear Springs - As Installed Aug 2006
