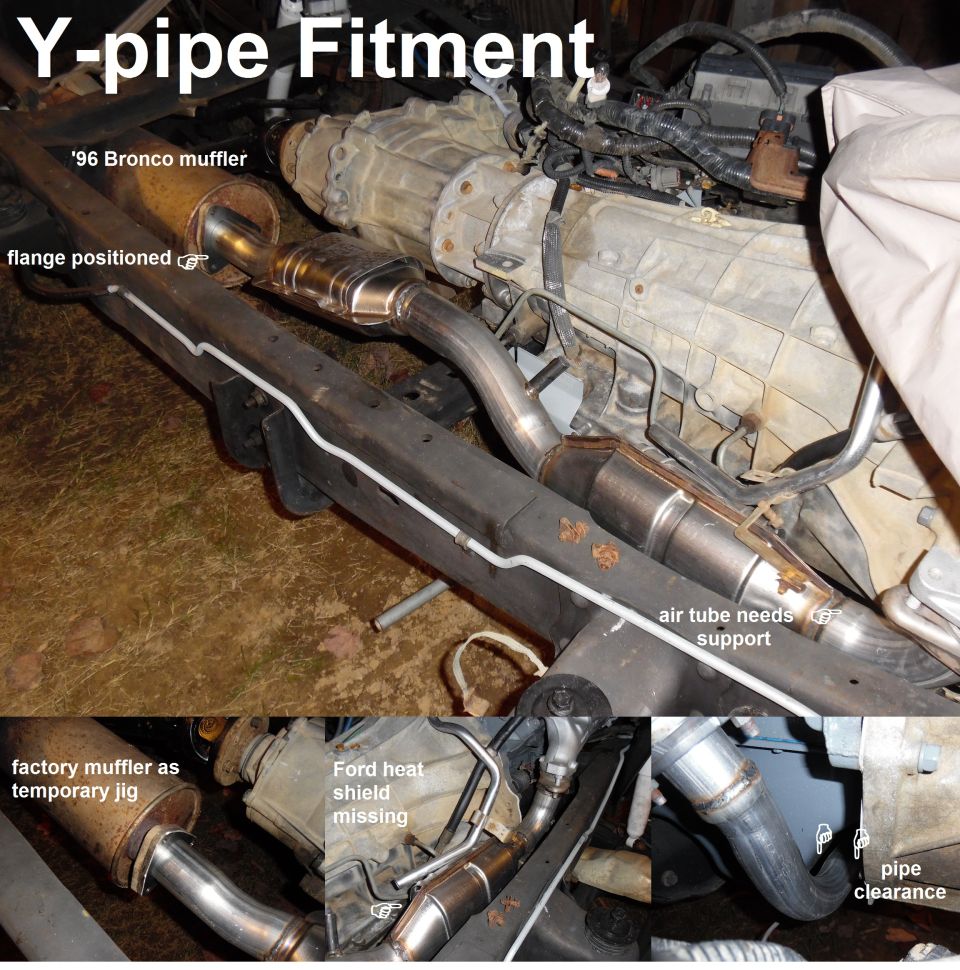

Using the original '96 Bronco muffler, I positioned my homemade flange on the new Y-pipe, and checked a few other things. I had to tweak it just a little to get the back end to line up with the muffler, so it's built surprisingly accurately.
IF THE IMAGE IS TOO SMALL, click it.
.
.
.
.
.
![08muffler3y.jpg Using the original '96 Bronco muffler, I positioned my homemade flange on the new Y-pipe, and checked a few other things. I had to tweak it just a little to get the back end to line up with the muffler, so it's built surprisingly accurately.
