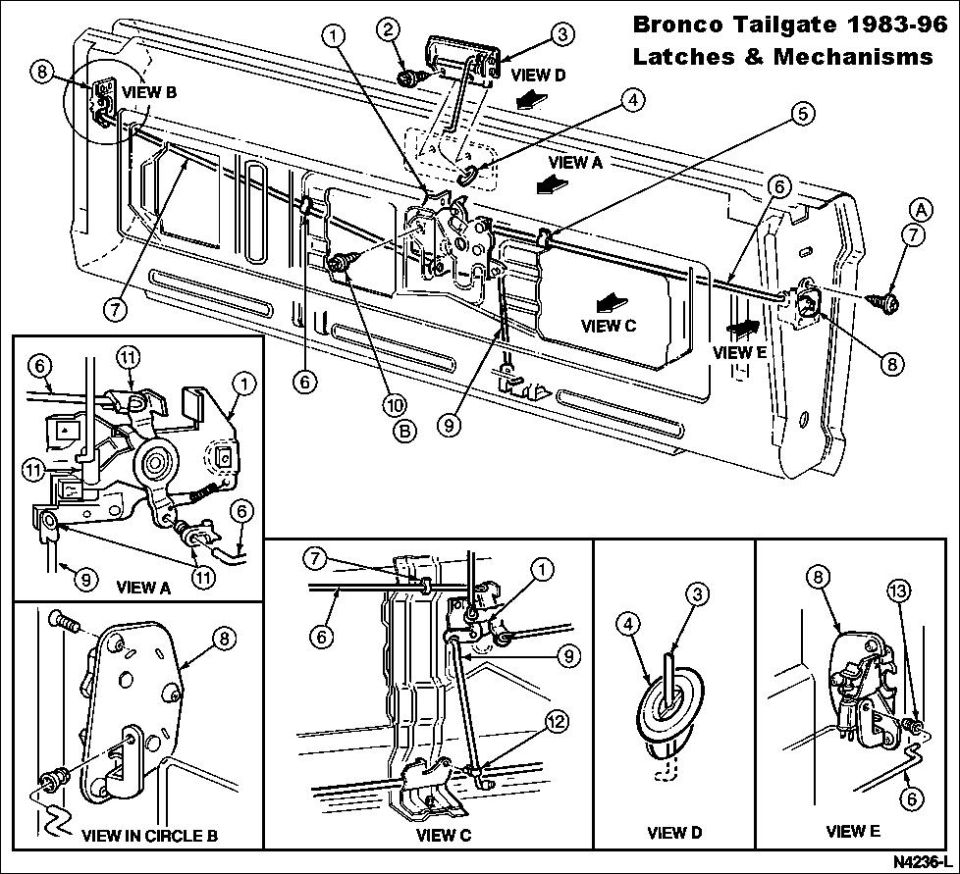

tailgate-latch-8396.jpg '83-96 Bronco Tailgate Latches

ERRORS: there are several 6s & 7s...

1 - Tailgate Latch Remote Control D8TZ-9843170-B (JBG [url=https://shop.broncograveyard.com/1980-1996-Ford-Bronco-Tailgate-Handle-Release-Assembly/productinfo/34520/]34520[/url])
2 - Screw
3 - Tailgate Latch Release Handle
4 - Plug Button
5 - Rod Guide Clip
6 - Remote-to-Latch Link Rod
7 - Screw and Washer; tighten to 3-8 N-m (2-6 Lb-Ft)
8 - Tailgate Latch Bracket
9 - Interlock Rod
10 - Screw and Washer; tighten to 8-14 N-m (6-11 Lb-Ft)
11 - Rod Retainer Clip
12 - Guide Clip AuVeCo 23307
13 - Bushing

The torsion bar retainer (430A32) in View C is available from Dennis Carpenter as [url=https://www.dennis-carpenter.com/en/trucks/tailgate-amp-liftgate/tailgates/d8tz-98430a30-a-tg-counter-balance-torsion-bar]98430A30[/url]
