transautocontrols96.jpg | Hits: 15446 | Posted on: 1/3/10 | View original size (612.31 KB)

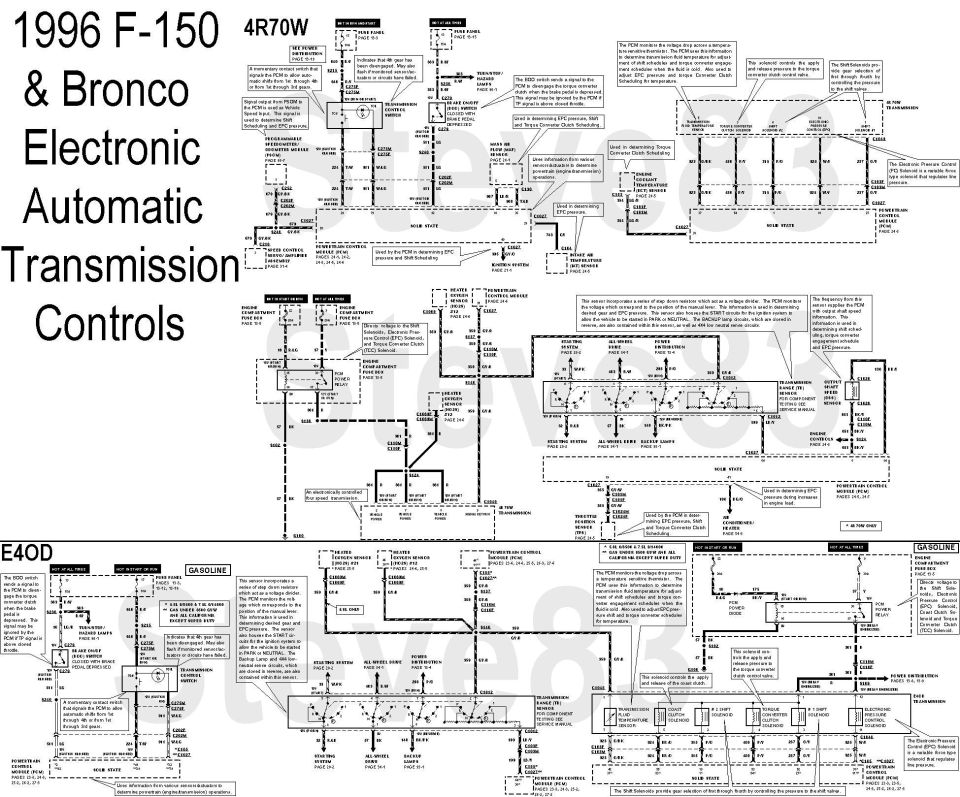

'96 Electronic Auto Trans Controls
IF THE IMAGE IS TOO SMALL, click it.
4R70W OSS: 450 to 750 Ohms

E4OD & early 4R100 (up to early '99 w/o OSS&TSS) on-off TCC solenoid ~20-30 Ohms
Late '99-up 4R100 (w/OSS&TSS) PWM TCC solenoid ~5 Ohms

See also:
.
http://e4od.com/logo_page.htm
-------------------------------------------------------------------------
E4OD TSBs:

98-16-08 TRANSMISSION - E4OD/4R100 - 1989-99 - MAIN CONTROLS, SEPARATOR PLATES AND SEPARATOR PLATE GASKETS USAGE CHART

98-16-07 TRANSMISSION - E4OD - NO 2-3 UPSHIFT

98-13-21 TRANSMISSION - E4OD - SERVICE CASE REPLACEMENT SERVICE TIPS FOR 7.3L DIESEL VEHICLE APPLICATIONS

98-04-19 LAMP - FLASHING TRANSMISSION CONTROL INDICATOR LAMP (TCIL) WITH DIAGNOSTIC TROUBLE CODES (DTCS) 62, 628 AND/OR 1728 STORED IN MEMORY
TRANSMISSION - E4OD - FLASHING TRANSMISSION CONTROL INDICATOR LAMP (TCIL) WITH DIAGNOSTIC TROUBLE CODES (DTCS) 62, 628 AND/OR 1728 STORED IN MEMORY

97-19-20 TRANSMISSION - E4OD - MAIN REGULATOR BOOSTER VALVE AND SLEEVE SERVICE KIT - SERVICE TIP

97-12-13 TRANSMISSION - C6, E4OD, AOD, 4R70W - LOW TRANSMISSION FLUID LEVEL AND/OR SHIFT AND/OR ENGAGEMENT CONCERNS - 4X4 AND AWD VEHICLES ONLY

96-07-28 TRANSMISSION - E4OD - REVERSE CLUTCH PISTON AND PISTON SEAL USAGE - SERVICE TIP

95-25-13 TRANSMISSION - E4OD - DIRECT CLUTCH PLATE USAGE CHART - SERVICE TIP

95-23-14 TRANSMISSION - E4OD - NEW DESIGN INTERMEDIATE BAND APPLY SERVO ASSEMBLY

95-16-19 TRANSMISSION - E4OD - INTERMEDIATE BRAKE DRUM ASSEMBLY USAGE - SERVICE TIP

95-13-07 TRANSMISSION - E4OD - HARSH AND/OR DOUBLE BUMP ON REVERSE ENGAGEMENT - VEHICLES WITH 4.9L ENGINE ONLY

95-11-13 TRANSMISSION - E4OD - DELAYED FORWARD ENGAGEMENT AND/OR HEAT STAINED FORWARD CLUTCH PLATES AFTER INSTALLING CENTER SUPPORT SERVICE KIT F4TZ-7A130-B

95-11-12 TRANSMISSION - E4OD - REVISED REAR CASE BUSHING

95-06-19 TRANSMISSION - E4OD - NEW DESIGN TRANSMISSION RANGE SENSOR (TR) AND CONNECTOR INCLUDED WITH ALL E4OD REMANUFACTURED TRANSMISSIONS

95-06-18 TRANSMISSION - E4OD - OVERDRIVE ONE-WAY CLUTCH - SERVICE TIPS

95-02-12 TRANSMISSION - E4OD - DIAGNOSTIC TROUBLE CODES - WATER INTRUSION OF THE MLP/TR SENSOR
TRANSMISSION - E4OD - POSSIBLE WATER INTRUSION INTO THE MLP/TR SENSOR CAUSING SHIFT CONCERNS AND/OR HARSH ENGAGEMENT CONCERNS
TRANSMISSION - E4OD - SHIFT CONCERNS AND/OR HARSH ENGAGEMENT CONCERNS DUE TO WATER INTRUSION OF THE MLP/TR SENSOR

94-24-15 TRANSMISSION - E4OD - UPGRADE - BALL BEARING CENTER SUPPORT SERVICE KIT

94-23-18 TRANSMISSION - E4OD - EXCESSIVE BUSHING WEAR - LOW ONE-WAY CLUTCH MALFUNCTION
TRANSMISSION - E4OD - FORWARD CLUTCH WEAR
TRANSMISSION - E4OD - OVERHEATING - CONVERTER COVER DISCOLORATION, CLUTCHES BURNED, BURNT FLUID
TRANSMISSION - E4OD - UPGRADED COMPONENTS TO BE INSTALLED DURING TEARDOWN

94-21-14 TRANSMISSION - E4OD - VEHICLE DOES NOT MOVE - DIAGNOSIS AND SERVICE TIPS

94-21-13 TRANSMISSION - E4OD - UPGRADED OVERDRIVE PLANET ASSEMBLY AND INPUT SHAFT WHEN REPLACEMENT OF EITHER BECOMES NECESSARY

94-11-08 E4OD TRANSMISSION/ATX TRANSAXLE - EXCHANGE REQUIRED WHEN REPAIR COST EXCEEDS $1,300 FOR E4OD OR $1,100 FOR ATX
TRANSMISSION - E4OD/ATX - EXCHANGE PROGRAM INCREASES AVAILABILITY OF REMANUFACTURED UNITS - E & F SERIES LIGHT TRUCKS EQUIPPED WITH E4OD TRANSMISSIONS, TAURUS WITH 2.5L ENGINES, TEMPO/TOPAZ WITH 2.3L HSC/HSO ENGINES

94-09-13 HEATER - "GURGLING" NOISE FROM CORE AT COLD START - VEHICLES WITH E4OD TRANSMISSION
NOISE - "GURGLING" SOUND FROM HEATER CORE AT COLD START - VEHICLES WITH E4OD TRANSMISSION

94-08-20 TRANSMISSION - E4OD AND C-6 - INSTALLATION INSTRUCTIONS FOR "NEW UNITIZED PLASTIC CAGE" LOW ONE-WAY CLUTCH - 1989-94 MODELS WITH E4OD AND ALL MODEL YEARS WITH C-6
TRANSMISSION - E4OD AND C-6 - NO FORWARD ENGAGEMENT - SERVICE TIPS FOR INSTALLING "NEW UNITIZED PLASTIC CAGE" LOW ONE-WAY CLUTCH - 1989-94 MODELS WITH E4OD AND ALL MODEL YEARS WITH C-6

94-02-25 TRANSMISSIONS - C-6, E4OD, AOD - DIFFICULT OR IMPOSSIBLE TO SHIFT - CABLE BINDS DUE TO ENVIRONMENTAL EXPOSURE

93-19-11 SHEET METAL - CAB BACK PANEL "BOOM" NOISE - VEHICLES WITH 4.9L ENGINE AND E4OD OR C6 TRANSMISSION
NOISE - "BOOM" FROM CAB BACK PANEL - VEHICLES WITH 4.9L ENGINE AND E4OD OR C6 TRANSMISSION

93-12-16 NOISE - "CLUNK" - WHEN MOVING THE E4OD TRANSMISSION SELECTOR LEVER TO ENGAGE TRANSMISSION RANGES
TRANSMISSION - E4OD - "CLUNK" NOISE WHEN MOVING THE TRANSMISSION SELECTOR LEVER TO ENGAGE TRANSMISSION RANGES

93-08-14 LAMP - "MALFUNCTION INDICATOR LAMP" - ON AND CODE 41 (HEGO INDICATING RICH/LEAN) IN CONTINUOUS MEMORY - 7.5L WITH E4OD TRANSMISSION

93-07-07 SURGE - 5.0L - ON ACCELERATION OR STEADY SPEED BELOW 35 MPH (56 KMH) - CALIFORNIA CALIBRATIONS WITH E4OD

92-22-05 BRAKES - REAR ANTI-LOCK BRAKE SYSTEM ELECTRONICS INOPERATIVE - VEHICLES WITH E4OD TRANSMISSION
INSTRUMENT CLUSTER - LOSS OF INSTRUMENTATION GAUGES - VEHICLES WITH E4OD TRANSMISSION
LAMP - TRANSMISSION CONTROL LIGHT CYCLES ON/OFF OR CONTROL SWITCH INOPERATIVE - VEHICLES WITH E4OD TRANSMISSION
WIRING - E4OD TRANSMISSION CONTROL SWITCH - SHORTS IN STEERING COLUMN AND BLOWS #17 FUSE
TRANSMISSION - E4OD - CONTROL SWITCH WIRING SHORTS IN STEERING COLUMN AND BLOWS #17 FUSE
TRANSMISSION - E4OD - EARLY SHIFTS, LOSS OF POWER, POOR ACCELERATION AND 3-4 SHIFT CYCLING

92-18-12 LAMP - "MALFUNCTIONING INDICATOR LAMP" - ON AND CODE 173 (HEGO INDICATING RICH) IN CONTINUOUS MEMORY - 5.8L WITH E4OD TRANSMISSION

92-15-13 LAMP - "CHECK ENGINE" MALFUNCTION INDICATOR LIGHT (MIL) LIT - SERVICE CODE 173 IN CONTINUOUS MEMORY - VEHICLES WITH 5.0L AND E4OD

92-09-13 MISS - 4.9L - RANDOM MISFIRE - VEHICLES WITH AUTOMATIC OR MANUAL TRANSMISSION
STALL - 4.9L - DURING TRANSMISSION GEAR ENGAGEMENT - E4OD ONLY
LATE GEAR SHIFTS AND ENGINE MISS
