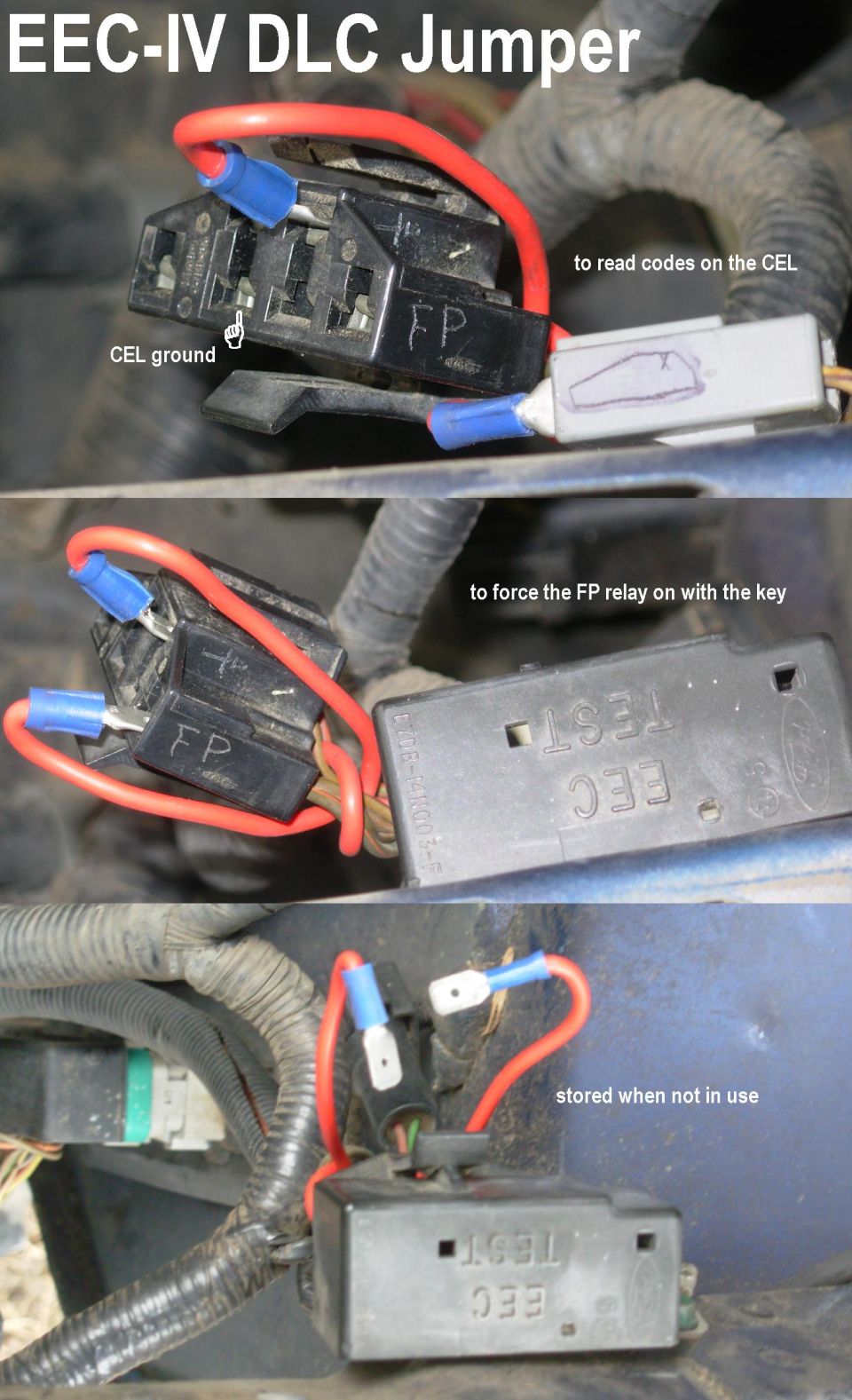

dlcjumper.jpg This is a cheap & easy upgrade to any EEC-IV vehicle: a simple jumper wire twisted into the harness behind the DLC makes pulling codes or triggering the fuel pump relay quick & convenient.  Scratch the terminal identifications into the plastic connector shells.
