'94-96 Bronco Overhead Console Temperature Sensor, and '92-97 F-series/Bronco DRL
1 Take-out from Wiring Assembly 12A581
2 Locator, Place in Hole Provided
3 Screw N610957-S2
4 Daytime Running Lamp Module F43Z15A272A (Canada Only)
Standard F03001 Dorman 704201
5 Connector 131M (Bronco Only)
6 Ambient Temperature Sensor (Bronco Only) 15A022
7 Front End Air Seal 01610
8 Jumper Cap 14A624 (w/o DRL) for C177
9 Connector Cap 14A666 (Bronco only w/o overhead console)
10 Take-out to Ambient Temperature Sensor (Bronco Only)

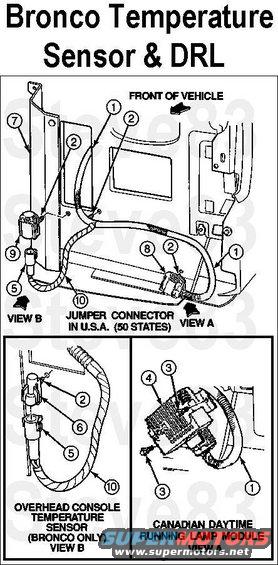

The main view of the diagram is at the LHF corner of the truck withOUT the front bumper, Left headlight, grille, or grille reinforcement.
The DRL module pulses the voltage to the high-beams to dim them. It is disabled by the e-brake pedal being anywhere OTHER than fully-released.
.
.
