20 hits | 125.55 KB | Posted: 9/26/24

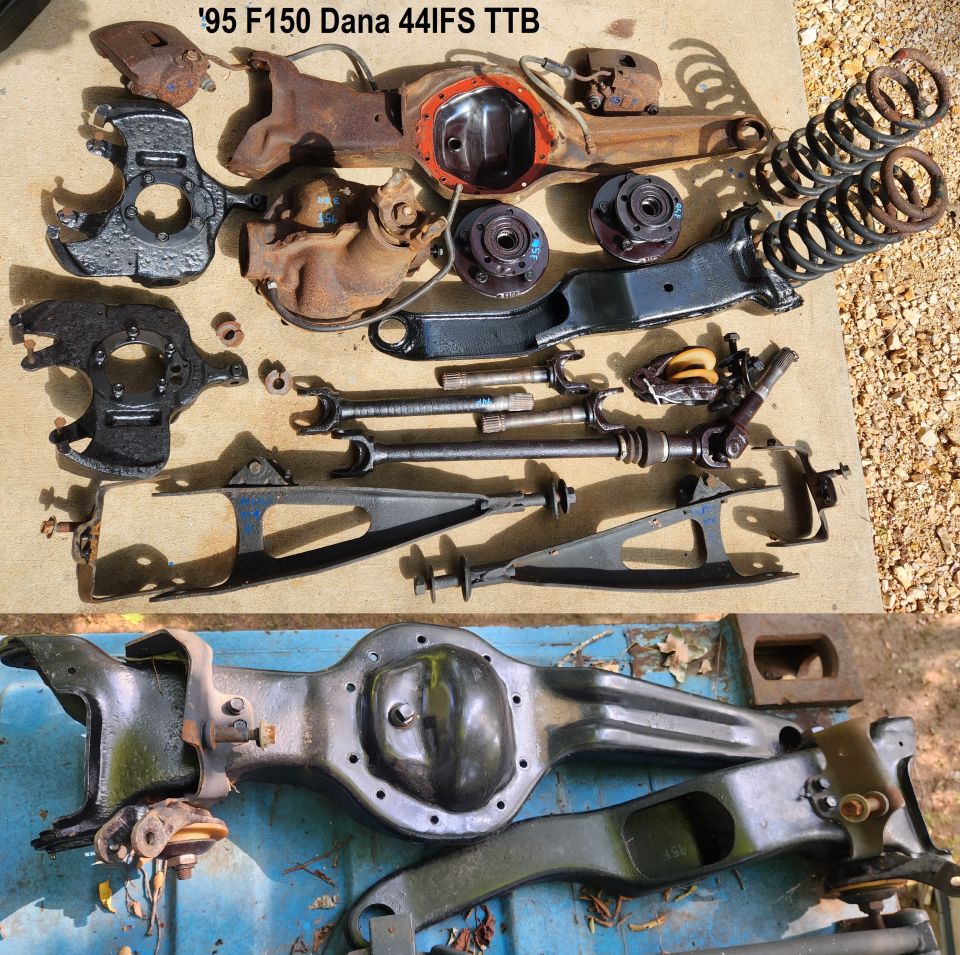

'95 Dana 44IFS TTB cleaned, stripped, sandblasted, & painted
IF THE IMAGE IS TOO SMALL, click it.

The calipers, springs, chunk, and a few other parts aren't getting blasted or painted.

39 hits | 87.17 KB | Posted: 8/18/24
Rear Driveshaft from '95 F150 4.9L M5ODR2 BW1356 133"wheelbase (std.cab long bed) 59.875" between U-joint cap centers
IF THE IMAGE IS TOO SMALL, click it.

Slip yoke only has been painted Rustoleum white to stop rust on the slip seal surface; shaf...

29 hits | 77.36 KB | Posted: 8/18/24
Front Driveshaft from '95 F150 4.9L M5ODR2 ~38" between U-joint cap centers
IF THE IMAGE IS TOO SMALL, click it.

Sandblasted & painted Rustoleum Gloss Black with yellow alignment marks; u-joints are still smooth

47 hits | 92.89 KB | Posted: 8/18/24
Lifting Eyes for 4.9L
IF THE IMAGE IS TOO SMALL, click it.

Sandblasted & painted DupliColor engine ceramic New Ford Gray (DE1611)

343 hits | 93.41 KB | Posted: 7/3/22
Bed Bolt U-nut Chasing
IF THE IMAGE IS TOO SMALL, click it.

This imported set of hardware is much cheaper than genuine Ford parts, but the nuts are over-crimped. So to prevent them from ripping through...

216 hits | 64.96 KB | Posted: 7/3/22
Bed Bolt Comparison
IF THE IMAGE IS TOO SMALL, click it.

Later-style bed bolts (short N806251-S103 & long N806252-S103) are installed from above, using a 5mm Allen (hex) driver, into U-nuts (N803334-S439) that clip to the top of the frame rail. So t...

374 hits | 95.05 KB | Posted: 6/23/22

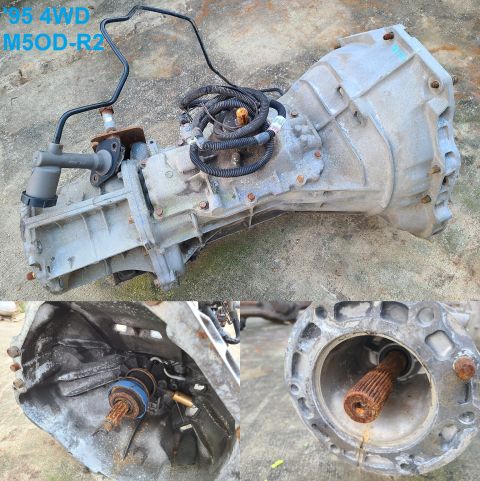

M5OD-R2 4WD Swap Set
IF THE IMAGE IS TOO SMALL, click it.
This is nearly everything needed to convert a '92-96 F150 from 2WD to 4WD 5sp w/manual t-case: a good used Mazda M5OD-R2 4WD transmission with shifter/boot/engine shim/flywheel/diaphragm/clutc...

277 hits | 75.67 KB | Posted: 5/2/22
4.9L Fuel Rail
IF THE IMAGE IS TOO SMALL, click it.

washed, polished with steel wool, and painted with DupliColor engine ceramic clearcoat

275 hits | 55.88 KB | Posted: 2/12/22
Mazda M5OD-R2 Shifter -7210-, Knob 5L5Z7213AA, Boot/Bezel F5TZ7277BA, & Nut/Bolt
IF THE IMAGE IS TOO SMALL, click it.

Disassembled, washed, sandblasted, painted, & reassembled

451 hits | 39.97 KB | Posted: 5/19/21
4.9L Intake Manifold Set
IF THE IMAGE IS TOO SMALL, click it.

washed, sandblasted, planed, and painted inside & out with DupliColor engine ceramic New Ford Gray (DE1611), [url=https://www.amazon.com/dp...

416 hits | 46.83 KB | Posted: 4/24/21
4.9L Air Pump, spins smoothly & pushes air
IF THE IMAGE IS TOO SMALL, click it.

washed, sandblasted, and painted with DupliColor engine ceramic Aluminum Cast Coat, and gloss black

409 hits | 52.34 KB | Posted: 1/25/21
After one of the front bed bolts spun, I welded some scrap metal to the heads and used a big adjustable wrench to hold them. The other 4 bolts unscrewed, because they were rustier.

Some people replace these with newer-style bolts, like W719365S902 b...

403 hits | 133.29 KB | Posted: 1/25/21

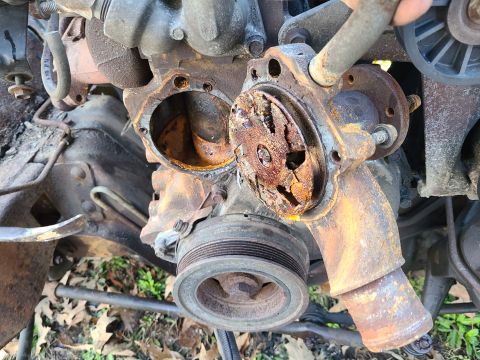

Coolant neglect destroys water pumps. This impeller is like lace.

. [url=https://www.supermotors.n...

398 hits | 117.31 KB | Posted: 1/25/21

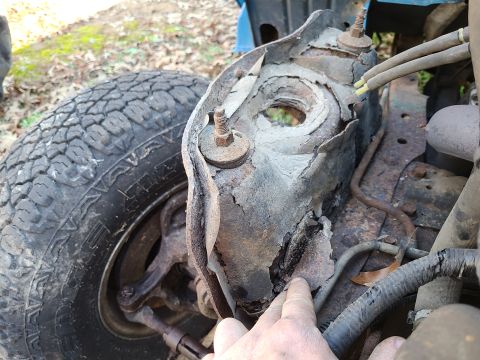

The painted parts of the frame are BADLY rusted - the galvanized & undercoated parts are in better condition.

396 hits | 82.17 KB | Posted: 5/19/21
4.9L Upper Intake Manifold
IF THE IMAGE IS TOO SMALL, click it.

washed, sandblasted, planed, and painted inside & out with DupliColor engine ceramic New Ford Gray (DE1611), belt-sanded & [url=https://w...

374 hits | 95.05 KB | Posted: 6/23/22
M5OD-R2 4WD Swap Set
IF THE IMAGE IS TOO SMALL, click it.
This is nearly everything needed to convert a '92-96 F150 from 2WD to 4WD 5sp w/manual t-case: a good used Mazda M5OD-R2 4WD transmission with shifter/boot/engine shim/flywheel/diaphragm/clutc...

368 hits | 115.98 KB | Posted: 11/16/20
An easy pull for the 7.3L
IF THE IMAGE IS TOO SMALL, click it.
