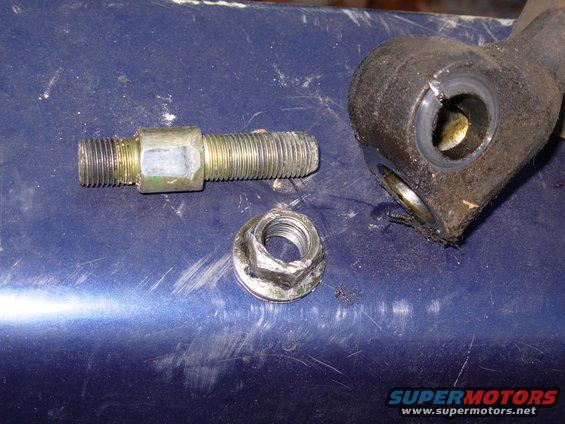

Shifter Bolt for Mazda M5OD-R2
To remove the shifter, remove the nut, and thread it onto the exposed threads on the other side of the shifter. Tighten the nut until it loosens, and pull the wedge bolt out of the shifter. Then remove the shifter from the transmission stub.
IF THE IMAGE IS TOO SMALL, click it.
