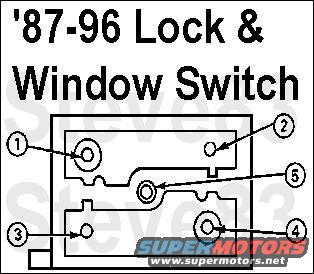

'87-96 Door Lock & Window Switch
Pin 1 is Normally Closed (NC) to pin 2.
Pin 4 is Normally Closed (NC) to pin 3.
When the rocker is depressed toward pin 1, it opens from 2 & closes to 5.
When the rocker is depressed toward pin 4, it opens from 3 & closes to 5.
The index peg (lower L of the diagram) is:
- L-shaped for Left lock switches
- U-shaped for Right lock switches
- round for window switches
'92-96 Window Switch (all locations)
Motorcraft SW7062'92-96 Lock Switch (driver/red key) Wells SW6493, Airtex 1S9028; (passenger/black key) Wells SW6492, Standard PDS-134
