980 hits | 74.72 KB | Posted: 11/28/05

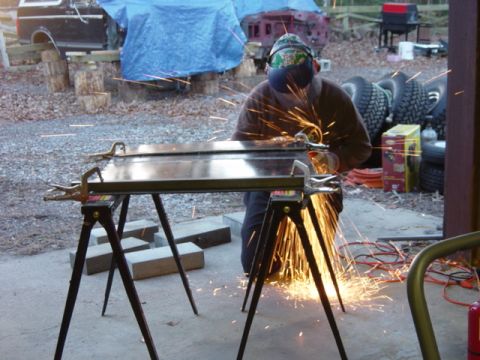

I got a good deal on unused 24"x32" 1/4" plates at scrap price, so they'll be used for a number of t...

454 hits | 42.03 KB | Posted: 11/28/05

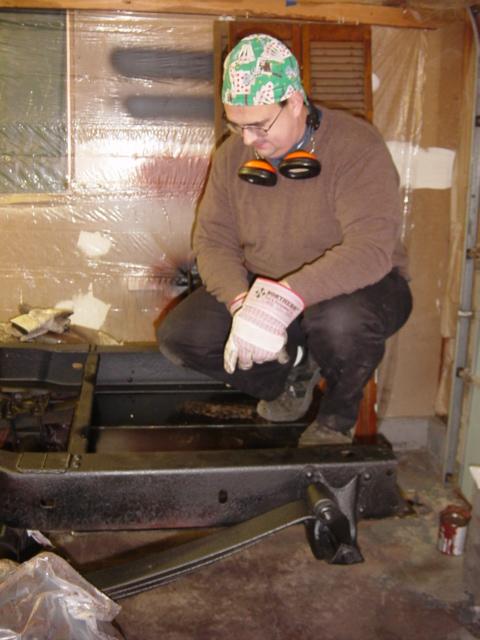

Even with only about 50% weld penetration (a single 1/8" MIG bead), the plate still has no trouble h...

409 hits | 71.71 KB | Posted: 11/28/05

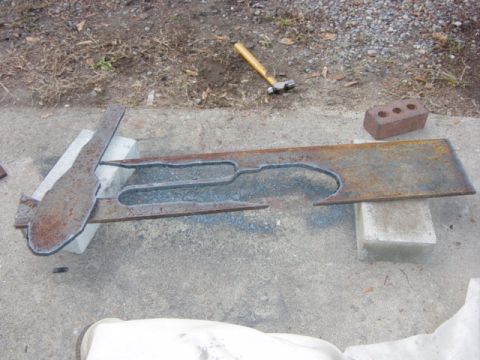

New bumper endplates cooling after being cut out of 1/2" plate with the torch. Lots of cleanup stil...

395 hits | 43.88 KB | Posted: 12/12/05

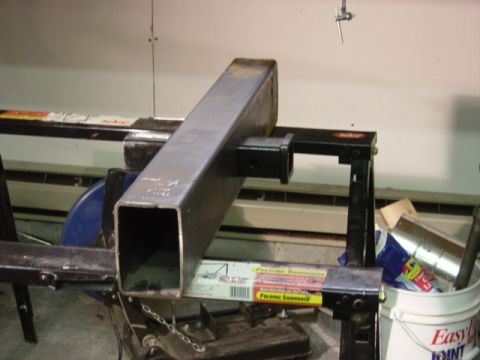

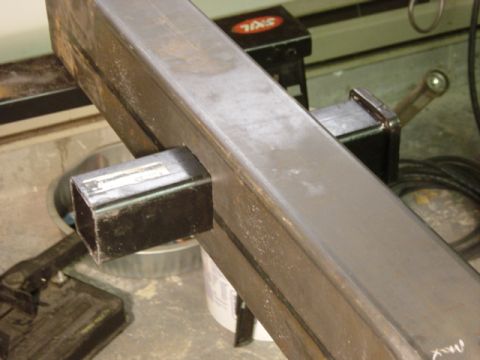

Putting a square peg through a round hole ...

389 hits | 47.52 KB | Posted: 12/12/05

375 hits | 60.39 KB | Posted: 12/12/05

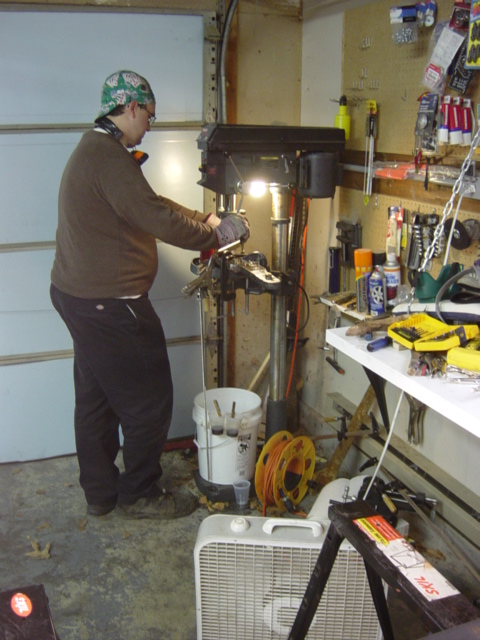

JB drilling the end plates.

444 hits | 45.23 KB | Posted: 12/12/05

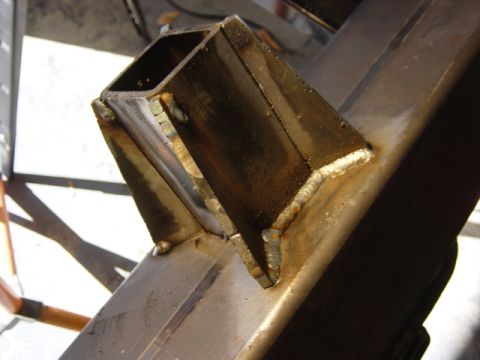

Gussets tacked in place, one test bead run.

449 hits | 51.68 KB | Posted: 12/12/05

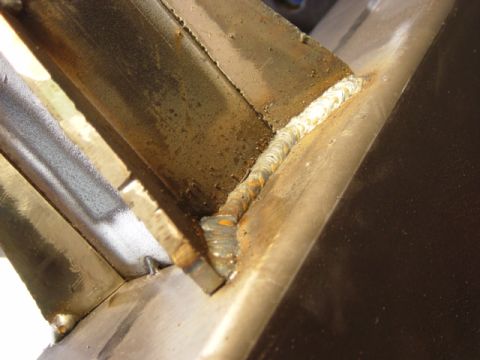

Lots of spatter and not the best penetration, but the remainder of this piece is overengineered. I'...

424 hits | 50.15 KB | Posted: 12/12/05

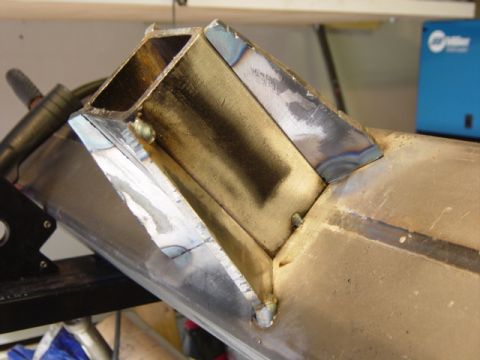

Pretty good heat affected zones on the backside, but the tack in the foreground is ugly as hell.

420 hits | 53.75 KB | Posted: 12/12/05

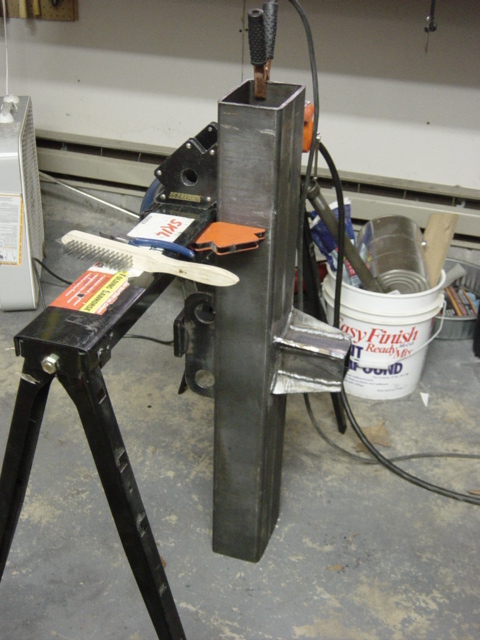

Backside cooling down after finish welding.

463 hits | 61.41 KB | Posted: 12/12/05

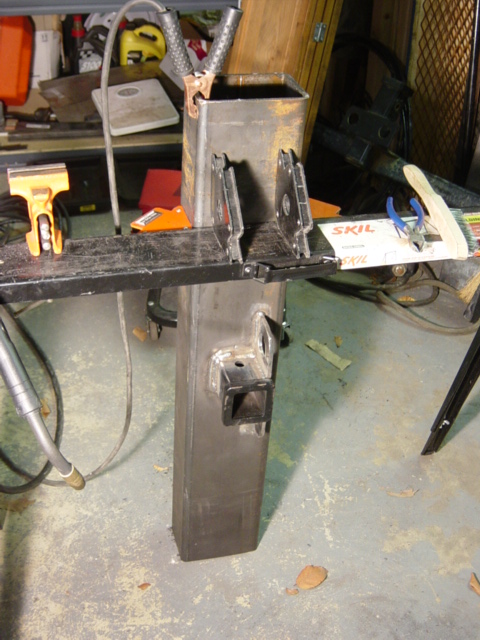

Business end of the bumper. Welds around the receiver tube are three pass fillet, chain plate is fi...

541 hits | 46.1 KB | Posted: 12/12/05

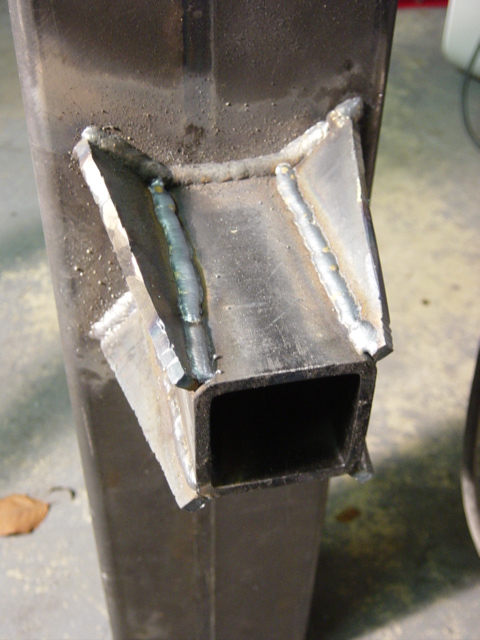

I'd been fighting my welder the whole time, and like an idiot couldn't figure out why I was having t...

589 hits | 62.52 KB | Posted: 12/12/05

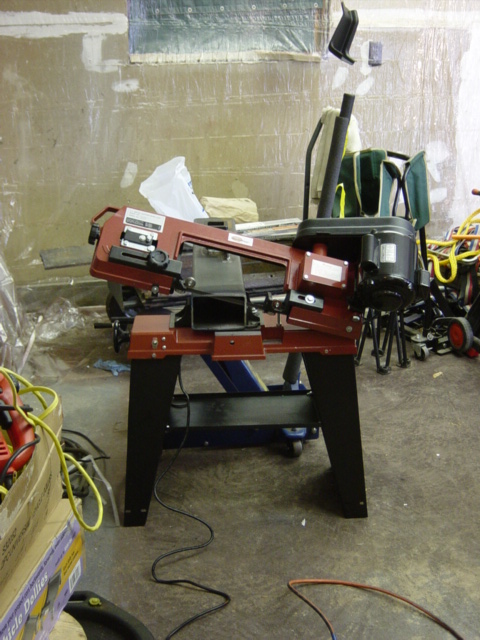

Time to make the final cut to length so we can mount the bumper between the endplates. Daddy's got ...

1907 hits | 64.21 KB | Posted: 12/12/05

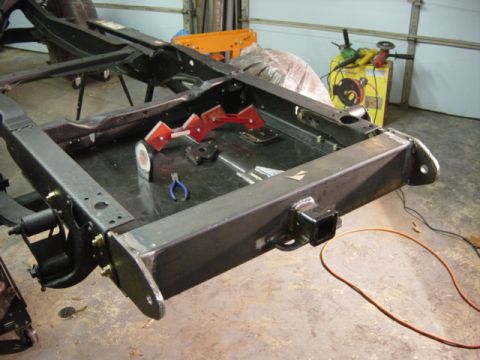

Tacked in place and ready to be unbolted for final welding. Right now it's secured by half the endp...

775 hits | 54.05 KB | Posted: 1/3/06
Finish welds on the end plates.

666 hits | 57.38 KB | Posted: 1/3/06
All done except the top plate and the reinforcement around the shackle points. Oh, and still need f...

507 hits | 32.24 KB | Posted: 3/6/06

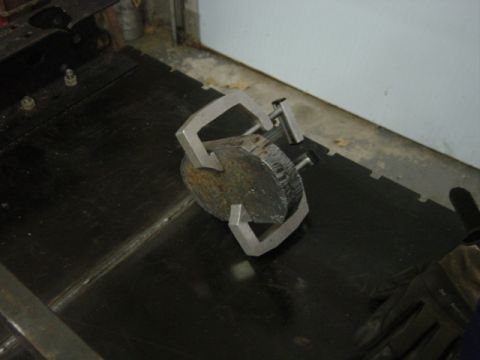

With a little cleanup, these two rough ovals will become the reinforcement for the rear shackle poin...

509 hits | 61.69 KB | Posted: 3/6/06

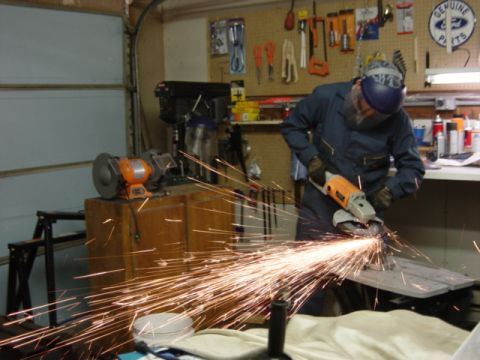

A "little" cleanup. New toy makes short work of rough edges on a pair of plates that total 1" when ...

491 hits | 39.6 KB | Posted: 3/6/06

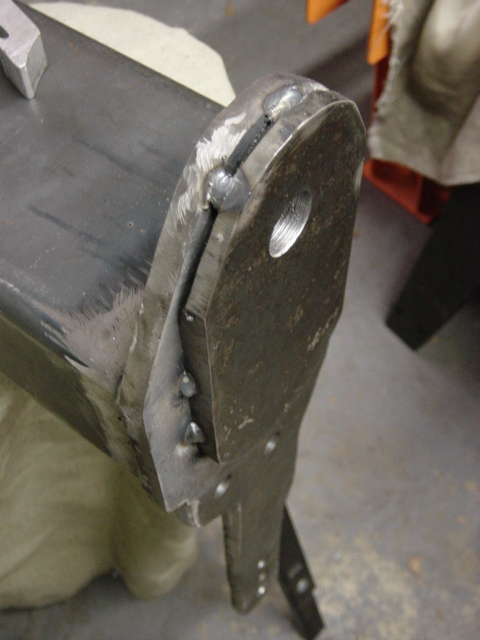

Plates are drilled, then beveled at the ends and tacked in place ...

565 hits | 42.03 KB | Posted: 3/6/06

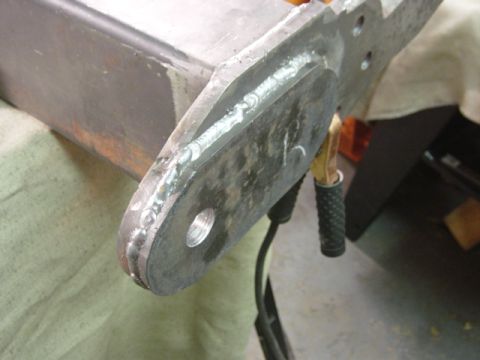

Followed by finish welds. Single pass 5/32" or so fillets are more than sufficient for the required...

578 hits | 42.7 KB | Posted: 3/6/06

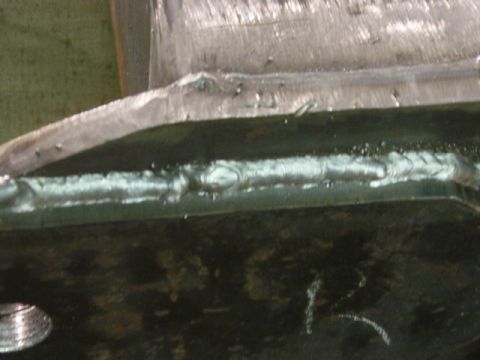

... which is good, since that's the maximum capacity of this welder in a single pass. More strength...

596 hits | 45.21 KB | Posted: 3/6/06

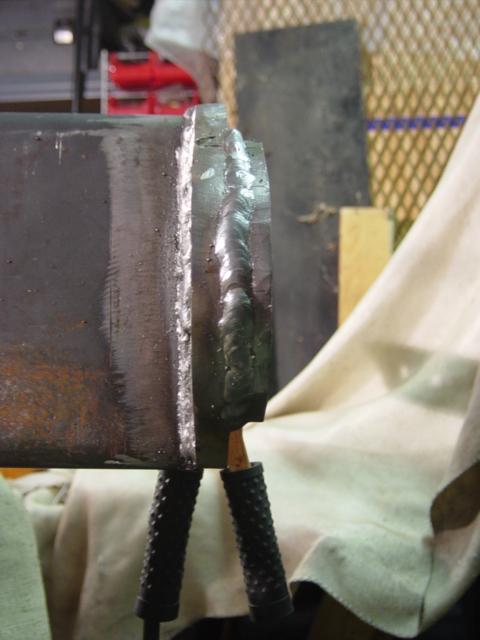

The infill at the end. I did screw up doing the bevel on the opposite end, and had to grind out abo...

747 hits | 64.83 KB | Posted: 3/6/06

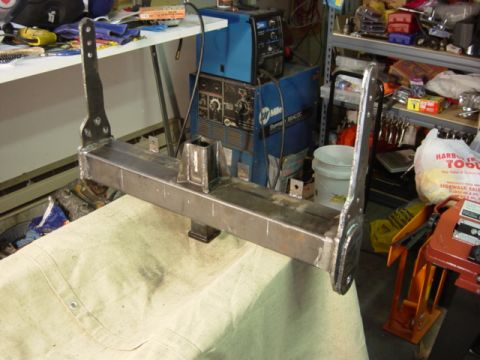

Two endplates, plus four tabs to help support the skidplate. Then we quit on the truck for the day ...

763 hits | 73.5 KB | Posted: 3/7/06

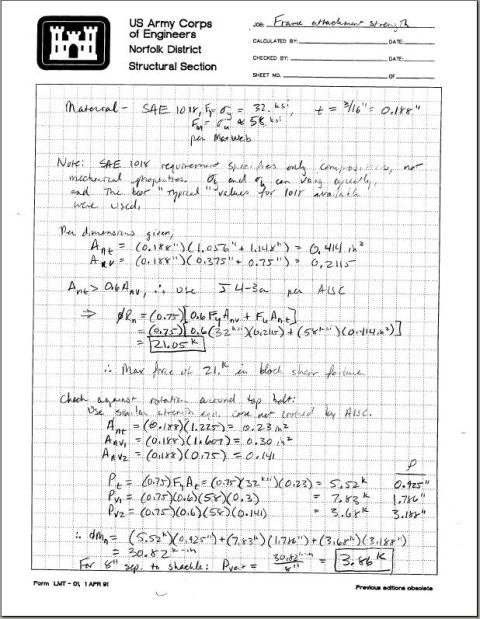

I was asked for calcs and an illustration explaining why I said the factory mounting holes in the fr...

811 hits | 24.28 KB | Posted: 3/7/06

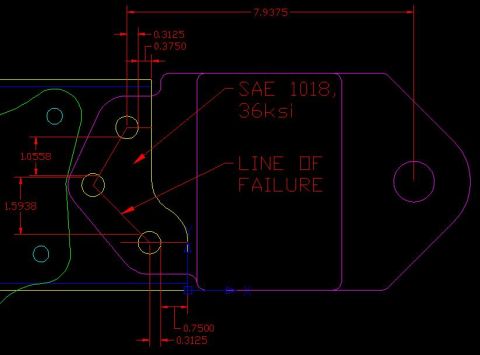

Illustration of the block shear failure area, and necessary dimensions.

702 hits | 24.14 KB | Posted: 3/7/06

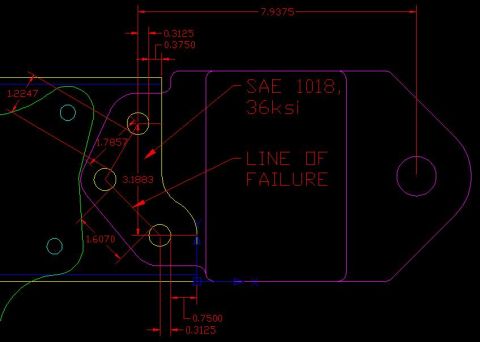

Illustration of the rotation failure dimensions.

587 hits | 27.41 KB | Posted: 3/13/06

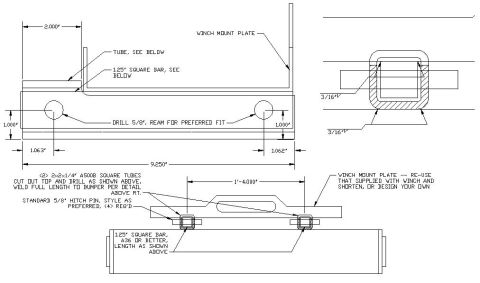

Design for a simple removable winch mount, much stronger than receiver mount and without the clearan...

534 hits | 51.18 KB | Posted: 3/17/06

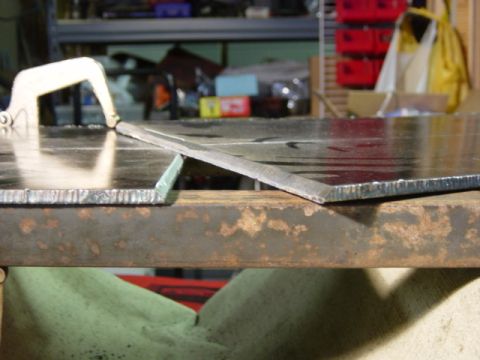

We had a discussion on T4W about doing big jobs with a little welder. Here's an illustrative series...

556 hits | 55.31 KB | Posted: 3/17/06

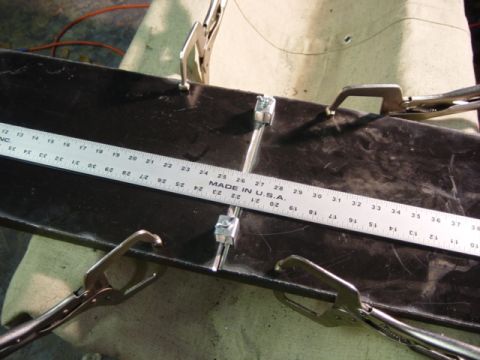

Get the pieces lined up straight and clamped in place. Remember the typical MIG guidance about not...

532 hits | 45.95 KB | Posted: 3/17/06

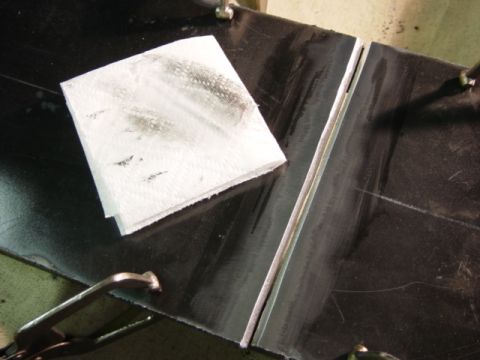

Then strip back the paint at the weld area, and clean. That filth on the paper towel was from one s...

538 hits | 52.04 KB | Posted: 3/17/06

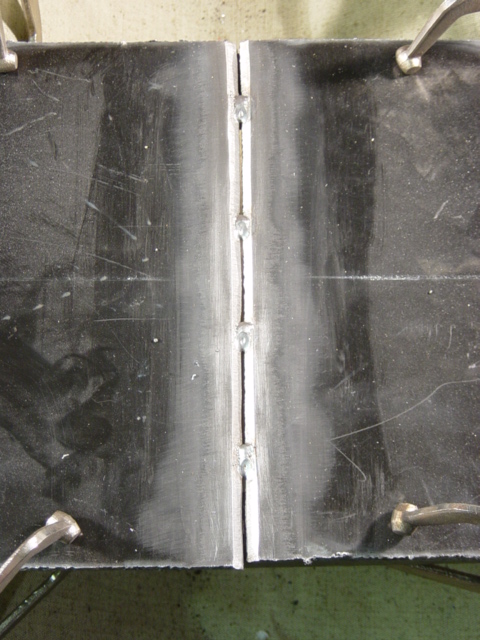

Tack it up ...

534 hits | 37.42 KB | Posted: 3/17/06

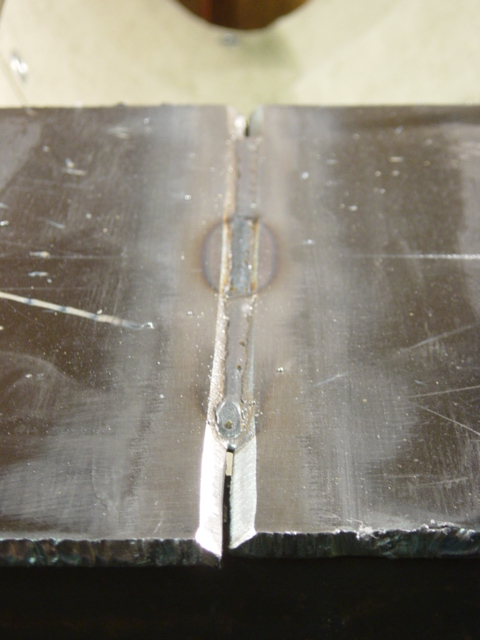

Then connect the dots. In this shot, I've just finished the middle section, as you can see. I had ...

442 hits | 43.09 KB | Posted: 3/17/06

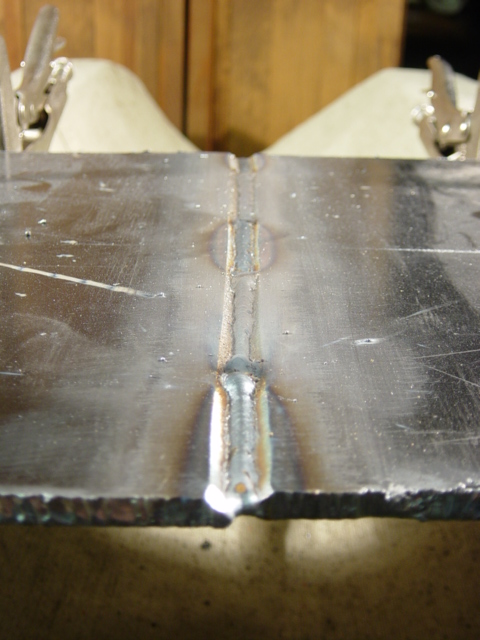

If you want decent penetration, don't ask the welder to do more than it can. Going slow just piles ...

487 hits | 43.95 KB | Posted: 3/17/06

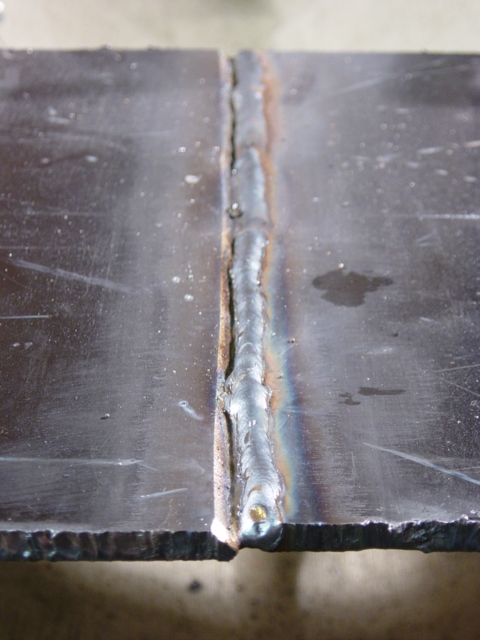

Run the second bead on the right side. My garage was a high traffic area at this point, so even wit...

502 hits | 45.69 KB | Posted: 3/17/06

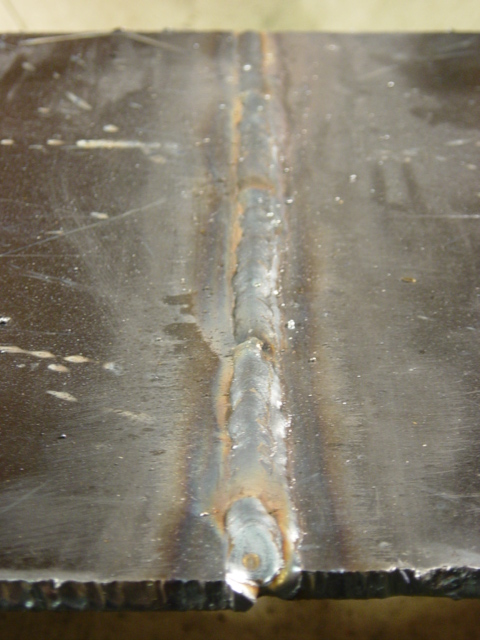

Run the lefthand bead. Fewer stops this time, too, which is good since it's easy to trap small pock...

533 hits | 51.96 KB | Posted: 3/17/06

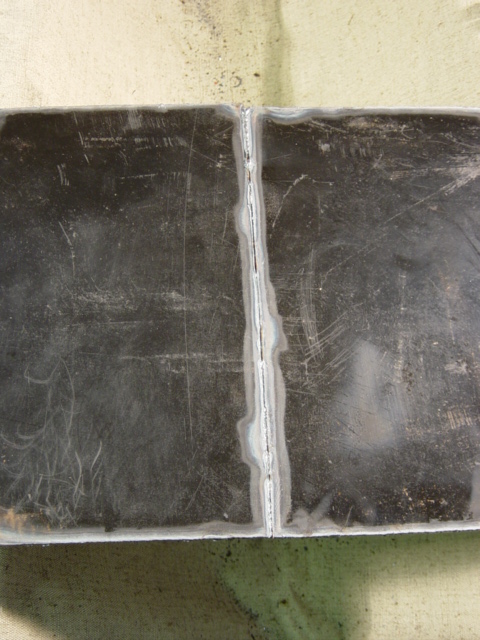

Now, flip it over and get a look at the backside (I've already given the plate time to cool and clea...

525 hits | 37.03 KB | Posted: 3/17/06

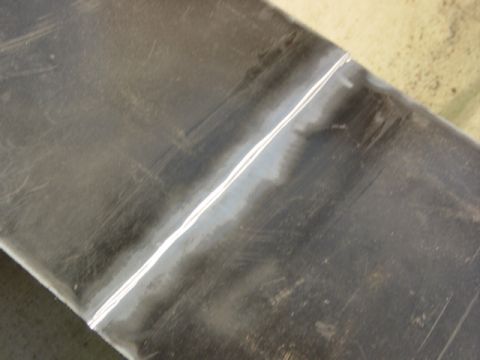

Tilt your 4-1/2" angle grinder up 45* and V out the backside. Start with the worst spot, and open i...

494 hits | 49.24 KB | Posted: 3/17/06

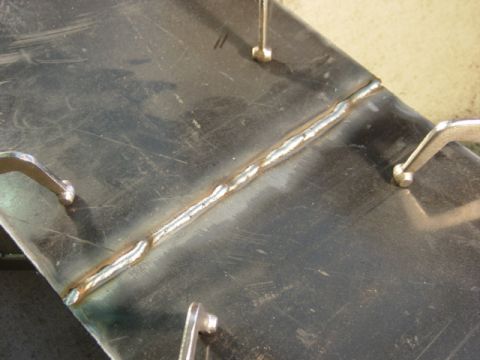

A single fast pass will finish the backside. I probably could've skipped these last steps if I were...

552 hits | 44.7 KB | Posted: 3/17/06

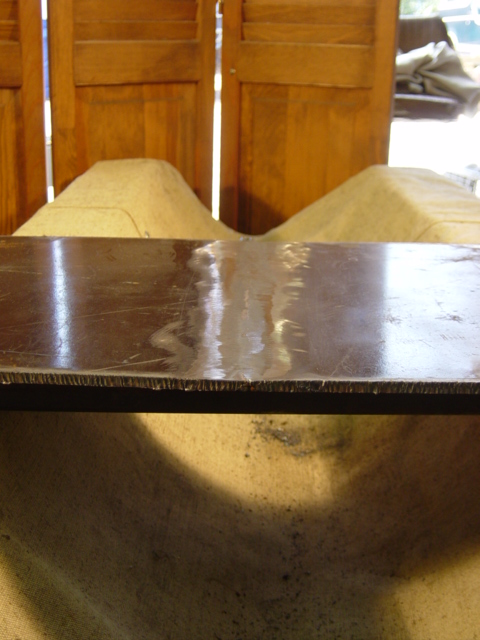

But I'm grinding this plate smooth on both sides, because it's highly visible.

Where's the weld...

472 hits | 44.98 KB | Posted: 3/17/06

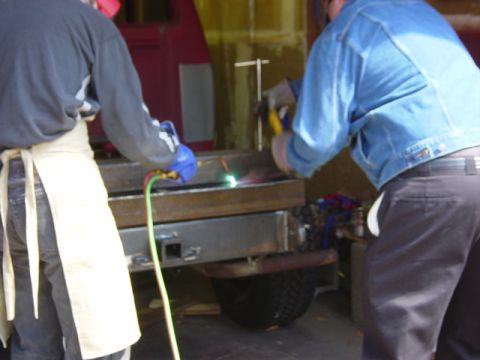

I need a 2-1/2" flange at the backside of this plate, so we decided to see if we could clamp itt, he...

411 hits | 47.28 KB | Posted: 3/17/06

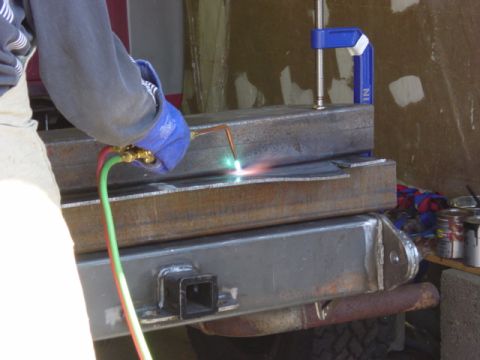

Not a chance! Of course, if I'd known last weekend how Dave was doing his bends I could've done tha...

416 hits | 39.23 KB | Posted: 4/2/06

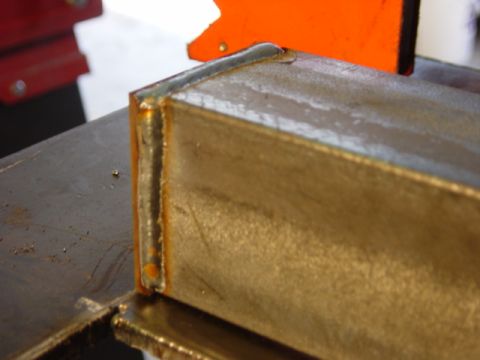

Alright, here's the forward side of our new reinforcing flange, a 2x2x1/8 angle. These PL2x2x3/16 p...

396 hits | 43.57 KB | Posted: 4/2/06

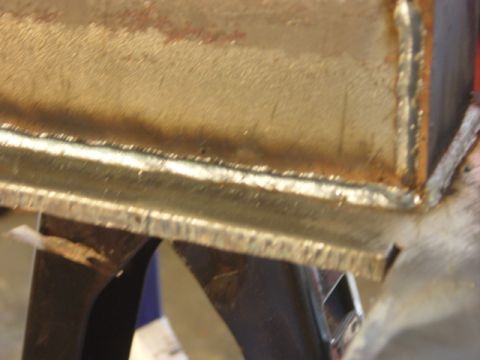

First pass down the root of the fillet complete. Honestly, I could probably have left it like this....

554 hits | 38.21 KB | Posted: 4/2/06

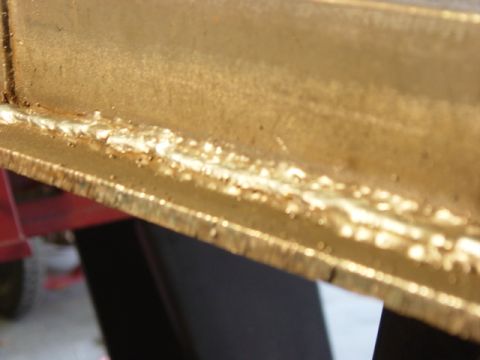

Three more passes complete the fillet. Trying to keep it hot and fast as I can.

548 hits | 48.84 KB | Posted: 4/2/06

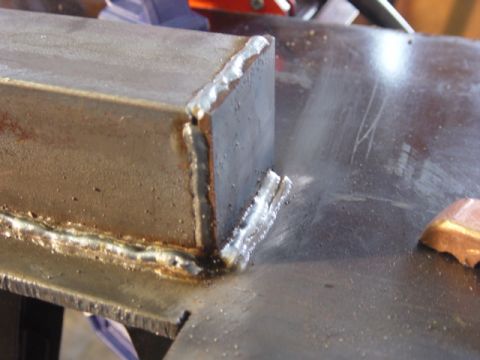

Another two passes to finish the weld of the endplate to the winch plate. Note the little bit of po...

485 hits | 35.39 KB | Posted: 4/2/06

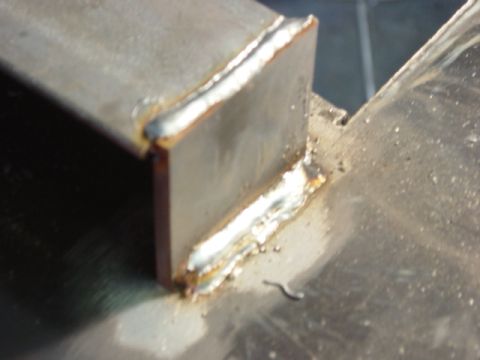

Opposite endplate, likewise three passes below and one on the top.

621 hits | 63.47 KB | Posted: 4/2/06

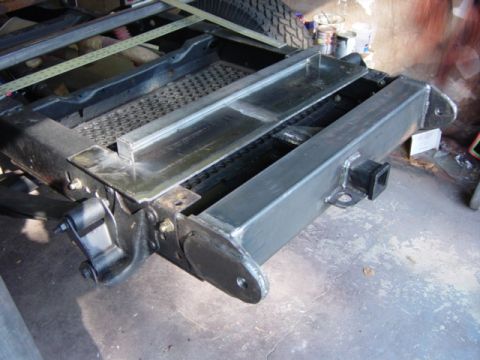

The whole stiffened winch plate assembly, flipped upside down end for end so I can clean the bottom....

1229 hits | 64.07 KB | Posted: 4/2/06

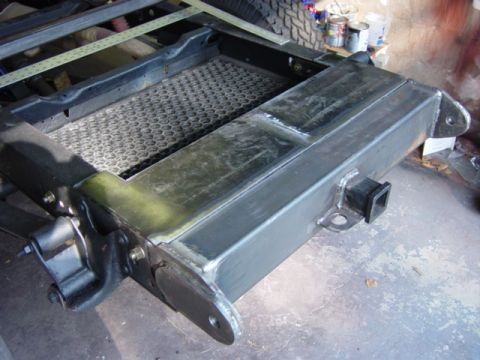

Back where it should be, with areas to be welded now cleaned of paint and grime. Just needs to be c...

448 hits | 63.39 KB | Posted: 4/2/06

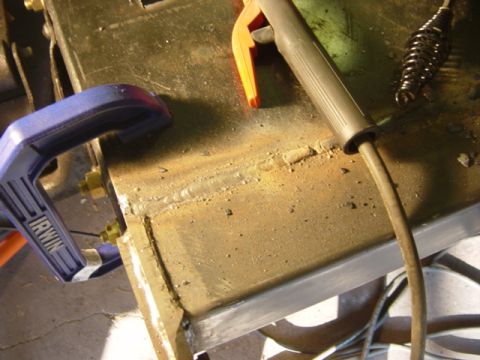

After screwing around with the little MIG welder all morning, I decided I should really use the weld...

475 hits | 62.76 KB | Posted: 4/2/06

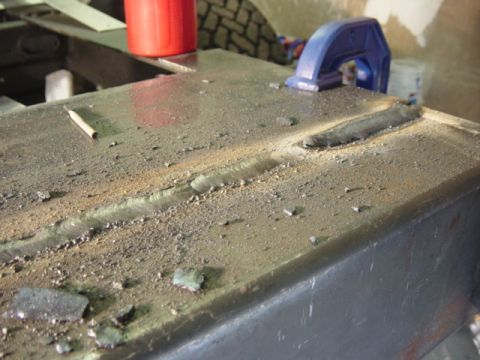

Still haven't chipped the slag from the last rod. Not the prettiest thing in the world, but I could...

457 hits | 65.69 KB | Posted: 4/2/06

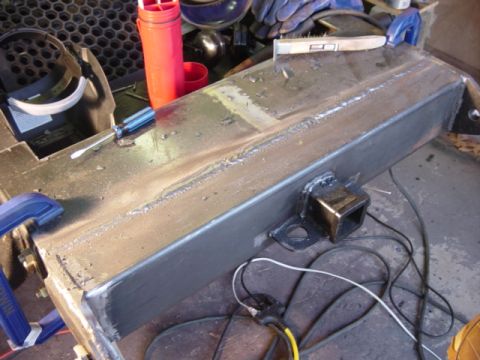

I really need to spend a lot more time practicing with the big arc welder. I think I'd end up getti...

375 hits | 61.2 KB | Posted: 4/2/06

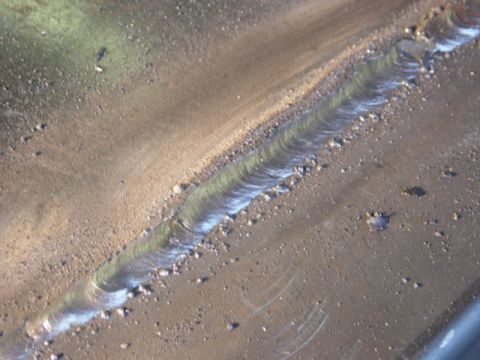

One of the areas I ended up having to grind porosity and run a second pass on. I ended up deciding ...

477 hits | 73.59 KB | Posted: 4/2/06

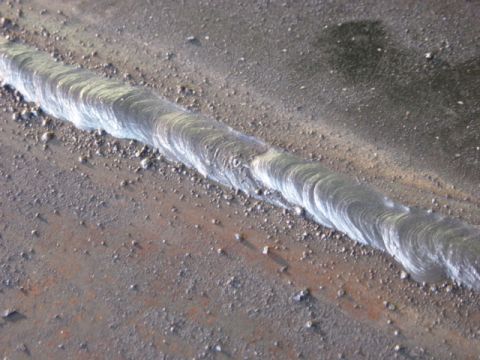

Another section of the area where I did two passes. Still need to work on my rod control and get a ...
