Stock Xmember.jpg
1024 hits | 79.64 KB | Posted: 8/4/03

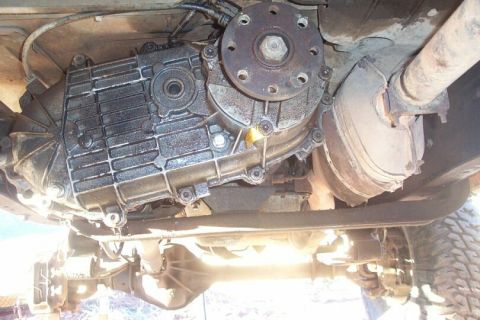

BEFORE/Stock
Xmember 002.jpg
952 hits | 35.25 KB | Posted: 8/4/03

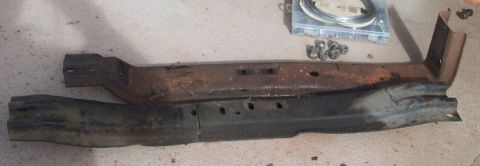

TOP: my stock piece. Bottom: from an '89 E250 with a C6 (NOTE: tranny mount holes are lined up in ...
Xmember 005.jpg
889 hits | 60.86 KB | Posted: 8/4/03

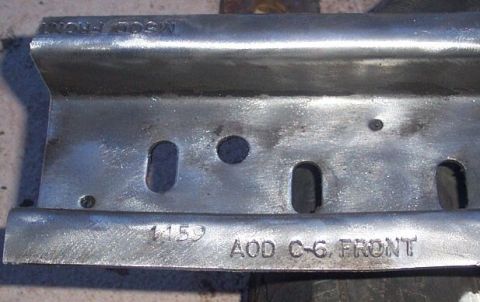

The unit from the van (appears these were also used for M5OD's if turned around)
Xmember 008.jpg
853 hits | 30.05 KB | Posted: 8/4/03

It's coming together! Left is my stock piece cut, right is the van piece cut
Xmember 010.jpg
845 hits | 31.56 KB | Posted: 8/4/03

It just so happens they fit together, note tranny mount holes line up perfectly.
Xmember 011.jpg
1037 hits | 72.55 KB | Posted: 8/4/03

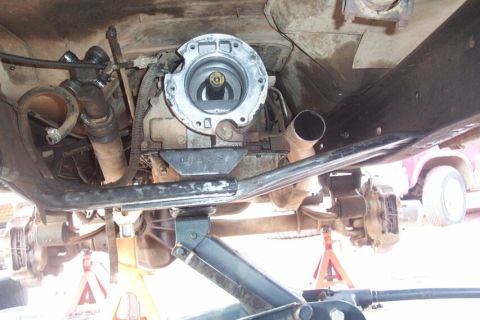

Test fitting what will be the finished product. Quite an improvement.
Xmember 017.jpg
960 hits | 48.38 KB | Posted: 8/4/03

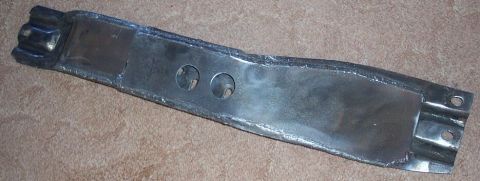

Once the two pieces were welded together, I also welded 1/8" plate to the bottom to make for a smoot...
Xmember 020.jpg
1260 hits | 33.58 KB | Posted: 8/4/03

Top view; all that's left to do is paint. Total cost: $5 for the van xmember at a u-pull-it, plus p...
