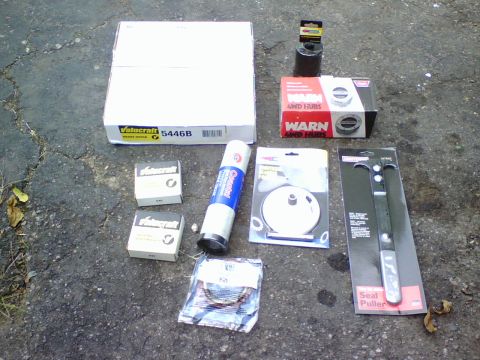

After replacing my U-joints and the loud hum was gone I started to hear the other noises and vibrati...

797 hits | 52.37 KB | Posted: 9/14/06

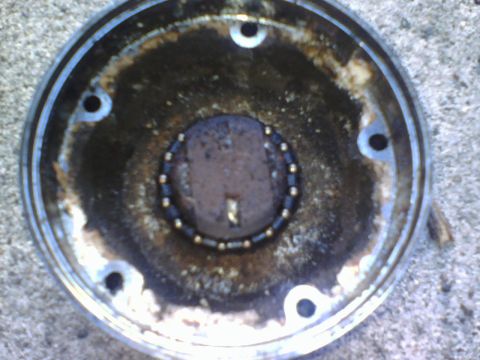

I proceeded to use the torx driver to remove the 5 screws of the OEM autohub. I found the inside of...

686 hits | 42.03 KB | Posted: 9/14/06

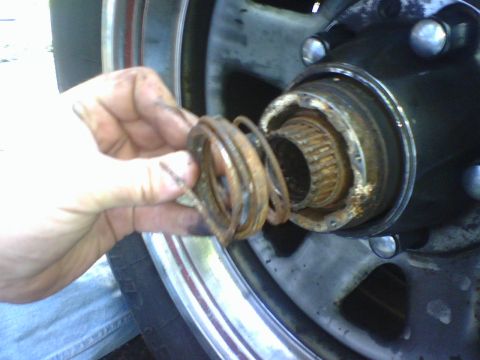

Upon examination of the Auto hub I found that the spring was broken. I removed lockring to detach t...

578 hits | 32.47 KB | Posted: 9/14/06

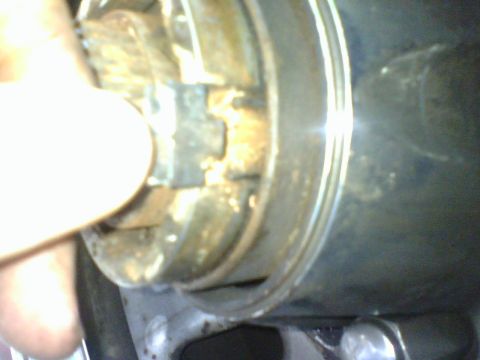

I removed the safety clip from the wire hub retainer and used pair of needle nose pliers to bring th...

797 hits | 52.59 KB | Posted: 9/14/06

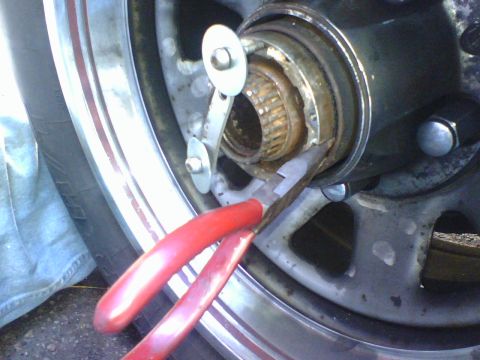

The auto hub was not coming out easily so I had made a handle for it to manipulate it as I was squee...

857 hits | 56.19 KB | Posted: 9/14/06

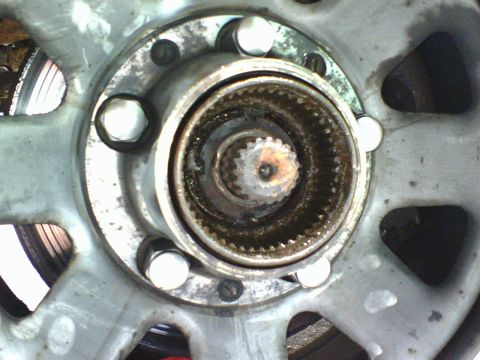

Using the bearing nut socket I removed the bearing lock nut.

532 hits | 48.99 KB | Posted: 9/14/06

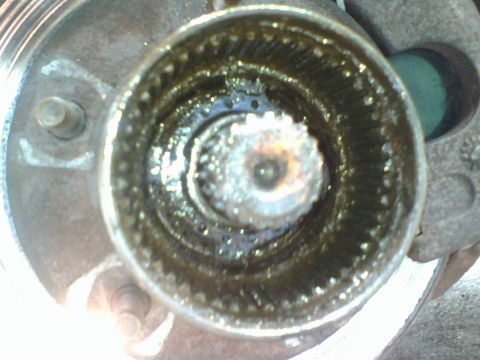

next I removed the bearing washer. the many holes in the washer are for the pin in the bearing adju...

790 hits | 65.78 KB | Posted: 9/14/06

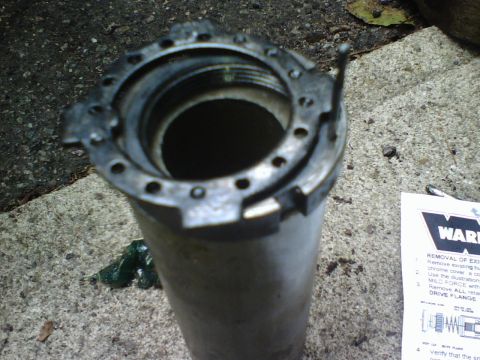

here you can see the replacement pin Before being sized to fit the bearing washer.

522 hits | 23.04 KB | Posted: 9/14/06

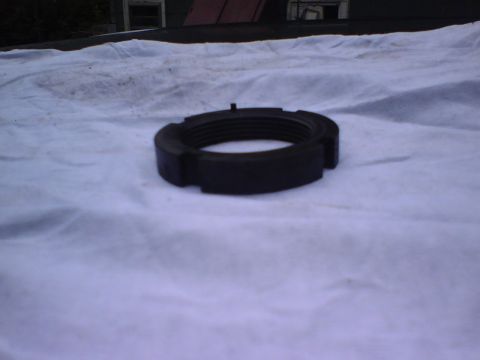

here is the adjusting nut as it should have been.

591 hits | 54.78 KB | Posted: 9/14/06

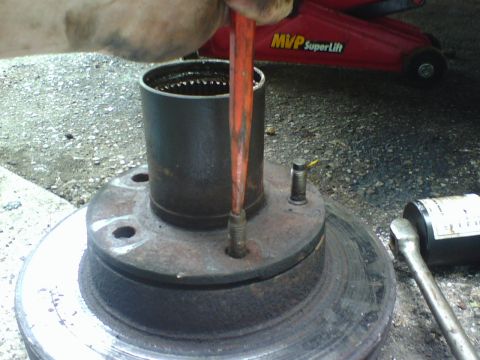

I had removed the disc brake caliper pins and removed the caliper from the rotor. removed the rotor/...

611 hits | 56.05 KB | Posted: 9/14/06

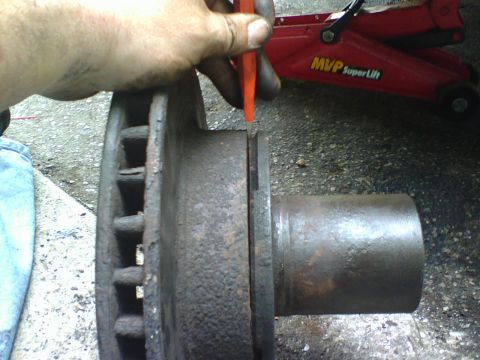

using the beveled edge inbetween the hub and rotor I separated the two.

505 hits | 64.61 KB | Posted: 9/14/06

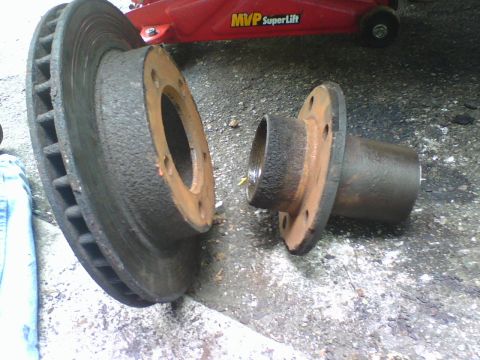

The hub is being saved and the rotor replaced. the hub will be wire brushed and sandblasted taking...

595 hits | 57.41 KB | Posted: 9/14/06

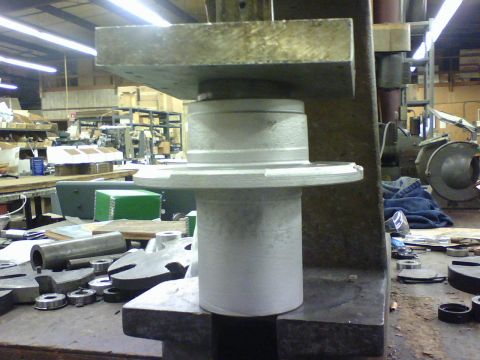

here is the hub after rehab and it is having the wheel bearing outer races pressed in.

587 hits | 42.32 KB | Posted: 9/14/06

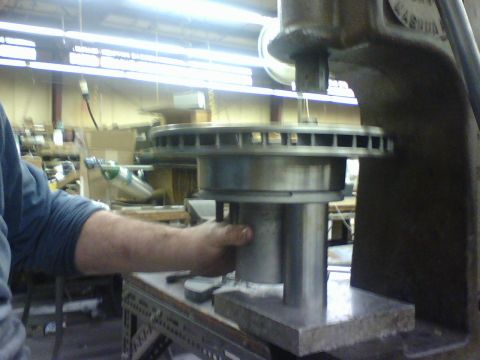

The lug studs were pressed in.

799 hits | 44.17 KB | Posted: 9/14/06

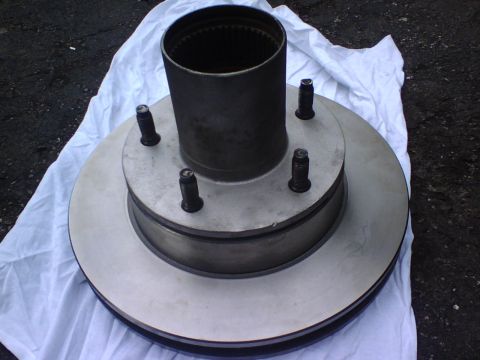

here is the new brake rotor and the rehabed hub with bearings and grease inside.

788 hits | 39.22 KB | Posted: 9/14/06

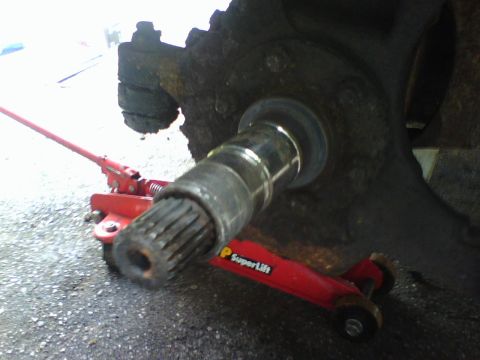

I had found the spindle to haver some crosed threads to I had to fix that and test the bearing nuts...

807 hits | 49.5 KB | Posted: 9/14/06

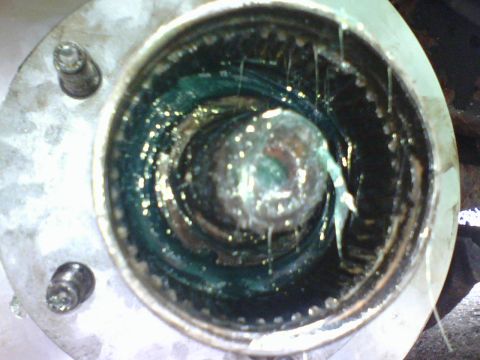

with the rear bearing seal pressed in I had slippped the bearings on the spindle and hand pressed th...

757 hits | 43.62 KB | Posted: 9/14/06
The wheel bearing nuts were tightened and backoff a 1/4 of the way. and the adj nut, washer and lock...
