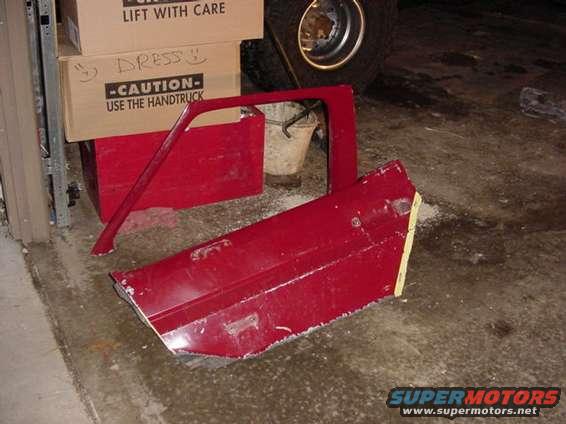

off of 1988 F250 parts truck.
|
|
|
even retained insdie door handle
|
|
|
Stupid retarded ford does NOT have a cnnection to allow door removal. of course my doors have all the stupid power options.
Ford was stupid
|
|
|
 newdoorconnections.jpg | Hits: 5343 | Size: 34.71 KB | Posted on: 6/29/03 | Link to this image
new connections robbed from a junkyard car wiring harnesses in 4 connectors to hook up all 19 wires. i will need to remove the door panel to remove the door, but thats easy.
|
|
|
 hlafdoormounted.jpg | Hits: 1800 | Size: 31.9 KB | Posted on: 6/29/03 | Link to this image

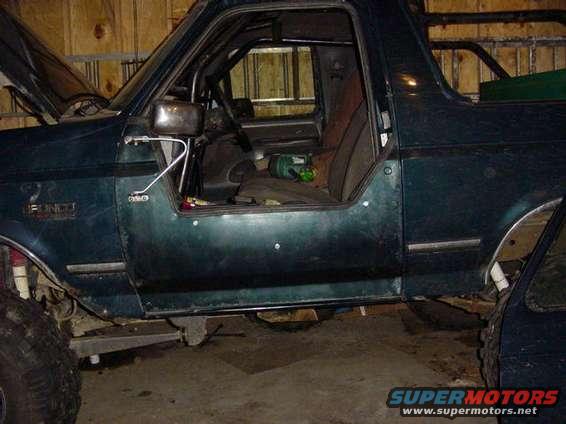

on, almost done, all i need is the mirror.
|
|
|

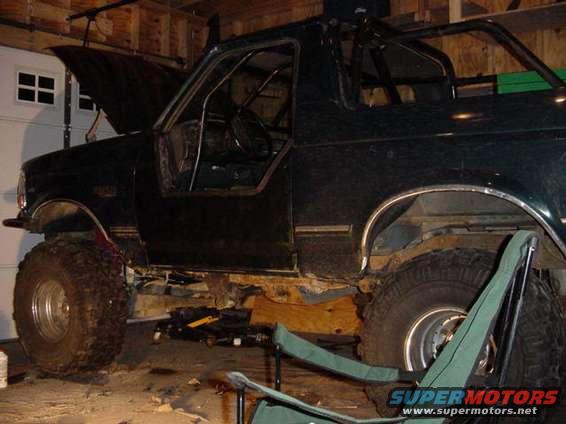

 halfdoormounted2.jpg | Hits: 1493 | Size: 34.68 KB | Posted on: 6/29/03 | Link to this image
again, a little 3 wheel action going on here.
|
|
|
 hlafdoormounted3.jpg | Hits: 1681 | Size: 33.08 KB | Posted on: 6/29/03 | Link to this image

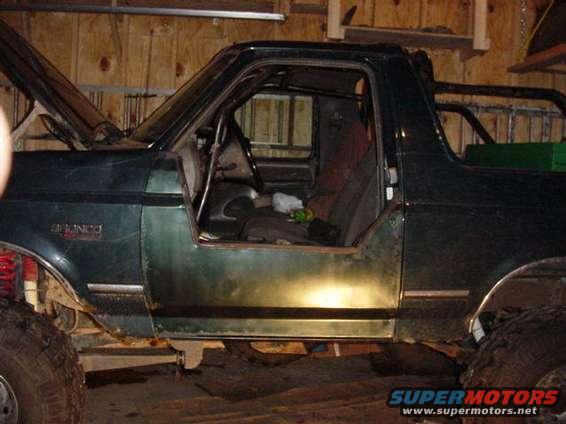

both my doors are setup with a hinge on them and prealigned so no setup is necesary when switching other than sliding in the pin.
|
|
|

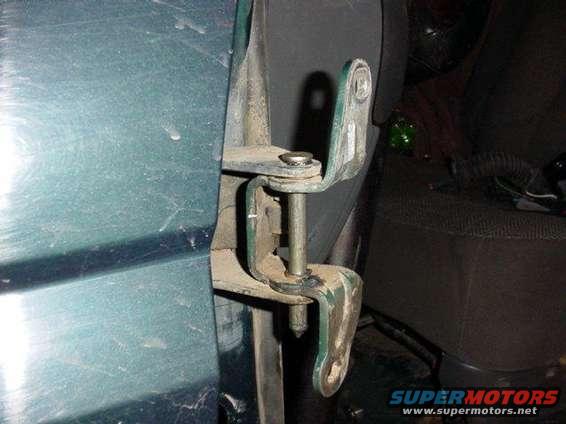

 pinfordoorhinges.jpg | Hits: 1525 | Size: 28.18 KB | Posted on: 6/29/03 | Link to this image
pinned both hinges using HELP door repair kit 38410
|
|
|
mirror from 90ish ford truck. cost 10.79 for the pair on half price day from junkyard
|
|
|
door moulding all the way around the cuts. i used the rear tailgate to top moulding form a tracker as it fit the single metal very well and was very durable. took it off of 5 trackers at the u pull it yard for $10. very good deal.
|
|
|
hinge deal works great and doors are easily swapped, but it is a two man job to remove/install the full doors just due to there awkwardness and weight.
|
|
|

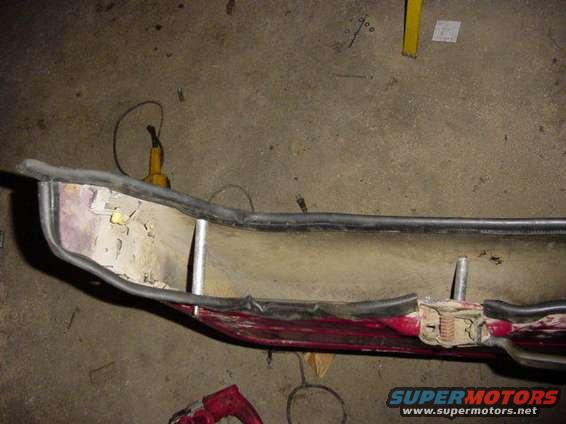

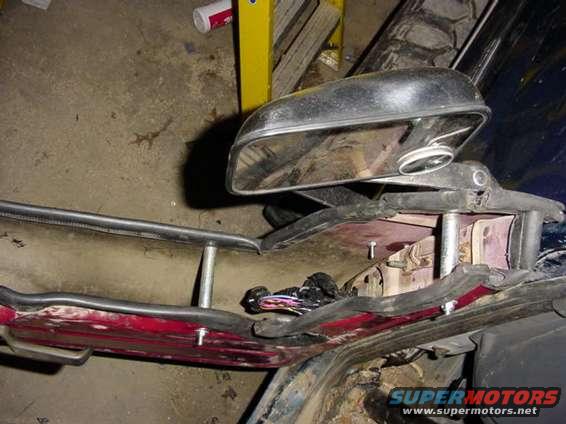

pipe spacers to keep door from wobbling.
|
|
|

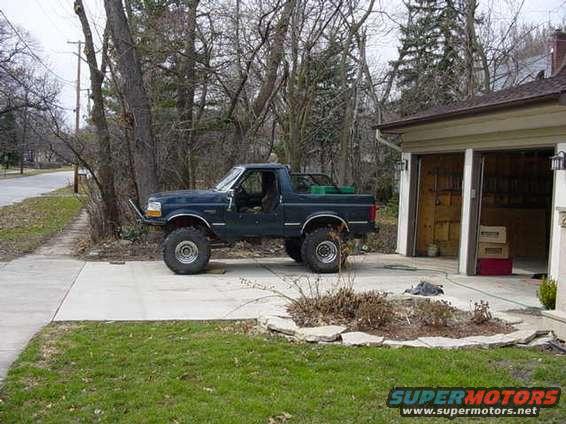

 halfonoutside2.jpg | Hits: 1645 | Size: 52.21 KB | Posted on: 6/29/03 | Link to this image
|
|
|

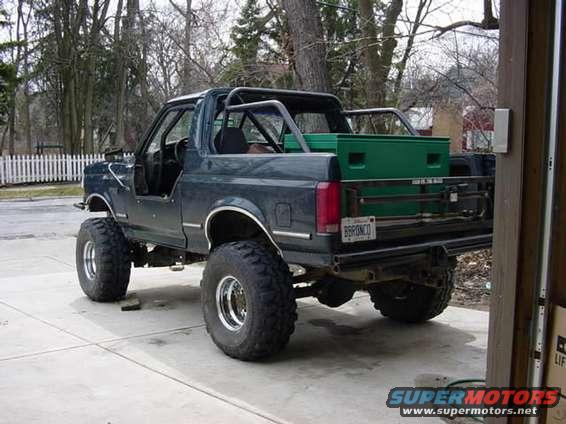

 halfonoutside3.jpg | Hits: 3135 | Size: 42.89 KB | Posted on: 6/29/03 | Link to this image
this truck has lost way to many body panels!
|
Half Doors
