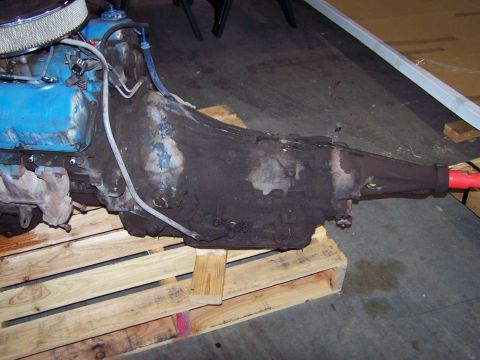

there is a C6 under that grease; I'll use it until I get an AOD together; the old tired 351 Clevela...

765 hits | 59.4 KB | Posted: 3/28/09

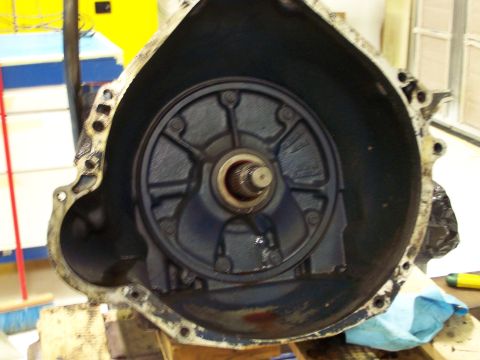

C6 bell housing with torq converter removed; teardown just getting started.

750 hits | 79.1 KB | Posted: 3/28/09

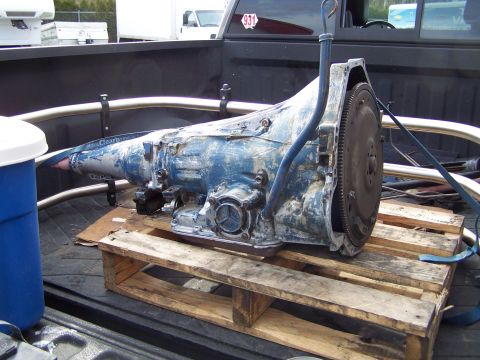

got most of the sludge off the outside now, time to tackle the inside now

662 hits | 63.78 KB | Posted: 3/28/09

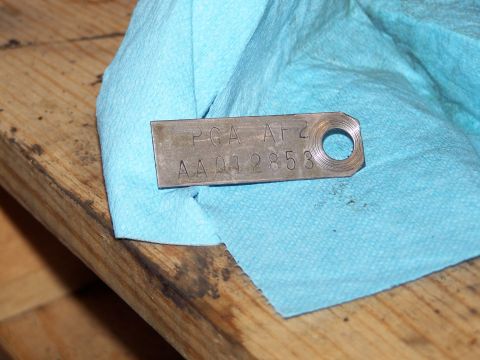

data tag from the C6 tranny

666 hits | 84.64 KB | Posted: 3/28/09

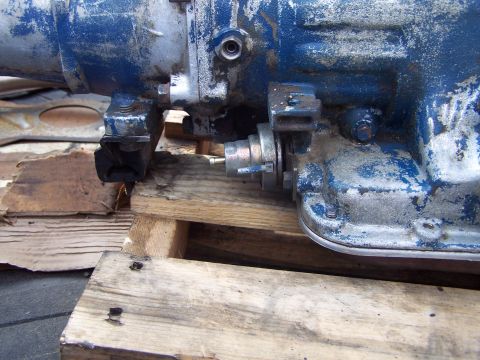

this tranny had a modulator valve with two vaccum ports; it will get replaced.

672 hits | 55.25 KB | Posted: 6/27/09

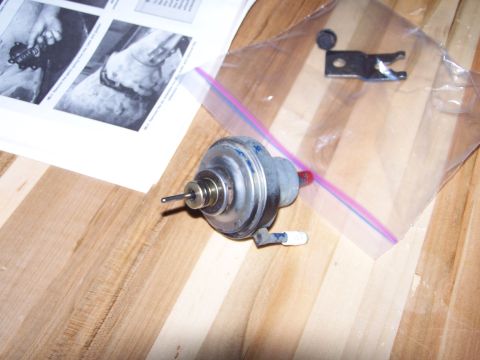

this is the old modulator valve.

612 hits | 47.05 KB | Posted: 6/23/09

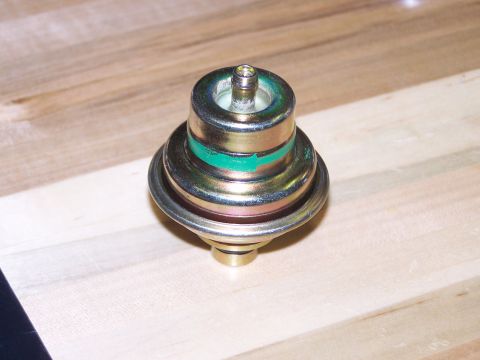

I used a green stripe modulator, instead of the old modulator that used two vaccum hoses; this shoul...

700 hits | 83.03 KB | Posted: 6/8/09

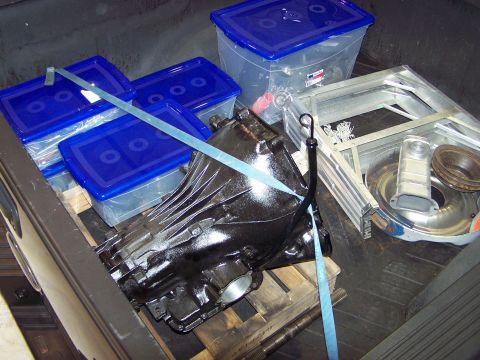

there is literally a truck-load of stuff inside a transmission!
no wonder it weighs 150 pounds!

675 hits | 74.32 KB | Posted: 6/8/09

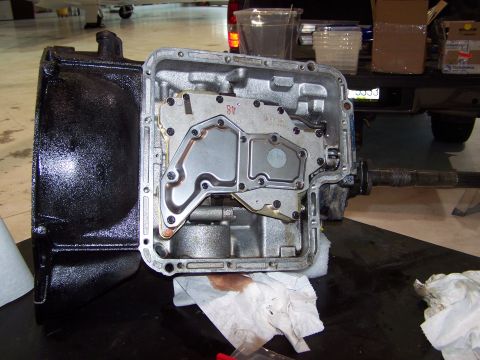

this is the valve body with the filter installed into the transmission.

I found a bunch of clutch...

803 hits | 80.48 KB | Posted: 6/8/09

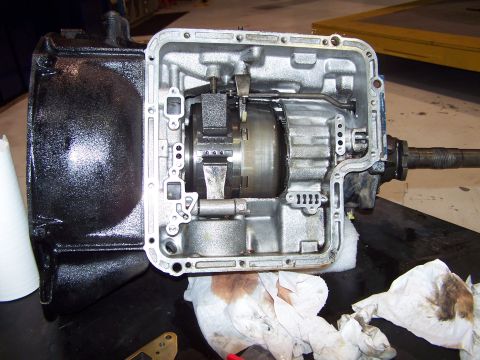

valve body has been removed and the tail housing has been removed; thats the intermediate band and t...

633 hits | 63.38 KB | Posted: 6/8/09

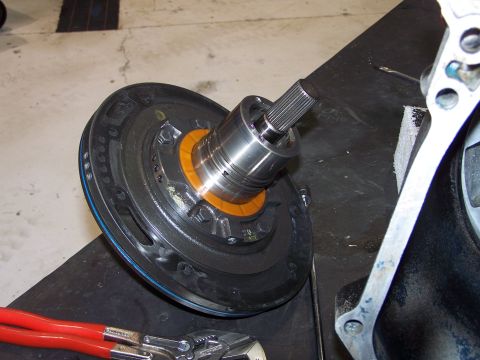

this is the pump assembly, removed from the front of the transmission.

617 hits | 73.65 KB | Posted: 6/8/09

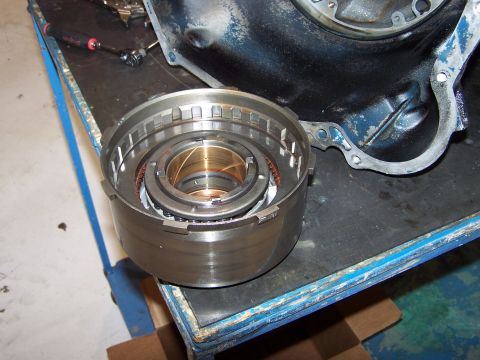

this is the reverse-high clutch hub; the intermediate band rides on this shell.

657 hits | 45.87 KB | Posted: 6/8/09

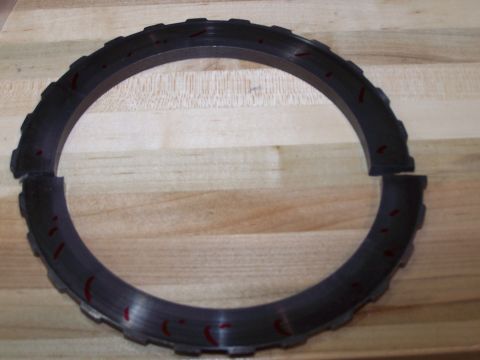

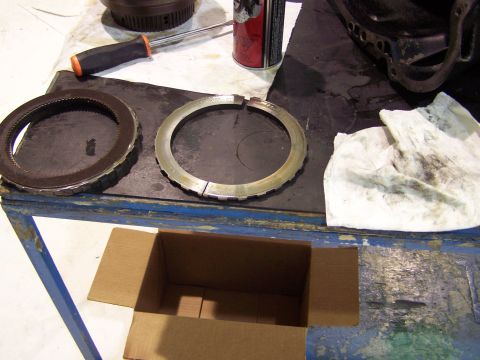

this was the aft pressure plate out of the forward clutch; the plate is broken in half and cracked i...

591 hits | 66.13 KB | Posted: 6/23/09

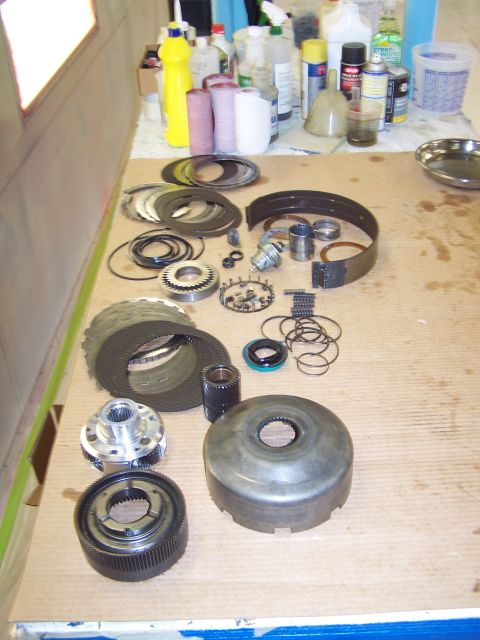

all these parts were replaced!

all the clutch plates, all the steel plates, the intermediate ban...

671 hits | 69.78 KB | Posted: 6/27/09

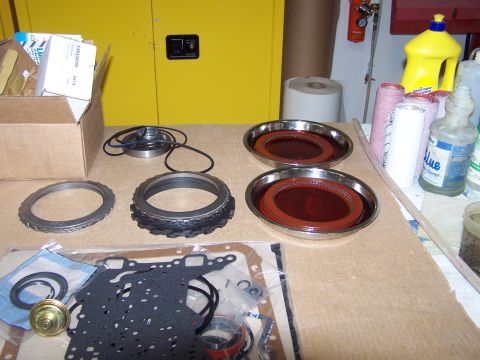

these are the new overhaul parts.

684 hits | 72.59 KB | Posted: 6/27/09

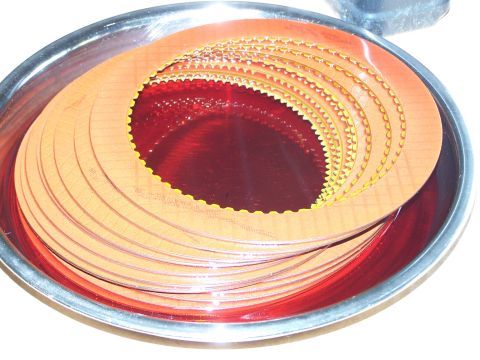

the clutch plates need to be soaked in ATF fluid for at least 15 minutes, so they survive on start u...

700 hits | 59.09 KB | Posted: 6/23/09

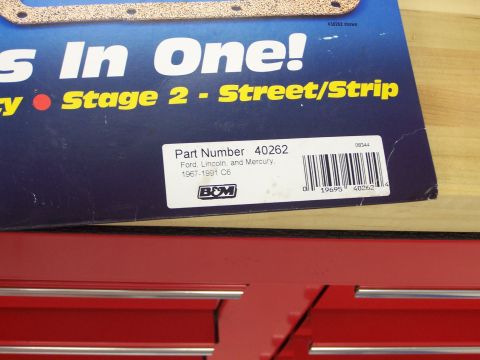

I installed a B&M shift improver kit, stage 2, part number 40262; it took me about 5 hours to instal...

728 hits | 61.72 KB | Posted: 6/23/09

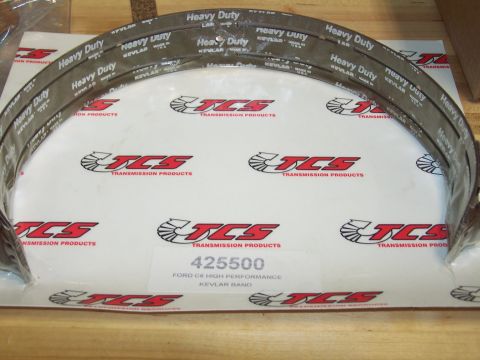

I used a TCS kevlar lined intermediate band, instead of the stock Ford part.

This should last lon...

681 hits | 81.04 KB | Posted: 6/9/09

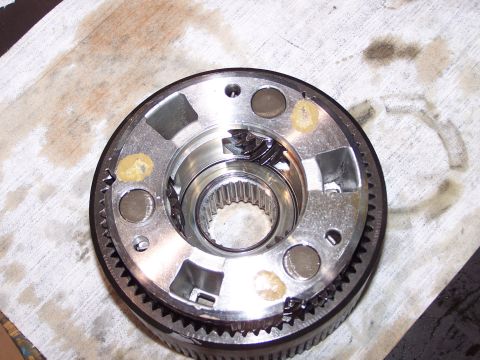

this is the original 3-pinion forward planetary; its still in good condition.

I'm going to replac...

546 hits | 68.47 KB | Posted: 6/24/09

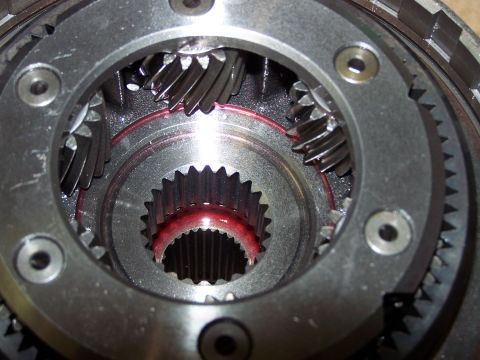

this is the 6 pinion, wide-ratio planetary set I installed;

it's the stock part out of the Ford E4...

642 hits | 51.08 KB | Posted: 6/27/09

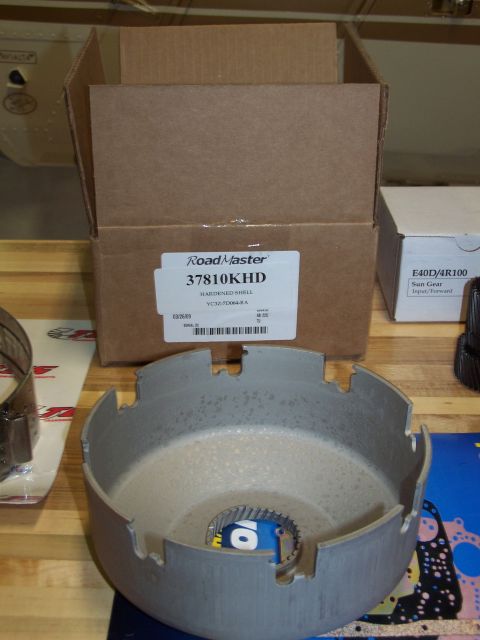

this is the new sun gear shell for the new planetary.

645 hits | 52.9 KB | Posted: 6/27/09

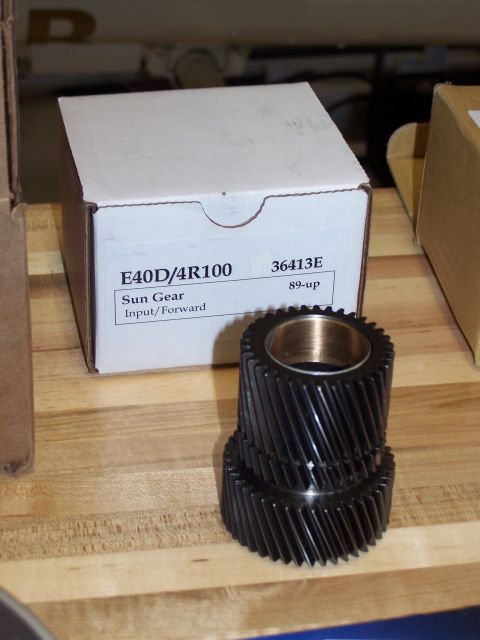

this is the new sun gear.

685 hits | 84.21 KB | Posted: 6/27/09

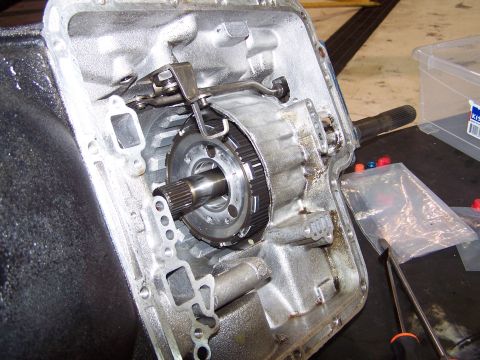

the pump and the reverse-high clutch have been removed.

709 hits | 77.81 KB | Posted: 6/27/09

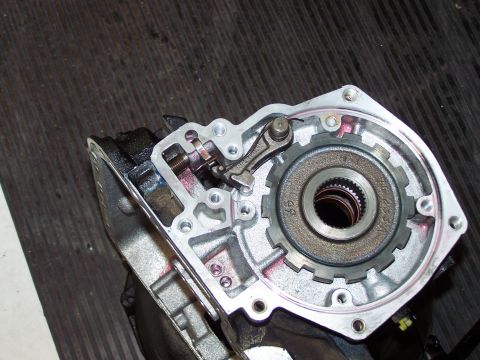

this is the parking gear and pawl.

683 hits | 81.39 KB | Posted: 6/27/09

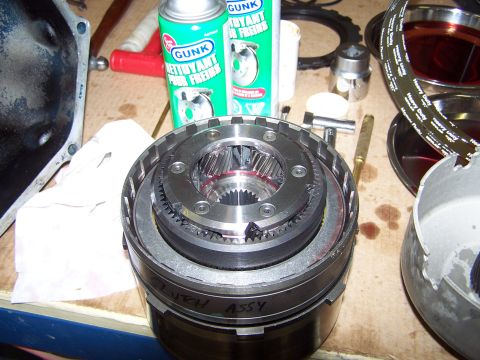

the reverse-high clutch, the forward clutch, and the planetary set all stacked up.

665 hits | 80.66 KB | Posted: 6/27/09

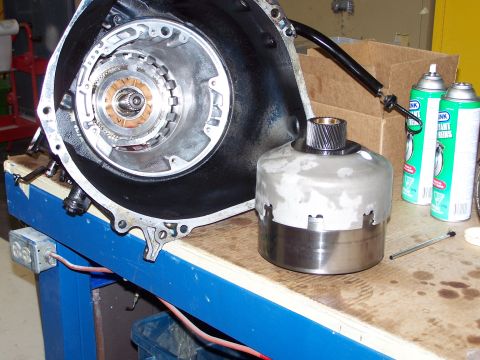

the reverse-high clutch, with the forward-clutch, the new planetary, the new sun gear and the new su...

641 hits | 68.05 KB | Posted: 6/27/09

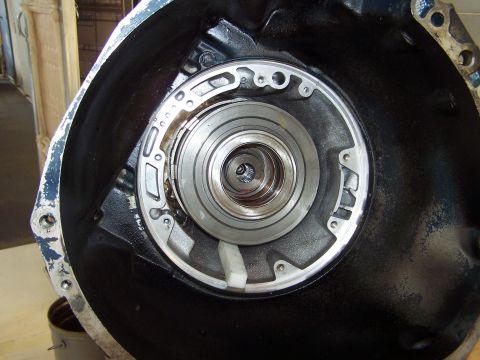

clutches are installed; now the intermediate band goes in and the then the pump assembly.

683 hits | 73.82 KB | Posted: 6/27/09

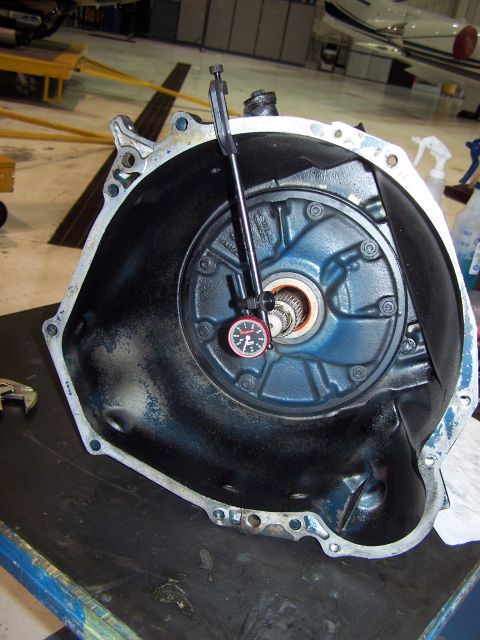

checking the endplay on the input shaft.

757 hits | 72.62 KB | Posted: 6/8/09

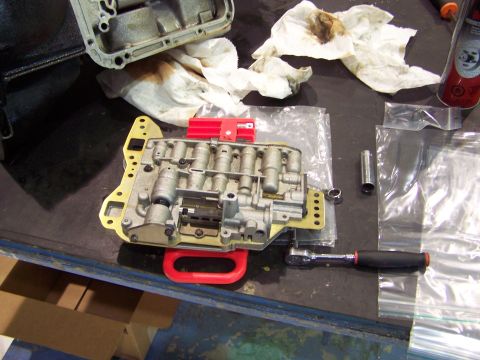

this is the valve body; I've installed a B&M shift Improver kit, p/n 40262, stage 2; now the valve b...

652 hits | 76.76 KB | Posted: 6/23/09

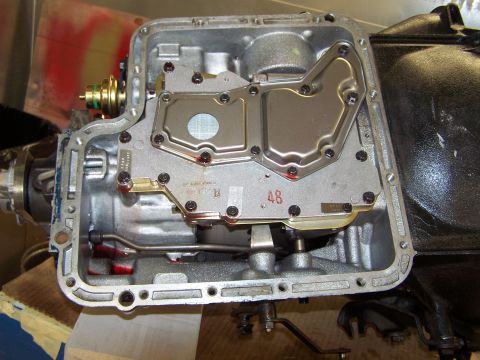

almost finished; the valve body and filter have been installed; next will be the tailshaft housing a...

743 hits | 89.34 KB | Posted: 6/27/09

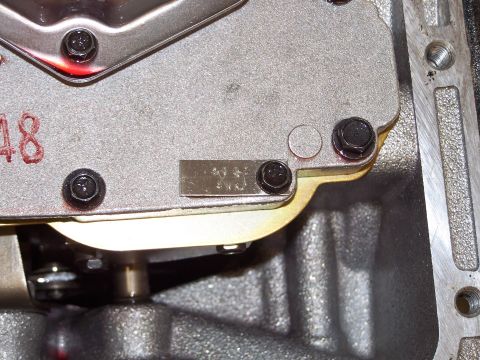

I made a tag to remind myself I overhauled this tranny in June 2009.

739 hits | 89.5 KB | Posted: 6/27/09

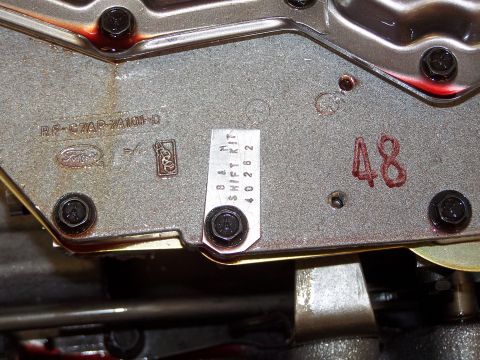

I made a tag to remind myself I installed a B&M shift kit.

719 hits | 91.49 KB | Posted: 6/27/09

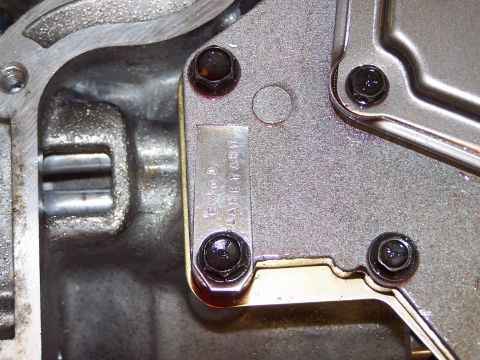

I made a tag to remind myself of the new planetary gears I installed.

775 hits | 70.6 KB | Posted: 6/27/09

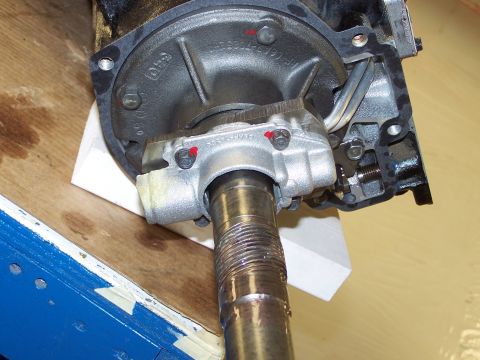

this is the governor assembly.

753 hits | 70.24 KB | Posted: 6/8/09

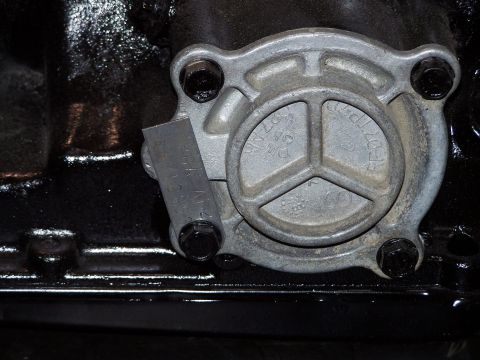

I'm using a Ford "S" servo, the original servo apply lever, and a 2 inch wide TCS Kevlar intermedia...

674 hits | 85.25 KB | Posted: 6/27/09

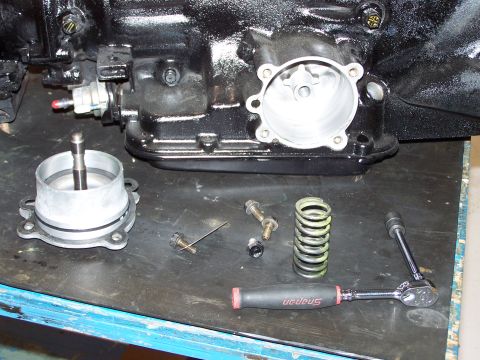

this is the new "S" servo I installed.

664 hits | 86.56 KB | Posted: 6/27/09

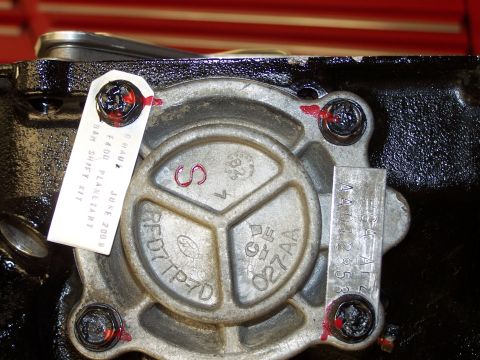

the "new" (used) "S" servo cover and the original data tag and the one I made for the parts I just i...

973 hits | 103.62 KB | Posted: 6/9/09

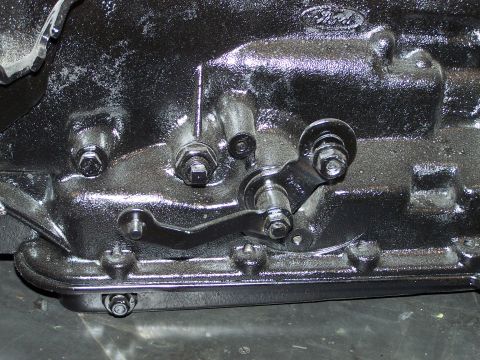

this is the shift linkage and kick-down lever.

the square bolt and jamb nut is the intermediate ...

665 hits | 77.24 KB | Posted: 6/8/09

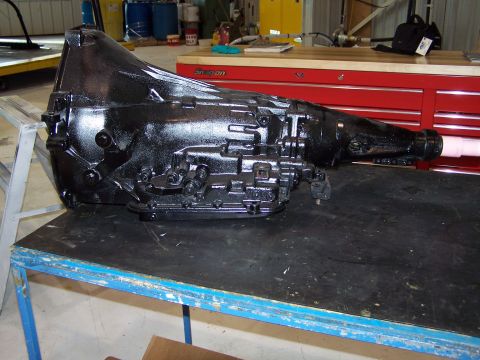

Done! I rebuilt it myself with high performance parts including:

extra clutches and steel plates ...

563 hits | 73.33 KB | Posted: 6/23/09

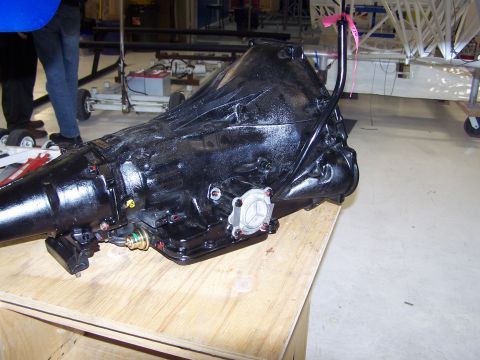

finished! it took about 8 hours to tear the tranny apart and clean all the parts;

another 5 hour...

613 hits | 51.5 KB | Posted: 9/6/09

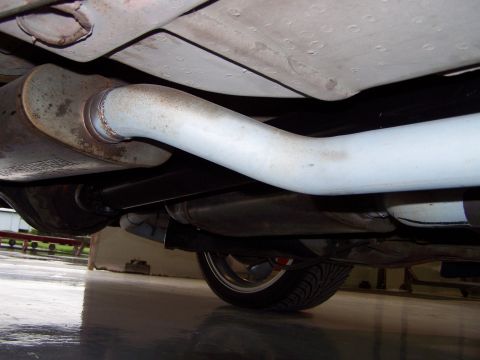

custom driveshaft installed; 3.5" cro-moly steel with 1330 u-joints, then balanced.

687 hits | 65.96 KB | Posted: 9/6/09

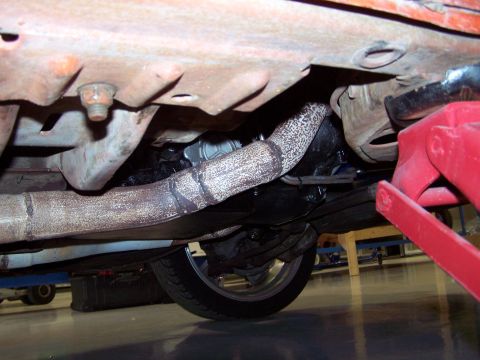

I re-used the stock steel transmission pan because I was worried about ground clearance, but there i...

643 hits | 67.38 KB | Posted: 9/8/09

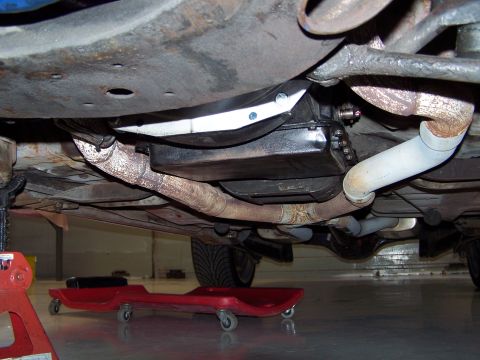

I used the aluminum AOD seperator plate, instead of the steel C6 tin; it fit perfectly so I won't ha...
