1973 Ford Ranchero Re-paint pictures, videos, and sounds

jeff931 > 1973 Ford Ranchero > Re-paint

606 hits | 95.46 KB | Posted: 2/7/10

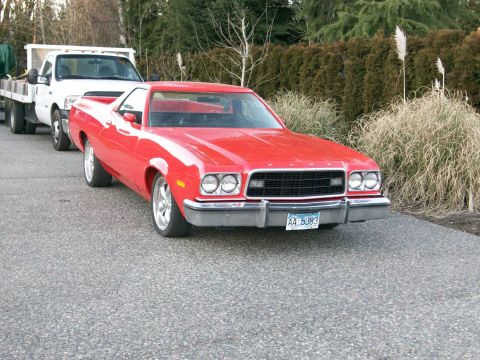

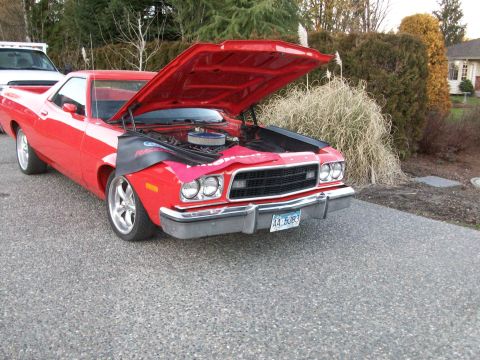

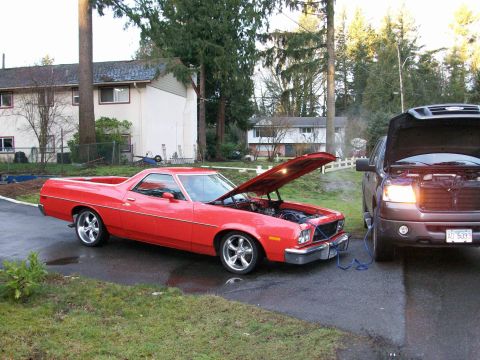

off to a lousy start; dead battery slows me down moving the car to the body shop; I think I left the...

577 hits | 57.54 KB | Posted: 2/7/10
We sprayed out six different paint samples, to see what it might really look like on the car:

ora...

584 hits | 51.04 KB | Posted: 2/7/10
This was the best one:

its a base/clear combo:
Omni AU "prophet orange" base coat, then a thin ...

590 hits | 61.79 KB | Posted: 2/7/10
the black rub rail that ran down the length of the car got peeled off, we aren't going to re-install...

775 hits | 51.33 KB | Posted: 2/7/10
Both doors had rust holes in the lower rear corners, so we cut out the rust and welded in new steel.

710 hits | 51.04 KB | Posted: 2/7/10

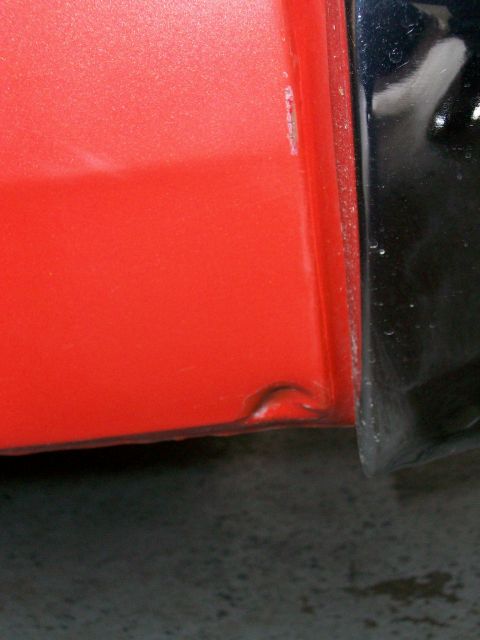

there was a little dent in the left rear quater, probably caused by the bumper years ago.

610 hits | 41.65 KB | Posted: 2/7/10

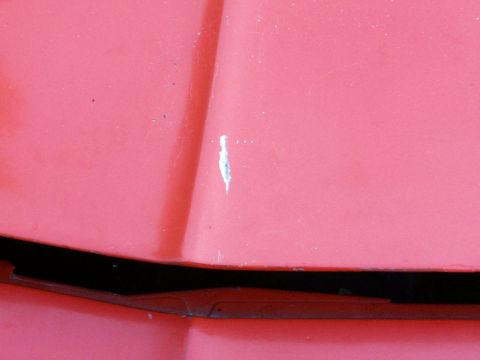

the front of the hood is full on bondo, and its starting to crack; we'll grind it all off and fix t...

649 hits | 65.29 KB | Posted: 2/7/10

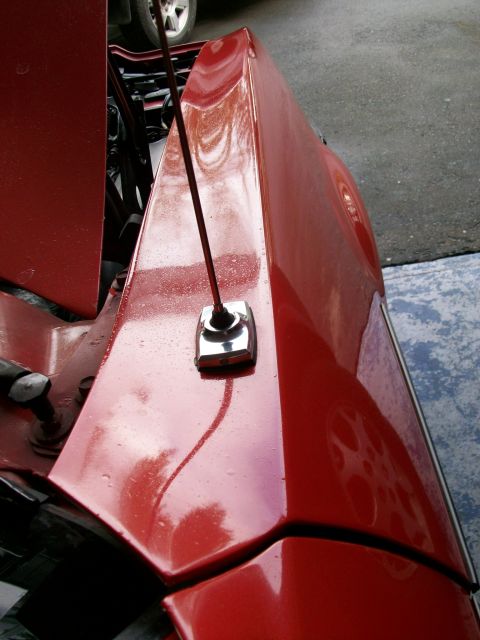

the top of the right fend has these tiny bubbles in the paint; we'll grind it off to have a better l...

634 hits | 51.11 KB | Posted: 2/7/10

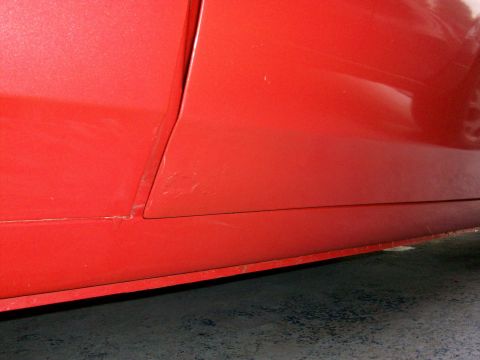

the paint was bubbling on both doors, near the bottom, so we'll grind off the paint to see how much ...

634 hits | 46.47 KB | Posted: 2/7/10
Here is the patch we welded into the passenger door outer skin.

615 hits | 68.12 KB | Posted: 2/7/10

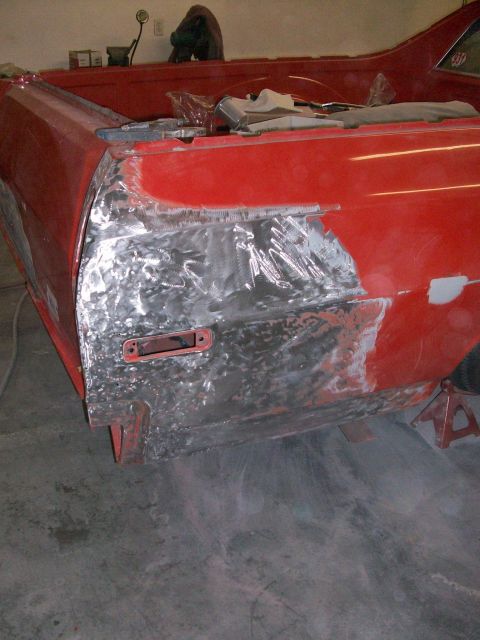

We've ground off all the paint and bondo, so we can properly fix the dent; there was about 3/8" of b...

554 hits | 54.49 KB | Posted: 2/7/10
lousy picture, but the right rear quarter had been poorly repaired previously; it looks like they pr...

621 hits | 76.43 KB | Posted: 2/7/10

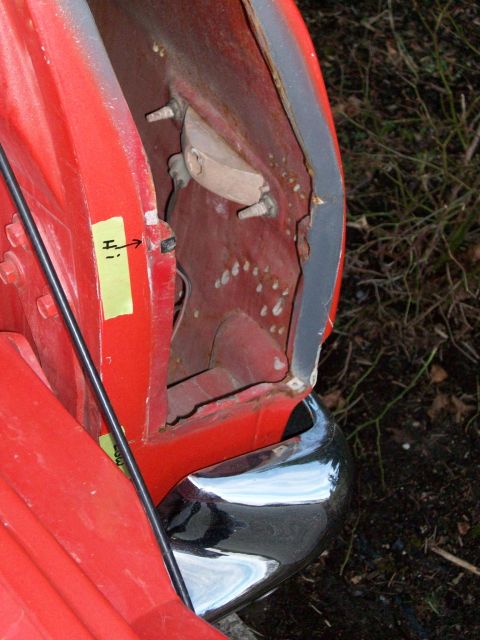

the right rear quarter was full of holes; they probably used an old "screw-type" dent puller, but di...

694 hits | 63.1 KB | Posted: 2/7/10

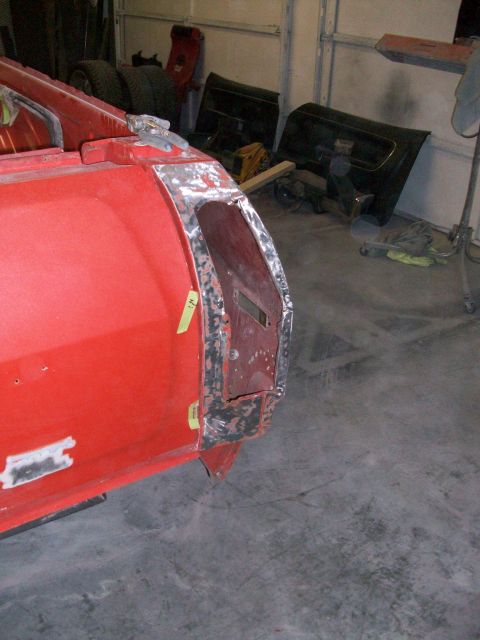

that's bondo, oozing through holes in the panel!

654 hits | 63.43 KB | Posted: 2/7/10

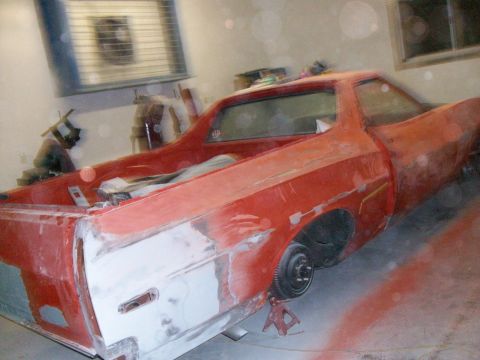

the first skim coat of kitty hair bondo has been applied and already sanded flat.

630 hits | 76.53 KB | Posted: 2/7/10

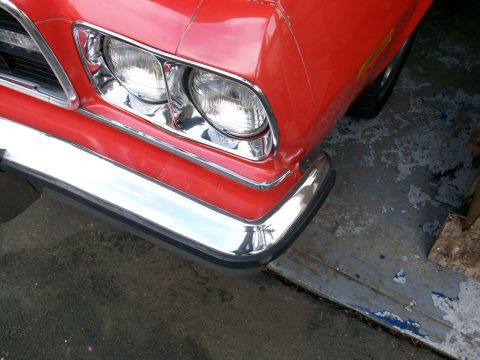

I'm going to remove the light buckets; they aren't lined up correctly and there is a lot of was and ...

699 hits | 70.56 KB | Posted: 2/7/10

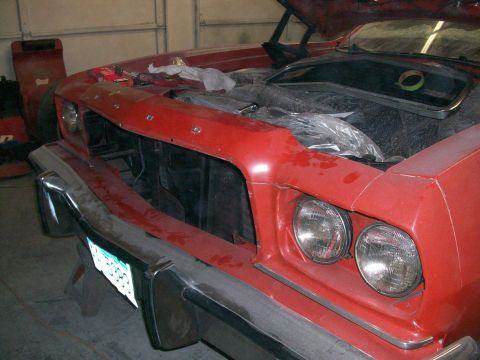

the grill has been removed; next wil be the upper valance and the light buckets.

668 hits | 79.81 KB | Posted: 2/7/10

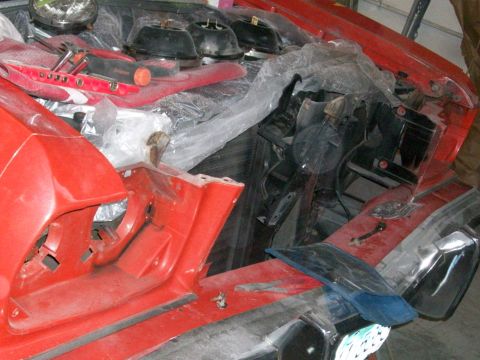

Front valance has been removed; it had a dent in it and more holes and bondo, so I am going to repla...

636 hits | 82.77 KB | Posted: 2/7/10

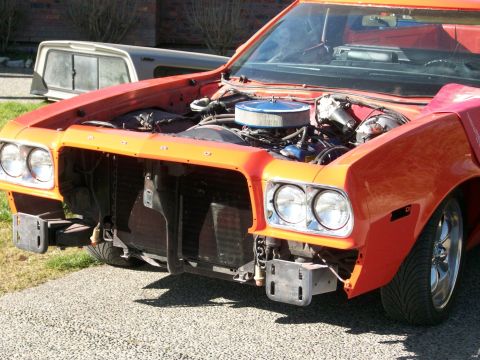

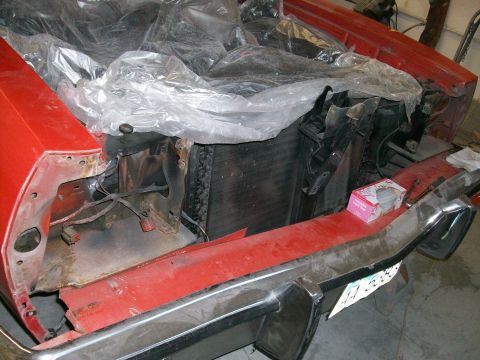

I removed the front valance, grill, and both light buckets, since most of it wasn't aligned correctl...

639 hits | 75.77 KB | Posted: 2/7/10

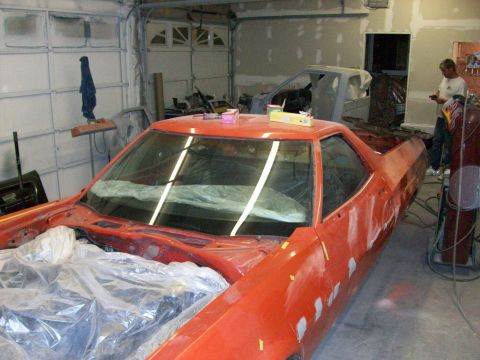

Day 2: the block sanding will start now, and the holes we welded up got ground flat and a spot of bo...

620 hits | 70 KB | Posted: 2/7/10

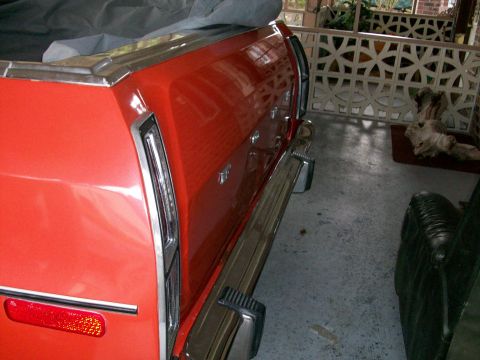

I got rear-ended this summer, by an Escalade, so the tailgate has a dent

704 hits | 65.39 KB | Posted: 2/7/10

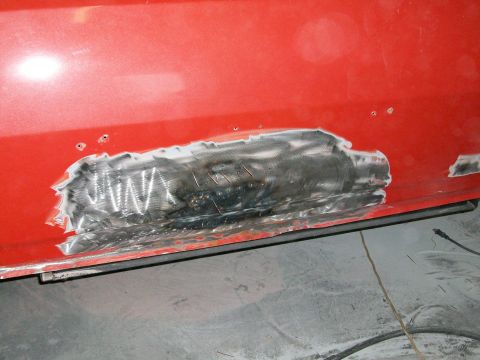

We used a dent puller to straighten out the tailgate, and then welded up the holes.

636 hits | 47.95 KB | Posted: 2/7/10

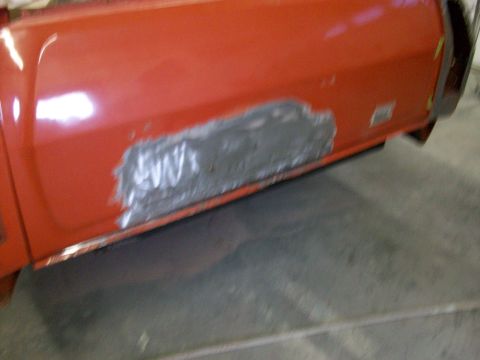

I got rear-ended last summer, so there was a dent in the tailgate; there was already a bunch of bond...

656 hits | 61.37 KB | Posted: 2/7/10

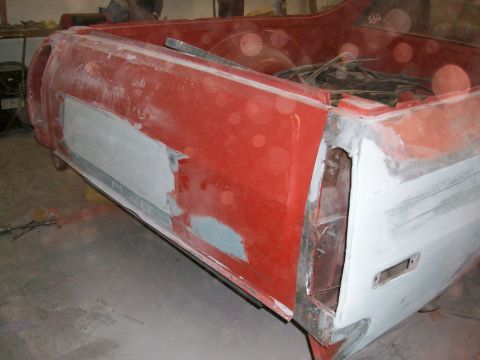

a second thin coat of bondo got applied on the tailgate and the rear quarter panel.

667 hits | 89.14 KB | Posted: 2/7/10

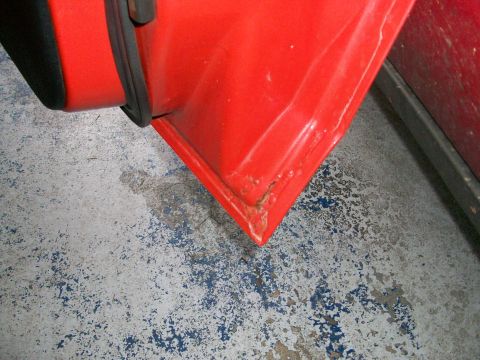

the rust on the outer skin ate through the inner skin also. we will weld new metal in to fix it.

690 hits | 70.24 KB | Posted: 2/7/10

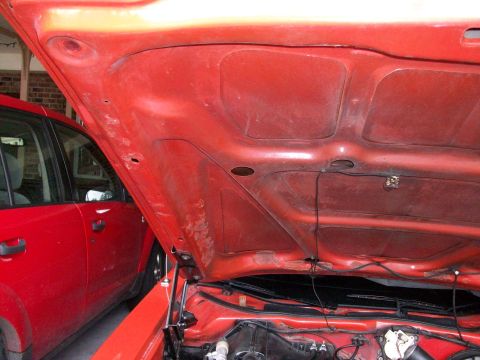

it looks like someone tried to "glue" the under-hood insulation in place; we'll clean it off and rep...

606 hits | 64.05 KB | Posted: 2/7/10

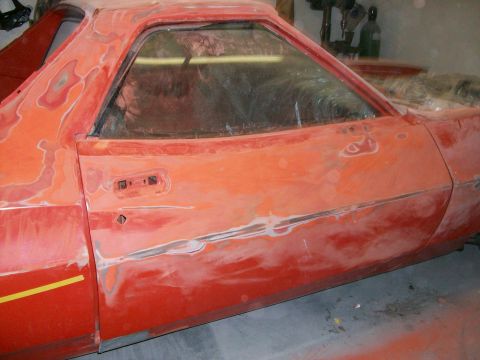

there is three coats of paint on the back half of the car, and four on the front half; it was red or...

649 hits | 56.75 KB | Posted: 2/9/10

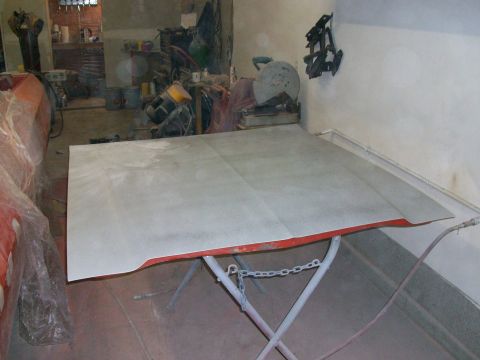

we layed on two coats of primer on the hood, then blocked-sanded it.

677 hits | 57.62 KB | Posted: 2/9/10

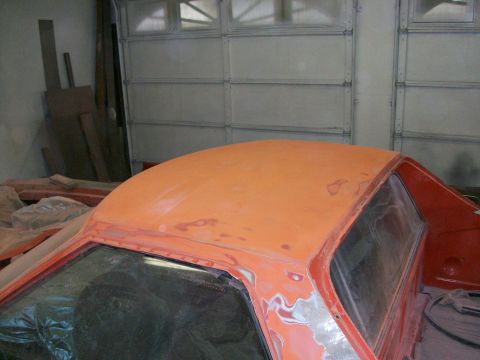

Day 4: I sanded off two coats of paint off the roof, down to the second coat of paint, which was bri...

640 hits | 48.11 KB | Posted: 2/9/10

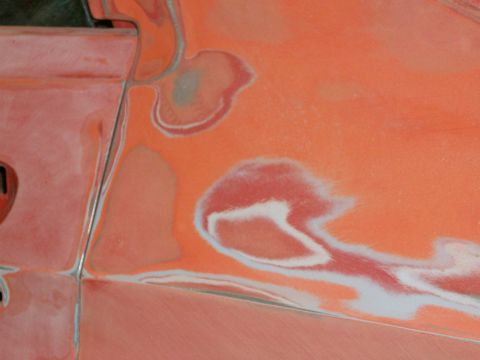

the car was originally 2B "bright red", then it was painted orange, then repainted the current orang...

681 hits | 54.66 KB | Posted: 2/9/10

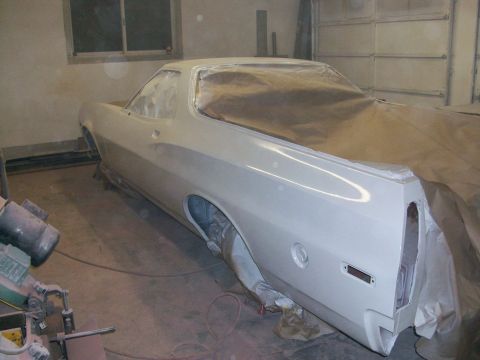

Day 5: the first round of block sanding is complete, I removed at least two layers of paint with a ...

730 hits | 56.79 KB | Posted: 2/9/10

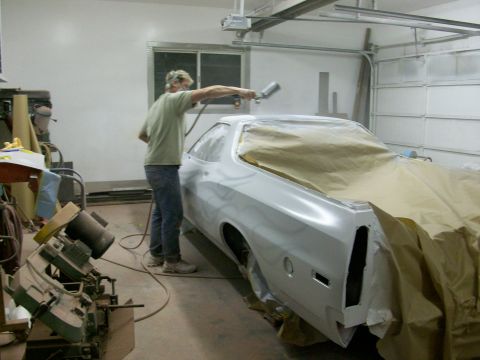

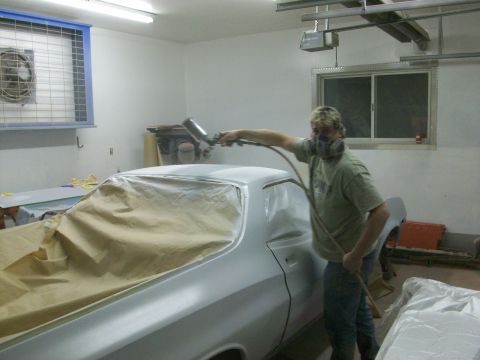

Kim is laying on the first coat of Omni MH283 hi-build primer; he'll put on two coats, most of which...

833 hits | 47.71 KB | Posted: 2/9/10

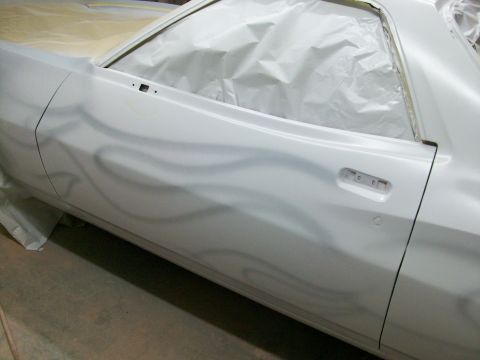

the flames are coming! these are just primer

676 hits | 61.54 KB | Posted: 2/9/10
Day 6: more hi-build primer...

667 hits | 61.54 KB | Posted: 2/9/10

749 hits | 59.81 KB | Posted: 2/14/10

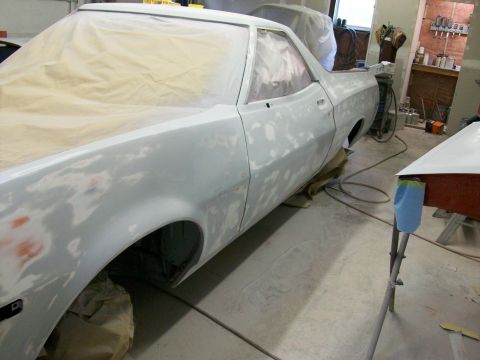

Day 7: three coats of high-build grey primer, which got block-sanded, then three more coats, which a...

803 hits | 57.33 KB | Posted: 2/14/10

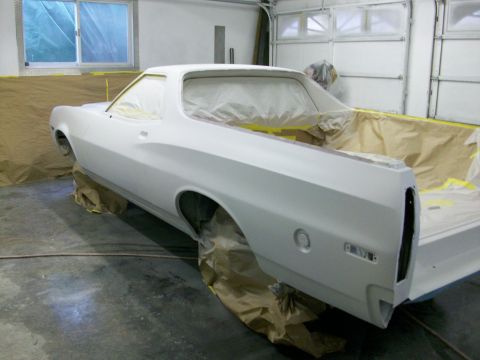

followed by a coat of white Omni MR170 epoxy sealer just before the color base coat

804 hits | 64.33 KB | Posted: 2/14/10

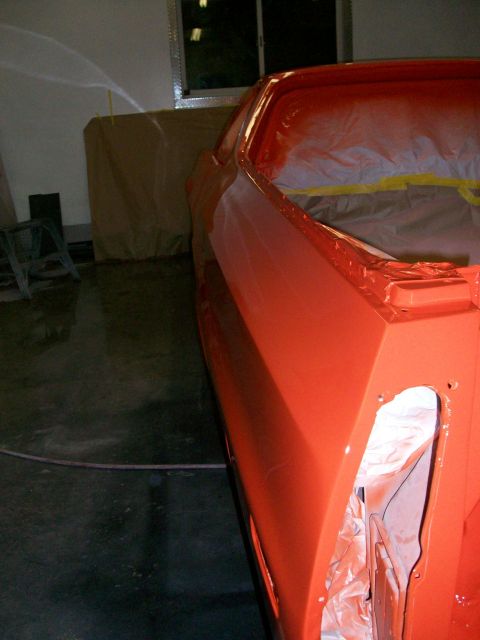

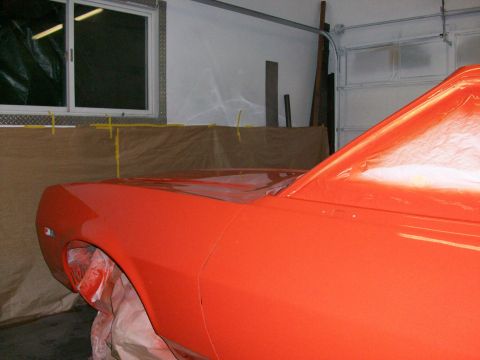

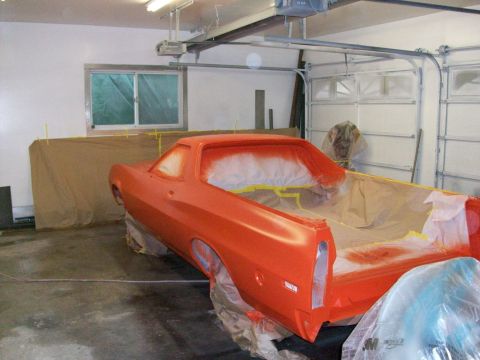

Day 8: then two coats of Omni MBC "Prophet Orange 61067" base coat (which is actually a Ford color.)

750 hits | 64.81 KB | Posted: 2/14/10

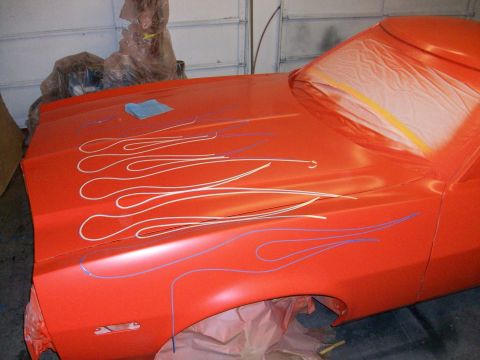

then we layed out the flames with 1/8" fine line tape.

670 hits | 67.2 KB | Posted: 2/14/10

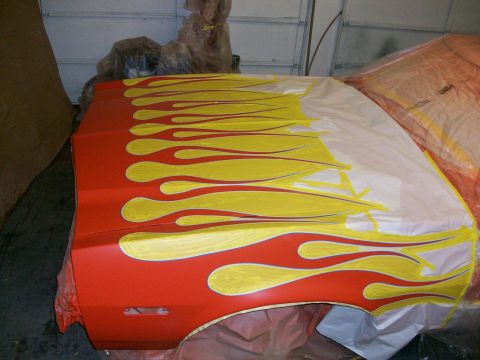

and masked off the flames, then we sprayed on a little Omni M175 Gold Pearl in DBC500 binder.

757 hits | 54 KB | Posted: 2/14/10

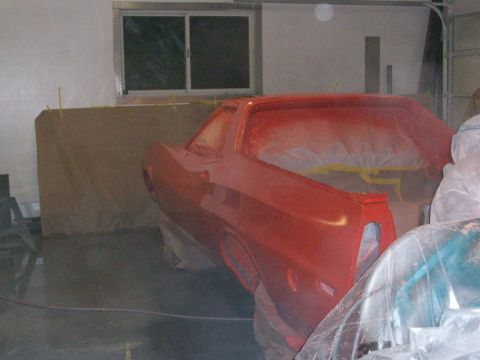

then we finished it off with three coats of ShopLine 620 clear

703 hits | 51.84 KB | Posted: 2/14/10

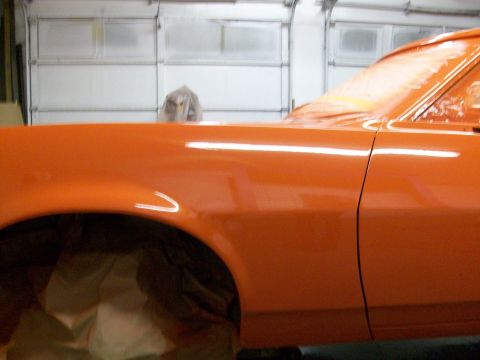

the "ghost-flames" are only visible from certain angles, and under direct light. you can barely see ...

718 hits | 53.78 KB | Posted: 2/14/10

596 hits | 56.51 KB | Posted: 2/14/10

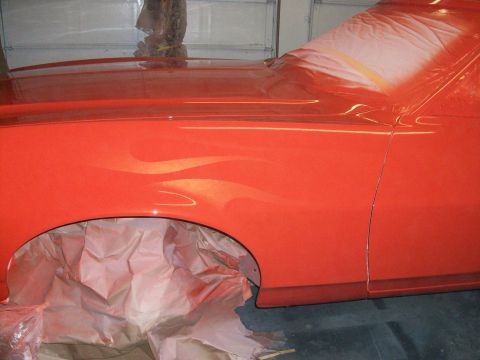

the flames fade towards the front of the car.

635 hits | 58.38 KB | Posted: 2/14/10

643 hits | 54.17 KB | Posted: 2/14/10

664 hits | 54.93 KB | Posted: 2/14/10

679 hits | 54.18 KB | Posted: 2/14/10

672 hits | 65.81 KB | Posted: 2/14/10

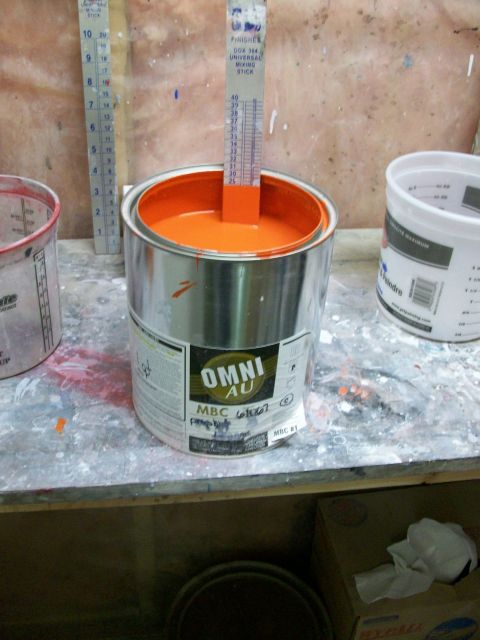

this is the base coat; Omni AU MBC "prohet orange 61067"

660 hits | 61.58 KB | Posted: 2/14/10

607 hits | 65.81 KB | Posted: 2/14/10

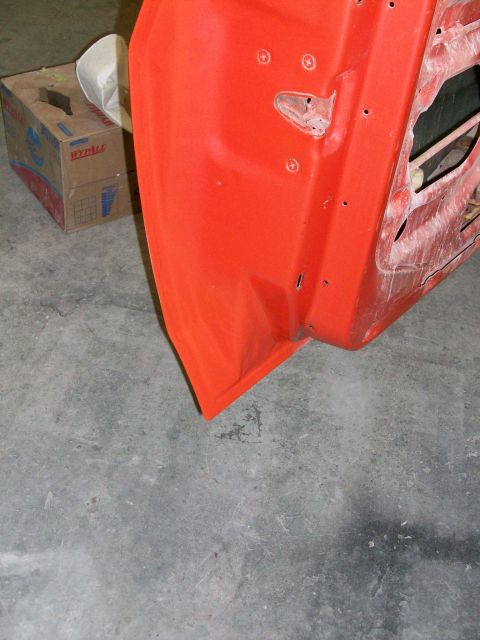

the drivers door, post repairs.

745 hits | 52.87 KB | Posted: 2/14/10

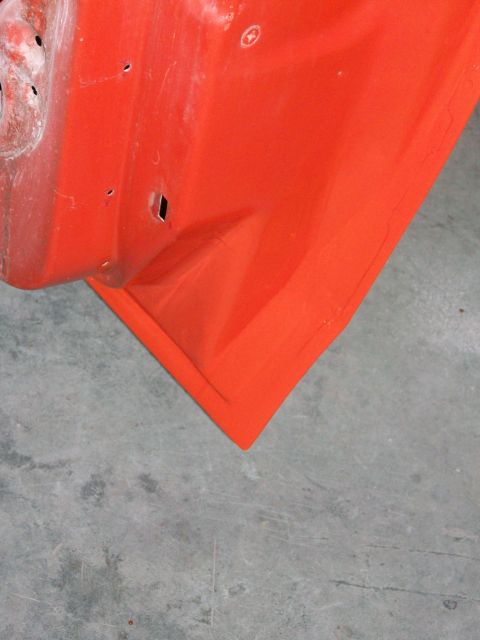

passenger door, post repair.

593 hits | 57.18 KB | Posted: 2/14/10

731 hits | 81.56 KB | Posted: 2/15/10

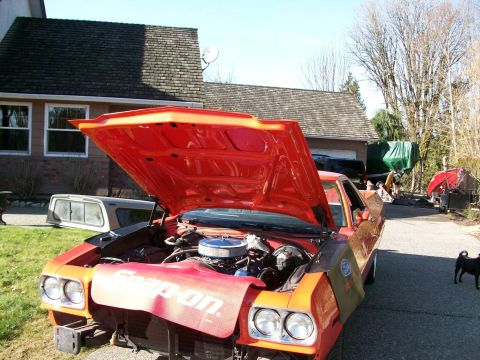

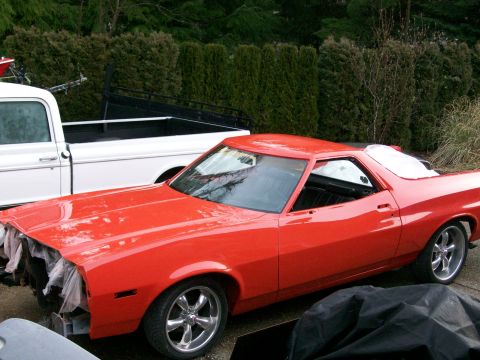

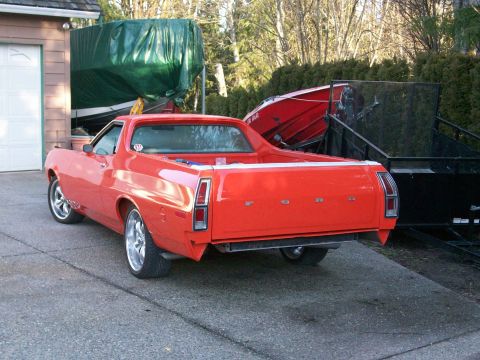

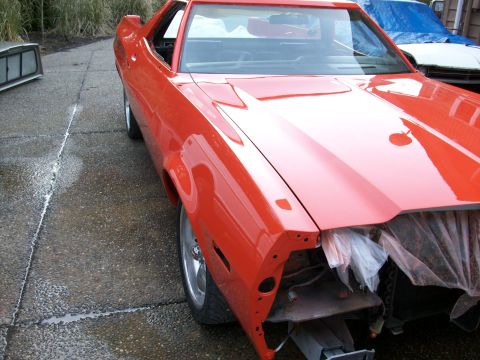

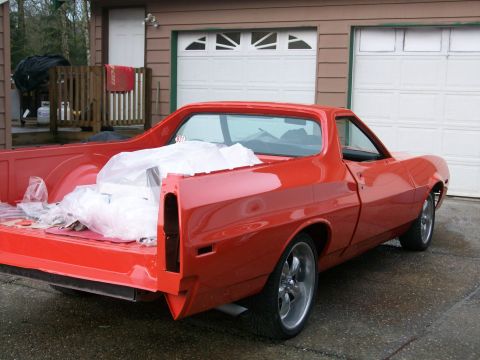

finally got the car outside this morning; it looks even better

698 hits | 76.21 KB | Posted: 2/15/10

730 hits | 71.82 KB | Posted: 2/15/10

708 hits | 64.66 KB | Posted: 2/15/10

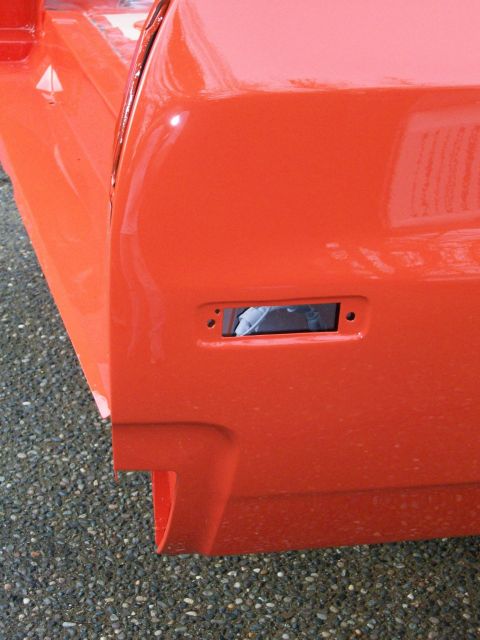

there is a little run in the clear off the corner of this marker lite. we'll just block it off and p...

618 hits | 43.91 KB | Posted: 2/15/10

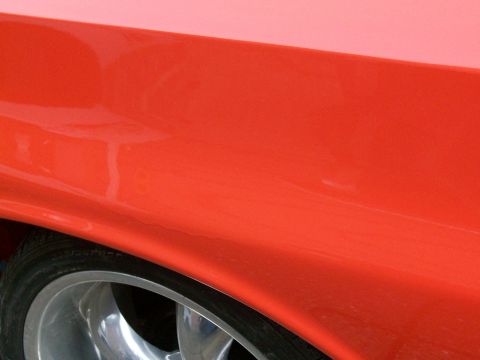

I got a big sag in the clear on this body line above the rear fenderwell; we'll block sand it off an...

802 hits | 67.68 KB | Posted: 2/15/10

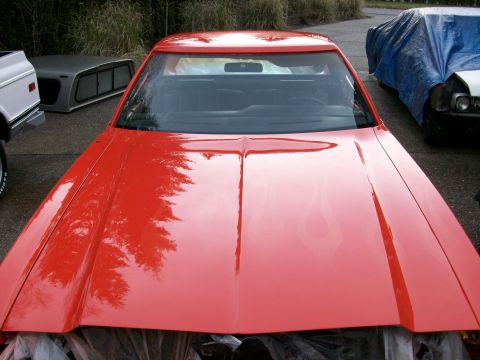

the "ghost-flames" turned out great, but they are really hard to get a photo of

656 hits | 83.93 KB | Posted: 2/15/10

652 hits | 87.91 KB | Posted: 2/15/10

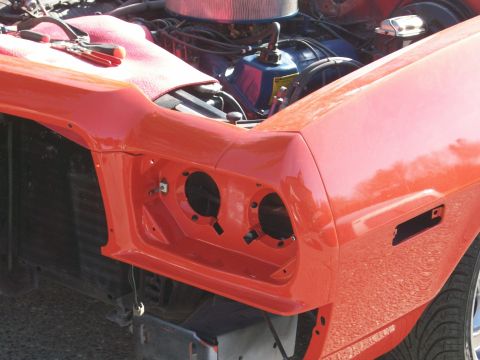

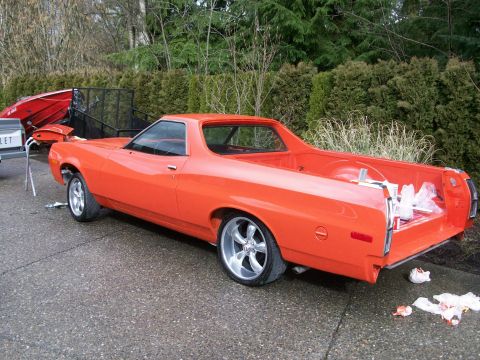

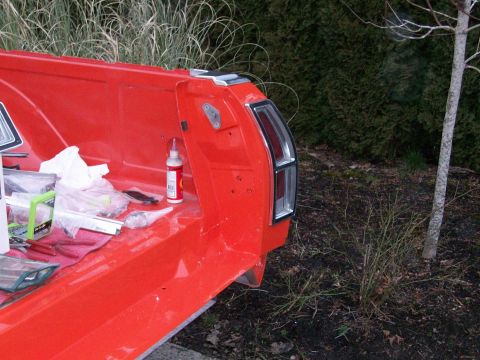

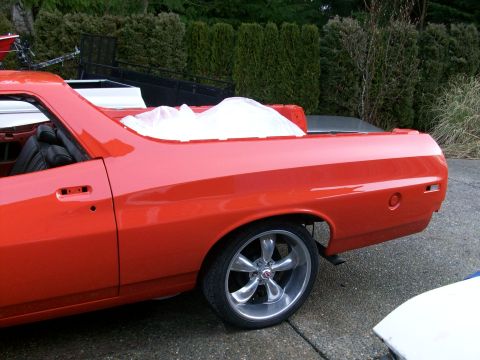

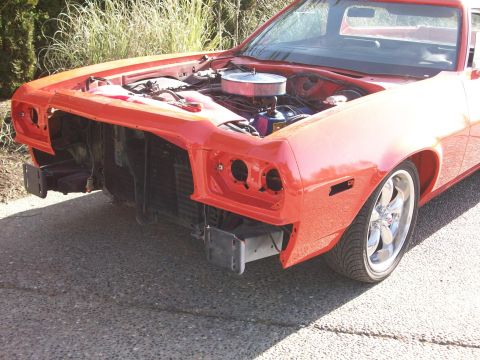

re-assembly has started...

633 hits | 76.11 KB | Posted: 2/15/10

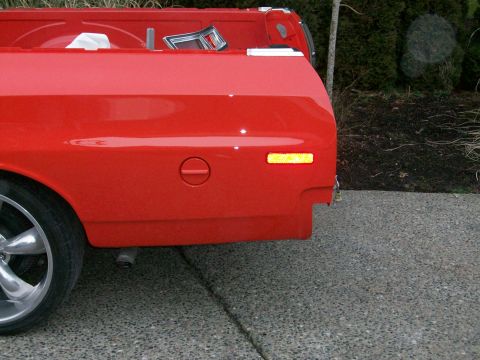

my gas cap turned out great! it was so ugly before--it only had paint on the upper half, the bottom ...
