685 hits | 48.94 KB | Posted: 5/28/07

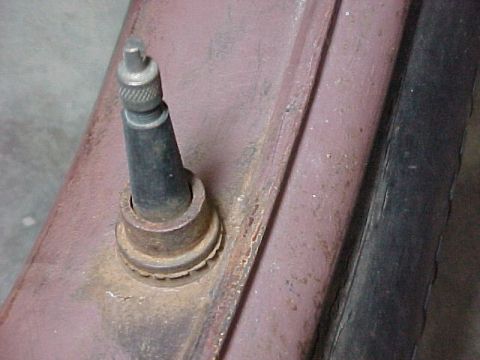

Firestone 30 X 31/2 rim showing the heavy locating lug that provides protection for the valve stem a...

592 hits | 45.21 KB | Posted: 5/28/07

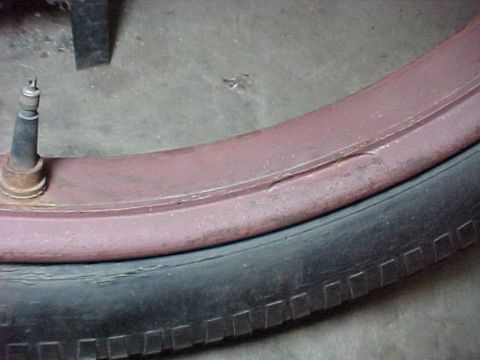

Firestone rim showing machined groove for the mounting lug and tapered rim inner circumference.

596 hits | 64.24 KB | Posted: 5/28/07

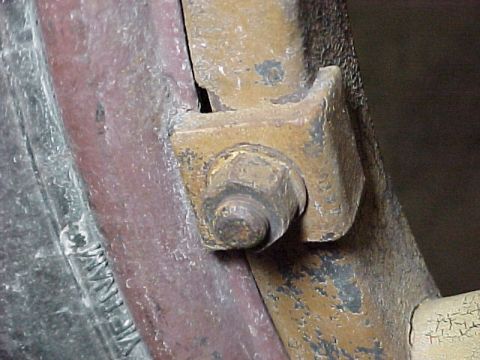

Firestone rim showing lug locked into the machined groove.

635 hits | 55.81 KB | Posted: 5/28/07

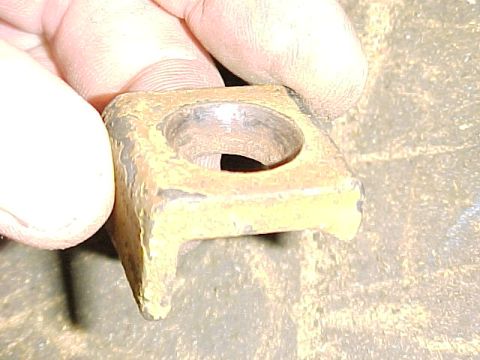

Firestone locking lug showing the counterbored area for the special lug nuts used only with the Fire...

566 hits | 73.34 KB | Posted: 5/28/07

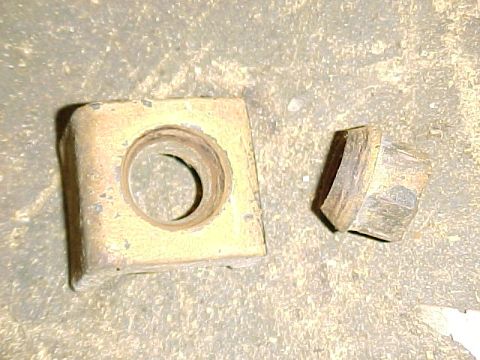

Firestone locking lug and nut showing the beveled nut and countersunk lug.
