Leak Repair 002.jpg 286 hits | 85.78 KB | Posted: 2/26/08 Thought I would clean out this area just in case it was causing the leak... It wasn't. But glad I d...
Leak Repair 003.jpg 283 hits | 94.28 KB | Posted: 2/26/08 That's 11 years worth of leaves and debris. I'm ashamed.

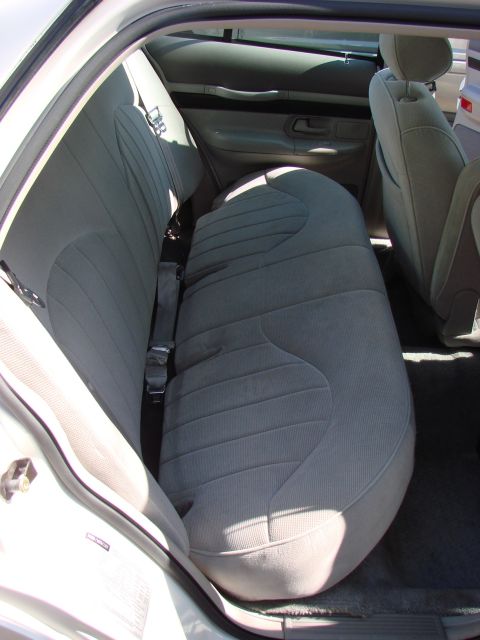

Leak Repair 005.jpg 348 hits | 56.78 KB | Posted: 2/26/08 Took out the back seat bottom cushion. Just push the front of the cushion towards the trunk and then...

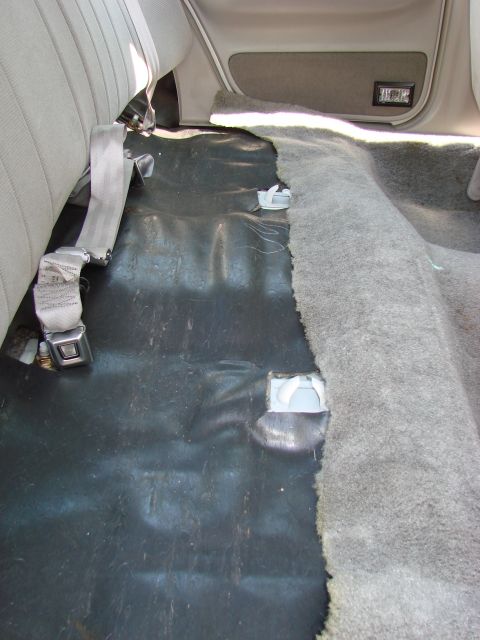

Leak Repair 007.jpg 450 hits | 61 KB | Posted: 2/26/08 This is what is under the rear seat cushion. See the "hooks"? They're white.
Leak Repair 006.jpg 296 hits | 86.23 KB | Posted: 2/26/08 This is what's on the underside of the back seat cushion. See the wire? It is what engages the hoo...
Leak Repair 012.jpg 319 hits | 73.17 KB | Posted: 2/26/08 No more room for passengers.

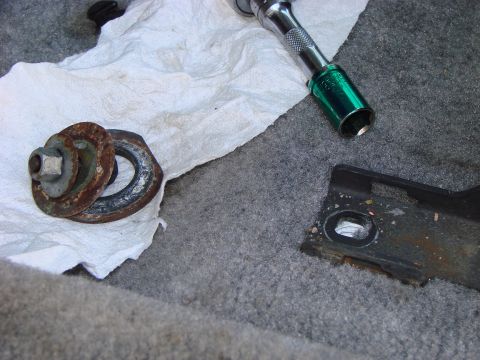

Leak Repair 014.jpg 272 hits | 81.24 KB | Posted: 2/26/08 BTW - The outboard front fastener on the drivers seat is a bolt that will require a 13mm socket. It...

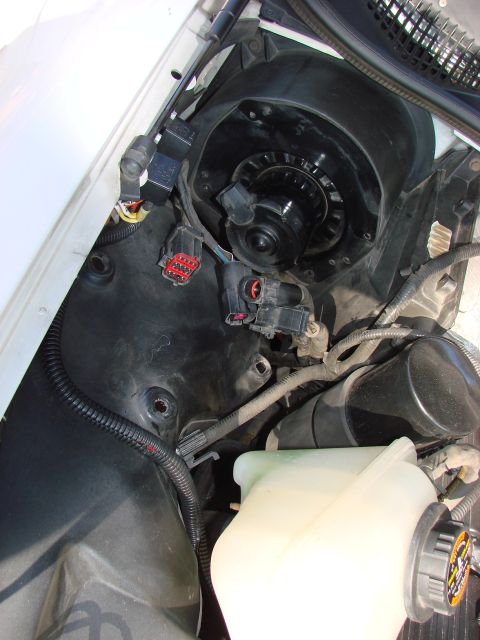

Leak Repair 024.jpg 358 hits | 67.2 KB | Posted: 2/26/08 The Coolant bottle removed (3 -11mm nuts inside the fender liner), wiring on blower fan disconnected...

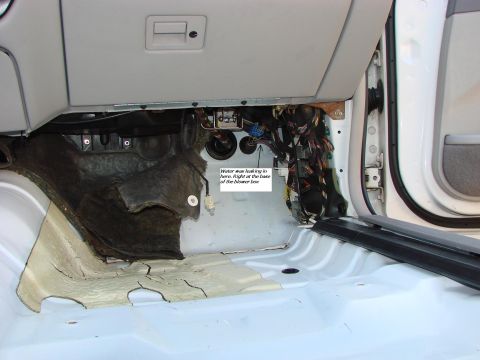

Leak Repair 029 annotated.JPG 320 hits | 54.05 KB | Posted: 2/26/08 This is the area that was getting wet. That sound insulation doesn't come out without removing the ...

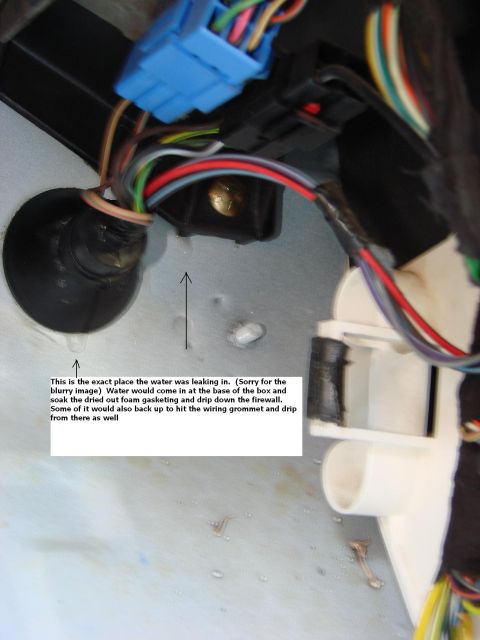

Leak Repair 025 annotated.JPG 325 hits | 51.88 KB | Posted: 2/26/08 Here is the actual leak up close. Sorry about the blur.

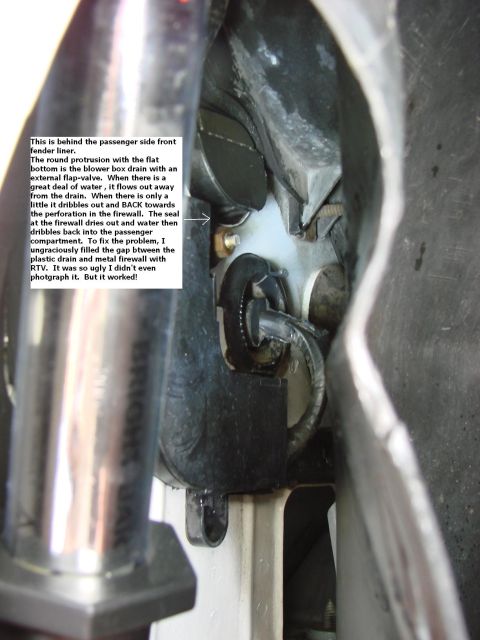

Leak Repair 027 annotated.JPG 313 hits | 60.46 KB | Posted: 2/26/08 Here is the culprit. It took me hours to figure this out. It only leaks when a little bit of water...
