TractionLTD 018.jpg
1029 hits | 78.33 KB | Posted: 9/28/07
The complete installation as it was when I first put it on the road

TractionLTD 019.jpg
828 hits | 82.71 KB | Posted: 9/28/07
Drivers side header, almost done fabricating. You can see the oil supply for the turbos and I haven'...

TractionLTD 020.jpg
692 hits | 84.15 KB | Posted: 9/28/07
Passenger side header. I think I'm done fabricating the pipes and this is a final mock-up to double ...

TractionLTD 021.jpg
567 hits | 70.95 KB | Posted: 9/28/07
The box at the end of fabrication. It has fine thread 1/4" bolts here but it took forever to get the...

TractionLTD 022.jpg
548 hits | 75.47 KB | Posted: 9/28/07
Cold side piping on the drivers side. The two pipes on the right head down to the filter box in the ...

TractionLTD 023.jpg
632 hits | 80.55 KB | Posted: 9/28/07
Cold side piping, passenger side. They clear the battery nicely. I need to move it to the trunk, and...

TractionLTD 024.jpg
521 hits | 75.36 KB | Posted: 9/28/07
The AC compressor bracket held the tensioner for the smog pump. It didn't anything anymore but I wan...

TractionLTD 025.jpg
613 hits | 131.27 KB | Posted: 9/28/07
Passenger side header and turbo unit showing the relationship between these parts on the car. You ca...

TractionLTD 026.jpg
600 hits | 129.99 KB | Posted: 9/28/07

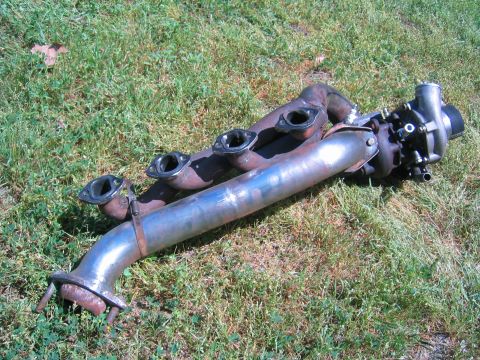

Almost done on the drivers side. I haven't made the strap to support the back of the down pipe yet a...

TractionLTD 027.jpg
525 hits | 65.77 KB | Posted: 9/28/07

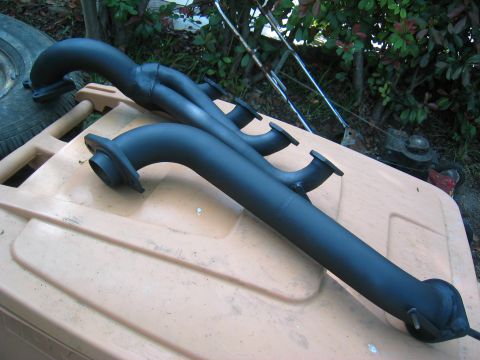

Drivers side with the straps welded on and drying on the garbage can.

TractionLTD 028.jpg
530 hits | 125.77 KB | Posted: 9/28/07

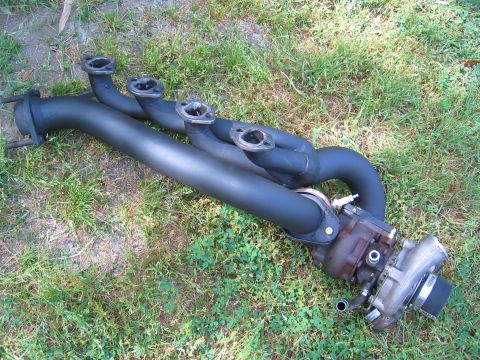

Passenger side all done and ready to install. You can't get it in as a unit but it goes like this in...

TractionLTD 029.jpg
518 hits | 84.39 KB | Posted: 9/28/07

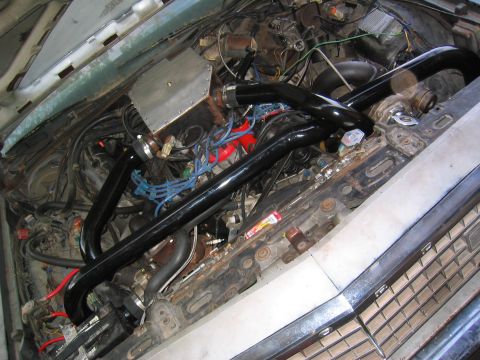

Almost ready to run. The coil is still loose so I'm not completely ready.

TractionLTD 030.jpg
549 hits | 92.18 KB | Posted: 9/28/07

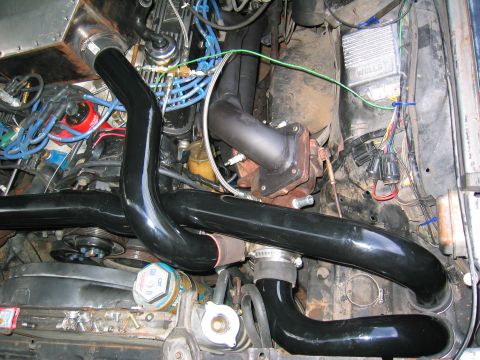

See the cold side pipes disappear into the fender? I built a custom box to hold a 8"x16" p...

TractionLTD 031.jpg
603 hits | 90.22 KB | Posted: 9/28/07

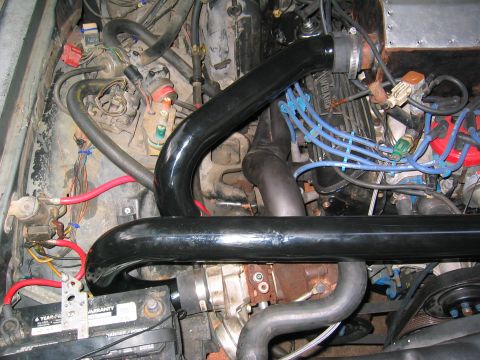

I made that battery hold down also.

Later I moved the battery to the trunk. Which works a lot bette...

TractionLTD 032.jpg
879 hits | 80.6 KB | Posted: 9/28/07

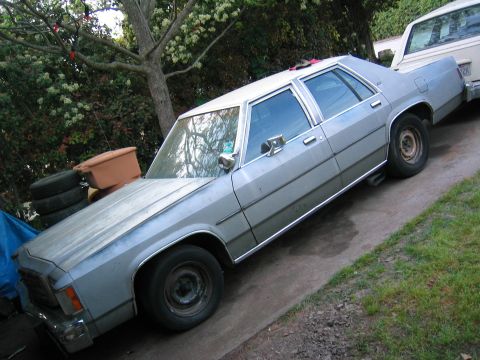

All fits under the stock hood! I've painted it since this pic.

TractionLTD 033.jpg
789 hits | 51.91 KB | Posted: 9/28/07

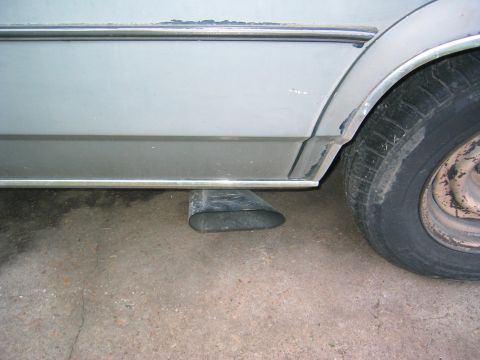

Oval exhaust tips. I liked these when I made them but I'm not happy with the side exhaust anymore. I...

TractionLTD 034.jpg
601 hits | 104.47 KB | Posted: 9/28/07

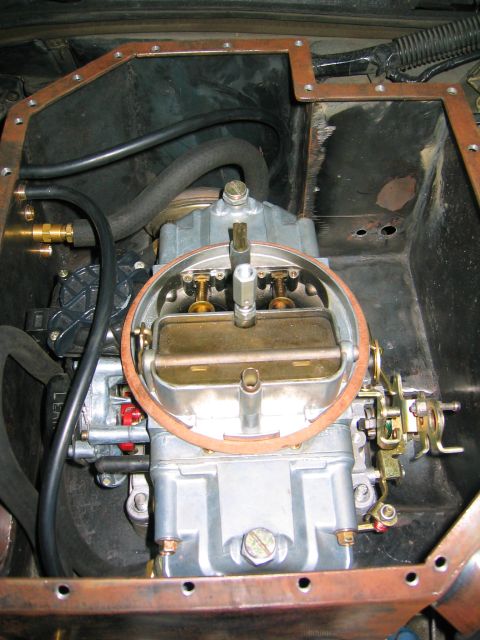

See there is a Holley in the box. I've added braided stainless -8 lines to replace the 3/8 hose in t...

TractionLTD 035.jpg
533 hits | 53.01 KB | Posted: 9/28/07

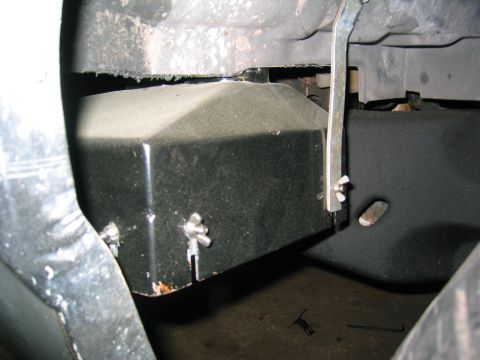

I made this box to hold a stock late model Camaro panel filter. It got wet in the rain so I added a ...

TractionLTD 036.jpg
568 hits | 65.21 KB | Posted: 9/28/07

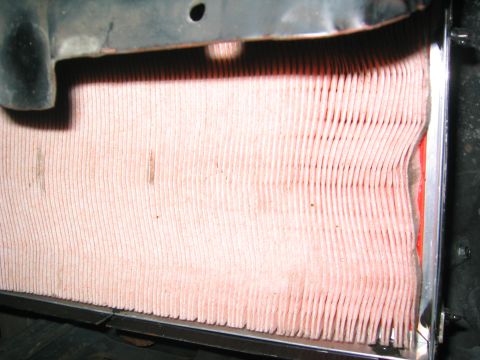

Bottom view of the filter in the box. That filter got wet and sucked into the pipes.

TractionLTD 037.jpg
826 hits | 77.91 KB | Posted: 9/28/07

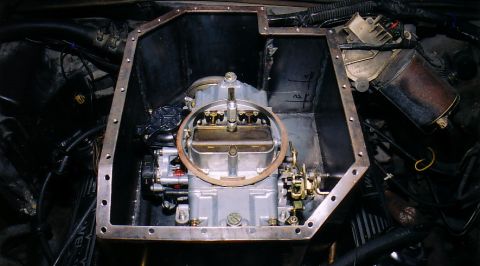

Fabbing the box. I haven't drilled the holes for the throttle cable, the transmission cable, the vac...

TractionLTD 038.jpg
724 hits | 126.72 KB | Posted: 9/28/07

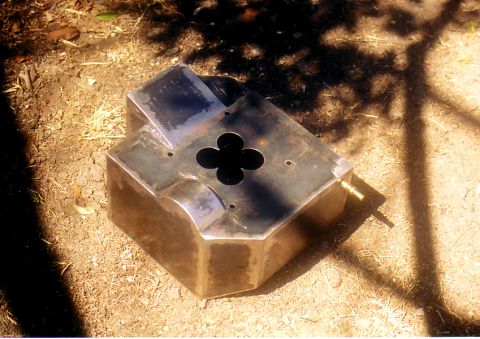

One very complicated box it took three cardboard versions to get it right. Only about a day to make ...

TractionLTD 039.jpg
625 hits | 116.06 KB | Posted: 9/28/07

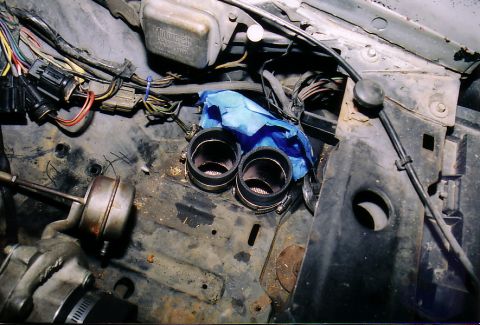

Here you can see down to the filter in the box.

LTD9-30-07 002.jpg
582 hits | 95.25 KB | Posted: 9/30/07
Okay, here's how the car sits as of 9-30-07. I've painted it and it has newer rims and tires. I boug...

LTD9-30-07 003.jpg
558 hits | 88.12 KB | Posted: 9/30/07
A week after the paint some kid driving his parents car without permission and with no sleep for two...

LTD9-30-07 004.jpg
1329 hits | 82.71 KB | Posted: 9/30/07
The two headlight cars look menacing from the front. Way better than your grandfathers four headligh...

LTD9-30-07 005.jpg
858 hits | 80.71 KB | Posted: 9/30/07

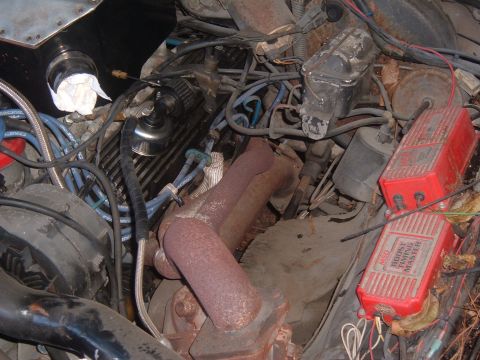

See the custom wire separators I made? Keep the wires out of the headers. Also see the MSD 6A and BT...

LTD9-30-07 006.jpg
626 hits | 67.93 KB | Posted: 9/30/07

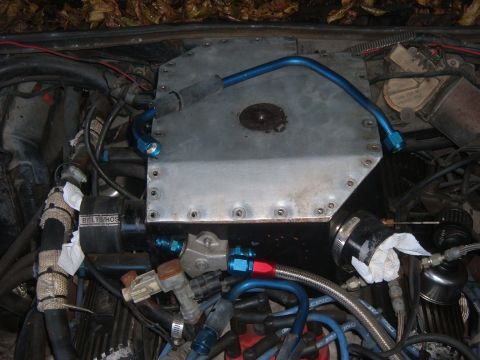

Working on the carb box. Need to add pipe stubs for the blow off valves, and reroute the fuel lines....

513 hits | 32.88 KB | Posted: 4/17/10

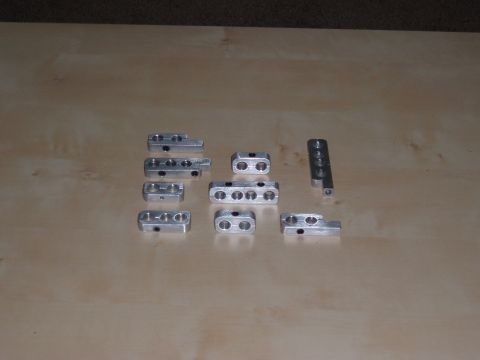

I made myself some wire separators. Ok, so the plastic ones you can buy are less than $30. These cos...

IMG_0545.MOV
390 hits | 2.11 MB | Posted: 5/8/13
First time starting in over two years!

218 hits | 55.86 KB | Posted: 4/13/14

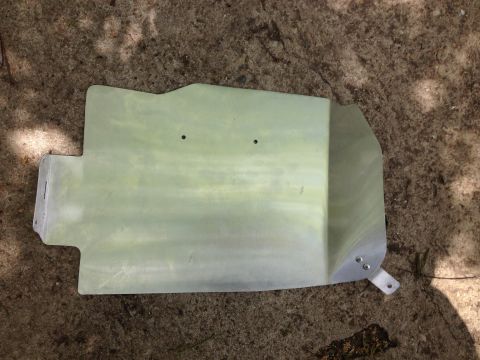

Aluminum sheet heat shield for the passenger side air intake. Not that complex of a shape.

236 hits | 55.74 KB | Posted: 4/13/14

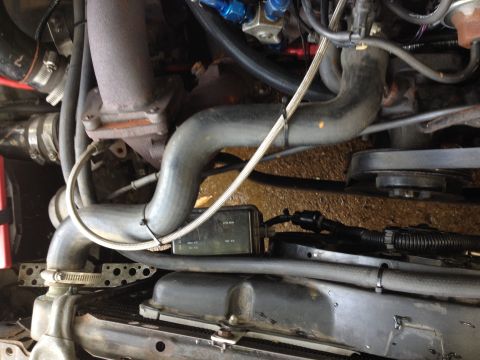

The Saab relay box mounted to the Taurus fan. Pretty clean I think.

248 hits | 62.85 KB | Posted: 4/13/14

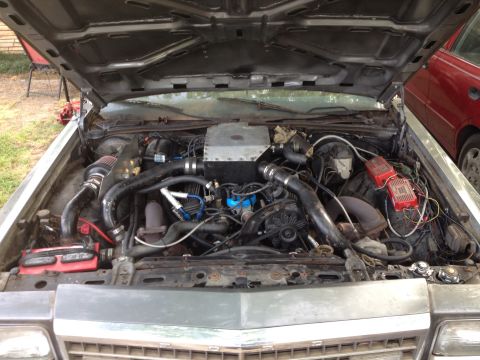

Engine compartment as of April 2014. I'm just flushing the cooling system right here.
