Enginebuild 001.jpg
403 hits | 69.73 KB | Posted: 5/5/08
The starting point. Not quite a bare block but the first picture I took. At this point the block has...

Enginebuild 002.jpg
465 hits | 82.05 KB | Posted: 5/5/08
Here you can see the bores have been freshly honed with a 220 stone. The valley is painted to help o...

Enginebuild 003.jpg
403 hits | 75.2 KB | Posted: 5/5/08
Eight forged TRW slugs slung on stock shot peened rods with ARP bolts. Tightened by stretch if you m...

Enginebuild 004.jpg
349 hits | 76.4 KB | Posted: 5/5/08

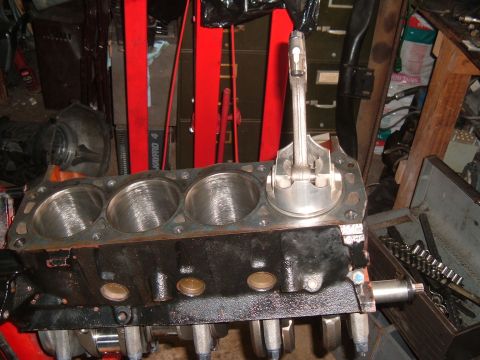

Using a piston to square the rings so I can check the end gaps. They were fine.

Enginebuild 005.jpg
356 hits | 66.3 KB | Posted: 5/5/08

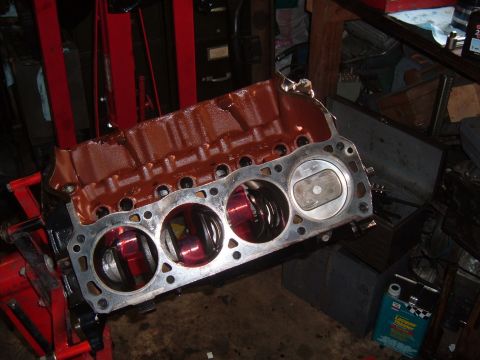

The first of eight pistons in their home. I only took one picture because eight pictures would be bo...

enginebuild 6.jpg
318 hits | 77.42 KB | Posted: 5/5/08

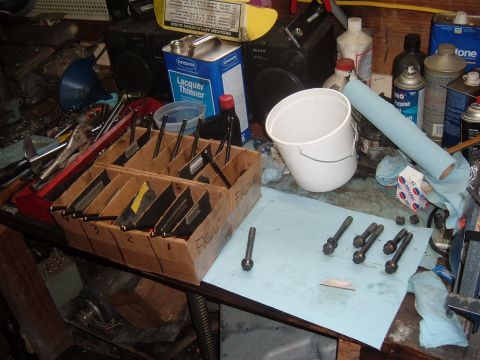

I'm cleaning all the head bolts before relubing them with ARP moly lube. Cleaning old stuff is most ...

enginebuild 7.jpg
407 hits | 85.11 KB | Posted: 5/5/08

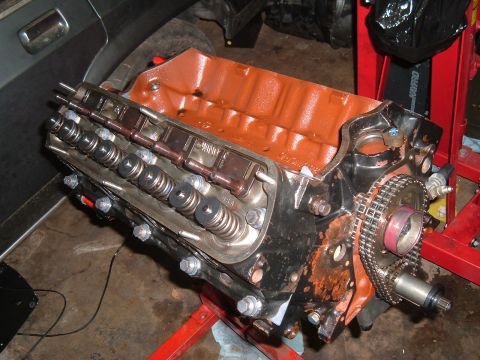

First head on. You can see the generous use of ARP moly lube on the heads. Limiting friction is crit...

enginebuild 8.jpg
410 hits | 86.43 KB | Posted: 5/5/08

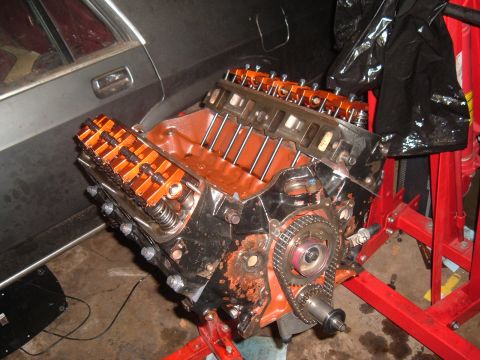

Both heads in place. Fel-Pro 9333pt1 head gaskets. Cylinder sealing is not an issue with iron headed...

409 hits | 78.86 KB | Posted: 5/13/08

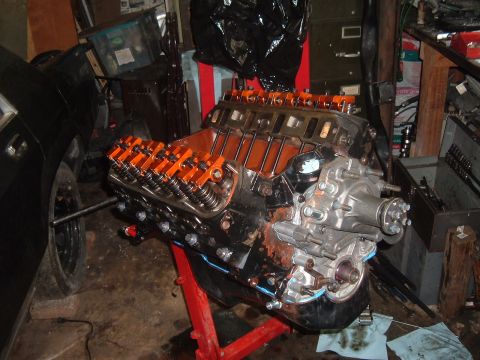

Alright! It's almost done. Oil pump and pan are on as are the timing cover and water pump. The water...

387 hits | 75.85 KB | Posted: 5/13/08

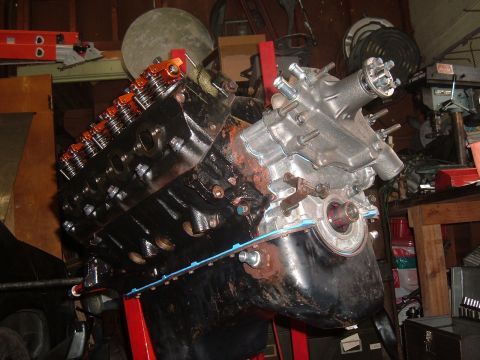

Same state as the previous pic but from a low angle so you can see the oil drains for the turbos and...

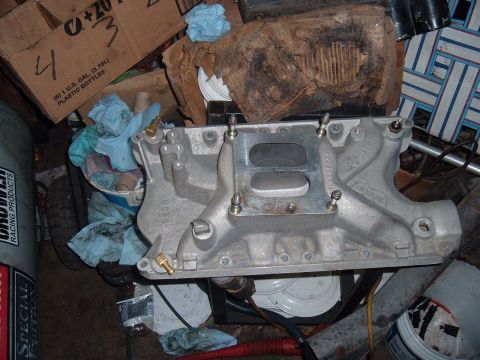

438 hits | 78.65 KB | Posted: 5/13/08
That's my intake! A Weiand stealth, gasket matched and cleaned up at this point. The rear water port...

363 hits | 67.17 KB | Posted: 5/13/08

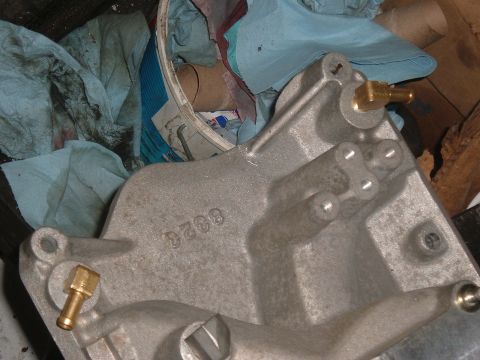

A better shot of the fittings installed. The hard part was holding the manifold steady in the drill ...

415 hits | 73.67 KB | Posted: 8/23/08

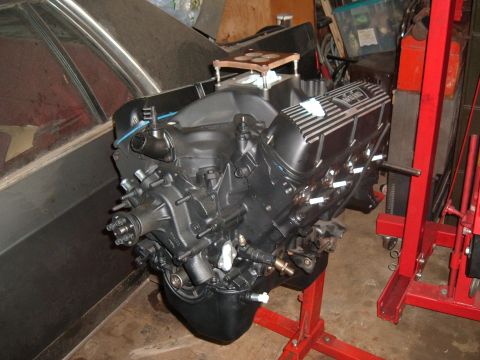

This the motor painted and ready to go in the car. I still need to find an oil cooler o-ring and som...
