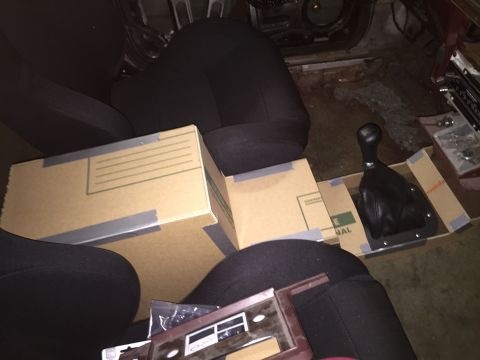

IMG_2563.JPG 102 hits | 46.84 KB | Posted: 3/10/16 Cardboard rough draft. Just checking heights and such.

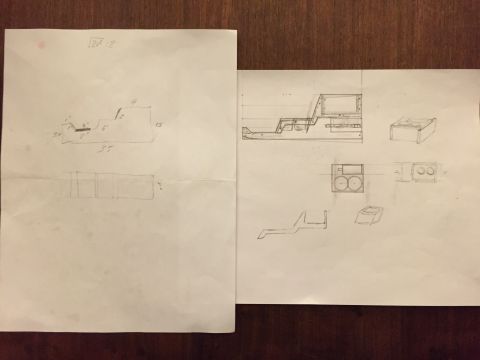

IMG_2572.JPG 115 hits | 30.52 KB | Posted: 3/10/16 Drawing out the second version.

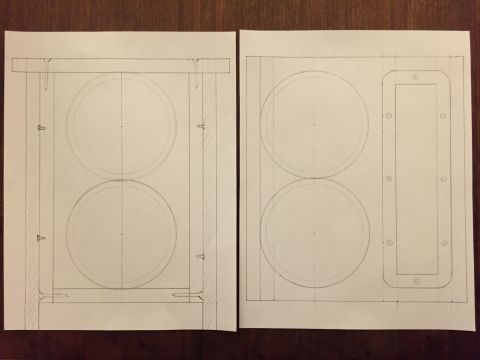

IMG_2573.JPG 105 hits | 38.15 KB | Posted: 3/10/16 More drawings. Better to find problems on paper then later.

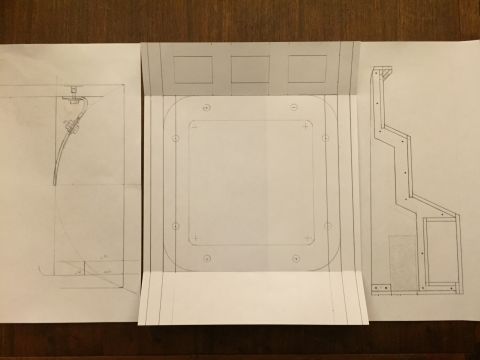

IMG_2574.JPG 102 hits | 32.81 KB | Posted: 3/10/16 These are all to scale. Some are 1:1.

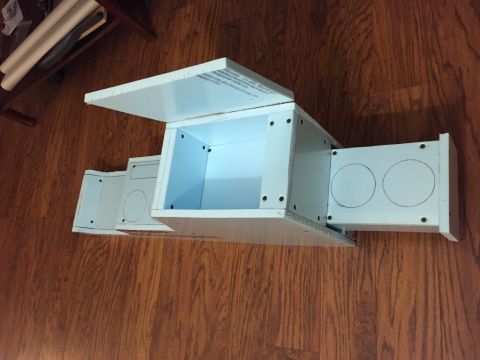

IMG_2598.JPG 97 hits | 53.3 KB | Posted: 3/10/16 Prototype. Much easier to mock up in styrofoam than in MDF.

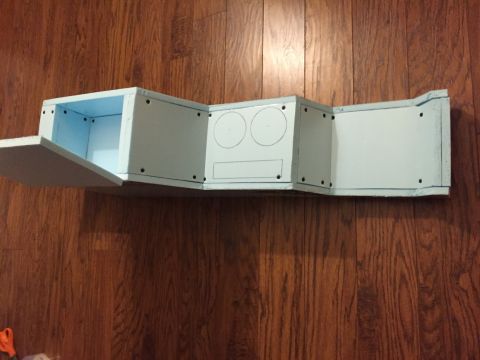

IMG_2599.JPG 94 hits | 51.88 KB | Posted: 3/10/16 Storage in the arm rest, cup holders, shifter, pull out cup holders for the rear, and temp/volt gaug...

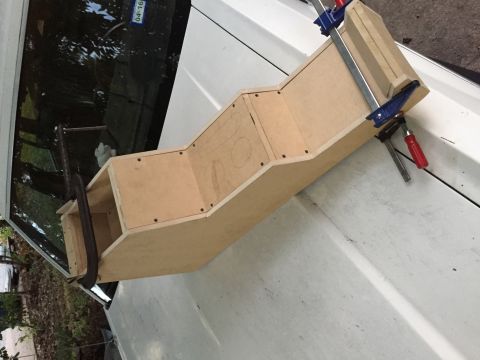

IMG_2626.JPG 111 hits | 54.56 KB | Posted: 3/10/16 Working on the core.

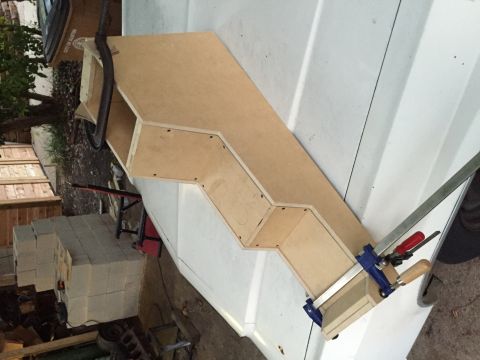

IMG_2627.JPG 114 hits | 59.35 KB | Posted: 3/10/16 Mostly roughed in. Lots of finish work to do though.

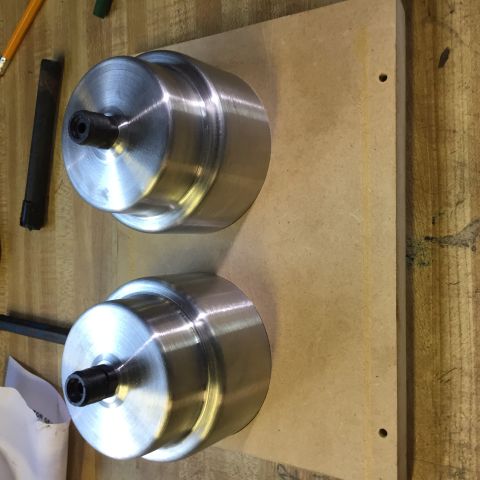

IMG_2630.JPG 94 hits | 73.37 KB | Posted: 3/10/16 Holes for cup holders. These are 3 5/8 inch and I bought a 3 5/8 inch hole saw. They are a light int...

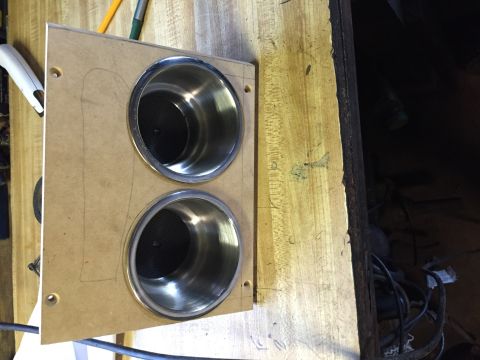

IMG_2632.JPG 113 hits | 58.52 KB | Posted: 3/10/16 They are offset to one side to clear my arm angle to the shifter.

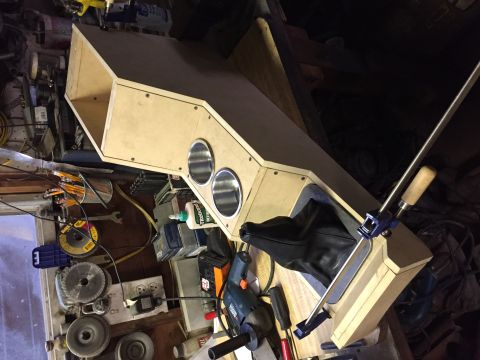

IMG_2633.JPG 120 hits | 70.04 KB | Posted: 3/10/16 Mocked up with shifter boot and trim ring. I stitched that boot too.

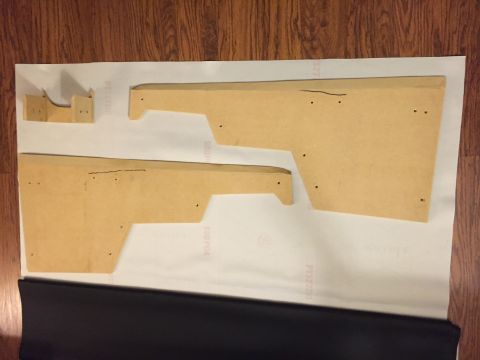

IMG_2680.JPG 121 hits | 41.76 KB | Posted: 3/10/16 Beginning to cover it in vinyl. I made the sides removable and bolted from inside so it would hide t...

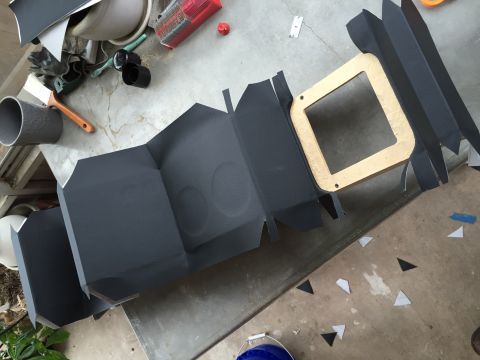

IMG_2681.JPG 107 hits | 59.92 KB | Posted: 3/10/16 Slowly working the vinyl down and around. Patience.

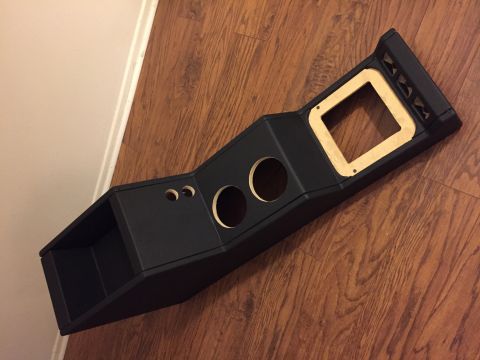

IMG_2683.JPG 97 hits | 54.68 KB | Posted: 3/10/16 Covered in vinyl! Still need to make the pull out cup holders but coming along.

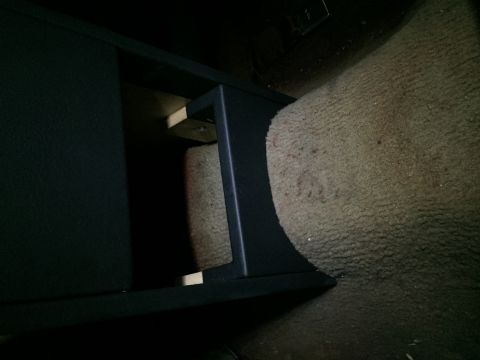

IMG_2688.JPG 115 hits | 36.5 KB | Posted: 3/10/16 Checking the fit to the rear carpet. Perfect.

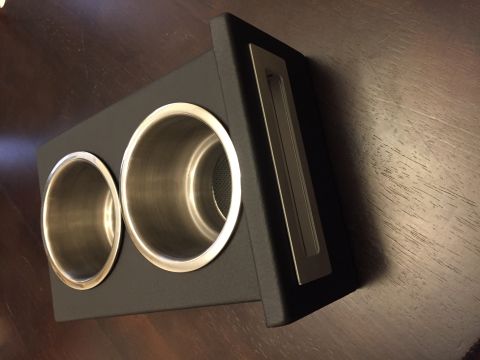

IMG_2689.JPG 100 hits | 48.7 KB | Posted: 3/10/16 Pull out cup holders for the rear passengers. Not too shabby.
