Stock airbox & K&N tube combined 001.jpg
1077 hits | 73.28 KB | Posted: 11/4/08

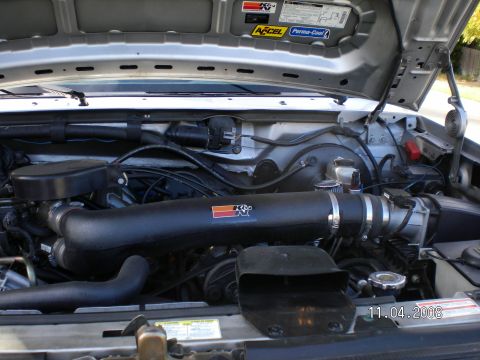

This is the K&N FIPK second generation intake tube, attached to the mass airflow sensor, then attach...

Stock airbox & K&N tube combined 002.jpg
604 hits | 77.93 KB | Posted: 11/4/08

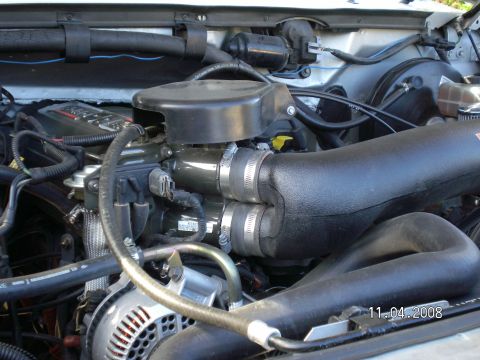

One end seals around each throttle body tube with silicone hoses.

Stock airbox & K&N tube combined 003.jpg
565 hits | 70.59 KB | Posted: 11/4/08

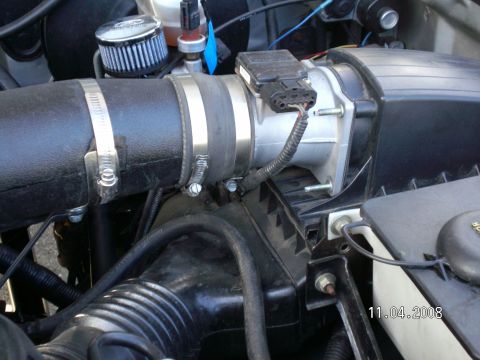

Other end attaches to Mass Air Flow sensor with same type hose.

Stock airbox & K&N tube combined 004.jpg
539 hits | 73.39 KB | Posted: 11/4/08

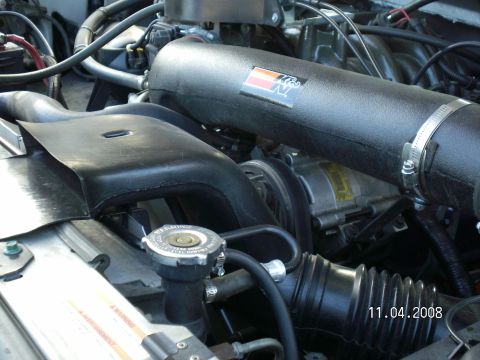

Stock fresh ait intake source kept for cold, dense air supply.

Stock airbox & K&N tube combined 005.jpg
733 hits | 47.83 KB | Posted: 11/4/08

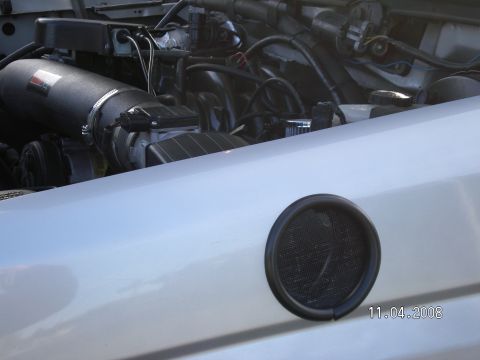

outter fender previously drilled to install snorkel.

Stock airbox & K&N tube combined 006.jpg
586 hits | 41.54 KB | Posted: 11/4/08

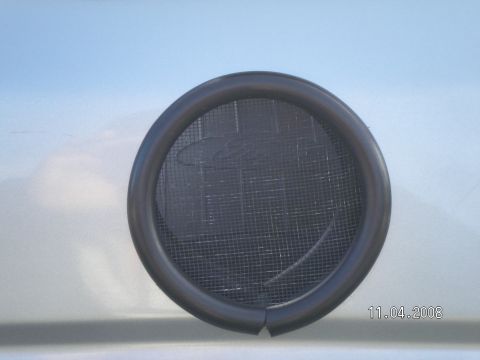

Gas hose cut lengthwise to cover sharp edges while household window screen keeps debris out.

Stock airbox & K&N tube combined 007.jpg
654 hits | 52.86 KB | Posted: 11/4/08

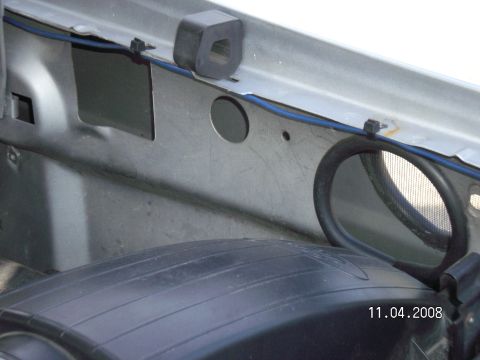

As you can see, inner fender also drilled.

Stock airbox & K&N tube combined 008.jpg
566 hits | 69.22 KB | Posted: 11/4/08

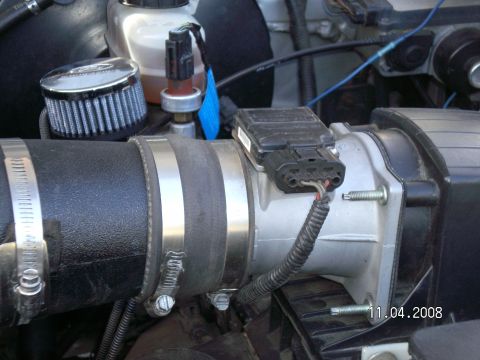

Stock airbox with K&N drop-in filter kept. Just needed to bridge gap with two Mass Airflow gaskets.
