305 hits | 98.06 KB | Posted: 3/21/09
factory drum brakes

306 hits | 94.42 KB | Posted: 3/21/09
backing plate removed

424 hits | 90.99 KB | Posted: 3/21/09
ford drum spindle with chevy 1/2t backing plate. If you position the backing plate this way the brak...

294 hits | 71.68 KB | Posted: 3/21/09
The spacer washer that makes it possible. $25 a pair, shipping included.

309 hits | 85.46 KB | Posted: 3/21/09
Note the bevel goes inboard to allow room for the radius at the base of the shoulder

265 hits | 86.89 KB | Posted: 3/21/09
Spacer in place up against the spindle shoulder.

250 hits | 89.56 KB | Posted: 3/21/09
Together with the chevy 1/2t backing plate. Early drum spindle and late disc and hub. If usinf the w...

268 hits | 86.59 KB | Posted: 4/6/09

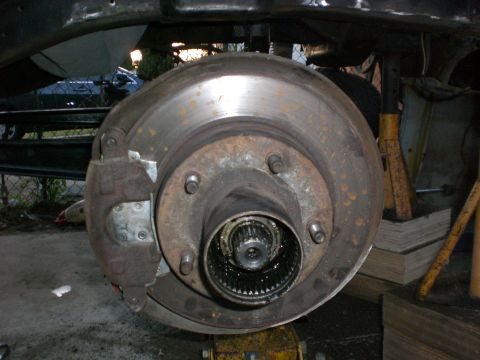

In this position you will need to grind a small amount off the caliper and off the knuckle just belo...
