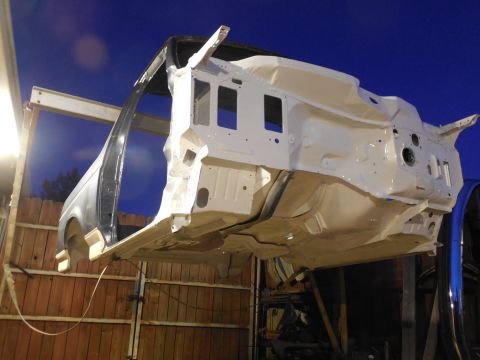

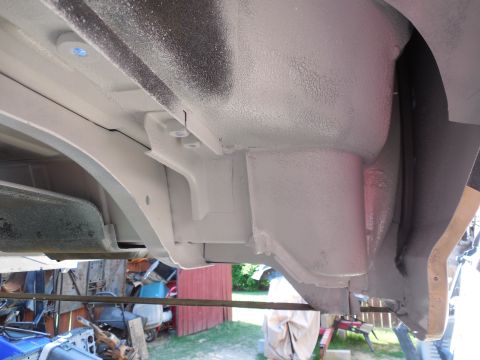

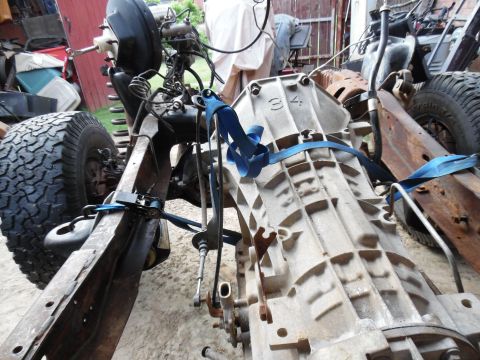

Steve83 > 1993 Ford Bronco > open folder Now it's MINE!

It's a lot worse than it looks... busted w/s neither door window works driver's inside handle broke...
Hits: 1812
Size: 117.38 KB
Posted: 8/30/14
It's a lot worse than it looks... busted w/s neither door window works driver's inside handle broke...		Just a tiny dent in the recently-new aftermarket front bumper.
Hits: 906
Size: 132.78 KB
Posted: 9/1/14
Just a tiny dent in the recently-new aftermarket front bumper.		The factory rear bumper is twisted more severely.
Hits: 784
Size: 119.3 KB
Posted: 9/1/14
The factory rear bumper is twisted more severely.		I'm going to try brake fluid to remove the spray paint from the plastic centers. Paint stripper dam...
Hits: 951
Size: 135.38 KB
Posted: 9/1/14
I'm going to try brake fluid to remove the spray paint from the plastic centers. Paint stripper dam...		This was ruined when the PO painted it black. I couldn't save it.
Hits: 721
Size: 54.9 KB
Posted: 3/29/16
This was ruined when the PO painted it black. I couldn't save it.
The water pump is still shiny & clean, so I can't imagine why there's THIS MUCH rust in the coolant....
Hits: 1843
Size: 126.29 KB
Posted: 9/1/14
The water pump is still shiny & clean, so I can't imagine why there's THIS MUCH rust in the coolant....		This is the dent that I intentionally left to remind him to be more careful.
Hits: 848
Size: 115.37 KB
Posted: 9/1/14
This is the dent that I intentionally left to remind him to be more careful.		This rub pad is stretched because the rubber bumper is too sticky, and the upper sleeve is gone, all...
Hits: 745
Size: 114.78 KB
Posted: 9/1/14
This rub pad is stretched because the rubber bumper is too sticky, and the upper sleeve is gone, all...		There should be a thick plastic sleeve around the tube, but they all degrade, and there's no replace...
Hits: 792
Size: 92.08 KB
Posted: 9/1/14

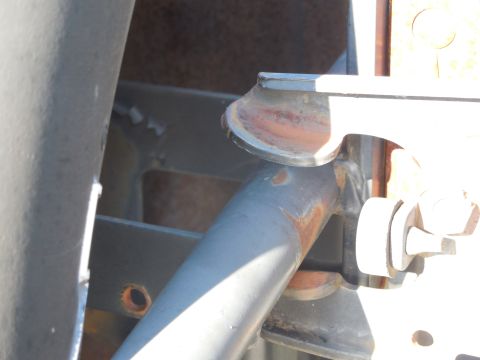

There should be a thick plastic sleeve around the tube, but they all degrade, and there's no replace...		There was a load of crap back here, including leaking bottles of PSF & ATF, drink cups (whose erstwh...
Hits: 726
Size: 111.44 KB
Posted: 9/6/14
There was a load of crap back here, including leaking bottles of PSF & ATF, drink cups (whose erstwh...
At least it smells better now.
Hits: 756
Size: 119.65 KB
Posted: 9/6/14
At least it smells better now.		This looks just about how I remember it, other than the buckle in the driver's footwell from the wre...
Hits: 779
Size: 128.63 KB
Posted: 9/6/14

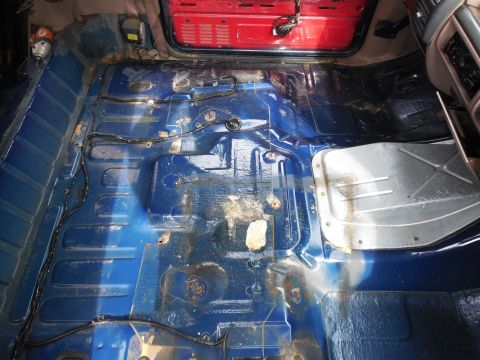

This looks just about how I remember it, other than the buckle in the driver's footwell from the wre...		I hope I can pound out all those wrinkles in the floor.
Hits: 771
Size: 120.49 KB
Posted: 9/7/14

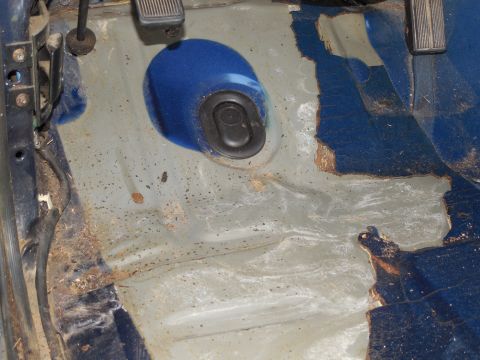

I hope I can pound out all those wrinkles in the floor.		It's still actually driveable. If it had a plate & insurance, it would probably even be legal in th...
Hits: 933
Size: 116.59 KB
Posted: 9/7/14

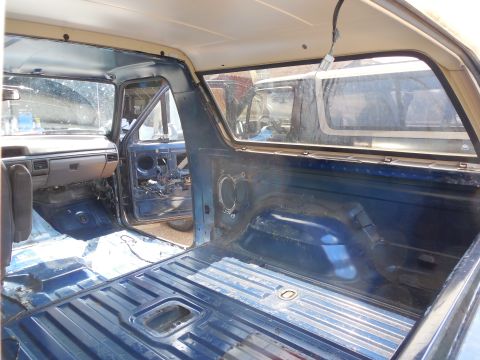

It's still actually driveable. If it had a plate & insurance, it would probably even be legal in th...		It's still actually driveable. If it had a plate & insurance, it would probably even be legal in th...
Hits: 737
Size: 124.52 KB
Posted: 9/7/14
It's still actually driveable. If it had a plate & insurance, it would probably even be legal in th...

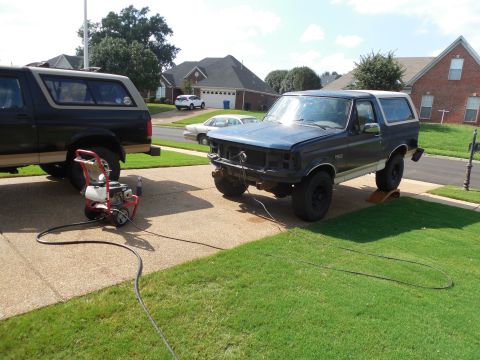

Aaahh... 6 hours of fun & games!
Hits: 789
Size: 128.22 KB
Posted: 9/7/14
Aaahh... 6 hours of fun & games!		Now that all that junk is out, water can actually drain. [url=http://www.supermotors.net/registry/m...
Hits: 1403
Size: 125.05 KB
Posted: 9/7/14

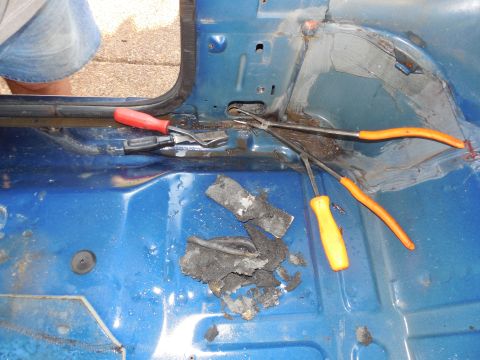

Now that all that junk is out, water can actually drain. [url=http://www.supermotors.net/registry/m...		I'm about to pull those mirrors & the grille reinforcement.
Hits: 883
Size: 110.88 KB
Posted: 9/10/14

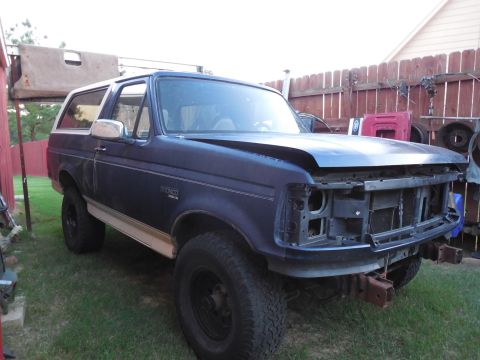

I'm about to pull those mirrors & the grille reinforcement.		All the cement is to set the truck & hoist on so they don't sink in the yard when it rains (like my ...
Hits: 818
Size: 128.56 KB
Posted: 9/10/14
All the cement is to set the truck & hoist on so they don't sink in the yard when it rains (like my ...		Squirrel nest under the plenum. Luckily, it doesn't seem like he ate any wiring.
Hits: 711
Size: 95.27 KB
Posted: 9/12/14

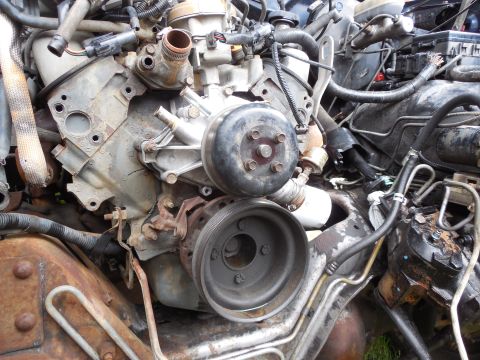

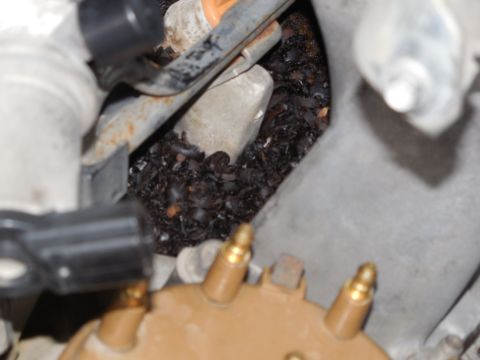

Squirrel nest under the plenum. Luckily, it doesn't seem like he ate any wiring.

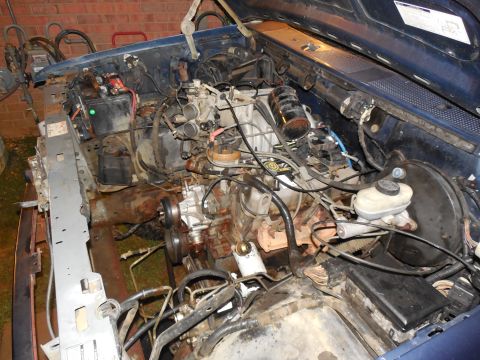

Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...
Hits: 1016
Size: 133.15 KB
Posted: 9/11/14

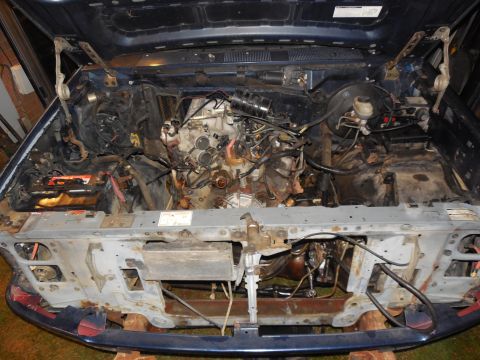

Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...		Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...
Hits: 957
Size: 142.71 KB
Posted: 9/11/14
Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...		Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...
Hits: 1186
Size: 142.13 KB
Posted: 9/12/14
Despite the torrential rains last night & this morning, it was surprisingly calm & cool this afterno...		This is so much better after pressure-washing, but the old coolant still stinks.
Hits: 1044
Size: 142.82 KB
Posted: 9/12/14

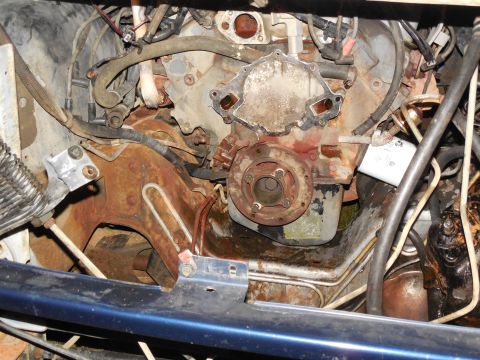

This is so much better after pressure-washing, but the old coolant still stinks.		I'll probably start removing sheet metal tomorrow.
Hits: 958
Size: 134.35 KB
Posted: 9/12/14

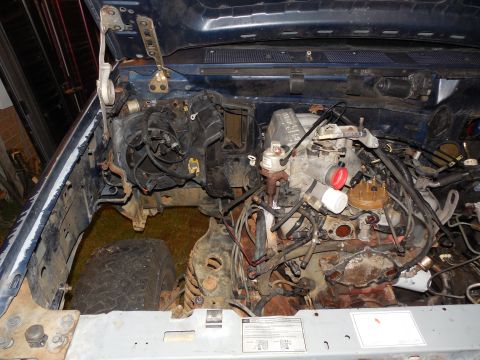

I'll probably start removing sheet metal tomorrow.

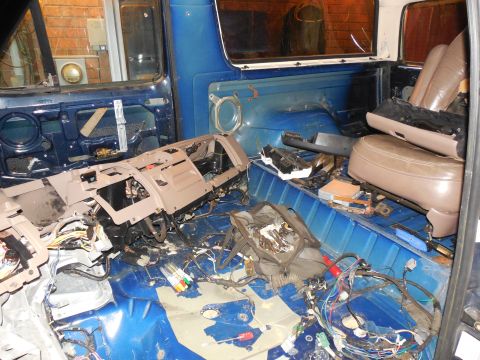

Most of the wiring is out now, and after I find storage space for all of this, I'll pull the camper ...
Hits: 899
Size: 143.67 KB
Posted: 9/12/14
Most of the wiring is out now, and after I find storage space for all of this, I'll pull the camper ...		This is actually MUCH cleaner than the first blast, but I didn't have the camera ready for that one....
Hits: 1089
Size: 147.22 KB
Posted: 9/17/14

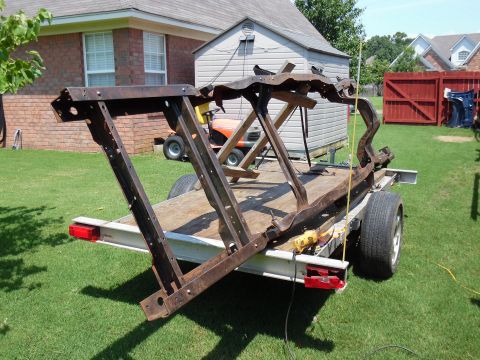

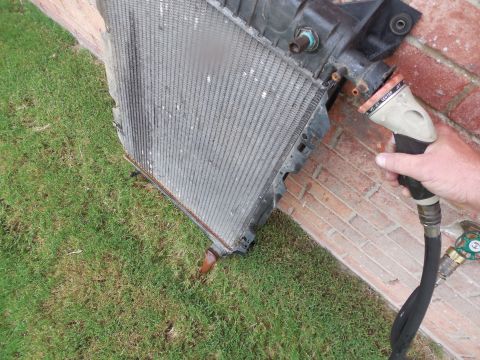

This is actually MUCH cleaner than the first blast, but I didn't have the camera ready for that one....		Dash Wiring, right end
Hits: 805
Size: 130.62 KB
Posted: 10/13/14

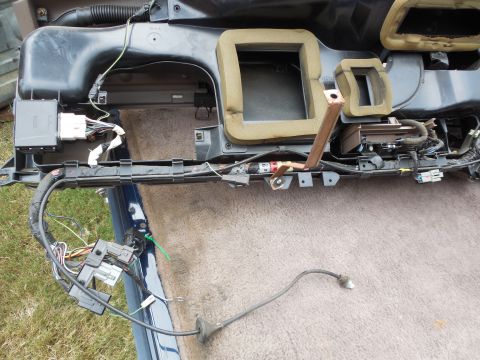

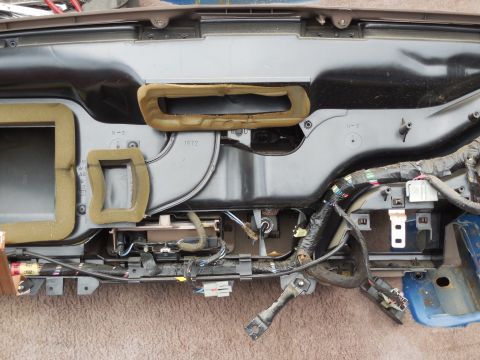

Dash Wiring, right end		Dash Wiring, center
Hits: 977
Size: 123.07 KB
Posted: 10/13/14
Dash Wiring, center		Dash Wiring, left end
Hits: 784
Size: 136.52 KB
Posted: 10/13/14

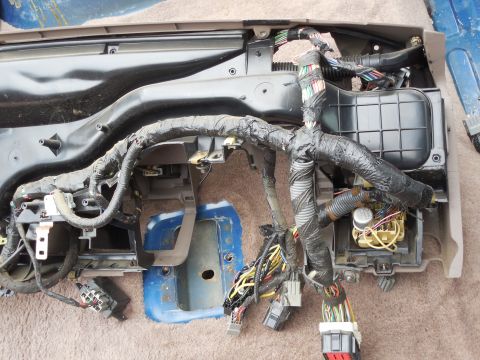

Dash Wiring, left end

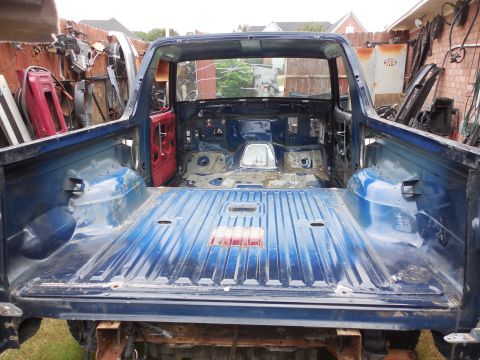

The doors came off moments later. Removing the windshield took a couple of hours.
Hits: 880
Size: 137.55 KB
Posted: 10/13/14
The doors came off moments later. Removing the windshield took a couple of hours.		This electric 2-post lift is endlessly useful. [url=https://www.supermotors.net/registry/media/3098...
Hits: 1040
Size: 133.05 KB
Posted: 10/16/14

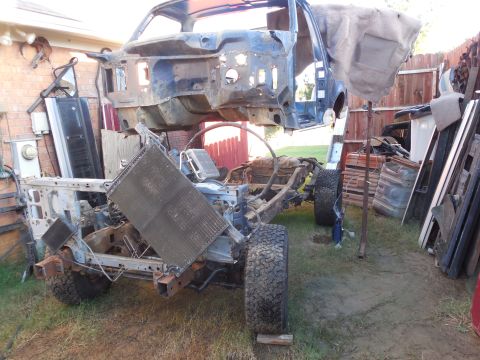

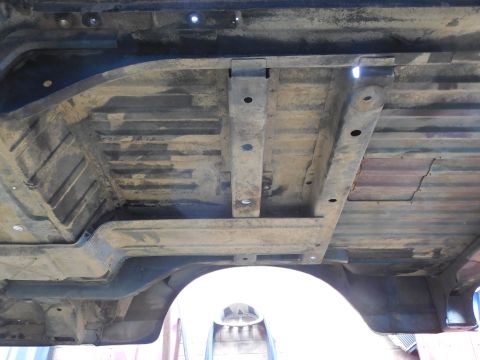

This electric 2-post lift is endlessly useful. [url=https://www.supermotors.net/registry/media/3098...
Hits: 930
Size: 134.19 KB
Posted: 10/16/14

Hits: 704
Size: 103.91 KB
Posted: 10/16/14

Hits: 710
Size: 110.58 KB
Posted: 10/16/14

Hits: 720
Size: 109.1 KB
Posted: 10/16/14

Hits: 748
Size: 101.97 KB
Posted: 10/16/14

Hits: 710
Size: 108.52 KB
Posted: 10/16/14

Hits: 1488
Size: 135.19 KB
Posted: 10/16/14

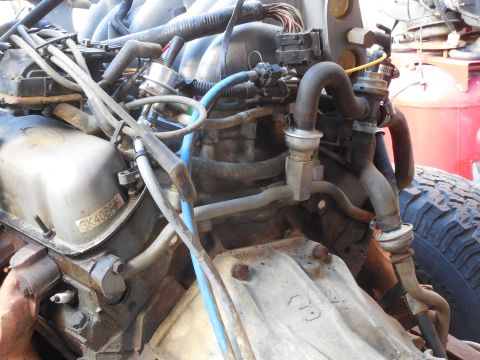

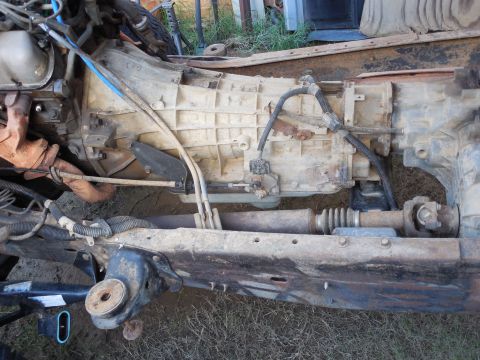

Everything is still where Ford put it, and working the way Ford designed it to. It's also pretty cl...
Hits: 817
Size: 129.88 KB
Posted: 10/16/14

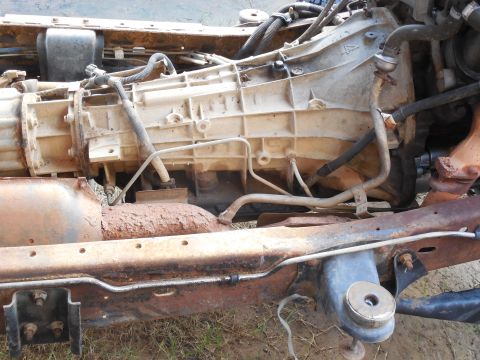

Everything is still where Ford put it, and working the way Ford designed it to. It's also pretty cl...

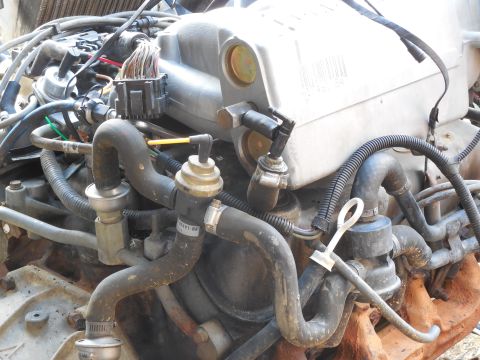

This engine still has the early PCV configuration; not the later revision to reduce fouling of #8. ...
Hits: 757
Size: 127.02 KB
Posted: 10/16/14
This engine still has the early PCV configuration; not the later revision to reduce fouling of #8. ...		[url=http://www.supermotors.net/vehicles/registry/media/1071291][img]http://www.supermotors.net/getf...
Hits: 789
Size: 135.53 KB
Posted: 10/16/14

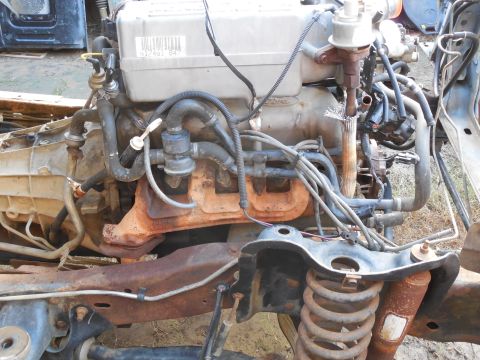

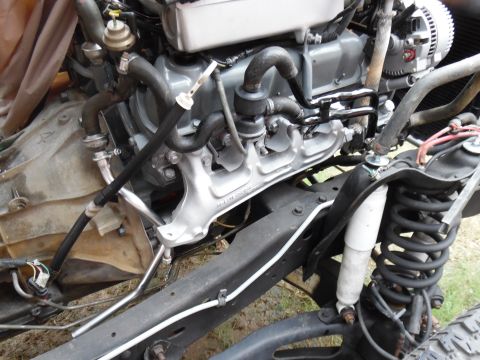

[url=http://www.supermotors.net/vehicles/registry/media/1071291][img]http://www.supermotors.net/getf...
Hits: 766
Size: 131.92 KB
Posted: 10/16/14

Hits: 761
Size: 142.43 KB
Posted: 10/16/14

Hits: 708
Size: 131.72 KB
Posted: 10/16/14

Hits: 711
Size: 134.2 KB
Posted: 10/16/14

Hits: 746
Size: 123.18 KB
Posted: 10/16/14

Hits: 751
Size: 130.78 KB
Posted: 10/16/14

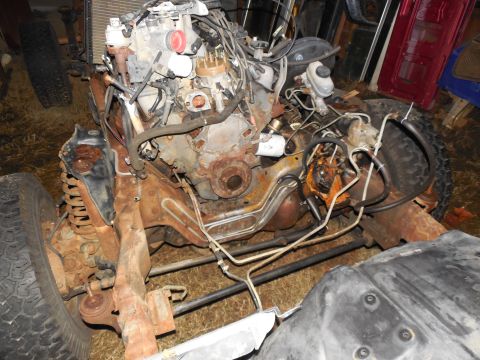

After soaking for about a month, the core support nuts came off easily.
Hits: 972
Size: 138.81 KB
Posted: 12/4/14
After soaking for about a month, the core support nuts came off easily.		Both bolts are rusted more than halfway through, but both came out whole. I haven't made ANY progre...
Hits: 744
Size: 124.79 KB
Posted: 12/4/14

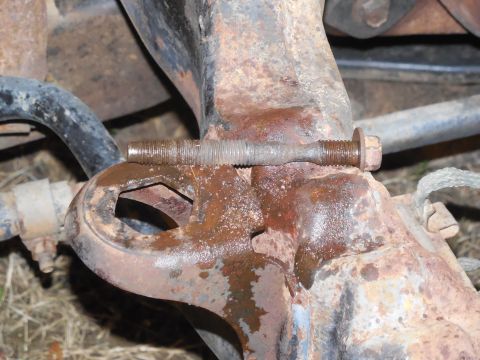

Both bolts are rusted more than halfway through, but both came out whole. I haven't made ANY progre...
3 months of soaking in at least 4 flavors of penetrating oil, and I've managed to separate 2 of the ...
Hits: 793
Size: 121.65 KB
Posted: 1/14/15
3 months of soaking in at least 4 flavors of penetrating oil, and I've managed to separate 2 of the ...		With my plate driven between the upper sleeve's flange & the bushing, there was enough preload on th...
Hits: 758
Size: 126.61 KB
Posted: 1/14/15

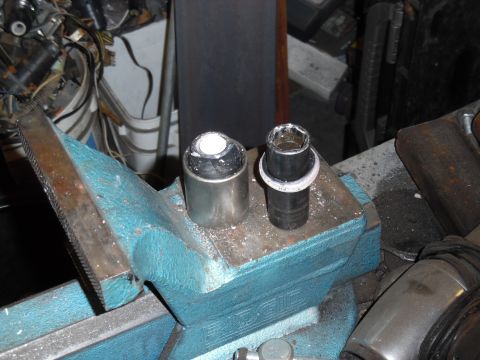

With my plate driven between the upper sleeve's flange & the bushing, there was enough preload on th...		This was the worst one: LHS cargo bed. I had to build a 2nd tool with a smaller throat, and it stil...
Hits: 866
Size: 117.04 KB
Posted: 1/14/15
This was the worst one: LHS cargo bed. I had to build a 2nd tool with a smaller throat, and it stil...		Like the '93XLT tub I used on my truck, this one has some GAPING holes in the factory seams. [url=h...
Hits: 989
Size: 119.18 KB
Posted: 1/29/15
Like the '93XLT tub I used on my truck, this one has some GAPING holes in the factory seams. [url=h...		This gasket was installed when the reman engine went in, and although it doesn't appear to be leakin...
Hits: 854
Size: 91.95 KB
Posted: 1/29/15
This gasket was installed when the reman engine went in, and although it doesn't appear to be leakin...

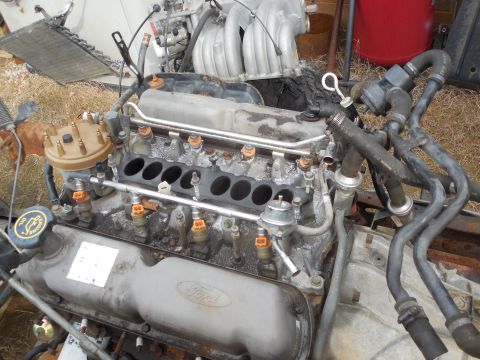

The plenum & wiring came off easily, but I want to pull the distributor before the fuel rail, and cl...
Hits: 1591
Size: 133.24 KB
Posted: 1/29/15
The plenum & wiring came off easily, but I want to pull the distributor before the fuel rail, and cl...		Snatching a distributor out without preparing makes it much harder to put back. I prefer to mark th...
Hits: 3600
Size: 129.89 KB
Posted: 1/29/15
Snatching a distributor out without preparing makes it much harder to put back. I prefer to mark th...		It's much easier to get the rail out after the distributor is gone. I prefer to keep the injectors ...
Hits: 2562
Size: 137.19 KB
Posted: 1/29/15
It's much easier to get the rail out after the distributor is gone. I prefer to keep the injectors ...		These intake gaskets only have ~30Kmi, but the coolant system was severely abused & neglected, which...
Hits: 1015
Size: 137.43 KB
Posted: 1/29/15

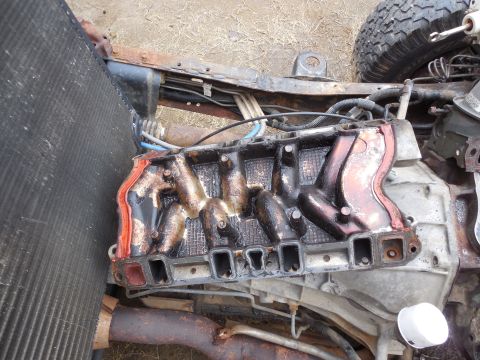

These intake gaskets only have ~30Kmi, but the coolant system was severely abused & neglected, which...		This proves that all the gunk on the intake is from before - this engine has been sitting ~4.5 month...
Hits: 1294
Size: 129.62 KB
Posted: 1/29/15

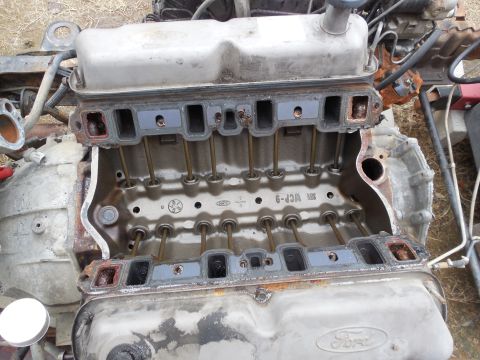

This proves that all the gunk on the intake is from before - this engine has been sitting ~4.5 month...
Like every other Bronco/F engine I've seen with mounts more than a year old, at least one of these i...
Hits: 1183
Size: 113.89 KB
Posted: 1/29/15
Like every other Bronco/F engine I've seen with mounts more than a year old, at least one of these i...		Before removing the heat shield to actually inspect it, I'm just going to assume the left mount is r...
Hits: 1119
Size: 115.19 KB
Posted: 2/2/15

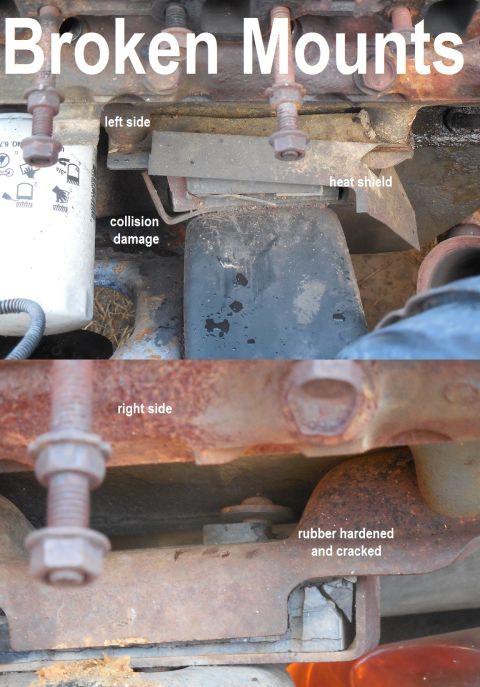

Before removing the heat shield to actually inspect it, I'm just going to assume the left mount is r...		All the basic indications are that this engine was still in pretty good shape, and running OK. It l...
Hits: 877
Size: 127.86 KB
Posted: 2/2/15

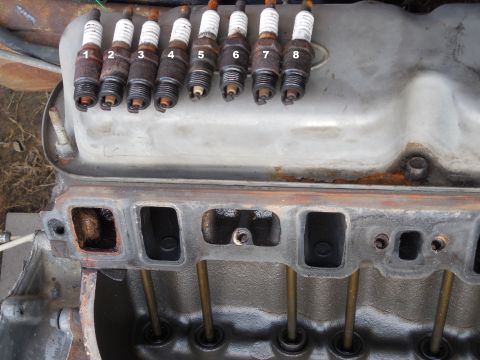

All the basic indications are that this engine was still in pretty good shape, and running OK. It l...		The yard is dry and the air is warm (enough), so I got the torque converter nuts out and pulled the ...
Hits: 902
Size: 134.81 KB
Posted: 2/7/15

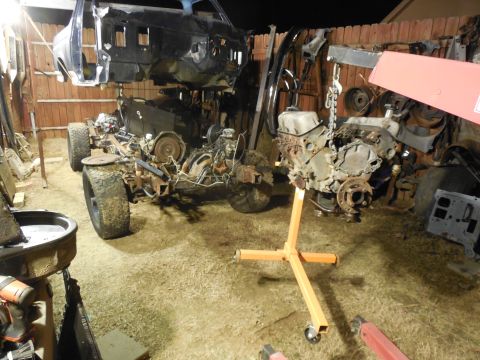

The yard is dry and the air is warm (enough), so I got the torque converter nuts out and pulled the ...		Thankfully, there was no sign of sludge having flaked off the original intake. The timing chain was...
Hits: 1112
Size: 137.46 KB
Posted: 2/7/15

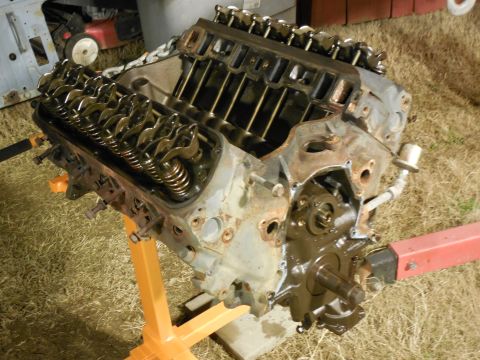

Thankfully, there was no sign of sludge having flaked off the original intake. The timing chain was...

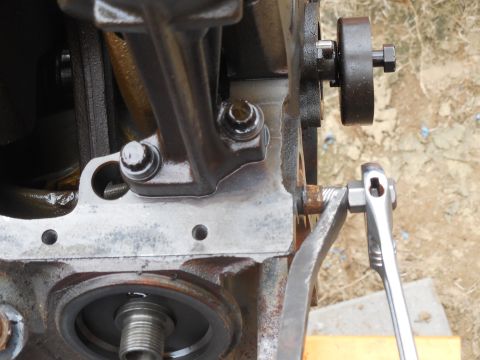

One timing cover bolt sleeve stayed in the block; the other in the timing cover. I extracted both s...
Hits: 787
Size: 112.42 KB
Posted: 2/8/15
One timing cover bolt sleeve stayed in the block; the other in the timing cover. I extracted both s...		The timing cover is pretty rough around the coolant journals, but I think it'll be OK after planing.
Hits: 1071
Size: 102.79 KB
Posted: 2/8/15

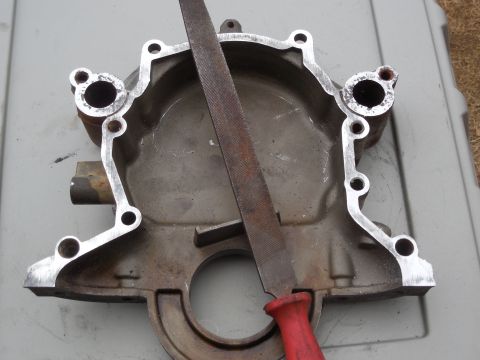

The timing cover is pretty rough around the coolant journals, but I think it'll be OK after planing.		Game called on account of freezing rain, sleet, snow, thaw, snow, and rain (in that order, over the ...
Hits: 720
Size: 131.05 KB
Posted: 3/16/15

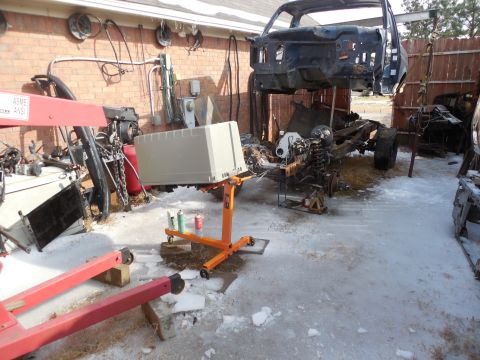

Game called on account of freezing rain, sleet, snow, thaw, snow, and rain (in that order, over the ...		3 days ago there was ice on the ground; today, I'm sweating in short sleeves & long jeans. But it's...
Hits: 796
Size: 119.82 KB
Posted: 3/16/15

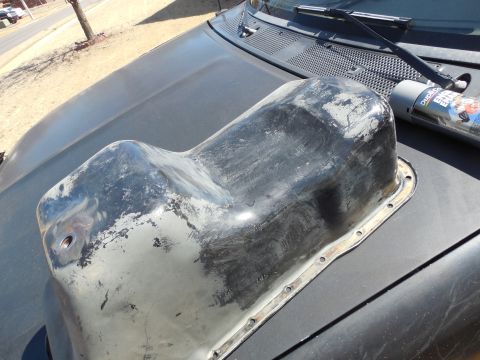

3 days ago there was ice on the ground; today, I'm sweating in short sleeves & long jeans. But it's...		These are holding the factory paint better than the pan, but they're getting rinsed with new paint, ...
Hits: 730
Size: 102.87 KB
Posted: 3/16/15

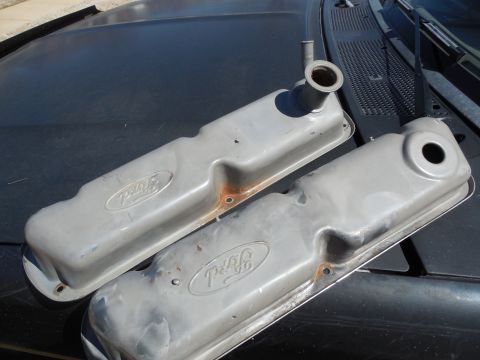

These are holding the factory paint better than the pan, but they're getting rinsed with new paint, ...

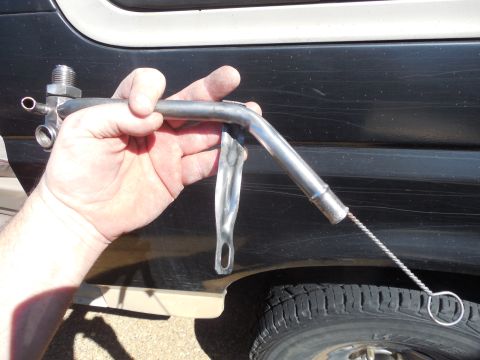

The heater outlet [url=https://www.amazon.com/dp/B00809UPN0/]Motorcraft KT-81[/url] was wire-wheeled...
Hits: 764
Size: 108.3 KB
Posted: 3/16/15
The heater outlet [url=https://www.amazon.com/dp/B00809UPN0/]Motorcraft KT-81[/url] was wire-wheeled...		This bore brush used to be fluffy, and the heater outlet pipe [url=https://www.amazon.com/dp/B00809U...
Hits: 903
Size: 108.93 KB
Posted: 3/16/15

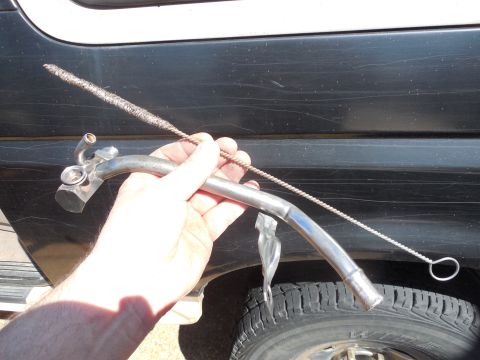

This bore brush used to be fluffy, and the heater outlet pipe [url=https://www.amazon.com/dp/B00809U...		All the cast Aluminum parts are clean, and now they're getting a fresh layer of Dupli-Color Aluminum...
Hits: 2044
Size: 133.2 KB
Posted: 3/16/15

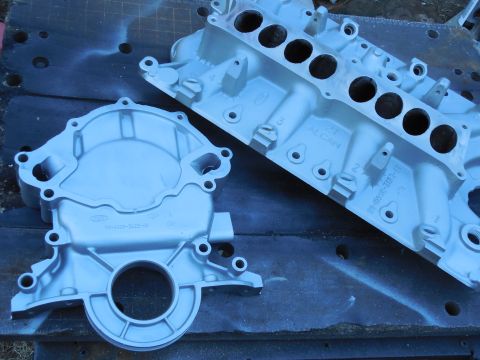

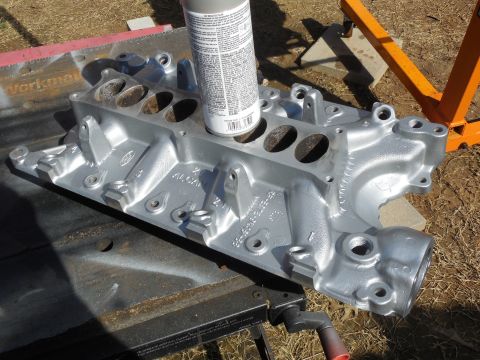

All the cast Aluminum parts are clean, and now they're getting a fresh layer of Dupli-Color Aluminum...		All the cast Aluminum parts are clean, and now they're getting a fresh layer of cast-coat (DupliColo...
Hits: 1144
Size: 116.91 KB
Posted: 3/16/15
All the cast Aluminum parts are clean, and now they're getting a fresh layer of cast-coat (DupliColo...		Now that they're bathed in Duplicolor Engine New Ford Gray DE1611, these might go on tomorrow... I ...
Hits: 956
Size: 117.85 KB
Posted: 3/16/15

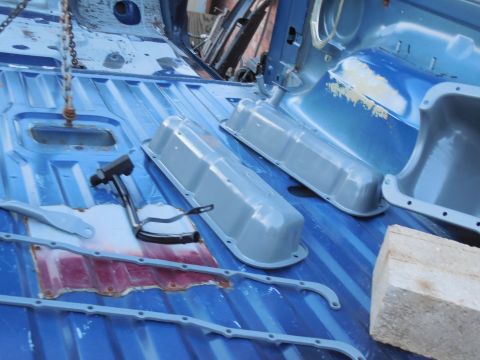

Now that they're bathed in Duplicolor Engine New Ford Gray DE1611, these might go on tomorrow... I ...

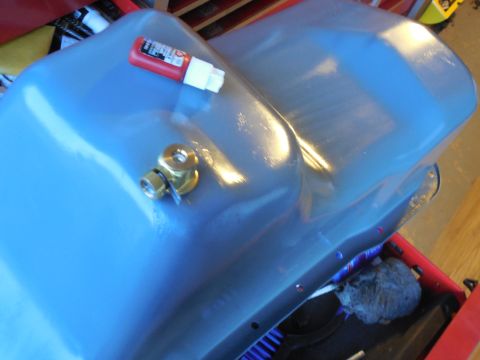

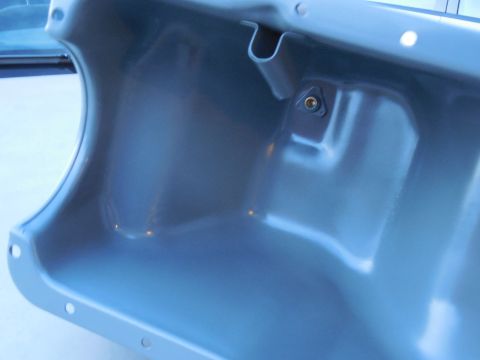

I've had a [url=http://www.qwikvalve.com/fumoto-f-106-valve.html]Fumoto QwikValve[/url] in my CV for...
Hits: 1318
Size: 97.74 KB
Posted: 3/16/15
I've had a [url=http://www.qwikvalve.com/fumoto-f-106-valve.html]Fumoto QwikValve[/url] in my CV for...		I've had a [url=http://www.qwikvalve.com/fumoto-f-106-valve.html]Fumoto QwikValve[/url] in my CV for...
Hits: 1003
Size: 85.47 KB
Posted: 3/16/15
I've had a [url=http://www.qwikvalve.com/fumoto-f-106-valve.html]Fumoto QwikValve[/url] in my CV for...		No more problems getting at that center bolt, and a common bolt & socket will fit now. IDK why Ford...
Hits: 1652
Size: 118.31 KB
Posted: 3/21/15

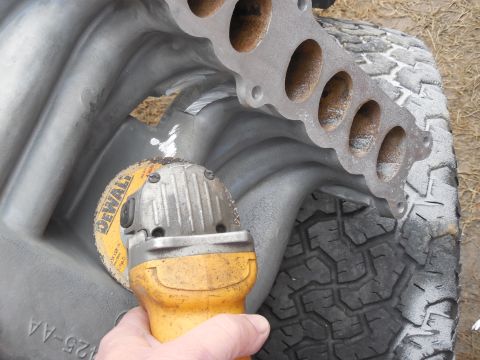

No more problems getting at that center bolt, and a common bolt & socket will fit now. IDK why Ford...		I don't know why so many people say the factory oil pan bolts won't work with this [url=https://www....
Hits: 1544
Size: 104.66 KB
Posted: 3/23/15

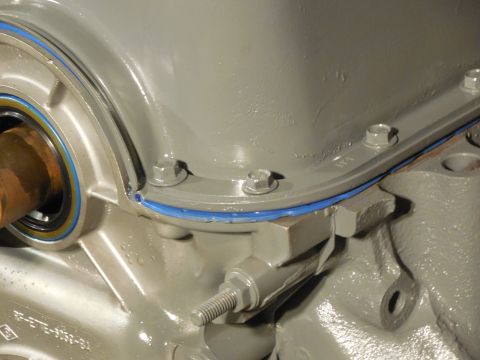

I don't know why so many people say the factory oil pan bolts won't work with this [url=https://www....		After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing ...
Hits: 2891
Size: 109.9 KB
Posted: 3/23/15

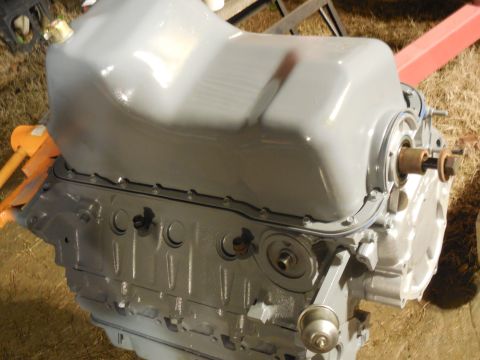

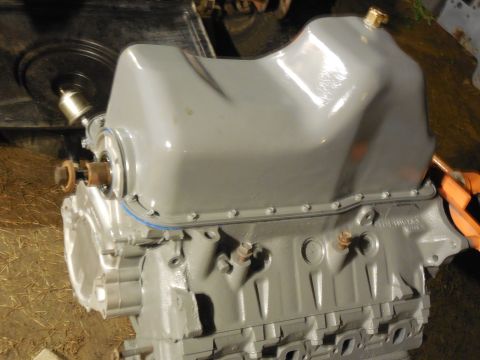

After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing ...
After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing ...
Hits: 1188
Size: 107.38 KB
Posted: 3/23/15
After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing ...		This WP was relatively new, but its back plate had some rust. I painted both inside & out ([url=htt...
Hits: 1491
Size: 109.78 KB
Posted: 3/25/15

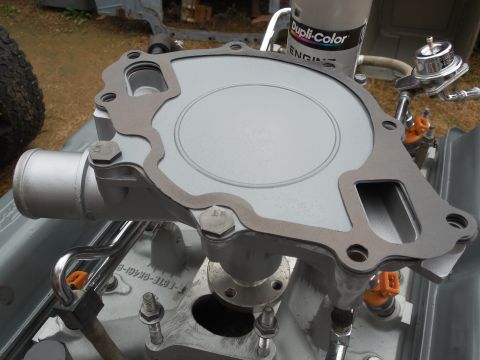

This WP was relatively new, but its back plate had some rust. I painted both inside & out ([url=htt...		The intake has [url=https://www.amazon.com/dp/B000CLKJXU]Mahle/Victor MS15202W[/url] graphite gasket...
Hits: 1423
Size: 135.33 KB
Posted: 3/25/15

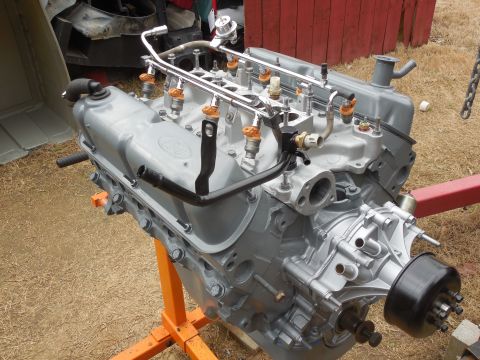

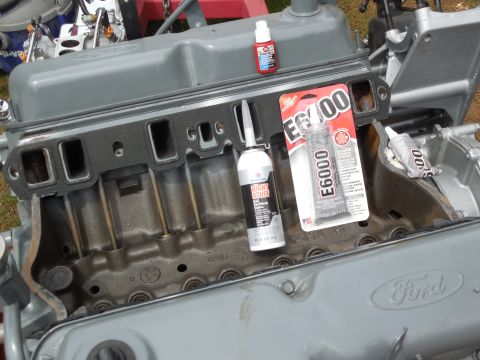

The intake has [url=https://www.amazon.com/dp/B000CLKJXU]Mahle/Victor MS15202W[/url] graphite gasket...		Forecast for rain, so it's buttoned up, and it'll have a BBQ cover thrown over it. [url=https://www...
Hits: 942
Size: 128.87 KB
Posted: 3/25/15

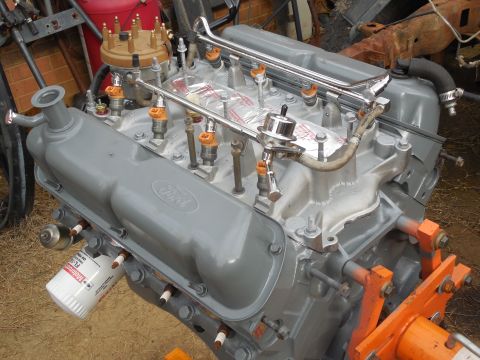

Forecast for rain, so it's buttoned up, and it'll have a BBQ cover thrown over it. [url=https://www...		This should make it a LOT easier to set timing. The white line is just a paint pen. The timing cov...
Hits: 1338
Size: 112.47 KB
Posted: 4/11/15

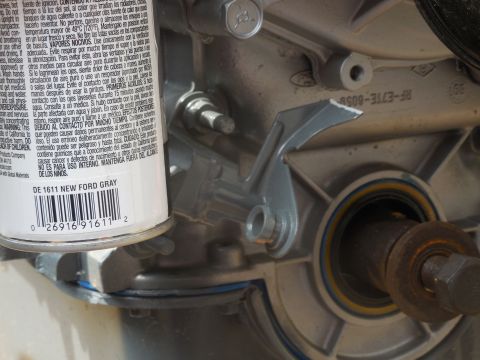

This should make it a LOT easier to set timing. The white line is just a paint pen. The timing cov...

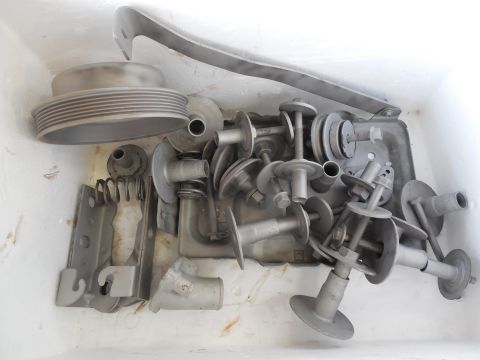

Sandblasting is a lot quicker when there are 2 big compressors running, but I'm gonna have to raise ...
Hits: 794
Size: 98.02 KB
Posted: 4/11/15
Sandblasting is a lot quicker when there are 2 big compressors running, but I'm gonna have to raise ...		These are sanblasted inside & out in preparation for priming & painting INSIDE & OUT. I tried to do...
Hits: 1663
Size: 124.55 KB
Posted: 4/11/15

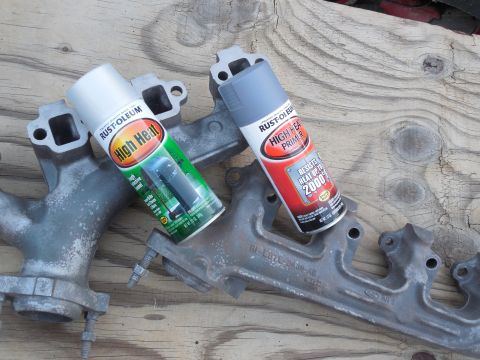

These are sanblasted inside & out in preparation for priming & painting INSIDE & OUT. I tried to do...		Today, these are getting primer (Rustoleum 249340) inside & out, and tomorrow, I'll torch-cure the p...
Hits: 837
Size: 113.58 KB
Posted: 4/11/15

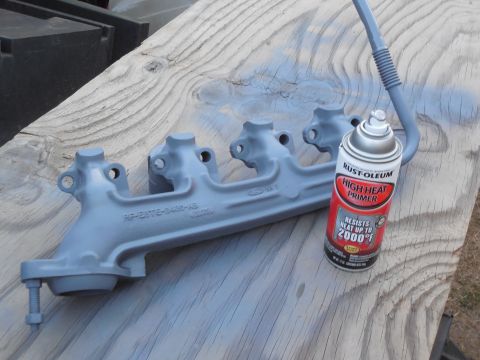

Today, these are getting primer (Rustoleum 249340) inside & out, and tomorrow, I'll torch-cure the p...		These are now completely coated with primer (Rustoleum 249340), and paint (Rustoleum 7716) applied &...
Hits: 1227
Size: 122.99 KB
Posted: 4/12/15

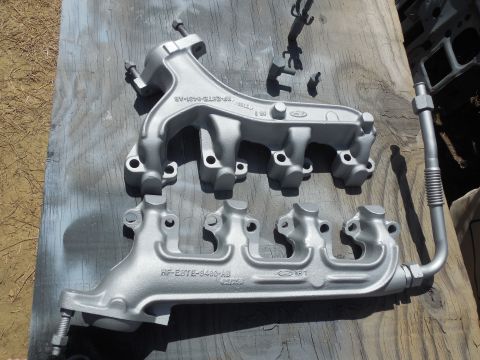

These are now completely coated with primer (Rustoleum 249340), and paint (Rustoleum 7716) applied &...		Most of this is just Rustoleum Primer/Sealer 249321, but the pulleys have Rustoleum low-gloss engine...
Hits: 2269
Size: 125.35 KB
Posted: 4/12/15

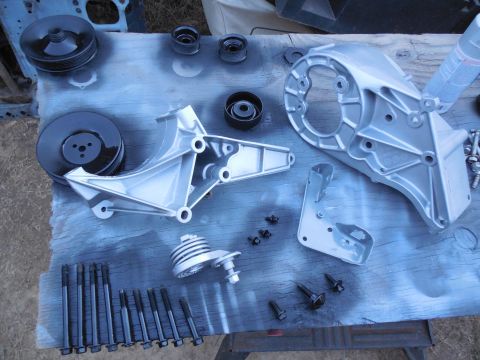

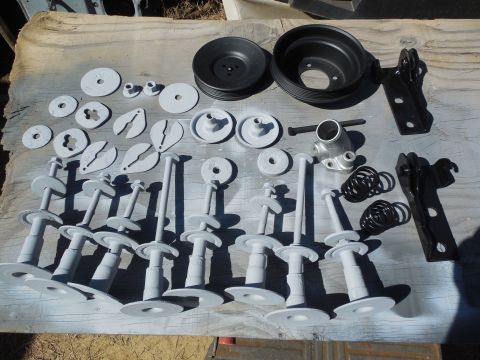

Most of this is just Rustoleum Primer/Sealer 249321, but the pulleys have Rustoleum low-gloss engine...

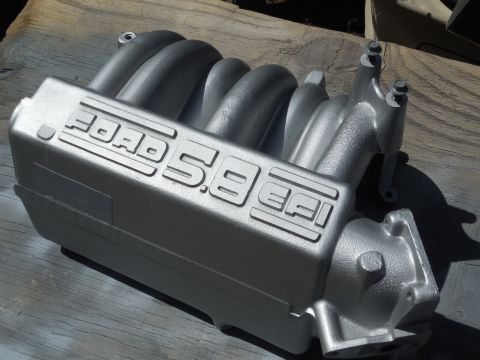

After the DupliColor Aluminum Cast-Coat (DE1650), this is also getting planed on the text, and then ...
Hits: 1230
Size: 109.76 KB
Posted: 4/12/15
After the DupliColor Aluminum Cast-Coat (DE1650), this is also getting planed on the text, and then ...		After wire-wheeling & washing the harmonic balancer & pointer, I painted them Duplicolor Engine New ...
Hits: 2724
Size: 106.09 KB
Posted: 4/12/15

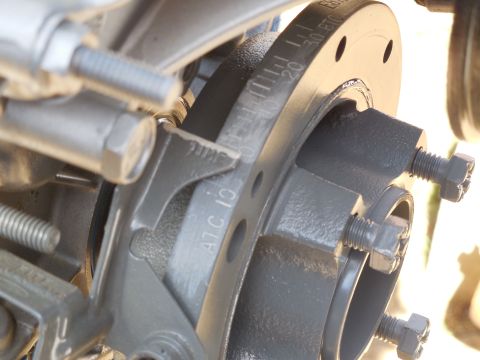

After wire-wheeling & washing the harmonic balancer & pointer, I painted them Duplicolor Engine New ...		The second big load is blasted, including 2 130A 3Gs, a smog pump, a Saginaw bracket, and a set of h...
Hits: 1942
Size: 136.41 KB
Posted: 4/12/15

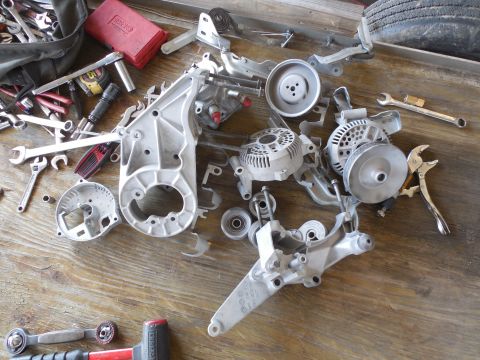

The second big load is blasted, including 2 130A 3Gs, a smog pump, a Saginaw bracket, and a set of h...		I had to run out for a 2nd can of cast coat. I finished the 2nd can of engine grey. I'm using Rust...
Hits: 759
Size: 122.43 KB
Posted: 4/12/15
I had to run out for a 2nd can of cast coat. I finished the 2nd can of engine grey. I'm using Rust...		Both manifolds were significantly warped, most likely due to gaskets being installed when the engine...
Hits: 1082
Size: 114.5 KB
Posted: 4/13/15

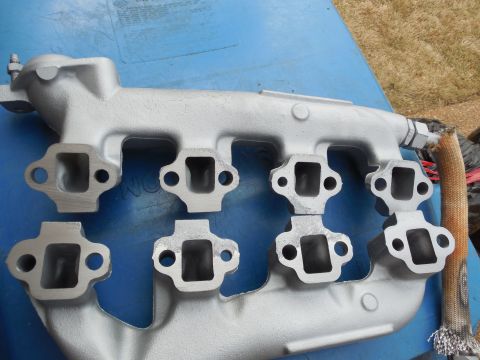

Both manifolds were significantly warped, most likely due to gaskets being installed when the engine...

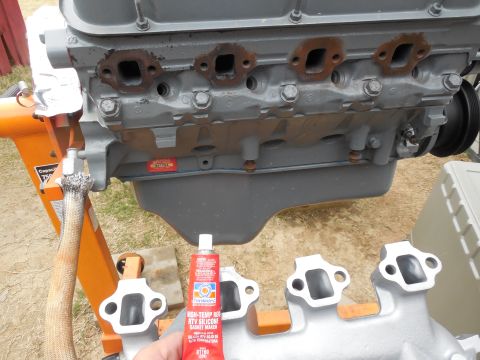

No gaskets this time, just like at the factory. But instead of grease, I'm using red silicone. [ur...
Hits: 872
Size: 119.51 KB
Posted: 4/13/15
No gaskets this time, just like at the factory. But instead of grease, I'm using red silicone. [ur...		This is actually just a thin layer, and it's going on WET. [url=https://www.supermotors.net/registr...
Hits: 1126
Size: 81.55 KB
Posted: 4/13/15

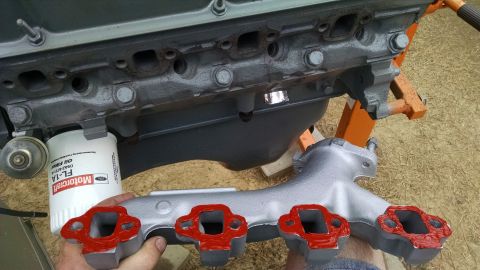

This is actually just a thin layer, and it's going on WET. [url=https://www.supermotors.net/registr...		It's starting to look like an engine again. [url=http://www.amazon.com/dp/B000C5HQZ0/]Motorcraft RH...
Hits: 1016
Size: 136.9 KB
Posted: 4/13/15

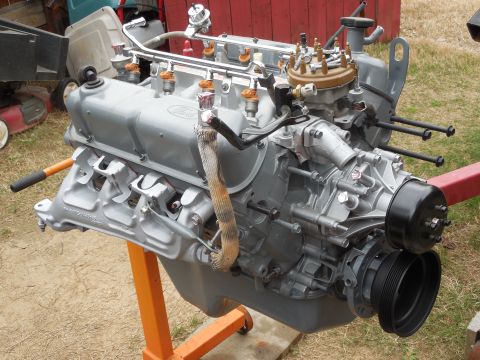

It's starting to look like an engine again. [url=http://www.amazon.com/dp/B000C5HQZ0/]Motorcraft RH...		Since the alternator's output is dependent on a solid ground path through the engine block to the ba...
Hits: 2817
Size: 115.05 KB
Posted: 4/13/15

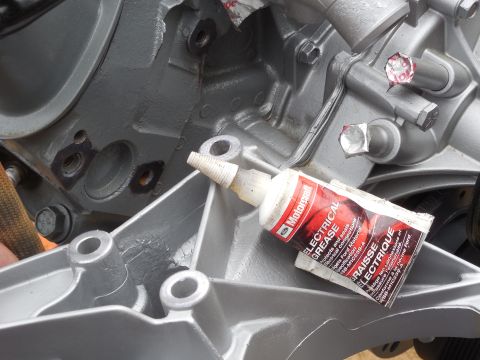

Since the alternator's output is dependent on a solid ground path through the engine block to the ba...		Like its bracket & the engine, I also stripped the paint (DE1650) from the alternator casting & appl...
Hits: 2745
Size: 133.42 KB
Posted: 4/13/15

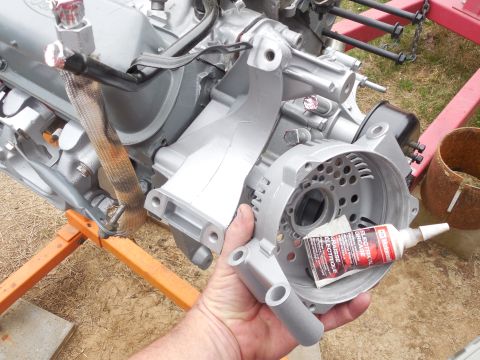

Like its bracket & the engine, I also stripped the paint (DE1650) from the alternator casting & appl...

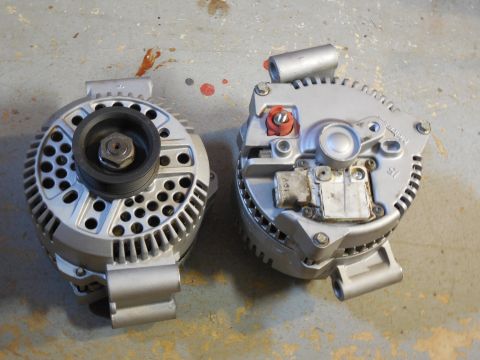

While the alternators were apart, I sandblasted & painted their cases & pulleys. Then I wire-brushe...
Hits: 1050
Size: 115.39 KB
Posted: 4/14/15
While the alternators were apart, I sandblasted & painted their cases & pulleys. Then I wire-brushe...		Saginaw PS pump & A/C compressor bracket ready to go on. I'll finish cleaning the pump after the en...
Hits: 784
Size: 110.72 KB
Posted: 4/14/15

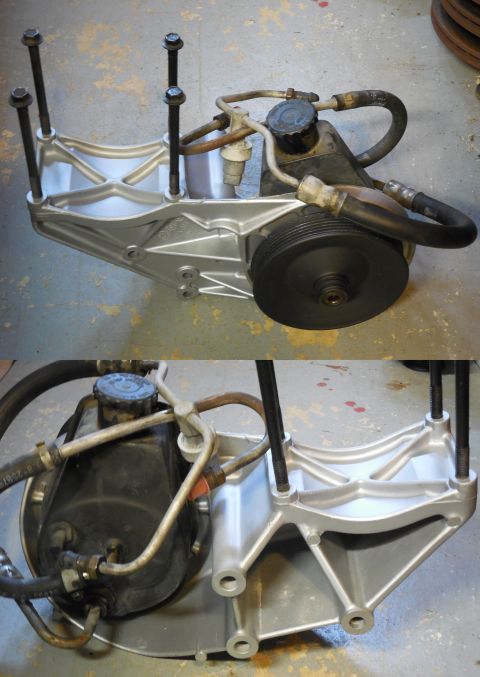

Saginaw PS pump & A/C compressor bracket ready to go on. I'll finish cleaning the pump after the en...		Making the debossments look new took about 30sec with a common woodworking belt sander. They're abou...
Hits: 962
Size: 106.24 KB
Posted: 4/15/15

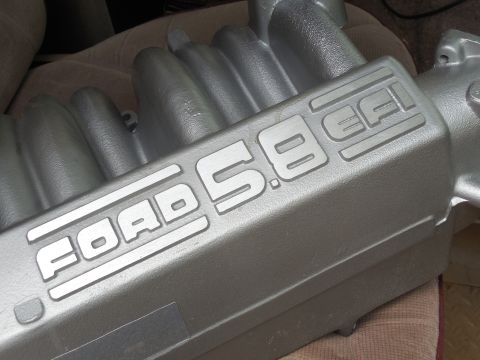

Making the debossments look new took about 30sec with a common woodworking belt sander. They're abou...		I expect this (DE1636) clear to stay clear for a long time since it & the Aluminum Cast-Coat (DE1650...
Hits: 1397
Size: 117.49 KB
Posted: 4/15/15

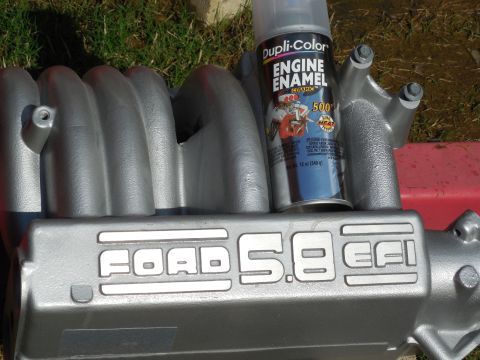

I expect this (DE1636) clear to stay clear for a long time since it & the Aluminum Cast-Coat (DE1650...		Having everything painted makes it look better-than-new. [url=http://www.amazon.com/dp/B000C5HQZ0/]...
Hits: 2247
Size: 139.82 KB
Posted: 5/4/15

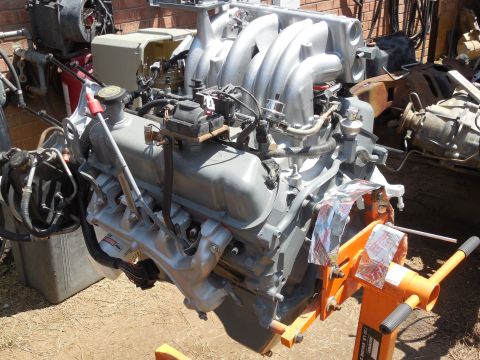

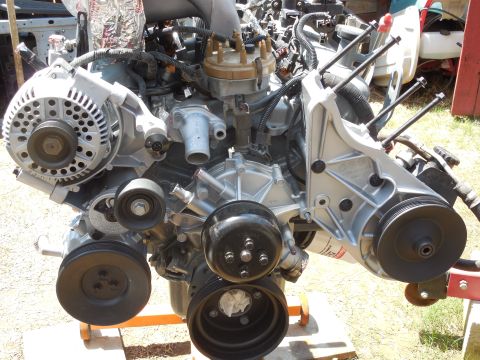

Having everything painted makes it look better-than-new. [url=http://www.amazon.com/dp/B000C5HQZ0/]...
Having everything painted makes it look better-than-new. [url=https://www.supermotors.net/registry/...
Hits: 908
Size: 143.46 KB
Posted: 5/4/15
Having everything painted makes it look better-than-new. [url=https://www.supermotors.net/registry/...		A quick test of the crankcase showed a MASSIVE leak, which I quickly traced to the new [url=https://...
Hits: 1428
Size: 116.51 KB
Posted: 4/25/15
A quick test of the crankcase showed a MASSIVE leak, which I quickly traced to the new [url=https://...		Just to make sure the machinist hadn't skewed the intake surfaces, I dry-fitted it without gaskets d...
Hits: 899
Size: 112.98 KB
Posted: 4/25/15

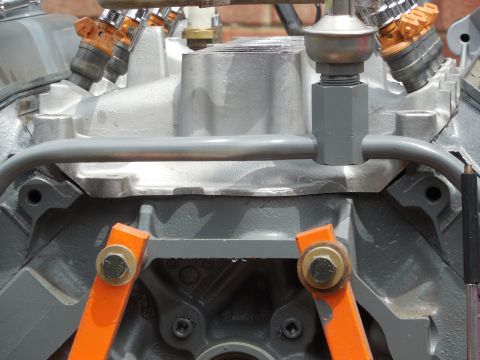

Just to make sure the machinist hadn't skewed the intake surfaces, I dry-fitted it without gaskets d...		This pattern of sealant will keep the crankcase sealed, and each journal isolated, and will allow oi...
Hits: 1229
Size: 131.79 KB
Posted: 4/25/15

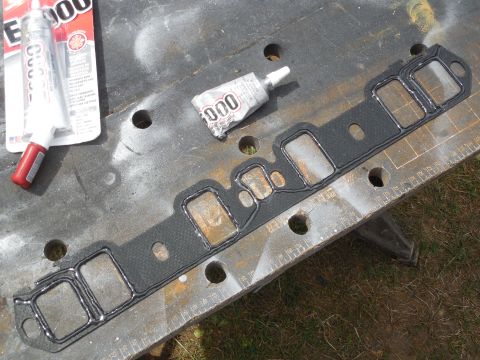

This pattern of sealant will keep the crankcase sealed, and each journal isolated, and will allow oi...		This E6000 bead is along the same lines as on the other side of the [url=https://www.amazon.com/dp/B...
Hits: 986
Size: 120.32 KB
Posted: 4/25/15

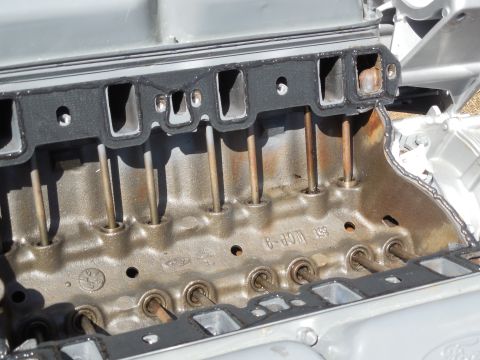

This E6000 bead is along the same lines as on the other side of the [url=https://www.amazon.com/dp/B...

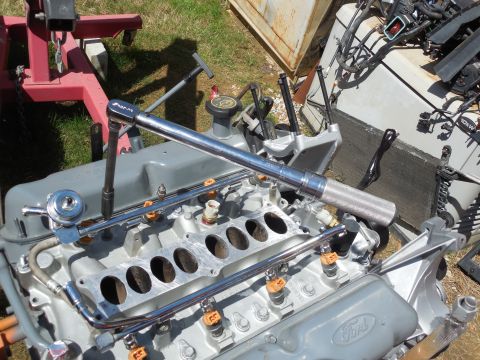

After settling the intake so it's level to the block at the ends of the valley, I spun all the bolts...
Hits: 1183
Size: 144.51 KB
Posted: 4/25/15
After settling the intake so it's level to the block at the ends of the valley, I spun all the bolts...		This appears to be a better seal than before, but I'll check this, too, after it all dries. Note th...
Hits: 725
Size: 114.35 KB
Posted: 4/25/15

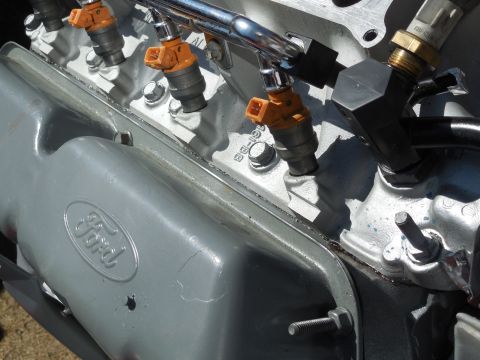

This appears to be a better seal than before, but I'll check this, too, after it all dries. Note th...		This appears to be a better seal with the RightStuff than before, but I'll check this, too, after it...
Hits: 735
Size: 96.59 KB
Posted: 4/25/15

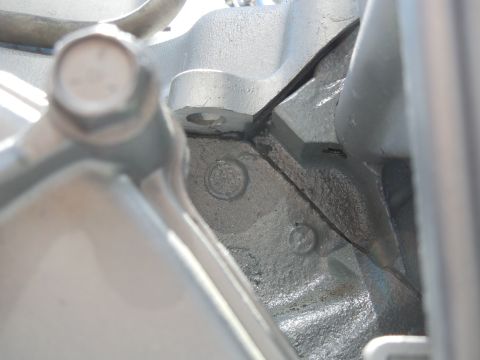

This appears to be a better seal with the RightStuff than before, but I'll check this, too, after it...		The shim plate is Ford IMPLEMENT gray, but it's clean & has a new foam ring, and it's on. After cup...
Hits: 770
Size: 115.54 KB
Posted: 4/25/15

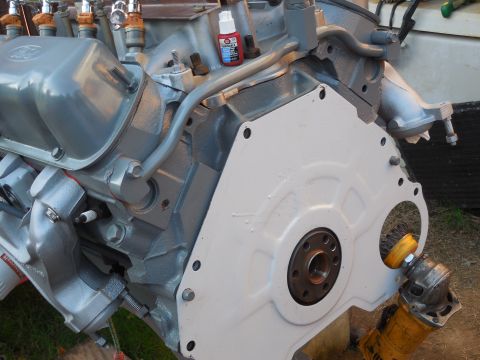

The shim plate is Ford IMPLEMENT gray, but it's clean & has a new foam ring, and it's on. After cup...		The flexplate is painted, and I chiseled a notch into the crank hub stickout to match the plate's no...
Hits: 834
Size: 118.01 KB
Posted: 4/25/15

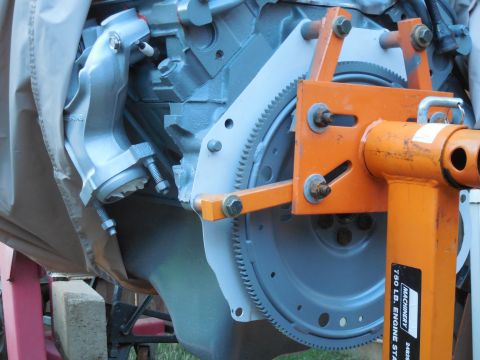

The flexplate is painted, and I chiseled a notch into the crank hub stickout to match the plate's no...

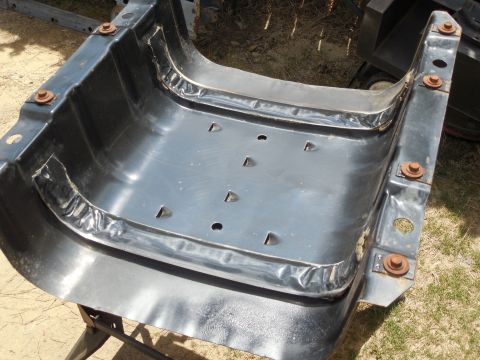

This is just cleaned - nothing special. There was an unpainted spot near the edge that has primer/s...
Hits: 686
Size: 124.16 KB
Posted: 5/4/15
This is just cleaned - nothing special. There was an unpainted spot near the edge that has primer/s...		All trucks should have this done so the spring hangers don't rust out.
Hits: 765
Size: 116.34 KB
Posted: 5/4/15

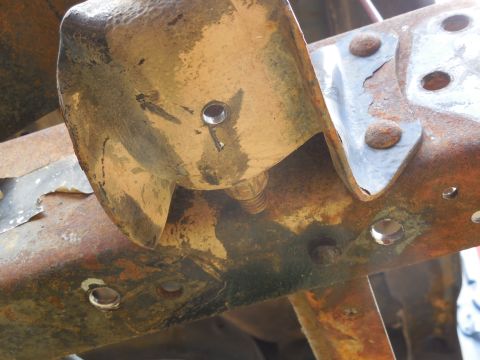

All trucks should have this done so the spring hangers don't rust out.		For its last wash before underpainting, I rolled the chassis out of the way.
Hits: 679
Size: 131.04 KB
Posted: 5/4/15

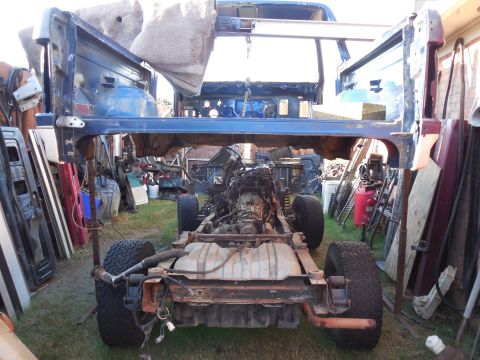

For its last wash before underpainting, I rolled the chassis out of the way.		I filled behind the cowl drains with seam sealer so they won't hold as much sediment. [url=https://...
Hits: 709
Size: 110.68 KB
Posted: 5/4/15

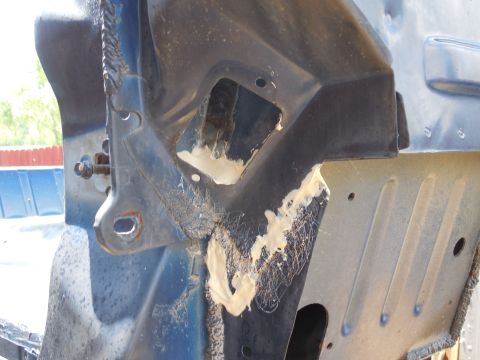

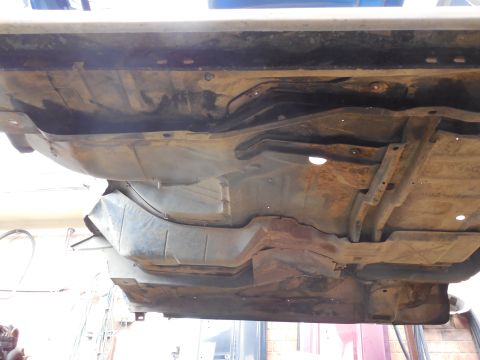

I filled behind the cowl drains with seam sealer so they won't hold as much sediment. [url=https://...		I sealed up some gaps that wouldn't have leaked inside, but they'd have caught mud thrown by the tir...
Hits: 673
Size: 107.24 KB
Posted: 5/4/15

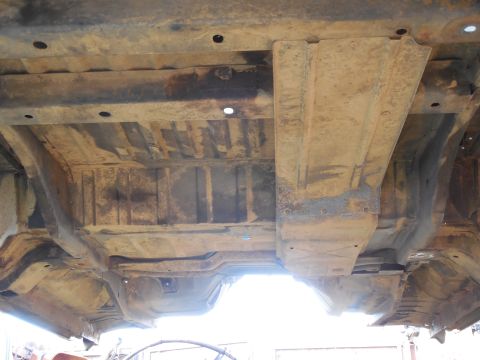

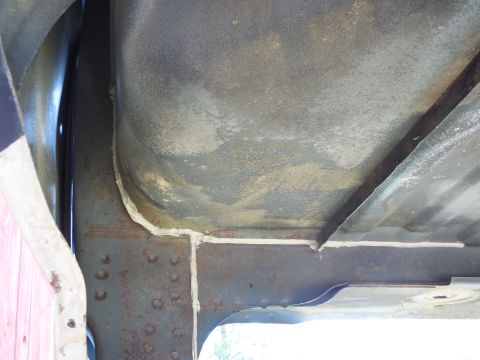

I sealed up some gaps that wouldn't have leaked inside, but they'd have caught mud thrown by the tir...

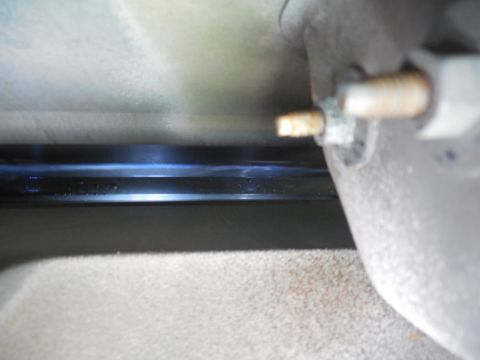

This is looking up in front of the fuel filler. CLEAN! [url=http://www.supermotors.net/registry/me...
Hits: 648
Size: 88.56 KB
Posted: 5/4/15
This is looking up in front of the fuel filler. CLEAN! [url=http://www.supermotors.net/registry/me...		This is looking up the driver's B-pillar. CLEAN! [url=http://www.supermotors.net/registry/media/10...
Hits: 669
Size: 84.83 KB
Posted: 5/4/15

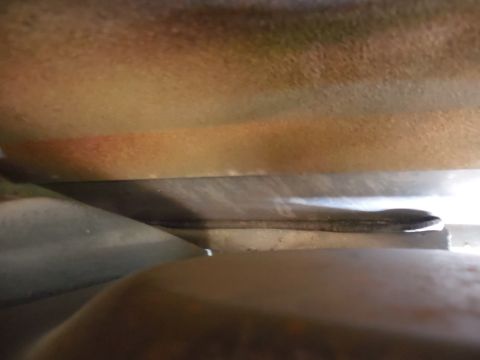

This is looking up the driver's B-pillar. CLEAN! [url=http://www.supermotors.net/registry/media/10...		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 671
Size: 107 KB
Posted: 5/4/15

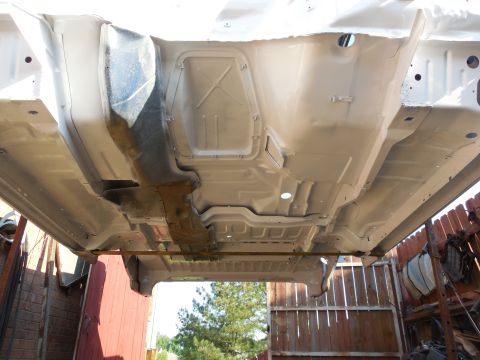

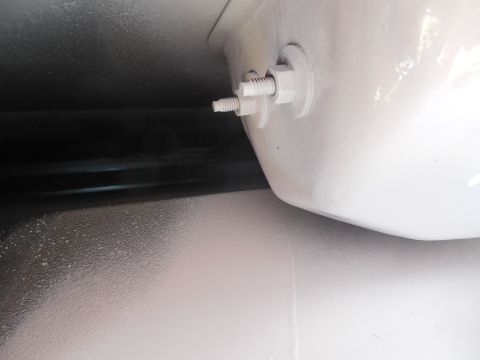

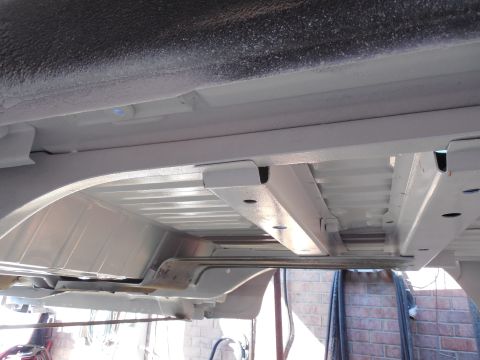

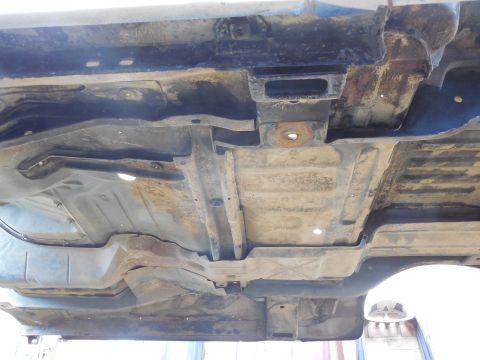

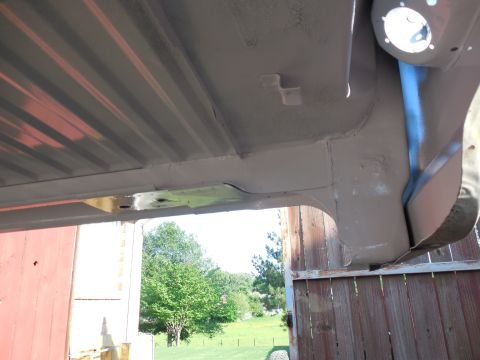

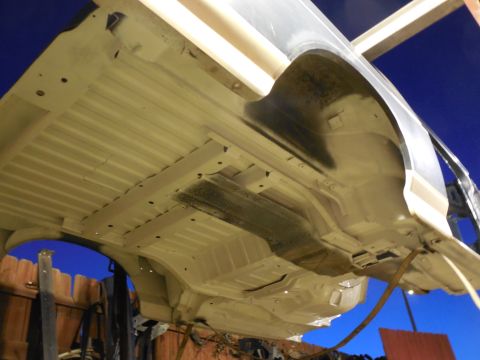

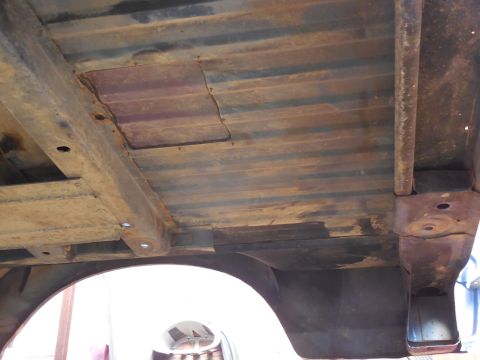

Just like on my '83, a white underbelly will make maintenance easier.		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 692
Size: 106.29 KB
Posted: 5/4/15
Just like on my '83, a white underbelly will make maintenance easier.		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 637
Size: 114.1 KB
Posted: 5/5/15

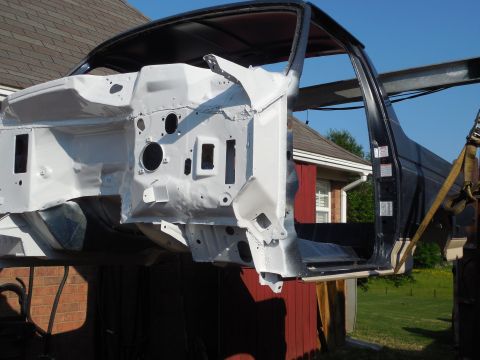

Just like on my '83, a white underbelly will make maintenance easier.

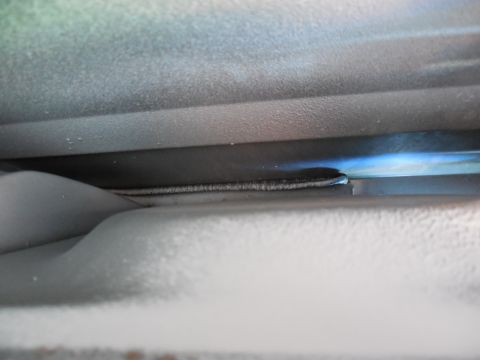

Just like on my '83, a white underbelly will make maintenance easier. [url=http://www.supermotors.n...
Hits: 617
Size: 88.6 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier. [url=http://www.supermotors.n...		Just like on my '83, a white underbelly will make maintenance easier. [url=http://www.supermotors.n...
Hits: 634
Size: 83.8 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier. [url=http://www.supermotors.n...		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 582
Size: 103.45 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier.		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 609
Size: 106.71 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier.		Just like on my '83, a white underbelly will make maintenance easier. The tight gap where the B-pil...
Hits: 722
Size: 109.83 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier. The tight gap where the B-pil...

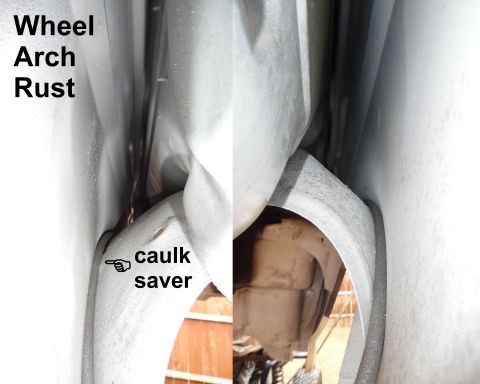

Wheel Arch Rust The tight gap where the reinforcement meets the quarter panel is like a funnel for ...
Hits: 987
Size: 74.63 KB
Posted: 12/16/15
Wheel Arch Rust The tight gap where the reinforcement meets the quarter panel is like a funnel for ...		Just like on my '83, a white underbelly will make maintenance easier.
Hits: 654
Size: 112.92 KB
Posted: 5/5/15
Just like on my '83, a white underbelly will make maintenance easier.		Wow... Sighting down the rearmost frame section (which is straight & flat), I see it aligns with th...
Hits: 610
Size: 76.96 KB
Posted: 6/1/15

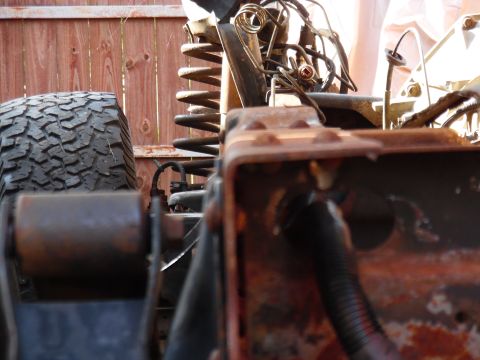

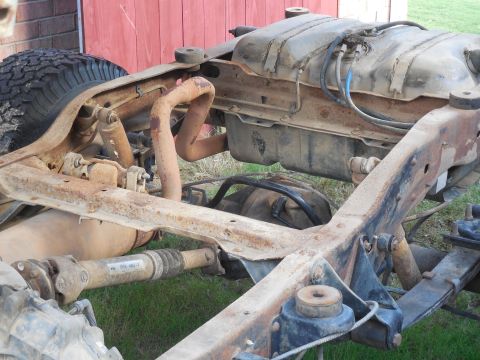

Wow... Sighting down the rearmost frame section (which is straight & flat), I see it aligns with th...		Compared to the L side shown in the PREVious pic... [url=http://www.supermotors.net/registry/media/...
Hits: 612
Size: 74.28 KB
Posted: 6/1/15

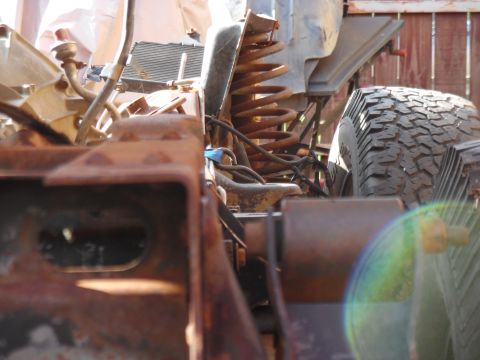

Compared to the L side shown in the PREVious pic... [url=http://www.supermotors.net/registry/media/...		A higher angle down the L frame rail, which clearly curves to the R. [url=http://www.supermotors.ne...
Hits: 664
Size: 84.92 KB
Posted: 6/1/15

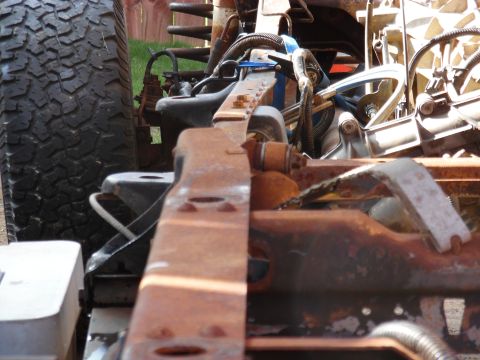

A higher angle down the L frame rail, which clearly curves to the R. [url=http://www.supermotors.ne...

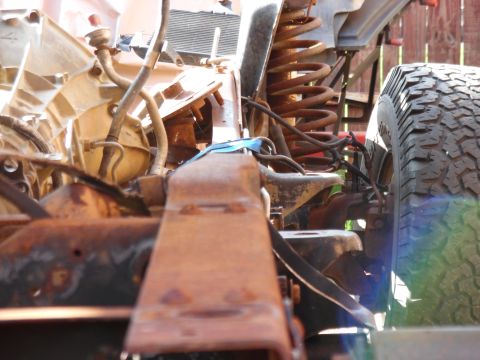

The R frame rail is nearly straight. It should bend slightly to the L. [url=http://www.supermotors...
Hits: 664
Size: 85.08 KB
Posted: 6/1/15
The R frame rail is nearly straight. It should bend slightly to the L. [url=http://www.supermotors...		The previous 4 pics combined. Notice how the left rear aligns to the front shock, but the right ali...
Hits: 1031
Size: 90.87 KB
Posted: 6/1/15

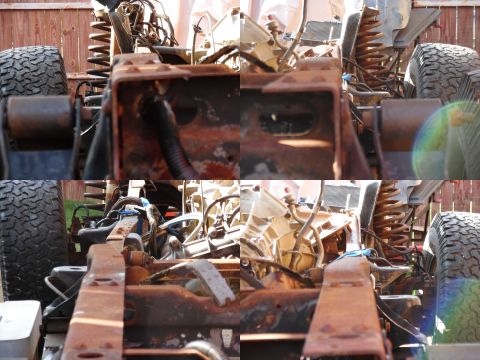

The previous 4 pics combined. Notice how the left rear aligns to the front shock, but the right ali...		The Y-pipe is tweaked from the collision, and the muffler isn't rotated correctly, so they need to c...
Hits: 613
Size: 104.74 KB
Posted: 6/14/15

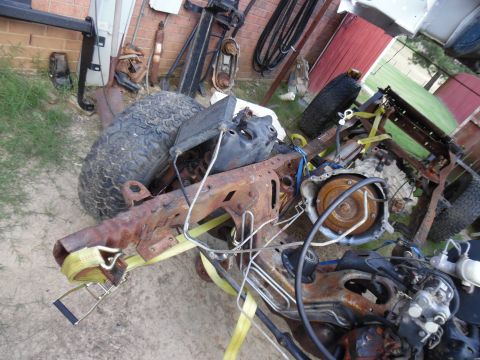

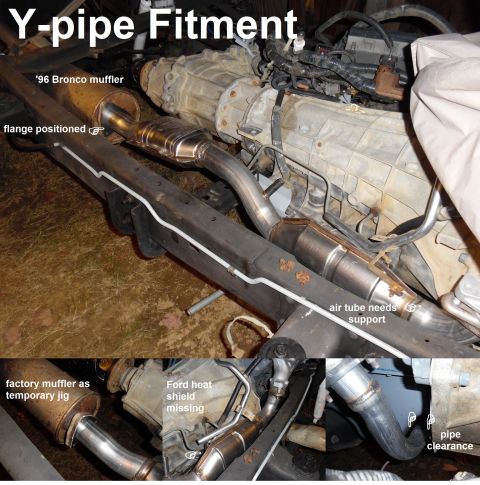

The Y-pipe is tweaked from the collision, and the muffler isn't rotated correctly, so they need to c...		I plan to flange these joints eventually, so this won't be necessary again.
Hits: 559
Size: 98.45 KB
Posted: 6/14/15

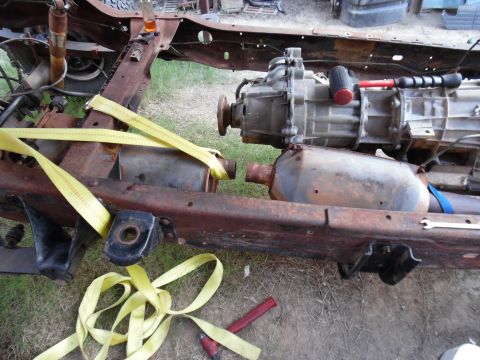

I plan to flange these joints eventually, so this won't be necessary again.		The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.
Hits: 517
Size: 99.61 KB
Posted: 6/14/15

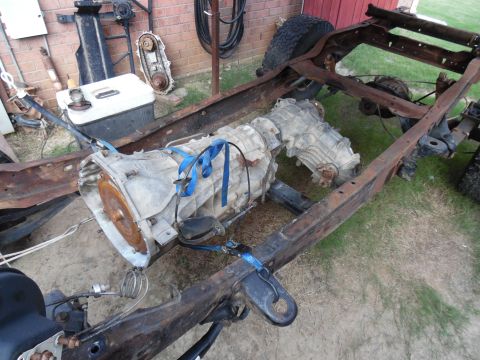

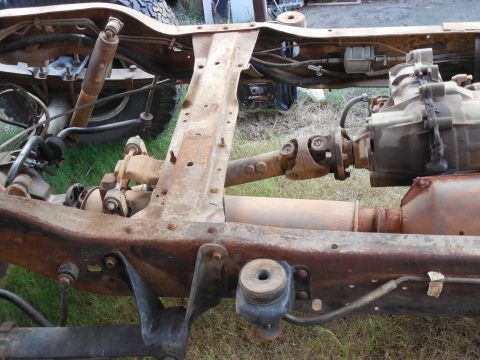

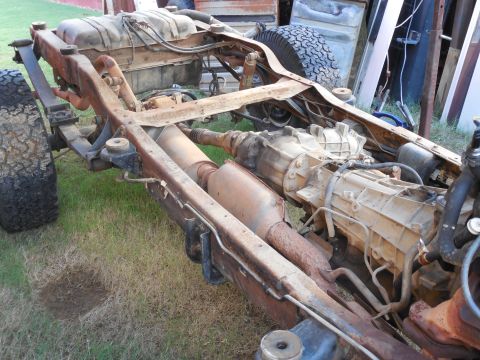

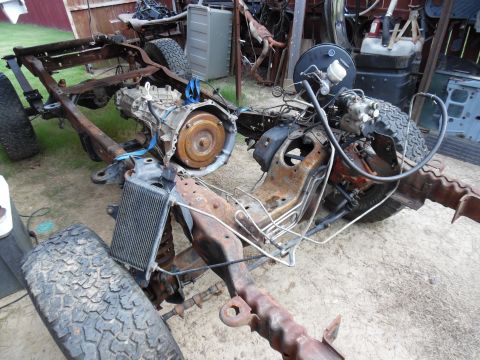

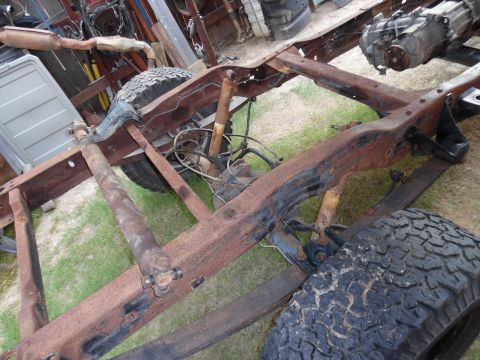

The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.
The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.
Hits: 546
Size: 108.63 KB
Posted: 6/14/15
The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.		The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.
Hits: 539
Size: 102.81 KB
Posted: 6/14/15
The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.		The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.
Hits: 559
Size: 106.15 KB
Posted: 6/14/15
The frame is nearly empty, but it still has to roll & steer so the trans/t-case can be removed.		The downstream 2ndry air pipe was rusted out from the inside, and it took some effort to separate it...
Hits: 583
Size: 86.14 KB
Posted: 6/14/15

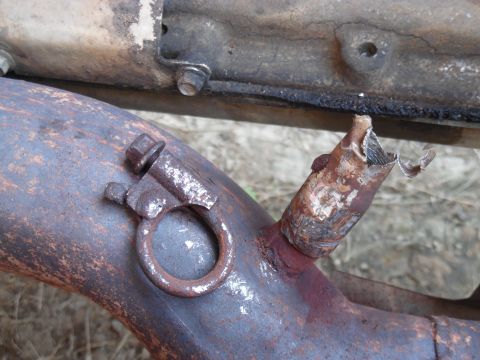

The downstream 2ndry air pipe was rusted out from the inside, and it took some effort to separate it...		I pulled out the brake system & trans/t-case in preparation for the frame swap.
Hits: 520
Size: 113.06 KB
Posted: 6/19/15

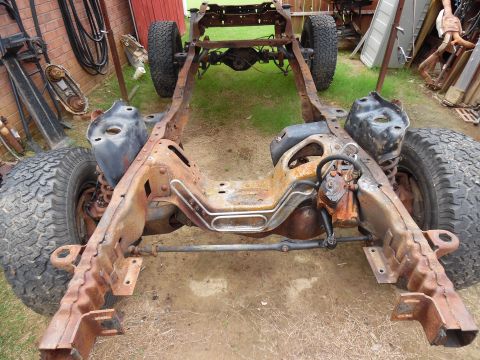

I pulled out the brake system & trans/t-case in preparation for the frame swap.

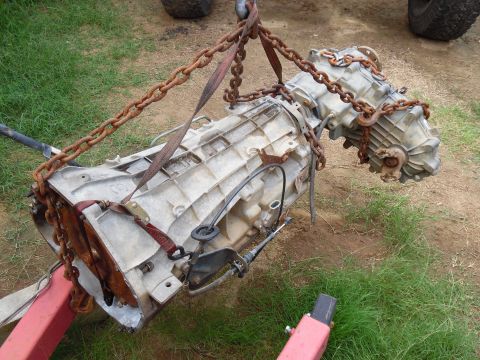

The TC is strapped into the bellhousing so it doesn't slide out, and the lines are threaded back int...
Hits: 575
Size: 111.44 KB
Posted: 6/19/15
The TC is strapped into the bellhousing so it doesn't slide out, and the lines are threaded back int...		This cat go mashed in the wreck, and most of the substrate is in the 2nd cat. I'm shopping for a re...
Hits: 689
Size: 93.84 KB
Posted: 6/19/15

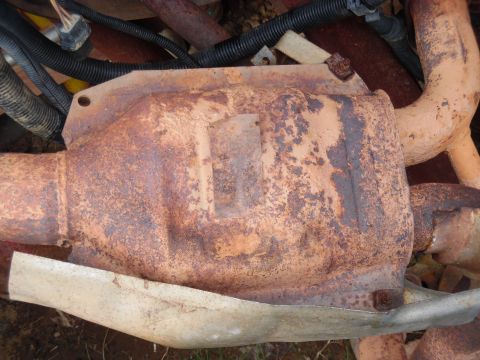

This cat go mashed in the wreck, and most of the substrate is in the 2nd cat. I'm shopping for a re...		This has been in the woods for a few years, and there are some pieces missing, which I'll transfer f...
Hits: 642
Size: 108.68 KB
Posted: 6/19/15

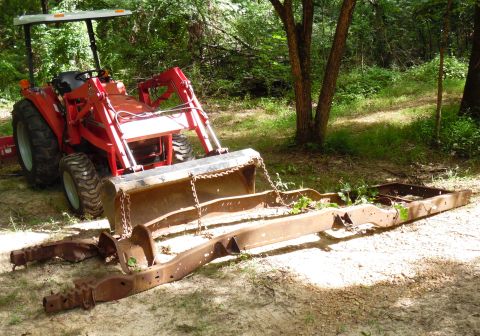

This has been in the woods for a few years, and there are some pieces missing, which I'll transfer f...		It was pretty cool today, so I set the frame onto the trailer & hauled it home.
Hits: 585
Size: 113.25 KB
Posted: 6/27/15

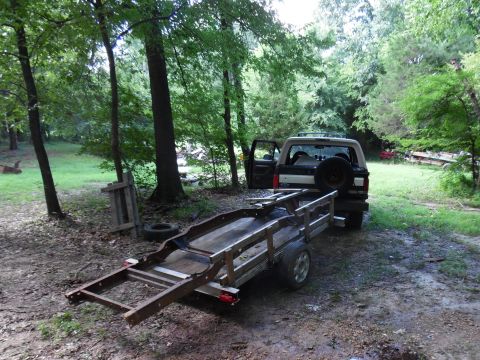

It was pretty cool today, so I set the frame onto the trailer & hauled it home.		This is after its first rinse in several years. I plan to pressure-wash & cup-brush it a few times ...
Hits: 524
Size: 115.01 KB
Posted: 6/27/15

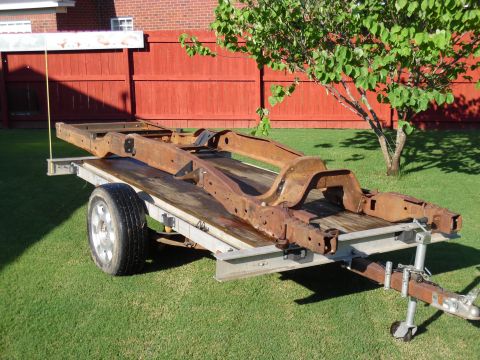

This is after its first rinse in several years. I plan to pressure-wash & cup-brush it a few times ...

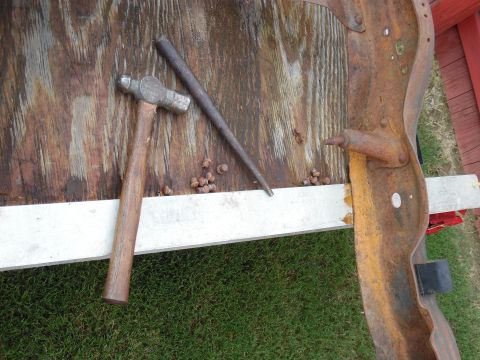

I sold some parts off this frame several years ago, so there were several rivets to knock through. ...
Hits: 620
Size: 97.8 KB
Posted: 6/27/15
I sold some parts off this frame several years ago, so there were several rivets to knock through. ...		I don't know yet if this SN matches the one stamped on the top of the frame rail. UPDATE: Turns out...
Hits: 524
Size: 91.53 KB
Posted: 6/27/15

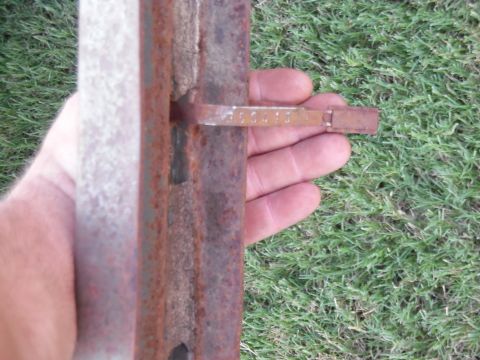

I don't know yet if this SN matches the one stamped on the top of the frame rail. UPDATE: Turns out...		I didn't realize these frames had been made by Hayes/Dana.
Hits: 532
Size: 79.46 KB
Posted: 6/27/15

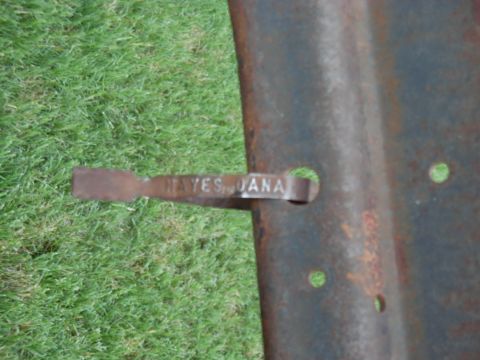

I didn't realize these frames had been made by Hayes/Dana.		There were weeds rooting into the decaying leaves in here, which is why it's so rusty.
Hits: 515
Size: 90.75 KB
Posted: 6/29/15

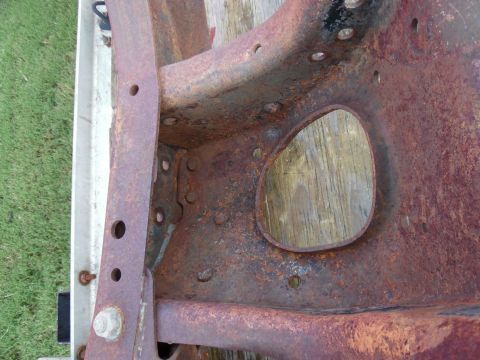

There were weeds rooting into the decaying leaves in here, which is why it's so rusty.		Looking much better after the first pass with the cup brush.
Hits: 604
Size: 109.97 KB
Posted: 6/29/15
Looking much better after the first pass with the cup brush.

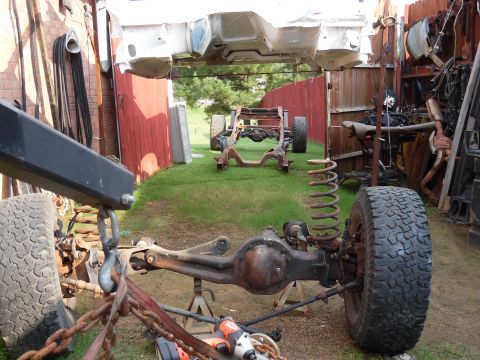

I've had all the bolts loose enough to do this for a while, but I wasn't sure everything else was re...
Hits: 569
Size: 106.04 KB
Posted: 7/5/15
I've had all the bolts loose enough to do this for a while, but I wasn't sure everything else was re...		To get the rear axle out, I had to raise the back end.
Hits: 519
Size: 97.09 KB
Posted: 7/5/15

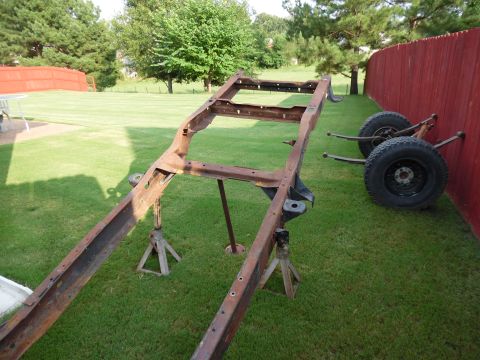

To get the rear axle out, I had to raise the back end.		I want to weigh this thing, so I found its balance point. Later, I'll rearrange the jack stands so ...
Hits: 536
Size: 103.75 KB
Posted: 7/5/15

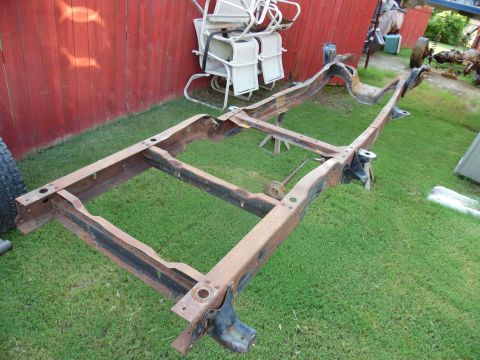

I want to weigh this thing, so I found its balance point. Later, I'll rearrange the jack stands so ...		This is the balance point for a frame stripped of all bolts, but the only rivets that have been remo...
Hits: 617
Size: 105.98 KB
Posted: 7/5/15

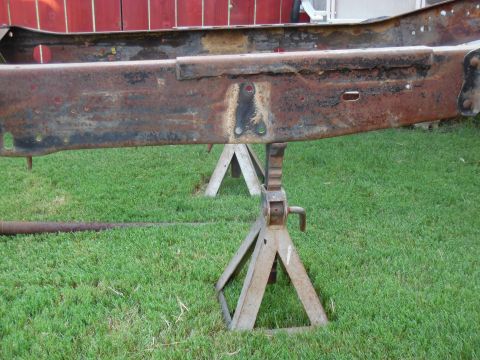

This is the balance point for a frame stripped of all bolts, but the only rivets that have been remo...		It's very subtle, but the area where the radius arm bracket belongs is rolled inward. The rail is s...
Hits: 490
Size: 110.84 KB
Posted: 7/7/15

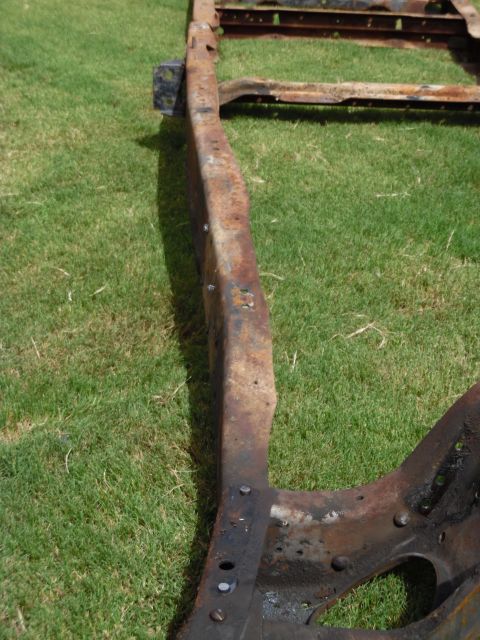

It's very subtle, but the area where the radius arm bracket belongs is rolled inward. The rail is s...

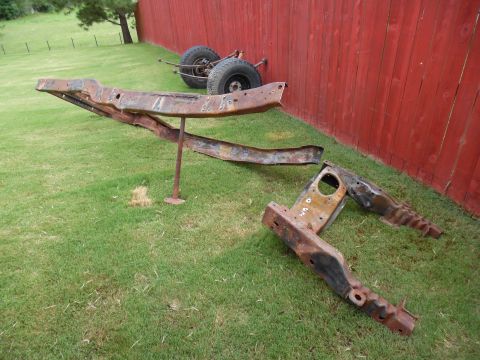

I'm salvaging the front section to use as a jig for front bumpers, and I may do the same with the re...
Hits: 686
Size: 96.36 KB
Posted: 7/7/15
I'm salvaging the front section to use as a jig for front bumpers, and I may do the same with the re...		I'm keeping the front & rear frame sections to use as bumper jigs, and most of the other parts as sp...
Hits: 552
Size: 89.17 KB
Posted: 7/17/15

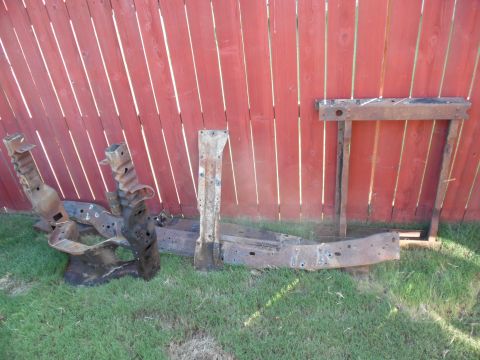

I'm keeping the front & rear frame sections to use as bumper jigs, and most of the other parts as sp...		Most of these parts will go onto the '96 frame - the rest will be spares. They're all clean, but so...
Hits: 581
Size: 94.03 KB
Posted: 7/17/15

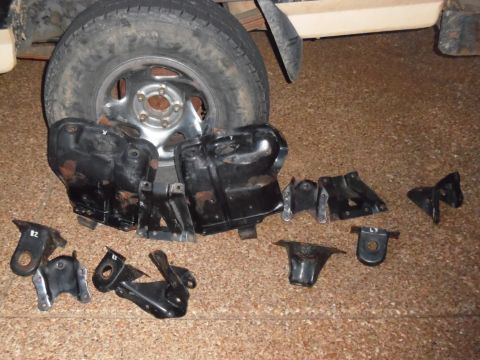

Most of these parts will go onto the '96 frame - the rest will be spares. They're all clean, but so...		These bushings weren't totally shot to hell yet, but they were close. I have a set of black Energy ...
Hits: 861
Size: 111.53 KB
Posted: 7/7/15

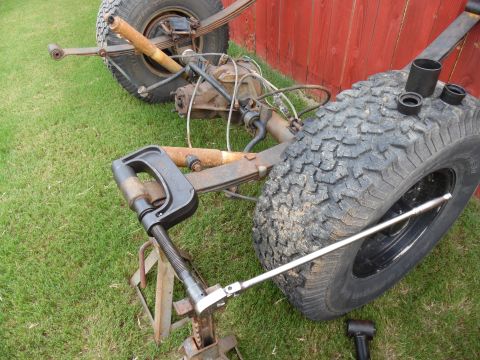

These bushings weren't totally shot to hell yet, but they were close. I have a set of black Energy ...		This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...
Hits: 814
Size: 73.32 KB
Posted: 7/17/15

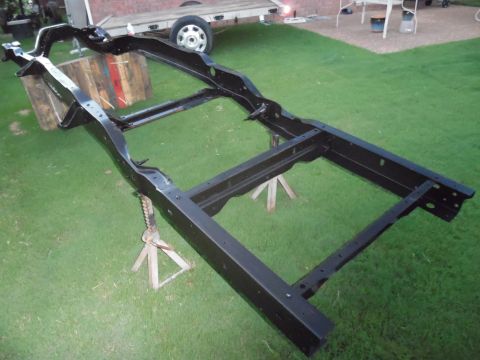

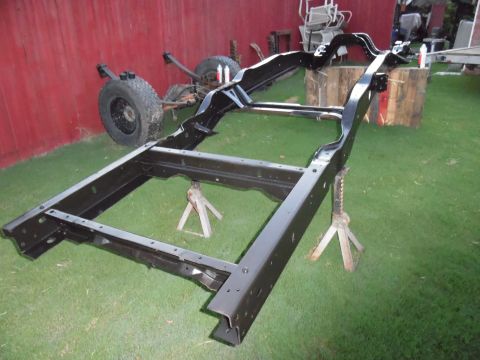

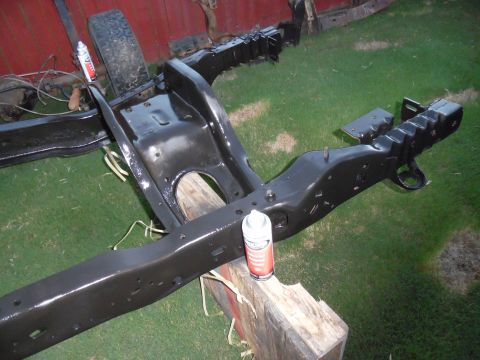

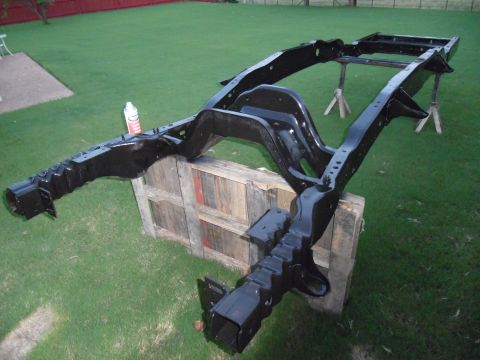

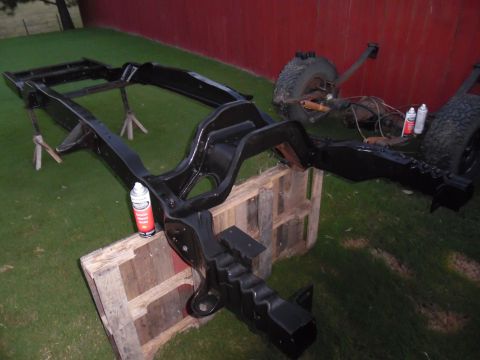

This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...

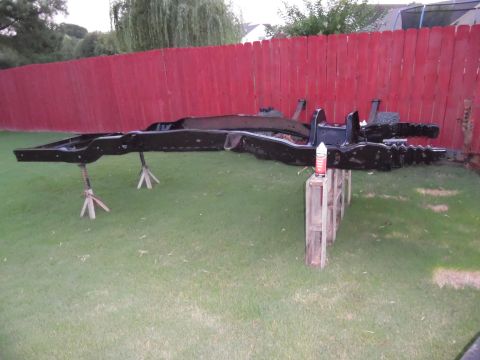

This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the pat...
Hits: 656
Size: 84.78 KB
Posted: 7/17/15
This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the pat...		This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...
Hits: 635
Size: 68.81 KB
Posted: 7/17/15
This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...		This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...
Hits: 558
Size: 78.85 KB
Posted: 7/17/15
This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...		This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...
Hits: 534
Size: 76.67 KB
Posted: 7/17/15
This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...		This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...
Hits: 580
Size: 79.61 KB
Posted: 7/17/15
This full layer of RustOleum Rubberized Undercoating (593236) will hold up much better than the patc...

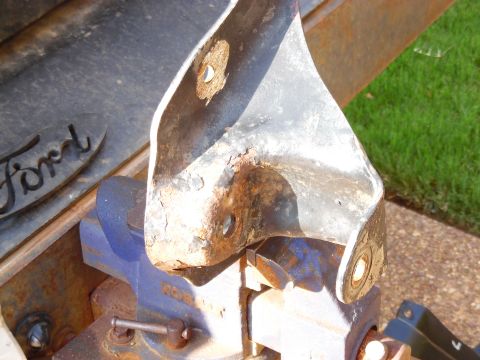

The factory paint is thick & tough, but it's not impervious, and scratches lead to HUGE scale farms ...
Hits: 519
Size: 86.76 KB
Posted: 7/20/15
The factory paint is thick & tough, but it's not impervious, and scratches lead to HUGE scale farms ...		A sandblaster would be better for finishing this, but it doesn't break up this paint well enough to ...
Hits: 549
Size: 87.92 KB
Posted: 7/20/15

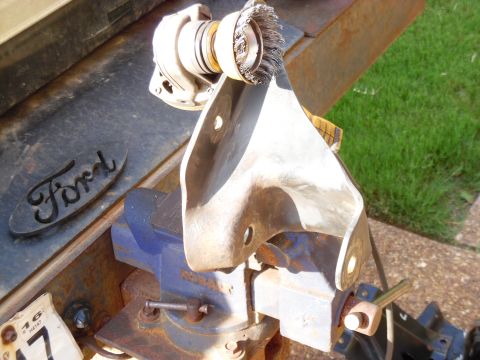

A sandblaster would be better for finishing this, but it doesn't break up this paint well enough to ...		Getting all the contours of the frame brackets destroyed my new cup brush. Fortunately, I kept the ...
Hits: 502
Size: 88.57 KB
Posted: 7/20/15

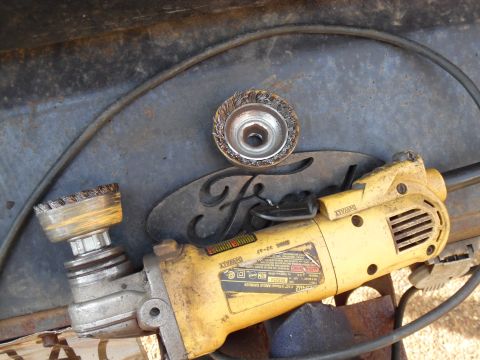

Getting all the contours of the frame brackets destroyed my new cup brush. Fortunately, I kept the ...		Rear spring hangers going back on. The bolts are red-threadlocked.
Hits: 579
Size: 96.96 KB
Posted: 7/20/15

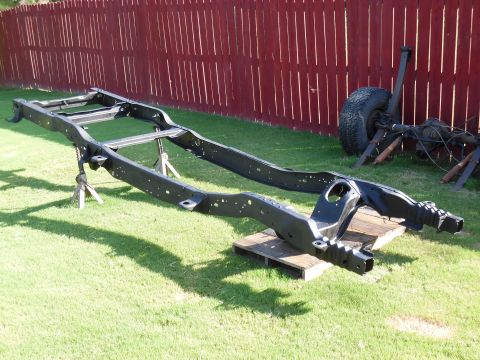

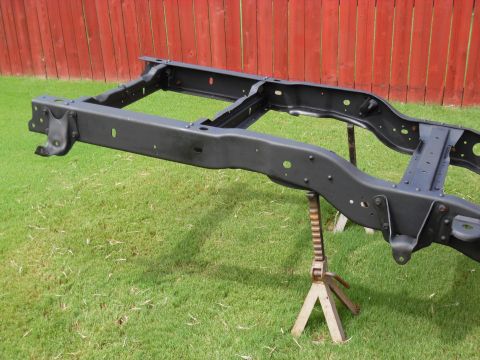

Rear spring hangers going back on. The bolts are red-threadlocked.		Rear spring hangers going back on. The bolts are red-threadlocked.
Hits: 592
Size: 104.09 KB
Posted: 7/20/15
Rear spring hangers going back on. The bolts are red-threadlocked.

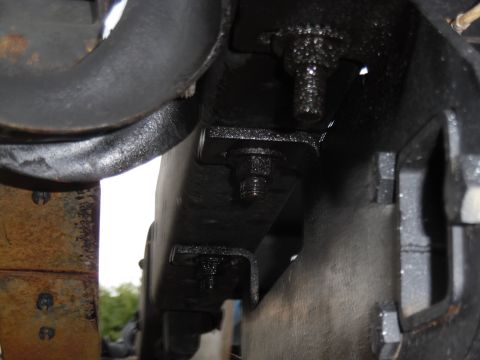

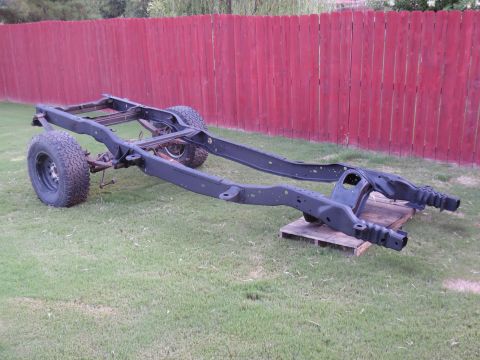

I wire-wheeled & painted the spring eye bolts, then coated them with anti-seize lube before installi...
Hits: 708
Size: 88.68 KB
Posted: 7/20/15
I wire-wheeled & painted the spring eye bolts, then coated them with anti-seize lube before installi...		These pivot brackets are clean & receiving undercoating, but I can't set the frame back on this axle...
Hits: 637
Size: 91.9 KB
Posted: 7/21/15

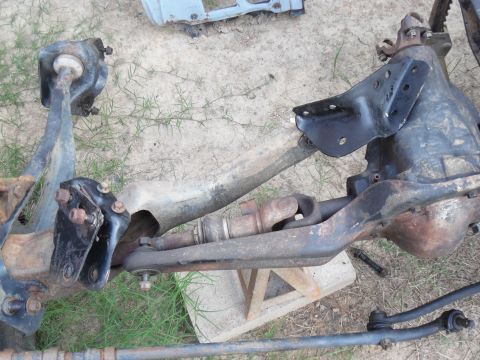

These pivot brackets are clean & receiving undercoating, but I can't set the frame back on this axle...		Left pivot bracket for the right beam.
Hits: 527
Size: 72.3 KB
Posted: 7/21/15

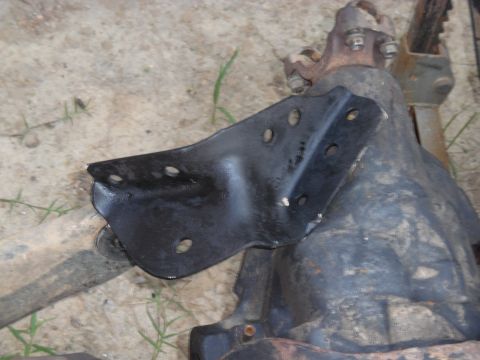

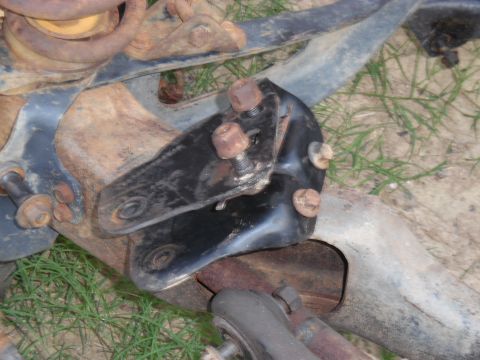

Left pivot bracket for the right beam.		Right pivot bracket for the left beam.
Hits: 568
Size: 83.96 KB
Posted: 7/21/15
Right pivot bracket for the left beam.		This new shock comes with a rubber bushing that will last 30-60Kmi, but I want one that will last fo...
Hits: 998
Size: 57.74 KB
Posted: 7/28/15

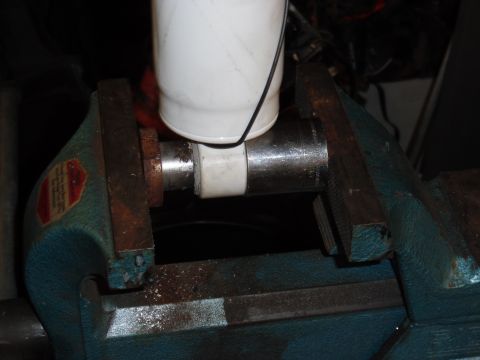

This new shock comes with a rubber bushing that will last 30-60Kmi, but I want one that will last fo...
It may take some effort to get the driving socket out of the shock eye, and the bushing out of the r...
Hits: 610
Size: 81.81 KB
Posted: 7/28/15
It may take some effort to get the driving socket out of the shock eye, and the bushing out of the r...		With a little silicone grease, the new bushing (9.8141G) goes straight into the shock eye with no so...
Hits: 599
Size: 59.13 KB
Posted: 7/28/15

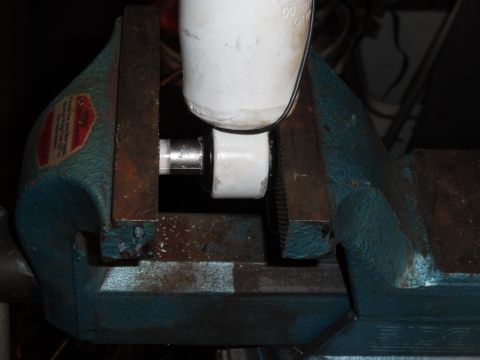

With a little silicone grease, the new bushing (9.8141G) goes straight into the shock eye with no so...		It looks like it belongs there, and can be transferred later to another new shock. [url=http://www....
Hits: 654
Size: 72.57 KB
Posted: 7/28/15

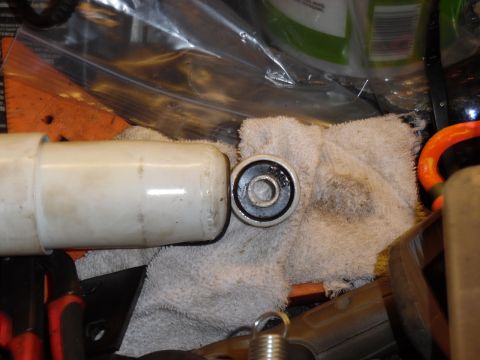

It looks like it belongs there, and can be transferred later to another new shock. [url=http://www....		The heat index dipped into the double-digits for a little while, so I set the frame back on the fron...
Hits: 600
Size: 119.68 KB
Posted: 8/11/15

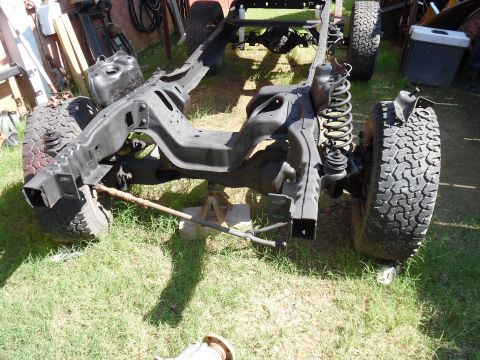

The heat index dipped into the double-digits for a little while, so I set the frame back on the fron...		Keeping the TTB on these jack stands made reinstalling it MUCH easier than the last one I did, but I...
Hits: 663
Size: 104.91 KB
Posted: 8/11/15

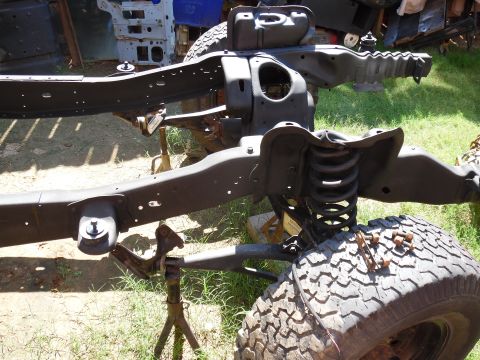

Keeping the TTB on these jack stands made reinstalling it MUCH easier than the last one I did, but I...

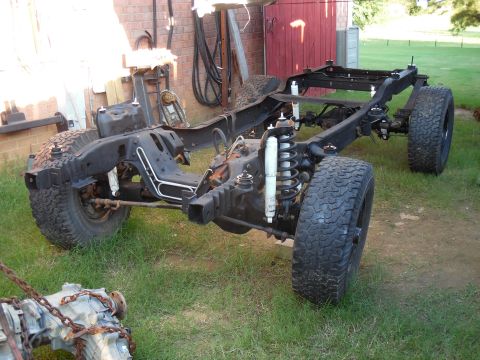

There are still a lot of loose fasteners, but it's coming together. I think when it's done, the onl...
Hits: 1072
Size: 99.66 KB
Posted: 8/11/15
There are still a lot of loose fasteners, but it's coming together. I think when it's done, the onl...		I really wanted to clean & paint the trans & t-case, but I couldn't make any worthwhile progress wit...
Hits: 623
Size: 104.83 KB
Posted: 8/28/15

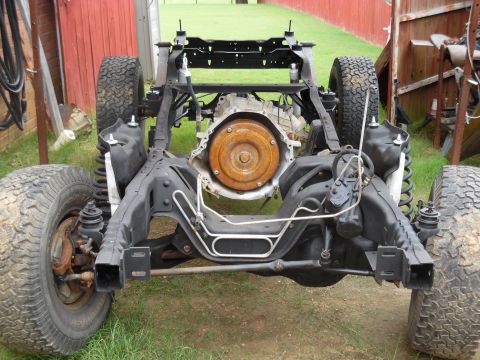

I really wanted to clean & paint the trans & t-case, but I couldn't make any worthwhile progress wit...		Before setting the engine in, I primer-sealed the front of the torque converter without removing it ...
Hits: 753
Size: 78.16 KB
Posted: 8/28/15

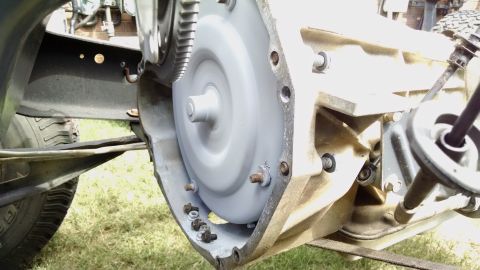

Before setting the engine in, I primer-sealed the front of the torque converter without removing it ...		The engine weighs about 550# at this point.
Hits: 525
Size: 103.21 KB
Posted: 8/28/15

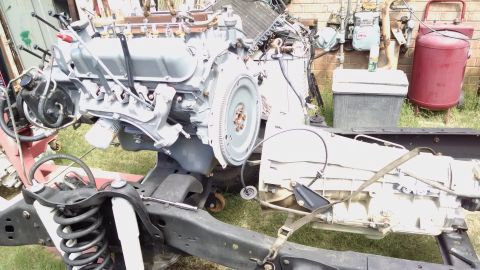

The engine weighs about 550# at this point.		With patience, a 32"-long 2x4, and a couple of adjustable straps, I got the engine stabbed onto...
Hits: 577
Size: 87.11 KB
Posted: 8/28/15

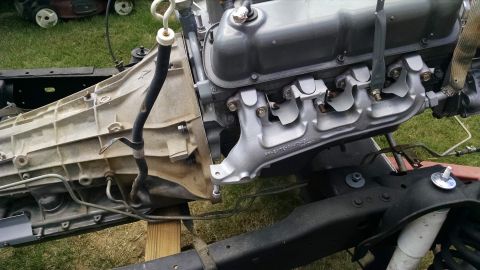

With patience, a 32"-long 2x4, and a couple of adjustable straps, I got the engine stabbed onto...

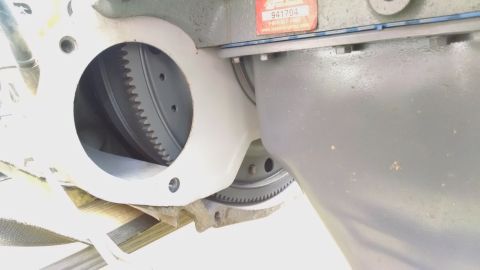

The TC studs are also aligned with the flexplate. This is with the engine at #1TDC (0°).
Hits: 530
Size: 45.85 KB
Posted: 8/28/15
The TC studs are also aligned with the flexplate. This is with the engine at #1TDC (0°).		These old engine mounts (from another truck) were in surprisingly good shape, so I cleaned & painted...
Hits: 496
Size: 54.46 KB
Posted: 8/28/15

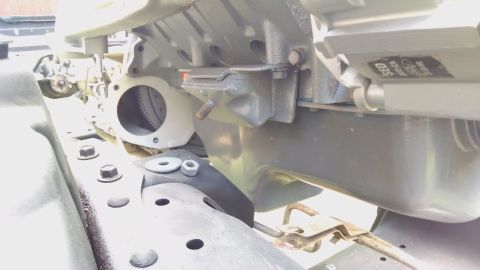

These old engine mounts (from another truck) were in surprisingly good shape, so I cleaned & painted...		This 32" 2x4 in front of the pan held the trans in perfect position to align with the block. S...
Hits: 609
Size: 76.01 KB
Posted: 8/28/15

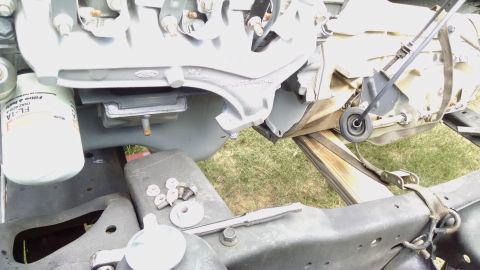

This 32" 2x4 in front of the pan held the trans in perfect position to align with the block. S...		I used blue threadlocker on almost everything, including the starter bolts, TC nuts, & access plate ...
Hits: 544
Size: 35.52 KB
Posted: 8/28/15

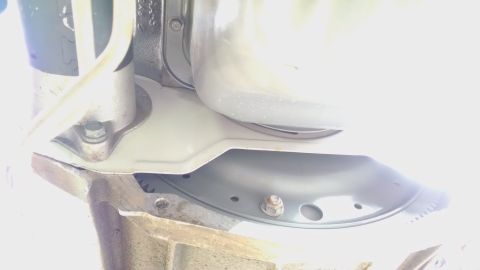

I used blue threadlocker on almost everything, including the starter bolts, TC nuts, & access plate ...		The starter is a fresh MotorCraft reman from the dealership. '92-97 automatic = [url=http://www.amaz...
Hits: 571
Size: 53.47 KB
Posted: 8/28/15

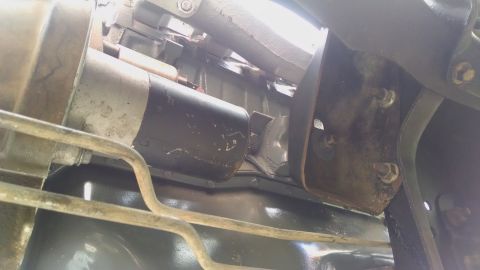

The starter is a fresh MotorCraft reman from the dealership. '92-97 automatic = [url=http://www.amaz...

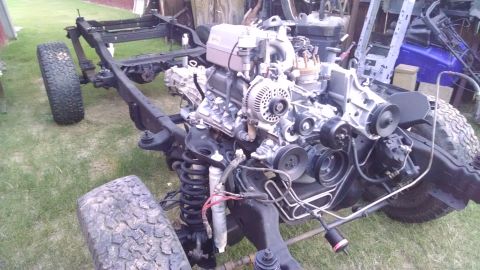

The plenum, alternator, block ground stud & battery/starter harness, PS lines, & MagneFine filters t...
Hits: 731
Size: 101.39 KB
Posted: 8/28/15
The plenum, alternator, block ground stud & battery/starter harness, PS lines, & MagneFine filters t...		The vacuum harness (which I plan to replace with color-matched silicone tubing) is on, and the trans...
Hits: 597
Size: 83.9 KB
Posted: 8/28/15

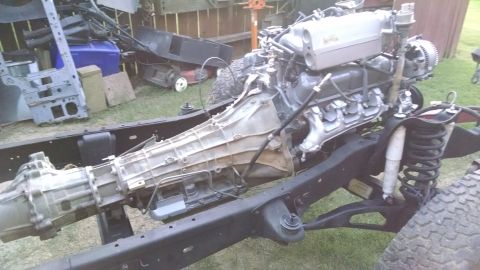

The vacuum harness (which I plan to replace with color-matched silicone tubing) is on, and the trans...		The vacuum harness is on, and the trans dipstick tube has a fresh coat of paint. The trans heat shi...
Hits: 596
Size: 100.77 KB
Posted: 8/28/15

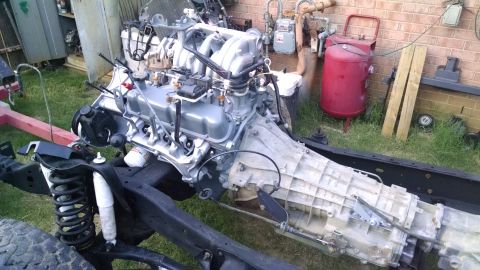

The vacuum harness is on, and the trans dipstick tube has a fresh coat of paint. The trans heat shi...		Looking good... [url=http://www.amazon.com/dp/B000C5HQZ0/]Motorcraft RH34[/url] Thermostat Housing
Hits: 710
Size: 110.98 KB
Posted: 8/30/15

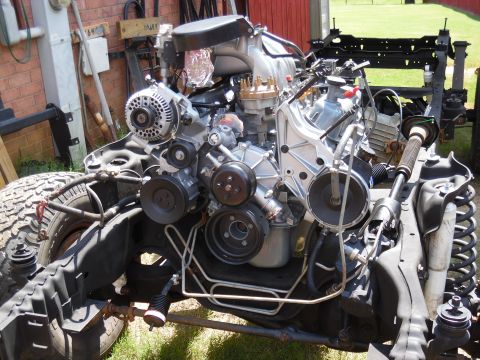

Looking good... [url=http://www.amazon.com/dp/B000C5HQZ0/]Motorcraft RH34[/url] Thermostat Housing		Looking good... Eventually, that capped Magnefine in the foreground will be connected to the Sagina...
Hits: 965
Size: 107.94 KB
Posted: 8/30/15

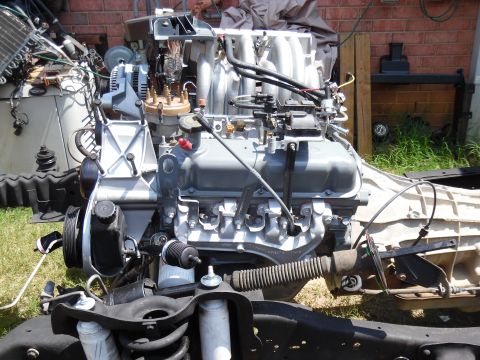

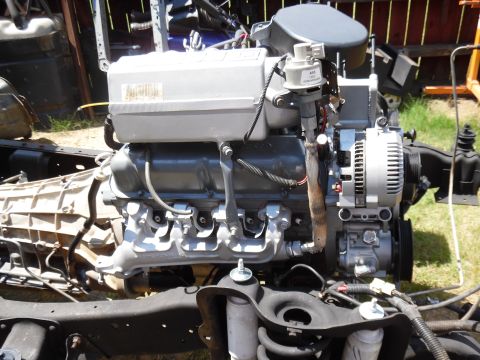

Looking good... Eventually, that capped Magnefine in the foreground will be connected to the Sagina...
Looking good... The starter is a fresh MotorCraft reman '92-97 automatic = [url=http://www.amazon.c...
Hits: 604
Size: 96.35 KB
Posted: 8/30/15
Looking good... The starter is a fresh MotorCraft reman '92-97 automatic = [url=http://www.amazon.c...		I wirewheeled & galvanized the vapor tubes, but I haven't found their clips or the frame ground bolt...
Hits: 573
Size: 108.38 KB
Posted: 8/30/15

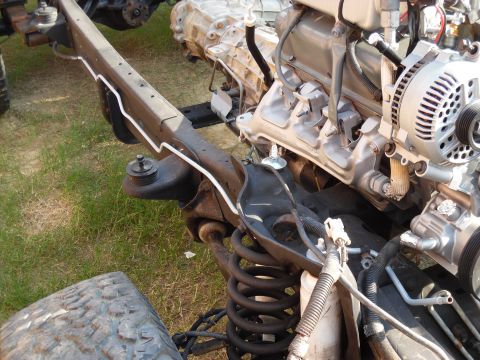

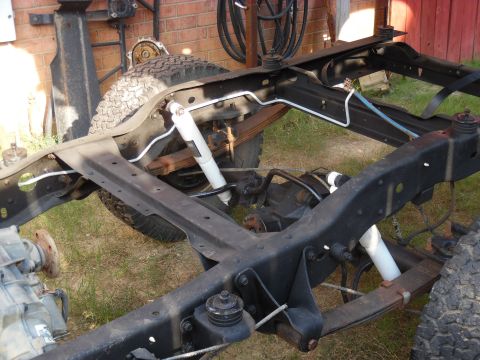

I wirewheeled & galvanized the vapor tubes, but I haven't found their clips or the frame ground bolt...		I wirewheeled & galvanized the vapor tubes, but I haven't found their clips or the frame ground bolt...
Hits: 569
Size: 95.81 KB
Posted: 8/30/15
I wirewheeled & galvanized the vapor tubes, but I haven't found their clips or the frame ground bolt...		After a little cleaning, I put in the fuel & brake lines.
Hits: 559
Size: 102.64 KB
Posted: 8/30/15

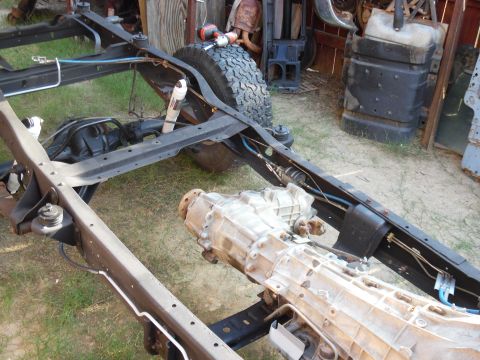

After a little cleaning, I put in the fuel & brake lines.		After a little cleaning, I put in the fuel & brake lines. To make it easier later, I separated all ...
Hits: 552
Size: 91.39 KB
Posted: 8/30/15

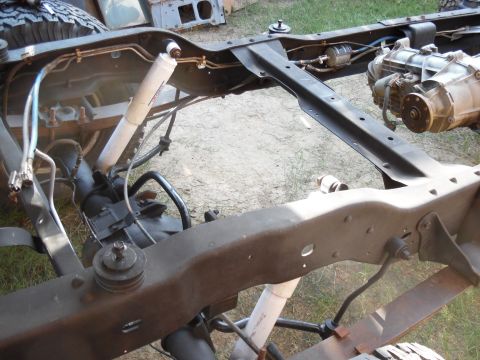

After a little cleaning, I put in the fuel & brake lines. To make it easier later, I separated all ...

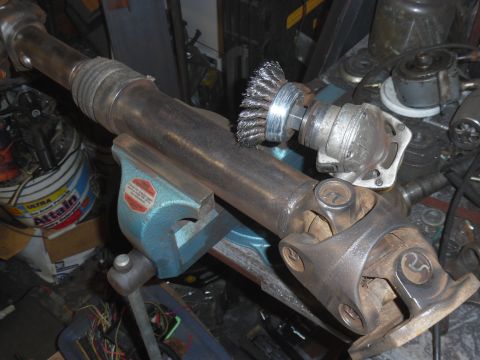

I was hoping to save its original label, but all the ink came off with the first shot of PurplePower...
Hits: 551
Size: 79.51 KB
Posted: 8/30/15
I was hoping to save its original label, but all the ink came off with the first shot of PurplePower...		To make installation & removal easier, I welded these Gr.8 bolts to some light steel so they don't s...
Hits: 542
Size: 98 KB
Posted: 8/30/15

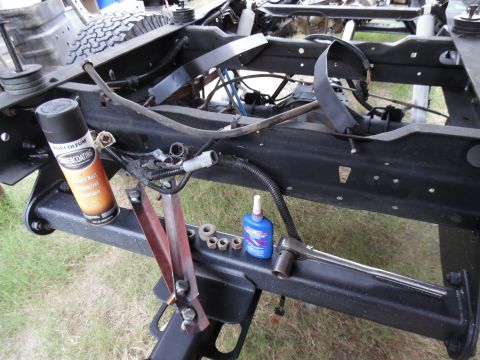

To make installation & removal easier, I welded these Gr.8 bolts to some light steel so they don't s...		Everything is undercoated to resist rust. I set these to form a channel for the wiring harness in t...
Hits: 595
Size: 74.73 KB
Posted: 8/30/15

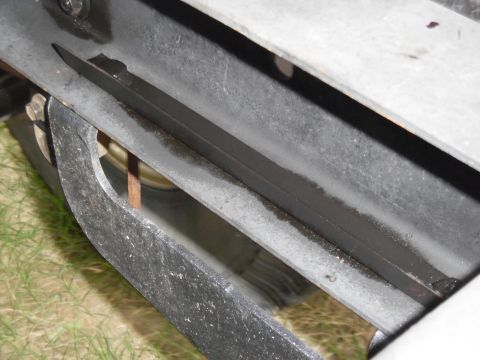

Everything is undercoated to resist rust. I set these to form a channel for the wiring harness in t...		The rear carriage bolts are from the JY, and I welded them to their square-punched plates to keep th...
Hits: 639
Size: 83.35 KB
Posted: 8/30/15

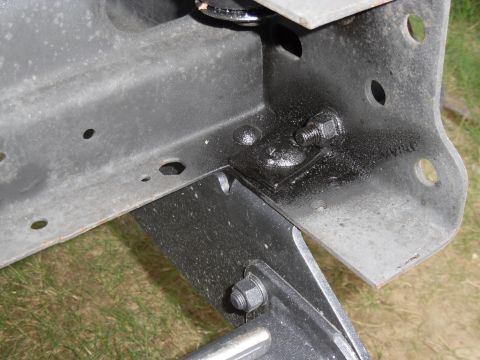

The rear carriage bolts are from the JY, and I welded them to their square-punched plates to keep th...		In addition to red threadlocker, the undercoating should keep the threads clean & usable for many ye...
Hits: 615
Size: 62.47 KB
Posted: 8/30/15
In addition to red threadlocker, the undercoating should keep the threads clean & usable for many ye...

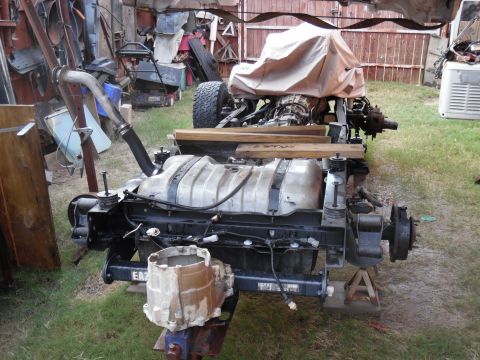

I got tired of looking at the black spray-paint on the rims, so I pulled the Aluminum ones off for s...
Hits: 645
Size: 102.95 KB
Posted: 10/7/15
I got tired of looking at the black spray-paint on the rims, so I pulled the Aluminum ones off for s...		After 3 rounds of spraying & scrubbing, they look pretty good. I haven't yet decided if I'll attemp...
Hits: 783
Size: 89.42 KB
Posted: 10/7/15

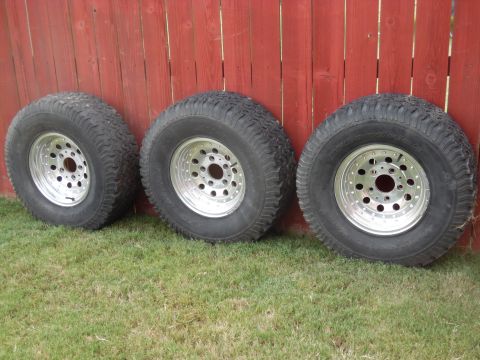

After 3 rounds of spraying & scrubbing, they look pretty good. I haven't yet decided if I'll attemp...		Before mounting the gas tank, I brushed & sealed the nuts, bolts, & washers. I also turned the strap...
Hits: 545
Size: 67.6 KB
Posted: 10/3/15

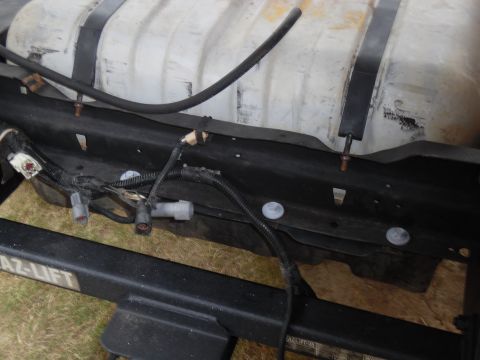

Before mounting the gas tank, I brushed & sealed the nuts, bolts, & washers. I also turned the strap...		This hanger was only used on F-series, but I put one on my '83, and I plan to put this one on this t...
Hits: 771
Size: 81.64 KB
Posted: 10/3/15

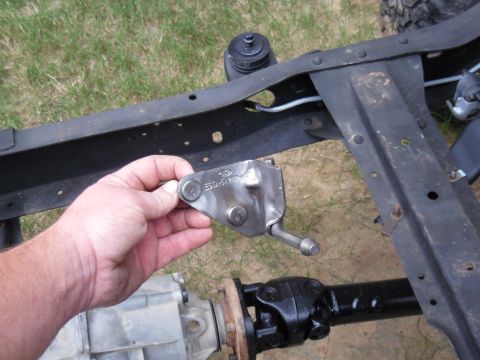

This hanger was only used on F-series, but I put one on my '83, and I plan to put this one on this t...		Ford installs this hanger with a stud at the rear (right of image) & a nut on top of the crossmember...
Hits: 766
Size: 86.3 KB
Posted: 10/3/15

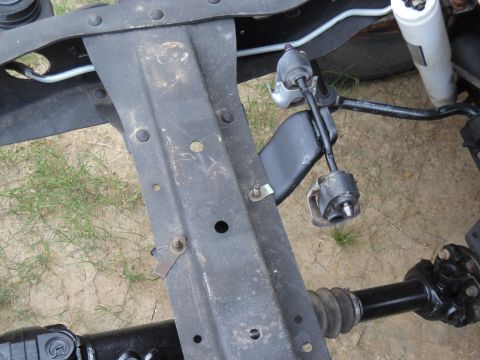

Ford installs this hanger with a stud at the rear (right of image) & a nut on top of the crossmember...

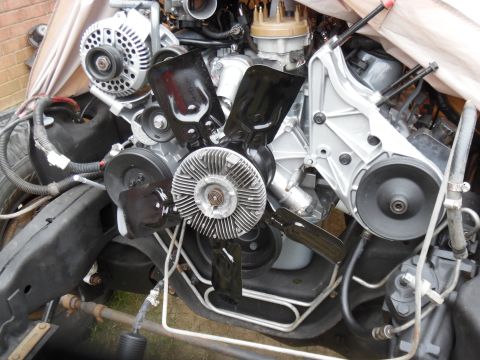

Yesterday, I cleaned & painted the fan ([url=http://www.amazon.com/dp/B000CIYR7W/]Motorcraft YA183[/...
Hits: 1012
Size: 93.85 KB
Posted: 10/4/15
Yesterday, I cleaned & painted the fan ([url=http://www.amazon.com/dp/B000CIYR7W/]Motorcraft YA183[/...		This core support has acid & collision damage, so I may swap it later. But for now, it's white on t...
Hits: 824
Size: 91.35 KB
Posted: 10/19/15

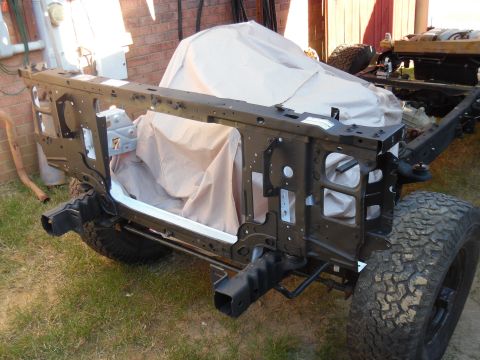

This core support has acid & collision damage, so I may swap it later. But for now, it's white on t...		Yep - radiator fins are clean & straight. [url=http://www.supermotors.net/registry/media/1068855][i...
Hits: 1092
Size: 104.64 KB
Posted: 12/25/15

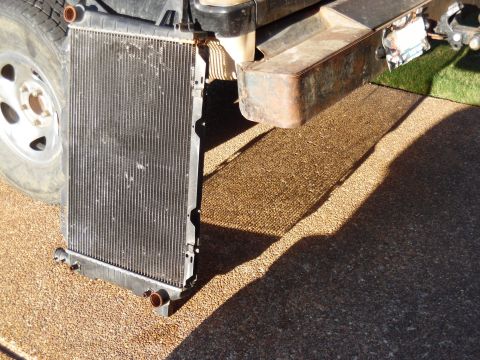

Yep - radiator fins are clean & straight. [url=http://www.supermotors.net/registry/media/1068855][i...		I was hoping to swap in a parallel-flow condenser, but this A/C system is still sealed & working, so...
Hits: 711
Size: 83.18 KB
Posted: 10/19/15

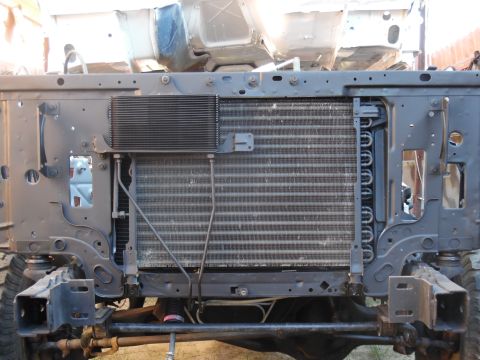

I was hoping to swap in a parallel-flow condenser, but this A/C system is still sealed & working, so...		It's getting close to complete-enough to run the engine. I ordered a new direct-fit Y-pipe today. ...
Hits: 719
Size: 97.73 KB
Posted: 10/19/15

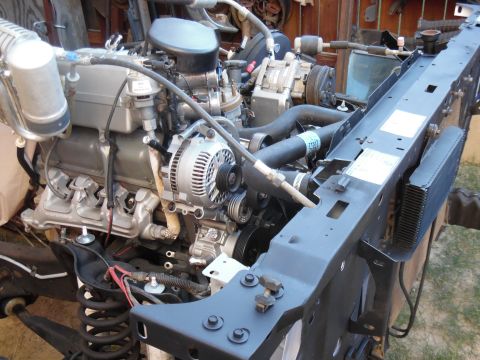

It's getting close to complete-enough to run the engine. I ordered a new direct-fit Y-pipe today. ...

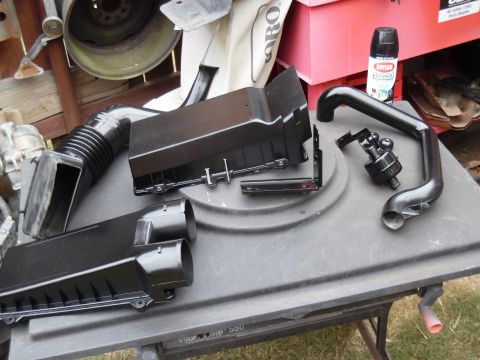

The intake plastics were getting hazy, so I bathed them in black Fusion. I might touch up the inter...
Hits: 723
Size: 82.88 KB
Posted: 11/2/15
The intake plastics were getting hazy, so I bathed them in black Fusion. I might touch up the inter...		The charcoal canister also needed some fresh blackness. [url=http://www.supermotors.net/registry/me...
Hits: 1329
Size: 45.9 KB
Posted: 11/2/15

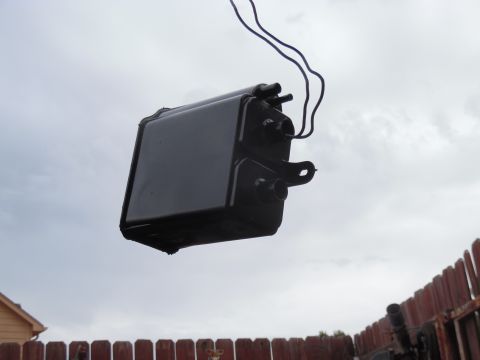

The charcoal canister also needed some fresh blackness. [url=http://www.supermotors.net/registry/me...		I wirewheeled & painted the 2ndry air tubes with engine black, and cleaned the hoses. But I tried s...
Hits: 727
Size: 94.45 KB
Posted: 11/2/15
I wirewheeled & painted the 2ndry air tubes with engine black, and cleaned the hoses. But I tried s...		This had some pink residue inside & out (like some candy resin), so I stripped & lubed it without fu...
Hits: 588
Size: 94.06 KB
Posted: 11/2/15

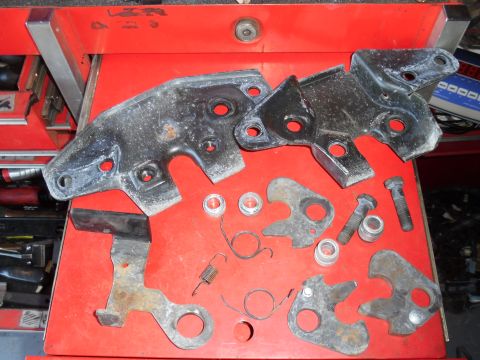

This had some pink residue inside & out (like some candy resin), so I stripped & lubed it without fu...		Just like on my '83, I welded its bolts to these plates so they don't need backup when I R&I the ski...
Hits: 588
Size: 73.05 KB
Posted: 11/2/15

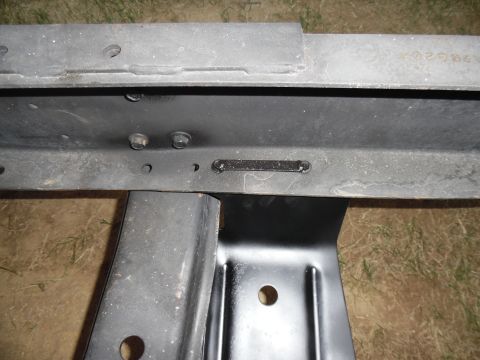

Just like on my '83, I welded its bolts to these plates so they don't need backup when I R&I the ski...

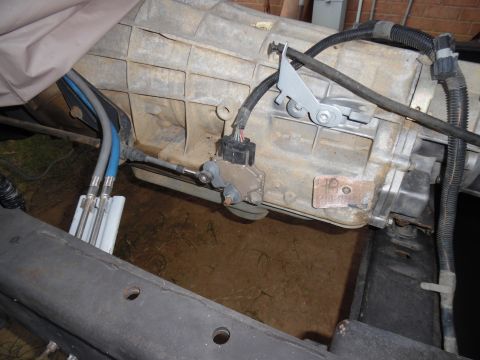

The rusty shift lever was getting noticeable against all the other clean parts, so I gave it some en...
Hits: 614
Size: 78.58 KB
Posted: 11/2/15
The rusty shift lever was getting noticeable against all the other clean parts, so I gave it some en...		To set the flange on this truck's new Y-pipe, I borrowed the original '96 Bronco muffler from my '83...
Hits: 603
Size: 100.55 KB
Posted: 11/14/15

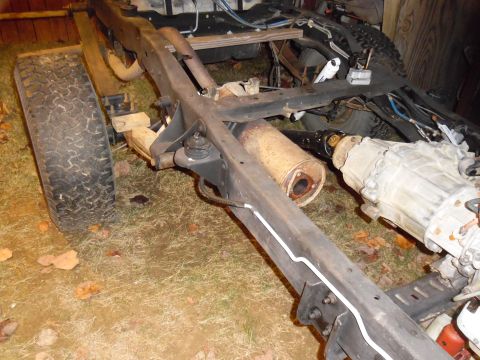

To set the flange on this truck's new Y-pipe, I borrowed the original '96 Bronco muffler from my '83...		Using the original '96 Bronco muffler, I positioned my homemade flange on the new Y-pipe, and checke...
Hits: 842
Size: 113.42 KB
Posted: 11/15/15
Using the original '96 Bronco muffler, I positioned my homemade flange on the new Y-pipe, and checke...		After aligning the flange to the original '96 Bronco muffler, I welded it on. My welds are improvin...
Hits: 831
Size: 77.51 KB
Posted: 11/15/15

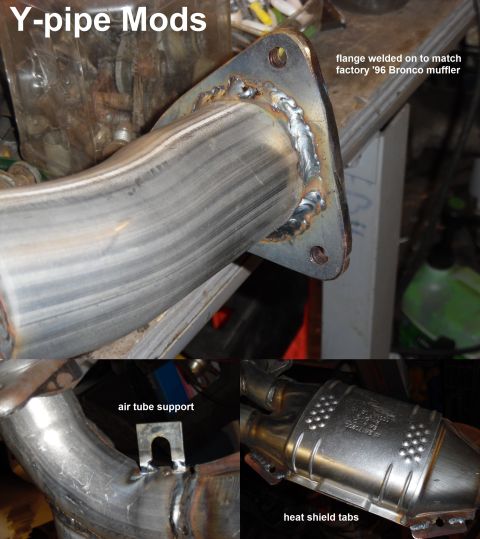

After aligning the flange to the original '96 Bronco muffler, I welded it on. My welds are improvin...		The factory only put this hanger (E6TZ-5A246-B) on F-series Y-pipes, but I think it's a good idea fo...
Hits: 1036
Size: 88.02 KB
Posted: 11/16/15

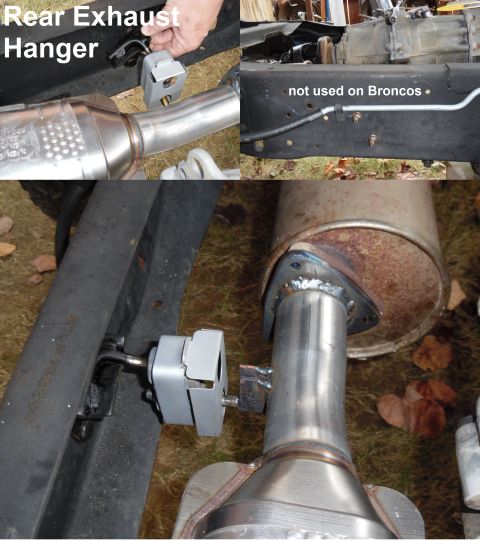

The factory only put this hanger (E6TZ-5A246-B) on F-series Y-pipes, but I think it's a good idea fo...

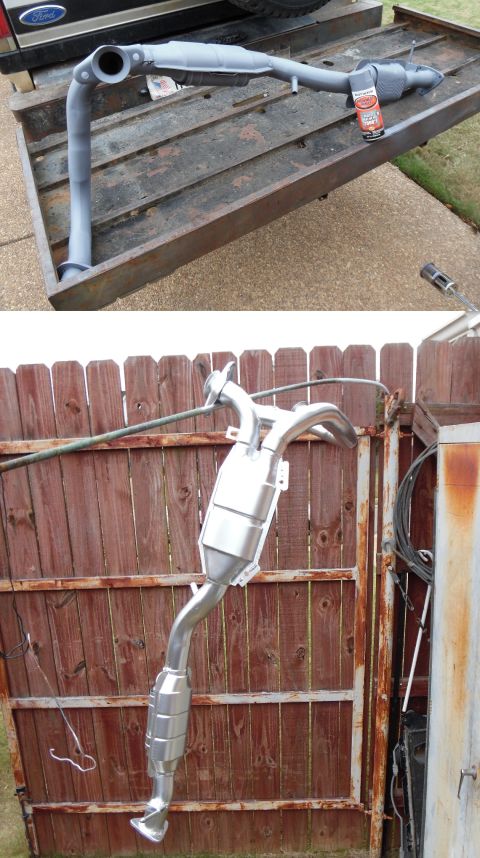

Yes, I painted the new Y-pipe assembly using HH primer (Rustoleum 249340) & a really old can of HH s...
Hits: 772
Size: 70.46 KB
Posted: 11/16/15
Yes, I painted the new Y-pipe assembly using HH primer (Rustoleum 249340) & a really old can of HH s...		I hope the silver high-heat paint slows the rusting process on the Y-pipe & cats, and sheds mud/dirt...
Hits: 572
Size: 82.54 KB
Posted: 11/16/15

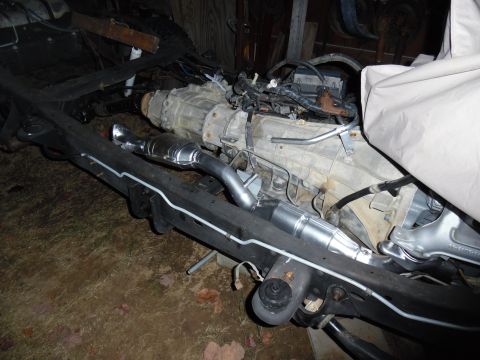

I hope the silver high-heat paint slows the rusting process on the Y-pipe & cats, and sheds mud/dirt...		The new cat already had a heat shield, but it's not as large or correct as the factory shield. With...
Hits: 573
Size: 82.17 KB
Posted: 11/18/15

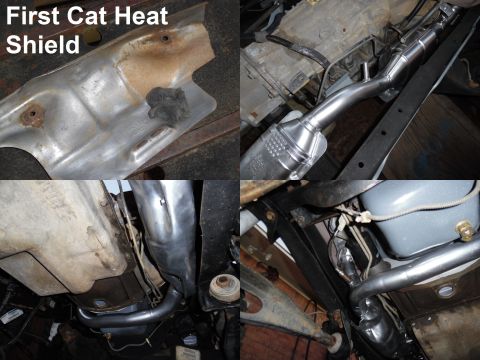

The new cat already had a heat shield, but it's not as large or correct as the factory shield. With...		This heavy plasma-cut stainless flange joins the muffler to the Y-pipe just like a stock '96 Bronco'...
Hits: 1289
Size: 104.19 KB
Posted: 1/7/16
This heavy plasma-cut stainless flange joins the muffler to the Y-pipe just like a stock '96 Bronco'...		The flange was holding the muffler almost in-position, but this is the mount that will bear its weig...
Hits: 695
Size: 56.12 KB
Posted: 1/7/16
The flange was holding the muffler almost in-position, but this is the mount that will bear its weig...
The downstream secondary air tube was broken, and too thin to weld. Since I don't have a bender to d...
Hits: 802
Size: 62.84 KB
Posted: 2/12/17
The downstream secondary air tube was broken, and too thin to weld. Since I don't have a bender to d...		After a delay (building a new house & shop), I laid out the tailpipe & cut the prebent 2.25-inch sta...
Hits: 449
Size: 84.87 KB
Posted: 1/24/19
After a delay (building a new house & shop), I laid out the tailpipe & cut the prebent 2.25-inch sta...		I tacked it together on the cribbing, and then built the hangers. I plan to flange the muffler-to-t...
Hits: 591
Size: 90.32 KB
Posted: 1/24/19
I tacked it together on the cribbing, and then built the hangers. I plan to flange the muffler-to-t...		The same fabrication shop that cut the banister panels made these 3/8-inch stainless flanges, just l...
Hits: 542
Size: 87.93 KB
Posted: 1/24/19
The same fabrication shop that cut the banister panels made these 3/8-inch stainless flanges, just l...		All the vacuum lines have been replaced with thick-walled (3mmIDx9mmOD) silicone tubing in the same ...
Hits: 4288
Size: 74.23 KB
Posted: 7/12/19
All the vacuum lines have been replaced with thick-walled (3mmIDx9mmOD) silicone tubing in the same ...
After installing the 2nd lift in the shop, I rolled the chassis & body (separately) outside for a wh...
Hits: 715
Size: 109.92 KB
Posted: 9/2/19
After installing the 2nd lift in the shop, I rolled the chassis & body (separately) outside for a wh...
About SuperMotors | Contact Us | FAQ/Help | Legal
Copyright © 1998-2025 Web Design Solutions, Inc.
All rights reserved. Duplication & reproduction is strictly prohibited.
SuperMotors.net v5.0.2 ChangeLog
