1983 Ford Bronco
| Owner: |
Fred Willson |
| From: |
Beacon, NY, U.S.A. (Other registries in NY) |
| Year, Make, & Model: |
1983 Ford Bronco (Other Ford Broncos) |
| Avatar: |
 |
| Clubs: |
SuperFord.org (Other vehicles in this club)
|
| Nickname: |
Rosie |
| Mileage: |
200 |

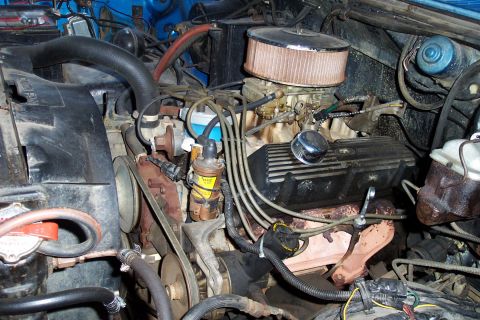

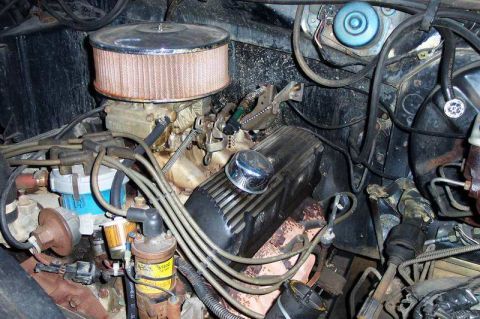

| Engine: |
351CID Windsor with a Holley 4160 4 BBL, stock Ford twin tail pipe exhaust system, (nice rumble but not so loud you can't talk to other people inside the truck). |
| Drivetrain: |
C6 Transmission, NPG 208 Transfer case, Ford 8.8 rear, Dana 44 front, 3.08:1 gears.
Original tires were Pirelli Scorpion 33x12.5 R15 LT on aluminum American Racing AR781 wheels (now in garage), currently has 31x10.5 R15 on stock aluminum wheels. |
| Notes: |

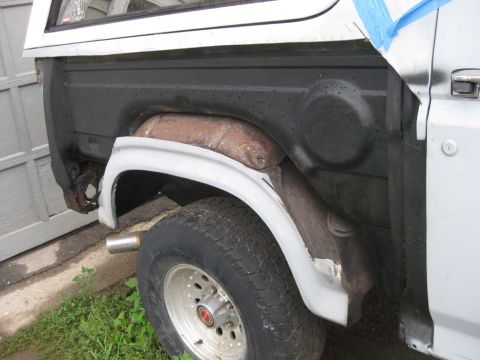

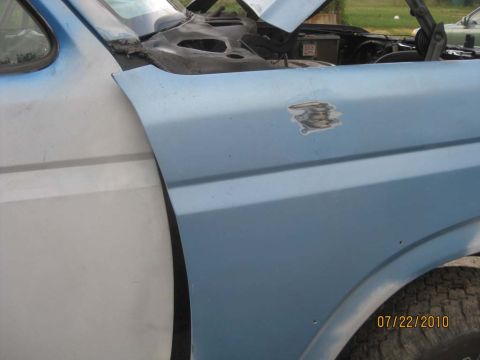

Bought this from my son-in-law in 2000 so he could afford to buy a new truck to take my daughter to Alaska with him. Have been in the process of restoring it, and restoring it, and restoring it. Body completely restored for the second time in 2012; cut out and replaced all rusted areas, New 1/4 panels and body mounts, doors from a 95 f150, new front fenders, hood from a 86 F250, tail gate from a 95 Bronco. I replaced the grill with a new OEM 1980 grill because I think it looks better without the Blue oval. Also added day running lights and fog lights and put in front seats from a Ford Expedition. |
| Last Updated: |
8/25/2016 |
| Hits: |
70452 |
| Folder |
 |
 |
 |
Hits |
 |
Created |
Updated |

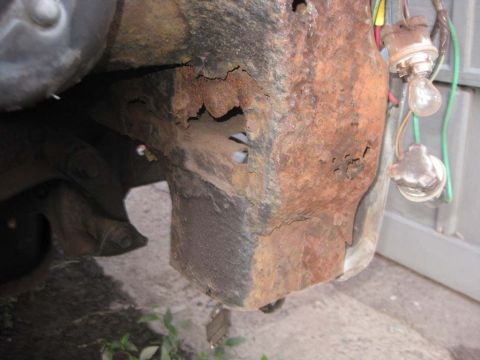

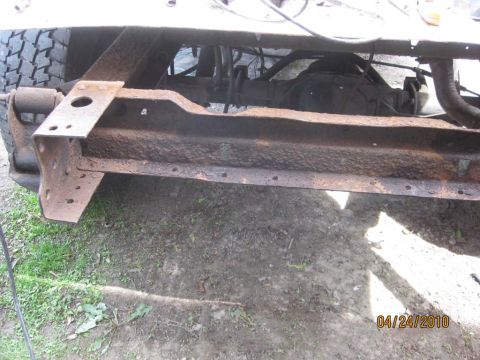

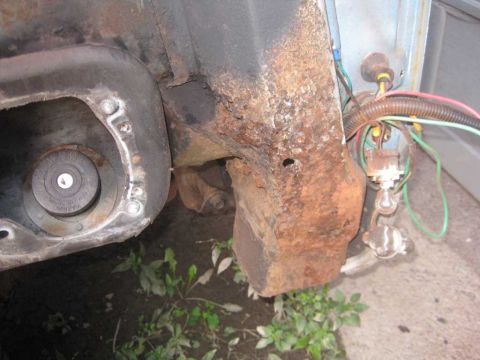

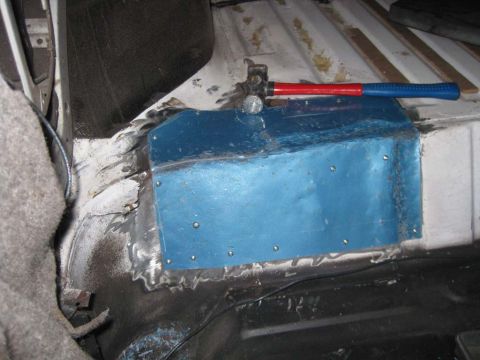

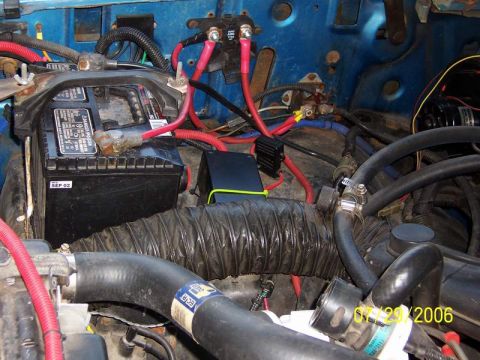

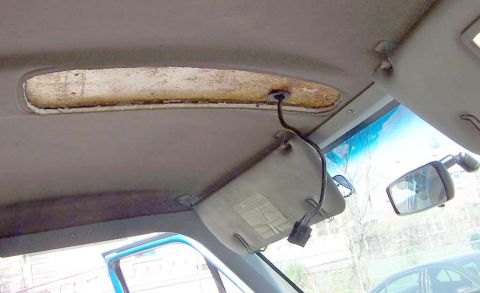

 Seabronc's Pictures | 49 | 0 | 0 | 62,255 | 0 | 2/23/04 | 2/7/16 | | Donor Trucks | 12 | 0 | 0 | 6,820 | 0 | 12/29/05 | 1/14/11 | | Electric Fan Conversion | 13 | 0 | 0 | 17,013 | 0 | 12/11/05 | 10/10/14 | | 3G Alternator Upgrade | 15 | 0 | 0 | 17,428 | 0 | 12/11/05 | 8/25/16 | | Electrical Modification Diagrams | 15 | 0 | 0 | 4,153 | 0 | 6/6/16 | 6/6/16 | | Engine | 15 | 0 | 0 | 14,669 | 0 | 12/29/05 | 9/20/08 | | Saginaw V-belt Conversion | 12 | 0 | 0 | 11,307 | 0 | 8/5/06 | 10/1/08 | | Fuel Sending Unit Access Panel | 4 | 0 | 0 | 3,301 | 0 | 9/19/08 | 10/10/14 | | Engine Compartment Clean Up | 26 | 0 | 0 | 15,610 | 0 | 9/19/08 | 9/20/08 | | OHC Console | 11 | 0 | 0 | 9,844 | 0 | 6/21/11 | 6/26/11 | | Battery Relocation and Wriing Cleanup | 18 | 0 | 0 | 10,603 | 0 | 9/19/08 | 9/20/08 | | JBG Charts | 2 | 0 | 0 | 3,468 | 0 | 1/11/06 | 1/11/06 | | Body Work 2009 - 2010 | 1 | 0 | 0 | 594 | 0 | 1/14/11 | 2/7/13 | | Rocker Panels | 23 | 0 | 0 | 10,872 | 0 | 1/14/11 | 10/7/15 | | The Tub | 31 | 0 | 0 | 13,572 | 0 | 3/3/11 | 2/7/13 | | Tailgate Support | 32 | 0 | 0 | 13,180 | 0 | 3/4/11 | 8/20/12 | | Tub Support | 23 | 0 | 0 | 9,975 | 0 | 3/8/11 | 8/20/12 | | Rear Frame | 7 | 0 | 0 | 3,495 | 0 | 3/8/11 | 8/20/12 | | Quarter Panels | 35 | 0 | 0 | 20,114 | 0 | 3/5/11 | 10/10/14 | | Radiator Support | 10 | 0 | 0 | 4,953 | 0 | 3/8/11 | 10/10/14 |
 3G Charging System.jpg
480 hits | 69.41 KB | Posted: 8/25/16
 3G-ALT_wiring 1.jpg
424 hits | 25.85 KB | Posted: 8/25/16
358 hits | 73.93 KB | Posted: 6/6/16
Original Charge Distribution System
358 hits | 69.32 KB | Posted: 6/6/16
Modified Charge Power Distribution System. How it's all tied together.
 3G Charging System.jpg
351 hits | 69.41 KB | Posted: 6/6/16
This is a charging system diagram from a 1996 EVTM and is the same as mine, perhaps a little neater looking. The only difference is mine has a 175 Amp Mega fuse where this diagram shows a fusible link
 Engine Compartment Relays.jpg
316 hits | 68.67 KB | Posted: 6/6/16

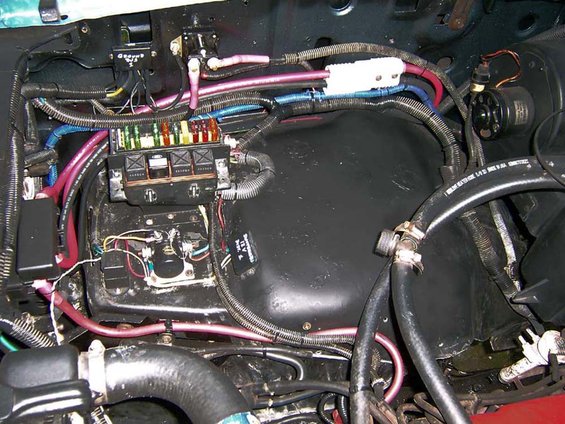

This is a diagram of the relays that have been added in modifying the electrical system and their function. Most are contained in a Under hood relay box with the exception of the light and horn control relays.
