428 hits | 85.59 KB | Posted: 11/12/09
and finally, put the housing back on the engine.
I had already sprayed the bolts with WD-40 at this point.
Finger tighten both bolts and then just snug them with the socket. No need to crank them down.
I also sprayed the inside of the hoses witt W...

457 hits | 119.68 KB | Posted: 11/12/09
Then put on the gasket and (not pictured) more silicone.

467 hits | 96.7 KB | Posted: 11/12/09
First, I put silicone on the housing itself. Make sure you get around the bolt holes.

1501 hits | 102.79 KB | Posted: 11/12/09
When putting the new thermostat back in the housing, make sure you put the correct side in.
If it is reversed, the truck will run hot.

534 hits | 94.12 KB | Posted: 11/12/09
I also hit the engine side with sandpaper and wiped it out the best that I could.
Once wiped out, I started the truck for a few seconds so that the water would flush out anything I missed.

492 hits | 92.58 KB | Posted: 11/12/09
This is after scraping off the nasty gasket and hitting it with sandpaper to clean it up.
Once I finished this, I also cleaned up the hose inserts and then wiped everything down with a rag.

583 hits | 100.43 KB | Posted: 11/12/09
And this is the nasty engine side.

591 hits | 91.38 KB | Posted: 11/12/09
I was able to take the bolts out using the 12MM and nothing snapped. (yah me!!!)
This is what we are looking at. The thermostat has seen better days and the housing is nasty. I had to use a screwdriver to pry out the thermostat itself,

864 hits | 96.94 KB | Posted: 11/12/09
The upper radiator hose was simply removed from the housing and shoved to the side. I found it easier to take the heater hose off of the housing first and then remove it from the water pump completely to get it out of the way.

1501 hits | 102.79 KB | Posted: 11/12/09
When putting the new thermostat back in the housing, make sure you put the correct side in.
If it is reversed, the truck will run hot.

1197 hits | 107.22 KB | Posted: 11/12/09
Here we can see what we are dealing with. I removed the air intake hoses already and I have been soaking the housing bolts for three days with WD-40 already.
I still need to remove the large Radiator hose and the small heater hose

864 hits | 96.94 KB | Posted: 11/12/09
The upper radiator hose was simply removed from the housing and shoved to the side. I found it easier to take the heater hose off of the housing first and then remove it from the water pump completely to get it out of the way.

591 hits | 91.38 KB | Posted: 11/12/09
I was able to take the bolts out using the 12MM and nothing snapped. (yah me!!!)
This is what we are looking at. The thermostat has seen better days and the housing is nasty. I had to use a screwdriver to pry out the thermostat itself,

583 hits | 100.43 KB | Posted: 11/12/09
And this is the nasty engine side.

534 hits | 94.12 KB | Posted: 11/12/09
I also hit the engine side with sandpaper and wiped it out the best that I could.
Once wiped out, I started the truck for a few seconds so that the water would flush out anything I missed.

492 hits | 92.58 KB | Posted: 11/12/09
This is after scraping off the nasty gasket and hitting it with sandpaper to clean it up.
Once I finished this, I also cleaned up the hose inserts and then wiped everything down with a rag.

467 hits | 96.7 KB | Posted: 11/12/09
First, I put silicone on the housing itself. Make sure you get around the bolt holes.

463 hits | 108.05 KB | Posted: 11/12/09

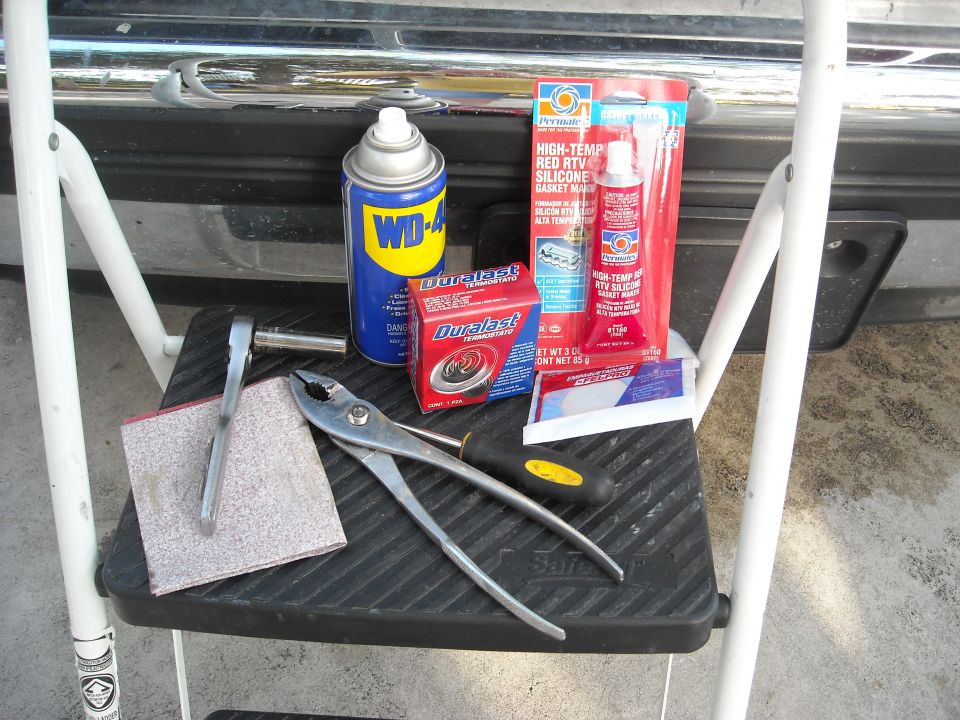

Here are the tools you will need.
12MM long socket or a shorty with a small extension
Plyers to take off the "pinch style" hose clamp on the thermostat
WD-40 for the thermostat bolts and the hoses
Screwdriver for the heater hose clamps
Stepladde...
