1994 Ford Bronco
Owner: exiledtexan         (All of this user's registries on SuperMotors)
From: Bozeman, MT, U.S.A.        (Other registries in MT)
Year, Make, & Model: 1994 Ford Bronco        (Other Ford Broncos)
Avatar:
Clubs: FullSizeBronco.com        (Other vehicles in this club)
Nickname:
Mileage: 169800
Engine: 351W 5.8L V8
MSD Distributor & Coil
Accel 8.8 mm plug wires
E3 Diamondfire Plugs
Drivetrain: E4OD Transmission
Ford 8.8" 3.55 LS Rear End
Stock D44 TTB Front geared
BW 1356 Transfer Case w/ Electric Shift
Stock Auto Hubs
Notes: Bought this old horse after my sophomore year of college from a cop in Great Falls who bought it off a doctor from somewhere in Colorado. I always wanted a late-model Bronco, ever since I was a little kid, and blowing up the crappy old hand-me-down Explorer I had was just as good of an excuse as any to finally get one. I love everything about this truck, even when I have to fix something, which is unfortunately quite frequently.
Last Updated: 8/19/2013
Hits: 13862
Album
Folder Hits Comments Created Updated
folder Wheel Bearing Replacement10007,24805/2/105/2/10
folder Misc.560032,17205/2/108/19/13
folder Summer 09 Wheeling190010,83005/2/105/2/10
folder Routine Maintenance5002,38205/3/105/3/10
Newest Media Files
577 hits | 100.02 KB | Posted: 8/19/13

593 hits | 129.89 KB | Posted: 8/2/13

586 hits | 70.55 KB | Posted: 8/1/13

540 hits | 78.72 KB | Posted: 8/1/13

512 hits | 80.19 KB | Posted: 8/1/13

534 hits | 47.99 KB | Posted: 8/1/13

554 hits | 133.66 KB | Posted: 7/15/13

524 hits | 69.65 KB | Posted: 7/15/13

524 hits | 42.33 KB | Posted: 7/15/13

Most Viewed Files
2146 hits | 64.71 KB | Posted: 12/12/11

2131 hits | 71.76 KB | Posted: 12/12/11

2123 hits | 44.04 KB | Posted: 12/12/11

2118 hits | 62.85 KB | Posted: 12/12/11

1221 hits | 62.54 KB | Posted: 5/2/10

1102 hits | 90.63 KB | Posted: 5/2/10

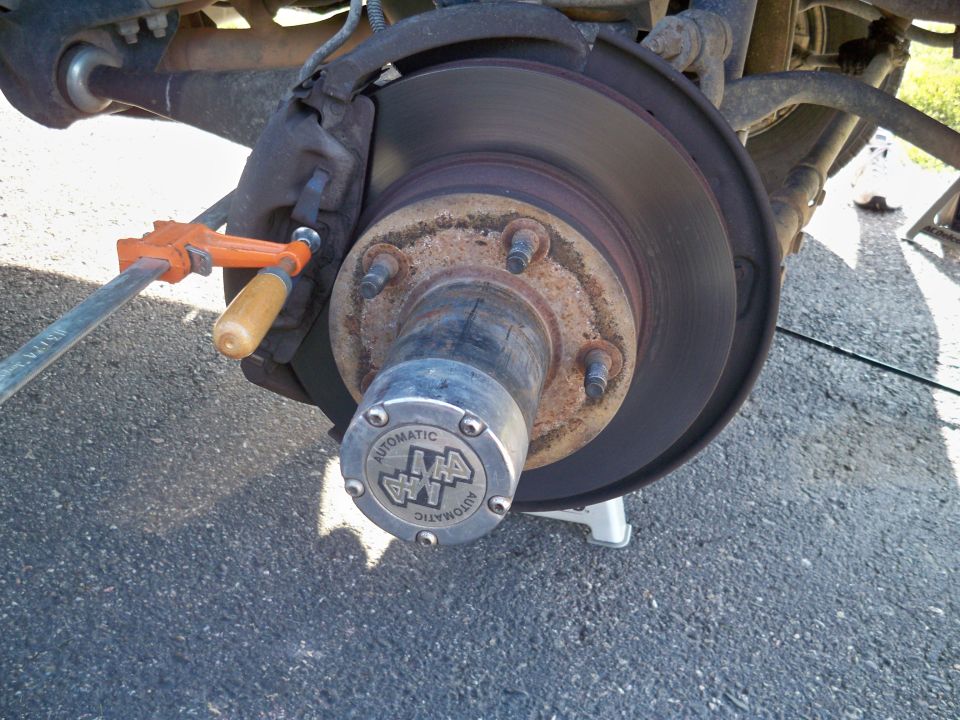

View with the wheel off and the clamp depressing the caliper.
991 hits | 86.36 KB | Posted: 5/2/10

The lower half of the hub assembly should then slide right out.
940 hits | 19.6 KB | Posted: 2/2/11

845 hits | 38.57 KB | Posted: 5/15/10

Maintenance & Modification Logs

DateTypeMileageTitle / Description$ Amount
07/13/13Repair195200Replaced Steering Box
120.00
06/25/13Maintenance195000Oil Change
40.00
06/11/13Maintenance193500Replaced Battery
65.00
03/25/13Maintenance192000Oil Change
40.00
07/23/12Repair190100Torque Converter Replacement
300.00
07/10/12Repair190000Replaced Shift Solenoids
95.00
05/01/12Maintenance188000Oil Change
40.00
01/25/12Maintenance185000Oil Change
40.00
10/30/11Maintenance181400Oil Change
38.00
05/03/10Maintenance168638Oil Changed
NAPA Gold Filter & 6 qts Pennzoil 10W30. Changed air filter. PCV filter still clean.
32.00
03/02/10Maintenance167804Flasher Bulb/Relay Replacement
Relay went out, also replaced all turn signal bulbs.
11.00
02/03/10Maintenance166808Oil Changed
Changed myself. Installed better NAPA Gold filter with 6 qts Pennz 10W30. Air filter and PCV filter EXTREMELY dirty, local lube shop did not mention at last change. Changed both filters.
35.00
10/17/09Maintenance164970Oil Changed
Took to Belgrade Auto Lube. Invoice #00001-02764320. Apparently techs noticed 'significant frame drip'. Total crap, will not go here again. I can change my own oil and check fluids for much less than this.
40.00
09/19/09Modification163800Ignition Upgrade
Purchased and installed the following:
MSD cap and rotor
MSD ignition coil
E3 Diamond Fire spark plugs
Accel plug wires
223.00
09/04/09Repair163437Throttle Position Sensor Replacement
E4OD transmission was shifting in limp mode and engine was idling at 2700 RPM. Took to Swift Automotive in Belgrade. Matt tested the ECM and checked for vacuum leaks and found the TPS was shot, probably from my puddle jumping antics earlier in the week. Installed a new, properly insulated TPS and cleared codes.
167.00
08/12/09Modification CB/PA Install
Installed:
Cobra 19 Ultra III CB unit
K40 4' whip
8W External Amplified Speaker
150.00
07/28/09Maintenance162100Front Bearing Replacement
Noticed intense squeaking noises from front driver's side wheel. Inner bearing was totally seized, replaced both sides. Inspected rear bearings, found them to be in good shape, may replace next summer or earlier. Removal of driver's side rotor required a 20-ton bottle jack and lots of swearing.
40.00
07/21/09Maintenance161634Oil Changed
Took to Belgrade Auto Lube. Invoice #00001-02760808
40.00
06/14/09Modification159000Installed Auxiliary Lights
Installed 2 trapezoidal beam implement lights on front bumper w/ indicator toggle on dash.
36.00
05/27/09Maintenance158000Shock Replacement
Purchased 6 new Monro-Matic+ Shocks at Belgrade O'Reilly to replace OEM Motorcraft shocks that were current;y installed.
132.00
05/26/09Maintenance158694Transmission Flush/Fill
E4OD transmission was shifting rough, took to Belgrade Auto Lube for transmission service. Thought I was getting a filter change, but apparently not. Will not make same mistake again. Tech reported that 23 quarts DEX/MERC ATF were required to flush the system. Invoice #00001-02758482
75.00
05/21/09Repair158524Windshield Replacement
Wind knocked basketball goal onto already-cracked windshield and left several large spider-cracks. Got online quote and had Speedy Glass replace the windshield within 2 days.
167.00
05/18/09Modification Replaced Stereo Head Unit
Replaced non-functioning unit from previous owner with new Sony 208W Xplod unit. Also rewired all speakers and removed blown amplifier.
120.00
05/16/09Maintenance158376Oil Changed
Took to Belgrade Auto Lube.
Invoice #00001-02758188
40.00
Total2,086.00
