1982 Chrysler New Yorker
| Owner: |
Sixlitre (All of this user's registries on SuperMotors) |
| From: |
Undisclosed, Canada (Other registries outside the U.S) |
| Year, Make, & Model: |
1982 Chrysler New Yorker |
| Avatar: |
 |
| Nickname: |
Pappy's Chrysler |
| Mileage: |
150 |
| Engine: |
Factory Thermoquad 4bbl equipped 318. Cat delete Canadian model. Only an air pump and EGR. Freshened 1988 high swirl, higher compression 302 heads installed. MP timing chain tensioner kit installed with police double row timing chain and gears. MP water pump silicone bypass hose. Mr.Gasket 160 degree high flow thermostat. MP distributor controlled by Summit mulitple spark box. Smooth, low idle, excellent response and mileage. Custom Y-pipe built using Flowmaster Y piece. 2 1/4 inch all the way out through Hush Thrush muffler and 2 piece B-body 1978 spec Cordoba tailpipe. |
| Drivetrain: |
Remote transmission filter(spin on). Rebuilt the original 904 transmission. Open HD 8 1/4 rear end with 2.45:1 gears. Sony CD player with new 3 1/2 inch front speakers and fully 6 X 9 inch 3 way rear speakers. 120 amp Dakota Denso alternator bolted on, cured all electrical gremlins. Gear reduction starter motor from 90s Ram bolted in, starts are incredible easy now. Possibly the best $15.00 I ever spent. |
| Notes: |
Vehicle was purchased from Grandson of original owner in December 2008 for $650.00 Canadian. It walked through a safety check and is emissions exempt in this Province, as long as nobody votes NDP in the future.
The Grandson had taken good care of the vehicle for 2 years. Prior to that it had been owned and cared for (meticulously I'll add) by his Grandfather since he bought it new in 1981. To say it is rust free would be an understatement. Even the frame rails are still burgundy. Grampa may have ordered the CMX wheels as their center webs are painted body colour. We re-upholstered the headliner and rear window tunnel in 2010.
Mk IV cupholder/console. |
| Last Updated: |
2/27/2016 |
| Hits: |
31279 |
| Folder |
 |
 |
 |
Hits |
 |
Created |
Updated |
 Engine | 1 | 0 | 0 | 1,033 | 0 | 7/12/10 | 7/12/10 | | Timing chain MP tensioner | 6 | 0 | 0 | 5,018 | 0 | 7/12/10 | 1/20/11 | | High swirl "302" heads | 26 | 0 | 0 | 18,558 | 0 | 1/20/11 | 3/26/11 | | Gaskets | 2 | 0 | 0 | 760 | 0 | 2/15/11 | 2/20/11 | | Rear main seal change | 15 | 0 | 0 | 6,676 | 0 | 2/20/11 | 2/28/11 | | 4bbl intake reassembly | 7 | 0 | 0 | 2,874 | 0 | 3/26/11 | 3/28/11 | | Torque Plus intake gaskets | 5 | 0 | 0 | 2,468 | 0 | 3/26/11 | 3/26/11 | | Double row timing chain | 21 | 0 | 0 | 15,898 | 0 | 7/12/10 | 1/20/11 | | Exhaust | 0 | 0 | 0 | 0 | 0 | 1/21/11 | 1/21/11 | | New Y-pipe | 9 | 0 | 0 | 4,517 | 0 | 1/21/11 | 3/26/11 | | Saving exhaust components | 2 | 0 | 0 | 846 | 0 | 3/9/11 | 3/9/11 | | Blocking holes in exhaust manifold | 3 | 0 | 0 | 1,435 | 0 | 3/26/11 | 3/26/11 | | Fuel | 0 | 0 | 0 | 0 | 0 | 1/24/11 | 1/24/11 | | Fuel strainer | 1 | 0 | 0 | 491 | 0 | 1/24/11 | 1/24/11 | | Drilling a ported vacuum source | 6 | 0 | 0 | 2,882 | 0 | 5/17/11 | 5/17/11 | | Body | 0 | 0 | 0 | 0 | 0 | 1/24/11 | 1/24/11 | | Power window fix | 4 | 0 | 0 | 1,662 | 0 | 1/24/11 | 1/24/11 | | exterior | 2 | 0 | 0 | 1,078 | 0 | 7/22/12 | 7/22/12 | | No drill mudflap clip | 1 | 0 | 0 | 385 | 0 | 1/29/14 | 1/29/14 | | Transmission | 0 | 0 | 0 | 0 | 0 | 2/28/11 | 2/28/11 | | Urethane transmission mount | 7 | 0 | 0 | 3,006 | 0 | 2/28/11 | 5/23/13 | | Dipstick tube O ring | 2 | 0 | 0 | 1,030 | 0 | 3/5/11 | 3/5/11 | | Internal trans filter | 4 | 0 | 0 | 1,616 | 0 | 3/9/11 | 3/9/11 | | Shift linkage bushing | 1 | 0 | 0 | 486 | 0 | 3/9/11 | 3/9/11 | | Driveline | 0 | 0 | 0 | 0 | 0 | 3/9/11 | 3/9/11 | | Greaseable U-joints | 2 | 0 | 0 | 892 | 0 | 3/9/11 | 3/9/11 | | Electrical | 0 | 0 | 0 | 0 | 0 | 2/5/12 | 2/5/12 | | Denso alternator | 19 | 0 | 0 | 8,636 | 0 | 2/5/12 | 2/27/16 |
 regulator plug S573photo primary__ra_p.jpg
348 hits | 8.07 KB | Posted: 2/26/16
Regulator plug crimp on style
 no drill mudflap fastener.jpg
385 hits | 38.11 KB | Posted: 1/29/14
No drill mudflap fastener and cap
404 hits | 41.06 KB | Posted: 5/23/13
This is what goes into the old mount housing, which is planty rigid and plenty strong. The deteriorated rubber is the weak link.
408 hits | 57.99 KB | Posted: 5/23/13
This is what you no longer need. It's also why your trans bumps around.
409 hits | 58.87 KB | Posted: 5/23/13
Empty out the bonded rubber that holds the steel tube the trans mount bolt passes through.
585 hits | 38.18 KB | Posted: 1/3/13
Want them angled ? Put them in the vice and bend em'. These nut onto the Denso alternator studs making this a true bolt on, with no wiring cutting at all.
578 hits | 47.18 KB | Posted: 1/3/13
Where do I get those neat 1/4 inch male spade adapters you ask ? why from Grote 84-2915. Think I paid 3 bucks for the ten in the pack
583 hits | 90.64 KB | Posted: 7/22/12

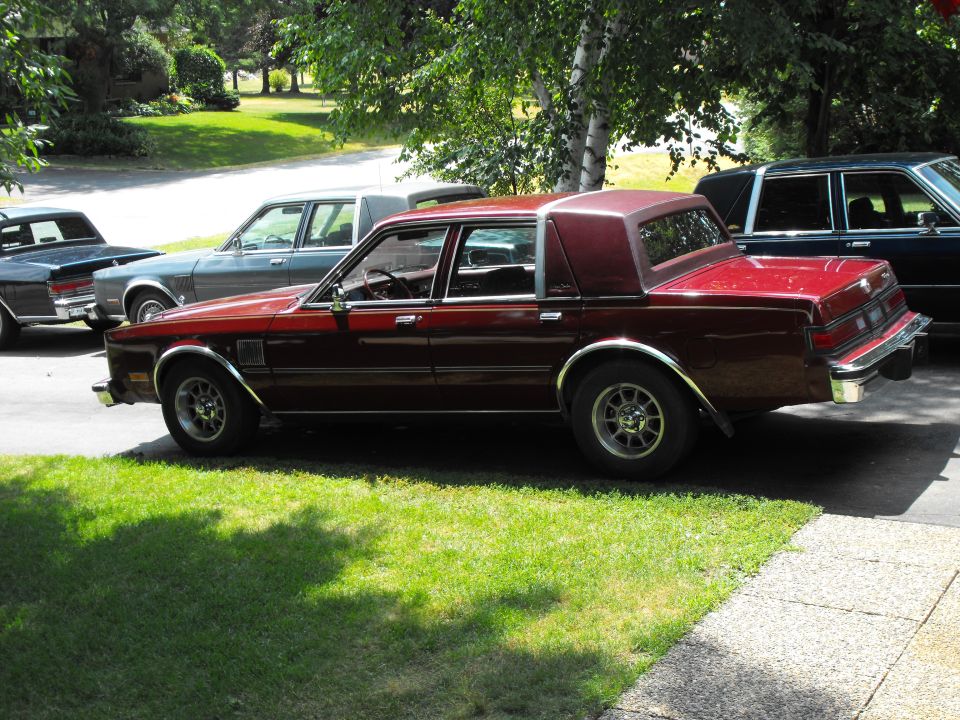

Sunny day 82 NewYorker in foreground
495 hits | 88.83 KB | Posted: 7/22/12
all four M-bodies in the driveway.Midnight blue 86 at bottom, Gray 85 in middle, custom blue 83 at top and 82' NewYorker red in foreground
1055 hits | 51.42 KB | Posted: 1/20/11
Exhaust valves were not that badly carboned up
1035 hits | 78.18 KB | Posted: 1/20/11
Low mileage but original 82 318 4bbl engine needs timing chain
1033 hits | 78.18 KB | Posted: 7/12/10
Original 1982 Chrysler New Yorker's 318 Thermoquad (4bbl) engine compartment. Loaded with Rust Stop 23, sprayed all over the place.
1023 hits | 68.46 KB | Posted: 1/20/11
Here it is about to tension the Sealed power double row timing chain with it's STEEL cam and crank gears. Note the early style oil slinger on the crank.
1004 hits | 86.22 KB | Posted: 1/20/11
Here's my valve lapping station using the desk lamp. You can see the initial course lap on the exhaust seat in the first chamber.
978 hits | 80.49 KB | Posted: 1/20/11
With the pin pulled it is officially on the job. The idle can be dialed down under 500 rpms and it is SO smooth people comment all the time that they've never seen an engine runs so smooth. Never a timing miss or hiccup ever again.
977 hits | 52.07 KB | Posted: 1/20/11
They cleaned up well with second or two on the wire brush
977 hits | 59.96 KB | Posted: 1/20/11
Intake valves were pretty coked up alright.
921 hits | 94.71 KB | Posted: 1/20/11
Just look at that slacker of a chain, with it's plastic cam gear still in reasonable shape. At least we know junior didn't horse it too badly.
