404 hits | 112.78 KB | Posted: 3/25/22
Not many used parts left in the bucket, but I have 6 new brackets (3rd run ALL SOLD NOW) that are painted and threaded M10-1.5. The 2nd pulley hole can be drilled & tapped for another size.
IF THE IMAGE IS TOO SMALL, click it.

587 hits | 47.05 KB | Posted: 6/4/14
Yes, she's gone - gone - gone... I finally found someone who appreciates the mechanical soundness of this truck, despite its cosmetic flaws. It just needed a few ounces of refrigerant.

559 hits | 93.6 KB | Posted: 4/10/14
Works & looks just like it should now.

595 hits | 111.14 KB | Posted: 4/10/14
These are all the tools I used:
- cordless impact (1/4" hex)
- long T25 bit
- short T25 bit
- offset ratcheting screwdriver
- 1/4" square socket adapter
- 1/4 socket extension ~2" long
- 1/4"-drive 7mm socket
- 1/4"-drive 4mm...

577 hits | 118.71 KB | Posted: 4/10/14
This is as much mess as I made. It was a very quick, easy, clean job.

The solar panel in the door pocket goes on the dash when I leave the truck parked for days or weeks.

577 hits | 108.08 KB | Posted: 4/10/14
I used the pick again to set the shifter boot back onto the column shroud as I put the lower shroud into place. I put some red threadlocker on the tube for the upper shroud's L screw so maybe it won't come apart next time.

That colorful wiring snak...

544 hits | 112.13 KB | Posted: 4/10/14
The new switch went right back in, and I reconnected it for testing before finishing the installation up here. It worked fine, so I put the rest of the dash back together. The pick was used to lift the steering wheel lip over the upper shroud lip.

578 hits | 125.99 KB | Posted: 4/10/14
With just a little finageling, the big connectors came out of the dash. This might be 20 minutes of work, but I took longer because I was learning, trying various tools, and taking pictures.

583 hits | 101.29 KB | Posted: 4/10/14
Up here, I pulled the cluster bezel off (releasing the cargo lamp switch plate, headlight switch connector, & other switches) to make room for the column shroud. Two T25 screws released the lower half (the pick released the tilt lever clip), and I u...

8431 hits | 89.51 KB | Posted: 9/21/12
Alternator Wiring for '97-99 6.5L GM truck engines
IF THE IMAGE IS TOO SMALL, click it.



As I suspected, the...

6520 hits | 48.45 KB | Posted: 4/5/12
Instruction sheet (packaged with Dorman 600-600)
IF THE IMAGE IS TOO SMALL, click it.

5889 hits | 39.05 KB | Posted: 10/31/10

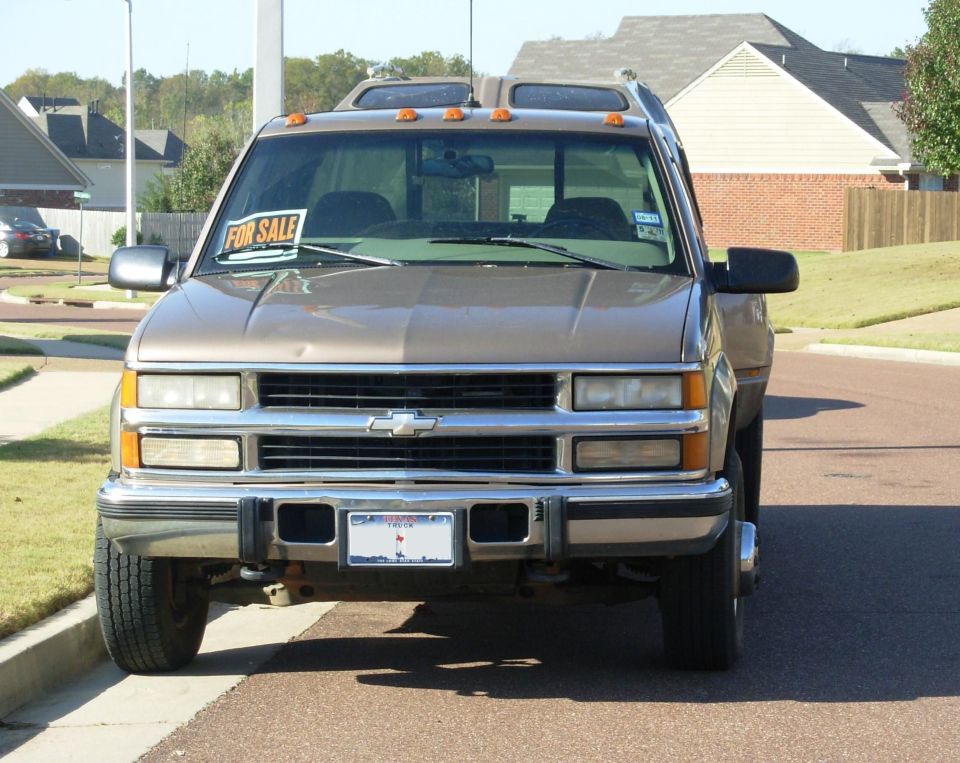

SOLD
1997 Chevy K3500 Silverado 205Kmi 4WD 1-ton dually

It doesn't smoke, shake, rattle, squeak, leak, pull, drift, or smell like diesel inside or out, running or stopped, even when accelerating hard. It doesn't stall, sputter, miss, or take more t...

5184 hits | 100.69 KB | Posted: 10/8/12
6.5L Turbo Diesel driver-side alternator kit
IF THE IMAGE IS TOO SMALL, click it.

Here's the "kit":
- 1 new bracket painted black, threaded M10x1.5 &/or M12x1.75 for the included idler bolt
- 2 used original long alternator bolts
- a used...

4078 hits | 40.75 KB | Posted: 10/31/10
SOLD
1997 Chevy K3500 Silverado 205Kmi 4WD 1-ton dually

E-mail me thru my profile here or search CraigsList Memphis.
NEVER WRECKED - NO MAJOR REPAIRS
Most service was done at the dealership.
- 6.5L TurboDiesel (no smoke/leaks/rattles/squeaks)
- 4L80...

3979 hits | 50.98 KB | Posted: 10/31/10
SOLD
1997 Chevy K3500 Silverado 205Kmi 4WD 1-ton dually

It doesn't smoke, shake, rattle, squeak, leak, pull, drift, or smell like diesel inside or out, running or stopped, even when accelerating hard. It doesn't stall, sputter, miss, or take more ...

3872 hits | 94.47 KB | Posted: 9/15/12
Before installing ANY alternator, clean all its mounting surfaces thoroughly, and apply ELECTRICAL grease (not dielectric, or thermal, or chassis). If the alternator case isn't fully grounded to the block (and then continuously to each battery's neg...

3508 hits | 99.42 KB | Posted: 9/13/12
This suggests that the alternators are wired in simple parallel, on all terminals, but I'm not sure about the way it shows the output cables BOTH going to the LEFT battery. The single (RIGHT) alternator is actually wired to a fusible link going to t...

3487 hits | 31.21 KB | Posted: 10/31/10
AutoCheck VIN: 1GCHK39FXVE209794
Model code: CK30953 (4WD Ext. Cab Fleetside Long Bed DRW)
RPO Codes

Collected from:
http://www.gmheritagecenter.com/gm-heritage-archive/do...
