 breather lines 001.jpg | Hits: 1278 | Size: 81.19 KB | Posted on: 12/21/03 | Link to this image
breather line coming off the rearend.
|
|
|
 breather lines 002.jpg | Hits: 1259 | Size: 83.59 KB | Posted on: 12/21/03 | Link to this image

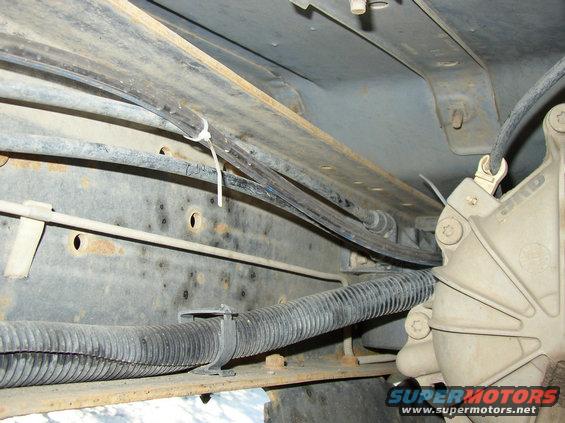

where the line parallels the wire loom/fuel line on the left frame rail.
|
|
|
 breather lines 005.jpg | Hits: 1237 | Size: 92.2 KB | Posted on: 12/21/03 | Link to this image
where the transfer case t's into the line that runs fron to rear.
|
|
|
 breather lines 006.jpg | Hits: 1127 | Size: 84.98 KB | Posted on: 12/21/03 | Link to this image

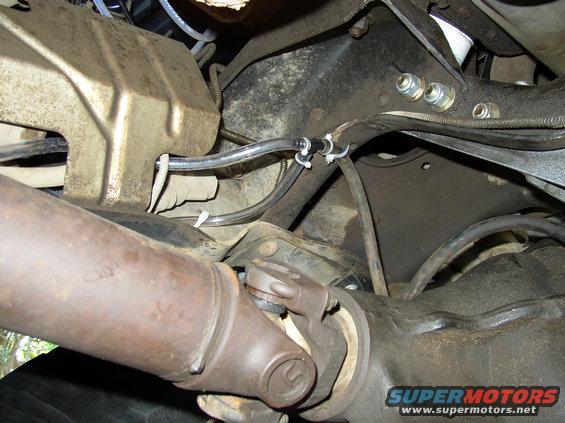

where the front diff and rear line T and mate with the one line that goes under the hood.
|
|
|
 breather lines 007.jpg | Hits: 1266 | Size: 104.63 KB | Posted on: 12/21/03 | Link to this image

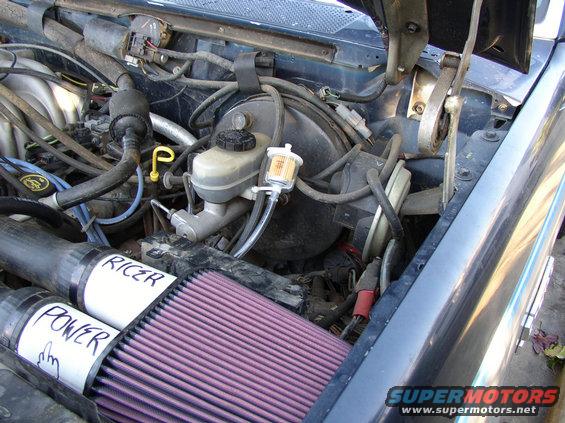

fram fuel filter
|
|
|
 breather lines 009.jpg | Hits: 1267 | Size: 101.79 KB | Posted on: 12/21/03 | Link to this image
snorkel
|
|
|

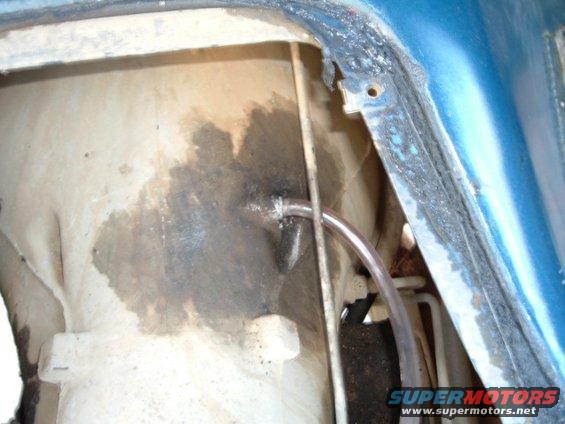

pulled the tranny access panel to get the tranny breather on
|
|
|
re-routed the breather lines so that the diffs are on 1 line and the tranny and t-case are on another.
|
|
|
still using 1 filter with a T in the line right before the filter now. the tranny/tcase (which both use ATF) are on one line, and the diffs (gear lube) are on the other. this is to prevent possible mixing of the fluids.
|
|
|

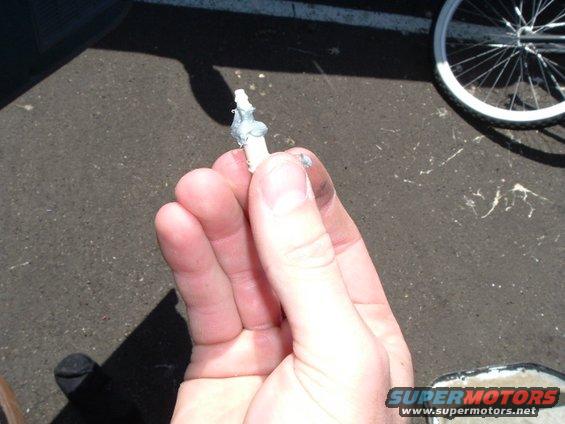

my previous method of a tranny breather had fallen off, so i needed to get a male adapter to fit inside the tranny's hole.
|
|
|
i used some random silicone i had laying around, but it didn't hold. i ended up using krazy glue, which believe it or not worked.
|
|
|
the angle of the hose was not allowing it to hold in, so i used a 90* bend to get it right.
|
|
|
its ghetto, but it survived the rubicon.
|
