124 hits | 87.18 KB | Posted: 1/6/21
clearance!

98 hits | 97.23 KB | Posted: 1/6/21

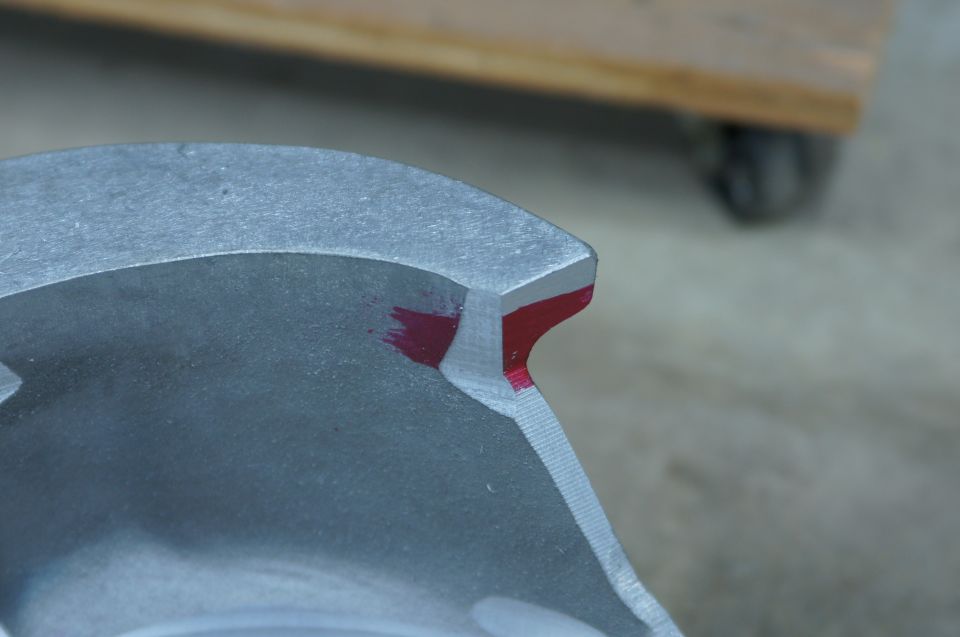

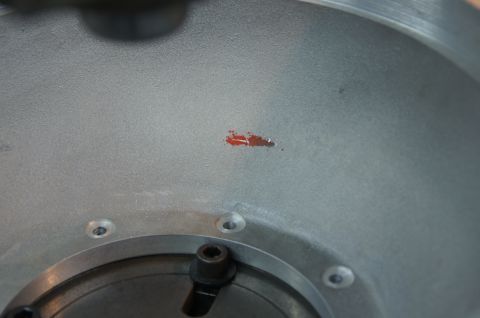

you can see where my machining (smooth) and their machining meet and the hole where it broke through. ...

101 hits | 91.59 KB | Posted: 1/6/21

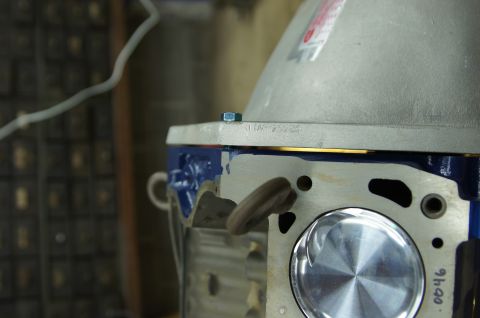

Even with only .125" clearance it broke thru the casting, nothing major but that im sure voids the SFI certification. Luckily i am not concerned as this is not a competition vehicle.

101 hits | 94.67 KB | Posted: 1/6/21

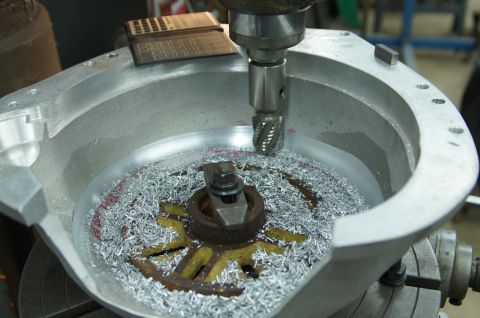

Remachined for .125" clearance. JW Performance had machined the clearance for the flexplate on a different center than the rest of the bellhousing, it had lots of clearance at the top but was rubbing on the bottom.

85 hits | 95.26 KB | Posted: 1/6/21
Another shot of clearance issues.

99 hits | 94.32 KB | Posted: 1/6/21
no clearance

91 hits | 94.97 KB | Posted: 1/6/21
who would have thought you would have to remachine a $500 bellhousing? JW ultra bell requires a 164 tooth flexplate but is not machined big enough to clear the ring gear of the flexplate. Picture s show the interference.

102 hits | 91.11 KB | Posted: 1/5/21
checking clearances with plumbers putty after sliding bellhousing on to smash putty. Plenty of clearance now!

103 hits | 109.68 KB | Posted: 1/5/21

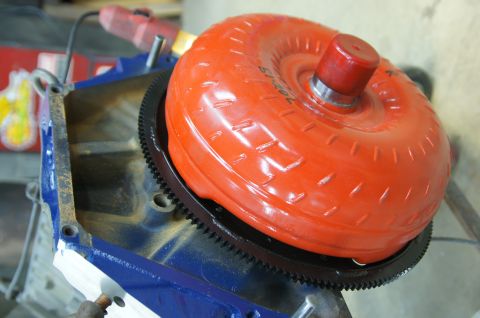

It now clears a 10 1/2" converter.

713 hits | 119.8 KB | Posted: 1/5/15

544 hits | 107.29 KB | Posted: 1/18/15

543 hits | 124.45 KB | Posted: 1/5/15

484 hits | 90.93 KB | Posted: 1/18/15

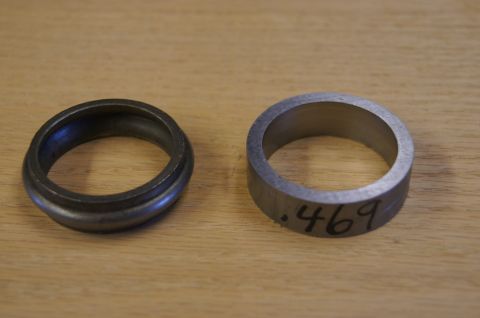

solid spacer instead of crush sleeve

472 hits | 106.22 KB | Posted: 1/18/15

468 hits | 114.73 KB | Posted: 1/18/15

441 hits | 99.92 KB | Posted: 1/18/15

427 hits | 102.67 KB | Posted: 2/1/15

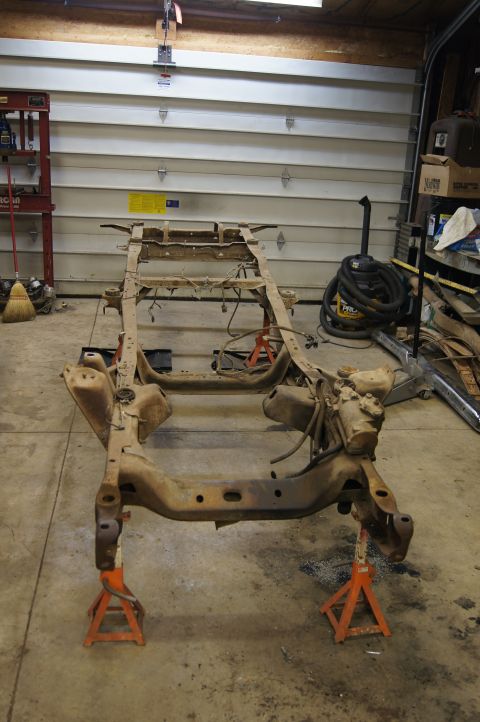

frame fresh out

414 hits | 109.46 KB | Posted: 7/19/15
Fuel pump installed with Relay that is fed by 12 guage wire. Megan was responsible for plumbing the pump and filter and did a fine job.
