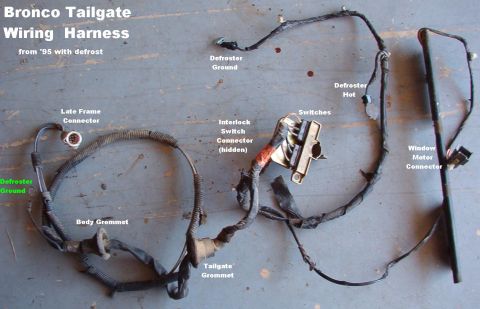

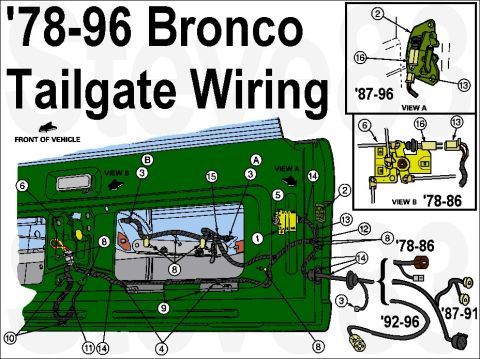

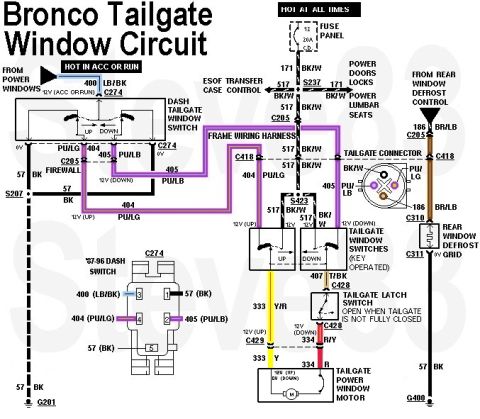

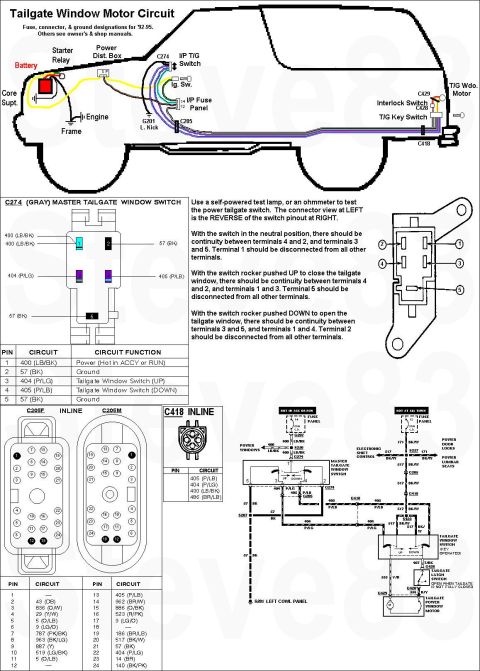

Tailgate Motor Wiring '92-95 (other years similar) IF THE IMAGE IS TOO SMALL, click it. The 2 Purple...
Hits: 28769
Size: 61.24 KB
Posted: 12/4/08
Tailgate Motor Wiring '92-95 (other years similar) IF THE IMAGE IS TOO SMALL, click it. The 2 Purple...		'87-91 Bronco Rear Window Switches
Hits: 508
Size: 43.78 KB
Posted: 3/13/21

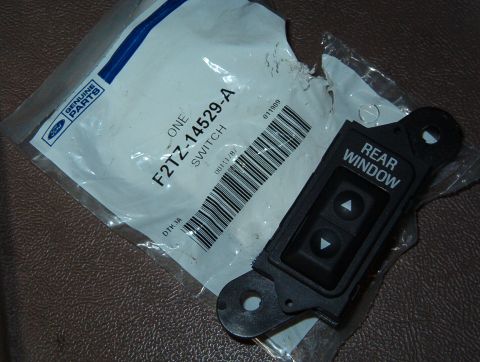

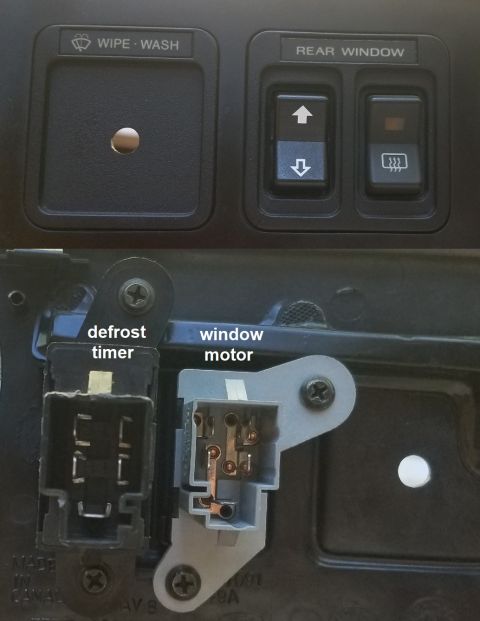

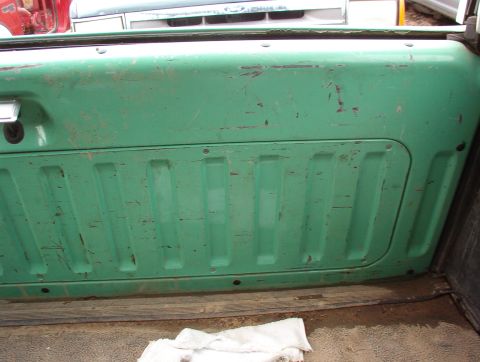

'87-91 Bronco Rear Window Switches		'94-96 Tailgate w/o Carpet Unused carpet holes plugged with pushpins, indicating all '94-96 tailg...
Hits: 7008
Size: 53.83 KB
Posted: 12/2/09
'94-96 Tailgate w/o Carpet Unused carpet holes plugged with pushpins, indicating all '94-96 tailg...		'94-96 Bronco Tailgate Carpet These t/g carpet pushpins have coarser fins than those for the camper...
Hits: 7157
Size: 49.66 KB
Posted: 10/17/10

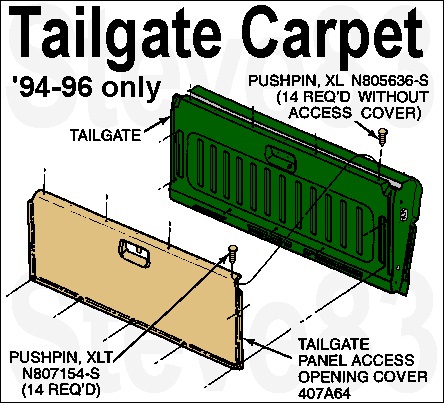

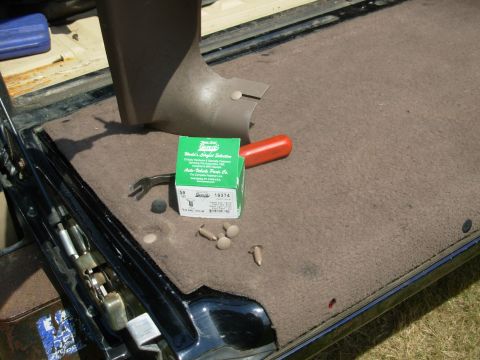

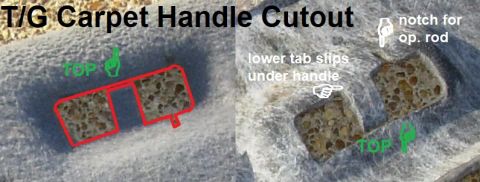

'94-96 Bronco Tailgate Carpet These t/g carpet pushpins have coarser fins than those for the camper...		SOLD Mocha Tailgate Carpet Pushpins included
Hits: 3245
Size: 104.15 KB
Posted: 3/23/11

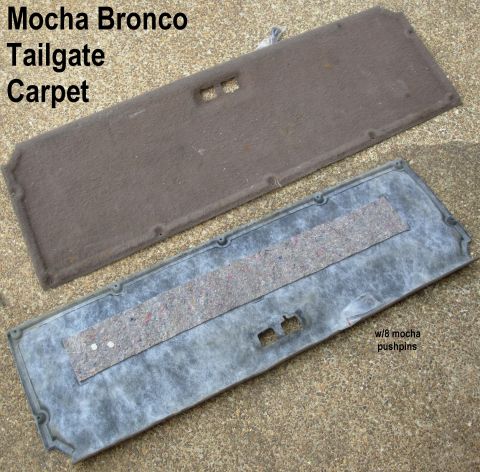

SOLD Mocha Tailgate Carpet Pushpins included

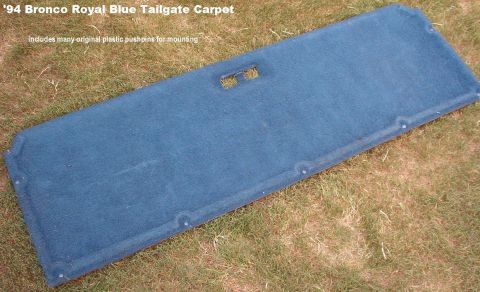

SOLD Bronco Tailgate Carpet '94 Royal Blue fits '78-96 tailgates. Some mounting pushpins include...
Hits: 5733
Size: 64.97 KB
Posted: 7/24/07
SOLD Bronco Tailgate Carpet '94 Royal Blue fits '78-96 tailgates. Some mounting pushpins include...		SOLD Tailgate Carpet NEEDS CLEANING Ships as 5 lbs 62x21x3". I could roll it to try to reduce th...
Hits: 6346
Size: 58.94 KB
Posted: 4/7/06

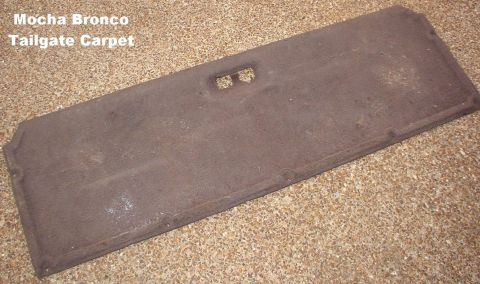

SOLD Tailgate Carpet NEEDS CLEANING Ships as 5 lbs 62x21x3". I could roll it to try to reduce th...		When the glass (F2TZ9842006A) can be moved by hand, it usually means the motor's drive bushings have...
Hits: 4983
Size: 74.58 KB
Posted: 8/14/11

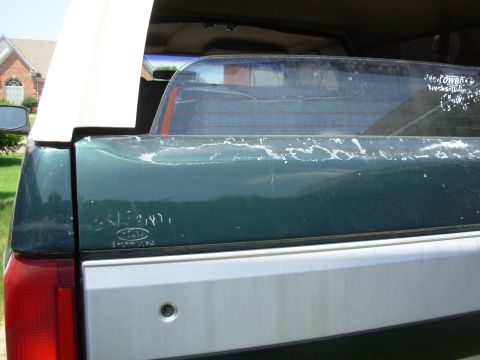

When the glass (F2TZ9842006A) can be moved by hand, it usually means the motor's drive bushings have...		If the motor spins but won't move the glass (F2TZ9842006A), just push it down all the way, and you c...
Hits: 12863
Size: 87.28 KB
Posted: 11/28/04

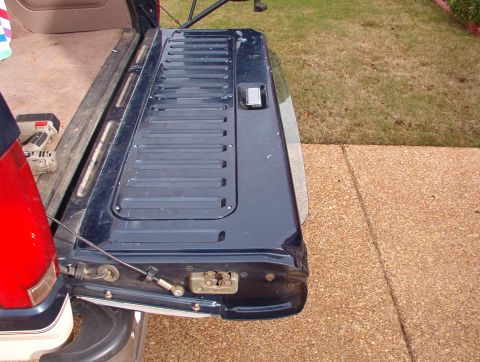

If the motor spins but won't move the glass (F2TZ9842006A), just push it down all the way, and you c...		If you only need to change the weatherbelts, or if the glass (F2TZ9842006A) needs to come out, remov...
Hits: 13374
Size: 116.55 KB
Posted: 7/7/03

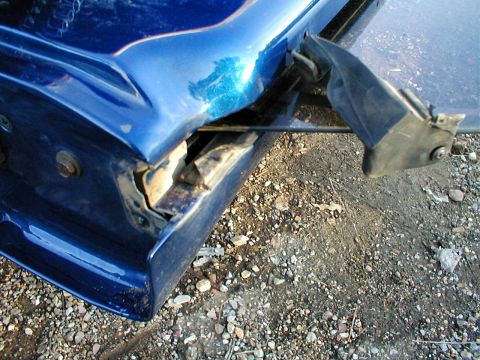

If you only need to change the weatherbelts, or if the glass (F2TZ9842006A) needs to come out, remov...

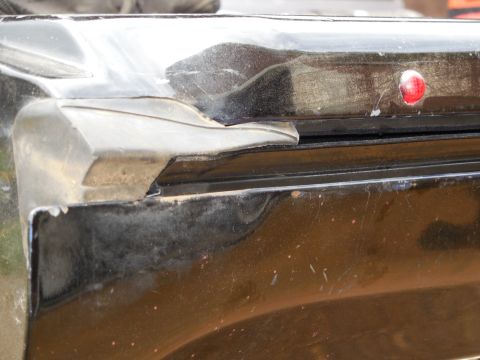

These aftermarket belts fit perfectly, and my original end seals are still in useable condition. Th...
Hits: 2816
Size: 106.35 KB
Posted: 6/29/14
These aftermarket belts fit perfectly, and my original end seals are still in useable condition. Th...		AFTER removing the screw at each end, use a screwdriver to gently pry the OUTER weatherbelt up just ...
Hits: 12770
Size: 96.51 KB
Posted: 7/7/03

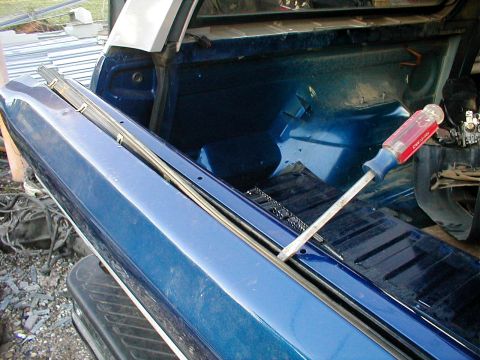

AFTER removing the screw at each end, use a screwdriver to gently pry the OUTER weatherbelt up just ...		SOLD Tailgate Outer Weatherbelts (D8TZ9841610A) These are the belts that wipe the outside of the re...
Hits: 5946
Size: 44.77 KB
Posted: 9/24/07

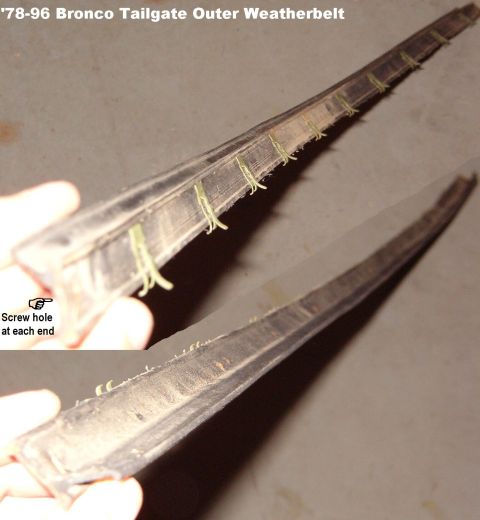

SOLD Tailgate Outer Weatherbelts (D8TZ9841610A) These are the belts that wipe the outside of the re...		These aftermarket weatherbelts are shipped as a pair (as they should be) and are virtually identical...
Hits: 2700
Size: 129.42 KB
Posted: 6/29/14

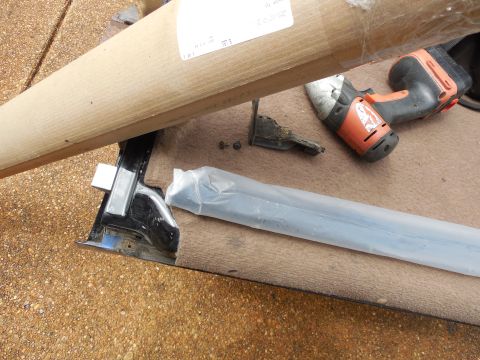

These aftermarket weatherbelts are shipped as a pair (as they should be) and are virtually identical...		I apply dry (Teflon) lube to the flocked surfaces that touch the glass, and silicone spray to the ot...
Hits: 2775
Size: 128.14 KB
Posted: 6/29/14

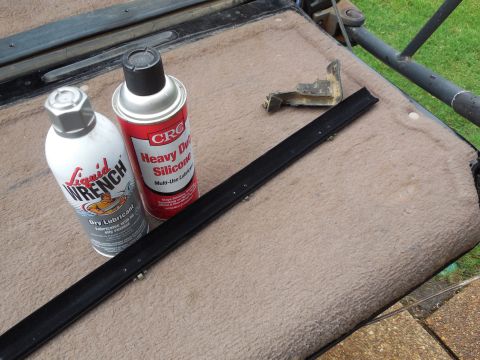

I apply dry (Teflon) lube to the flocked surfaces that touch the glass, and silicone spray to the ot...

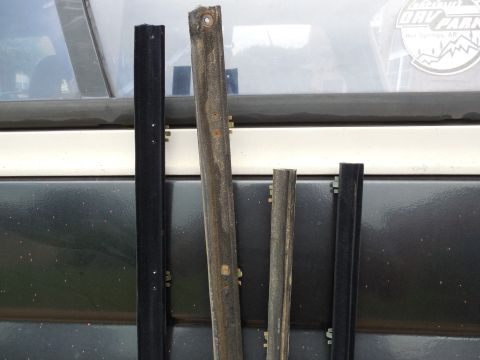

Perfect matches. The outer belt (D8TZ9841610A, E8TZ9841610A, F20207) is longer than the inner (F6TZ...
Hits: 2832
Size: 98 KB
Posted: 6/29/14
Perfect matches. The outer belt (D8TZ9841610A, E8TZ9841610A, F20207) is longer than the inner (F6TZ...		This outer weatherbelt has begun to dry rot, and is already leaking water into the unpainted interio...
Hits: 10002
Size: 31.64 KB
Posted: 11/28/04

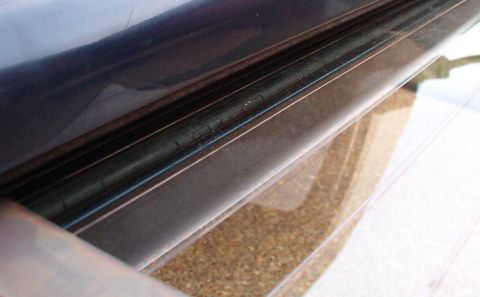

This outer weatherbelt has begun to dry rot, and is already leaking water into the unpainted interio...		The wetness on the moisture barrier shows that the weatherbelts are dry-rotted & should be replaced ...
Hits: 10636
Size: 81.05 KB
Posted: 11/28/04

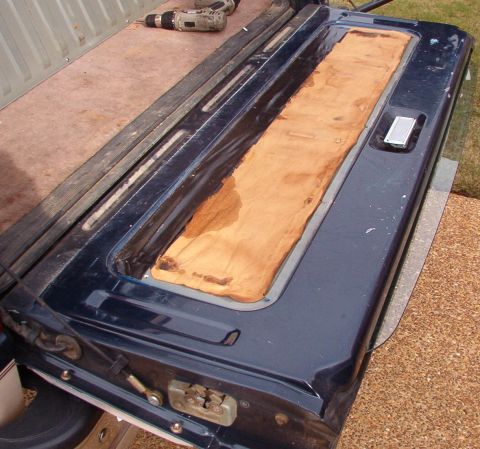

The wetness on the moisture barrier shows that the weatherbelts are dry-rotted & should be replaced ...		One of several signs that the t/g weatherbelts are ruined is rain coming out of the access panel and...
Hits: 2912
Size: 125.87 KB
Posted: 6/29/14

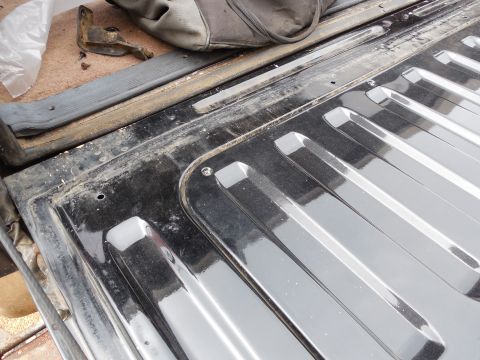

One of several signs that the t/g weatherbelts are ruined is rain coming out of the access panel and...		The factory drip shield is just painted paper with duct tape along the bottom (which has never made ...
Hits: 2907
Size: 127.53 KB
Posted: 6/29/14

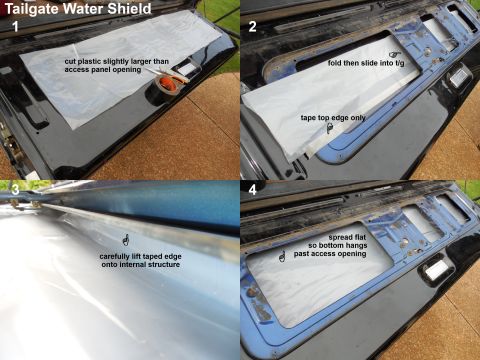

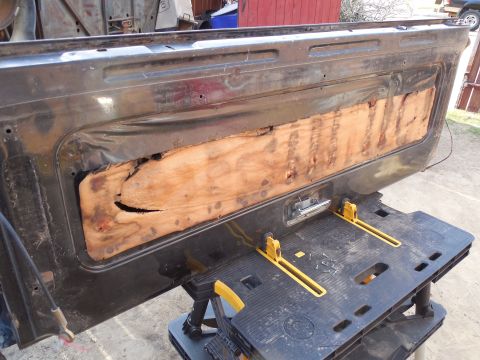

The factory drip shield is just painted paper with duct tape along the bottom (which has never made ...

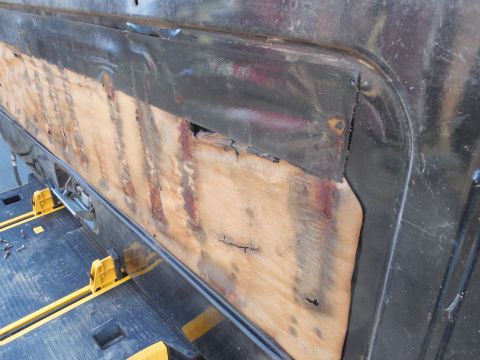

This is a factory water shedder. It's taped along the bottom (the t/g is upside-down), and has a ta...
Hits: 2699
Size: 120.86 KB
Posted: 6/29/14
This is a factory water shedder. It's taped along the bottom (the t/g is upside-down), and has a ta...		The inner face of the water shedder is painted black so it doesn't absorb water QUITE as fast as if ...
Hits: 2785
Size: 118.75 KB
Posted: 6/29/14

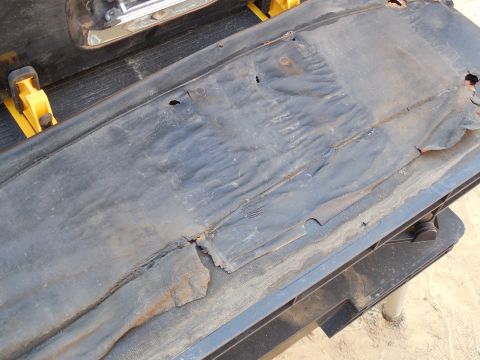

The inner face of the water shedder is painted black so it doesn't absorb water QUITE as fast as if ...		This can be done with the tailgate open or closed. After removing the inside access panel, remove t...
Hits: 12689
Size: 118.84 KB
Posted: 7/7/03

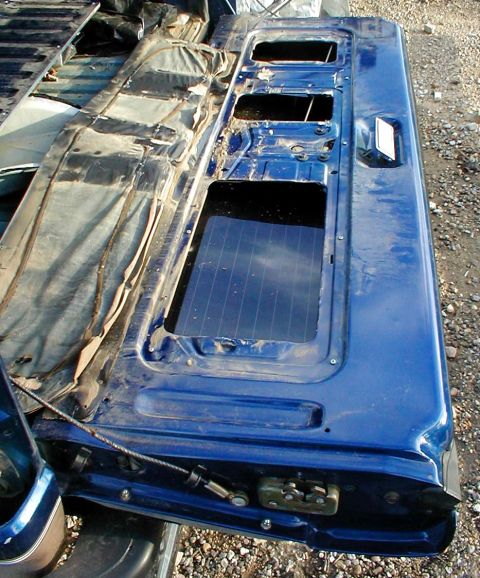

This can be done with the tailgate open or closed. After removing the inside access panel, remove t...		This scrap of common plastic drop sheet should last much longer than the factory paper water shedder...
Hits: 3075
Size: 118.99 KB
Posted: 6/29/14
This scrap of common plastic drop sheet should last much longer than the factory paper water shedder...		Being very careful not to wrinkle the plastic, I applied a few strips of Gorilla tape along the top ...
Hits: 3034
Size: 116.83 KB
Posted: 6/29/14
Being very careful not to wrinkle the plastic, I applied a few strips of Gorilla tape along the top ...
This was the REALLY tricky part: lifting the tape and sticking it to the t/g inner reinforcement bar...
Hits: 2806
Size: 96.4 KB
Posted: 6/29/14
This was the REALLY tricky part: lifting the tape and sticking it to the t/g inner reinforcement bar...		After the tape is secure along the top, the plastic sheet is unfolded and tucked so it SHOULD stay b...
Hits: 2862
Size: 121.48 KB
Posted: 6/29/14
After the tape is secure along the top, the plastic sheet is unfolded and tucked so it SHOULD stay b...		If the motor runs but doesn't move the glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A), pus...
Hits: 12007
Size: 72.74 KB
Posted: 11/28/04

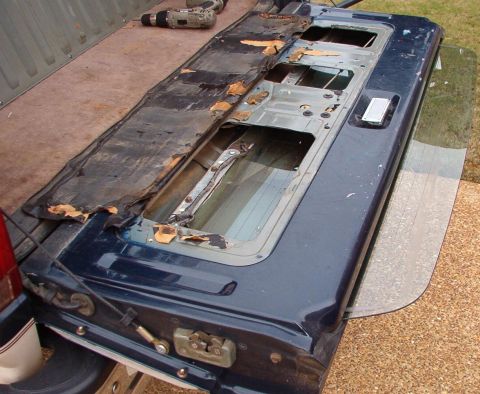

If the motor runs but doesn't move the glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A), pus...		The L latch must be fully closed to defeat the safety interlock switch so the motor will run, so if ...
Hits: 14596
Size: 106.83 KB
Posted: 7/14/03

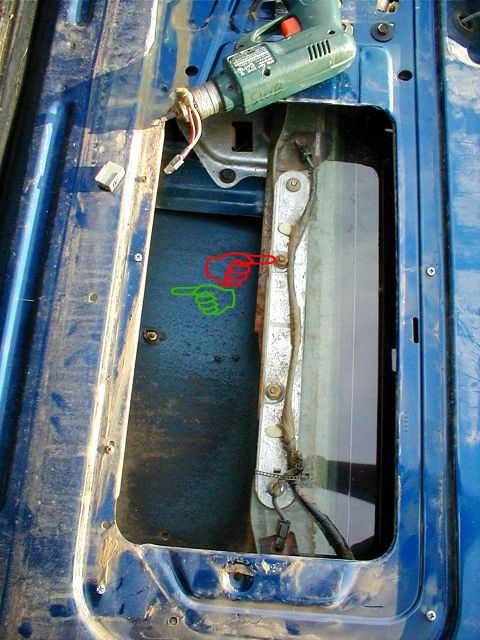

The L latch must be fully closed to defeat the safety interlock switch so the motor will run, so if ...		This is the optimum location for the glass since you have access to all the fasteners to remove the ...
Hits: 12115
Size: 44.04 KB
Posted: 11/28/04

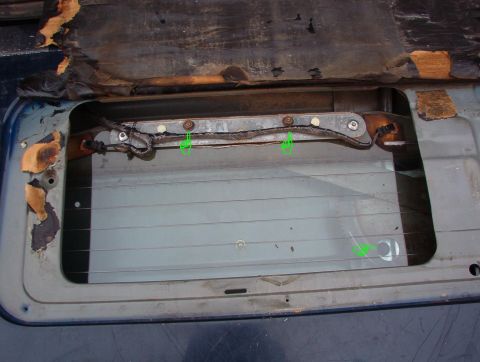

This is the optimum location for the glass since you have access to all the fasteners to remove the ...

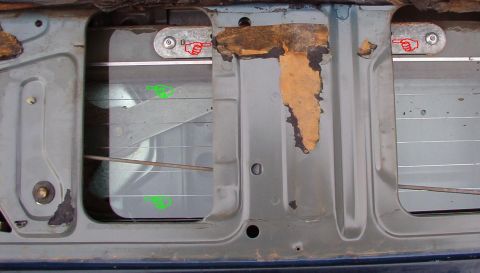

The nuts for the glass track (red pointers) are under this fixed support, but the bolts for the regu...
Hits: 9641
Size: 35.22 KB
Posted: 11/28/04
The nuts for the glass track (red pointers) are under this fixed support, but the bolts for the regu...		The R nuts are covered by the structure, so a ratcheting boxend is the easiest tool to get at them. ...
Hits: 5344
Size: 84.33 KB
Posted: 8/14/11

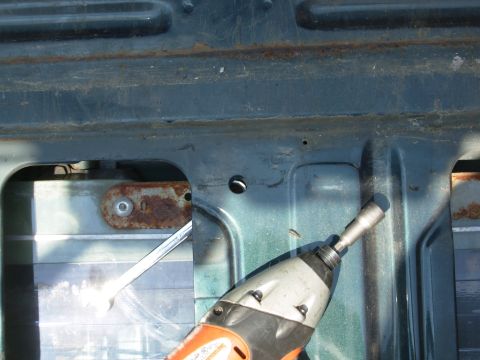

The R nuts are covered by the structure, so a ratcheting boxend is the easiest tool to get at them. ...		SOLD '80-96 Bronco Tailgate Glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A) Defrost grid i...
Hits: 6459
Size: 61.03 KB
Posted: 7/24/07

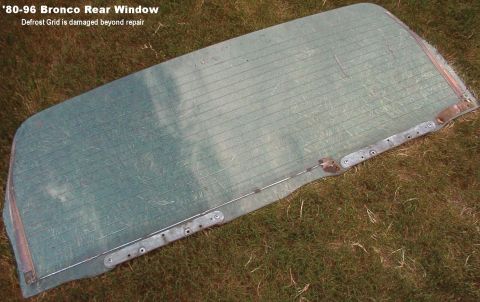

SOLD '80-96 Bronco Tailgate Glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A) Defrost grid i...		Probably the most-common damage to a Bronco t/g: backing into a stationary object. Trees just don't...
Hits: 1999
Size: 78.79 KB
Posted: 6/10/15

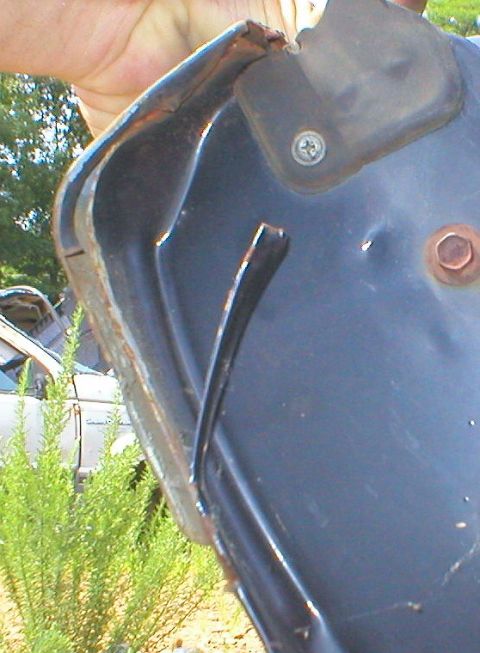

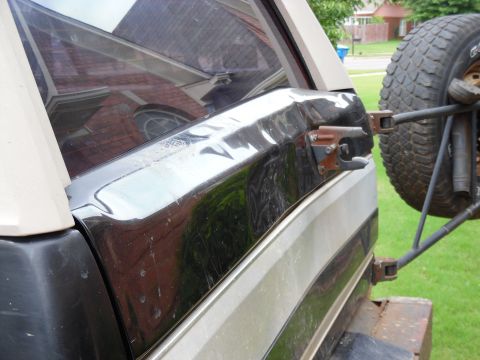

Probably the most-common damage to a Bronco t/g: backing into a stationary object. Trees just don't...		Most people are paranoid about breaking the glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A)...
Hits: 5382
Size: 112.13 KB
Posted: 8/14/11

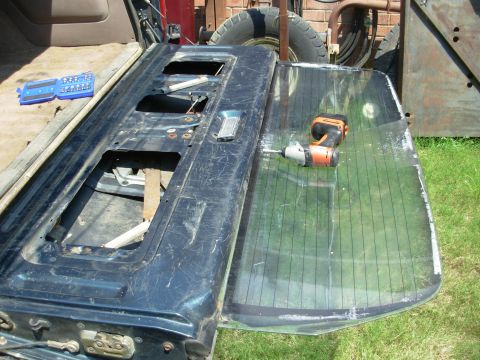

Most people are paranoid about breaking the glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A)...

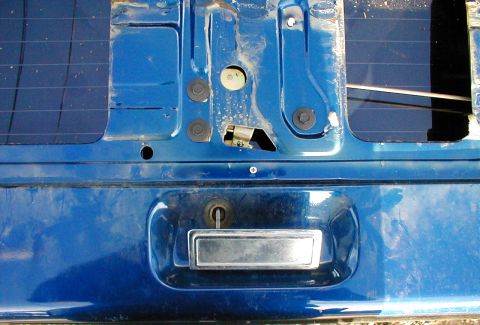

The 3 black bolts hold the center latch mechanism (remote control) and are used to align it so the h...
Hits: 10593
Size: 82.01 KB
Posted: 7/7/03
The 3 black bolts hold the center latch mechanism (remote control) and are used to align it so the h...		If the glass is clear of the shell, but you can't open the t/g, remove the inside access panel & pul...
Hits: 14734
Size: 44.59 KB
Posted: 11/28/04

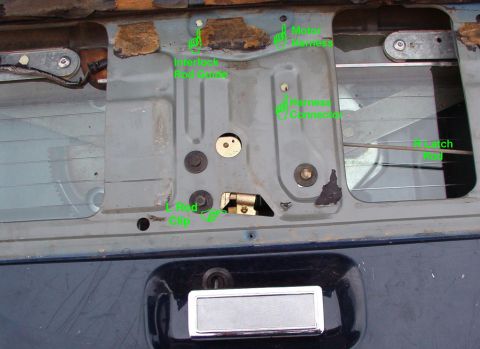

If the glass is clear of the shell, but you can't open the t/g, remove the inside access panel & pul...		Mark the bolt locations for reference, even if you plan to move the center mechanism later.
Hits: 9429
Size: 46.65 KB
Posted: 11/28/04

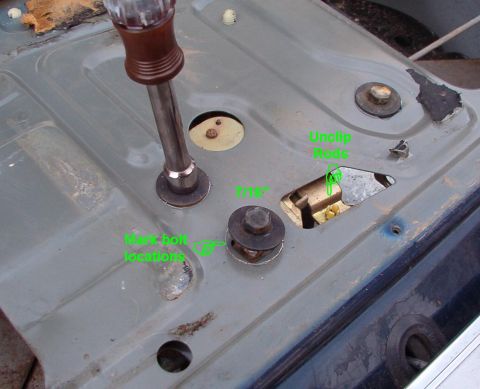

Mark the bolt locations for reference, even if you plan to move the center mechanism later.		View from the driver's side [url=http://www.supermotors.net/vehicles/registry/media/546453][img]htt...
Hits: 10431
Size: 29.95 KB
Posted: 11/28/04

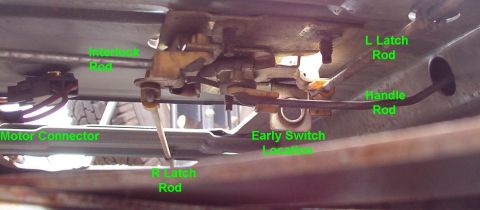

View from the driver's side [url=http://www.supermotors.net/vehicles/registry/media/546453][img]htt...		View from the passenger side [url=http://www.supermotors.net/vehicles/registry/media/546453][img]ht...
Hits: 9764
Size: 55.57 KB
Posted: 11/28/04

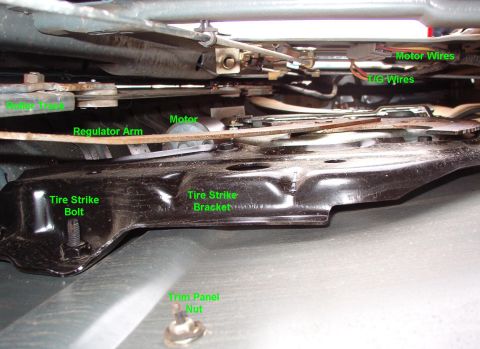

View from the passenger side [url=http://www.supermotors.net/vehicles/registry/media/546453][img]ht...

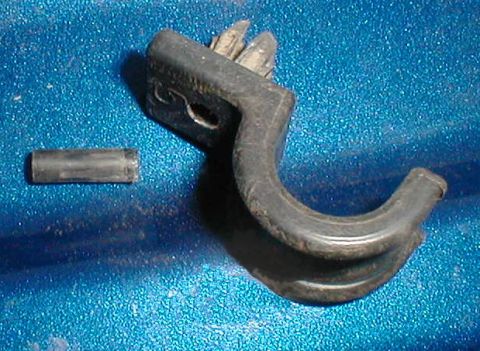

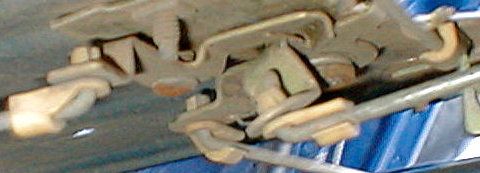

To release the rods, push the hook end of the plastic clip off the rod so the plastic pivots in the ...
Hits: 9477
Size: 27.44 KB
Posted: 11/28/04
To release the rods, push the hook end of the plastic clip off the rod so the plastic pivots in the ...		Center mechanism front & back. Ford calls it the "remote control". The rubber grommet fo...
Hits: 9481
Size: 51.45 KB
Posted: 5/17/07

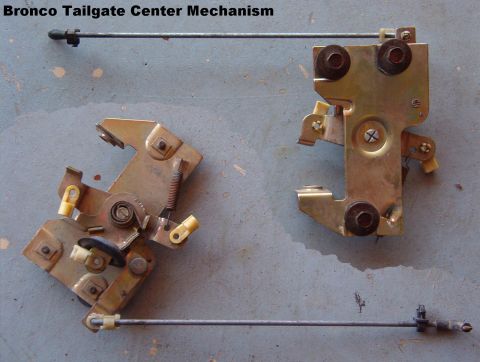

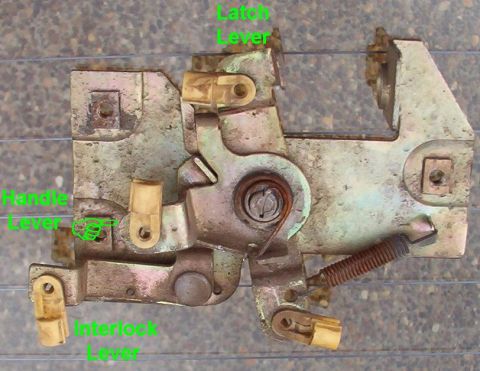

Center mechanism front & back. Ford calls it the "remote control". The rubber grommet fo...		The center mechanism (remote control)
Hits: 9538
Size: 54.24 KB
Posted: 11/28/04

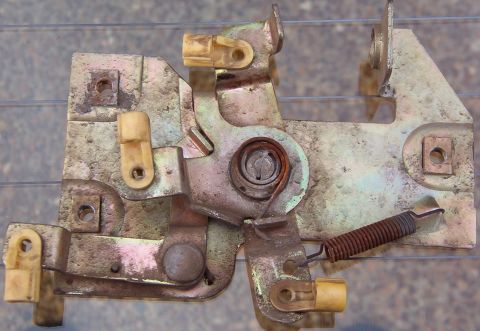

The center mechanism (remote control)		The white plastic rod clips indicate the direction of each rod. Top of tailgate is top of photo. L...
Hits: 8774
Size: 64.91 KB
Posted: 11/28/04
The white plastic rod clips indicate the direction of each rod. Top of tailgate is top of photo. L...		The numbers show the sequence of events for PROPER operation of the inside latch handle. 5 & 6 shou...
Hits: 9378
Size: 60.26 KB
Posted: 11/28/04

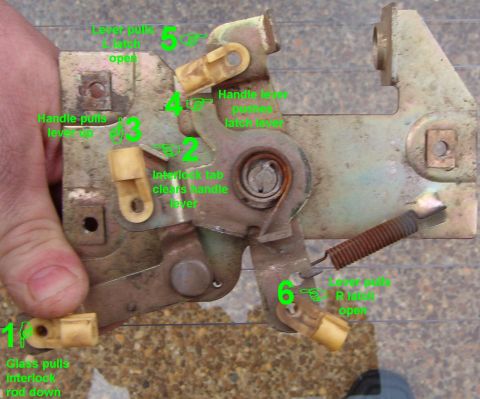

The numbers show the sequence of events for PROPER operation of the inside latch handle. 5 & 6 shou...

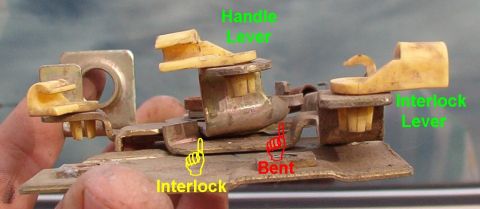

This is why the inside handle doesn't sit flat. If someone pulls the handle before the glass is ful...
Hits: 9399
Size: 29.6 KB
Posted: 11/28/04
This is why the inside handle doesn't sit flat. If someone pulls the handle before the glass is ful...		I've never found a used tailgate whose remote was NOT bent, but this is among the worst. [url=https...
Hits: 3049
Size: 118.03 KB
Posted: 4/21/14

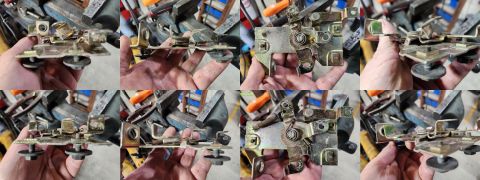

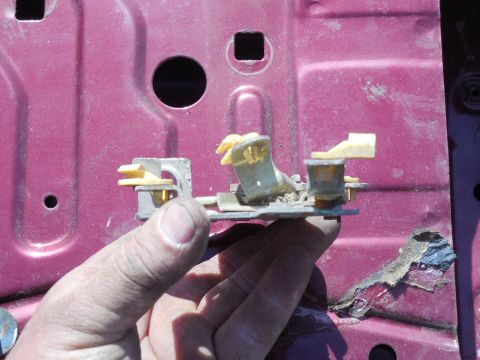

I've never found a used tailgate whose remote was NOT bent, but this is among the worst. [url=https...		Fortunately, with the mechanism out, it's easy to straighten the bent lever. Spray it with WD-40 or...
Hits: 8507
Size: 25.77 KB
Posted: 11/28/04

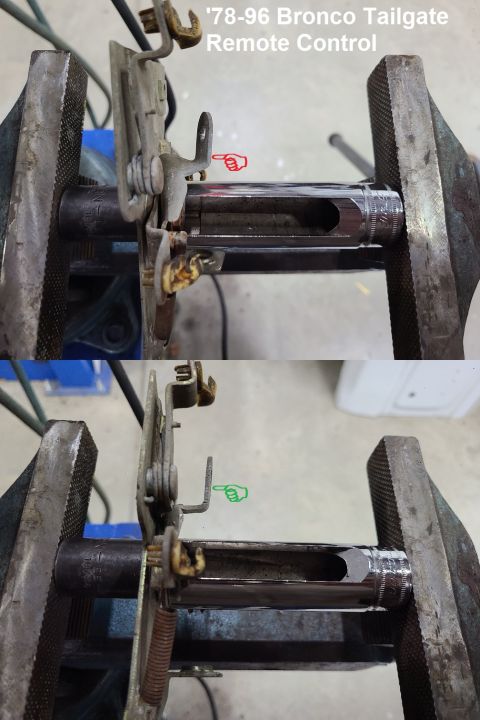

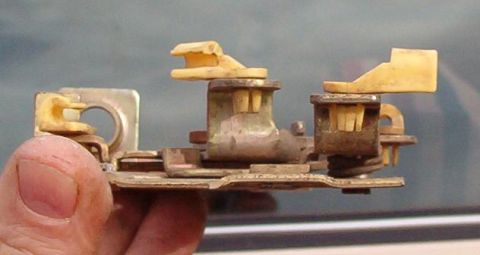

Fortunately, with the mechanism out, it's easy to straighten the bent lever. Spray it with WD-40 or...		SOLD Tailgate Center Latch Mechanism from '95 Fits '78-96; includes all original fasteners, glas...
Hits: 6325
Size: 51.45 KB
Posted: 5/23/07
SOLD Tailgate Center Latch Mechanism from '95 Fits '78-96; includes all original fasteners, glas...		To access the motor connector, push out these 2 retainers and pull the connector where you can see i...
Hits: 8889
Size: 55.31 KB
Posted: 11/28/04

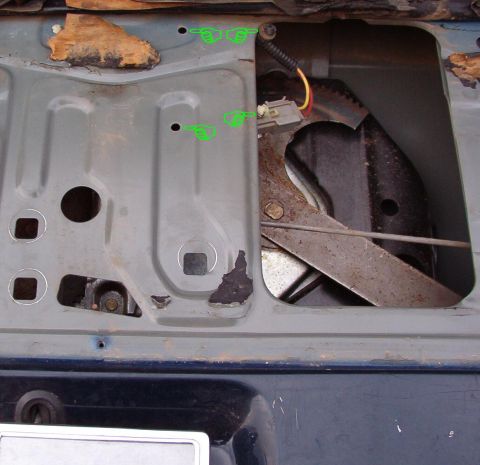

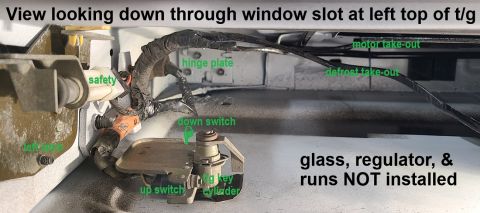

To access the motor connector, push out these 2 retainers and pull the connector where you can see i...

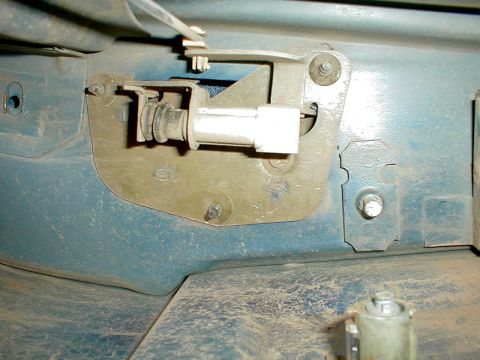

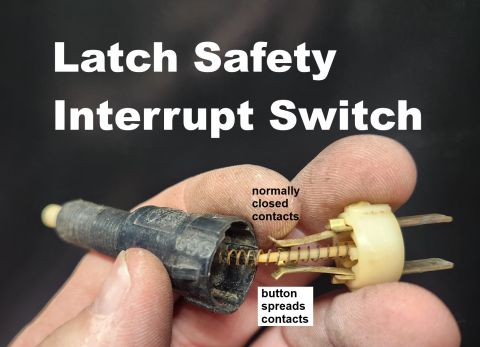

This is the safety interlock switch [url=http://www.amazon.com/dp/B0011DY1S2/]Motorcraft SW5163[/url...
Hits: 11325
Size: 68.04 KB
Posted: 11/28/04
This is the safety interlock switch [url=http://www.amazon.com/dp/B0011DY1S2/]Motorcraft SW5163[/url...		The rod running to the Left (down) is the interlock rod that detects the glass being fully down. It...
Hits: 13238
Size: 82.57 KB
Posted: 7/7/03

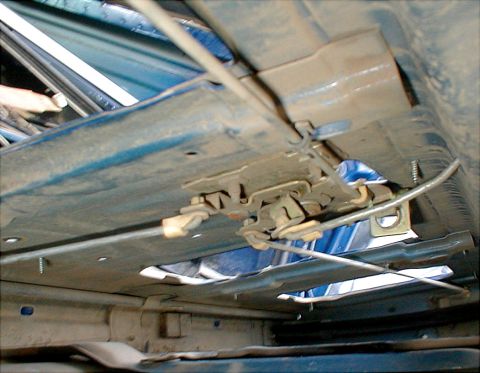

The rod running to the Left (down) is the interlock rod that detects the glass being fully down. It...		This shows the interlock switch [url=http://www.amazon.com/dp/B0011DY1S2/]Motorcraft SW5163[/url] (p...
Hits: 9925
Size: 73.53 KB
Posted: 11/28/04

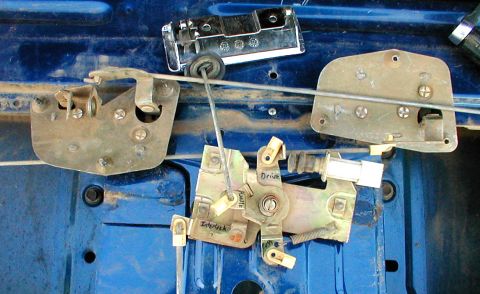

This shows the interlock switch [url=http://www.amazon.com/dp/B0011DY1S2/]Motorcraft SW5163[/url] (p...		Tailgate (or Door) Latch Cleaning IF THE IMAGE IS TOO SMALL, click it. Latches that have not bee...
Hits: 221
Size: 43.55 KB
Posted: 3/26/24

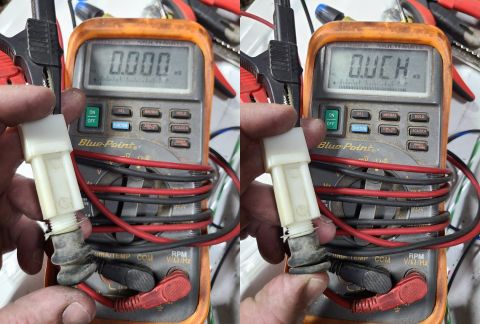

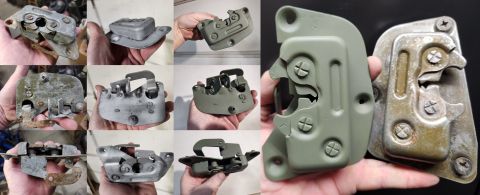

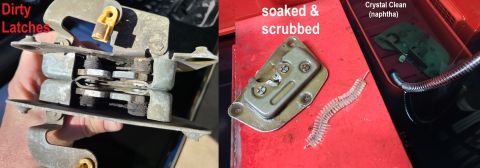

Tailgate (or Door) Latch Cleaning IF THE IMAGE IS TOO SMALL, click it. Latches that have not bee...		To operate the motor with the tailgate open, simply close the driver's latch. Be SURE to open it be...
Hits: 10377
Size: 35.98 KB
Posted: 11/28/04

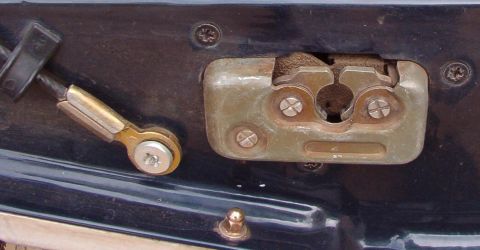

To operate the motor with the tailgate open, simply close the driver's latch. Be SURE to open it be...

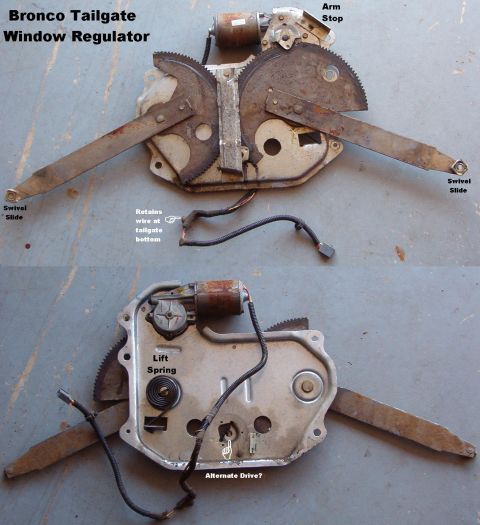

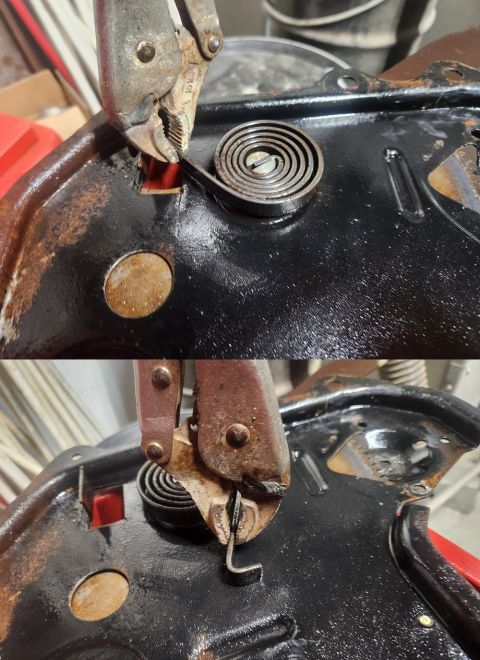

'78-96 Bronco Tailgate Window Regulator front & back (early regulator arms may have round swivels in...
Hits: 9504
Size: 60.58 KB
Posted: 5/17/07
'78-96 Bronco Tailgate Window Regulator front & back (early regulator arms may have round swivels in...		These motor screws aren't very tight in the threads, so I'm threadlocking them in. Since this motor...
Hits: 4518
Size: 101.06 KB
Posted: 8/14/11

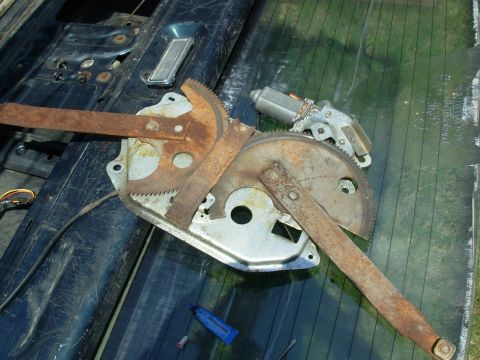

These motor screws aren't very tight in the threads, so I'm threadlocking them in. Since this motor...		To access the motor, remove these 3 bolts (5/16" or 8mm 6-point head w/integral washer; 12-24x5...
Hits: 8746
Size: 41.51 KB
Posted: 11/29/04

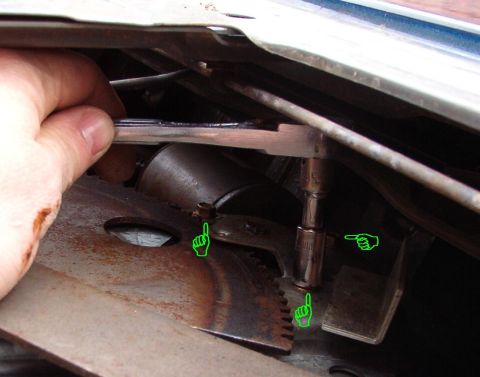

To access the motor, remove these 3 bolts (5/16" or 8mm 6-point head w/integral washer; 12-24x5...		To get enough slack in the wire to pull the motor out & work on it, remove the clip from the bottom ...
Hits: 8107
Size: 36.81 KB
Posted: 11/29/04

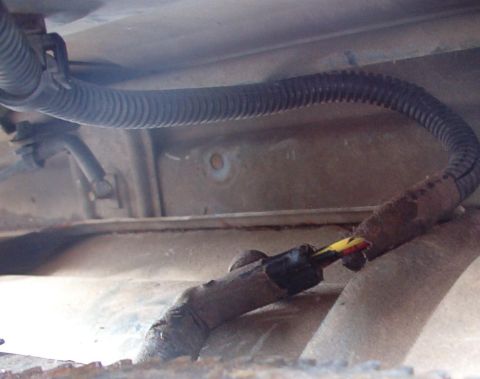

To get enough slack in the wire to pull the motor out & work on it, remove the clip from the bottom ...		If the window doesn't move while the motor is turning, it's likely that the bushings inside the moto...
Hits: 9277
Size: 54.99 KB
Posted: 11/29/04

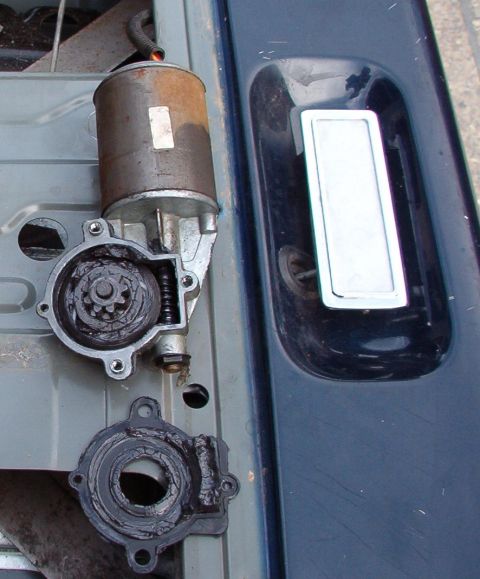

If the window doesn't move while the motor is turning, it's likely that the bushings inside the moto...

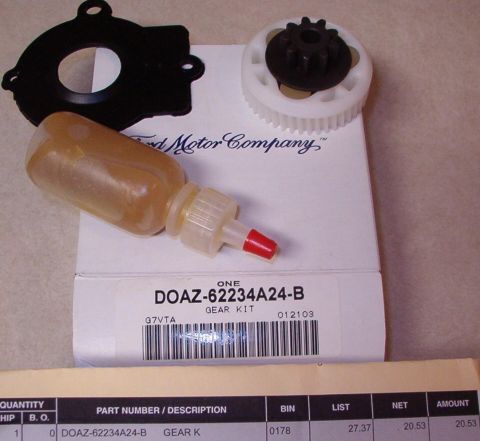

This is the repair kit (DOAZ-62234A24-B $27.37 List; $20.53 in 2004), but you can also use 1/4"...
Hits: 10190
Size: 48.91 KB
Posted: 11/29/04
This is the repair kit (DOAZ-62234A24-B $27.37 List; $20.53 in 2004), but you can also use 1/4"...		The pointers show what's left of the rubber insulators, which probably degraded faster due to the ex...
Hits: 10967
Size: 69.52 KB
Posted: 11/29/04

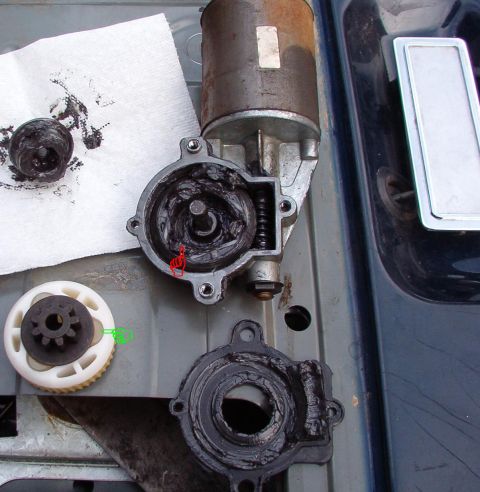

The pointers show what's left of the rubber insulators, which probably degraded faster due to the ex...		There are several stock motors that will fit & work, and this might be the fastest one I've found. ...
Hits: 4383
Size: 88.47 KB
Posted: 8/14/11

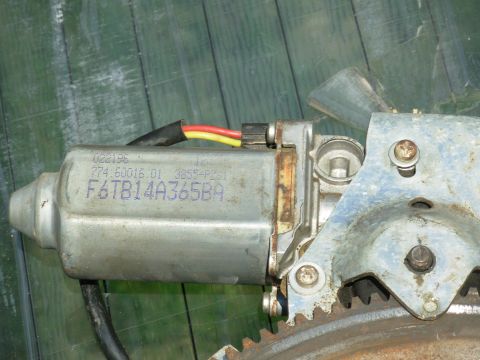

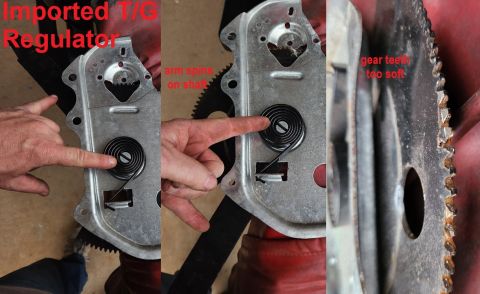

There are several stock motors that will fit & work, and this might be the fastest one I've found. ...		The motor drive's shaft aligns thru the hole in the top of the regulator. If the large gear is poppi...
Hits: 8618
Size: 58.74 KB
Posted: 11/29/04

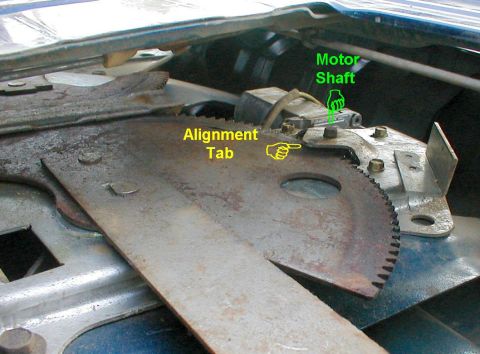

The motor drive's shaft aligns thru the hole in the top of the regulator. If the large gear is poppi...		Before removing the regluator, remove the tire carrier's strike brace (if equipped). [url=http://ww...
Hits: 8033
Size: 71.44 KB
Posted: 11/29/04

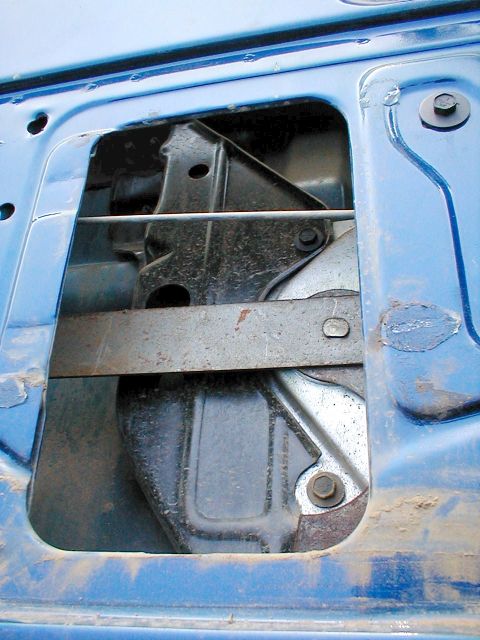

Before removing the regluator, remove the tire carrier's strike brace (if equipped). [url=http://ww...

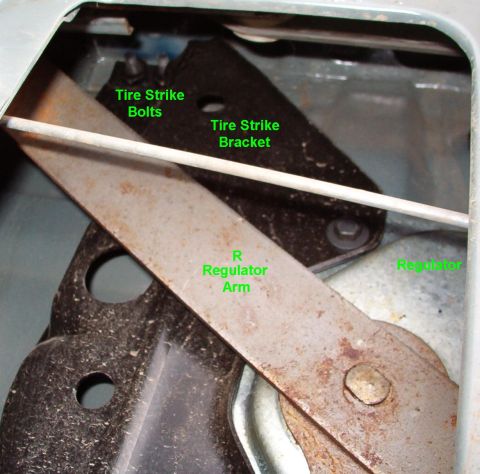

Later Broncos (~'90-96) have 3 bolts holding the strike to the bracket. Before that, there were onl...
Hits: 7939
Size: 67.45 KB
Posted: 11/29/04
Later Broncos (~'90-96) have 3 bolts holding the strike to the bracket. Before that, there were onl...		'83-96 Bronco Tailgate in cross-sectional views '78-82 is only different in the latches & interl...
Hits: 9124
Size: 30.26 KB
Posted: 7/29/07

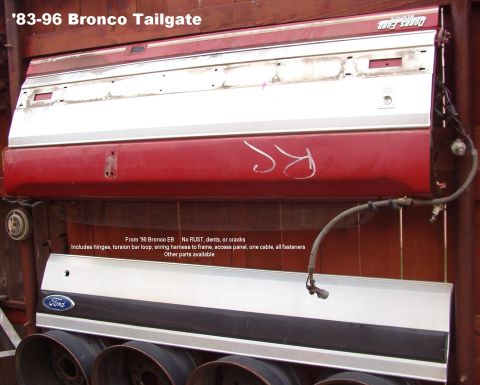

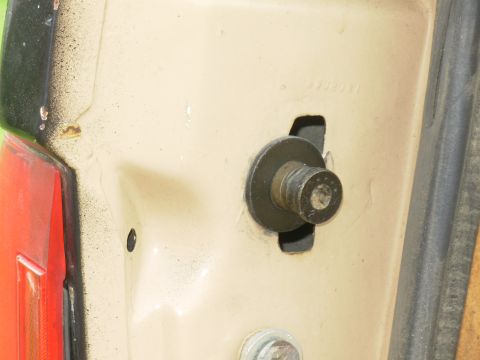

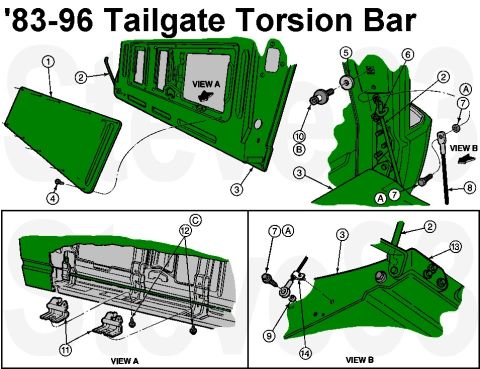

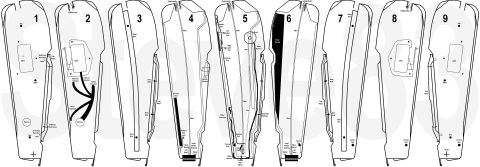

'83-96 Bronco Tailgate in cross-sectional views '78-82 is only different in the latches & interl...		Bronco Tailgate Emergency Access Templates These allow 4 holes to be drilled in the tailgate inner ...
Hits: 5937
Size: 59.72 KB
Posted: 10/13/10

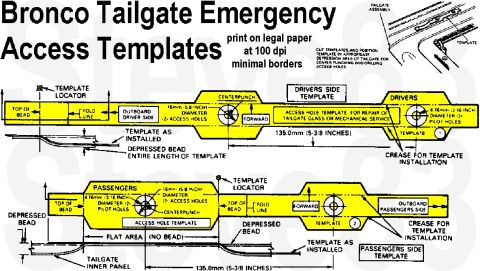

Bronco Tailgate Emergency Access Templates These allow 4 holes to be drilled in the tailgate inner ...		With the regulator arms in this position (note the socket on the bolt in the regulator gear hole), a...
Hits: 7518
Size: 82.08 KB
Posted: 11/29/04

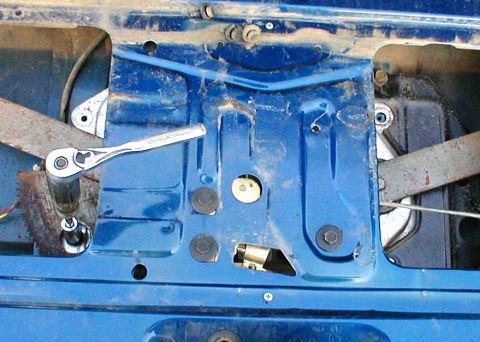

With the regulator arms in this position (note the socket on the bolt in the regulator gear hole), a...		The regulator fits out the driver's side. On earlier Broncos, there is a brace here that must be re...
Hits: 7163
Size: 68.47 KB
Posted: 11/29/04

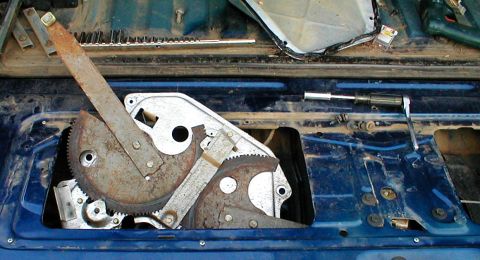

The regulator fits out the driver's side. On earlier Broncos, there is a brace here that must be re...
SOLD Tailgate trim panel for 84-86 EFI Bronco For a writeup on installation & alignment, read thi...
Hits: 5036
Size: 14.61 KB
Posted: 7/12/03
SOLD Tailgate trim panel for 84-86 EFI Bronco For a writeup on installation & alignment, read thi...		SOLD '87-91 Bronco Tailgate Trim Panel with red reflector & all mounting hardware fits all '78-96 Br...
Hits: 4721
Size: 57.56 KB
Posted: 9/10/07

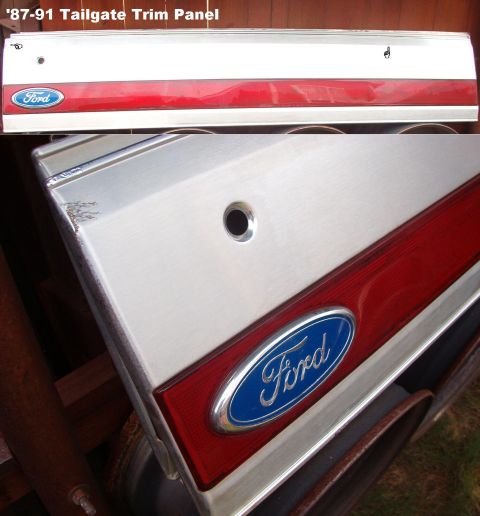

SOLD '87-91 Bronco Tailgate Trim Panel with red reflector & all mounting hardware fits all '78-96 Br...		The trim panel can be removed after the access panel if the glass is rolled up out of the way. No o...
Hits: 8493
Size: 80.72 KB
Posted: 11/29/04

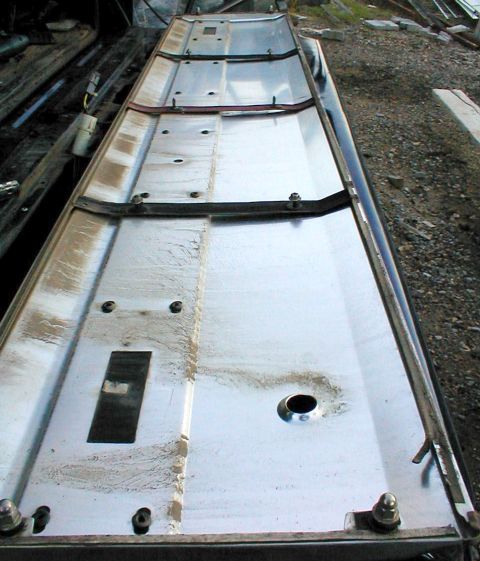

The trim panel can be removed after the access panel if the glass is rolled up out of the way. No o...		SOLD Tailgate Trim Panel from '95 Bronco (F2TZ-98425A34-A) Fits '78-96; includes all original faste...
Hits: 4913
Size: 65.62 KB
Posted: 5/21/07

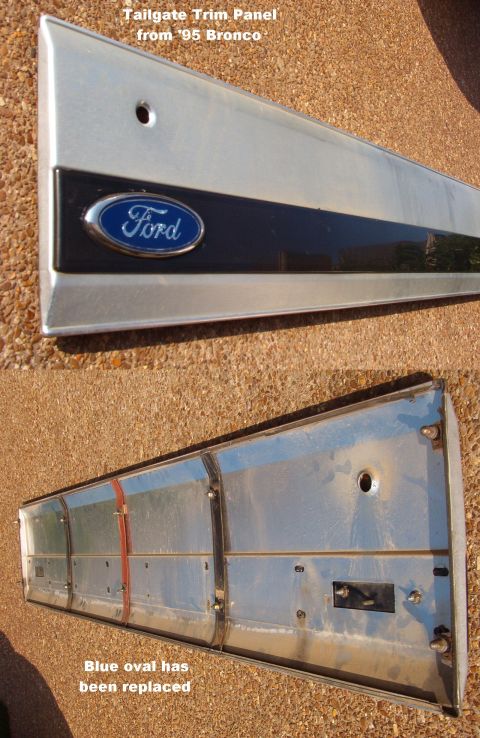

SOLD Tailgate Trim Panel from '95 Bronco (F2TZ-98425A34-A) Fits '78-96; includes all original faste...		SOLD '83-96 Bronco Tailgate from '96 Black EB, with '92-96 trim panel (F2TZ-98425A34-A) Inside latc...
Hits: 4643
Size: 29.89 KB
Posted: 7/24/07

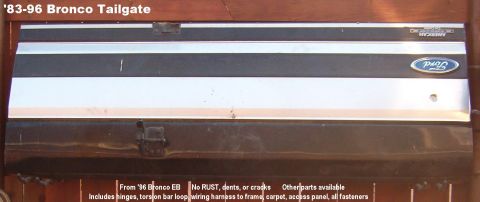

SOLD '83-96 Bronco Tailgate from '96 Black EB, with '92-96 trim panel (F2TZ-98425A34-A) Inside latc...

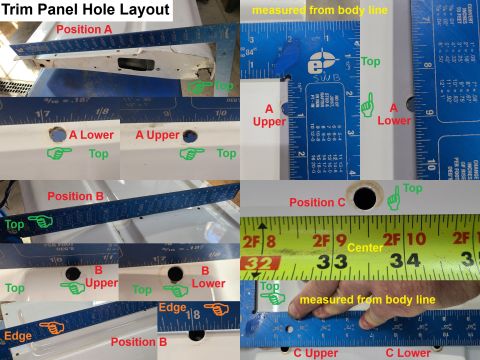

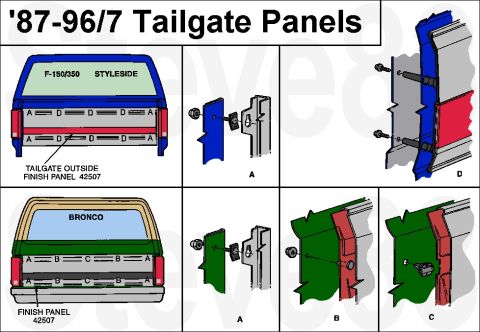

Trim Panel '87-96 F-series A clips are plastic & fragile. Replacements have recently become availa...
Hits: 8192
Size: 46.91 KB
Posted: 10/14/05
Trim Panel '87-96 F-series A clips are plastic & fragile. Replacements have recently become availa...		Lock Cylinder for '78-96 Bronco tailgate https://www.npdlink.com/product/lock-cylinder-and-keys-tai...
Hits: 9820
Size: 38.01 KB
Posted: 7/7/06

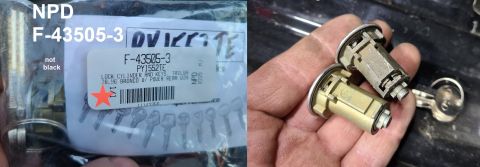

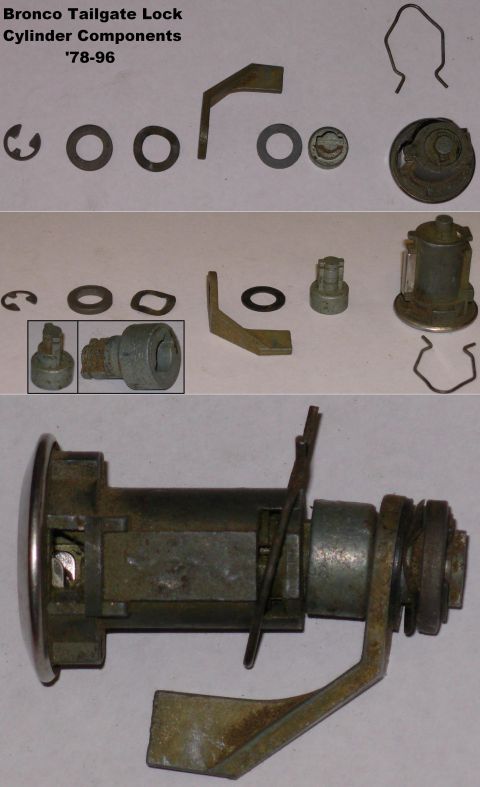

Lock Cylinder for '78-96 Bronco tailgate https://www.npdlink.com/product/lock-cylinder-and-keys-tai...		The tailgate key switch is 2 weather-resistant SPDT micro switches riveted into a bracket, and opera...
Hits: 8664
Size: 56.71 KB
Posted: 11/29/04

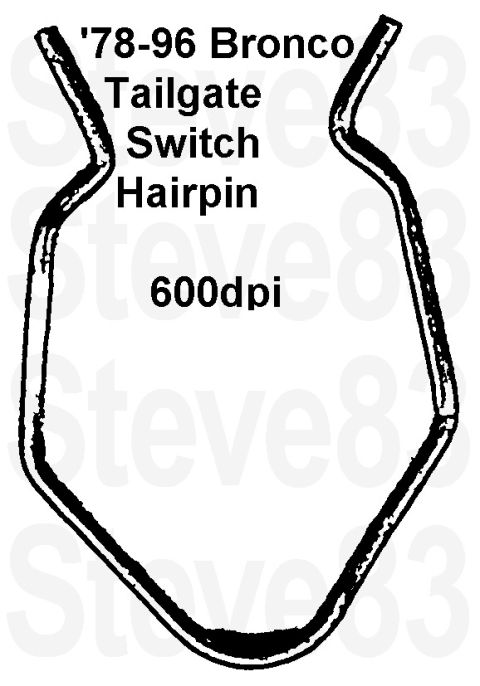

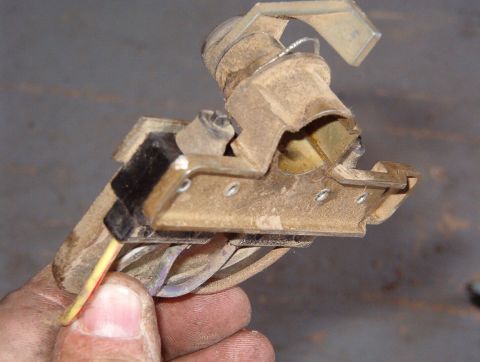

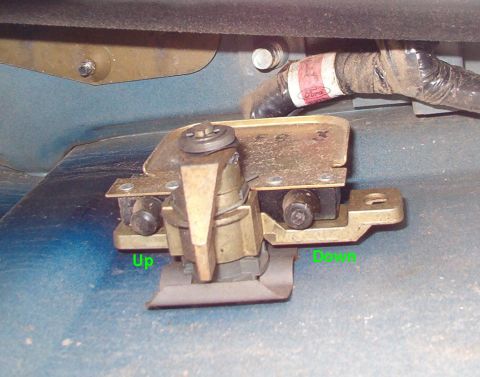

The tailgate key switch is 2 weather-resistant SPDT micro switches riveted into a bracket, and opera...		When the key is rotated CW, the paddle presses the lower switch. The silver hairpin clip retains th...
Hits: 8723
Size: 47.95 KB
Posted: 11/29/04

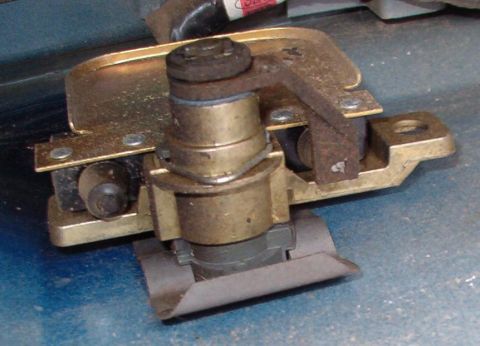

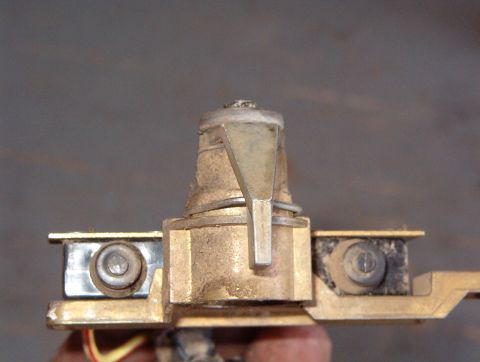

When the key is rotated CW, the paddle presses the lower switch. The silver hairpin clip retains th...		When the key is rotated CCW, the paddle presses the upper switch. Note the arrangement of parts on ...
Hits: 7813
Size: 62.88 KB
Posted: 11/29/04

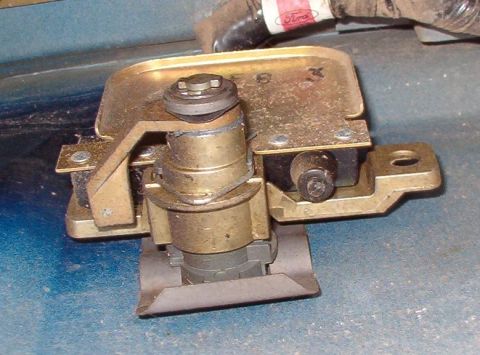

When the key is rotated CCW, the paddle presses the upper switch. Note the arrangement of parts on ...

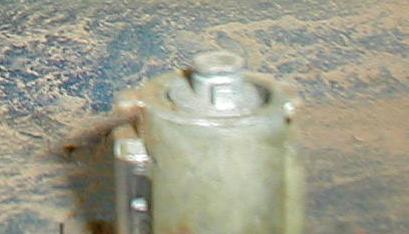

By removing ONLY the silver clip, the switch assembly can be removed from the lock cylinder. I us...
Hits: 6506
Size: 15.51 KB
Posted: 11/29/04
By removing ONLY the silver clip, the switch assembly can be removed from the lock cylinder. I us...		This pad is used to protect the tailgate paint from the rubber bumper on the bottom of the swingaway...
Hits: 6044
Size: 60.08 KB
Posted: 5/17/07

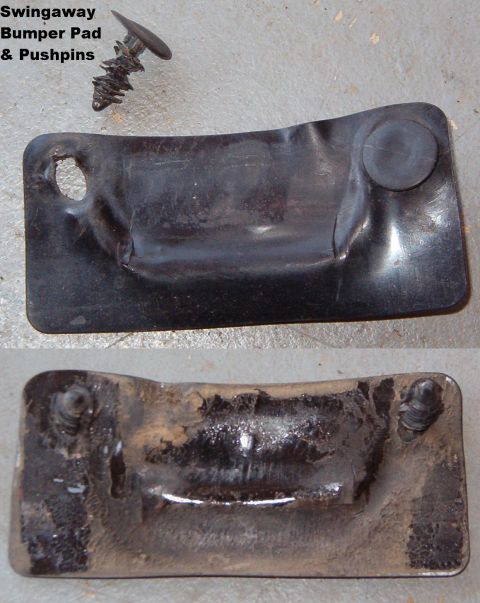

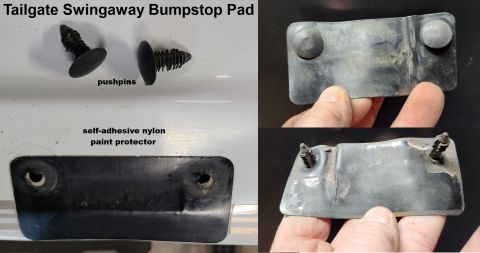

This pad is used to protect the tailgate paint from the rubber bumper on the bottom of the swingaway...		Swingaway Bump Pad IF THE IMAGE IS TOO SMALL, click it. Rather than drilling holes in a replacement...
Hits: 283
Size: 59.75 KB
Posted: 3/21/24

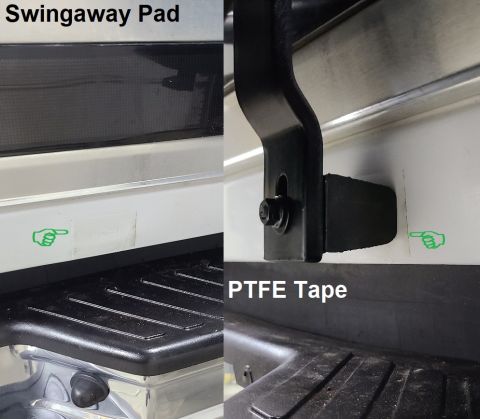

Swingaway Bump Pad IF THE IMAGE IS TOO SMALL, click it. Rather than drilling holes in a replacement...		To remove these clips (which are used on the frame also), push the pin in the center all the way thr...
Hits: 6374
Size: 62.56 KB
Posted: 11/29/04

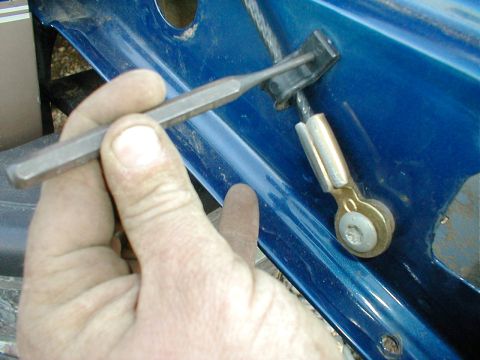

To remove these clips (which are used on the frame also), push the pin in the center all the way thr...		With the center pin out, the clip compresses, and can be pulled out of its hole. [url=http://www.su...
Hits: 5942
Size: 99.79 KB
Posted: 11/29/04
With the center pin out, the clip compresses, and can be pulled out of its hole. [url=http://www.su...

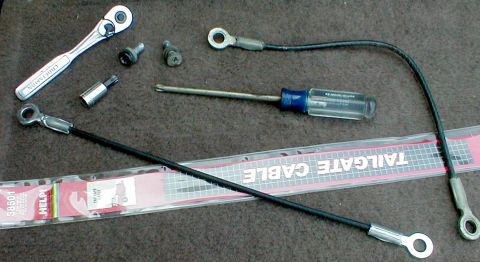

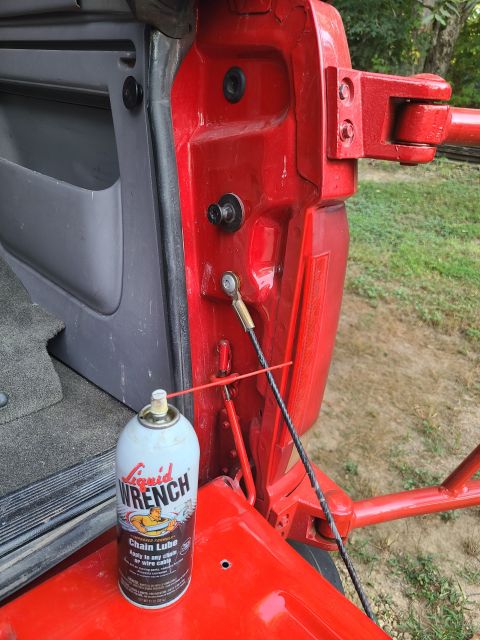

Early cable screws are #3 or #4 phillips; later ones are T-50. New cables are available from most p...
Hits: 6502
Size: 59.56 KB
Posted: 11/29/04
Early cable screws are #3 or #4 phillips; later ones are T-50. New cables are available from most p...		Before unbolting the tailgate from its hinges, first relieve the torque rod by bracing it against th...
Hits: 7298
Size: 79.06 KB
Posted: 11/29/04

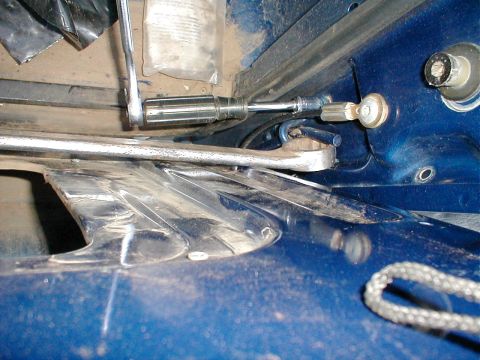

Before unbolting the tailgate from its hinges, first relieve the torque rod by bracing it against th...		The infamous torsion bar bracket. It cups up, so if it's allowed to collect dirt & rain, it rusts o...
Hits: 5756
Size: 58.28 KB
Posted: 9/12/07

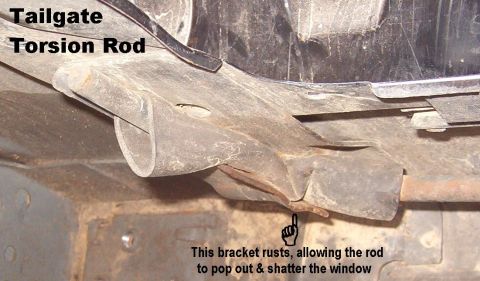

The infamous torsion bar bracket. It cups up, so if it's allowed to collect dirt & rain, it rusts o...		With the R hinge fully back, the torsion bar will BARELY fit out. Raising the hinge, or raising the...
Hits: 3569
Size: 77.93 KB
Posted: 1/24/12

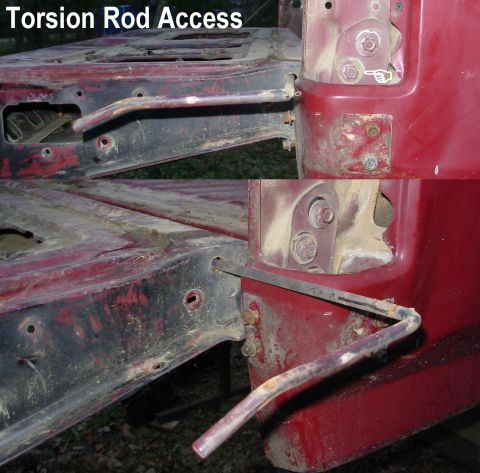

With the R hinge fully back, the torsion bar will BARELY fit out. Raising the hinge, or raising the...		Torsion Bar Removal & Installation The tailgate must be misaligned or removed to get the torsion ba...
Hits: 6797
Size: 60.75 KB
Posted: 9/12/07

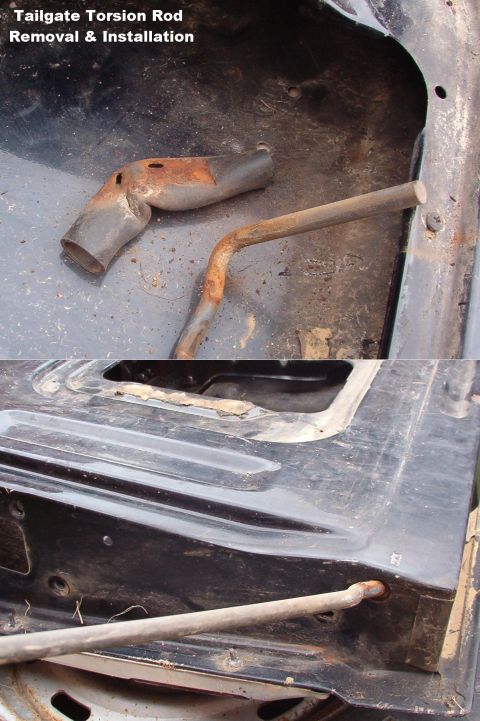

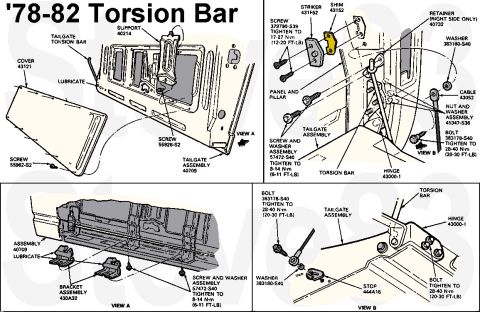

Torsion Bar Removal & Installation The tailgate must be misaligned or removed to get the torsion ba...

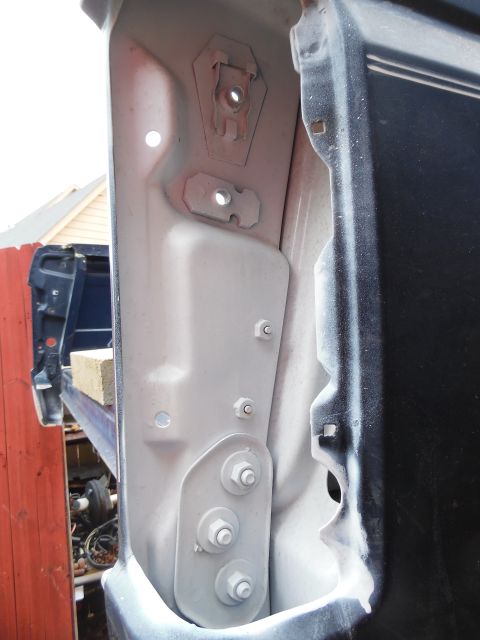

Tailgate Reinforcement Plates IF THE IMAGE IS TOO SMALL, click it.
Hits: 206
Size: 75.67 KB
Posted: 2/18/24
Tailgate Reinforcement Plates IF THE IMAGE IS TOO SMALL, click it.		'78-82 tailgate latches are significantly different from '83-96. Because they mount differently in ...
Hits: 6795
Size: 22.23 KB
Posted: 9/5/08

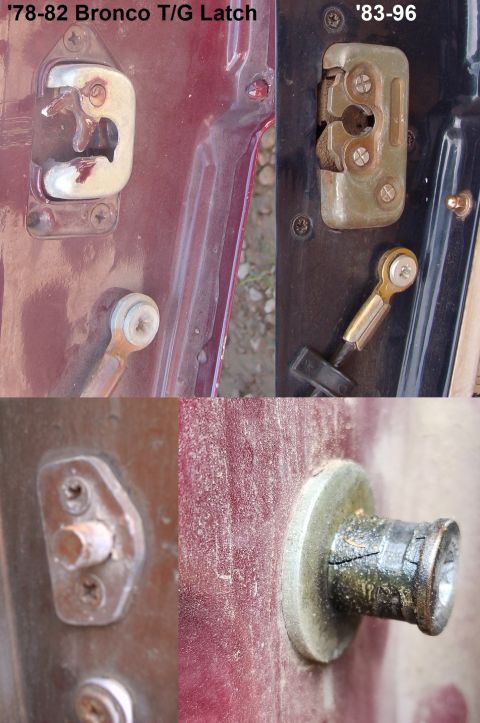

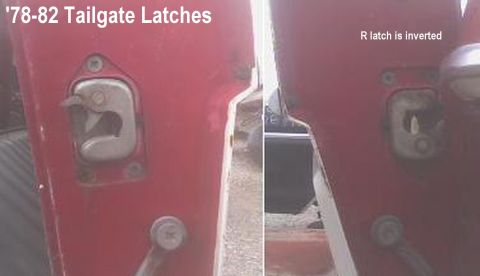

'78-82 tailgate latches are significantly different from '83-96. Because they mount differently in ...		'78-82 Broncos used this type of strike bolt, and a different latch from '83-96. They are not inter...
Hits: 7531
Size: 56.08 KB
Posted: 11/29/04

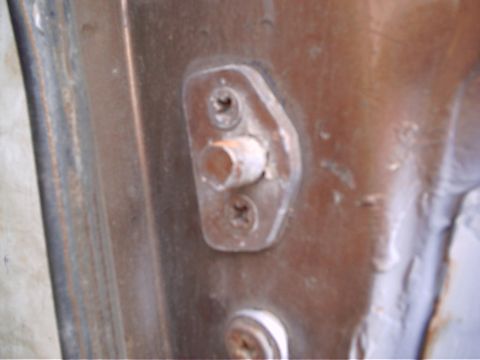

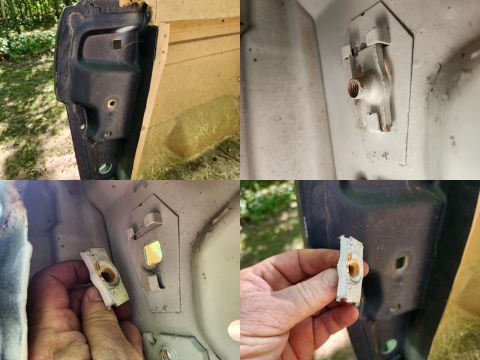

'78-82 Broncos used this type of strike bolt, and a different latch from '83-96. They are not inter...		This is an '83-96 tailgate strike bolt installed in the hole for a '78-82 type using a large angle-i...
Hits: 5059
Size: 70.46 KB
Posted: 6/13/09
This is an '83-96 tailgate strike bolt installed in the hole for a '78-82 type using a large angle-i...		Glass & Weatherbelts The outside weatherbelt that wipes the glass (w/o defrost E0TZ9842006B, w/defr...
Hits: 11437
Size: 68.86 KB
Posted: 11/29/04

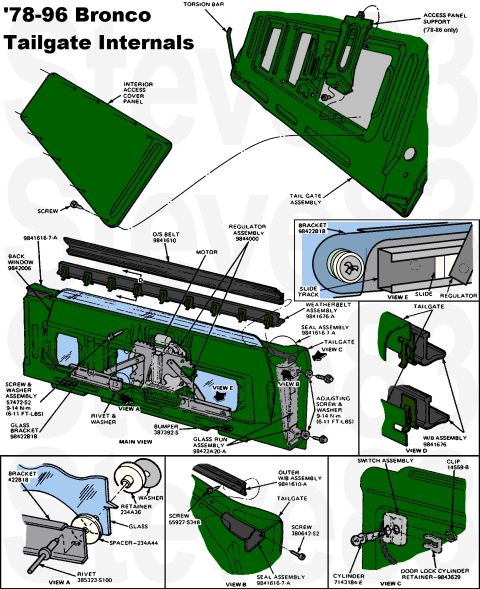

Glass & Weatherbelts The outside weatherbelt that wipes the glass (w/o defrost E0TZ9842006B, w/defr...

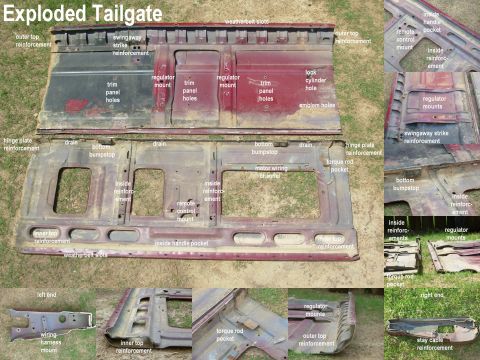

Exploded Tailgate IF THE IMAGE IS TOO SMALL, click it. [url=http://www.supermotors.net/vehicles/reg...
Hits: 6252
Size: 85.77 KB
Posted: 5/9/13
Exploded Tailgate IF THE IMAGE IS TOO SMALL, click it. [url=http://www.supermotors.net/vehicles/reg...		New Tailgate Shell Prep IF THE IMAGE IS TOO SMALL, click it. New shells (which all come from the...
Hits: 264
Size: 38.47 KB
Posted: 3/19/24

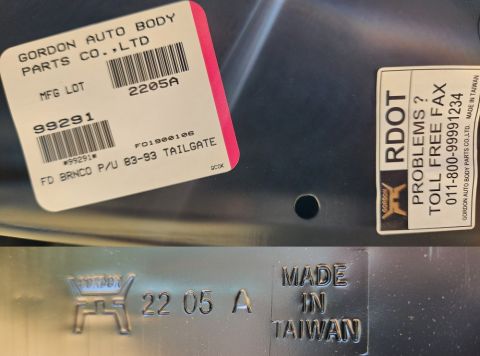

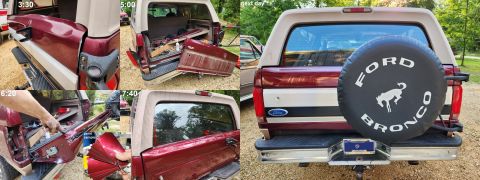

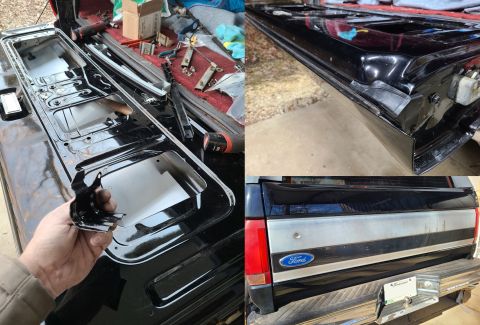

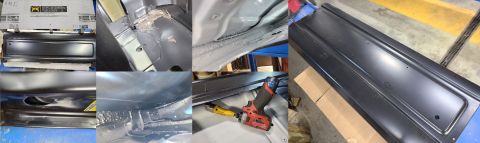

New Tailgate Shell Prep IF THE IMAGE IS TOO SMALL, click it. New shells (which all come from the...		The previous owner rear-ended this '96 XLT Sport, and installed a replacement t/g with a trim panel....
Hits: 2712
Size: 128 KB
Posted: 4/21/14

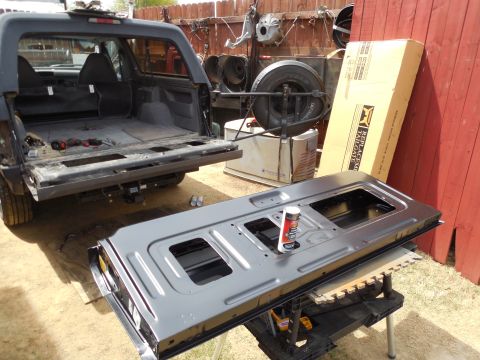

The previous owner rear-ended this '96 XLT Sport, and installed a replacement t/g with a trim panel....		Any automotive undercoating will significantly reduce the chances of tailgate (or door) rust, and I'...
Hits: 2625
Size: 105.15 KB
Posted: 4/21/14

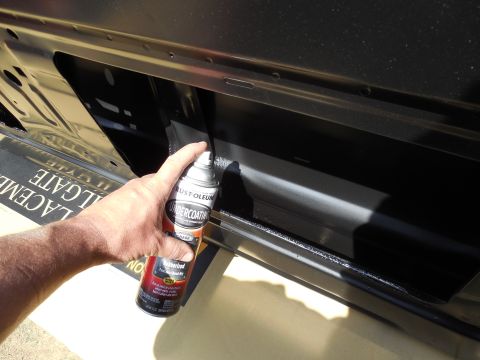

Any automotive undercoating will significantly reduce the chances of tailgate (or door) rust, and I'...		To perfectly center the swingaway strike bolt holes, first install the brace to the t/g, with this u...
Hits: 2546
Size: 112.06 KB
Posted: 4/21/14

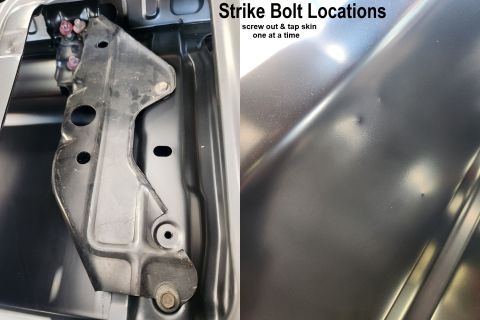

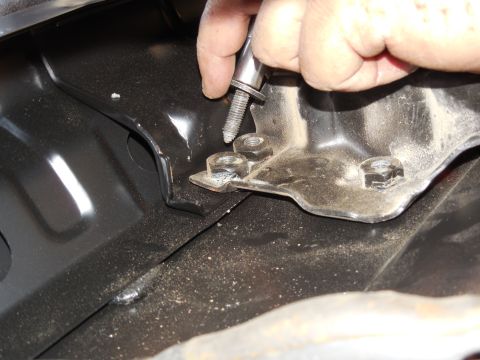

To perfectly center the swingaway strike bolt holes, first install the brace to the t/g, with this u...

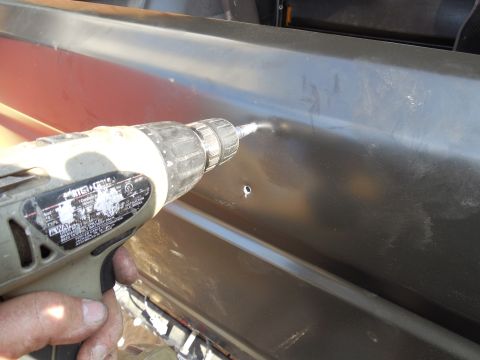

Reverse the dimples with the drill bit tip and they should be perfectly aligned with the bracket ins...
Hits: 2270
Size: 100.42 KB
Posted: 4/21/14
Reverse the dimples with the drill bit tip and they should be perfectly aligned with the bracket ins...		The bottom hinge bolts commonly rust, seize, cross-thread, and break, so use a good bolt as a drift ...
Hits: 2268
Size: 115.16 KB
Posted: 4/21/14

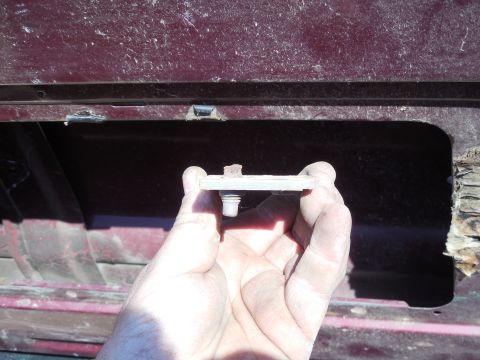

The bottom hinge bolts commonly rust, seize, cross-thread, and break, so use a good bolt as a drift ...		Grind the broken bolt flat & flush with the nut plate on both sides, center punch it, and drill 5/16...
Hits: 2128
Size: 124.53 KB
Posted: 4/21/14

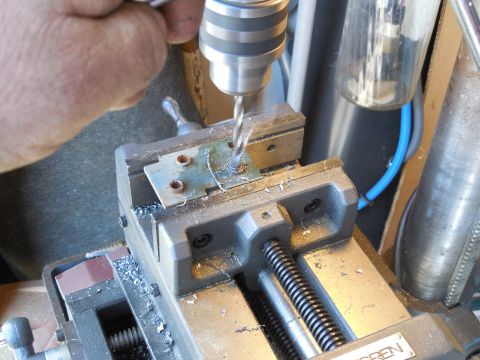

Grind the broken bolt flat & flush with the nut plate on both sides, center punch it, and drill 5/16...		Use a file to carefully remove the remaining bolt until only its thread is left. Using a rough file...
Hits: 2240
Size: 125.73 KB
Posted: 4/21/14

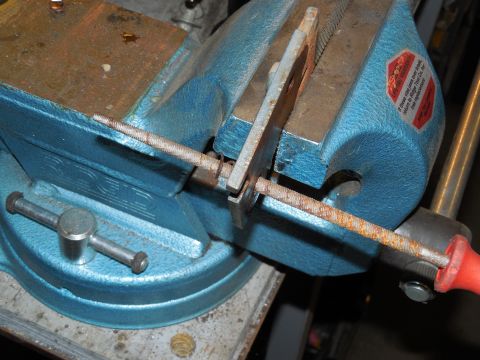

Use a file to carefully remove the remaining bolt until only its thread is left. Using a rough file...		Chase the nut plate with a 3/8"-16 tap so the bolt goes in easily, then apply anti-seize lube (...
Hits: 2280
Size: 109.97 KB
Posted: 4/21/14

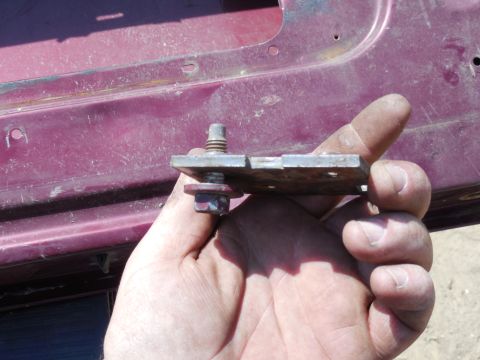

Chase the nut plate with a 3/8"-16 tap so the bolt goes in easily, then apply anti-seize lube (...

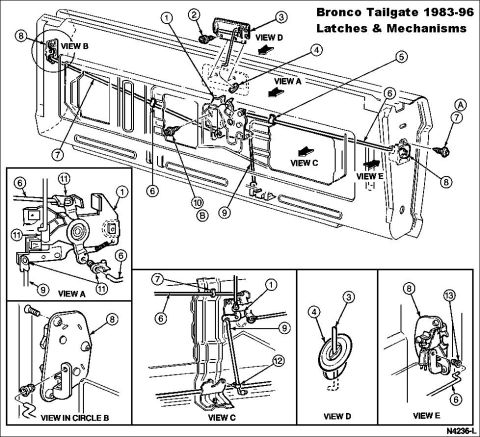

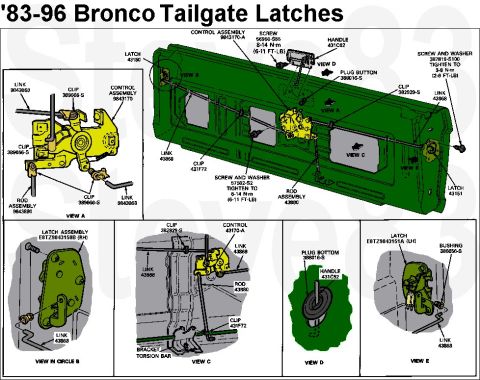

'83-96 Bronco Tailgate Latches ERRORS: there are several 6s & 7s... 1 - Tailgate Latch Remote Cont...
Hits: 14979
Size: 88.89 KB
Posted: 8/23/05
'83-96 Bronco Tailgate Latches ERRORS: there are several 6s & 7s... 1 - Tailgate Latch Remote Cont...		'78-82 Latches The torsion bar retainer (430A32) in View C is available from Dennis Carpenter as [u...
Hits: 8787
Size: 51.48 KB
Posted: 11/29/04

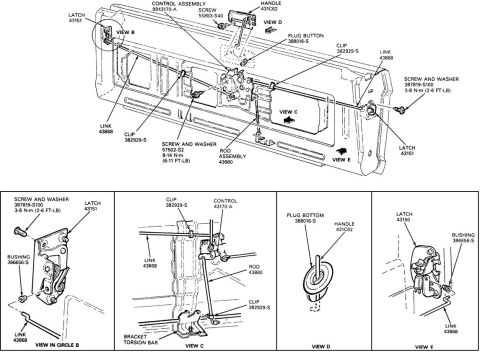

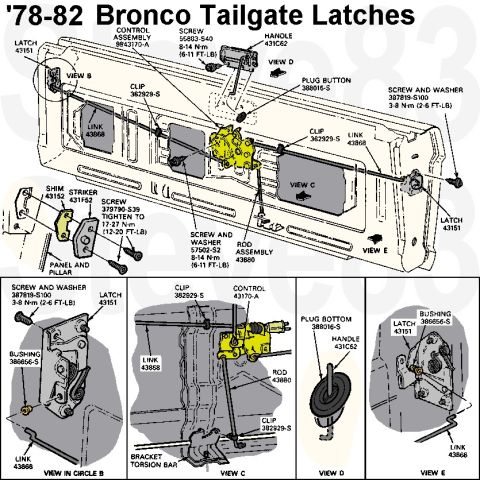

'78-82 Latches The torsion bar retainer (430A32) in View C is available from Dennis Carpenter as [u...		Latches 1 Tailgate Latch Remote Control D8TZ-9843170-B (JBG [url=https://shop.broncograveyard.com/1...
Hits: 9104
Size: 88.51 KB
Posted: 10/14/05

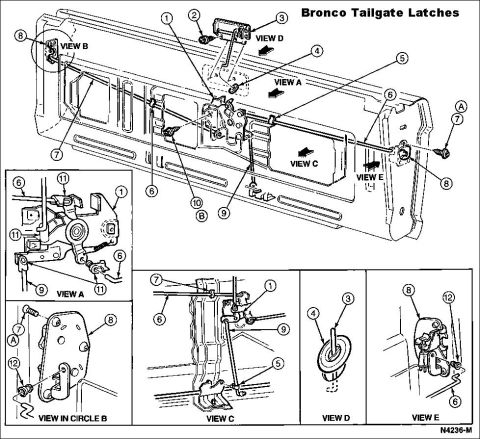

Latches 1 Tailgate Latch Remote Control D8TZ-9843170-B (JBG [url=https://shop.broncograveyard.com/1...		SOLD Tailgate Hinges Fit '78-96 Normal wear For a writeup on installation & alignment, read t...
Hits: 4268
Size: 37.13 KB
Posted: 5/17/07

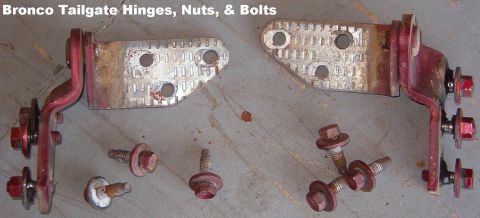

SOLD Tailgate Hinges Fit '78-96 Normal wear For a writeup on installation & alignment, read t...		Tailgate Threshhold Seal '78-96 Note that the body style shown is '78-79 (taillight & strike mounti...
Hits: 7065
Size: 65.55 KB
Posted: 9/29/07

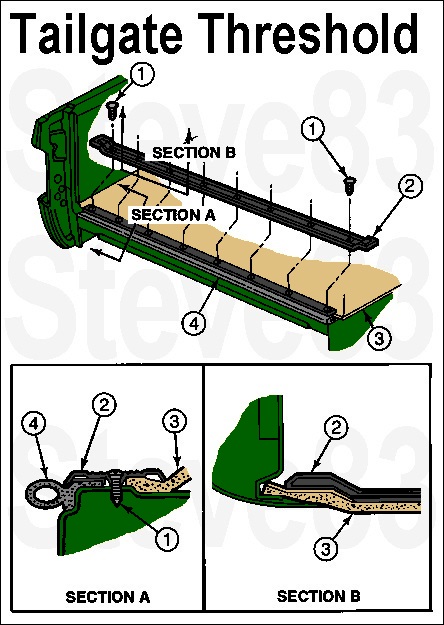

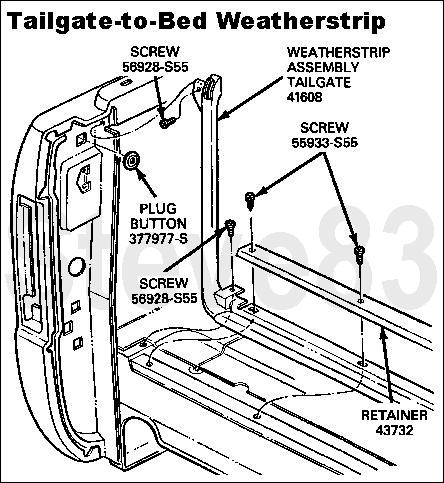

Tailgate Threshhold Seal '78-96 Note that the body style shown is '78-79 (taillight & strike mounti...

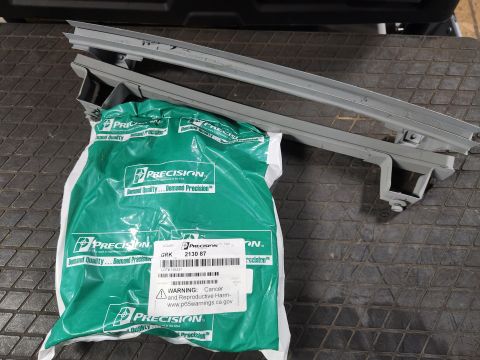

The [url=https://www.amazon.com/dp/B07XV9S474]internal glass runs[/url] commonly dry-rot and break a...
Hits: 290
Size: 39.71 KB
Posted: 8/9/22

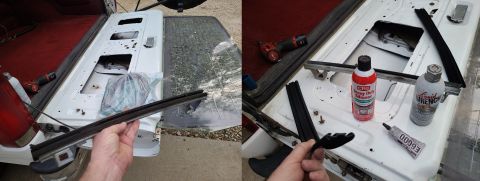

The [url=https://www.amazon.com/dp/B07XV9S474]internal glass runs[/url] commonly dry-rot and break a...		SOLD Bronco Tailgate Threshhold
Hits: 4151
Size: 29.66 KB
Posted: 4/21/07

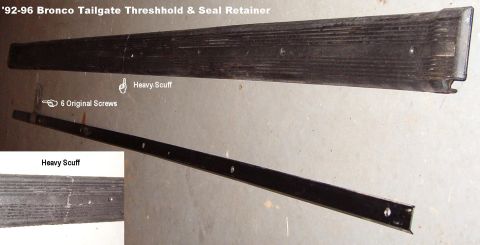

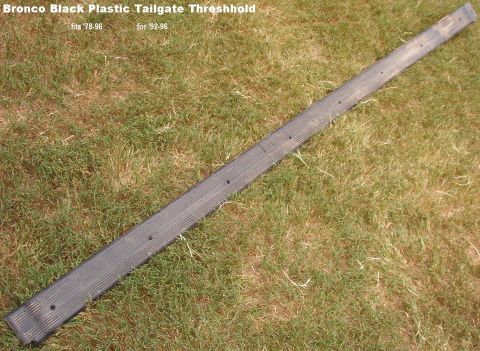

SOLD Bronco Tailgate Threshhold		Bronco Tailgate Weatherstrip & Threshold IF THE IMAGE IS TOO SMALL, click it.
Hits: 153
Size: 41.06 KB
Posted: 2/19/24

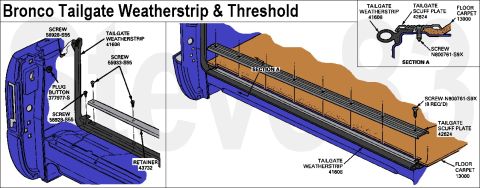

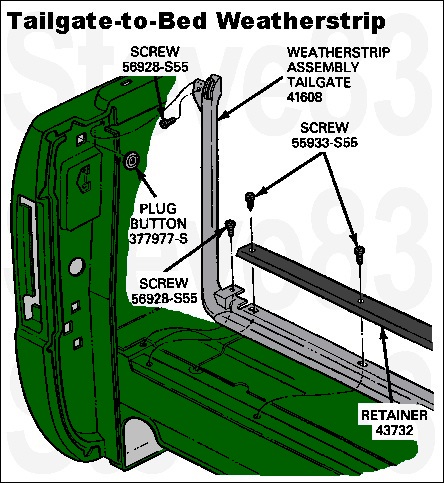

Bronco Tailgate Weatherstrip & Threshold IF THE IMAGE IS TOO SMALL, click it.		SOLD Bronco Tailgate Threshhold from '92-96 fits '78-96
Hits: 3525
Size: 100.22 KB
Posted: 7/24/07
SOLD Bronco Tailgate Threshhold from '92-96 fits '78-96		Hinges, Torque Rod, & '83-96 Strikes. The strike bolt is the only thing in this diagram specific to...
Hits: 7845
Size: 79.58 KB
Posted: 10/16/05

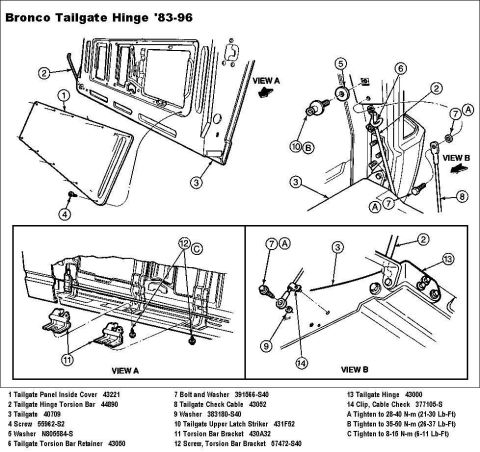

Hinges, Torque Rod, & '83-96 Strikes. The strike bolt is the only thing in this diagram specific to...

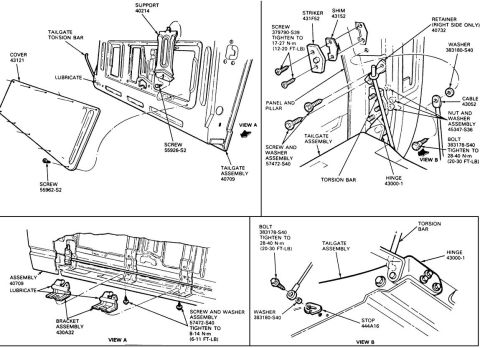

78-82 Strikes & Torque Rod. The strike bolt, cable bolts, & support are the only things in this dia...
Hits: 7241
Size: 59.41 KB
Posted: 11/29/04
78-82 Strikes & Torque Rod. The strike bolt, cable bolts, & support are the only things in this dia...		The tailgate gap should be the same at the top as at the bottom. If it's too wide at the top, the b...
Hits: 4056
Size: 84.1 KB
Posted: 6/13/09

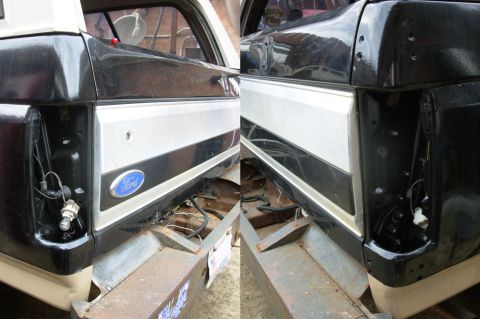

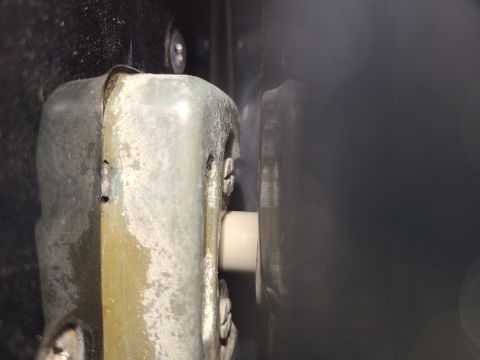

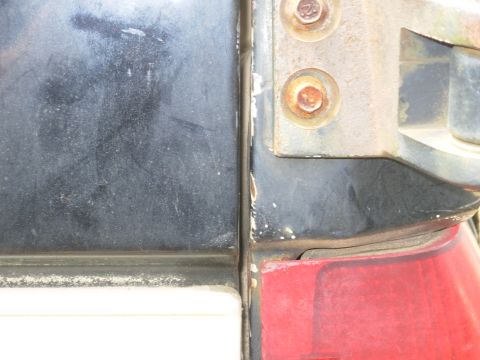

The tailgate gap should be the same at the top as at the bottom. If it's too wide at the top, the b...		The best way to bend the bedwalls inward is with a large ratchet strap hooked into the body crossmem...
Hits: 4540
Size: 57.18 KB
Posted: 6/13/09

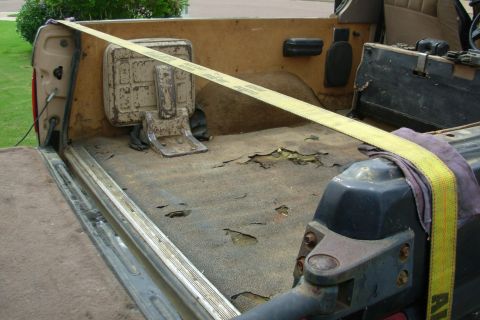

The best way to bend the bedwalls inward is with a large ratchet strap hooked into the body crossmem...		Undentation The best way to remove any dent is to apply force in exactly the opposite direction tha...
Hits: 1904
Size: 126.7 KB
Posted: 6/10/15

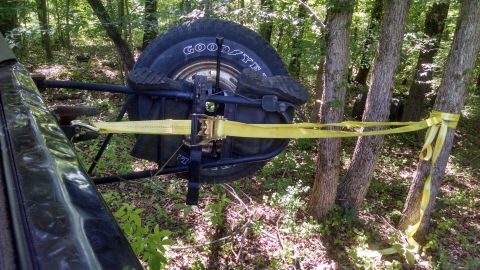

Undentation The best way to remove any dent is to apply force in exactly the opposite direction tha...		Bronco Tailgate Safety Latch Light [url=http://www.supermotors.net/registry/media/71412][img]http:/...
Hits: 8769
Size: 48.95 KB
Posted: 5/20/12

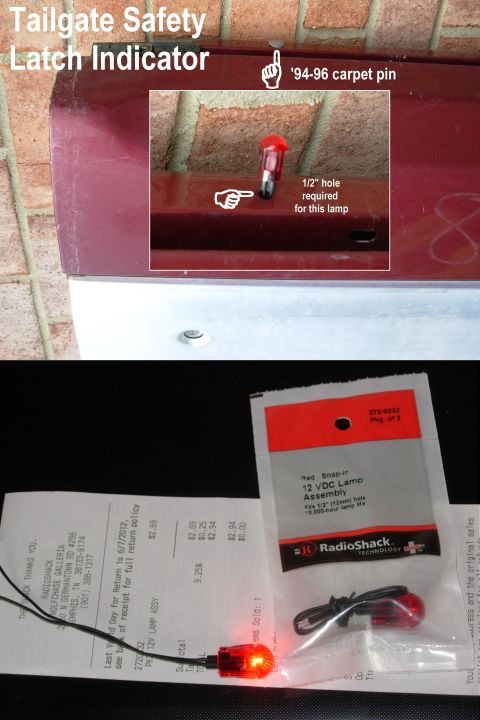

Bronco Tailgate Safety Latch Light [url=http://www.supermotors.net/registry/media/71412][img]http:/...

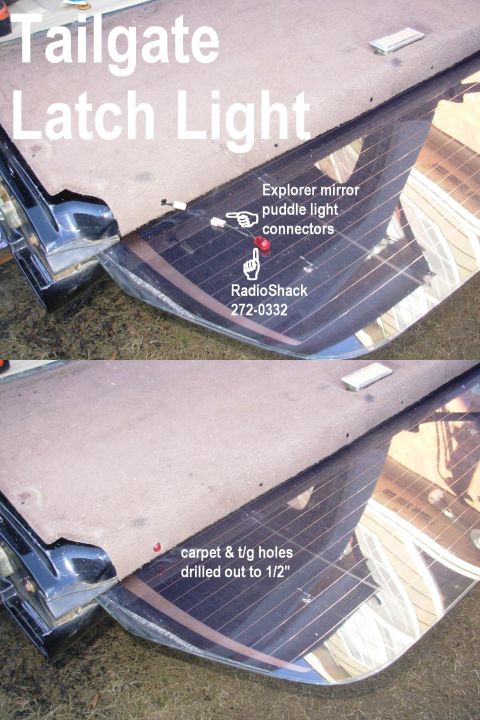

Tailgate Latch Light indicates that the latch is not fully closed when attempting to operate t/g win...
Hits: 5814
Size: 64.51 KB
Posted: 3/5/13
Tailgate Latch Light indicates that the latch is not fully closed when attempting to operate t/g win...		The Bronco tailgate window circuit is a common (Ford) polarity-reversing circuit with 2 switches. E...
Hits: 11369
Size: 31.42 KB
Posted: 3/15/09

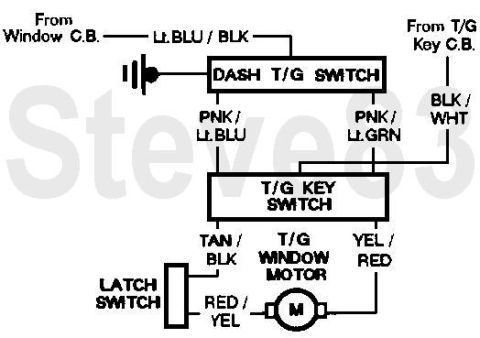

The Bronco tailgate window circuit is a common (Ford) polarity-reversing circuit with 2 switches. E...		Modified Bronco Tailgate Window Circuit IF THE IMAGE IS TOO SMALL, click it. '92-96 shown; '87-91 s...
Hits: 16333
Size: 76.3 KB
Posted: 6/28/12

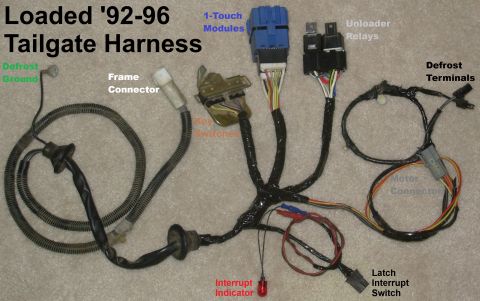

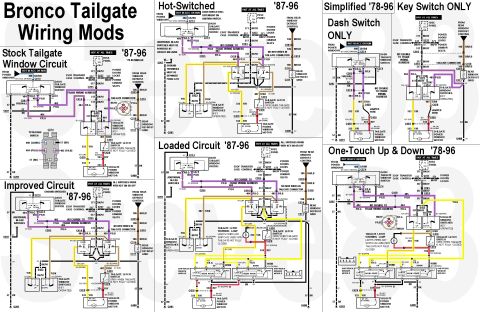

Modified Bronco Tailgate Window Circuit IF THE IMAGE IS TOO SMALL, click it. '92-96 shown; '87-91 s...		Window Motor Circuit from http://www.fordfuelinjection.com/ Note that the internal circuitry for th...
Hits: 13564
Size: 33.93 KB
Posted: 11/29/04

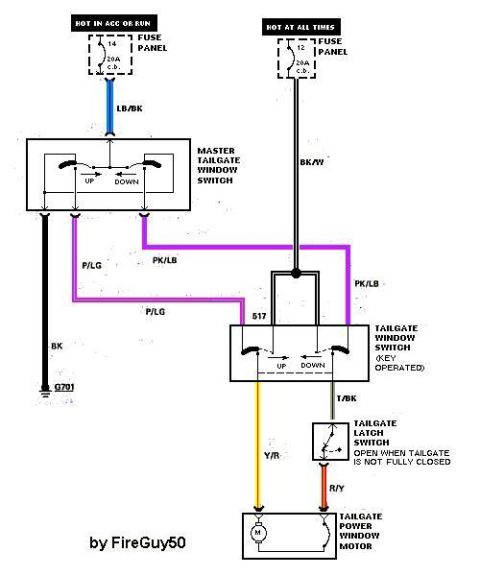

Window Motor Circuit from http://www.fordfuelinjection.com/ Note that the internal circuitry for th...		Defrost Circuit '78-86 http://fordfuelinjection.com/
Hits: 6149
Size: 29.67 KB
Posted: 11/29/04

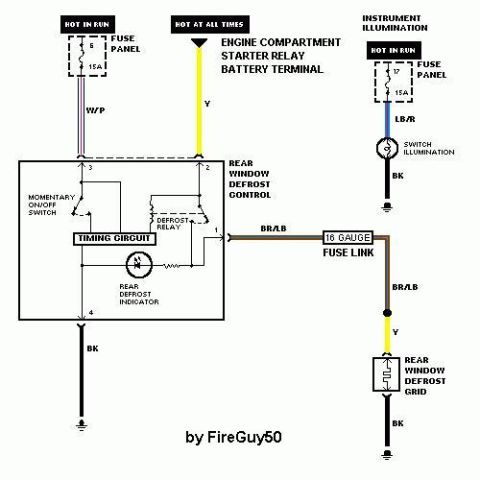

Defrost Circuit '78-86 http://fordfuelinjection.com/
'78-96 Bronco Tailgate Wiring 1 - Switch and Housing Assembly (Includes 14086 Wiring) - 14046 2-...
Hits: 8799
Size: 82.91 KB
Posted: 6/30/12

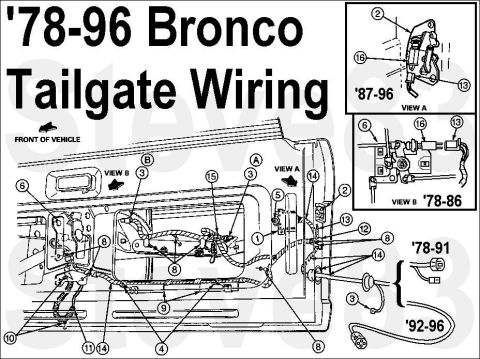

'78-96 Bronco Tailgate Wiring 1 - Switch and Housing Assembly (Includes 14086 Wiring) - 14046 2-...		'92-96 Bronco Tailgate Connector Location IF THE IMAGE IS TOO SMALL, click it. See also: [url=h...
Hits: 255
Size: 62.79 KB
Posted: 2/18/24

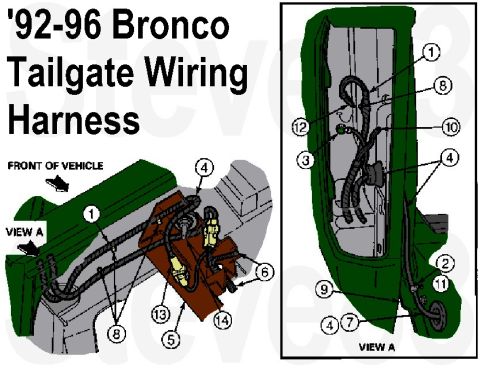

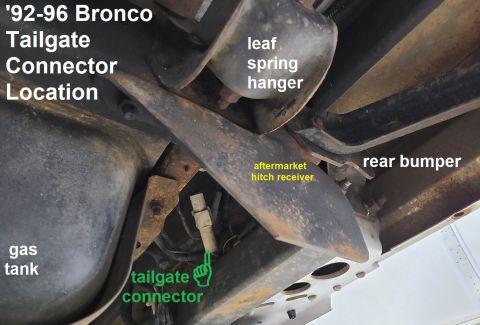

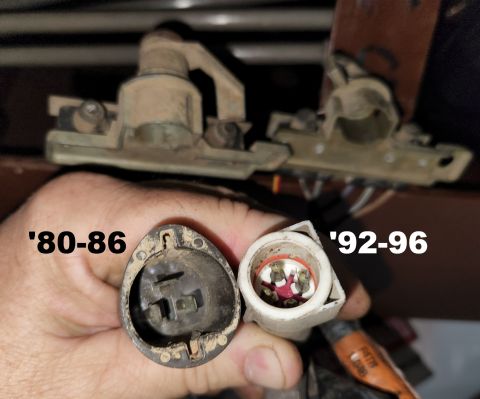

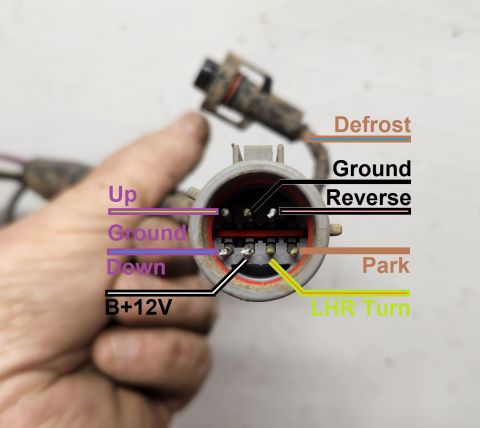

'92-96 Bronco Tailgate Connector Location IF THE IMAGE IS TOO SMALL, click it. See also: [url=h...		This is all the wiring for the tailgate, except the ground for the defrost grid. This connector is ...
Hits: 8185
Size: 66.26 KB
Posted: 9/12/07

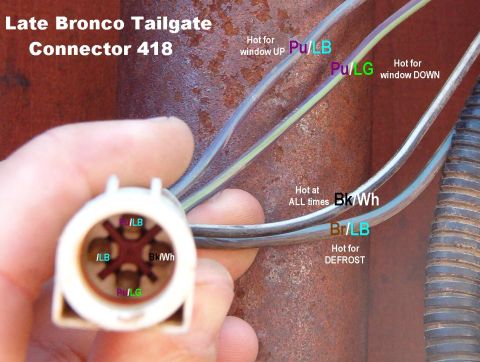

This is all the wiring for the tailgate, except the ground for the defrost grid. This connector is ...		Note that there is no connector near the ground wire, which is forward of the L taillight. C418 is ...
Hits: 6207
Size: 53.95 KB
Posted: 9/12/07

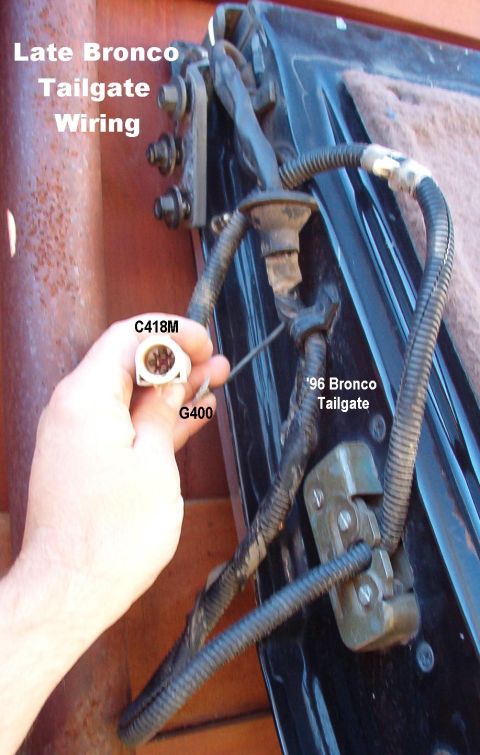

Note that there is no connector near the ground wire, which is forward of the L taillight. C418 is ...		F2TZ-14529-A [url=http://www.amazon.com/dp/B00OAKMNH4/]Motorcraft SW7071[/url] ~$25~65.
Hits: 4182
Size: 69.04 KB
Posted: 11/20/09
F2TZ-14529-A [url=http://www.amazon.com/dp/B00OAKMNH4/]Motorcraft SW7071[/url] ~$25~65.
Some tailgates split here on the R side at the top due to the stress applied by the outside tire car...
Hits: 6021
Size: 72.44 KB
Posted: 11/10/05
Some tailgates split here on the R side at the top due to the stress applied by the outside tire car...		The swingaway brace inside the R quarter panel is spot-welded & riveted into place BEFORE the outer ...
Hits: 7008
Size: 61.01 KB
Posted: 4/1/06
The swingaway brace inside the R quarter panel is spot-welded & riveted into place BEFORE the outer ...		This can be used as a pattern to bend a replacement clip from an appropriate wire, like the spring f...
Hits: 454
Size: 39.04 KB
Posted: 2/12/21
This can be used as a pattern to bend a replacement clip from an appropriate wire, like the spring f...		Tailgate Window Switch The switch is actually 2 SPDT microswitches which aren't designed to be se...
Hits: 8294
Size: 50.5 KB
Posted: 5/17/07

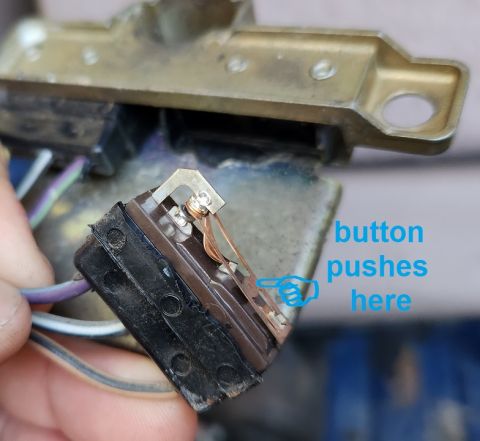

Tailgate Window Switch The switch is actually 2 SPDT microswitches which aren't designed to be se...		Tailgate Switch Wiring Colors These wires are not intended to be removed from the switches, and the...
Hits: 6539
Size: 68.66 KB
Posted: 5/18/07

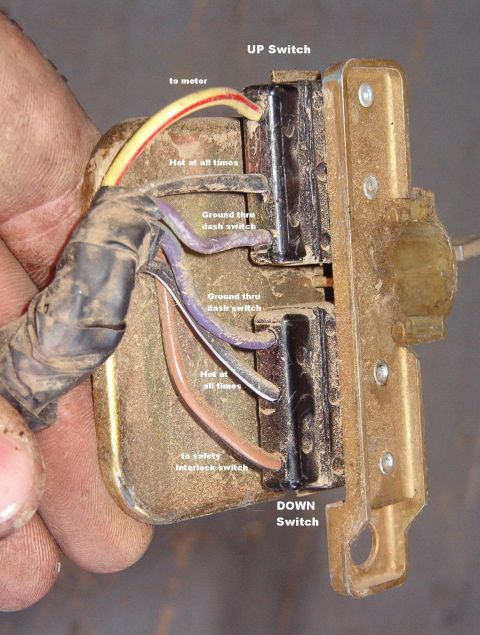

Tailgate Switch Wiring Colors These wires are not intended to be removed from the switches, and the...

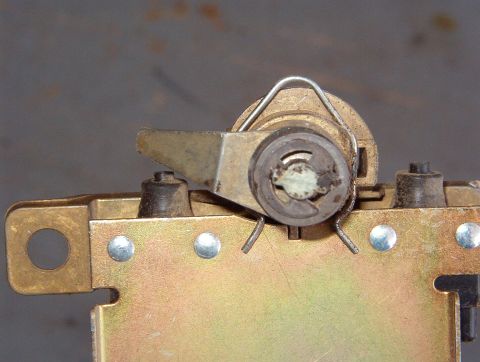

Tailgate Switch Paddle When the tailgate lock cylinder is turned, this paddle arm swings around &...
Hits: 7633
Size: 56.55 KB
Posted: 5/18/07
Tailgate Switch Paddle When the tailgate lock cylinder is turned, this paddle arm swings around &...		Tailgate Switch Paddle When the key is removed from the tailgate lock cylinder, the paddle is in ...
Hits: 6478
Size: 40.35 KB
Posted: 5/18/07
Tailgate Switch Paddle When the key is removed from the tailgate lock cylinder, the paddle is in ...		Tailgate Safety Switch Y/R is NC to Pu/LG Br/Bk (Tn/Bk) is NC to Pu/LB When a switch is depressed b...
Hits: 8498
Size: 49.3 KB
Posted: 5/18/07

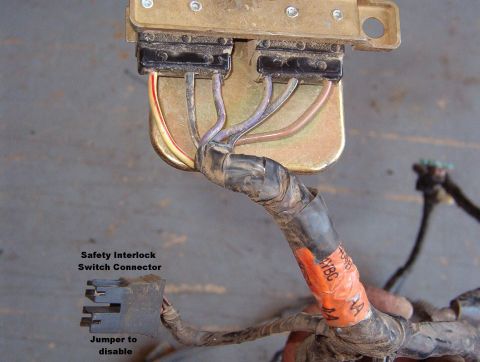

Tailgate Safety Switch Y/R is NC to Pu/LG Br/Bk (Tn/Bk) is NC to Pu/LB When a switch is depressed b...		SOLD Bronco Tailgate Switch from '94 fits '78-96 For a writeup on installation & alignment, read ...
Hits: 5862
Size: 53.64 KB
Posted: 7/24/07

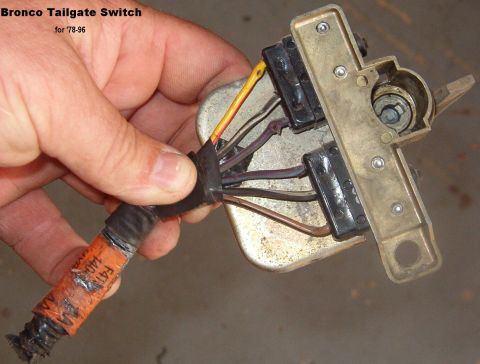

SOLD Bronco Tailgate Switch from '94 fits '78-96 For a writeup on installation & alignment, read ...		SOLD Bronco Tailgate Wiring Harness, non-defrost, early 3-blade connector IF THE IMAGE IS TOO SMALL,...
Hits: 524
Size: 70.48 KB
Posted: 10/5/22

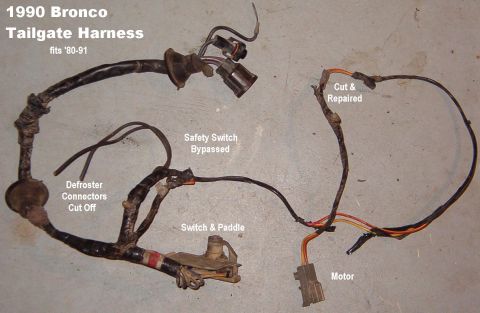

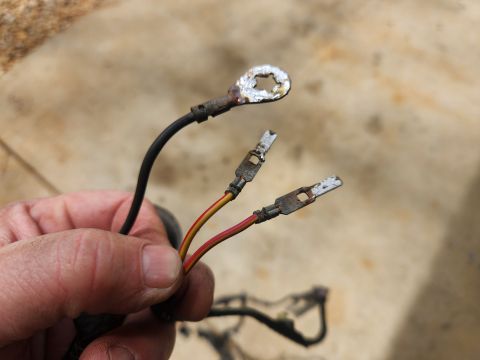

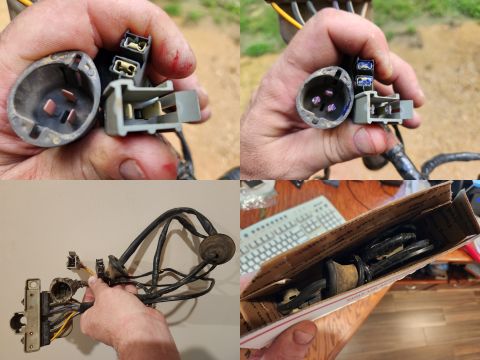

SOLD Bronco Tailgate Wiring Harness, non-defrost, early 3-blade connector IF THE IMAGE IS TOO SMALL,...
SOLD Bronco Tailgate Wiring Harness from '90 fits '80-91 [url=http://www.supermotors.net/registry...
Hits: 6126
Size: 49.09 KB
Posted: 9/26/07
SOLD Bronco Tailgate Wiring Harness from '90 fits '80-91 [url=http://www.supermotors.net/registry...		Tailgate Wiring Harness from a '95 Bronco with defrost. [url=http://www.supermotors.net/registry/me...
Hits: 7026
Size: 45.32 KB
Posted: 5/17/07
Tailgate Wiring Harness from a '95 Bronco with defrost. [url=http://www.supermotors.net/registry/me...		SOLD Tailgate Harness fits '78~86 with or w/o defrost. [url=http://www.supermotors.net/registry/med...
Hits: 4742
Size: 45.47 KB
Posted: 9/21/08

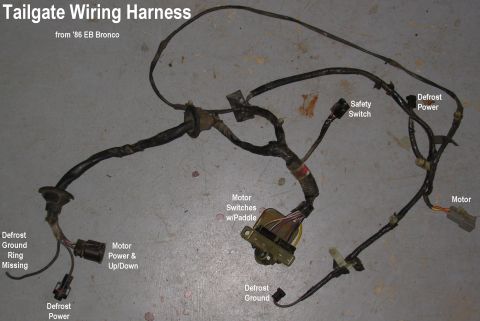

SOLD Tailgate Harness fits '78~86 with or w/o defrost. [url=http://www.supermotors.net/registry/med...		Tailgate Wiring Harness from '95 Bronco with defrost [url=http://www.supermotors.net/registry/med...
Hits: 6744
Size: 45.32 KB
Posted: 5/17/07
Tailgate Wiring Harness from '95 Bronco with defrost [url=http://www.supermotors.net/registry/med...		SOLD Tailgate Access Panel (D8TZ9840704A) fits '78-96 Bronco tailgates. No rust, dents, wear, or wa...
Hits: 4052
Size: 101.96 KB
Posted: 4/10/06

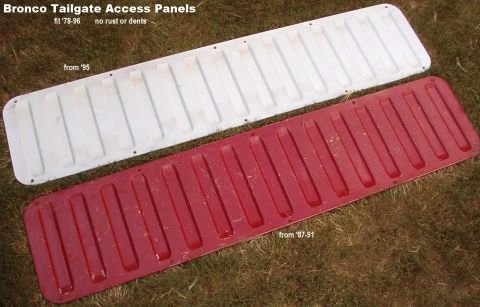

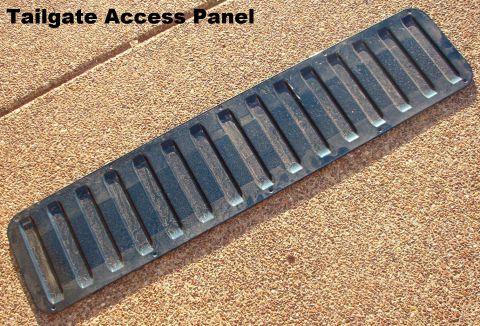

SOLD Tailgate Access Panel (D8TZ9840704A) fits '78-96 Bronco tailgates. No rust, dents, wear, or wa...

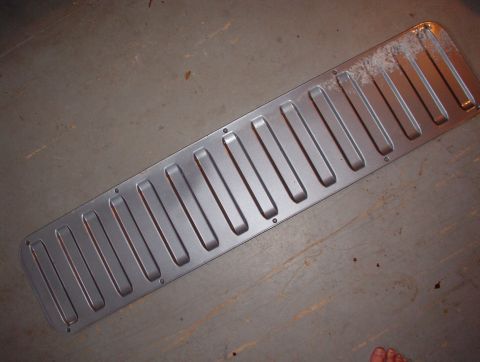

SOLD Tailgate Access Panel (D8TZ9840704A) The white mess is just paper that got dissolved by rain. ...
Hits: 4005
Size: 49.28 KB
Posted: 5/15/07
SOLD Tailgate Access Panel (D8TZ9840704A) The white mess is just paper that got dissolved by rain. ...		SOLD Tailgate Access Panels (D8TZ9840704A) for '78-96 Broncos (white) For a writeup on installation...
Hits: 3917
Size: 58.44 KB
Posted: 7/24/07
SOLD Tailgate Access Panels (D8TZ9840704A) for '78-96 Broncos (white) For a writeup on installation...		SOLD '83-96 Bronco Tailgate from '90 EB Motor needs bushings. Inside latch handle doesn't lie fl...
Hits: 3672
Size: 55.49 KB
Posted: 7/13/07
SOLD '83-96 Bronco Tailgate from '90 EB Motor needs bushings. Inside latch handle doesn't lie fl...		SOLD Tailgate from '90 EB Bronco I had to remove the trim panel & sheet one side in cardboard to ge...
Hits: 4130
Size: 72.94 KB
Posted: 7/22/07

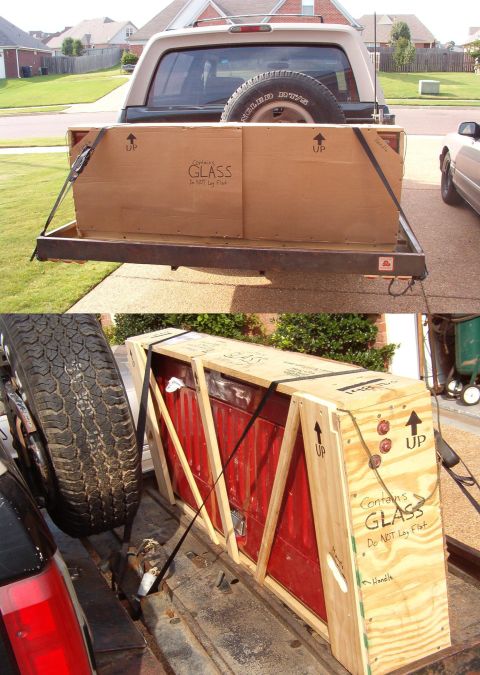

SOLD Tailgate from '90 EB Bronco I had to remove the trim panel & sheet one side in cardboard to ge...		96 Tailgate Crated Crating materials cost ~$50 in 2007.
Hits: 5492
Size: 57.25 KB
Posted: 10/2/07
96 Tailgate Crated Crating materials cost ~$50 in 2007.

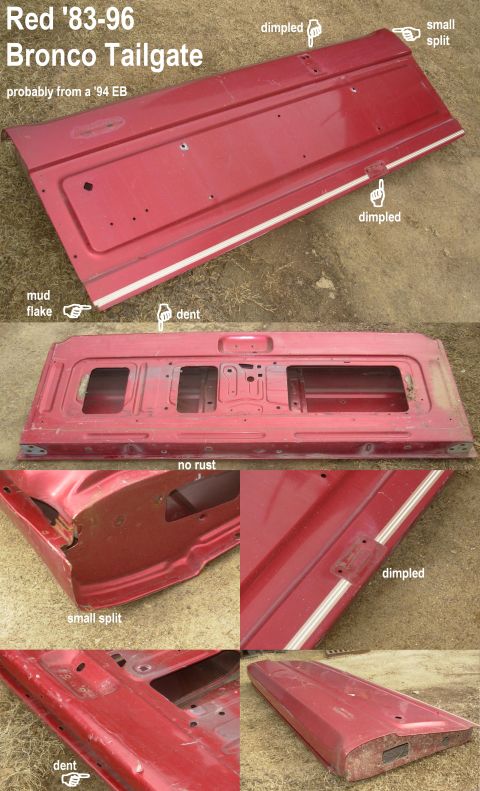

SOLD Red Tailgate Shell E8TZ-9840700-A IF THE IMAGE IS TOO SMALL, click it. [url=https://www.superm...
Hits: 1278
Size: 59.08 KB
Posted: 2/2/13
SOLD Red Tailgate Shell E8TZ-9840700-A IF THE IMAGE IS TOO SMALL, click it. [url=https://www.superm...		SOLD Burgundy Bronco EB Tailgate Sep.21 IF THE IMAGE IS TOO SMALL, click it. This is now stripped to...
Hits: 398
Size: 36.53 KB
Posted: 12/22/21

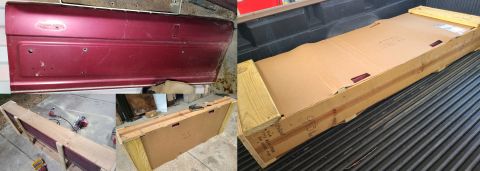

SOLD Burgundy Bronco EB Tailgate Sep.21 IF THE IMAGE IS TOO SMALL, click it. This is now stripped to...		Junkyard reddish tailgate shells E8TZ-9840700-A SOLD both. IF THE IMAGE IS TOO SMALL, click it. Act...
Hits: 464
Size: 68.22 KB
Posted: 6/20/20

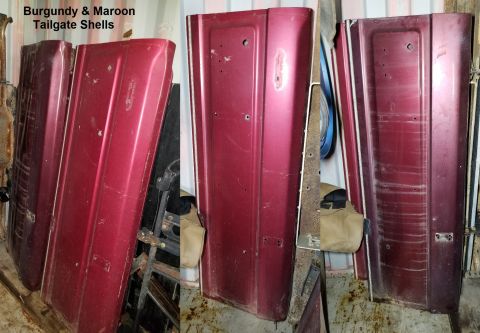

Junkyard reddish tailgate shells E8TZ-9840700-A SOLD both. IF THE IMAGE IS TOO SMALL, click it. Act...		SOLD Red '95 Bronco EB Tailgate IF THE IMAGE IS TOO SMALL, click it. This is now stripped to an empt...
Hits: 1502
Size: 37.53 KB
Posted: 2/20/12
SOLD Red '95 Bronco EB Tailgate IF THE IMAGE IS TOO SMALL, click it. This is now stripped to an empt...		SOLD Empty Bronco Tailgate Shell & Access Panel fits '83-96 Broncos. There are a few other small ch...
Hits: 3900
Size: 77.57 KB
Posted: 9/10/07

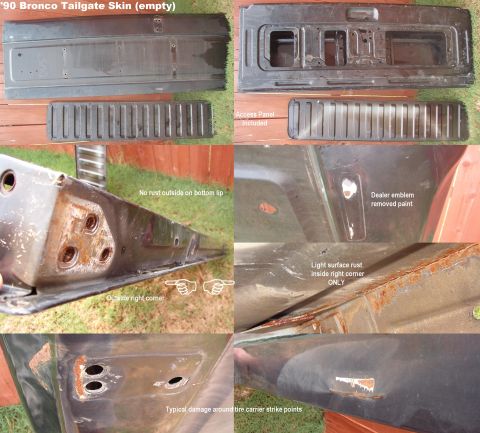

SOLD Empty Bronco Tailgate Shell & Access Panel fits '83-96 Broncos. There are a few other small ch...

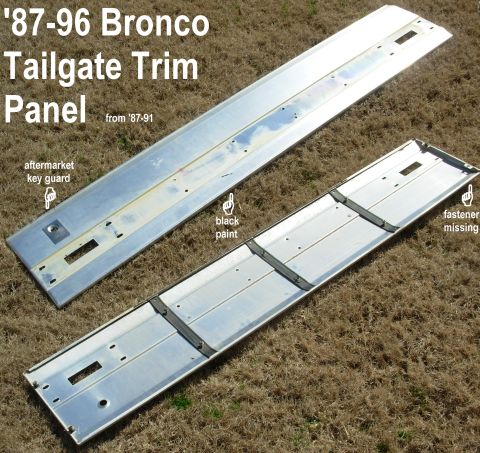

SOLD '87-96 Bronco Tailgate Trim Panel w/o trim strip Black strip (only) w/oval & fasteners F2TZ-98...
Hits: 2662
Size: 114.08 KB
Posted: 2/20/12
SOLD '87-96 Bronco Tailgate Trim Panel w/o trim strip Black strip (only) w/oval & fasteners F2TZ-98...		SOLD Rear Bumper Filler for '80-96 Bronco with step bumper & NO body lift [url=http://www.supermo...
Hits: 2397
Size: 40.64 KB
Posted: 10/26/08

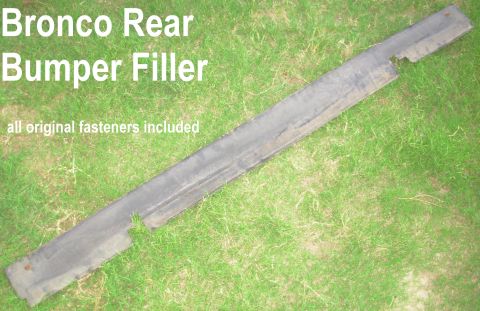

SOLD Rear Bumper Filler for '80-96 Bronco with step bumper & NO body lift [url=http://www.supermo...		SOLD Filler between Bronco tailgate & bumper for stock body height. All original fasteners included...
Hits: 2174
Size: 69.95 KB
Posted: 6/28/11
SOLD Filler between Bronco tailgate & bumper for stock body height. All original fasteners included...		Defrost Circuit '92-96 '87-91 similar http://fordfuelinjection.com/
Hits: 6170
Size: 27.24 KB
Posted: 11/29/04

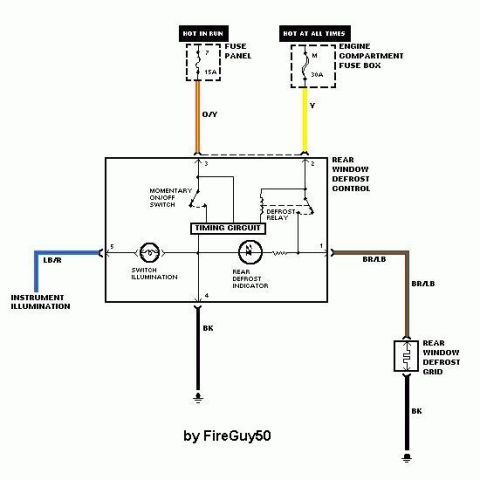

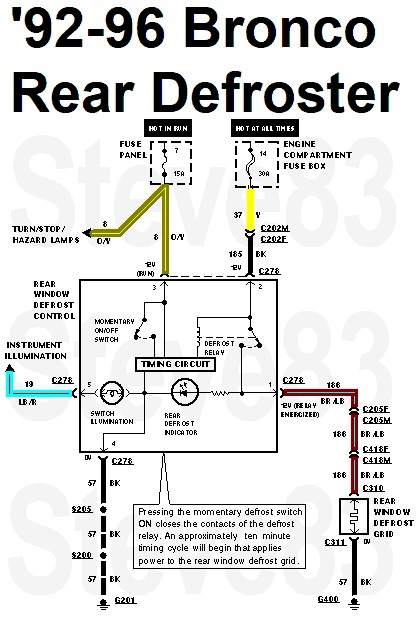

Defrost Circuit '92-96 '87-91 similar http://fordfuelinjection.com/		Pinout for '87-96 Dash Switch CONNECTOR (harness side) for Tailgate Window (Looking into the switch...
Hits: 6046
Size: 36.71 KB
Posted: 4/26/07

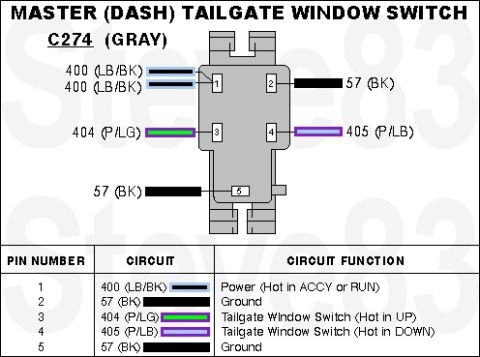

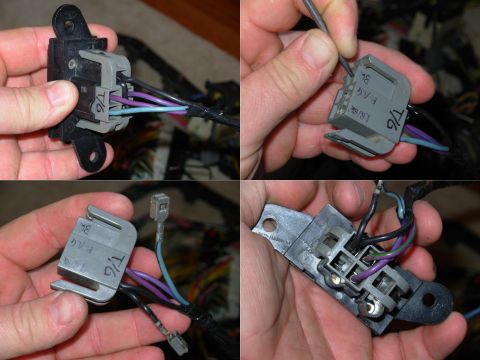

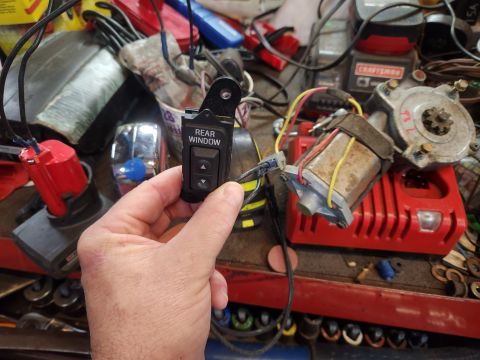

Pinout for '87-96 Dash Switch CONNECTOR (harness side) for Tailgate Window (Looking into the switch...

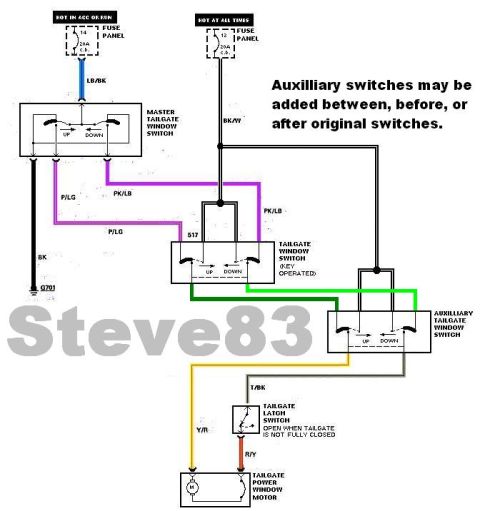

Auxilliary t/g window switch circuit for '78-86 Broncos. This design is fairly simple, but requires...
Hits: 6759
Size: 43.25 KB
Posted: 11/15/06
Auxilliary t/g window switch circuit for '78-86 Broncos. This design is fairly simple, but requires...
About SuperMotors | Contact Us | FAQ/Help | Legal
Copyright © 1998-2024 Web Design Solutions, Inc.
All rights reserved. Duplication & reproduction is strictly prohibited.
SuperMotors.net v5.0.2 ChangeLog
