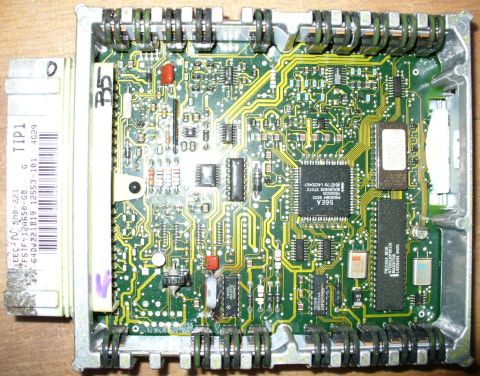

TIP1 EEC.jpg
490 hits | 98.91 KB | Posted: 7/3/17
Very corroded/burnt resistor at bottom left of TIP1 ('95 MAF) EEC that came with the engine...finall...

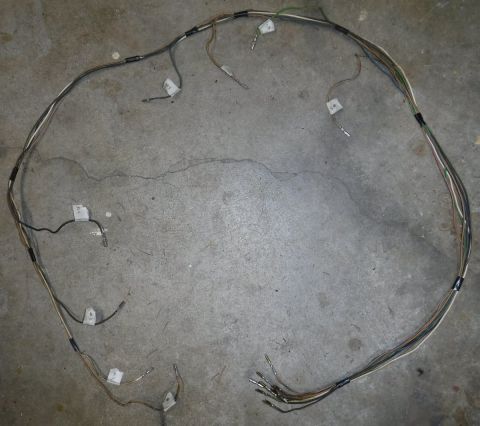

DSCF0378 - 1995 injector overlay harness (MAF).jpg
145 hits | 55.32 KB | Posted: 11/1/18
Injector overlay harness, separated out from the '95 engine harness.

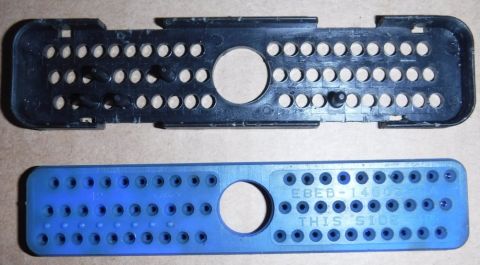

DSCF0423 - MAF conversion, use 95 EEC back cover.jpg
116 hits | 45.78 KB | Posted: 11/7/18
Rather than drill out the PCM's back cover for the new MAF and injector wires, I used the '95 piece ...

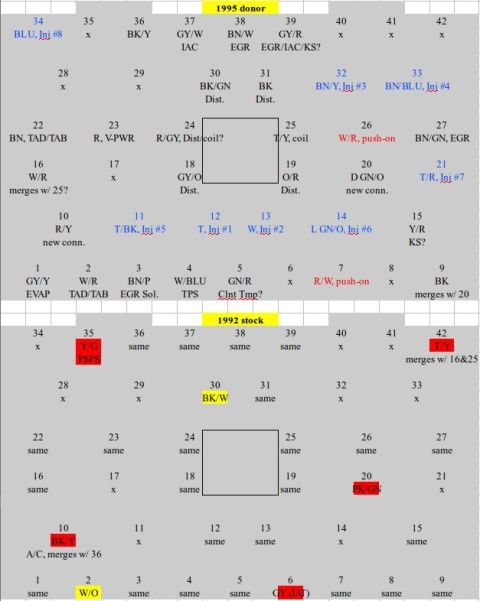

Engine Harness pinouts conversion chart.jpg
171 hits | 39.8 KB | Posted: 11/15/18
My engine harness pinouts crosswalk, for the donor '95 MAF harness and the original '92 SD harness.

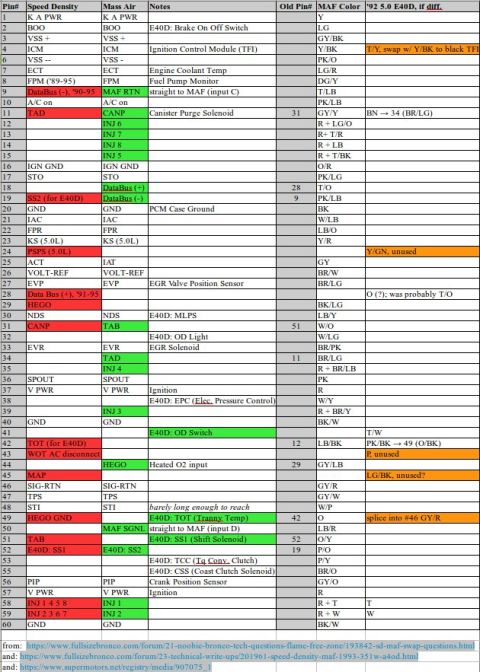

EEC pinouts conversion chart v3.jpg
237 hits | 74.54 KB | Posted: 11/21/18
UPDATED: My EEC pinouts crosswalk reference, combining several sources and my '92 5.0L E40D addition...

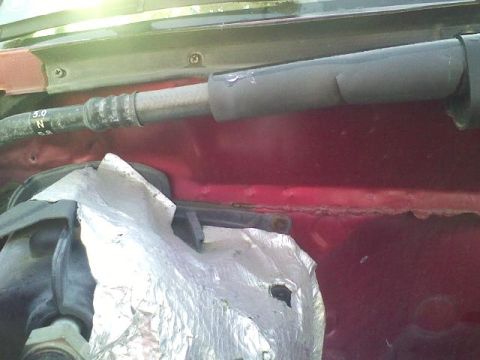

MAF truck, no MAP sensor.jpg
111 hits | 42.49 KB | Posted: 12/5/18
1995 MAF Bronco, no MAP sensor in the usual place.
