82 hits | 89.46 KB | Posted: 7/21/20
On the way to be checked out, it stalled. It had symptoms of being flooded, but didn't blow black sm...

310 hits | 86.51 KB | Posted: 7/21/20
GoRhino 3315MB StepGuard is not installed per ...

95 hits | 83.07 KB | Posted: 7/21/20
The t/g-to-body gap is much wider at the top on this side, suggesting the bedwall is slightly bent o...

78 hits | 130.72 KB | Posted: 7/25/20

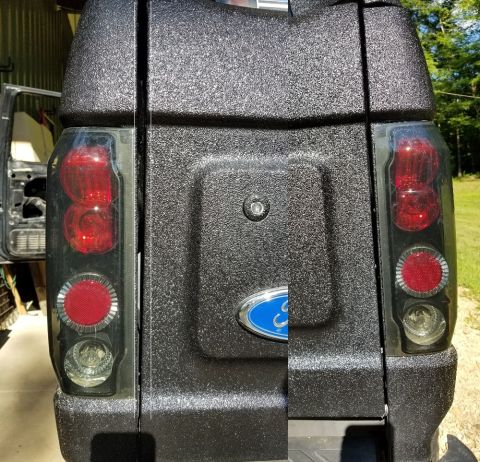

The Left bedwall is bent outboard slightly, causing the t/g gap to taper.

Adjust LHR c-pillar angle...

69 hits | 68.15 KB | Posted: 7/25/20

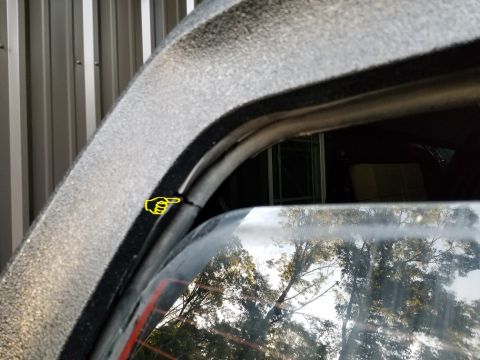

The camper glass run is dry-rotting, but still usable.

[url=https://www.supermotors.net/registry/me...

80 hits | 94.94 KB | Posted: 7/21/20
It is possible to add a Ford roof rack, even though it was never offered from the factory on Broncos...

74 hits | 80.3 KB | Posted: 7/21/20

79 hits | 91.96 KB | Posted: 7/21/20
The bedliner doesn't seem to be there to hide any body damage or problems. Everything seems reasonab...

76 hits | 56.91 KB | Posted: 7/22/20

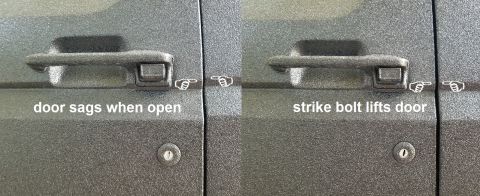

The driver's upper hinge pin has been replaced, but it's still very sloppy. To prevent further damag...

77 hits | 97.93 KB | Posted: 7/21/20

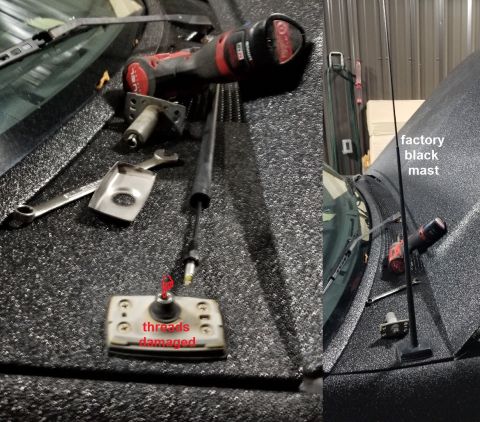

Antenna is missing.

Factory used black antenna w/sleeve $20 [url=https://www.supermotors.net/regist...

81 hits | 88.58 KB | Posted: 7/21/20
GoRhino 3315MB StepGuard is not installed per ...

107 hits | 55.25 KB | Posted: 7/22/20

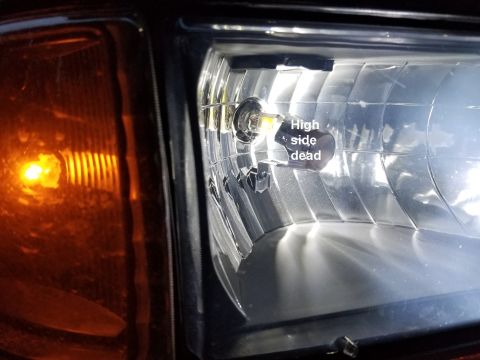

The bright side of the Right LED barely comes on. It needs to be replaced.

[url=https://www.supermo...

80 hits | 60 KB | Posted: 7/21/20
Scuff on front bumper.

111 hits | 46.23 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

80 hits | 51.18 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

84 hits | 49.82 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

85 hits | 60.68 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

76 hits | 60.71 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

84 hits | 61.47 KB | Posted: 7/21/20
The GoRhino 3315MB StepGuard attachments to th...

99 hits | 68.66 KB | Posted: 7/21/20
Vehicle Certification (VC) label - VIN edited.

[url=https://www.supermotors.net/registry/media/7235...

78 hits | 87.76 KB | Posted: 7/21/20
Tire warning label

79 hits | 49.96 KB | Posted: 7/21/20
Engine calibration label

[url=https://www.supermotors.net/registry/media/858380][img]https://www.su...

81 hits | 58.62 KB | Posted: 7/21/20
The rear bumper is slightly dented, but could be straightened.

[url=https://www.supermotors.net/reg...

90 hits | 60.06 KB | Posted: 7/21/20
The dent in the rear bumper hasn't caused a substantial bend.

[url=https://www.supermotors.net/regi...

71 hits | 76.26 KB | Posted: 7/21/20
The tailgate has the typical dent from the swingaway, so all the holes must have been filled before ...

88 hits | 57.36 KB | Posted: 7/26/20

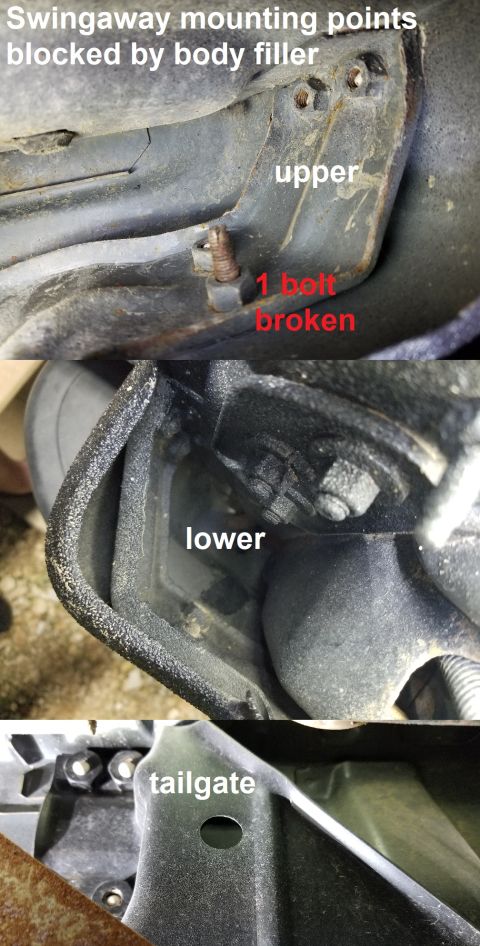

10 of the swingaway nuts are filled; 1 has a broken bolt that would need to be extracted.

71 hits | 75.87 KB | Posted: 7/21/20

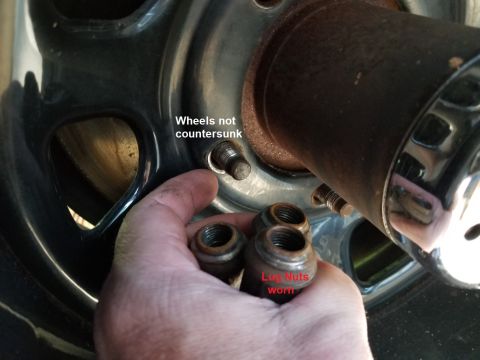

Several of the lug nuts' caps are damaged.

[url=https://www.supermotors.net/registry/media/1161302]...

86 hits | 60.56 KB | Posted: 7/21/20
Load range C is pretty light for a fullsize truck, so it's probably good that it doesn't have a hitc...

75 hits | 70.11 KB | Posted: 7/21/20
All 4 of these MasterCraft Courser MX/T tires was made the 27th week of 2016, so they're a little mo...

75 hits | 77.02 KB | Posted: 7/21/20

67 hits | 72.04 KB | Posted: 7/21/20
Vehicle Emissions Controls Information (VECI) label

[url=https://www.supermotors.net/registry/media...

68 hits | 88.74 KB | Posted: 7/21/20
Jacking instructions label

[url=https://www.supermotors.net/registry/media/831119][img]https://www....

71 hits | 87.8 KB | Posted: 7/21/20
Spark Plug Wire routing label

[url=https://www.supermotors.net/registry/media/470416][img]https://w...

70 hits | 91.98 KB | Posted: 7/21/20
SuperStart 65ECO made June, 2020 (about a month ago) w/650CCA

[url=https://www.supermotors.net/regi...

80 hits | 33.75 KB | Posted: 7/24/20

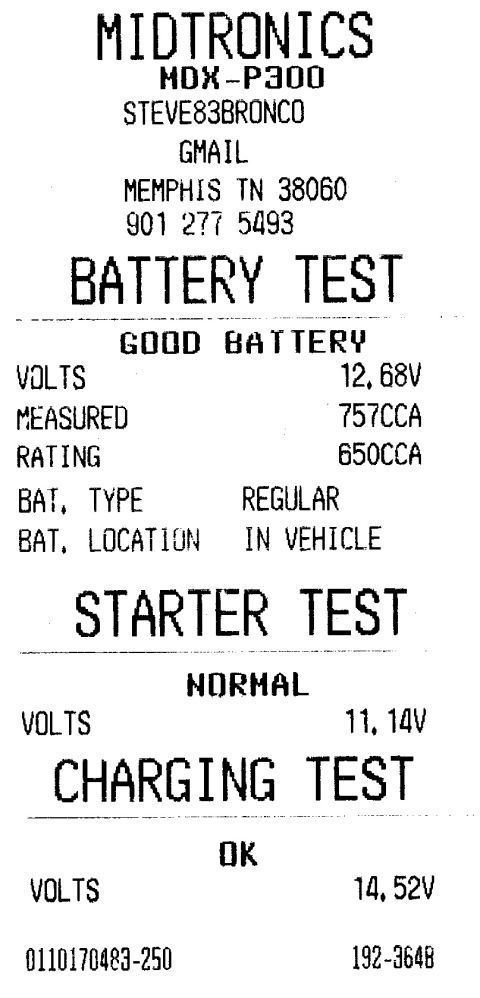

The battery tests good (above its specification), as it should at only 1 month old, even for a cheap...

68 hits | 89.18 KB | Posted: 7/21/20
Battery terminals are garbage, and COULD be the cause of the stall.

[url=https://www.supermotors.ne...

83 hits | 81.71 KB | Posted: 7/22/20

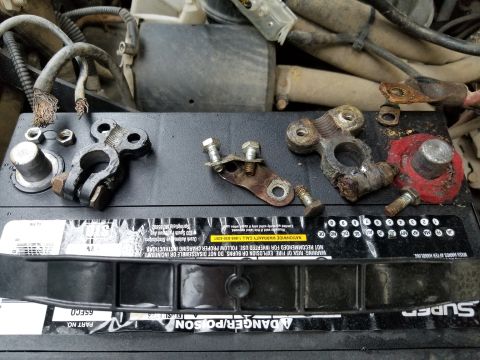

These terminals are garbage, and probably contributed to the stall.

[url=https://www.supermotors.ne...

79 hits | 70.37 KB | Posted: 7/22/20

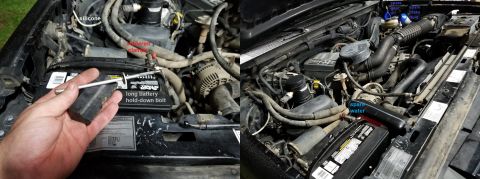

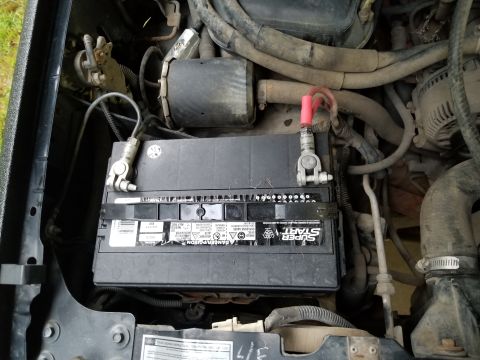

I installed these temporarily to see how they fit & work. I'll solder a set on later. $50 DONE

[url...

78 hits | 76.78 KB | Posted: 7/21/20
95Amp 3G alternator

[url=https://www.supermotors.net/registry/media/1079023][img]https://www.superm...

97 hits | 57.75 KB | Posted: 7/21/20
LED headlight bulbs' fans are exposed & dirty

[url=https://www.supermotors.net/registry/media/11612...

76 hits | 52.99 KB | Posted: 7/21/20
Hood lamp bulb is missing

[url=https://www.supermotors.net/registry/media/82482][img]https://www.su...

76 hits | 69.71 KB | Posted: 7/21/20
I've never seen a DPFE hose twisted this way, but it doesn't look kinked.

[url=https://www.supermot...

70 hits | 89.69 KB | Posted: 7/21/20

230 hits | 84.41 KB | Posted: 7/21/20
Engine code label is too dirty to read; almost too much to see. After rinsing the dirt off, the prin...

70 hits | 78.89 KB | Posted: 7/21/20
The PA is another remnant of the dealer RKE system that was partially removed.

Remove abandoned wir...

72 hits | 78.23 KB | Posted: 7/21/20
This FIPK (hot-air intake) is not installed correctly, and seems to be leaking dust into the engine....

75 hits | 78.53 KB | Posted: 7/21/20
'95 5.0L MAF identification F5UF-12B579-BA (same as '96 5.8L) built 1995 Oct (J) 28th. The venturi w...

94 hits | 101.13 KB | Posted: 7/22/20

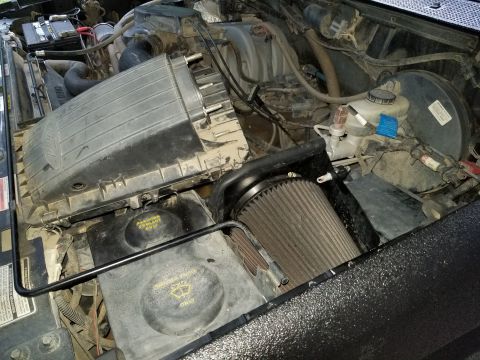

This is the type of box that belongs here. I put its ACT onto this truck, and washed the box later.
...

74 hits | 67.57 KB | Posted: 7/22/20

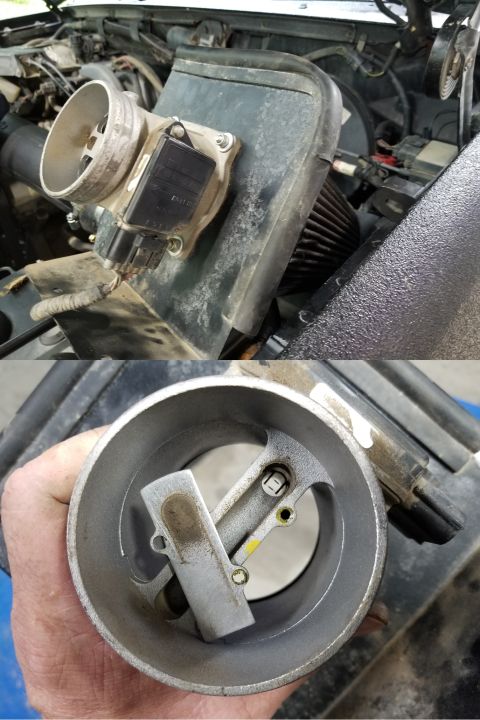

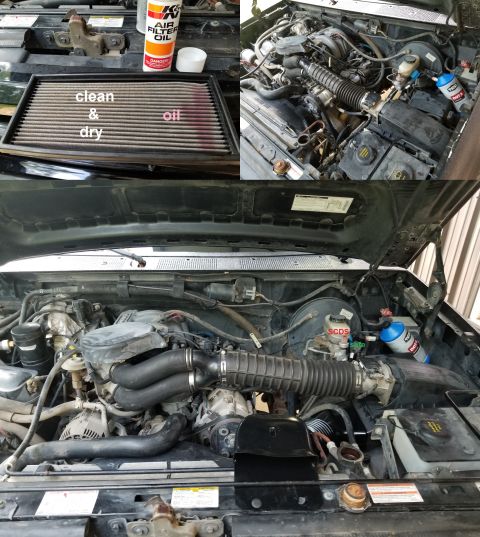

As I suspected, the MAF is filthy - possibly due to excess air filter oil & a leak on the filter. Wh...

76 hits | 65.34 KB | Posted: 7/21/20
Engine wiring harness label

71 hits | 60.17 KB | Posted: 7/21/20

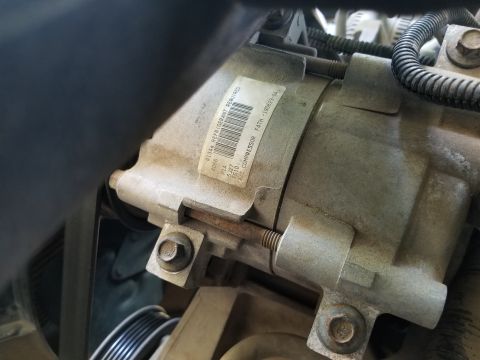

A/C compressor label. There's only ~10psi in the system.

72 hits | 62.4 KB | Posted: 7/22/20

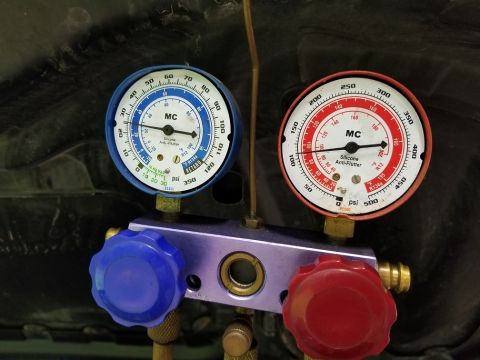

There was only ~10psi in the system. After adding 12oz, the compressor cycles & appears to make good...

74 hits | 82.06 KB | Posted: 7/21/20

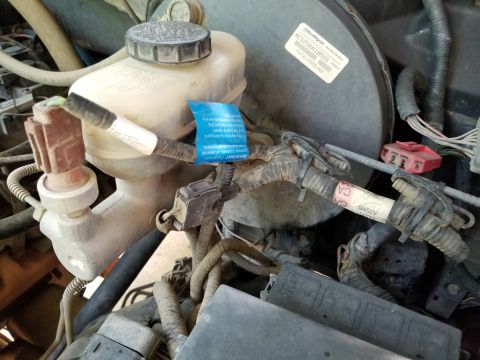

Brake booster label

SCDS recall was begun, but not completed. Call dealership to check for open rec...

75 hits | 74.97 KB | Posted: 7/21/20

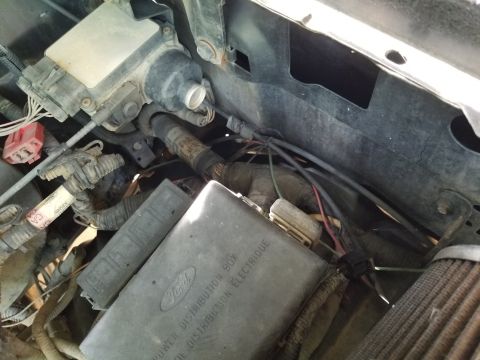

4WABS test connector, cruise servo, & RKE 600Plus wiring

[url=https://www.supermotors.net/registry/...

74 hits | 55.32 KB | Posted: 7/21/20

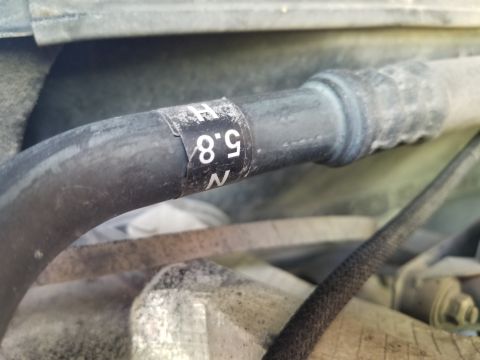

A/C hose assembly label indicates compatibility with both smallblock V8s (5.0L N, 5.8L H)

84 hits | 66.12 KB | Posted: 7/21/20

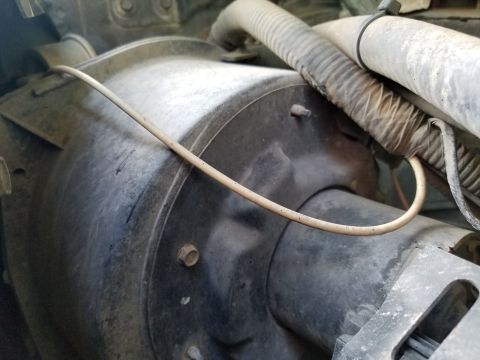

Recirculate vacuum motor (white) line is not visibly degraded (yet), but could still be cracked & le...

102 hits | 65.17 KB | Posted: 7/25/20

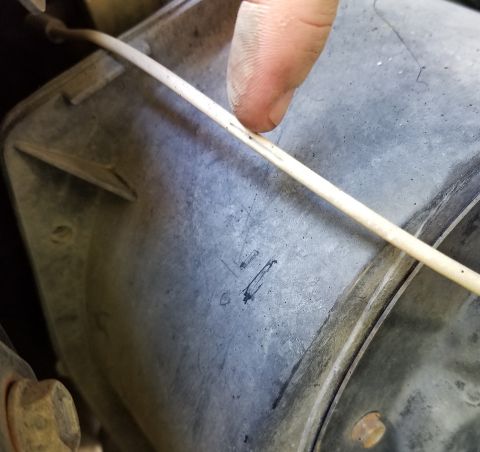

This just broke out when I moved the tube, so it certainly needs to be replaced now.

72 hits | 61.68 KB | Posted: 7/21/20

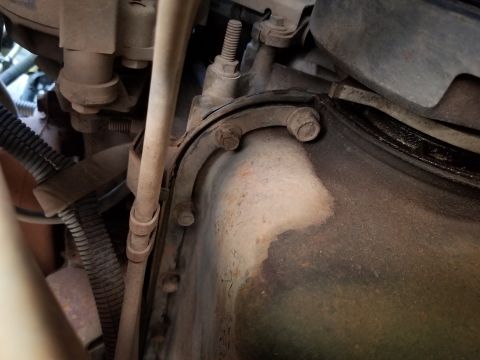

Oil pan is surprisingly dry, but both engine mounts are broken.

R&R engine or transmission mount (e...

68 hits | 69.41 KB | Posted: 7/21/20

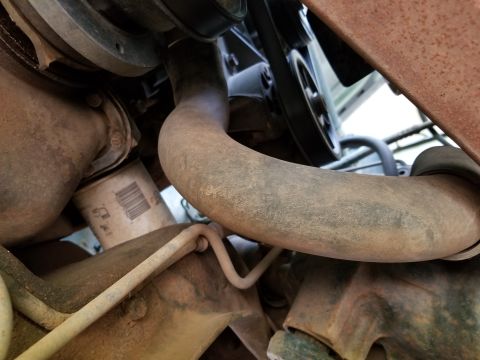

Oil pan, oil filter, & steering pump are surprisingly dry. Engine oil, PSF, ATF levels correct. Refr...

70 hits | 57.37 KB | Posted: 7/21/20

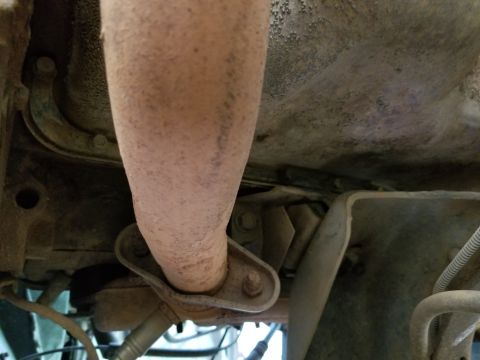

Left engine mount broken (as usual) & Y-pipe has been cut off & welded back together in 3 places

R&...

66 hits | 67.77 KB | Posted: 7/21/20

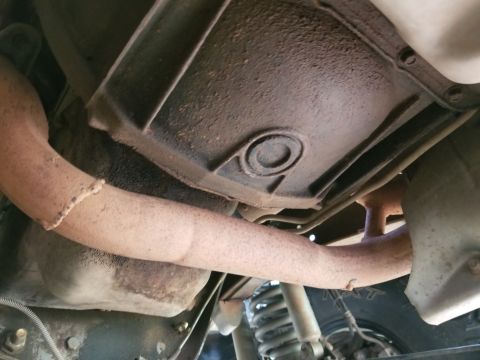

Y-pipe has been cut off & welded back together in 3 places

Oil pan is surprisingly dry. Engine oil,...

78 hits | 56.49 KB | Posted: 7/21/20

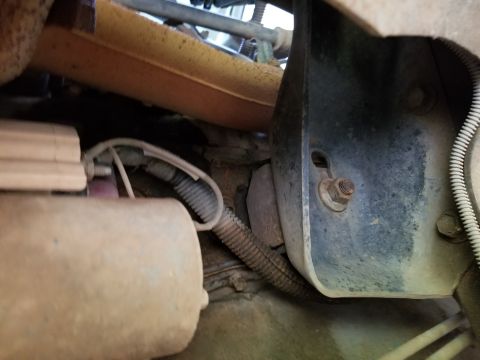

Right engine mount broken (as usual)

R&R engine or transmission mount (each) $50 [url=https://www.s...

69 hits | 72.64 KB | Posted: 7/21/20

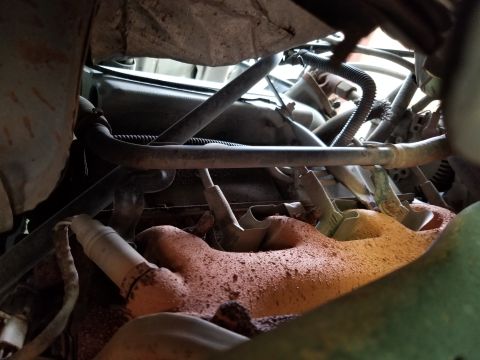

Secondary air system appears to be intact & working

74 hits | 70.1 KB | Posted: 7/21/20

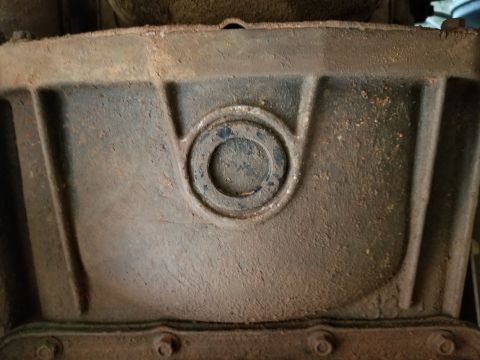

No apparent engine or trans leaks. Engine oil, PSF, ATF levels correct. Refrigerant empty & coolant ...

60 hits | 79.64 KB | Posted: 7/21/20

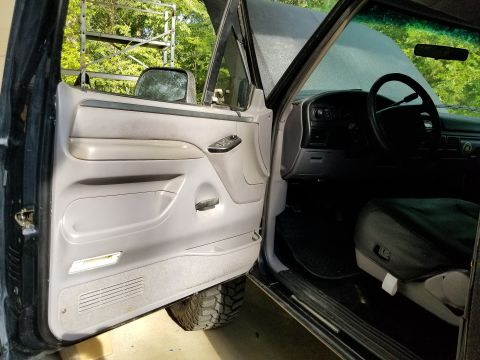

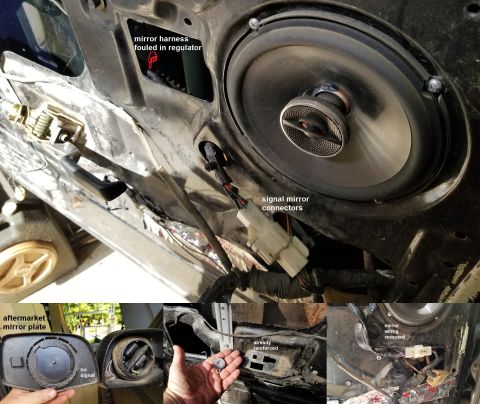

The switch bezel was glued to the door panel.

Install StepShields $50 (requires remove unused step ...

73 hits | 63.79 KB | Posted: 7/21/20

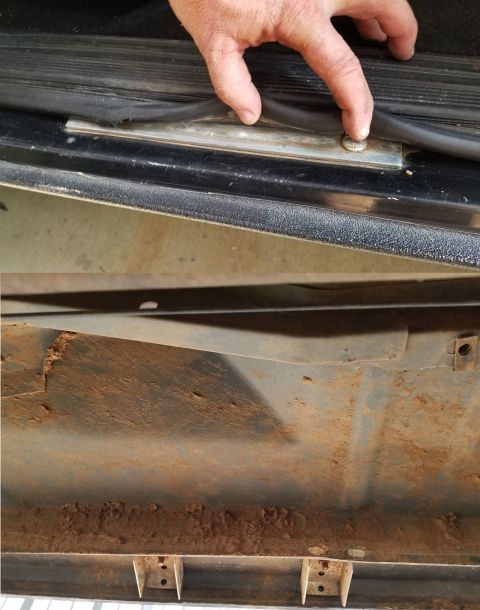

It's common for these bolts to damage the wiring, but these seem to have been installed without doin...

74 hits | 49.64 KB | Posted: 7/21/20

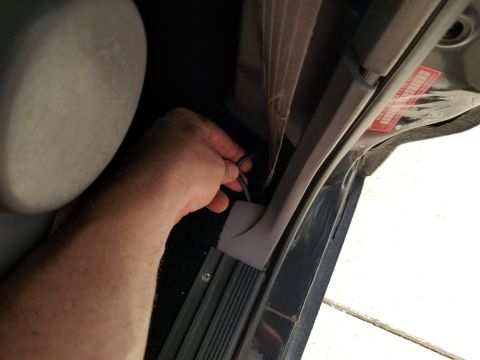

Possibly a remnant of the amplifier.

Remove abandoned wiring & repair damage: $60/hr clock time

70 hits | 60.08 KB | Posted: 7/21/20

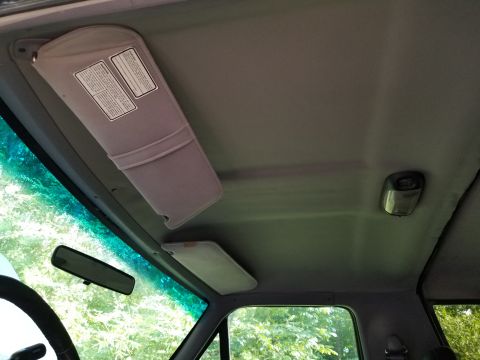

The dome lamp doesn't work because it's installed backward. A visor hook was also missing. $0 DONE

73 hits | 59.31 KB | Posted: 7/25/20

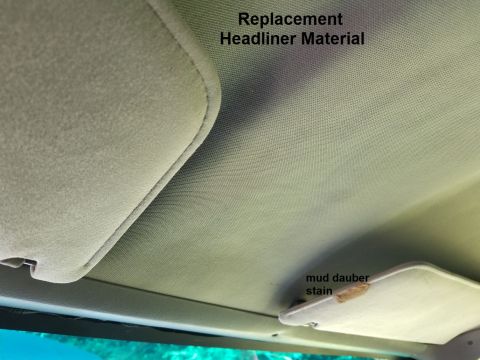

Front headliner has been re-covered in some other material, and the truck was apparently parked for ...

71 hits | 61.01 KB | Posted: 7/22/20

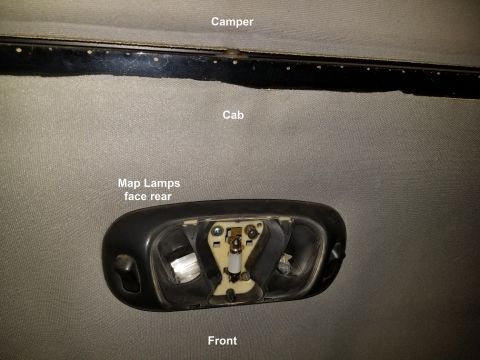

No wonder the dome didn't work. I spun it & washed the lens. $0 DONE

The dome bulb is a milky LED, ...

64 hits | 44.12 KB | Posted: 7/21/20

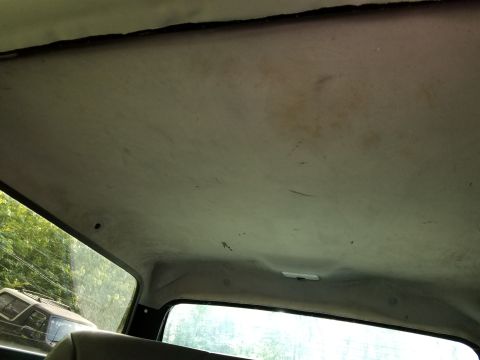

The rear headliner is beginning to fall, and the dome lamp doesn't work.

Supply & install new rear ...

70 hits | 65.68 KB | Posted: 7/21/20

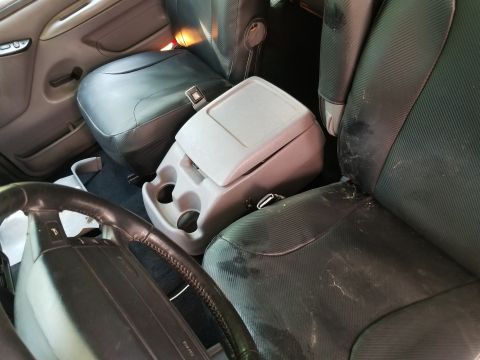

The floor console is not attached, and the seat covers are hiding some leather damage.

Find console...

80 hits | 64.83 KB | Posted: 7/25/20

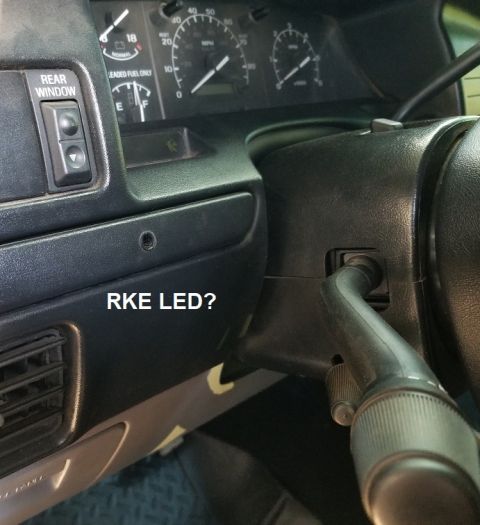

Another remnant of the (missing) RKE system. Remove abandoned wiring & repair damage: $60/hr clock t...

74 hits | 56.73 KB | Posted: 7/21/20

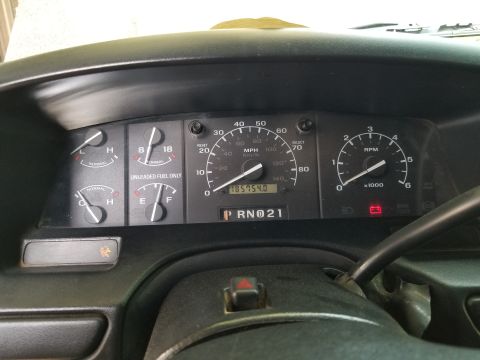

185,754 miles. The brake warning light does not come on for the e-brake (dirty contact), and the CEL...

73 hits | 65.22 KB | Posted: 7/25/20

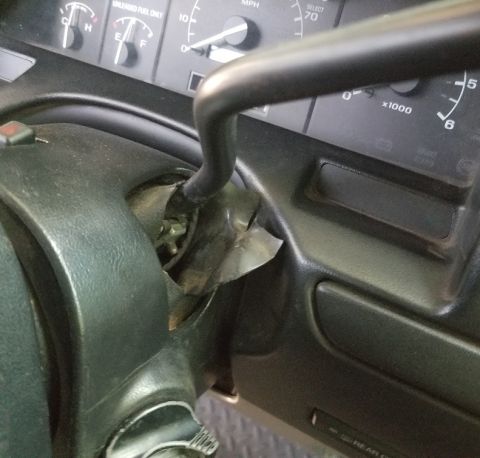

The shifter bushings have normal wear, but the clamp & lever screws are not loose.

Supply & install...

76 hits | 54.26 KB | Posted: 7/21/20

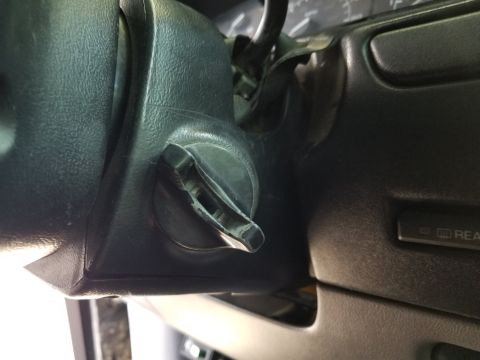

As usual, the lock cylinder bezel is loose. Apparently, this was among the last trucks to get the ol...

71 hits | 76.18 KB | Posted: 7/25/20

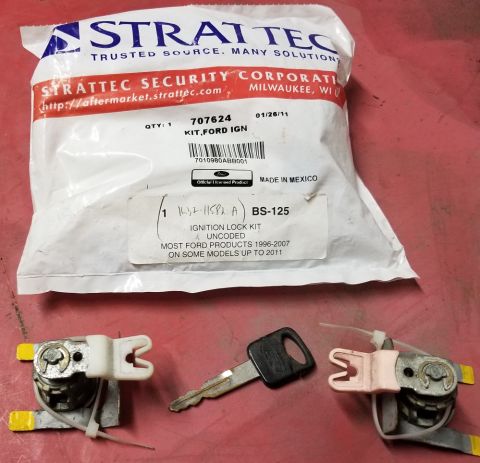

New OEM '96-04 ignition lock cyl. will be coded to the used key for 2 matched used door lock cylinde...

77 hits | 63.03 KB | Posted: 7/21/20

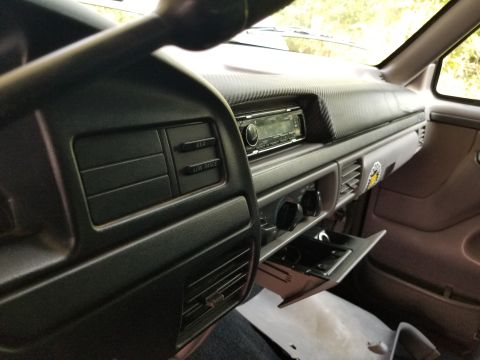

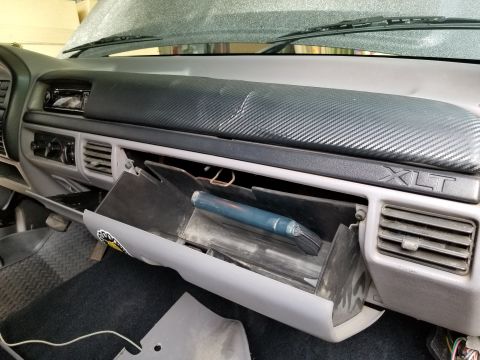

The dash pad cover is hiding a crack.

[url=https://www.supermotors.net/registry/media/760981][img]h...

91 hits | 58.1 KB | Posted: 7/22/20

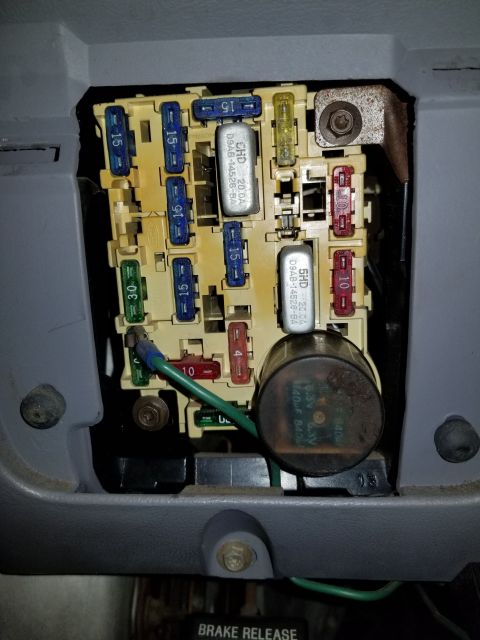

The green wire & switch for the (missing) KC lights have been removed. Some of the fuses were the wr...

81 hits | 72.05 KB | Posted: 7/22/20

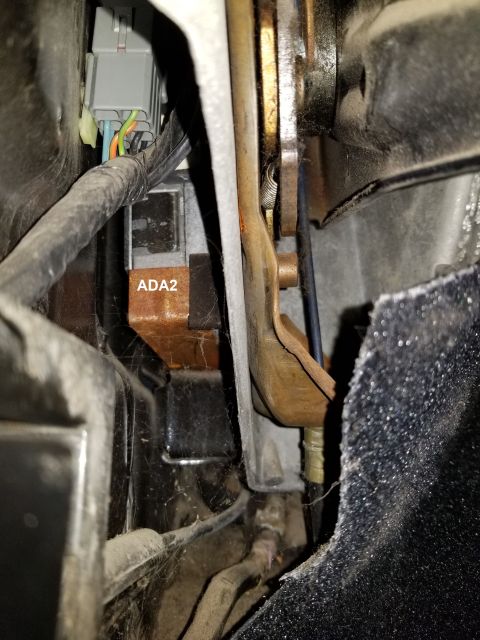

The PCM calibration code is ADA2, but it's not visible past the connector for the visors, RV mirror,...

59 hits | 72.13 KB | Posted: 7/21/20

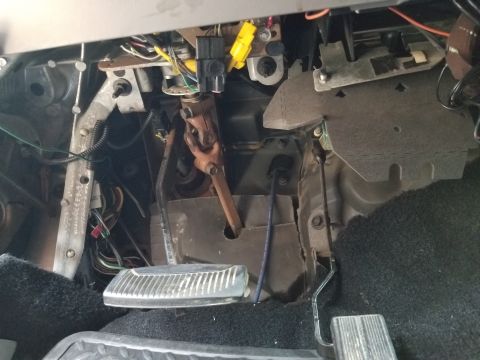

There are some old spliced & wiring, possibly related to the (missing) RKE system. Remove abandoned ...

58 hits | 59.44 KB | Posted: 7/21/20

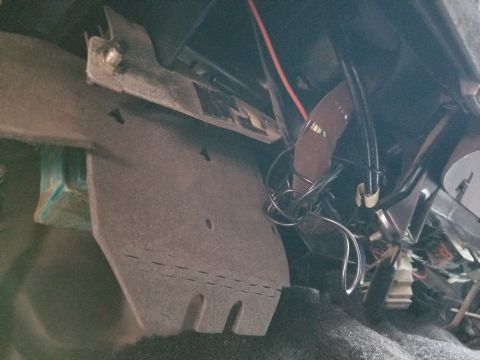

The pushbutton switch through the steel bracket & wad of wire are remnants of the RKE 600Plus system...

81 hits | 52.08 KB | Posted: 7/21/20

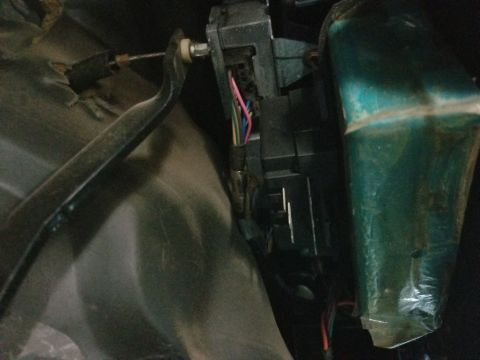

The chime has been disconnected, and it doesn't seem to work when I re-connected it.

[url=https://w...

66 hits | 65.42 KB | Posted: 7/21/20

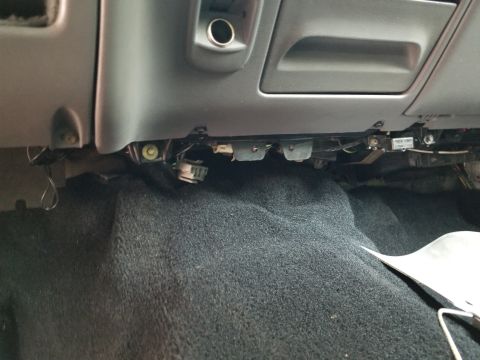

Chime, brake controller, & DLC connectors. The wad of wire is a remnant of the RKE 600Plus system.

...

84 hits | 75.93 KB | Posted: 7/22/20

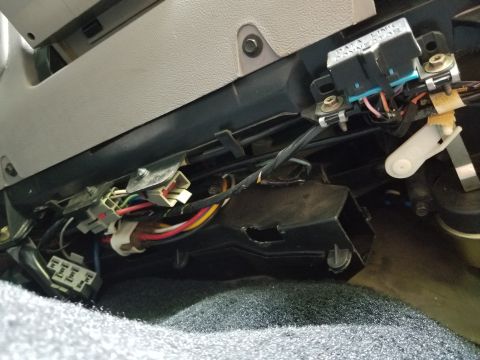

Chime, brake controller, UI, & DLC connectors. The vacuum motor moves the panel/other diverter door....

74 hits | 88.55 KB | Posted: 7/22/20

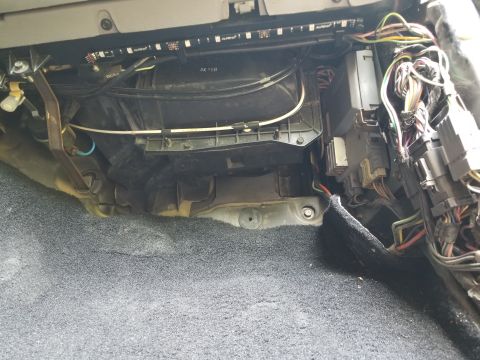

The courtesy LED strip doesn't seem to work. I can't see any wires connected to it.

Remove abandone...

68 hits | 82.81 KB | Posted: 7/22/20

74 hits | 84.75 KB | Posted: 7/21/20
The dash pad cover is hiding a crack.

[url=https://www.supermotors.net/registry/media/760981][img]h...

76 hits | 74.52 KB | Posted: 7/21/20
I had never seen the RKE system manual before. It's a dealer-installed system, but the remote was no...

67 hits | 77.47 KB | Posted: 7/21/20

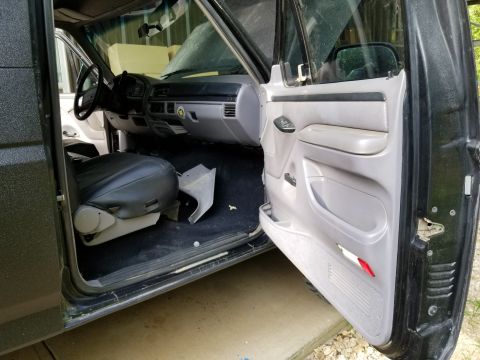

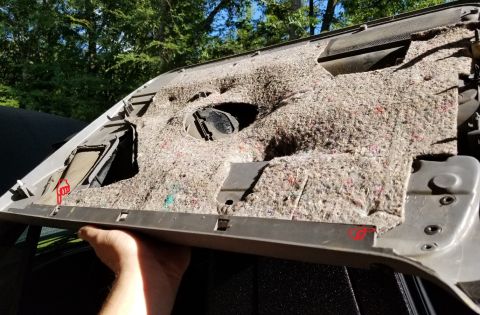

The inner weatherbelt is missing from the door panel.

Install inner weatherbelt $15 (while door pan...

65 hits | 67.8 KB | Posted: 7/21/20

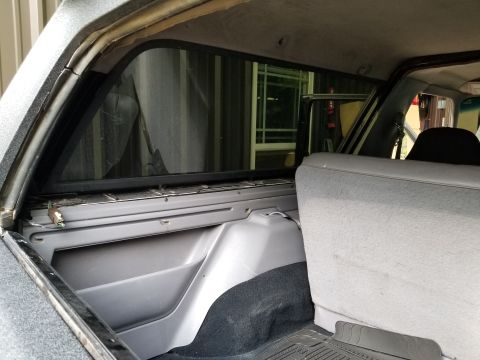

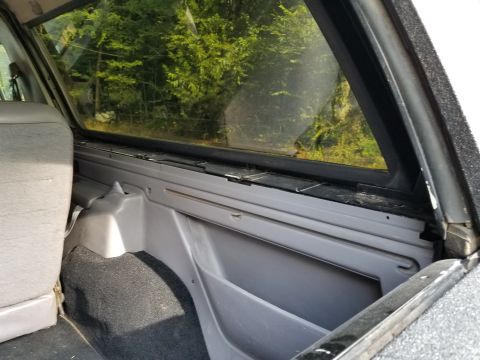

There are 2 bolts and the CHMSL connector holding the camper on. The trim is missing.

[url=https://...

81 hits | 76.62 KB | Posted: 7/21/20
There are 2 bolts and the CHMSL connector holding the camper on. The trim is missing.

[url=https://...

74 hits | 73.79 KB | Posted: 7/25/20

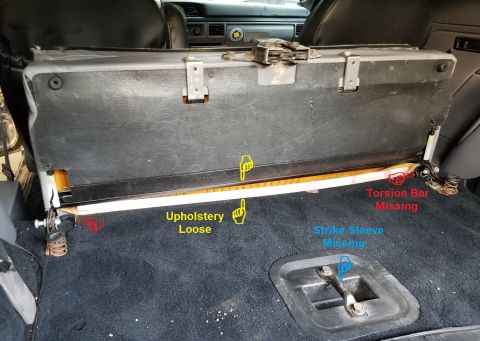

The rear seat's upholstery is loose (as usual); the torsion bar is mission; and (as usual), the stri...

84 hits | 89.42 KB | Posted: 7/21/20

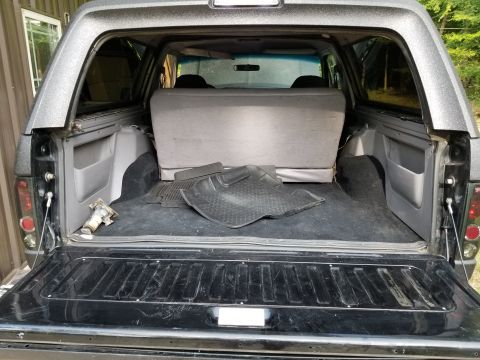

Tailgate carpet & outer weatherbelt are missing, and handle mechanism is bent.

Add 1-touch window (...

69 hits | 92.9 KB | Posted: 7/21/20

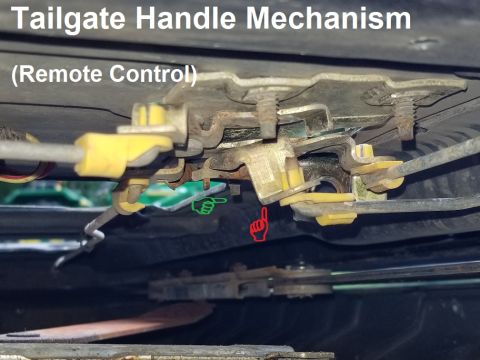

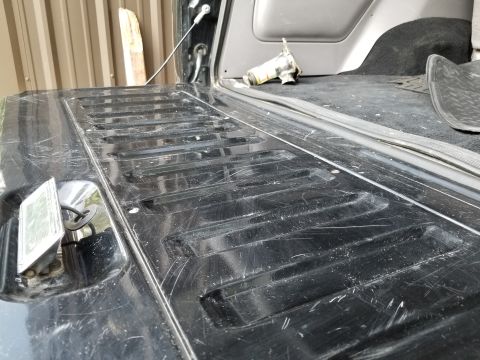

As usual, the t/g handle stays up because the mechanism is bent.

R&I repair handle mechanism $40 [u...

65 hits | 56.32 KB | Posted: 7/21/20

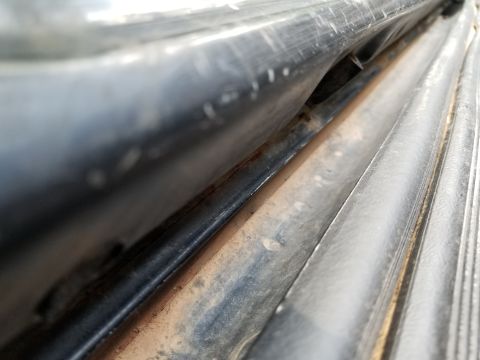

Very little rust near the Right t/g hinge

68 hits | 49.95 KB | Posted: 7/26/20

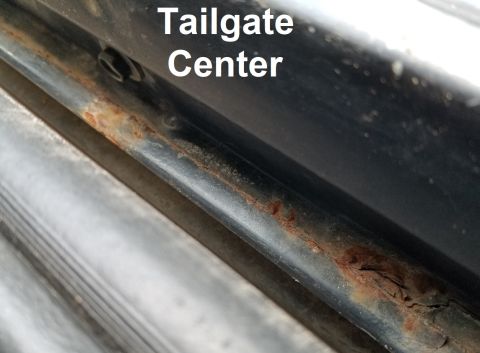

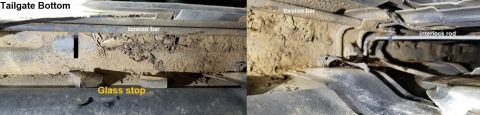

The t/g is rusted much more-heavily near the center because of the missing outer weatherbelt allowin...

74 hits | 67.55 KB | Posted: 7/21/20

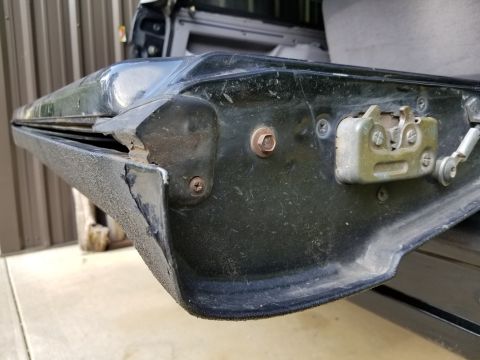

The right side of the tailgate is not cracked - probably because the swingaway was deleted.

[url=ht...

63 hits | 65.34 KB | Posted: 7/25/20

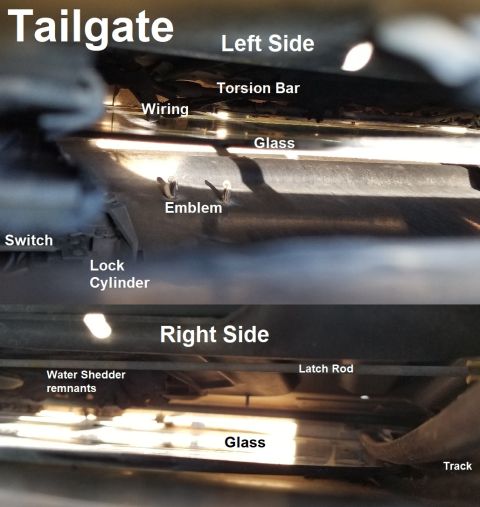

Tailgate Inside

The original paper water shedder (which was never installed correctly at the factor...

94 hits | 36.09 KB | Posted: 7/26/20
The bottom of the t/g has collected more mud than usual - probably because the outer weatherbelt is ...

68 hits | 63.87 KB | Posted: 7/26/20
This mechanism is severely bent.

81 hits | 74.63 KB | Posted: 7/26/20
The bend in the plastic rear bumper filler, and the gap between the bumper & quarter panel, suggest ...

87 hits | 70.99 KB | Posted: 7/26/20

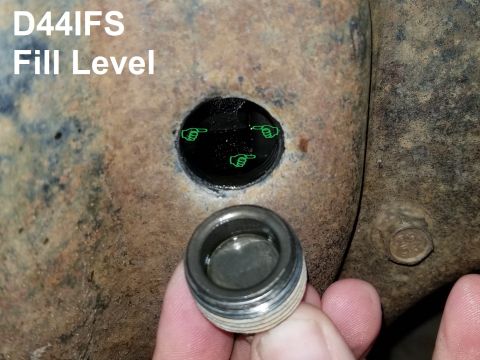

The front diff is full, and appears UN-contaminated. This oil is not on the normal or severe-duty ma...

68 hits | 61.97 KB | Posted: 7/26/20

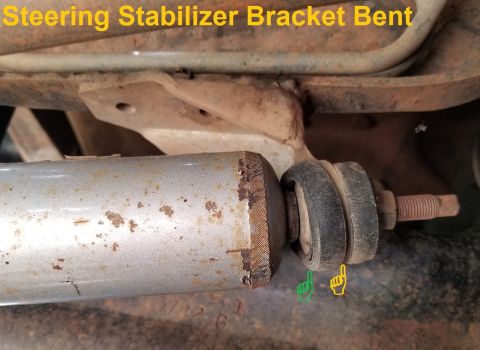

The steering stabilizer bracket is welded instead of bolted to the frame, and appears bent. But it's...

66 hits | 81.29 KB | Posted: 7/21/20

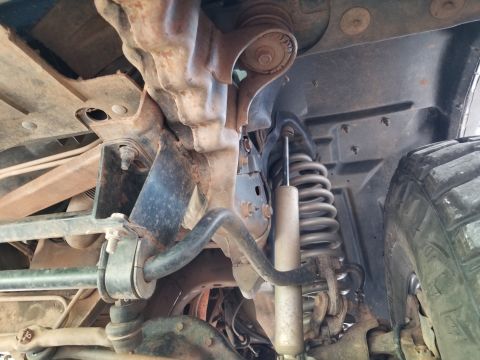

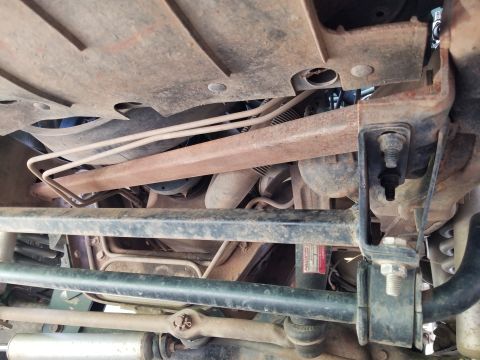

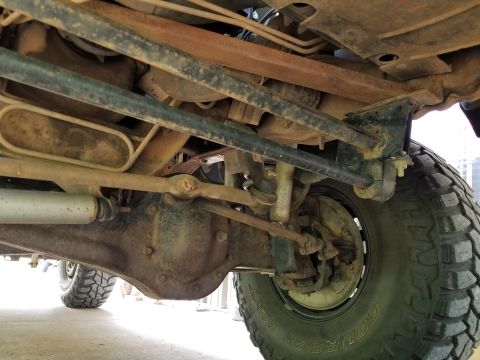

The drop pitman arm, shocks, & steering damper are from Rough Country. There's a bunch of steel boog...

81 hits | 78.27 KB | Posted: 7/21/20
The drop pitman arm, shocks, & steering damper are from Rough Country. There's a bunch of steel boog...

71 hits | 87.33 KB | Posted: 7/21/20
The drop pitman arm, shocks, & steering damper are from Rough Country. There's a bunch of steel boog...

79 hits | 69.79 KB | Posted: 7/21/20

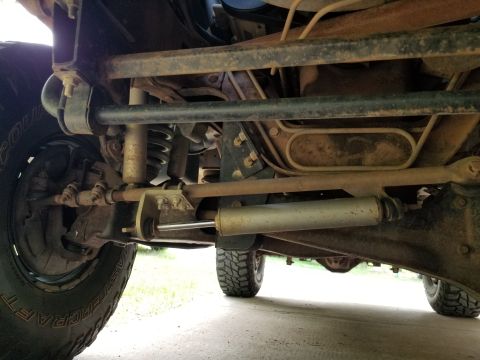

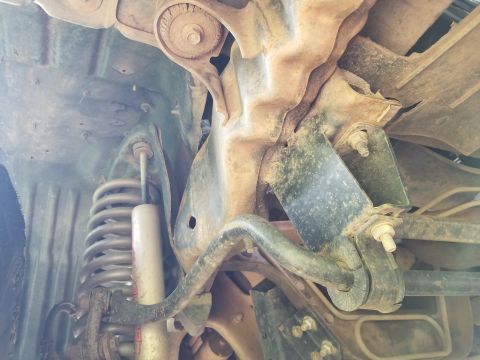

There's a bunch of steel booger-welded on for the steering & suspension mods. The lift bolts appear ...

68 hits | 75.28 KB | Posted: 7/21/20
There's a bunch of steel booger-welded on for the steering & suspension mods. The lift bolts appear ...

69 hits | 64.7 KB | Posted: 7/21/20

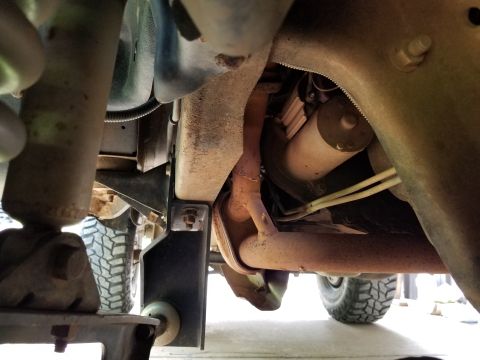

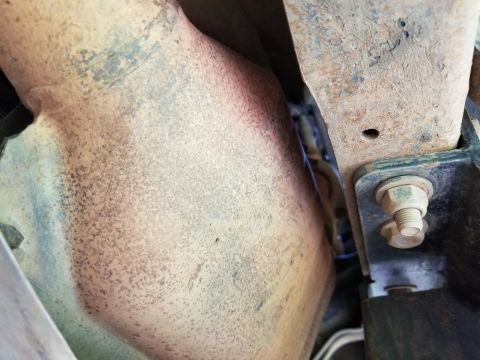

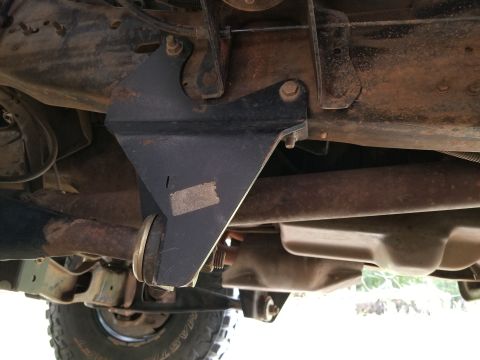

The lift bolts appear to be holding tight, but they will need to be checked regularly.

[url=https:/...

73 hits | 60.92 KB | Posted: 7/21/20
The lift bolts appear to be holding tight, but they will need to be checked regularly.

[url=https:/...

69 hits | 78.54 KB | Posted: 7/21/20
The lift bolts appear to be holding tight, but they will need to be checked regularly.

[url=https:/...

73 hits | 69.93 KB | Posted: 7/21/20

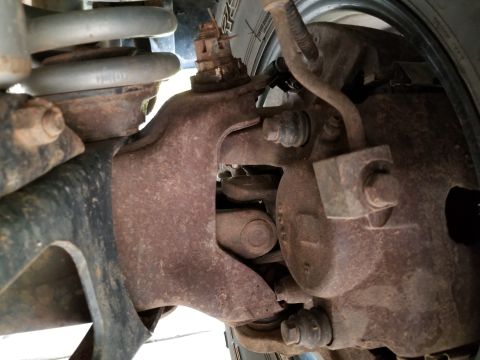

Both sides have adjustable camber cams, making alignments easier & cheaper. All 4 ball joints have b...

69 hits | 66.99 KB | Posted: 7/21/20

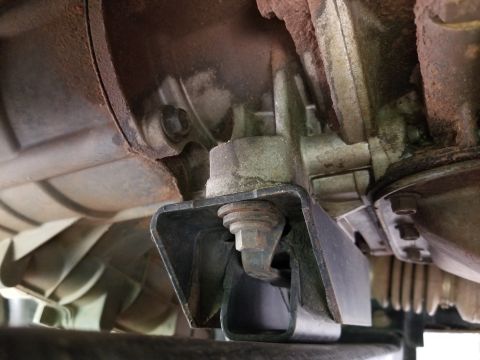

Transmission mount looks OK. 2.25"

R&R engine or transmission mount (each) $50 [url=https://ww...

69 hits | 78.6 KB | Posted: 7/21/20

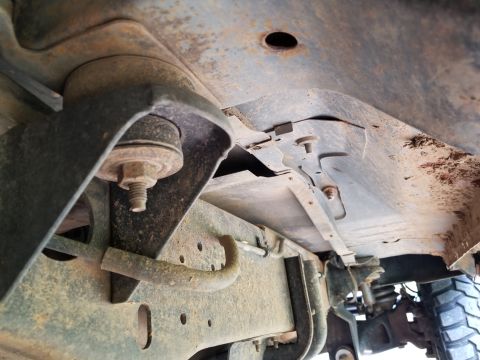

The U-nuts on the body rail say that this truck came with cab steps.

[url=https://www.supermotors.n...

85 hits | 90.89 KB | Posted: 7/21/20

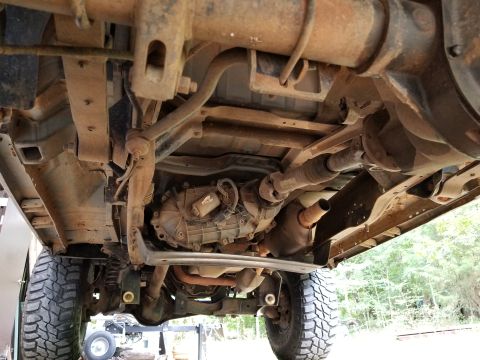

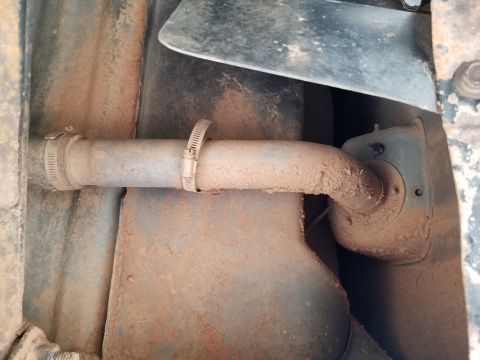

The butchered exhaust isn't healthy, but it's not cooking anything.
IF THE IMAGE IS TOO SMALL, click...

76 hits | 64.6 KB | Posted: 7/26/20

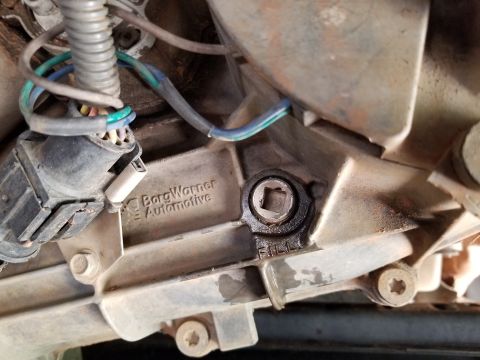

The transfer case appears to be slightly over-full & clean.

I did not attempt to assess the pump st...

71 hits | 70.88 KB | Posted: 7/21/20

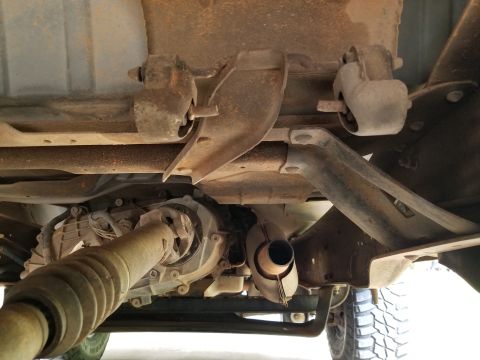

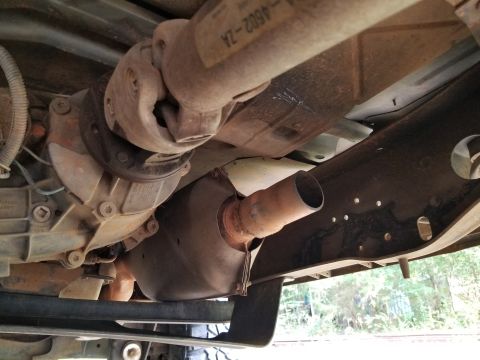

All 3 HEGOs appear to be intact, but the downstream is hard to see between the cats.
IF THE IMAGE IS...

61 hits | 78.52 KB | Posted: 7/21/20

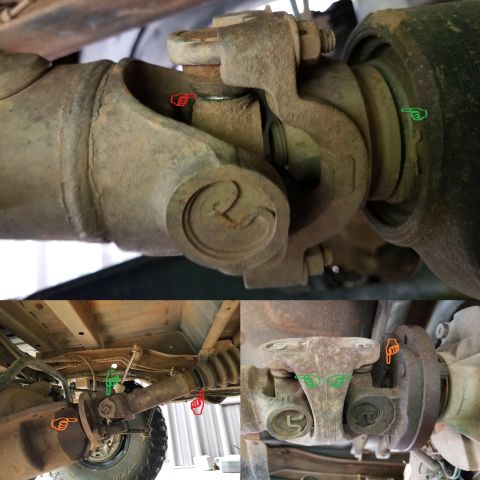

The front d'shaft front U-joint (Spicer 57438X) is badly worn, but the others seem OK. The rear d'sh...

78 hits | 59.77 KB | Posted: 7/21/20

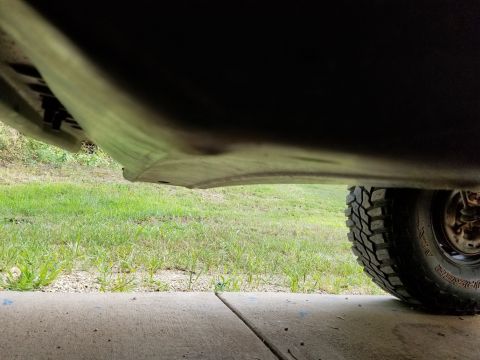

The transfer case skidplate has the typical arch, but it's not causing any problems.

74 hits | 73.63 KB | Posted: 7/21/20

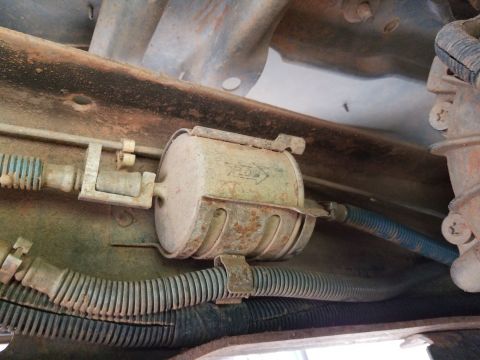

Fuel filter has some miles, but there's no indication of any problem with it. Normal service interva...

80 hits | 90 KB | Posted: 7/21/20

118 hits | 86.86 KB | Posted: 7/26/20

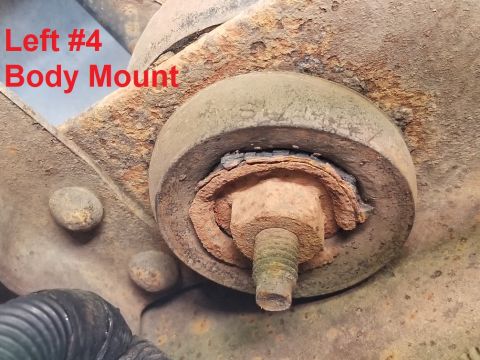

This body mount's lower shell is severely rusted, and there's some heavy rust on top of the frame.
I...

95 hits | 67.61 KB | Posted: 7/21/20

69 hits | 72.58 KB | Posted: 7/21/20

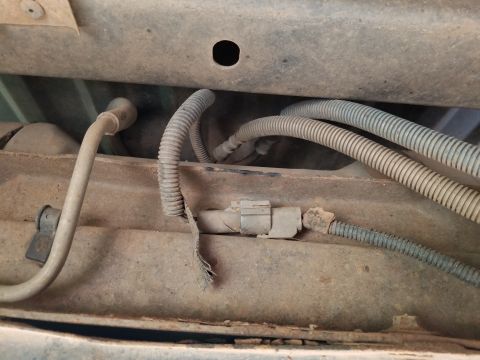

The fuel pump & level sender seem to be working well.

Supply & install fuel pump access panel $100 ...

79 hits | 66.22 KB | Posted: 7/21/20

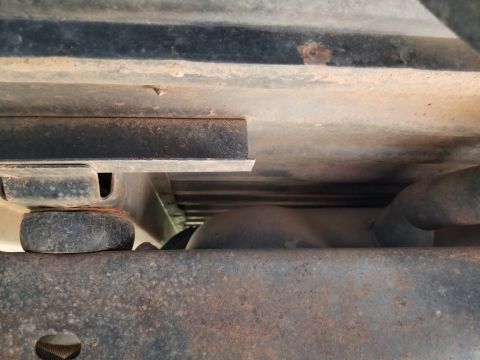

Left 4th body mount upper shell is also severely rusted.

75 hits | 81.8 KB | Posted: 7/21/20

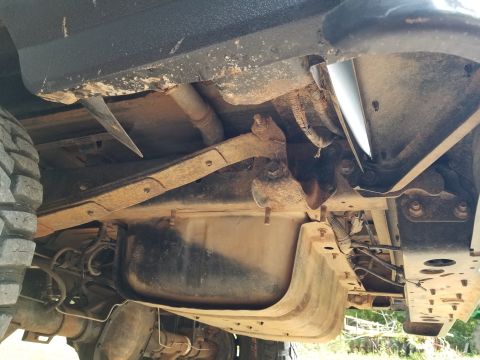

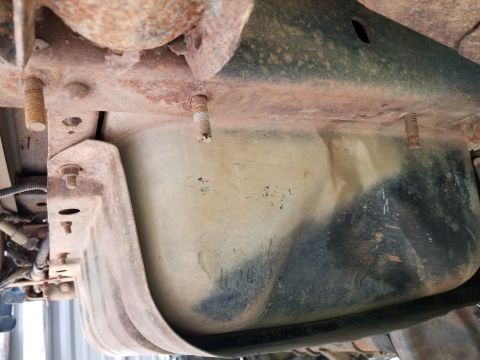

The frame is slightly bent where the receiver used to be bolted beside the gas tank.

65 hits | 73 KB | Posted: 7/21/20
The frame is slightly bent where the receiver used to be bolted beside the gas tank.

71 hits | 68.64 KB | Posted: 7/21/20
All 3 HEGOs appear to be intact, but the downstream is hard to see between the cats.

[url=https://w...

73 hits | 70.83 KB | Posted: 7/21/20

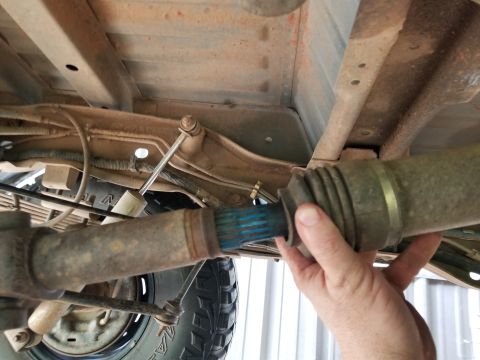

The rear d'shaft has been hyperextended by the lift, so there's dirt in the splines.

R&I rear drive...

62 hits | 66.13 KB | Posted: 7/21/20

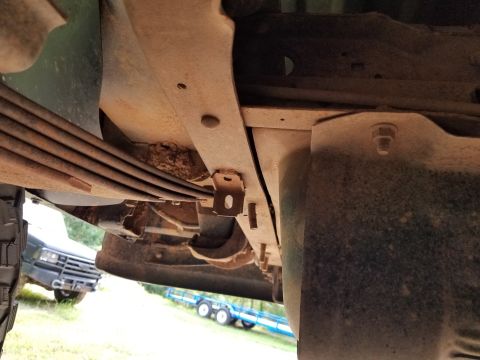

There's some minor frame damage where the hitch receiver was, and an extra tab welded to the frame (...

62 hits | 64.28 KB | Posted: 7/21/20

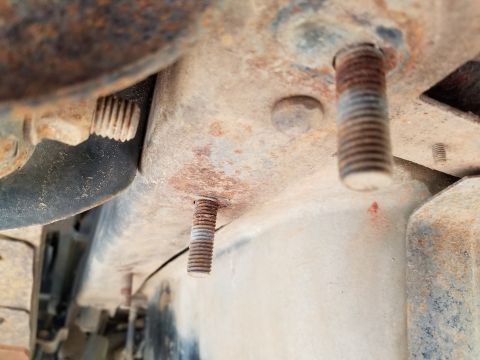

There's some minor frame damage where the hitch receiver was.

72 hits | 52.78 KB | Posted: 7/21/20

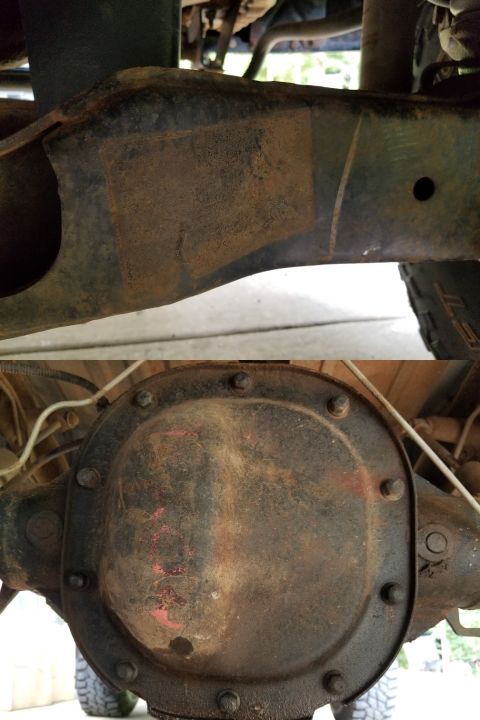

Both axle tags are missing, and the rear looks to have junkyard markings.

[url=https://www.supermot...

63 hits | 42.95 KB | Posted: 7/21/20

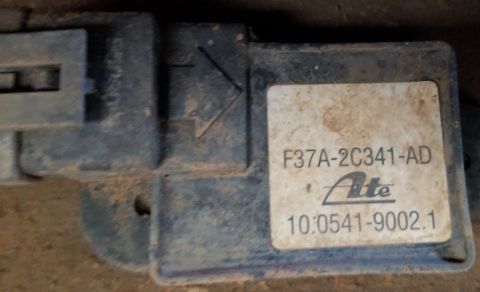

4WABS Accelerometer label.

78 hits | 32.93 KB | Posted: 7/21/20

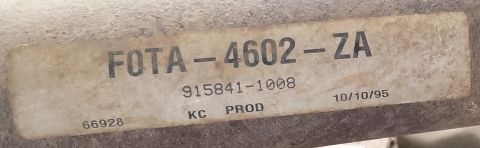

Rear d'shaft label

71 hits | 45.92 KB | Posted: 7/21/20

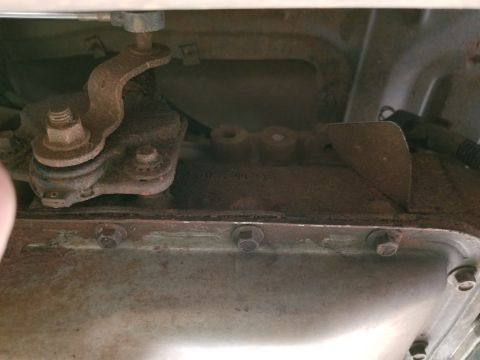

E4OD tag is too dirty to read

71 hits | 52.25 KB | Posted: 7/21/20

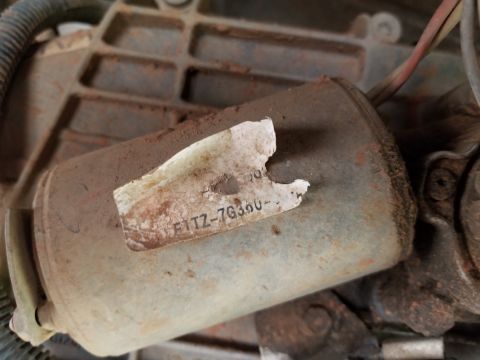

ESOF motor label is degraded

70 hits | 68.11 KB | Posted: 7/21/20

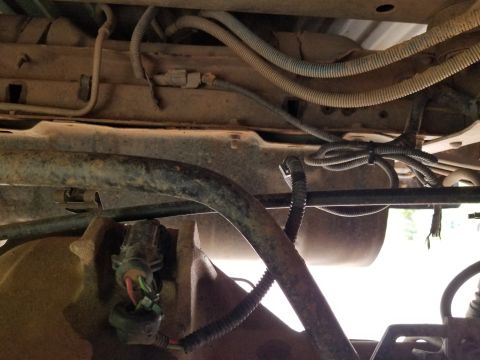

The RABS connector has been zip-tied through the wiring, displacing its rubber boot.
IF THE IMAGE IS...

80 hits | 70.11 KB | Posted: 7/21/20
The left e-brake cable is slightly kinked at the backing plate. It does not seem to move enough for ...

77 hits | 73.76 KB | Posted: 7/21/20

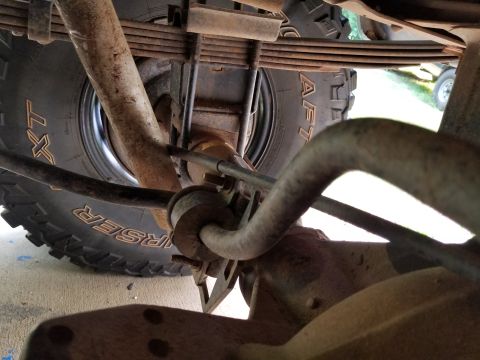

Because of the lift, the right e-brake cable doesn't reach the clip on top of the diff. But it stil...

71 hits | 77.21 KB | Posted: 7/21/20

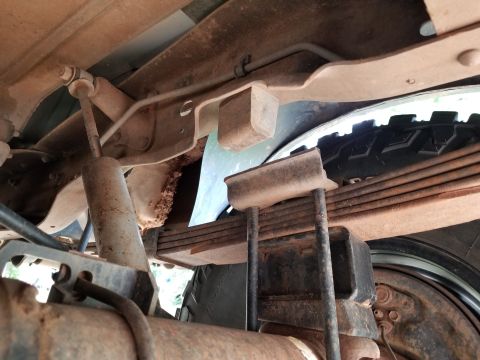

The rear blocks are ~3.5" tall, so the lift is probably a [url=https://www.roughcountry.com/for...

79 hits | 69.24 KB | Posted: 7/21/20

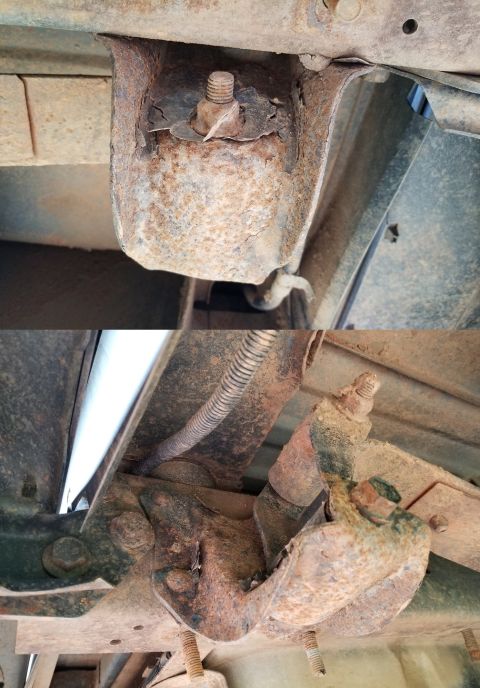

The rear spring hangers are getting thin.
IF THE IMAGE IS TOO SMALL, click it.

[url=https://www.sup...

64 hits | 63.66 KB | Posted: 7/21/20

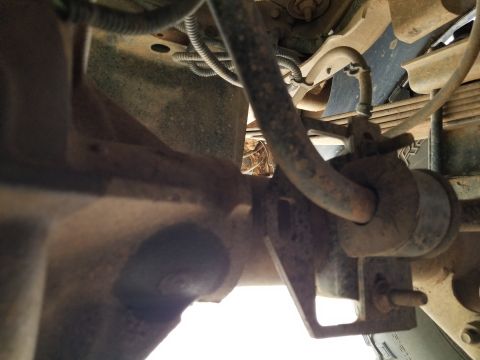

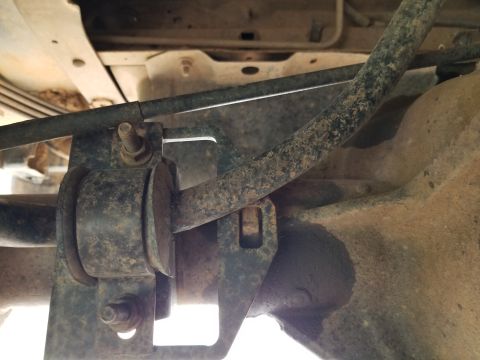

The plug welds on the rear axle appear to be weeping. And the sway bar bracket is out-of-place.
IF T...

74 hits | 73.76 KB | Posted: 7/21/20

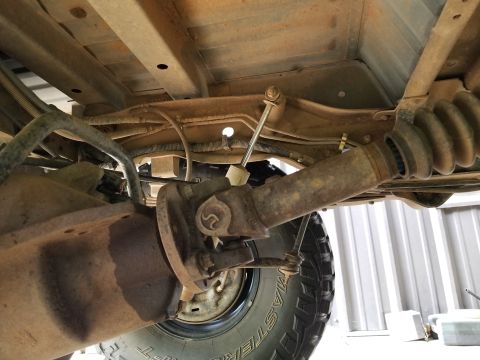

The rear pinion seal is weeping, and it makes a tiny squeak.
IF THE IMAGE IS TOO SMALL, click it.

80 hits | 57.39 KB | Posted: 7/21/20
The plug welds on the rear axle appear to be weeping. And the sway bar bracket is out-of-place.
IF T...

137 hits | 81.29 KB | Posted: 7/26/20

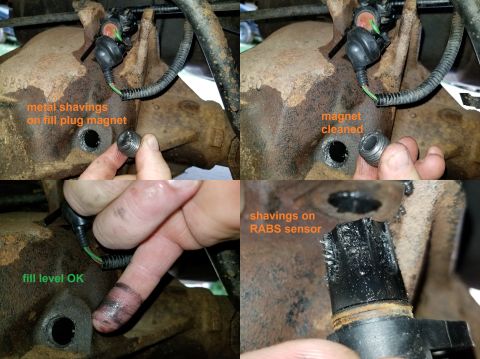

The rear axle shows signs of heavy wear, and if the oil is original, it's about 90Kmi overdue to be ...

82 hits | 39.01 KB | Posted: 7/22/20

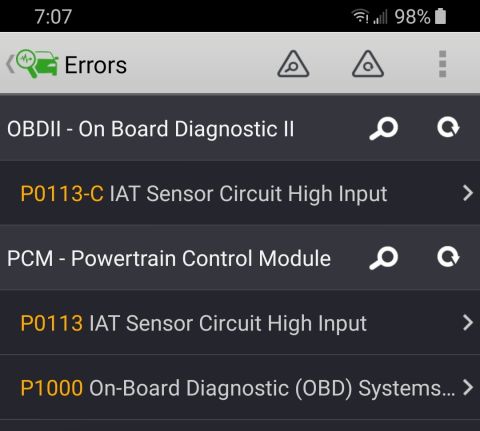

Fewer fault codes than I expected. But the CEL still should have come on. The bulb may be missing.
I...

70 hits | 31.1 KB | Posted: 7/22/20

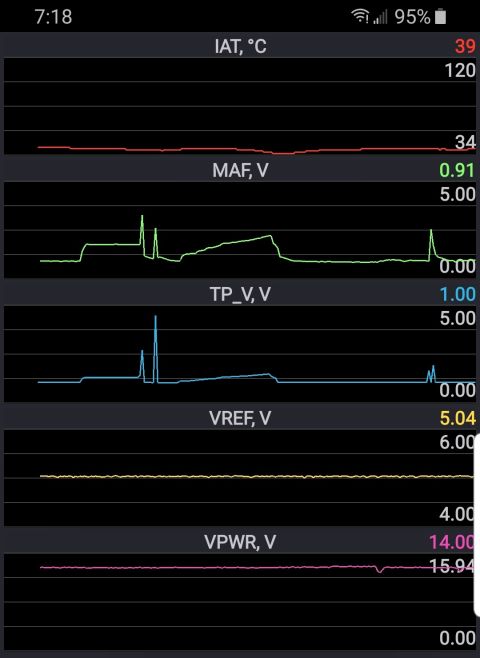

After installing an ACT, cleaning the MAF, & fixing the battery terminals, I watched the live PIDs f...

72 hits | 81.12 KB | Posted: 7/22/20

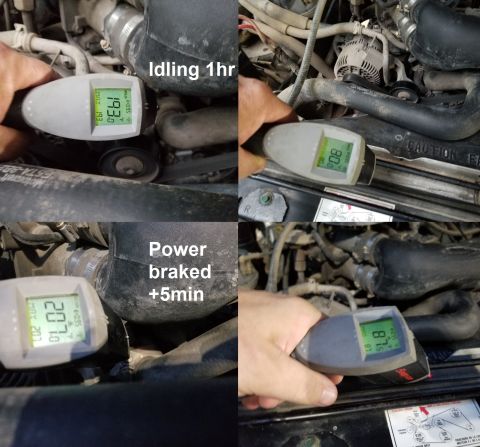

After a long idle, the engine hadn't reached operating temperature. So I power-braked it, but the th...

123 hits | 95.43 KB | Posted: 7/23/20
This was the beginning of several hours under the truck soaping & rinsing. $0 DONE

92 hits | 83.95 KB | Posted: 7/23/20
No leaks were apparent the next day, so it now has 3 cans of refrigerant. The pressures and suction ...

82 hits | 81.23 KB | Posted: 7/23/20

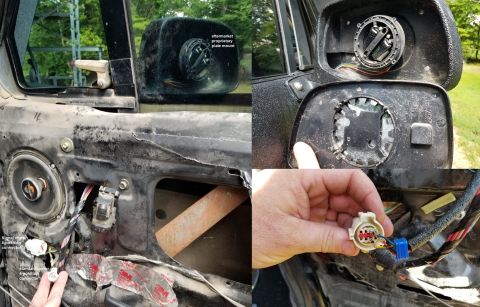

No wonder the Right mirror wasn't working. This truck had the rare signal mirrors, but they were bot...

95 hits | 91.18 KB | Posted: 7/23/20
Both doors' switch plates were glued to the panels, which made it difficult to get the panels off. T...

90 hits | 84.06 KB | Posted: 7/25/20
As usual, the door panel holes for the inner weatherbelt are breaking.
IF THE IMAGE IS TOO SMALL, cl...

80 hits | 72.09 KB | Posted: 7/25/20

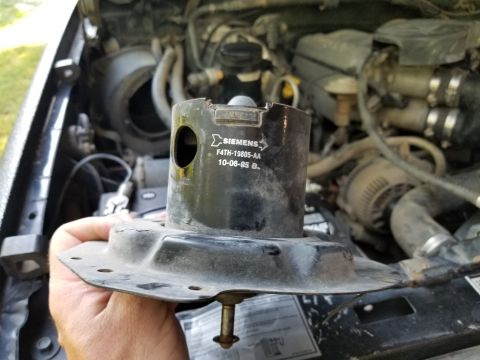

To check for evaporator blockage, I had to remove the blower, which also required removing the vacuu...

90 hits | 50.04 KB | Posted: 7/26/20

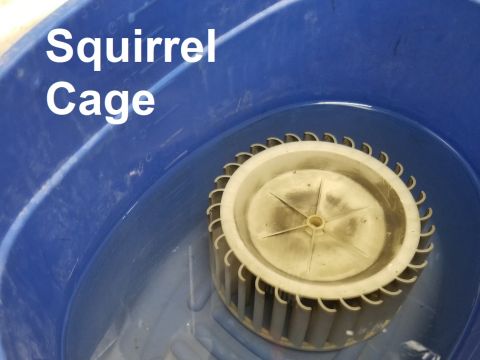

While the blower was out, I soaked the squirrel cage overnight & then scrubbed the fins.

88 hits | 69.74 KB | Posted: 7/25/20
Turns out, there ARE problems in here that need repair. Screens should also be added to prevent re-o...

94 hits | 93.66 KB | Posted: 7/25/20

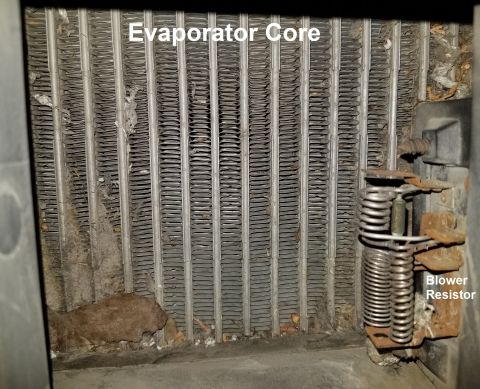

As I thought, the evaporator core has collected a lot of debris. Fortunately, it can be cleaned with...

160 hits | 52.85 KB | Posted: 7/26/20

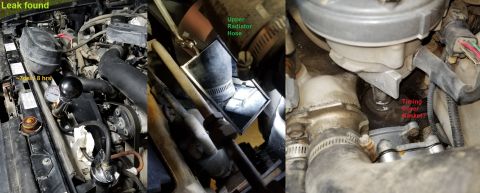

The last check on the coolant system is to pressure-test for leaks, and the cap vent pressure (6psi ...

81 hits | 51.68 KB | Posted: 7/25/20
Most of the lug nuts are significantly damaged.
IF THE IMAGE IS TOO SMALL, click it.

[url=https://w...

87 hits | 52.48 KB | Posted: 7/25/20

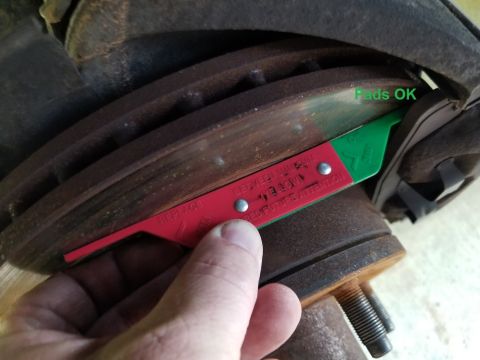

The LHF ball joints, wheel bearings & tie rod ends have no substantial slop. The front pads are ~50%...

83 hits | 86.66 KB | Posted: 7/25/20

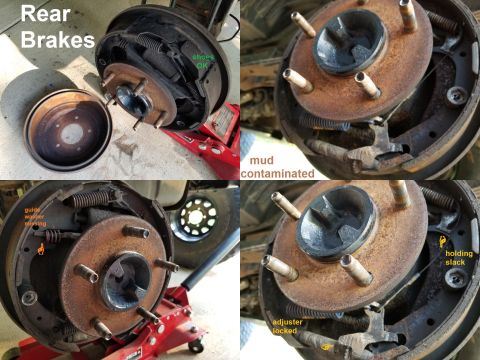

The LHR shoes are not substantially worn - probably because they're stuck, and not working. They wer...

86 hits | 81.38 KB | Posted: 7/30/20

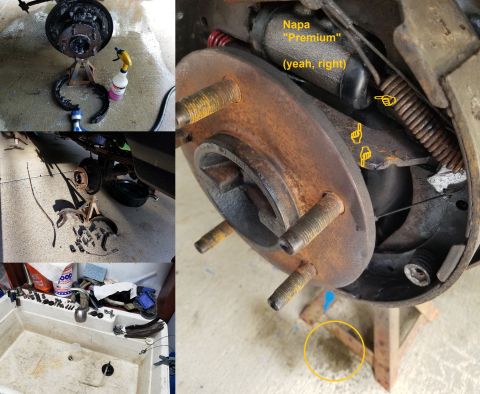

All the brake hardware was washed before being inspected & greased. 2 small washers were missing and...

84 hits | 102 KB | Posted: 7/30/20
The air cleaner is back to the factory cold-air configuration, with a drop-in K&N. After taking that...

153 hits | 66.52 KB | Posted: 7/30/20

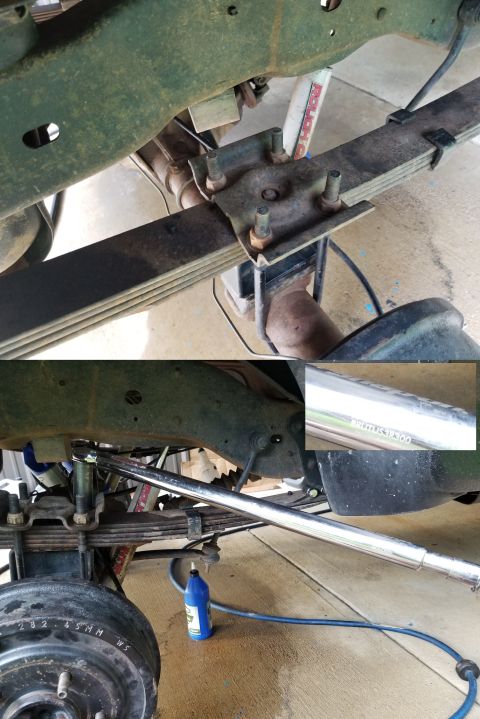

It didn't hit me until now that the spring plates were installed sideways. The U-bolts are torqued t...

287 hits | 62.16 KB | Posted: 7/30/20

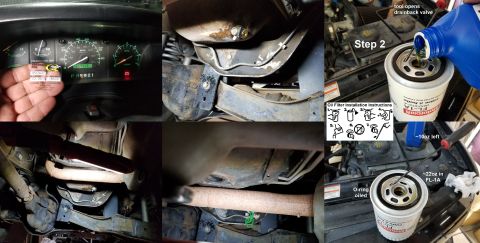

The oil change was several months & hundred miles overdue. With the [url=https://www.amazon.com/dp/B...

116 hits | 108.37 KB | Posted: 7/30/20
The antenna wouldn't screw in, so I had to swap out the base, too.
IF THE IMAGE IS TOO SMALL, click ...

85 hits | 55.57 KB | Posted: 7/30/20
After soldering the new terminals on, the battery was clamped down using a long factory bolt.
IF THE...

103 hits | 62.75 KB | Posted: 7/30/20

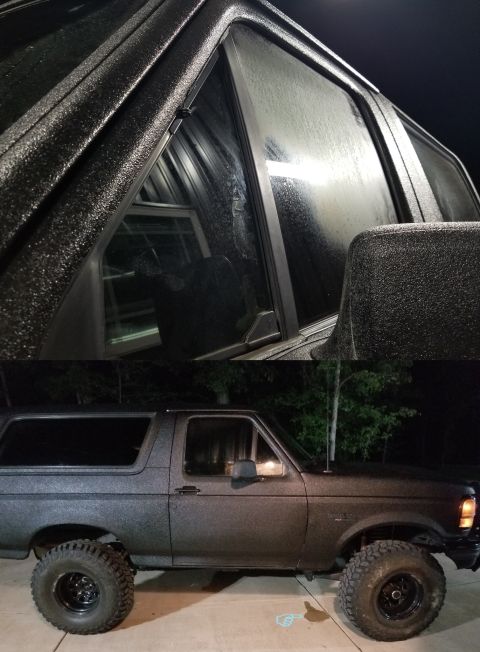

A few minutes of idling caused the windows to fog up because it's so humid tonight, and the A/C is b...

99 hits | 36.77 KB | Posted: 7/30/20
Two things were immediately apparent on the first drive:
1) the Y-pipe/cat is bouncing on the crossm...

103 hits | 51.59 KB | Posted: 8/1/20

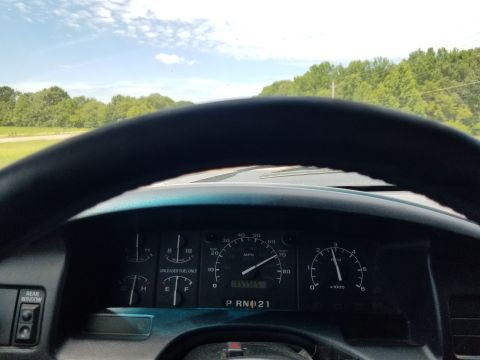

The first real test-drive was to lunch on a hot day with 3 guys in the truck, A/C on max, going abou...

114 hits | 81.7 KB | Posted: 8/1/20
Black Broncos Matter

It got us to lunch with no problem, and we found a good parking spot. We had t...

181 hits | 63.11 KB | Posted: 8/1/20

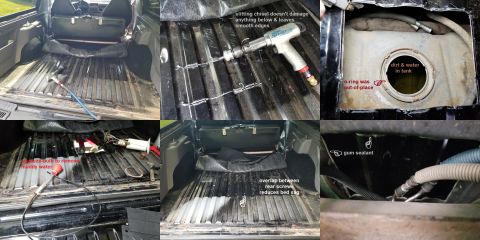

After checking the relay, inertia switch, & connectors (all good), I cut the fuel pump access hole. ...

603 hits | 42.54 KB | Posted: 8/1/20

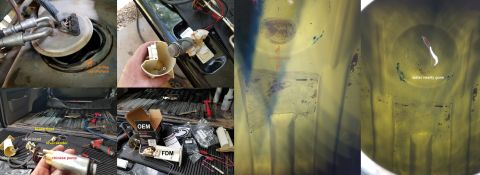

I assume the O-ring allowed contamination into the tank, eventually causing the pump motor to run VE...

153 hits | 73.04 KB | Posted: 8/1/20

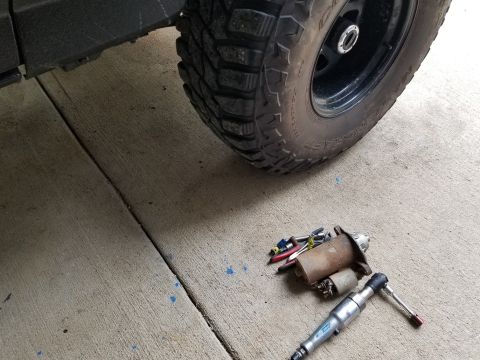

The engine stalling resulted in the starter getting hot, which revealed that the solenoid sticks & r...

107 hits | 46.08 KB | Posted: 8/1/20

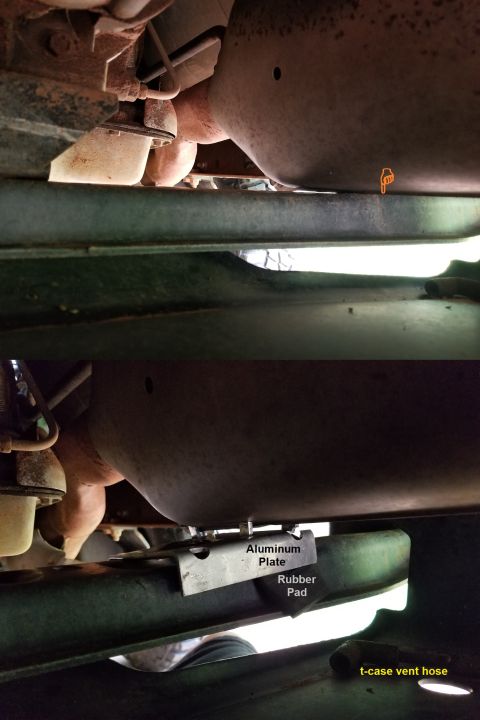

After rotating the spring plates, I became very conscious of rattles from the chassis. One of the wo...
