994 hits | 93.85 KB | Posted: 8/23/03

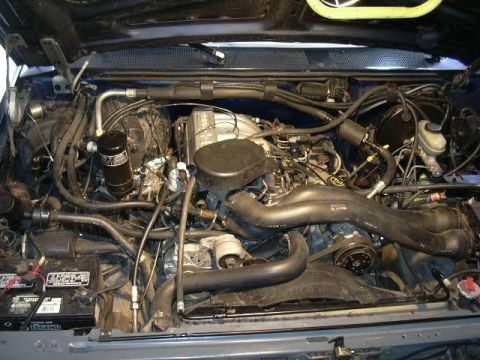

The before picture

923 hits | 95.67 KB | Posted: 8/23/03

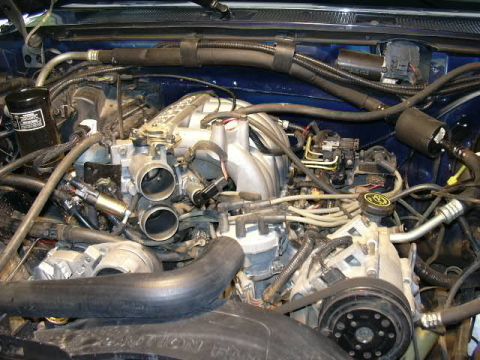

Throttle body ready to remove

895 hits | 91.99 KB | Posted: 8/23/03

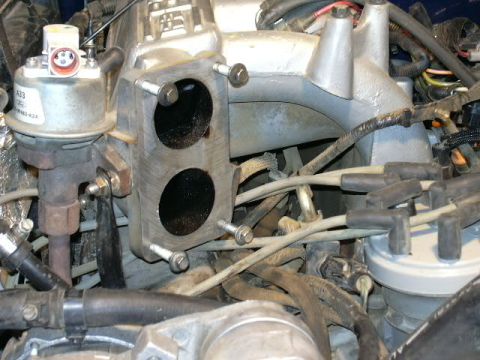

Look at the black junk in the intake

959 hits | 97.3 KB | Posted: 8/23/03

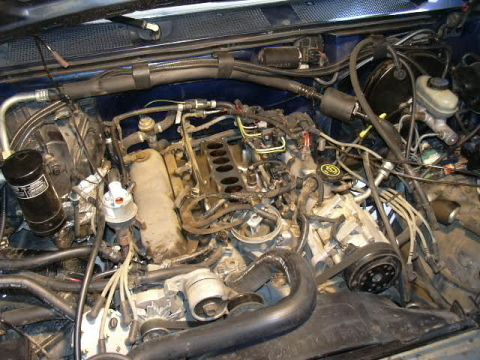

Upper intake manifold off

908 hits | 96.42 KB | Posted: 8/23/03

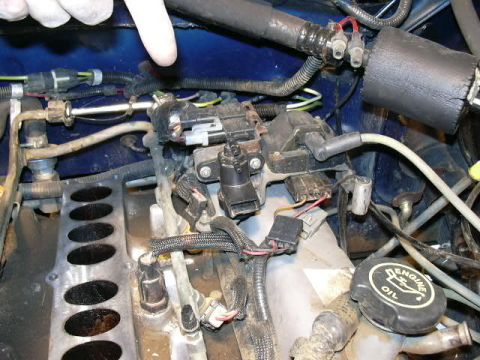

Alot of stuff to keep track of!

855 hits | 89.47 KB | Posted: 8/23/03

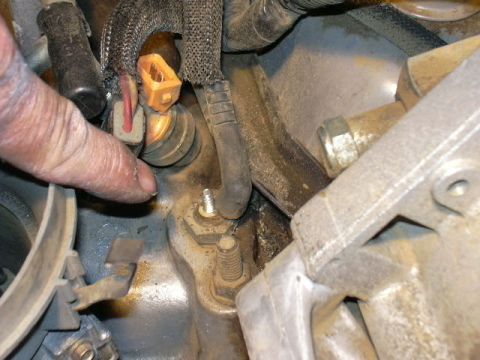

Don't forget to hook this back up

1000 hits | 77.4 KB | Posted: 8/23/03

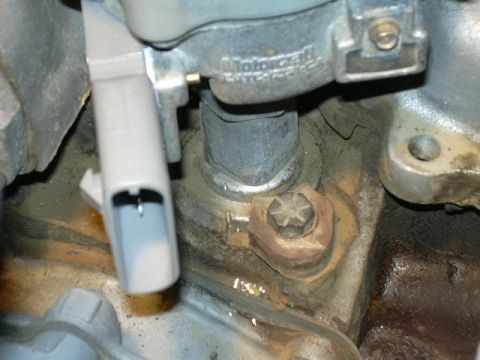

Took this picture to remember where the distributor was set at. There's my new TFI module also.

917 hits | 93.83 KB | Posted: 8/23/03

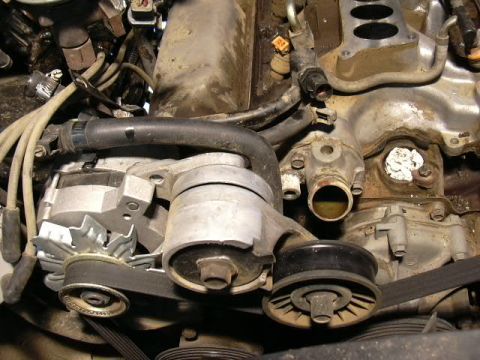

Distributor out. Look at how dirty everything is.

895 hits | 93.56 KB | Posted: 8/23/03

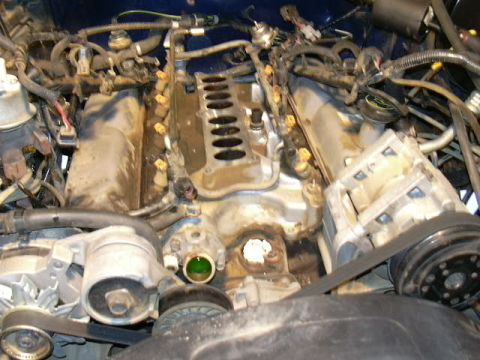

Fuel rails disconnected, one last look.

916 hits | 96.34 KB | Posted: 8/23/03

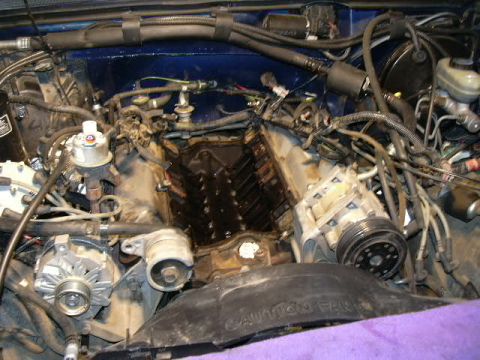

Lower intake manifold out

1173 hits | 93.79 KB | Posted: 8/23/03

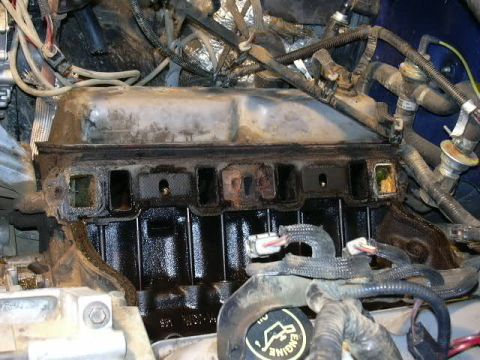

The gasket was almost nonexistent on the front of the motor!

979 hits | 93.65 KB | Posted: 8/23/03

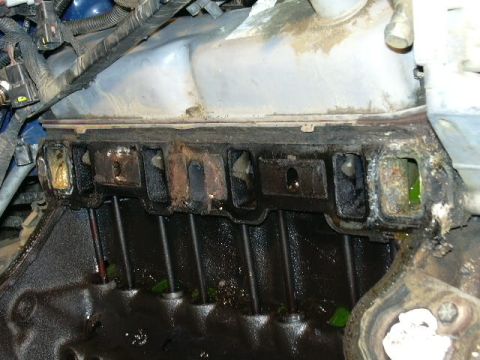

YUK! More of that black junk in the intake passages on the head.

913 hits | 94.2 KB | Posted: 8/23/03

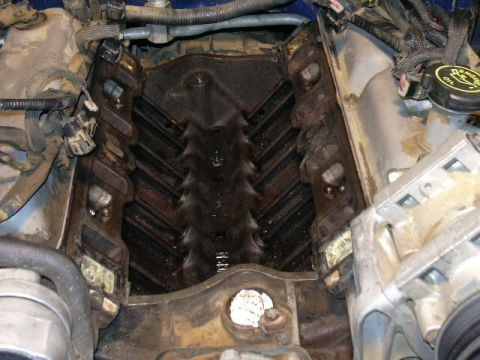

All cleaned up! Looks much better.

1072 hits | 93.16 KB | Posted: 8/23/03

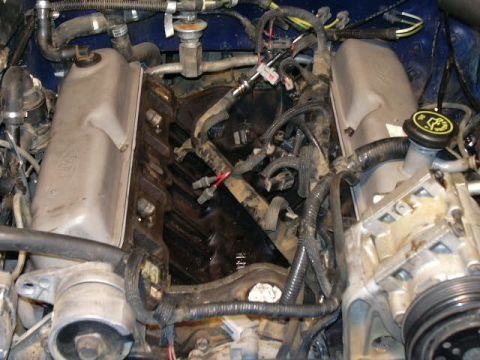

Clean valve covers with new gaskets.

1470 hits | 79.11 KB | Posted: 8/23/03

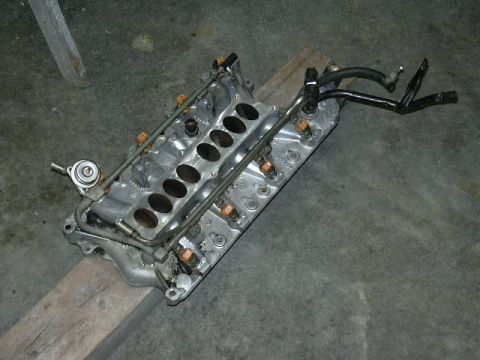

Lower intake all spiffed up and ready to go back in.

1067 hits | 92.87 KB | Posted: 8/23/03

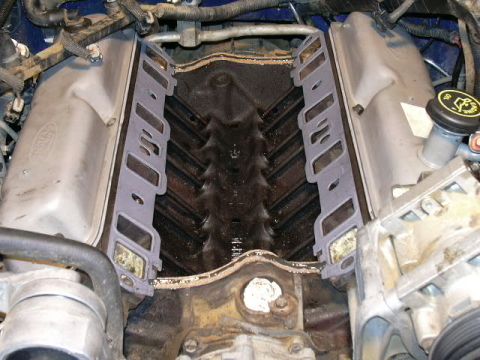

New gaskets

915 hits | 95.39 KB | Posted: 8/23/03

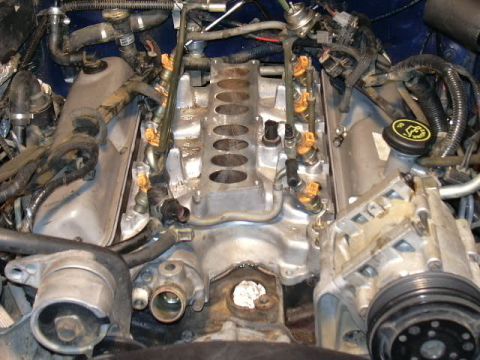

Lower intake back in.

977 hits | 95.63 KB | Posted: 8/23/03

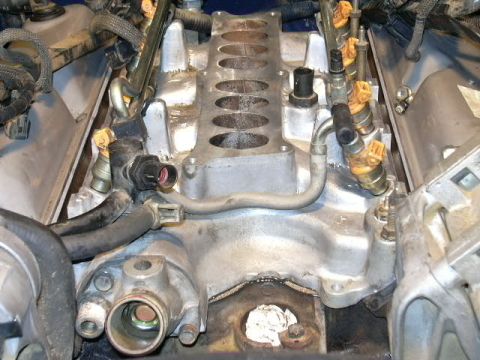

If you look close you can see that I put the thermostat in backwards. This really caused me grief. ...

937 hits | 96.16 KB | Posted: 8/23/03

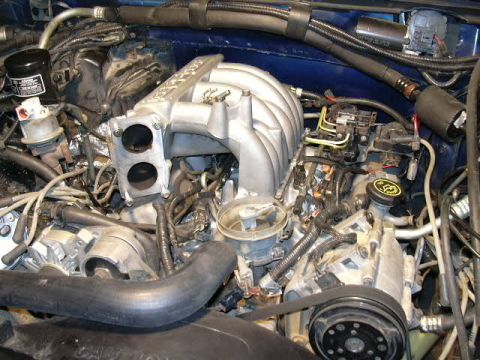

Upper intake back in.

905 hits | 96.2 KB | Posted: 8/23/03

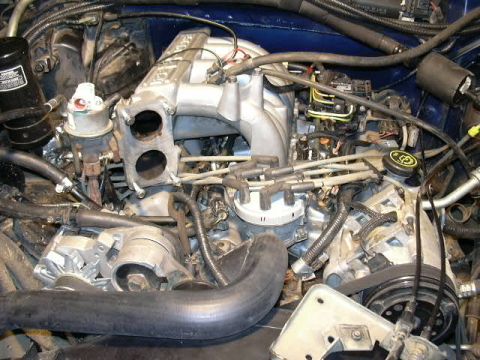

Cap and wires back on.

935 hits | 95.78 KB | Posted: 8/23/03

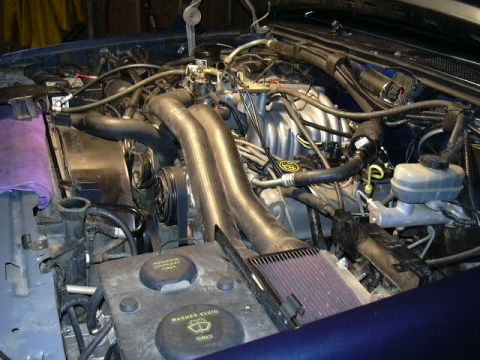

All done! Took 13 1/2 hours from start to finish. Truck fired up on the first try.
