908 hits | 72.01 KB | Posted: 8/29/03

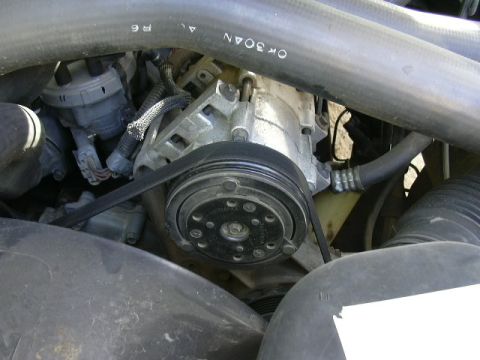

Here goes nothin.

830 hits | 94.58 KB | Posted: 8/29/03

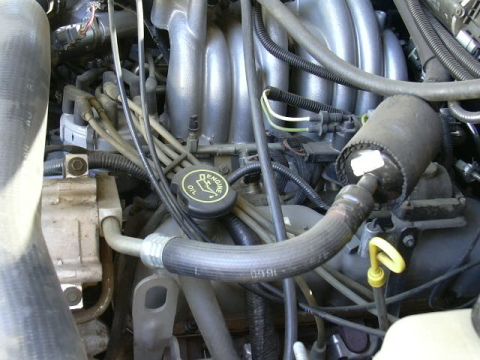

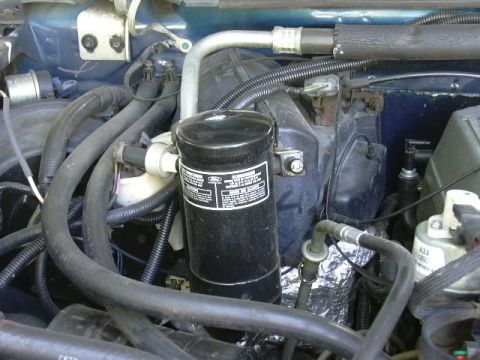

Before

902 hits | 93.32 KB | Posted: 8/29/03
Before

959 hits | 97.23 KB | Posted: 8/29/03
Here I am removing a perfectly functional AC system. Maybe I'll save the parts in case I change my ...

899 hits | 94.92 KB | Posted: 8/29/03

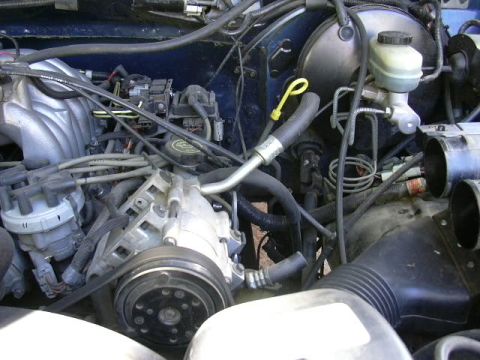

Nothin left but the compressor.

836 hits | 85.71 KB | Posted: 8/29/03

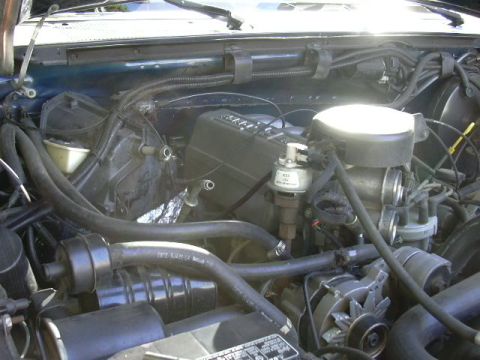

Lot's more room

990 hits | 97.68 KB | Posted: 8/29/03

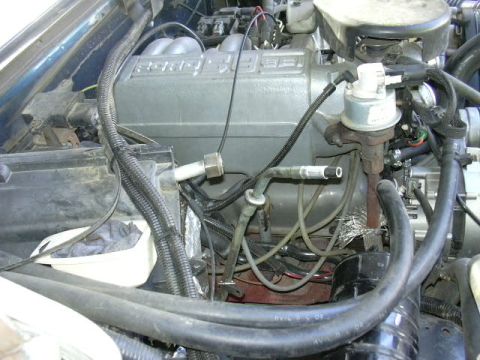

Another andgle on the new empty spot.

885 hits | 97.65 KB | Posted: 8/29/03

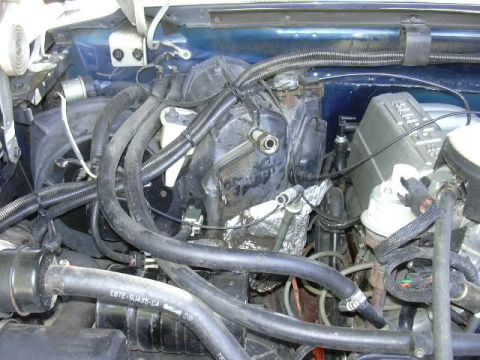

One more.....

899 hits | 91.91 KB | Posted: 8/29/03

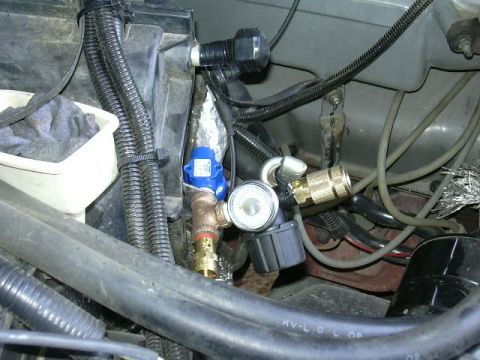

First attempt. YUK!!!

945 hits | 96.54 KB | Posted: 8/29/03

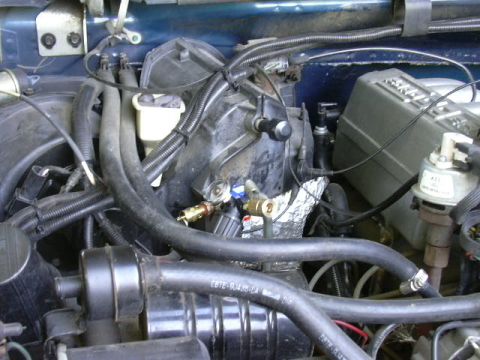

Needed more research and I wanted this to look decent.

928 hits | 95.05 KB | Posted: 8/29/03

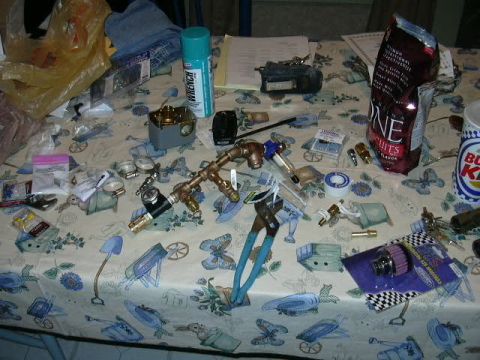

More researc...More parts...More money....Sorry about the table Honey!

988 hits | 90.21 KB | Posted: 8/29/03

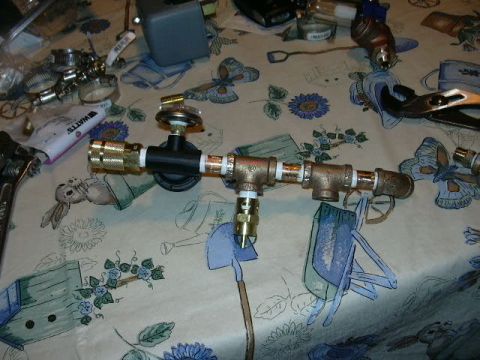

New manifold taking shape

920 hits | 90.6 KB | Posted: 8/29/03

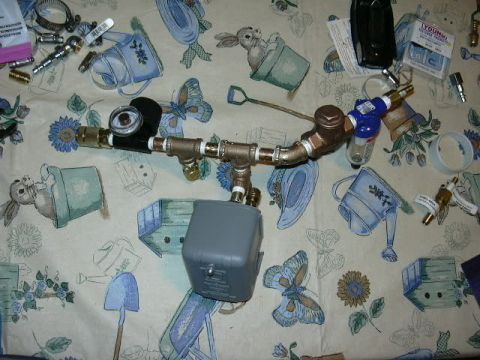

Here it is, water/oil seperater, check valve, 90 to 125 psi switch, 150psi pop off, pressure regulat...

879 hits | 95.67 KB | Posted: 8/29/03

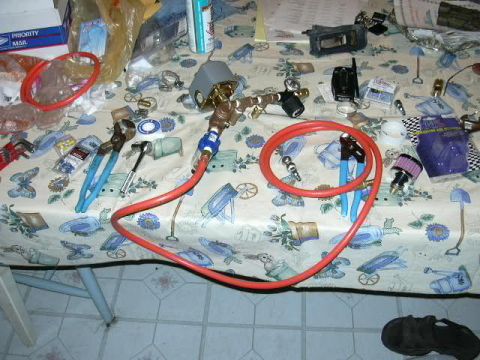

Ready to go in the Bronco

824 hits | 73.48 KB | Posted: 8/29/03

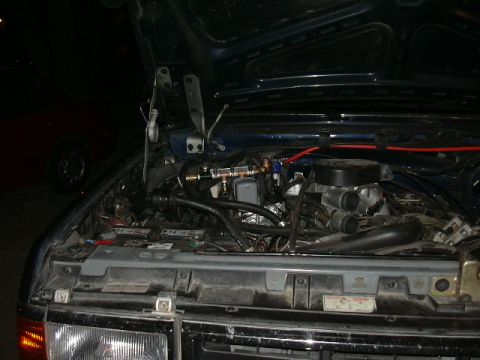

Finally found a spot that I liked. I think this was the hardest part.

937 hits | 94.46 KB | Posted: 8/29/03

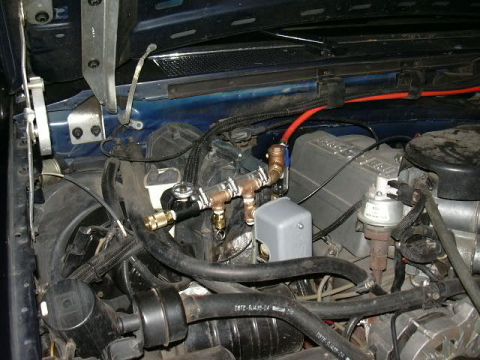

I used a 6x6 shelf bracket and hose clamps to mount the manifold to the AC coil housing.

822 hits | 92.92 KB | Posted: 8/29/03

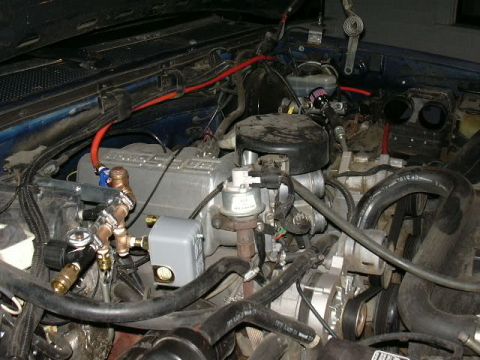

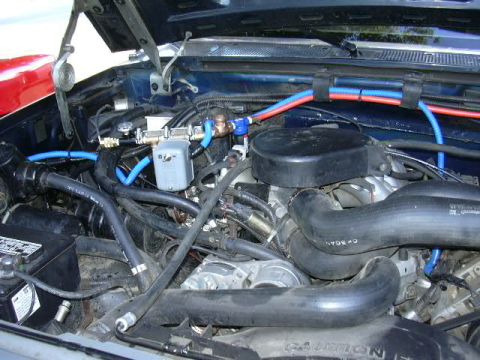

The whole system.

956 hits | 94.26 KB | Posted: 8/29/03

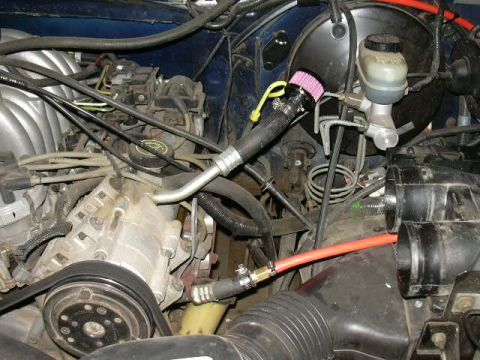

This is how I connected it to the compressor.

895 hits | 93.75 KB | Posted: 8/29/03

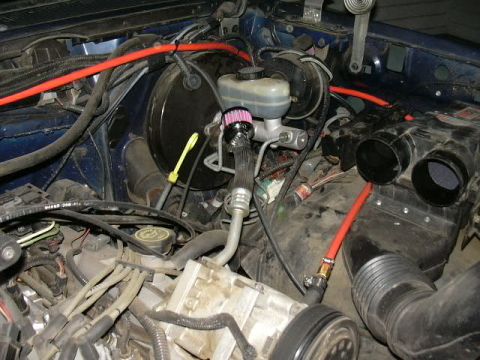

Hose routing

795 hits | 92.74 KB | Posted: 8/29/03

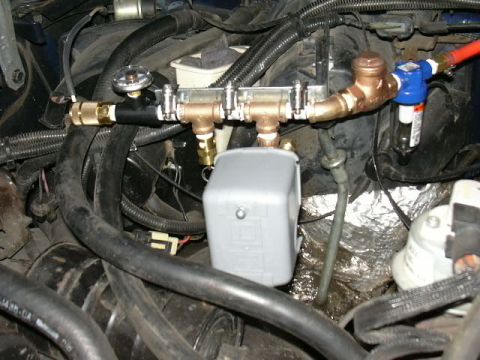

One more close up of the manifold.

820 hits | 53.49 KB | Posted: 8/29/03

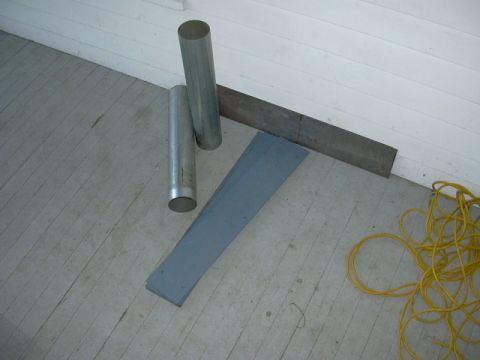

I will use 4" conduit for my air tank. 2 pieces @ 24" will give me 2.5 gallons.

850 hits | 92.7 KB | Posted: 8/30/03

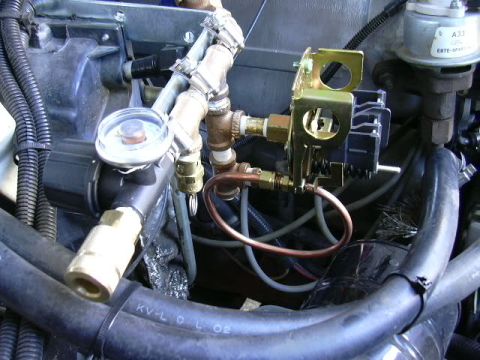

Bleeder valve plumbed in. I later disabled this is it bled off 20psi every time the system hit 125p...

866 hits | 94.8 KB | Posted: 8/30/03

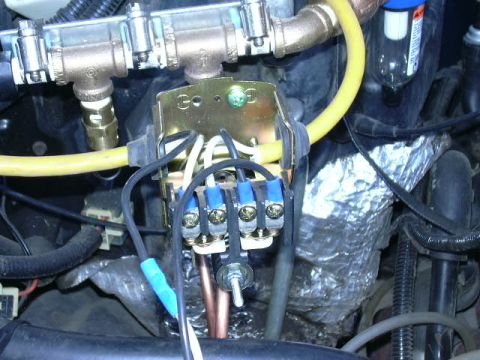

Got the switch wired. I used an old 12ga extension cord. Kinda cheesy but it had the wires already...

815 hits | 93.31 KB | Posted: 8/30/03

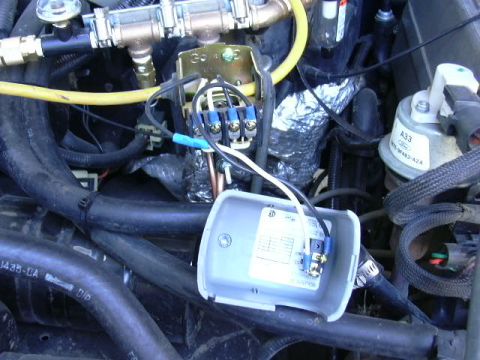

This is the on/off switch wiring.

853 hits | 97.7 KB | Posted: 8/30/03

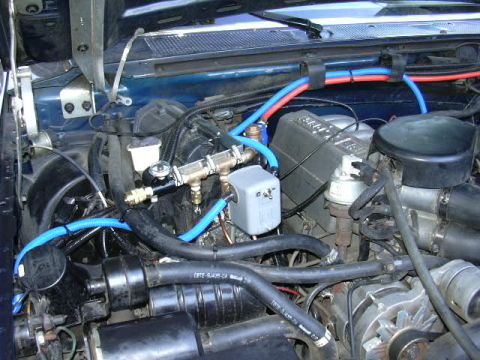

Wiring complete

816 hits | 95.14 KB | Posted: 8/30/03

904 hits | 96.56 KB | Posted: 8/30/03

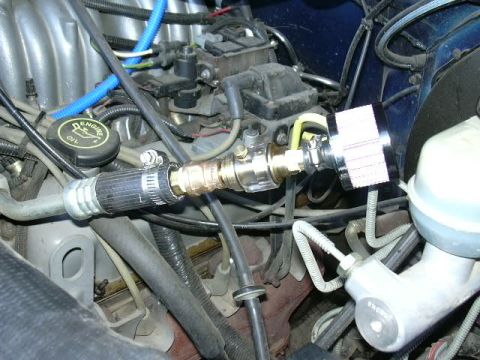

I installed an auto oiler on the intake. Haven't perfected the oiling yet.

915 hits | 78.95 KB | Posted: 8/30/03

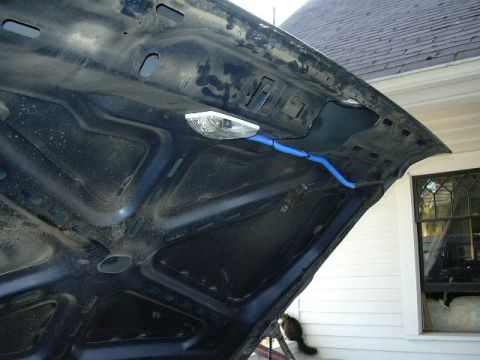

I mounted a dome light I had laying around since I had the hood up and all.
