Bent TTB

1687 hits | 88.86 KB | Posted: 8/9/03

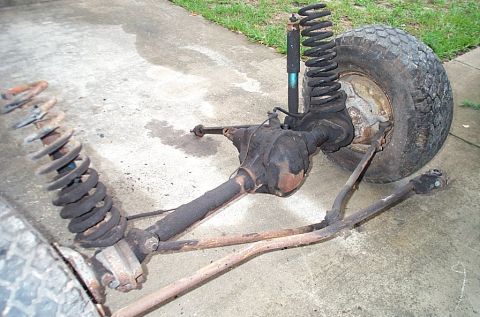

76.5 F150 D44 from the junkyard.

2539 hits | 109.13 KB | Posted: 8/9/03
Eeewww.

1763 hits | 93.6 KB | Posted: 8/9/03

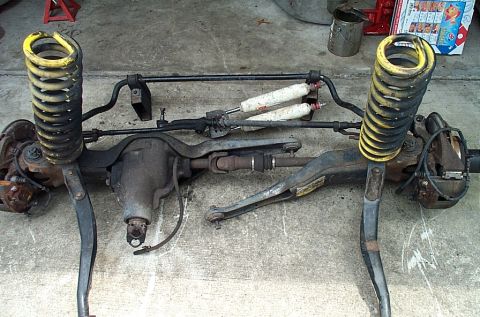

The old bent TTB.

1725 hits | 89.9 KB | Posted: 8/9/03

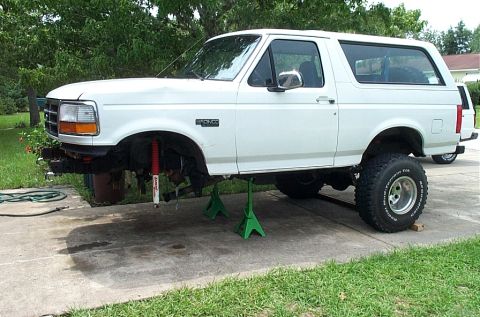

TTB out

1840 hits | 92.22 KB | Posted: 8/9/03

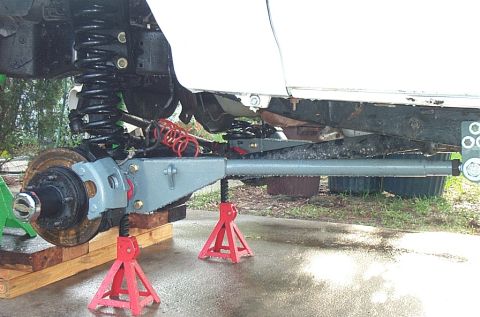

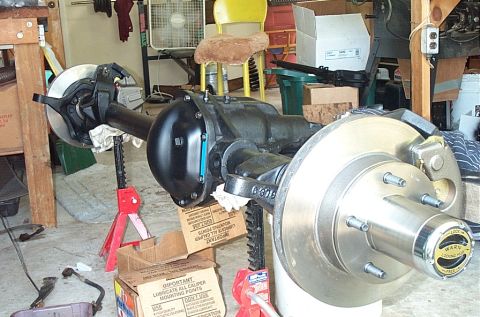

Finished rebuiling the D44

2028 hits | 100.81 KB | Posted: 8/9/03

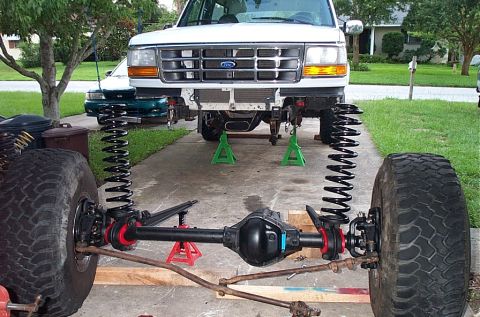

This is how I mounted it the first time

3079 hits | 105.71 KB | Posted: 8/9/03

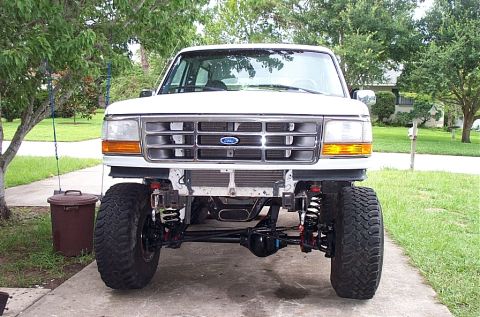

Installed with temporary TTB steering links untill I got the 78/9 style drag-link shortened and re-t...

2179 hits | 85.43 KB | Posted: 8/9/03

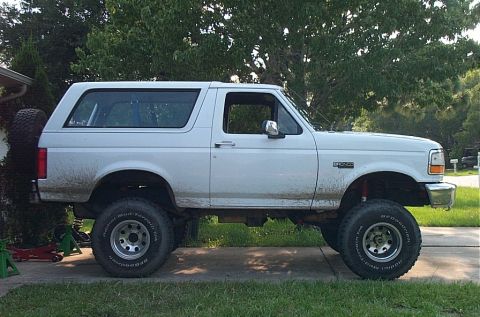

Although it was in, there were a couple of things that I wasn't happy with.

2295 hits | 86.15 KB | Posted: 8/15/03

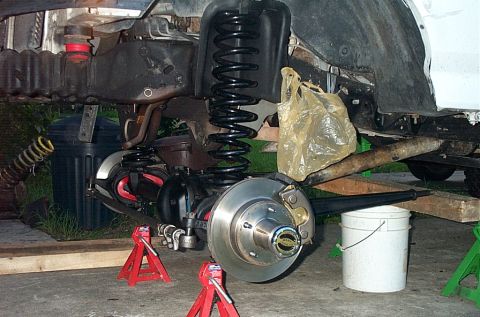

Reasons I re-did my SAS...
One was using the TTB coil buckets with their attached upper shock mount...

5972 hits | 84.91 KB | Posted: 8/15/03

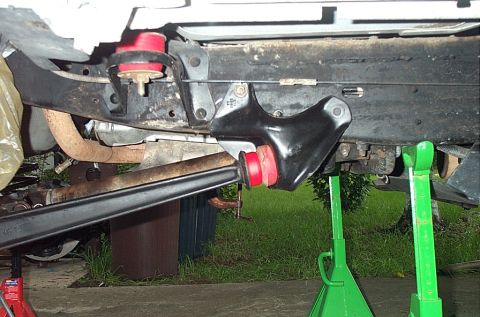

7 degree C-bushings plus these radius arm mounts equal questionable caster and significant binding, ...

2557 hits | 82.22 KB | Posted: 8/15/03

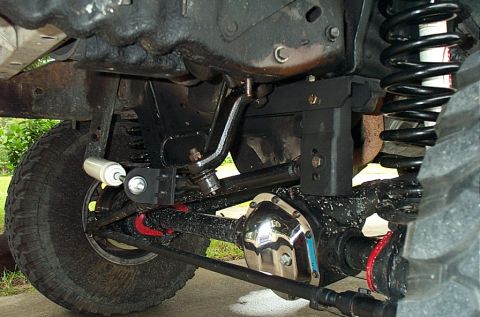

Track-bar mount I made out of my old TTB bracket. It worked fine, just looked silly.

2825 hits | 108.57 KB | Posted: 8/9/03

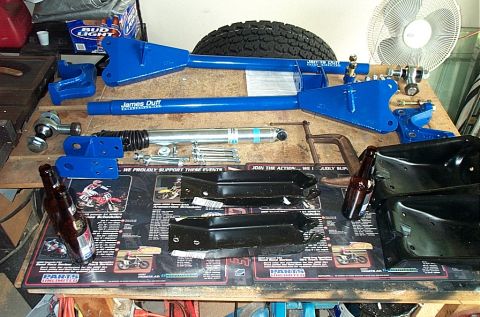

So I bought all of this shiat

2125 hits | 93.52 KB | Posted: 8/9/03

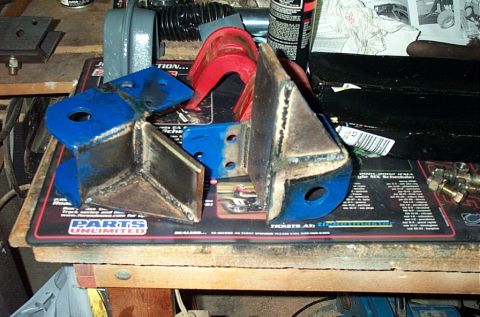

modified the radius arm mounts

1857 hits | 90.2 KB | Posted: 8/9/03

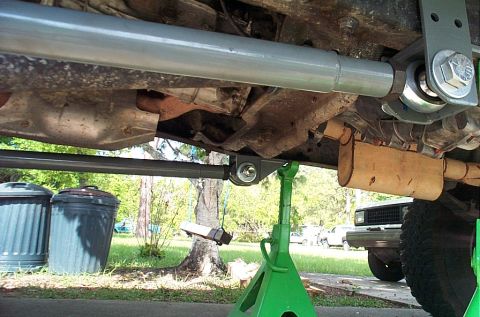

fitting them

1850 hits | 98.06 KB | Posted: 8/9/03

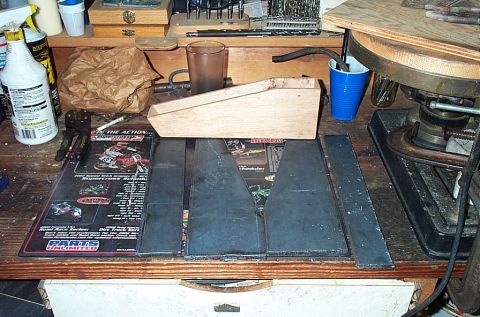

new track bar mount with wooden model

1837 hits | 94.06 KB | Posted: 8/9/03
fitting it

1805 hits | 101.5 KB | Posted: 8/9/03

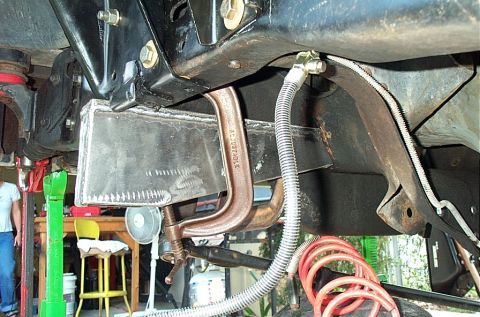

another view

1946 hits | 99.28 KB | Posted: 8/9/03

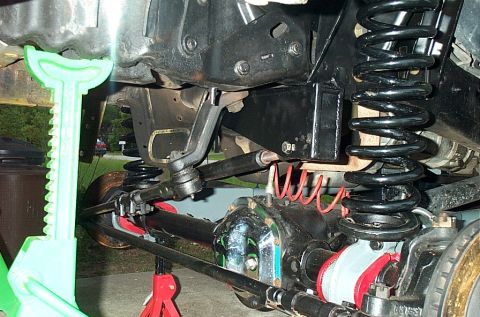

Track bar mount installed, still needed to cut the crossmember

1708 hits | 55.89 KB | Posted: 8/9/03

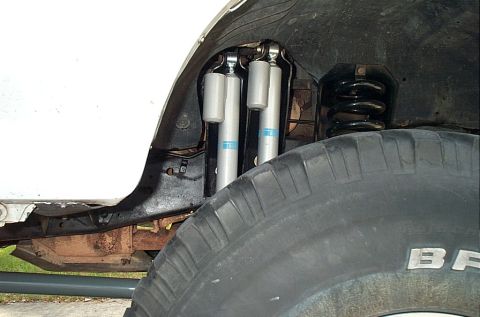

pass. side showing the inner fender clearance for Bilstein 5150's

1637 hits | 53.37 KB | Posted: 8/9/03

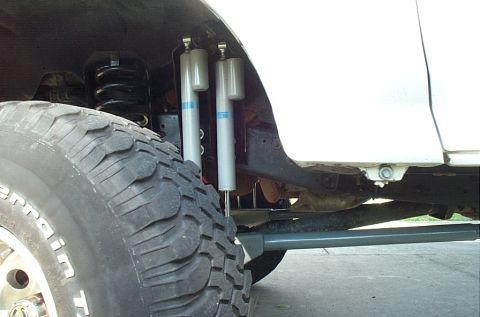

driver's side

1837 hits | 73.05 KB | Posted: 8/9/03

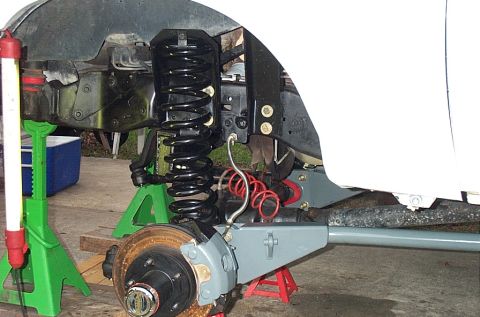

brakeline brackets I made from the tab I cut off of the radius arm mount

1820 hits | 98.09 KB | Posted: 8/9/03

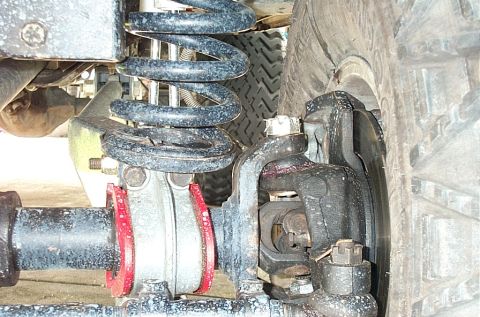

Camber adjusting torque sleeves that the balljoint goes through.

2051 hits | 80.23 KB | Posted: 8/15/03

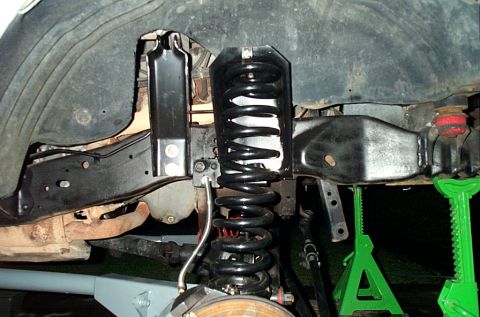

These are the 78/9 coil buckets along with the F250/350 shock mounts.

1720 hits | 96.32 KB | Posted: 12/22/03

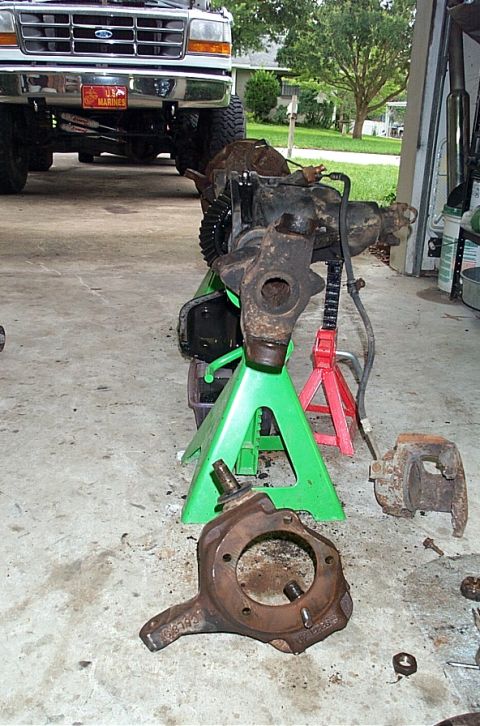

showing the tube thickness
