Here it is before the lift; notice the considerable front end sag.

1355 hits | 92.4 KB | Posted: 9/25/03
Here is the Kit. It is a Tuff Country 2.5 inch kit with extended radius arms. It came with blocks ...

1164 hits | 59.92 KB | Posted: 9/25/03
This is what I decided to use in place of the blocks. It is a 2.5 inch add-a-leaf by
Pro-comp. I...

1065 hits | 76.14 KB | Posted: 9/25/03
Here are the rear leaves as they came from the factory.

985 hits | 83.74 KB | Posted: 9/25/03
The kit said you needed to take the whole leaf pack off to put the add-a-leaf in but I did not see w...

1040 hits | 72.3 KB | Posted: 9/25/03
Here are the factory leaves, the add-a-leaf fit in just under the large one still attached to the tr...

1051 hits | 81.91 KB | Posted: 9/25/03
I dropped the axle just enough so that I could get the leaf’s in, after I got everything lined up co...

1079 hits | 79.9 KB | Posted: 9/25/03
To finish putting the leaf’s together I used the 9” C-clamp and a 4” C-clamp to compress the top thr...

983 hits | 73.63 KB | Posted: 9/25/03

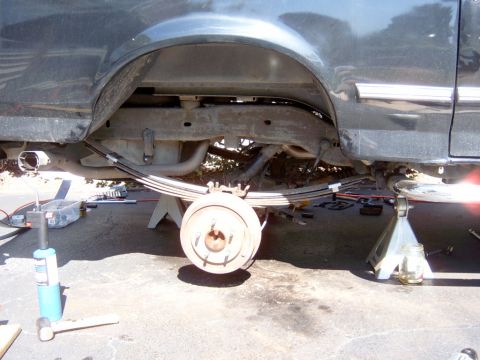

After the leaf’s were re-assembled all was left to do was re-bolt the U-bolts and torque them back t...

1091 hits | 70.64 KB | Posted: 9/25/03

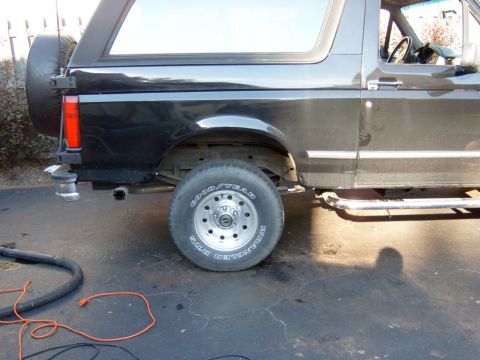

Here’s a picture with the tire back on, I was surprised at the amount of lift it gave me

1065 hits | 77.38 KB | Posted: 9/25/03

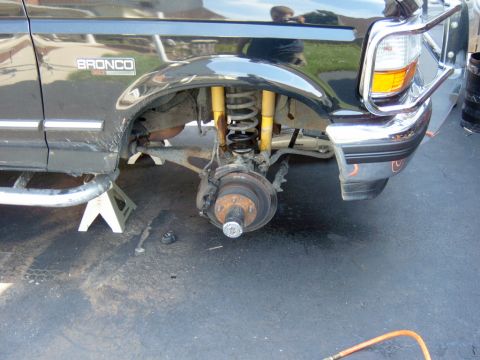

Here’s the front before I started, notice the wear on the crapy AutoZone shock that has about 4000 m...

970 hits | 73.56 KB | Posted: 9/25/03

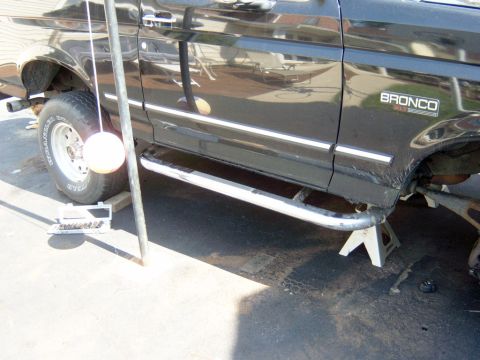

A picture of the nerf bars that would have to go to make way for the new extended radius arm bracket...

979 hits | 77.02 KB | Posted: 9/25/03

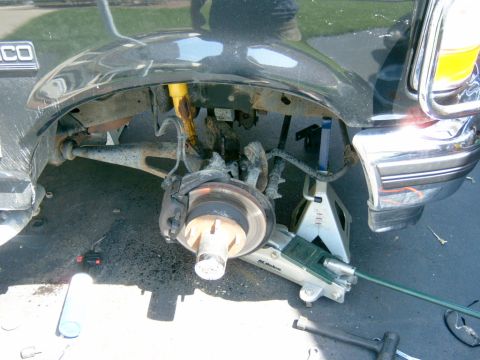

Removing the coil was not to bad, used a lot of PB blaster the 2 days before I started and it helped...

1114 hits | 94 KB | Posted: 9/25/03

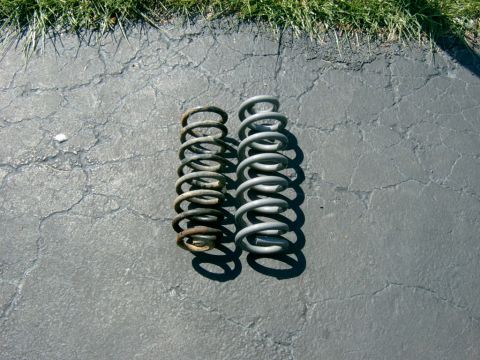

New spring next to old, not a huge difference but the old one was so warn it would compress about 3”...

1610 hits | 73.19 KB | Posted: 9/25/03

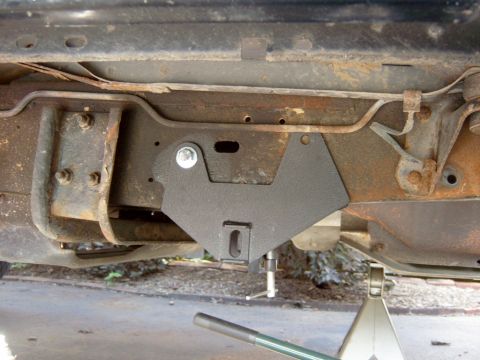

The new mounts foe the radius arms are to be mounted 15” back from where the old ones were attached....

1222 hits | 82.24 KB | Posted: 9/25/03

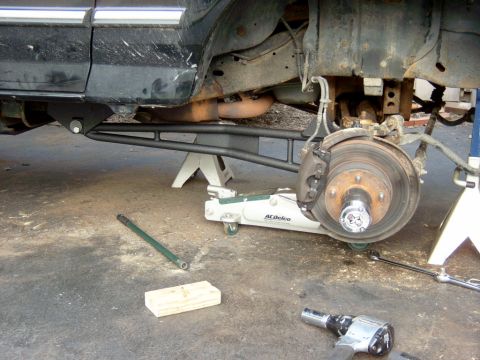

Here is one of the new arms mounted on the Truck. Notice the cam adjusting bolt on the pivot point ...

1106 hits | 82.06 KB | Posted: 9/25/03

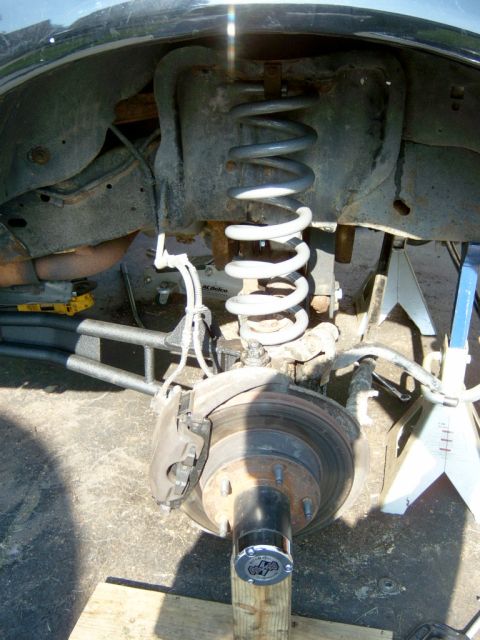

Here is the front put back together with out shocks, and I still had plenty of slack in the factory ...

1711 hits | 73.92 KB | Posted: 9/25/03

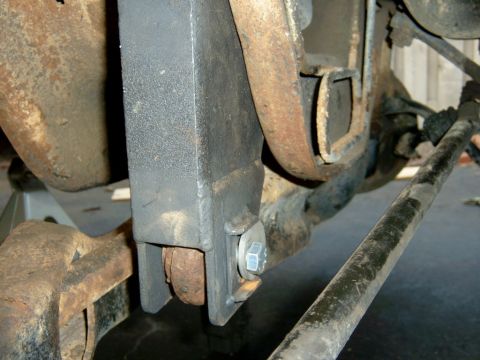

This is the passenger’s side pivot arm bracket, it was fairly easy, unbolt the 4 bolts that hold the...

1140 hits | 81.4 KB | Posted: 9/25/03

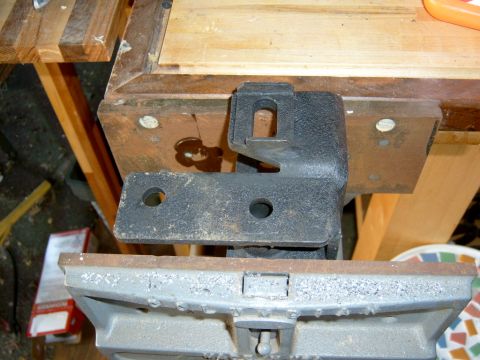

This is the driver’s side axle pivot mount, funny looking little thing

1512 hits | 82.17 KB | Posted: 9/25/03

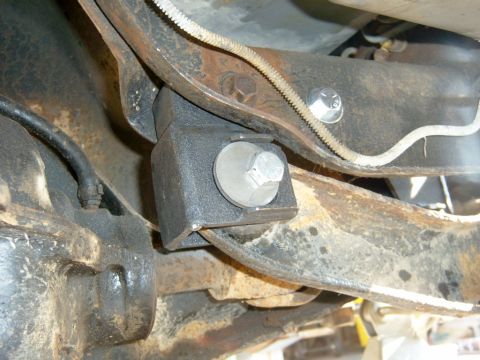

Here is the new drop bracket installed. I had to use the old hole for the pivot arm and the old bol...

1073 hits | 80.7 KB | Posted: 9/25/03

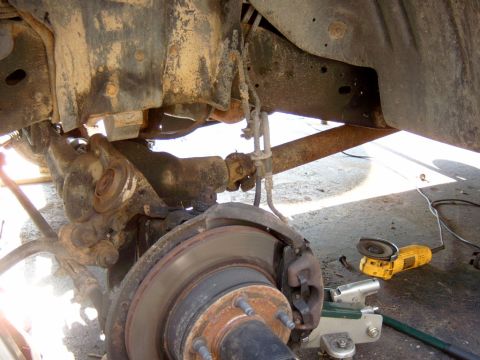

This is the driver’s side with everything removed, went a lot faster since I knew what I was doing.

1105 hits | 45.82 KB | Posted: 9/25/03

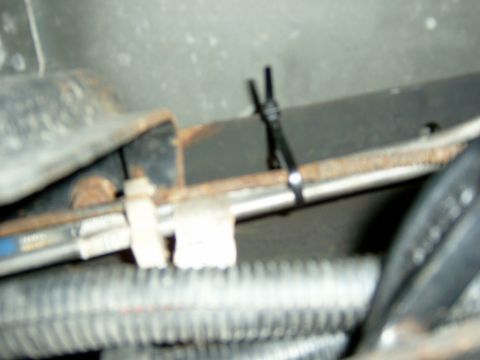

The driver’s side radius arm bracket was not as easy as the passenger side, because the fuel lines, ...

1092 hits | 82.56 KB | Posted: 9/25/03

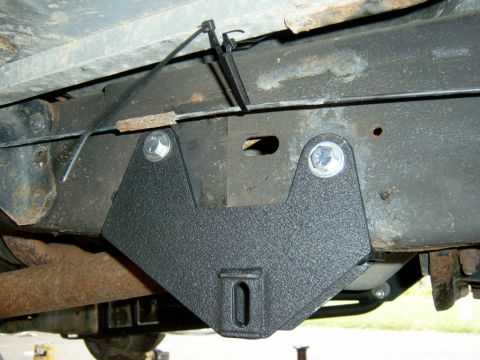

Same for the parking brake wire. After I got the new bracket on I had to drill 2 new holes for the ...

1667 hits | 73.31 KB | Posted: 9/25/03

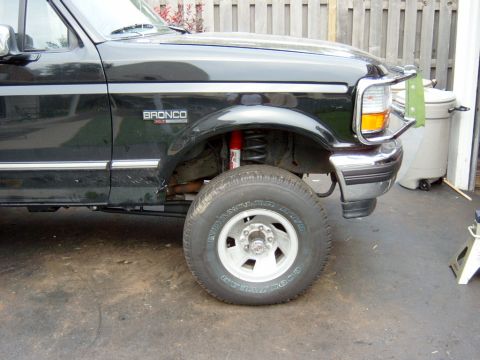

Here it is reassembled and back on the ground, I was still waiting on some of the shocks, but I took...
