757 hits | 74.43 KB | Posted: 3/20/04

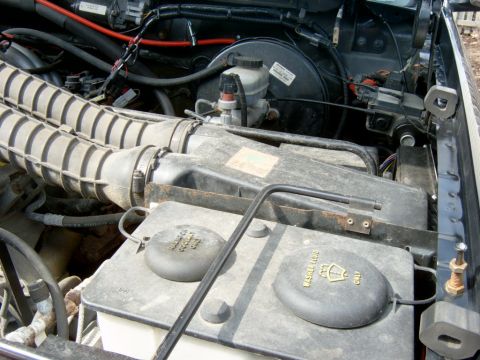

The factory setup, the breather tube goes into the air box towards the rear. (You can see it just be...

668 hits | 77.34 KB | Posted: 3/20/04

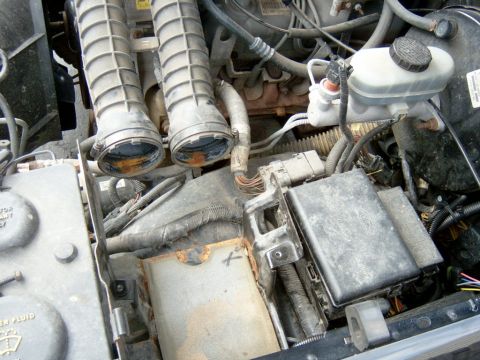

Air box and breather tube removed. I had to cut the hose off of the oil fill spout to get the tube ...

684 hits | 37.28 KB | Posted: 3/20/04

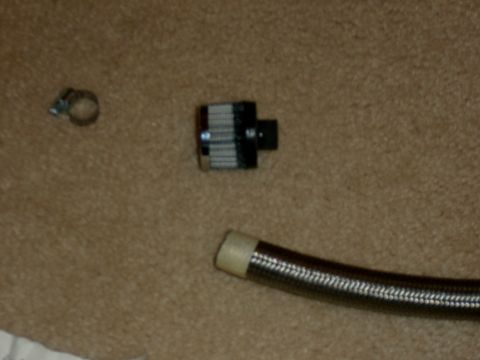

I bought a K&N crank case vent filter (summit part #KNN-62-2470) and a 3’ piece of
-10AN braided s...

662 hits | 52.73 KB | Posted: 3/20/04

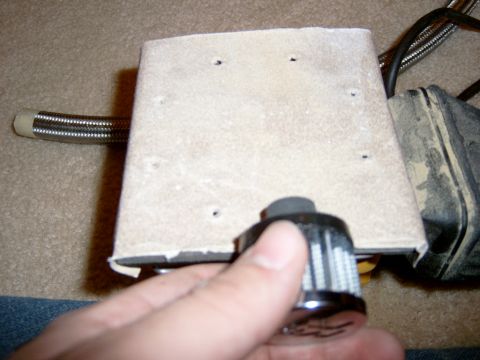

The filter didn’t quite fit in the end of the tube, so I sanded it a bit.

630 hits | 63.5 KB | Posted: 3/20/04

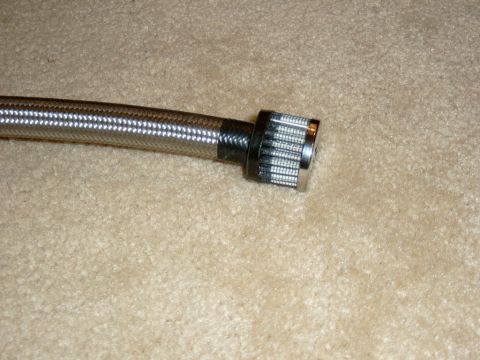

Ready for a pipe clamp and installation

675 hits | 36.08 KB | Posted: 3/20/04

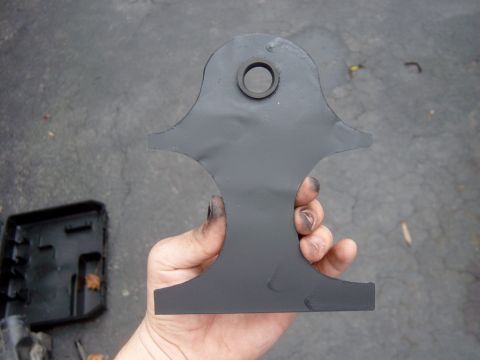

I made a bracket out of steel I bought at Lowes to hold the tube and filter, the rubber “grommet” I ...

645 hits | 79.4 KB | Posted: 3/20/04

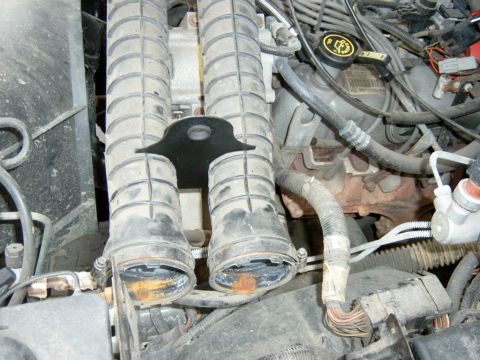

It fits between the tubes like this.

671 hits | 59.09 KB | Posted: 3/20/04

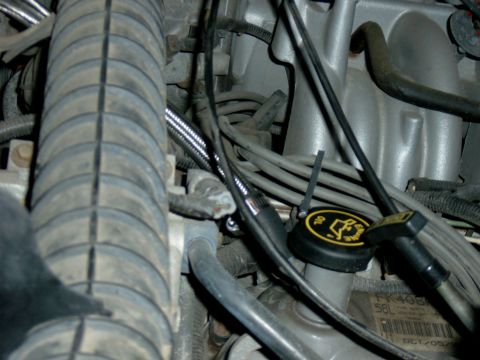

The braided tube was too big to fit over the part on the fill neck so I used an old piece of the bre...

615 hits | 80.04 KB | Posted: 3/20/04

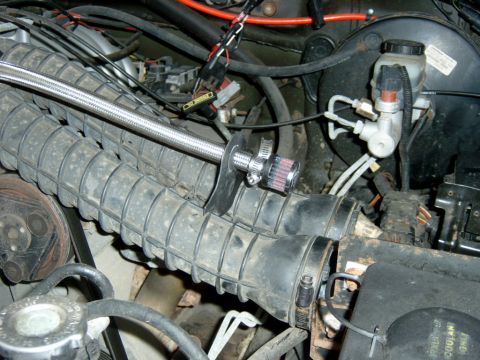

There is the filter installed.

650 hits | 61.98 KB | Posted: 3/20/04

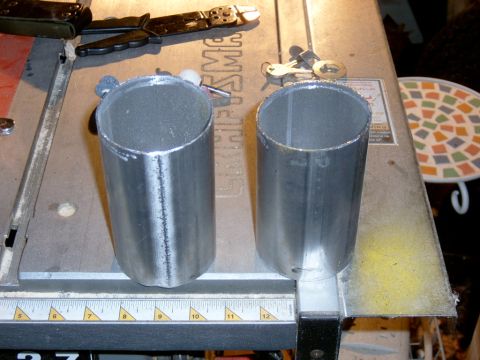

I used 3” exhaust pipe to make the parts that connect the filter to the intake tubes.

672 hits | 70.33 KB | Posted: 3/20/04

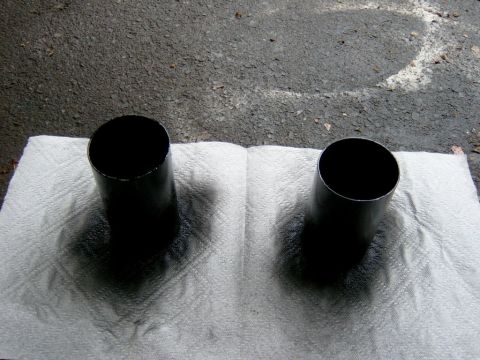

Painted them with black rustoleum to maybe prevent rust.

699 hits | 50.52 KB | Posted: 3/20/04

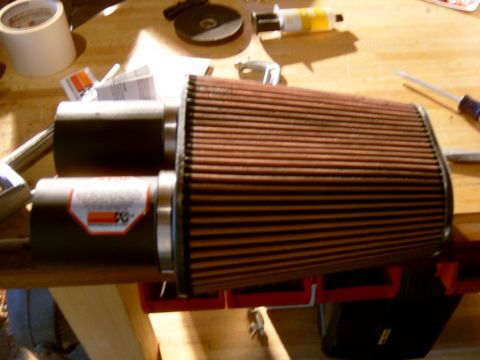

Painted and installed in the filter, they almost look factory.

675 hits | 57.25 KB | Posted: 3/20/04

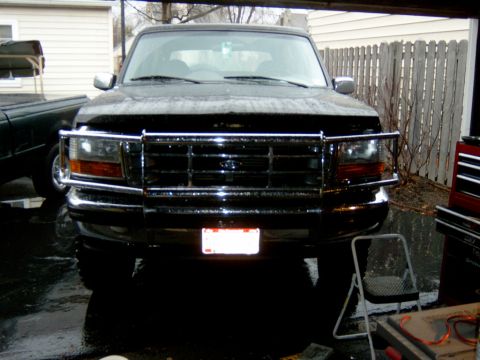

Damn you rain DAMN YOU!

685 hits | 75.51 KB | Posted: 3/20/04

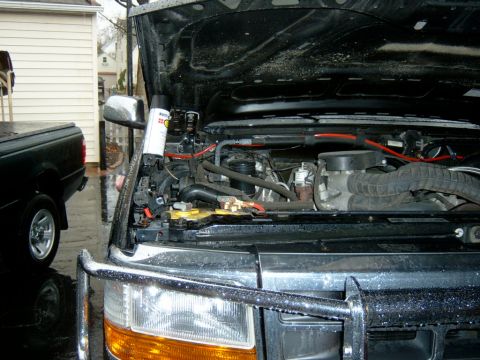

With a little help from my rustolium and the bronco half in the garage I got back to work.

647 hits | 38.71 KB | Posted: 3/20/04

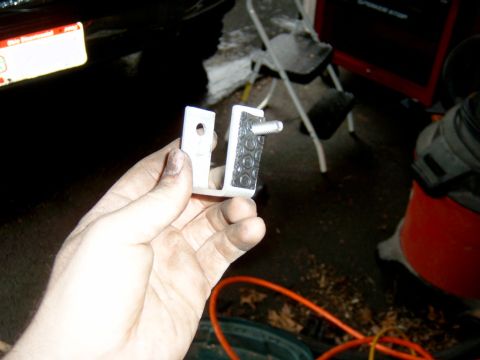

The filter had a screw on the end, I'm assuming for the actual kit. I made a bracket out of aluminu...

784 hits | 74.53 KB | Posted: 3/20/04

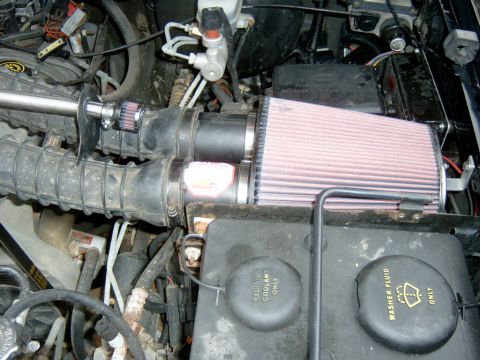

There it is all done.

662 hits | 69.72 KB | Posted: 3/20/04

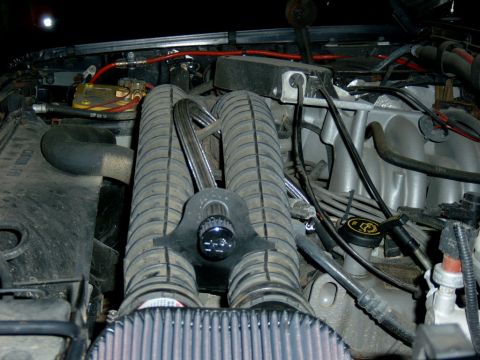

A better view of the breather. The reason I did it like this was because, as many of us know the PC...

685 hits | 70.85 KB | Posted: 3/21/04

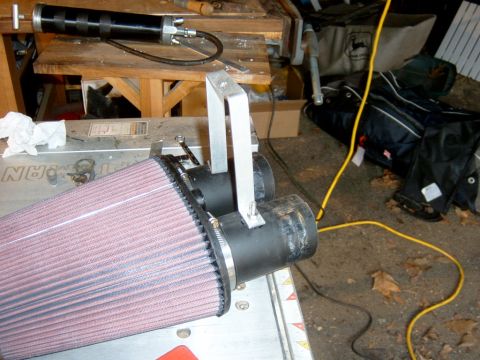

After a day of driving I realized that there needed to be some kind of bracket on the other side of ...

666 hits | 61.51 KB | Posted: 3/21/04

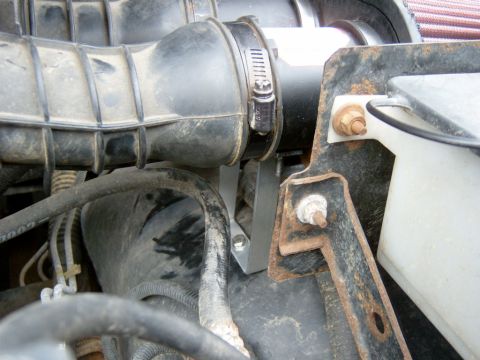

It just bolts to the inner-fender.

723 hits | 67.45 KB | Posted: 3/21/04

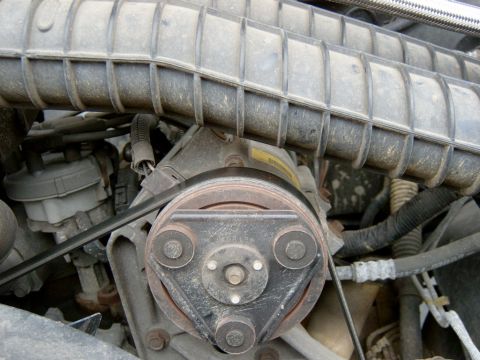

Now there’s lots of space, and no bouncing.
