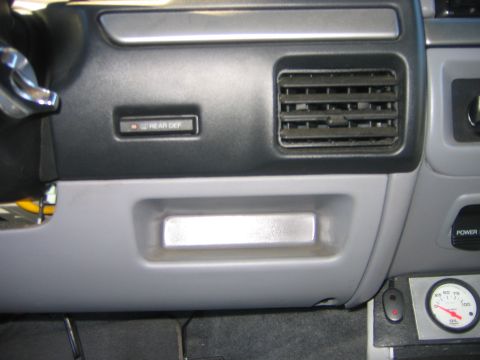

Look at the stupid thing, for me it is worthless.

518 hits | 48.36 KB | Posted: 12/11/06

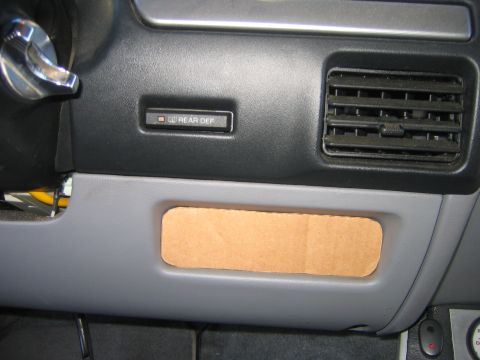

In traditional Ben mannor, start with a cardboard template

491 hits | 67.21 KB | Posted: 12/11/06

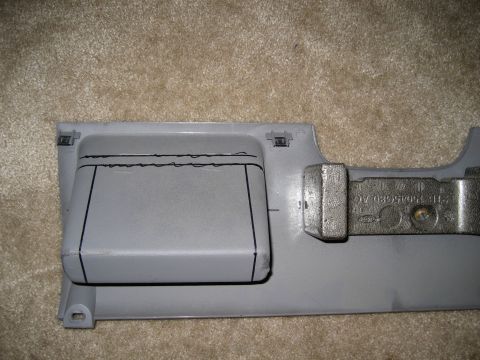

Take your time and measure out where you plan to cut, if you are me draw more lines than you need an...

499 hits | 64.91 KB | Posted: 12/11/06

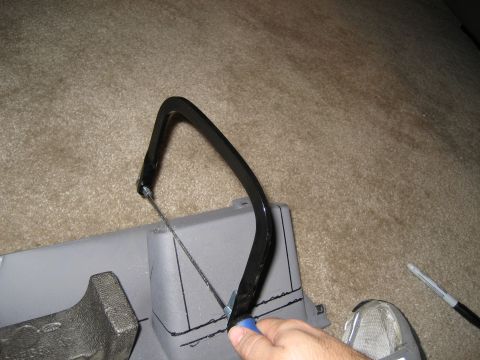

I chose a copping saw to make most of the cuts. You can use whatever floats your boat....I would ha...

486 hits | 67.78 KB | Posted: 12/11/06

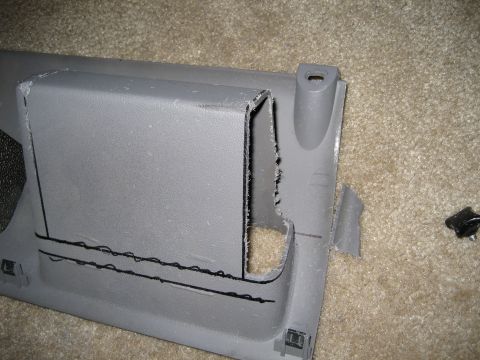

One side done. You could theoretically cut the whole thing off. I wanted to do it this way to keep...

475 hits | 69.67 KB | Posted: 12/11/06

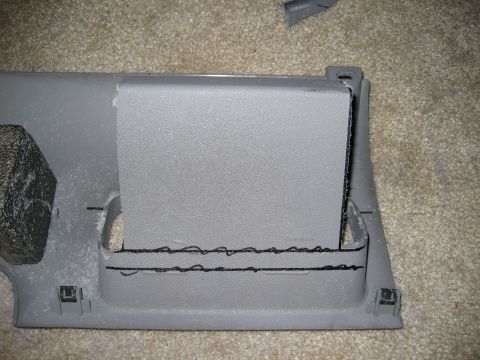

Both sides off, now you have a good place to glue things to.

479 hits | 77.97 KB | Posted: 12/11/06

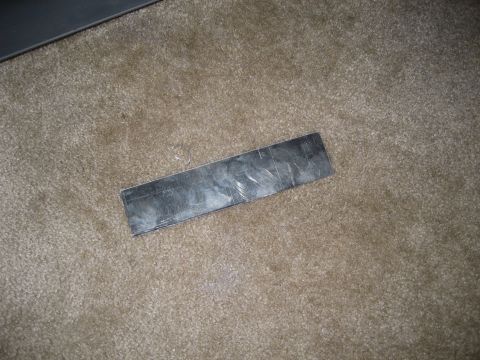

My best friend and peice of aluminim

487 hits | 70.24 KB | Posted: 12/11/06

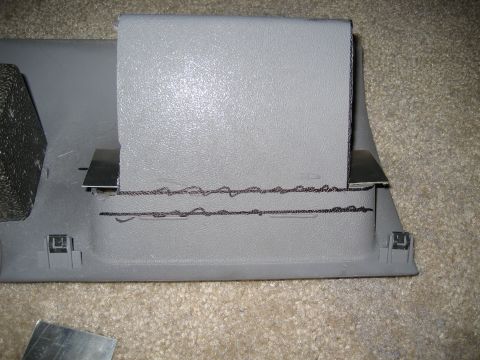

Rough fit, I made a boo boo on the left. It wont matter latter.

510 hits | 51.64 KB | Posted: 12/11/06

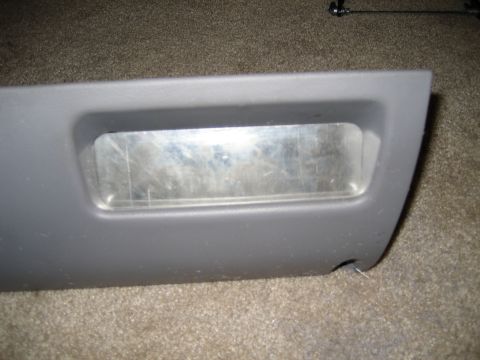

Looks pretty good so far.

461 hits | 77.27 KB | Posted: 12/11/06

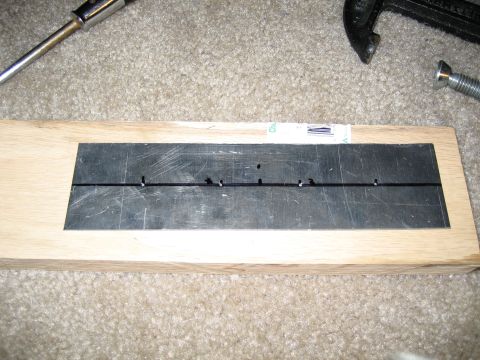

Measure and then center punch the holes for thw switches.

506 hits | 80.35 KB | Posted: 12/11/06

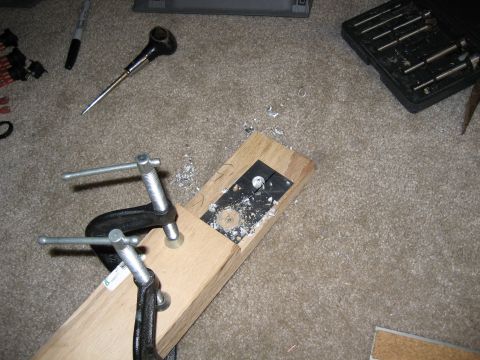

I use a forstner bit to drill these holes.....yes I know they are only for wood and only for a drill...

474 hits | 75.39 KB | Posted: 12/11/06

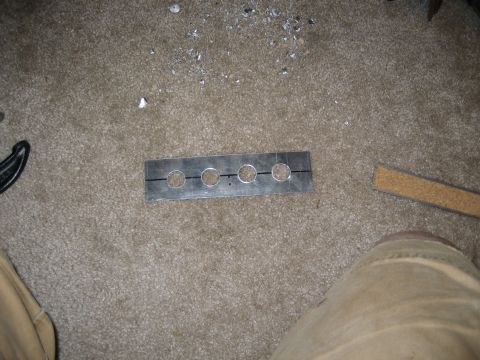

all the holes drilled, not all perfect but there is enough play in the switches that it all works ou...

491 hits | 60.47 KB | Posted: 12/11/06

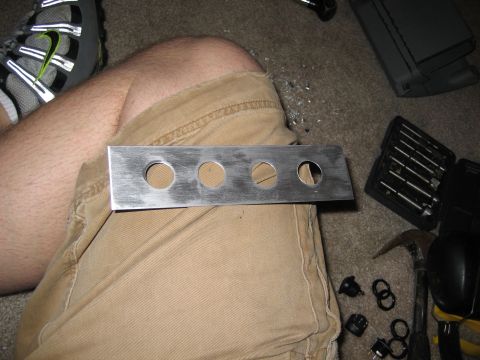

Now sand it with 220 all in the same direction. Then wash it off and slap some polish on it. Still...

597 hits | 39.43 KB | Posted: 12/11/06

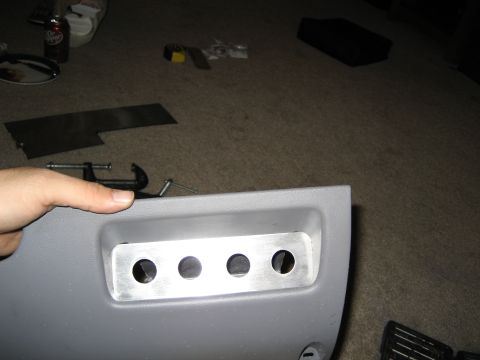

Starting to look decent.

517 hits | 48.5 KB | Posted: 12/11/06

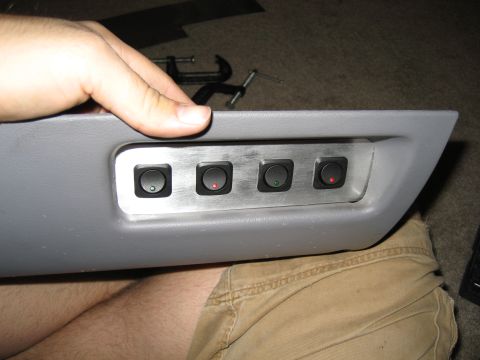

Switches in, still needs some glue and wires.

525 hits | 70.59 KB | Posted: 12/11/06

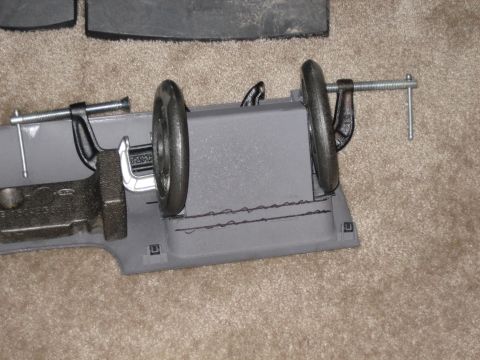

I got a little creative with the clamps.....er weights, eh whatever works.

545 hits | 32.11 KB | Posted: 12/11/06

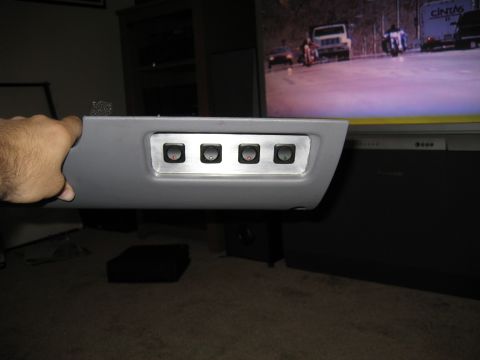

All glued up, little bit of extra...but that can be scraped off pretty easy.


Yes I was watching...

631 hits | 46.81 KB | Posted: 12/11/06

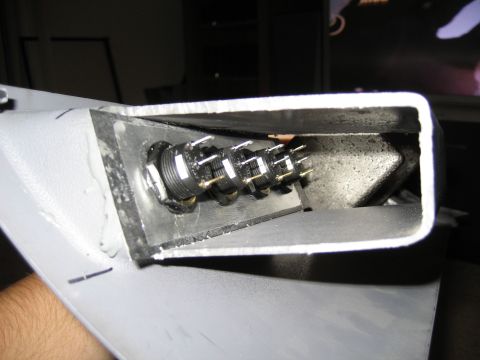

View from the back before wires.

561 hits | 52.07 KB | Posted: 12/11/06

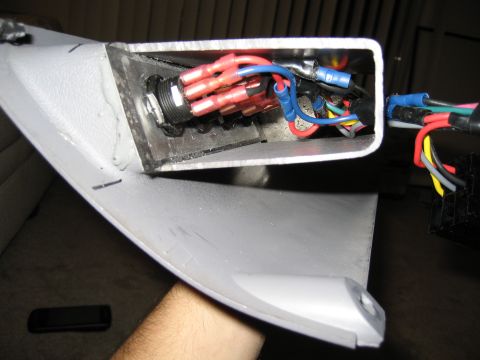

Pic with the wires, I re-did the wiring after this pic so I could eliminate some of the connectors.

827 hits | 84.52 KB | Posted: 12/11/06
Here is the wiring harness before I put it in. Again, I re-did it after this pic to fix somethings.

Cubby Switch Panel Wiring Diagram.jpg
709 hits | 26.35 KB | Posted: 12/11/06
Here is the wiring diagram I made for the wiring harness I made.

599 hits | 55.97 KB | Posted: 12/11/06

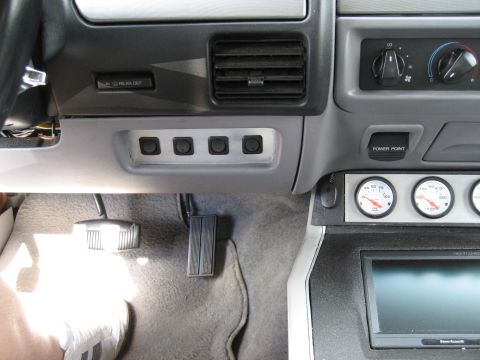

Still needs cleaning, you can see some of the marker on it, but other than that all done.
