417 hits | 107.29 KB | Posted: 1/16/08

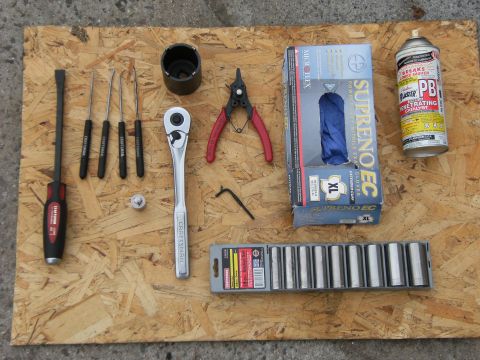

Here are the tools you will need to remove the hub and rotor assembly.

458 hits | 102.85 KB | Posted: 1/16/08

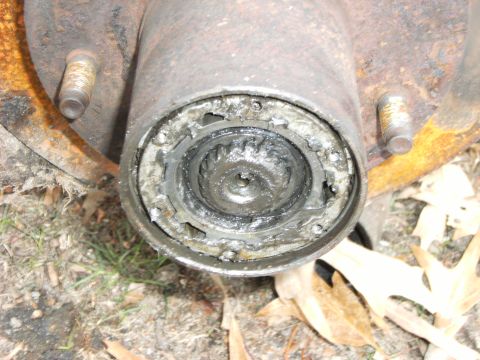

Here's what you are looking at with the hub dial off.

448 hits | 70.88 KB | Posted: 1/16/08

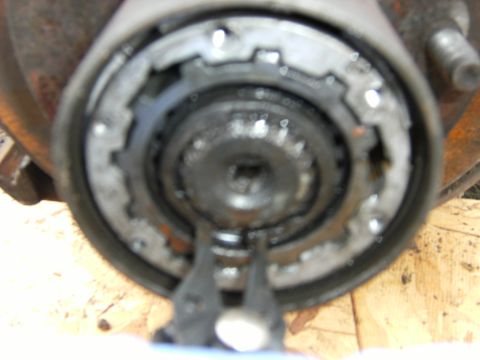

Getting at the snap ring on the axle shaft.

476 hits | 73.72 KB | Posted: 1/16/08

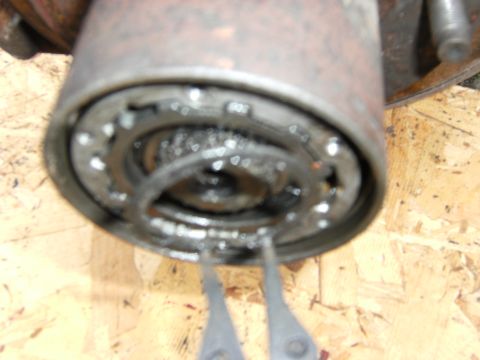

Removing the snap ring.

559 hits | 76.16 KB | Posted: 1/16/08

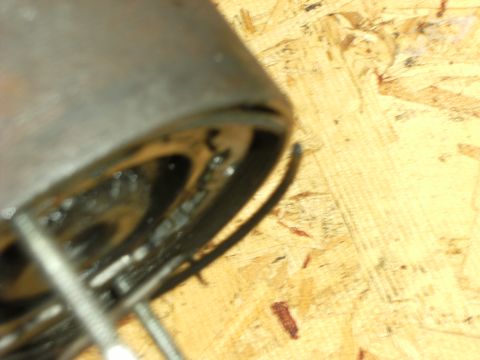

Remove the retaining ring

433 hits | 88.92 KB | Posted: 1/16/08

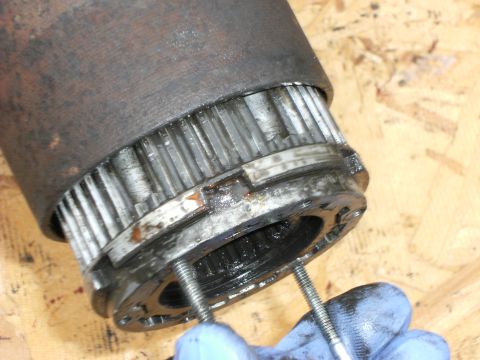

Thread two of the screws back into the hub internal and pull it out.

464 hits | 96.61 KB | Posted: 1/16/08

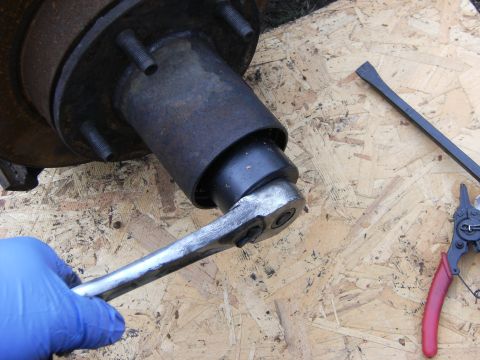

1/2" drive ratchet and the spindle nut socket

477 hits | 92.33 KB | Posted: 1/16/08

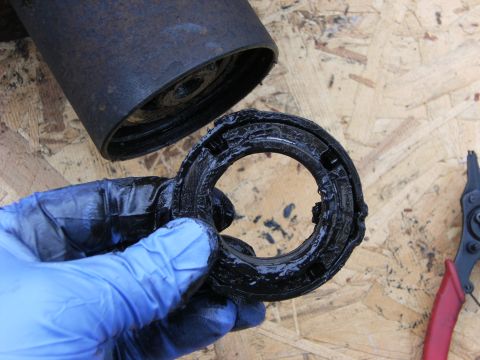

Remove the spindle nut.

423 hits | 115.49 KB | Posted: 1/16/08

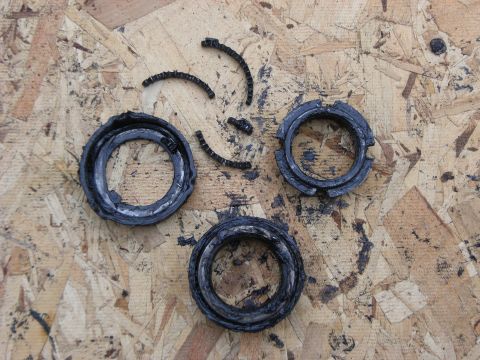

One of the spindle nuts came out in pieces.

425 hits | 86.98 KB | Posted: 1/16/08

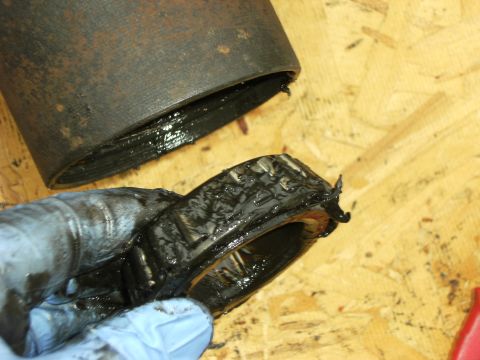

Followed by the wheel bearing

426 hits | 93.34 KB | Posted: 1/16/08

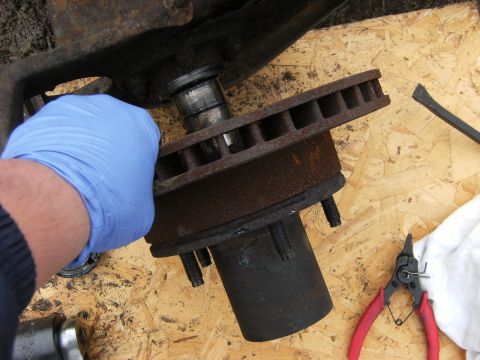

Remove the hub and rotor assembly

422 hits | 106.53 KB | Posted: 1/16/08

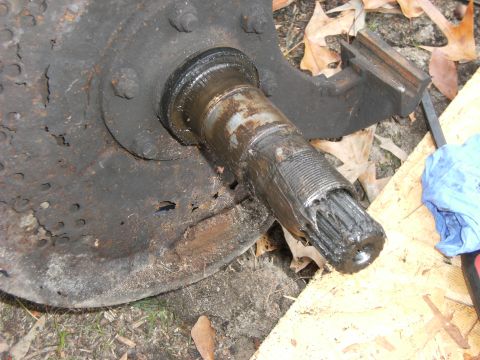

Bare spindle

421 hits | 112.6 KB | Posted: 1/16/08

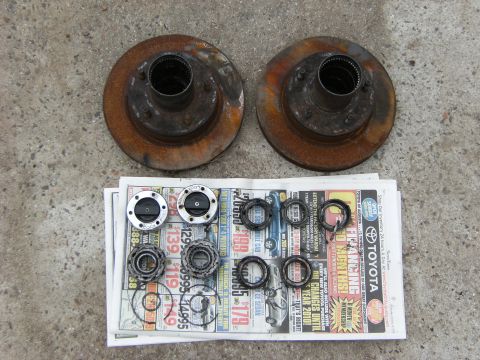

All of the old parts
