95 Ford Taurus fan.jpg
701 hits | 88.71 KB | Posted: 6/15/08

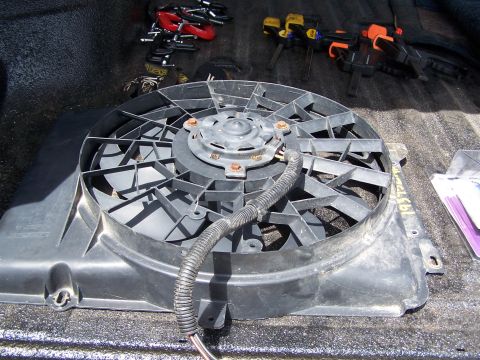

Electrical Fan out of a 1995 Ford Taurus 3.8L

Fan parts.jpg
610 hits | 88.14 KB | Posted: 6/15/08

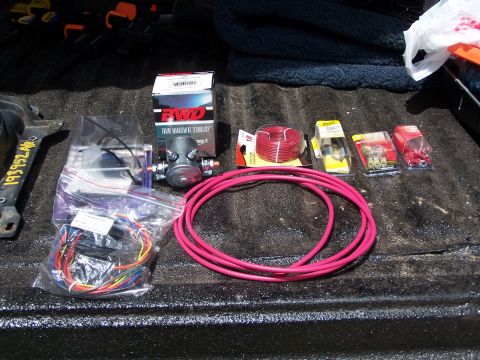

Everything you should need for the install

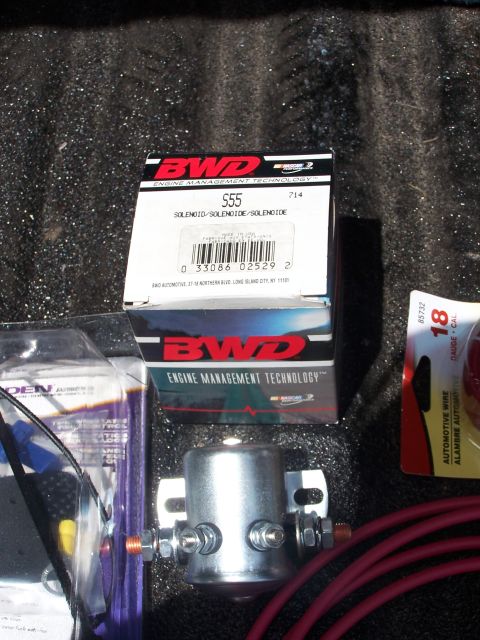

Fan Relay.jpg
721 hits | 73.62 KB | Posted: 6/15/08
Fan relay: Borge Warner S55 also Napa st85. This Starter Switch comes out of a 1985 Dodge Caravan o...

Fan Controller.jpg
751 hits | 86.41 KB | Posted: 6/15/08

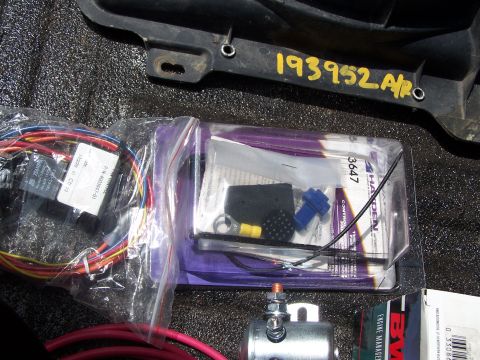

Hayden/Imperial Fan Controller #3647

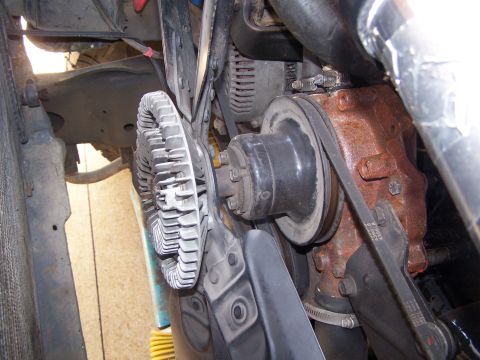

Mech Fan.jpg
702 hits | 66.15 KB | Posted: 6/15/08
Mechanical fan

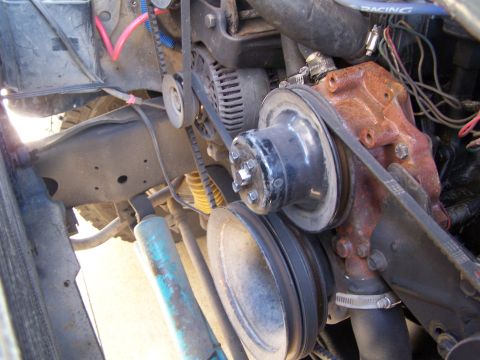

Mech Fan OFF.jpg
641 hits | 65.31 KB | Posted: 6/15/08
Mech. Fan off

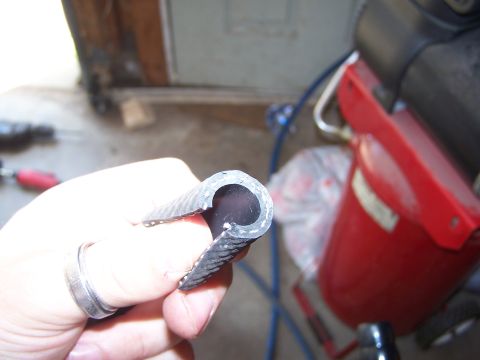

Fan Shroud Protectors.jpg
586 hits | 36.93 KB | Posted: 6/15/08
Fan Shroud protectors

Fan Placement.jpg
631 hits | 74.74 KB | Posted: 6/15/08

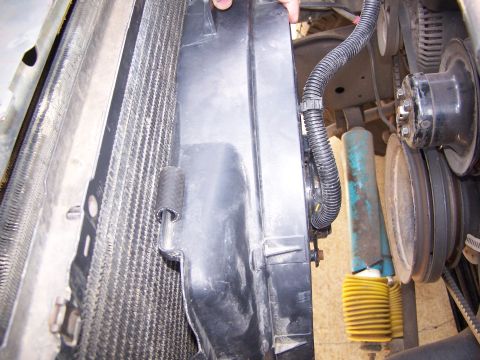

Test fit/placement

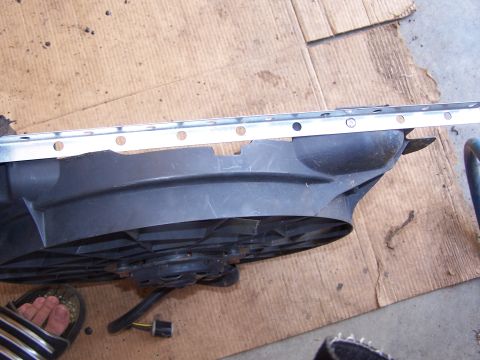

Fan Bracket.jpg
621 hits | 59.64 KB | Posted: 6/15/08
Fan Bracket

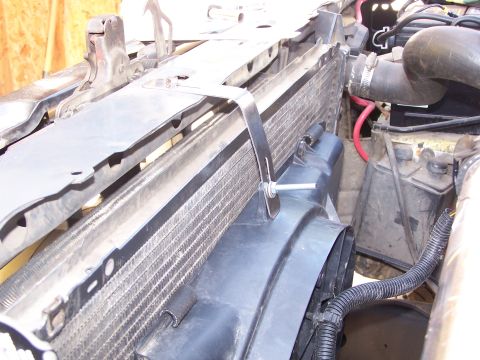

Top Fan Bracket.jpg
611 hits | 73.01 KB | Posted: 6/15/08
Top fan bracket

Relay Bracket Install.jpg
625 hits | 74.2 KB | Posted: 6/15/08

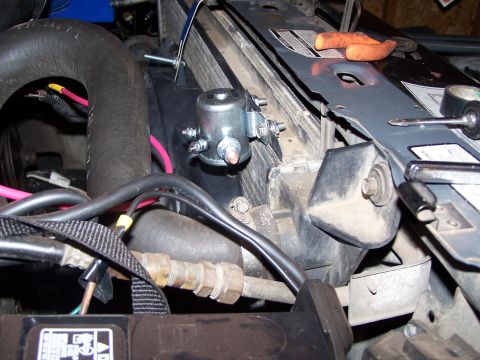

Relay Install

Thermostat Inst..jpg
584 hits | 61.49 KB | Posted: 6/15/08

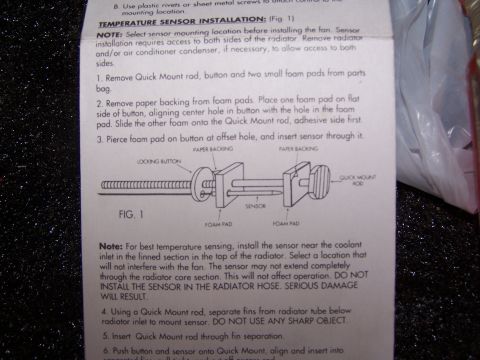

Thermostat Instruction Sheet

1 - controller install.jpg
558 hits | 67.05 KB | Posted: 6/21/08

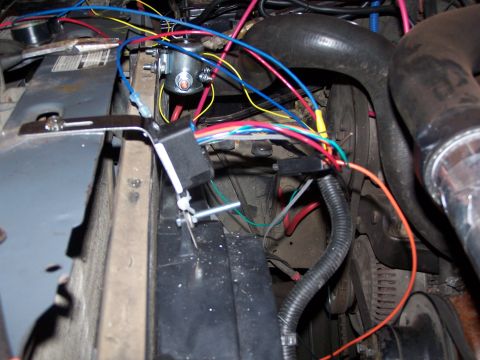

Fan controller bracket installed

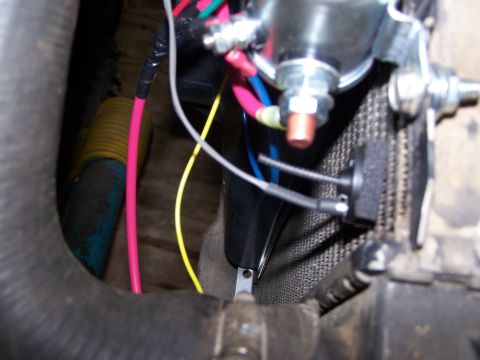

2- temp probe installed.jpg
553 hits | 48.32 KB | Posted: 6/21/08
Temp probe installed

3 - wiring loom.jpg
507 hits | 66.24 KB | Posted: 6/21/08

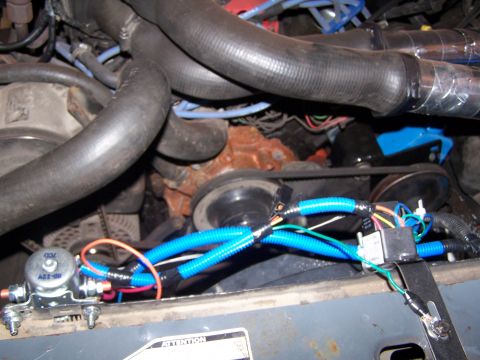

Wires wrapped up and readt for startup.

4- wiring loom II.jpg
580 hits | 77.32 KB | Posted: 6/21/08

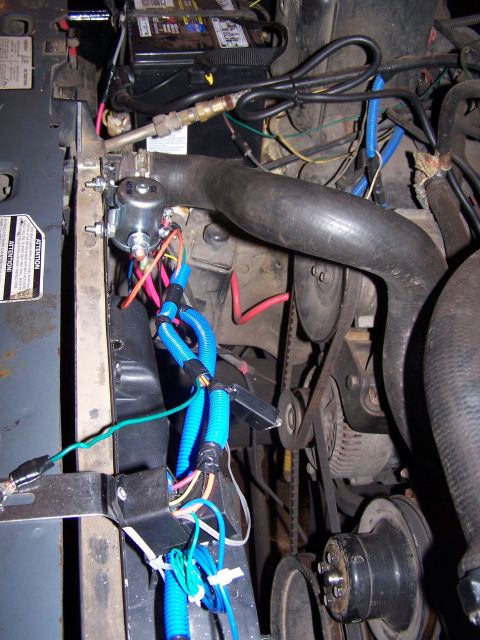

wiring loom...full install!

Taurtus Fan Wiring Diagram JPG.jpg
662 hits | 31.25 KB | Posted: 6/23/08

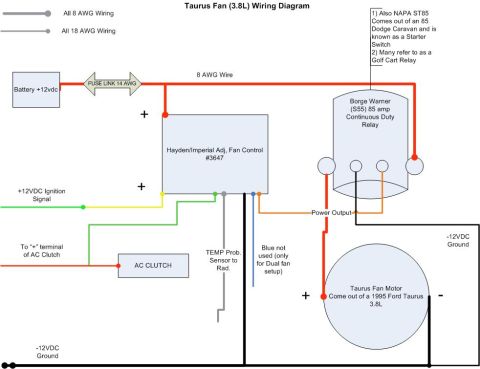

Fan wiring Diagram
