231 hits | 55.08 KB | Posted: 5/2/14
Safety Off

248 hits | 27.25 KB | Posted: 5/2/14
Safety Locked

274 hits | 51.64 KB | Posted: 5/2/14
4mm deep safety notch

246 hits | 49.79 KB | Posted: 5/2/14
4mm finger that fits in notch

249 hits | 66.57 KB | Posted: 5/2/14
Marked to shorten both to 2mm

255 hits | 48.64 KB | Posted: 5/2/14
Both carefully shortened w/ Dremel

241 hits | 56.62 KB | Posted: 5/2/14
PROBLEM! Sear face rests here; doesn't drop into pocket enough now.

248 hits | 59.3 KB | Posted: 5/2/14
This would have to have 2-2.5mm machined off for clearance now

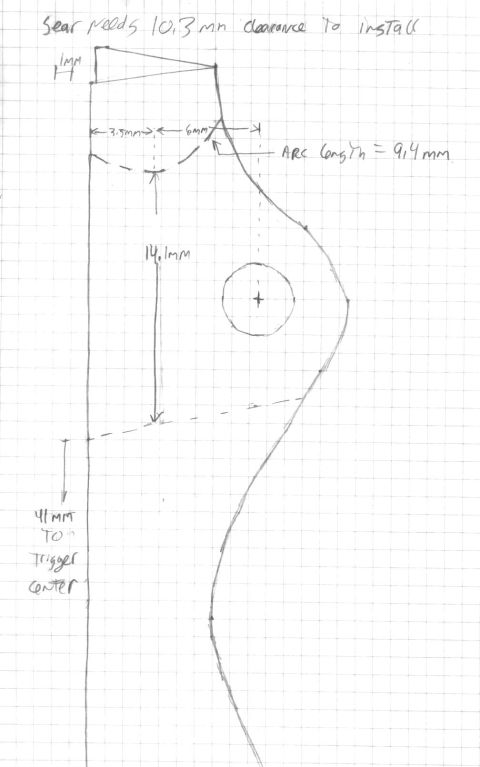

308 hits | 27.2 KB | Posted: 5/12/14
Stock trigger dimensions

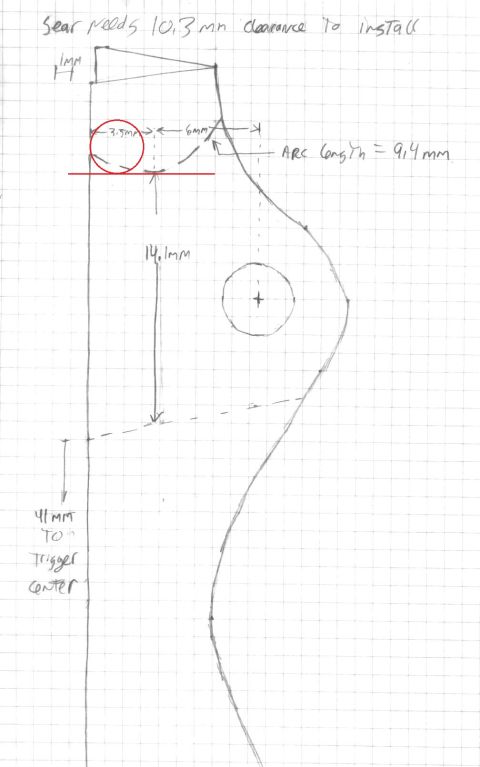

346 hits | 28.67 KB | Posted: 5/12/14
Placement of a 1/16" SS dowel to accelerate trigger-sear ratio.

372 hits | 44.54 KB | Posted: 5/12/14
1/16" SS Dowel Placement; just a bit more forward and lower than planned.

393 hits | 61.59 KB | Posted: 5/12/14
Modified on Left, Stock on Right; contact point of trigger on sear is now as far forward as possible...

367 hits | 39.3 KB | Posted: 5/13/14
Finnish Trigger Inspiration

349 hits | 46.08 KB | Posted: 5/13/14
Finnish Trigger Inspiration

360 hits | 33.74 KB | Posted: 5/13/14
Original Russian Trigger modification suggestion

385 hits | 9.05 KB | Posted: 5/13/14
Original Russian Trigger modification suggestion
