Steve83 > 1994 Ford Crown Victoria > open folder Steering Column

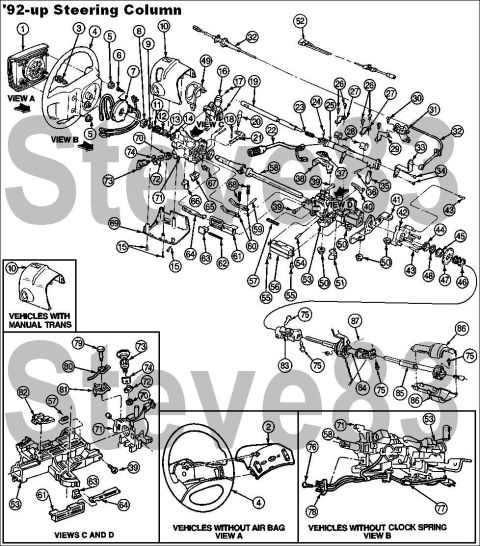

'92-up Steering Column exploded IF THE IMAGE IS TOO SMALL, click it. Items #19 ([url=https://www.am...
Hits: 41102
Size: 100.24 KB
Posted: 1/13/09

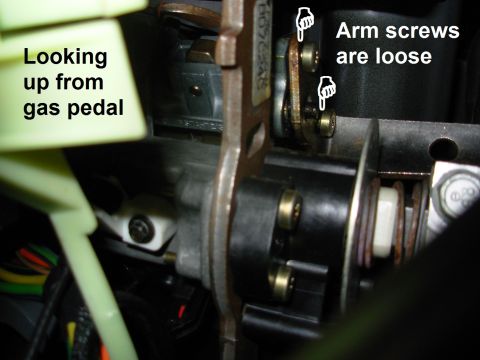

'92-up Steering Column exploded IF THE IMAGE IS TOO SMALL, click it. Items #19 ([url=https://www.am...		This problem commonly affects '92-up truck (and other Ford/L/M) steering columns, but it's relativel...
Hits: 3351
Size: 48.53 KB
Posted: 3/13/16

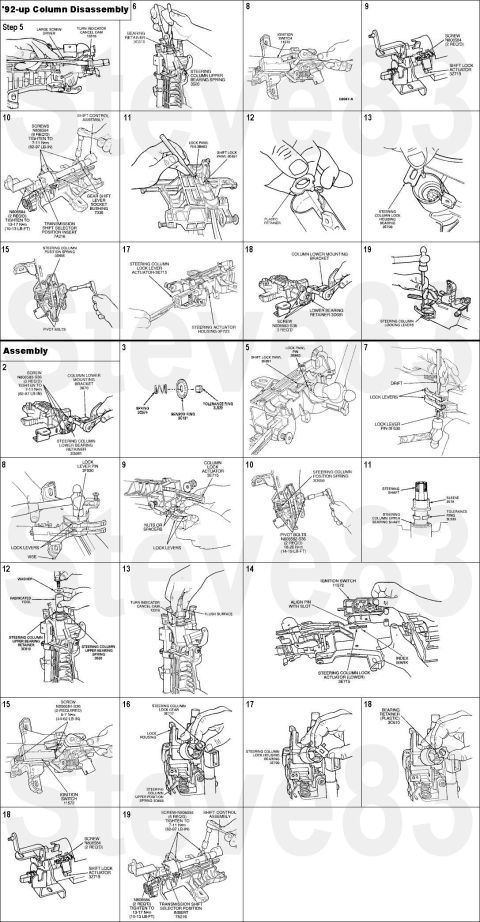

This problem commonly affects '92-up truck (and other Ford/L/M) steering columns, but it's relativel...		'92-up Steering Column Disassembly See this diagram for a list of all parts. [url=http://www.superm...
Hits: 36451
Size: 48.94 KB
Posted: 10/14/07

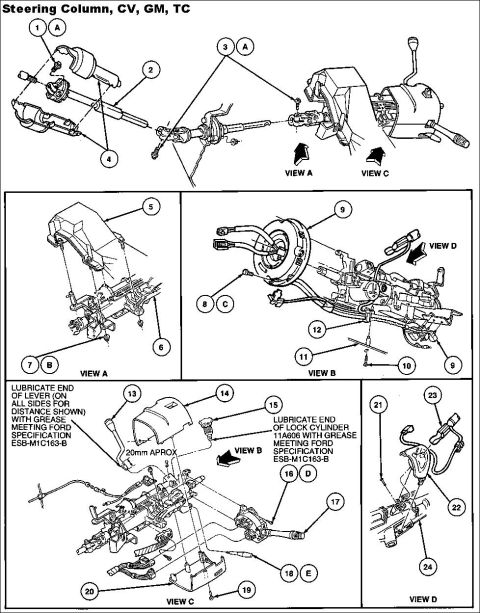

'92-up Steering Column Disassembly See this diagram for a list of all parts. [url=http://www.superm...		Steering Column Assembly 1A Screw N803942-S100 2 Steering Column Gear Input Shaft Coupling 3A5...
Hits: 12296
Size: 72.6 KB
Posted: 11/7/05

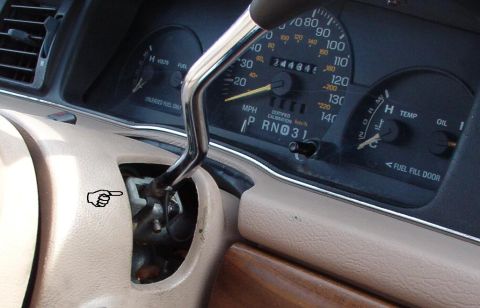

Steering Column Assembly 1A Screw N803942-S100 2 Steering Column Gear Input Shaft Coupling 3A5...		The boot was torn & degraded, so I removed it earlier. It's not available from Ford, but I found on...
Hits: 14236
Size: 42.85 KB
Posted: 1/28/06
The boot was torn & degraded, so I removed it earlier. It's not available from Ford, but I found on...

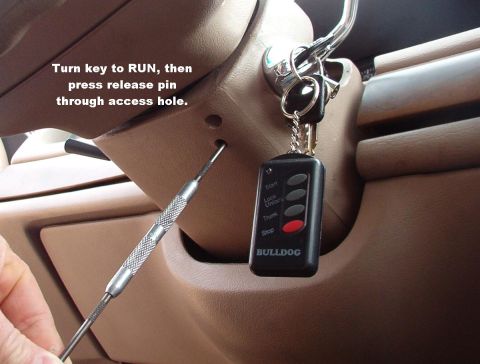

To do any work inside the column: first, remove the lock cylinder by turning the key to RUN, then pr...
Hits: 17338
Size: 45.41 KB
Posted: 1/28/06

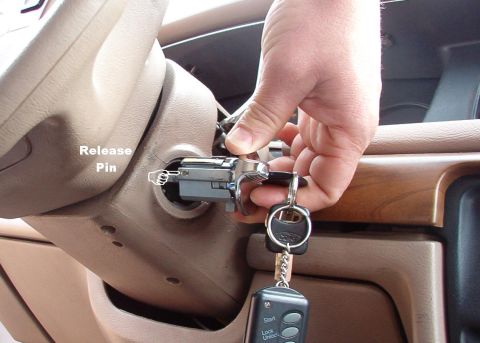

To do any work inside the column: first, remove the lock cylinder by turning the key to RUN, then pr...		This is what the probe pressed in to release the cylinder. When the key is rotated, the pin will be...
Hits: 15188
Size: 45.28 KB
Posted: 1/28/06

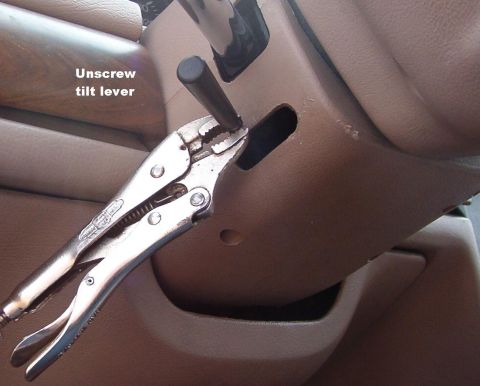

This is what the probe pressed in to release the cylinder. When the key is rotated, the pin will be...		Using the provided flats, unscrew the tilt lever. Try not to mar the coating (paint, or chrome).
Hits: 13215
Size: 43.05 KB
Posted: 1/28/06

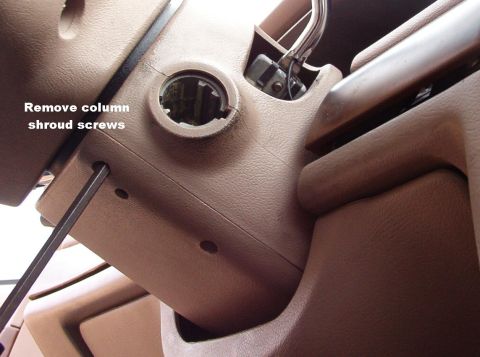

Using the provided flats, unscrew the tilt lever. Try not to mar the coating (paint, or chrome).		Remove the 3 lower shroud screws. It may be necessary to remove the knee bolster to get the fourth ...
Hits: 13000
Size: 47.86 KB
Posted: 1/28/06

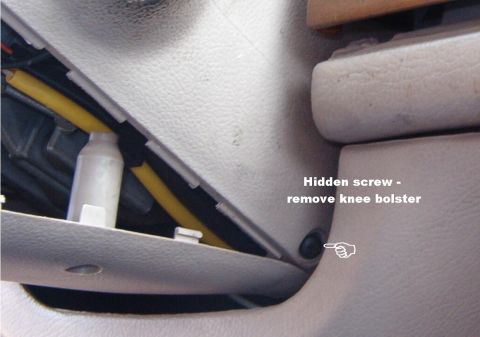

Remove the 3 lower shroud screws. It may be necessary to remove the knee bolster to get the fourth ...		If this screw is installed, remove the knee bolster & then the screw.
Hits: 12775
Size: 38.31 KB
Posted: 1/28/06
If this screw is installed, remove the knee bolster & then the screw.

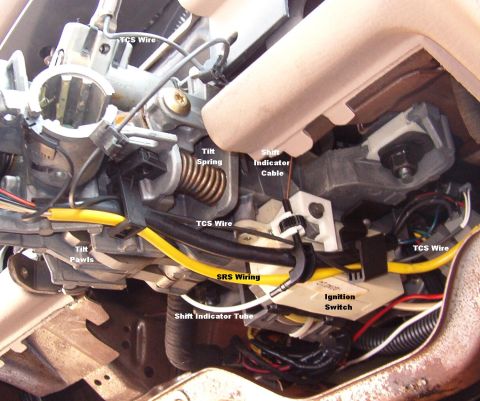

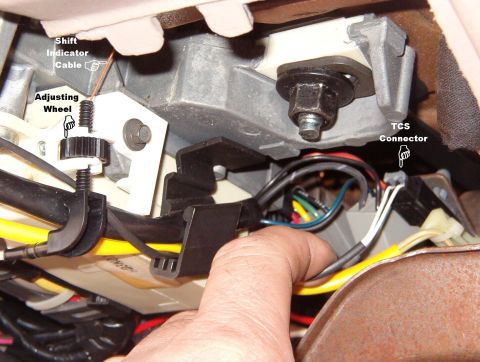

Trace the Transmission Control Switch (TCS) wire from the shift lever to its connector, & disconnect...
Hits: 19675
Size: 60.77 KB
Posted: 1/28/06
Trace the Transmission Control Switch (TCS) wire from the shift lever to its connector, & disconnect...		Trace the Transmission Control Switch (TCS) wire from the shift lever to its connector, & disconnect...
Hits: 24664
Size: 71.25 KB
Posted: 1/28/06

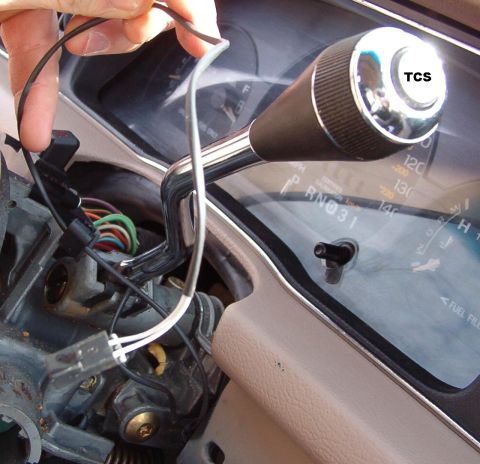

Trace the Transmission Control Switch (TCS) wire from the shift lever to its connector, & disconnect...		Remove the wire from its guides & retainers so it's free all the way to the base of the shift lever.
Hits: 15177
Size: 66.25 KB
Posted: 1/28/06

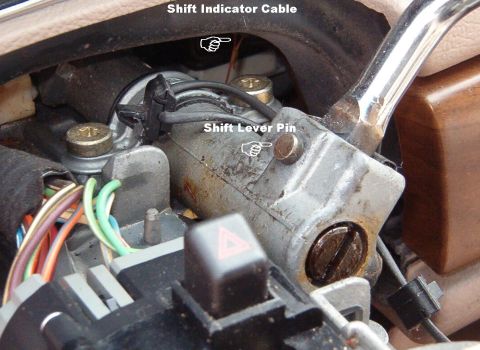

Remove the wire from its guides & retainers so it's free all the way to the base of the shift lever.		This is the shift lever pin. The knurled end just below the head retains it in the pot metal castin...
Hits: 14866
Size: 59.59 KB
Posted: 1/28/06

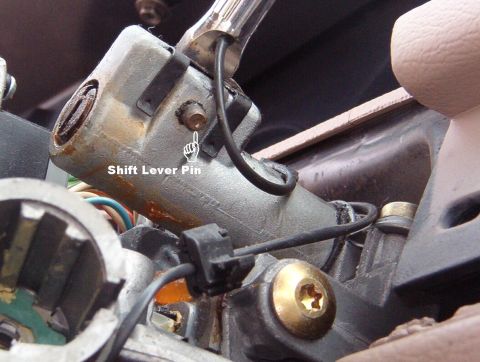

This is the shift lever pin. The knurled end just below the head retains it in the pot metal castin...		Push the pin out to remove the lever.
Hits: 13421
Size: 56.61 KB
Posted: 1/28/06
Push the pin out to remove the lever.

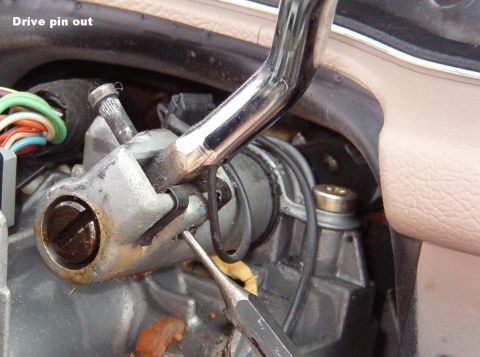

It may be necessary to tap the pin out with a small hammer & drift.
Hits: 13324
Size: 54.77 KB
Posted: 1/28/06

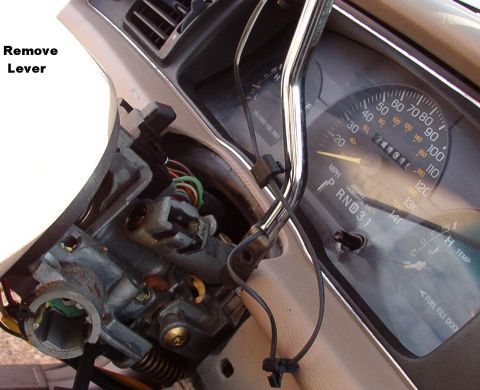

It may be necessary to tap the pin out with a small hammer & drift.		The lever can now be removed from the shifter tube.
Hits: 12753
Size: 58.51 KB
Posted: 1/28/06

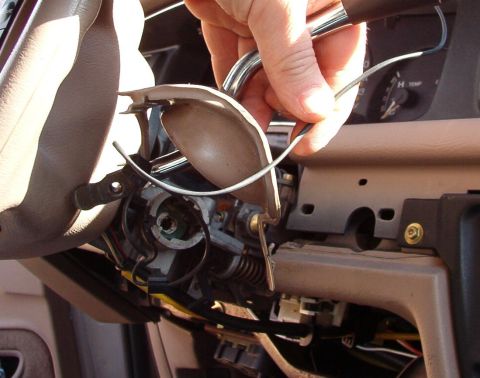

The lever can now be removed from the shifter tube.		Feed the TCS wire through the boot & install the boot onto the lever.
Hits: 12397
Size: 50.69 KB
Posted: 1/28/06

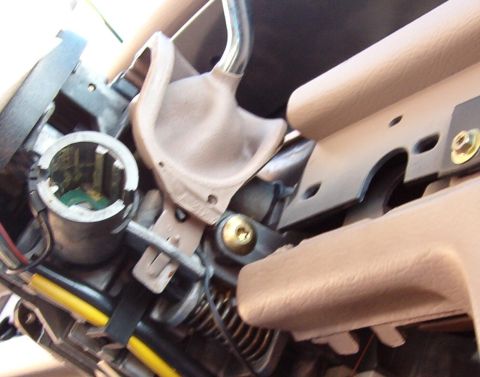

Feed the TCS wire through the boot & install the boot onto the lever.		Install the lever & pin, and then clip the boot down.
Hits: 12558
Size: 47.82 KB
Posted: 1/28/06

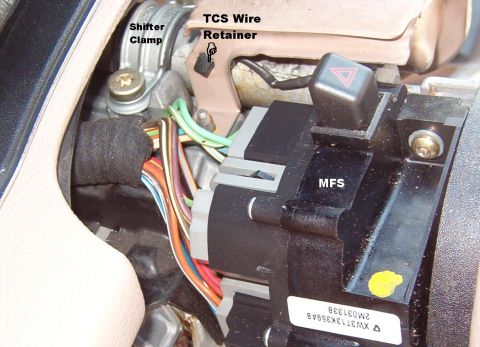

Install the lever & pin, and then clip the boot down.		Ensure that the wire is routed clear of any moving parts, and connected. To remove the MFS, first r...
Hits: 11822
Size: 63 KB
Posted: 1/28/06
Ensure that the wire is routed clear of any moving parts, and connected. To remove the MFS, first r...

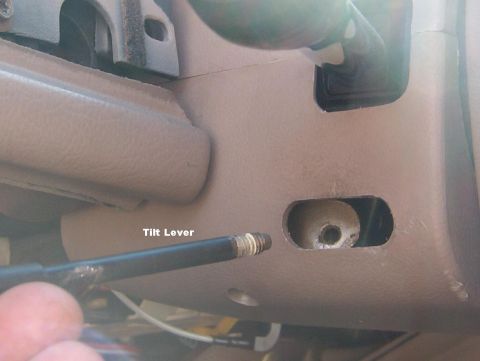

Reinstall the column shrouds, knee bolster, lock cylinder, & tilt lever.
Hits: 10466
Size: 29.86 KB
Posted: 1/28/06

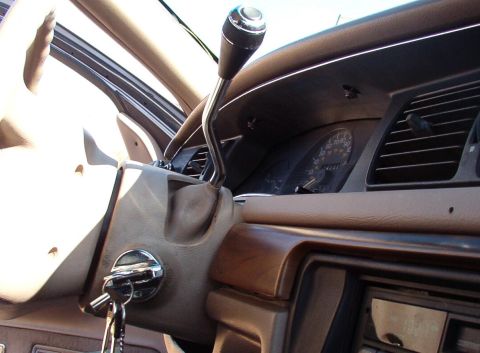

Reinstall the column shrouds, knee bolster, lock cylinder, & tilt lever.		With the key in RUN and the retainer pin pushed into the lock cylinder housing, reinsert the cylinde...
Hits: 10239
Size: 45.36 KB
Posted: 1/28/06

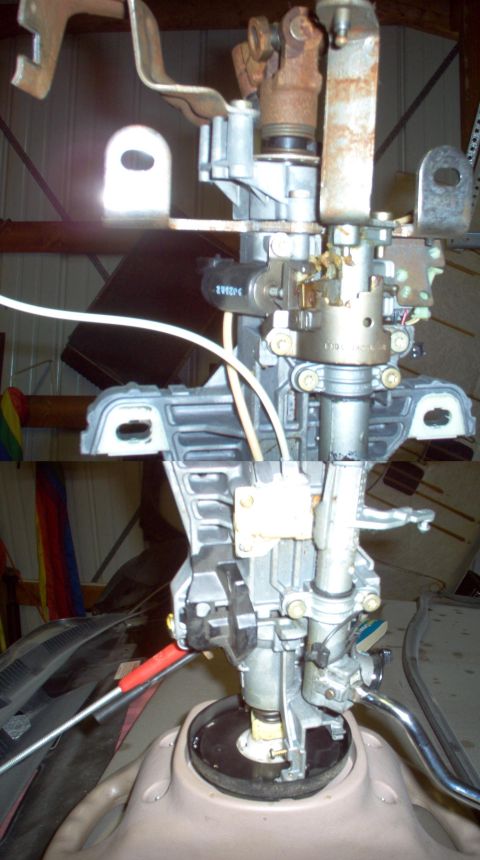

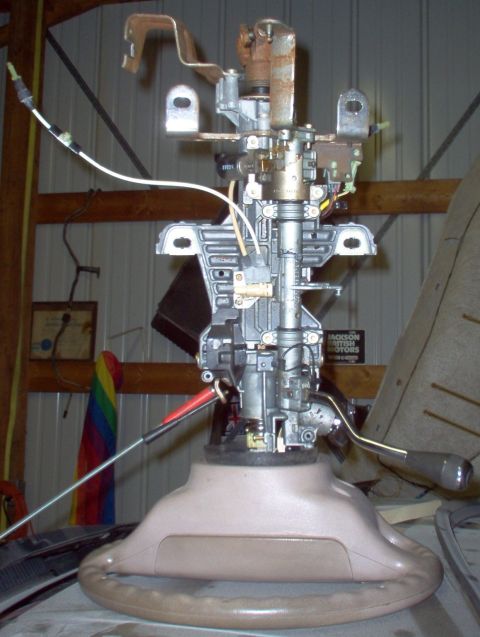

With the key in RUN and the retainer pin pushed into the lock cylinder housing, reinsert the cylinde...		This steering column was used on almost every Ford/L/M product (and some imports) from the early 90s...
Hits: 11761
Size: 48.26 KB
Posted: 1/28/06
This steering column was used on almost every Ford/L/M product (and some imports) from the early 90s...		This steering column was used on almost every Ford/L/M product (and some imports) from the early 90s...
Hits: 9988
Size: 43.05 KB
Posted: 1/28/06

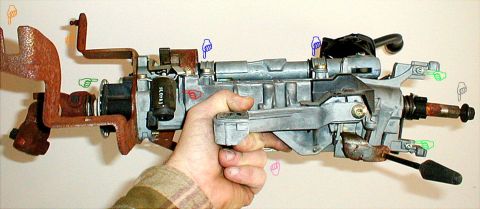

This steering column was used on almost every Ford/L/M product (and some imports) from the early 90s...		For more info, see this page: http://www.p71interceptor.com/steering/column/disassembled/pictures T...
Hits: 10211
Size: 49.22 KB
Posted: 2/3/06

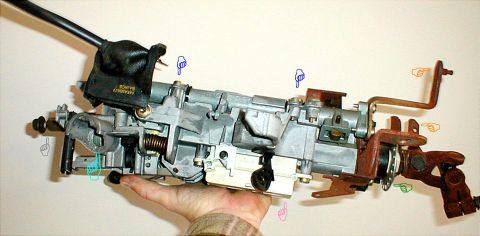

For more info, see this page: http://www.p71interceptor.com/steering/column/disassembled/pictures T...
For more info, see this page: http://www.p71interceptor.com/steering/column/disassembled/pictures T...
Hits: 9716
Size: 49.85 KB
Posted: 2/3/06

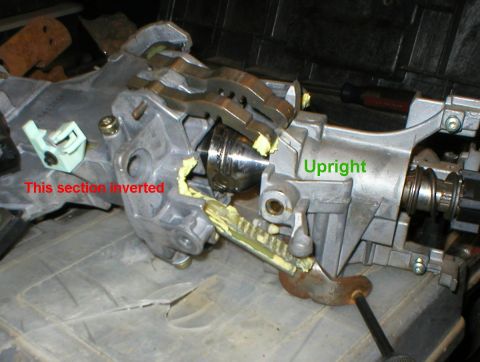

For more info, see this page: http://www.p71interceptor.com/steering/column/disassembled/pictures T...		'92-up steering columns use a plastic gear rack between the lock cylinder & the ignition switch.
Hits: 11200
Size: 73.2 KB
Posted: 3/30/06

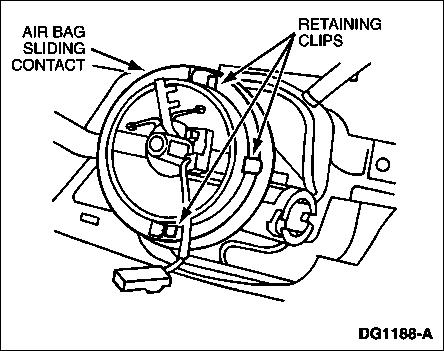

'92-up steering columns use a plastic gear rack between the lock cylinder & the ignition switch.		Clock Spring Removal
Hits: 10834
Size: 40.57 KB
Posted: 2/3/06

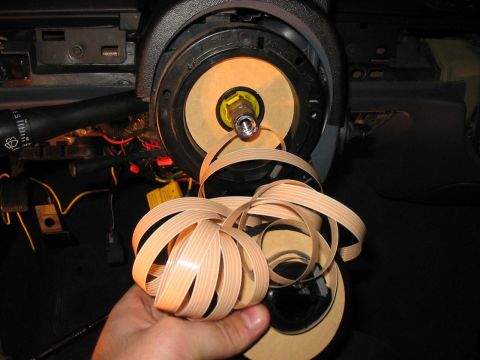

Clock Spring Removal		Clock Spring Exploded Don't take the clock spring apart - it's very difficult to repair and then rea...
Hits: 14536
Size: 56.62 KB
Posted: 2/3/06

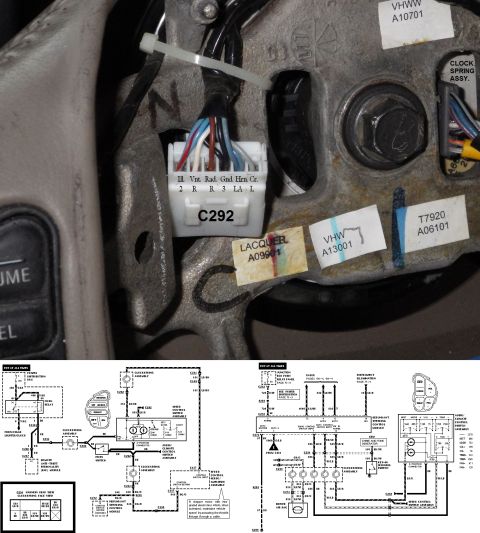

Clock Spring Exploded Don't take the clock spring apart - it's very difficult to repair and then rea...		This is a slightly-improved version of a diagram I made when I built my Bronco. It now has the ~'01...
Hits: 3077
Size: 69.14 KB
Posted: 12/3/15
This is a slightly-improved version of a diagram I made when I built my Bronco. It now has the ~'01...

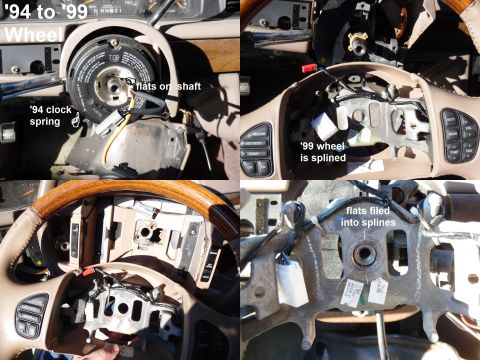

Because the foam cover was slipping on the steel rim; and because the clock spring is broken and no ...
Hits: 3129
Size: 102.73 KB
Posted: 1/17/16

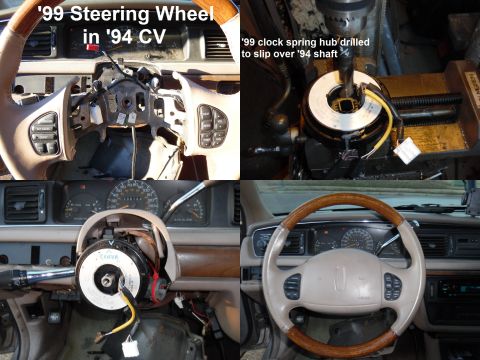

Because the foam cover was slipping on the steel rim; and because the clock spring is broken and no ...		In addition to modifying the wheel hub, the clock spring also required some work. The original was h...
Hits: 3140
Size: 89.97 KB
Posted: 1/17/16
In addition to modifying the wheel hub, the clock spring also required some work. The original was h...		Ignition Actuators Link Pin IF THE IMAGE IS TOO SMALL, click it. Although rare, a known problem ...
Hits: 540
Size: 104.02 KB
Posted: 3/7/24
Ignition Actuators Link Pin IF THE IMAGE IS TOO SMALL, click it. Although rare, a known problem ...
