957 hits | 68.72 KB | Posted: 7/10/05

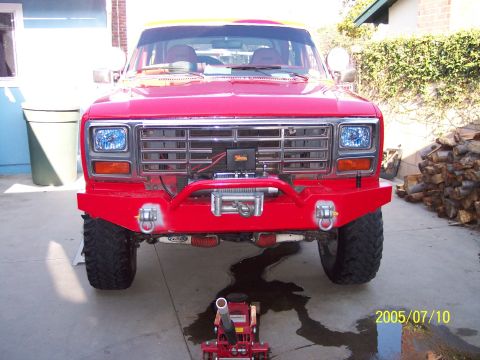

step 1: place vehicle on jack stands.

1118 hits | 65.82 KB | Posted: 7/10/05

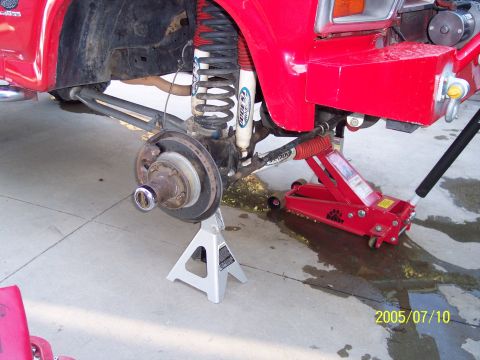

rt front hub and rotor

1123 hits | 65.64 KB | Posted: 7/10/05

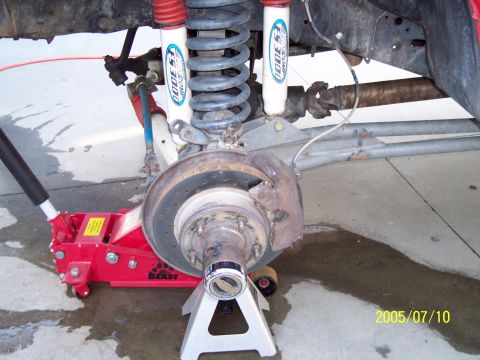

lt ft hub and rotor.

1236 hits | 55.88 KB | Posted: 7/10/05

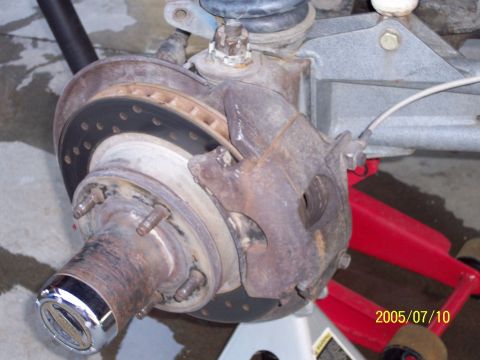

2nd photo before disassembly of rt frt hub and rotor

1170 hits | 68.82 KB | Posted: 7/10/05

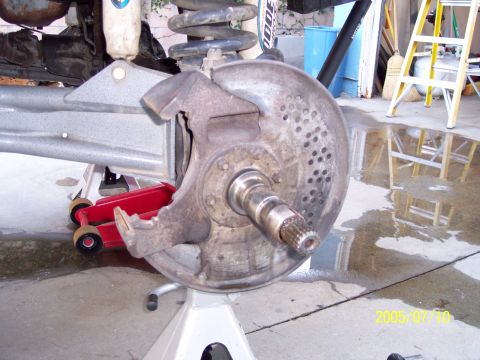

disassembly of rt side.

1201 hits | 67.68 KB | Posted: 7/10/05

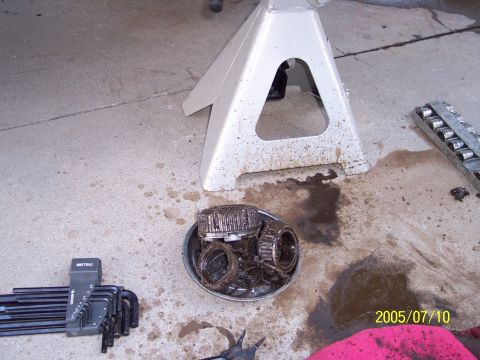

rt hub...looks like i had a water leak...completely saturated in dirt and oil...not sure whether to ...

2061 hits | 59.21 KB | Posted: 7/10/05

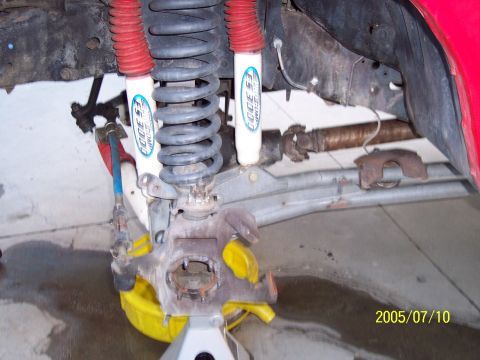

left side after disassembly

1115 hits | 66.62 KB | Posted: 7/10/05

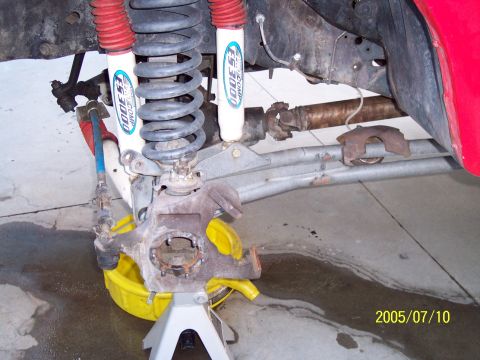

2nd shot of left side

1032 hits | 65.26 KB | Posted: 7/10/05

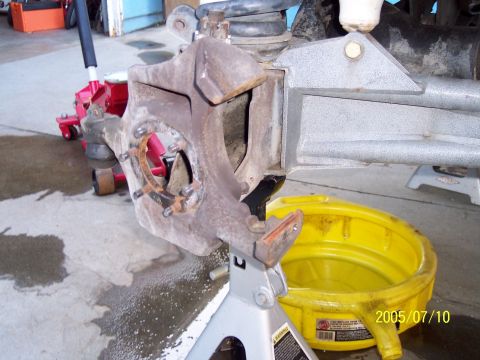

close up of left side.

1113 hits | 71.29 KB | Posted: 7/12/05

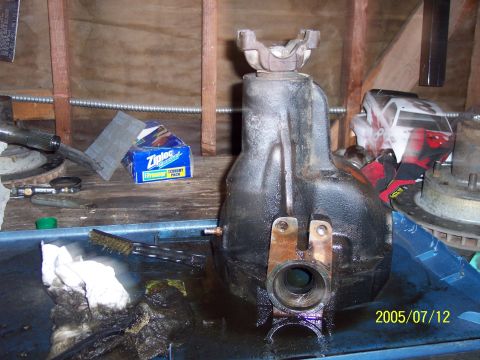

Third member removed from vehicle...will clean and paint since I have it out.

1108 hits | 63.87 KB | Posted: 7/12/05

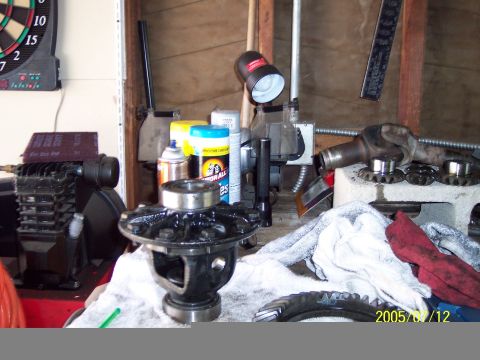

no spider gears in it.

1153 hits | 59.65 KB | Posted: 7/12/05

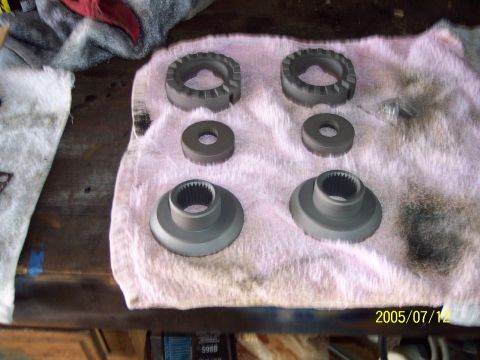

Aussie locker components before install.

1164 hits | 62.86 KB | Posted: 7/12/05

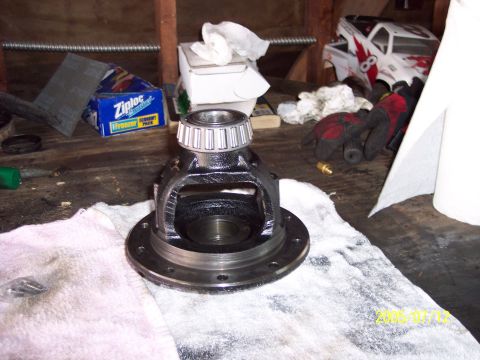

All cleaned up and ready for install of locker.

1539 hits | 59.05 KB | Posted: 7/12/05

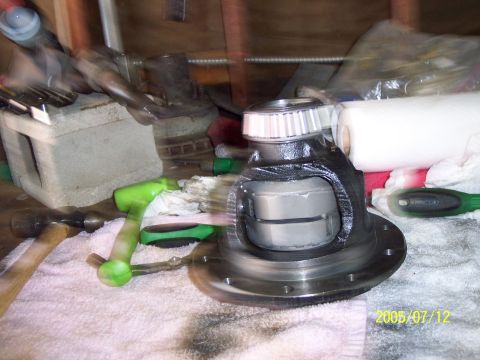

With aussie locker installed...just have to check tolarances...calls for between.145 - .170.

1156 hits | 71.25 KB | Posted: 7/12/05

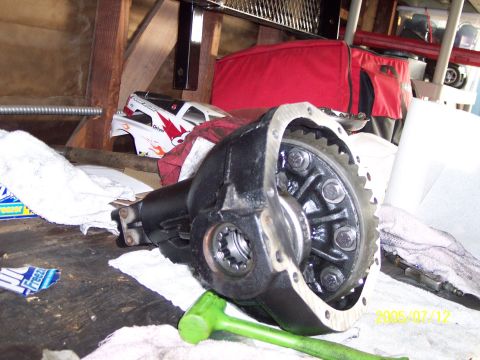

carrier back in housing.

1233 hits | 77.53 KB | Posted: 7/12/05

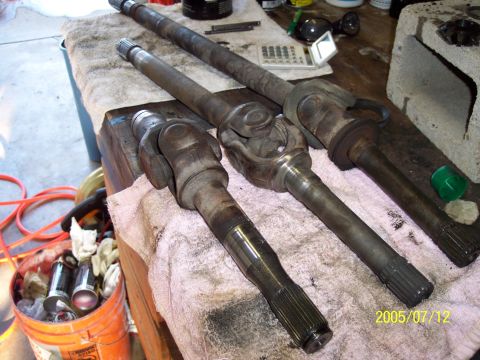

front axles before clean up and new u joint installation.

1055 hits | 69.05 KB | Posted: 7/12/05

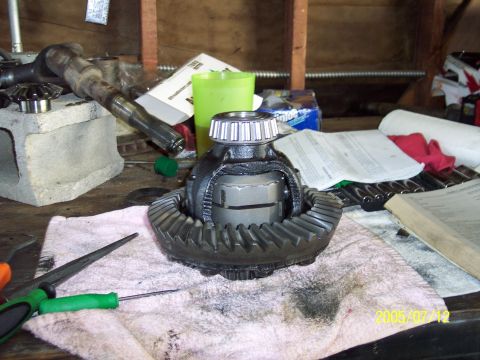

aussie locker in carrier

1080 hits | 71.39 KB | Posted: 7/12/05

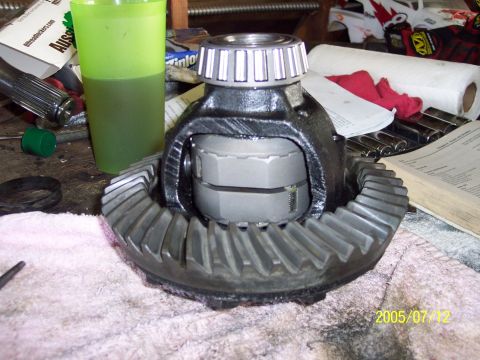

another shot of locker in carrier.

990 hits | 59.37 KB | Posted: 7/12/05

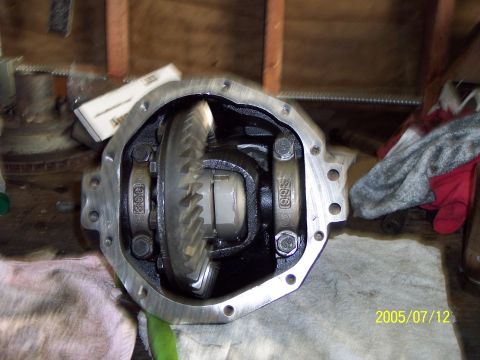

front view of carrier back in housing.

1044 hits | 71.51 KB | Posted: 7/12/05

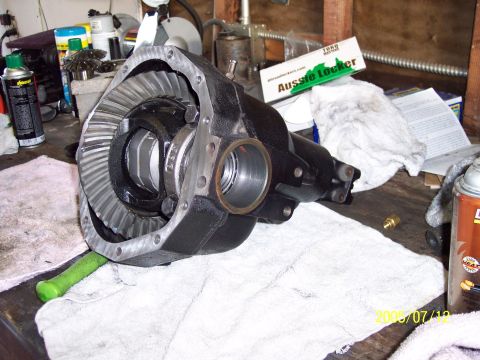

side shot of carrier in housing.

1041 hits | 47.63 KB | Posted: 7/14/05

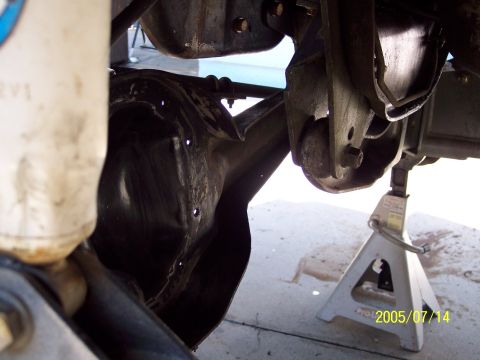

front drive line with third member out.

973 hits | 53.97 KB | Posted: 7/14/05

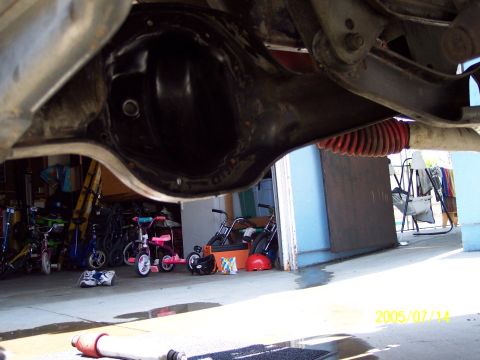

rr shot of center diff.

967 hits | 64.79 KB | Posted: 7/14/05

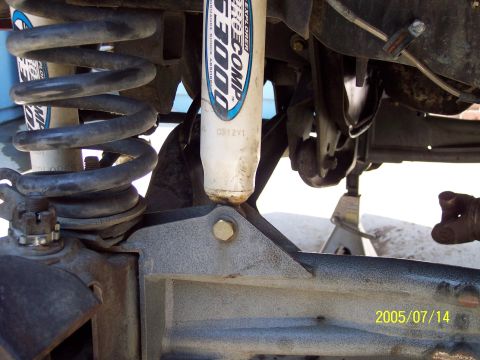

another shot of front end.

1002 hits | 51.65 KB | Posted: 7/14/05

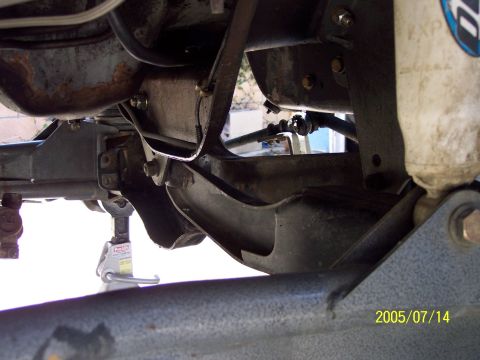

another angle.

1023 hits | 65.27 KB | Posted: 7/14/05

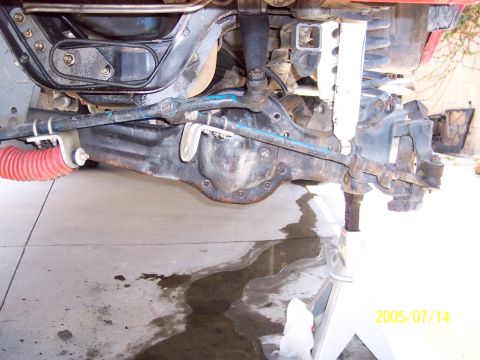

front view.

1024 hits | 71.28 KB | Posted: 7/14/05

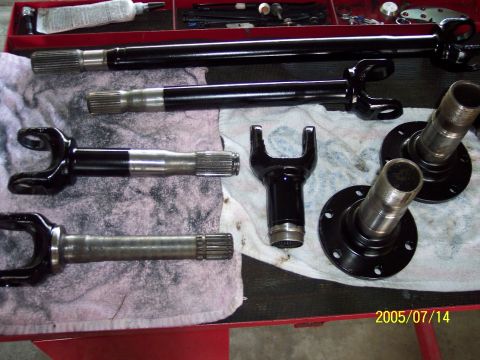

drive axles all clean and repainted.

954 hits | 65.48 KB | Posted: 7/14/05

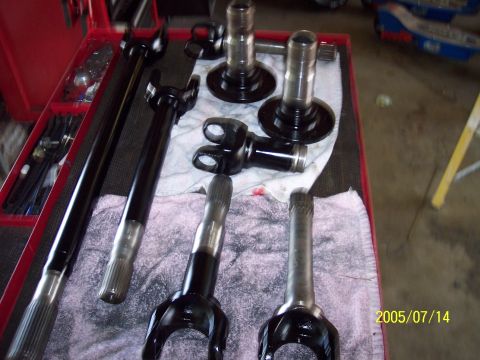

2nd shot of frt axles waiting for reassembly...just waiting for new u-joints, bearings and seals to ...
