581 hits | 94.83 KB | Posted: 3/3/08

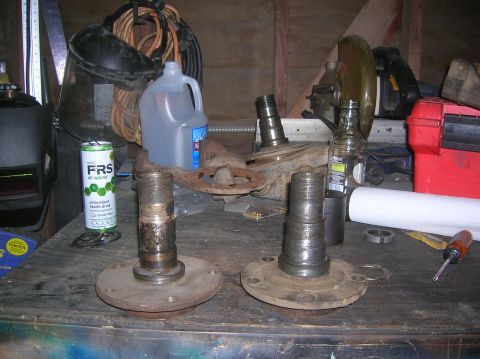

5 lug spindle on rt 8 lug on left

541 hits | 94.71 KB | Posted: 3/3/08

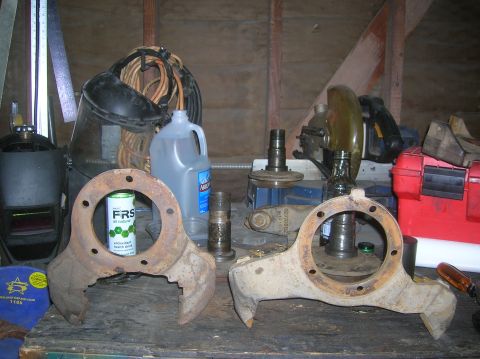

5 lug brake braket on left 8 lug on right

538 hits | 101.46 KB | Posted: 3/3/08

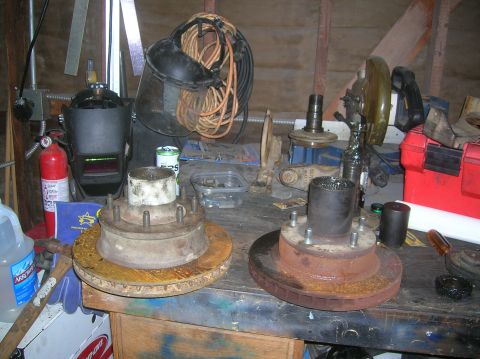

8 lug rotor on left 5 lug on rt.

489 hits | 85.79 KB | Posted: 7/13/08

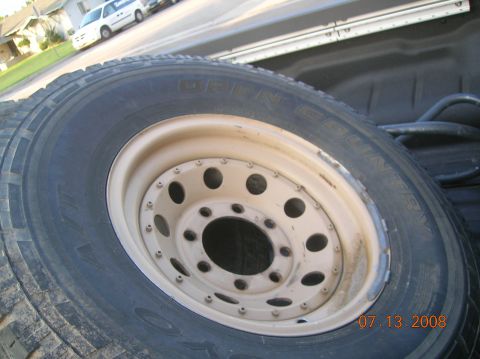

pic a part score... 8 lug 16 inch wheels

494 hits | 91.93 KB | Posted: 7/13/08

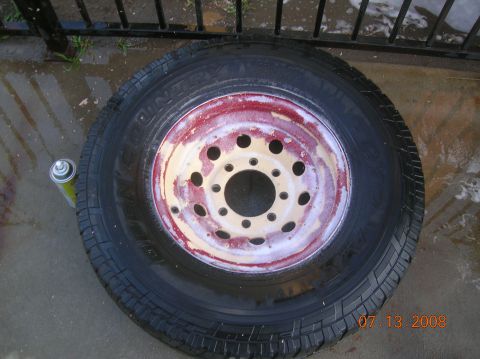

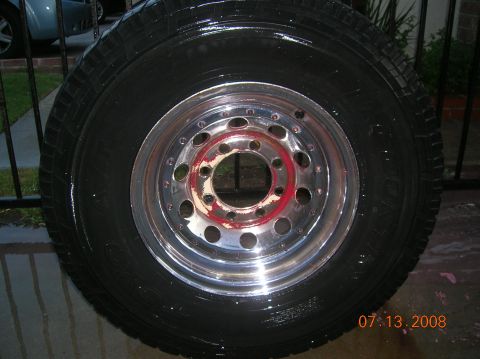

first coat of eazy off oven cleaner

487 hits | 105.59 KB | Posted: 7/13/08

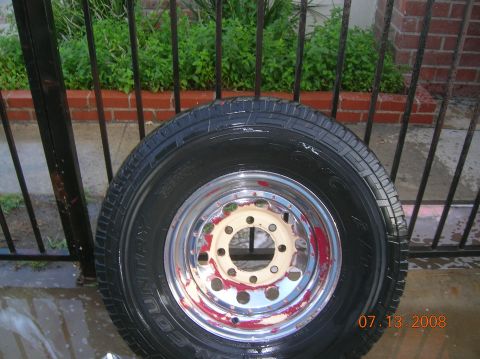

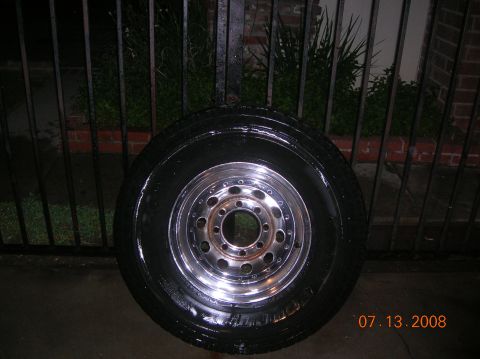

second coat of cleaner

508 hits | 86.89 KB | Posted: 7/13/08

520 hits | 82.41 KB | Posted: 7/13/08

564 hits | 97.16 KB | Posted: 8/8/08

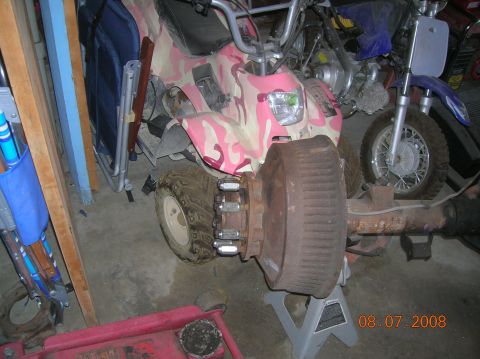

14 bolt brake drum...friggin huge.

529 hits | 85.41 KB | Posted: 8/8/08

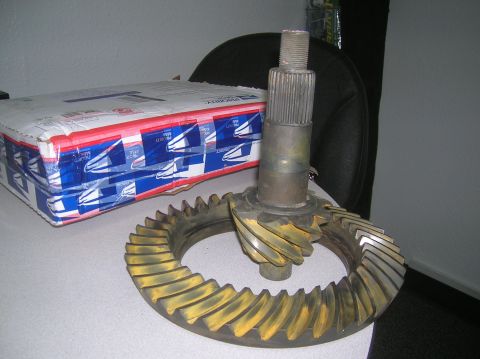

4.56 gears for 14 blt

484 hits | 79.85 KB | Posted: 8/8/08

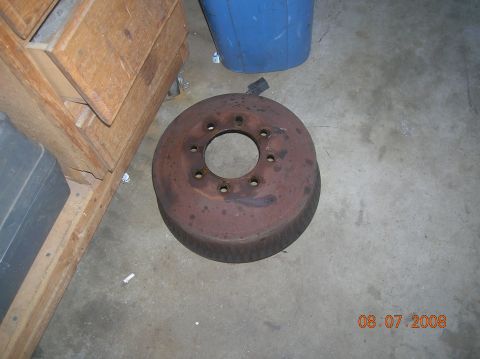

14 bolt drum...this thing weighs a ton.

485 hits | 101.17 KB | Posted: 8/8/08

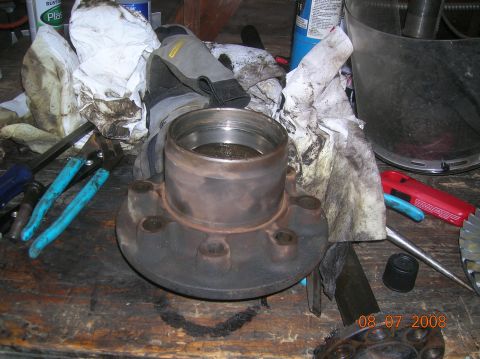

single rear wheel hub.

524 hits | 85.61 KB | Posted: 8/8/08

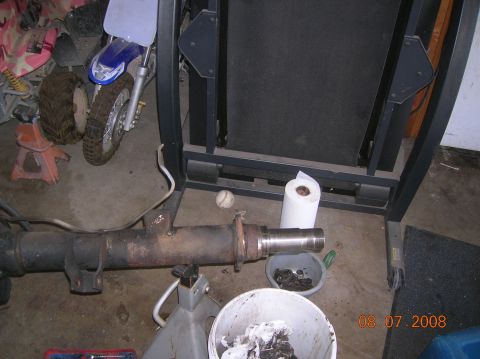

axle with all drum brake crap off

531 hits | 84.04 KB | Posted: 8/8/08

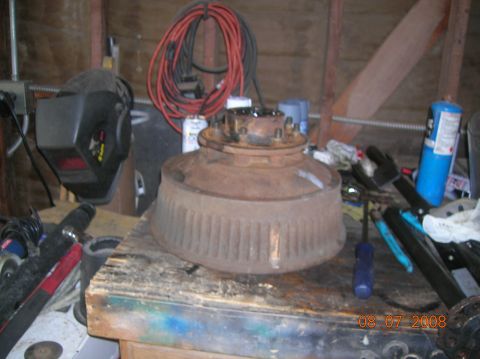

hub and drum.

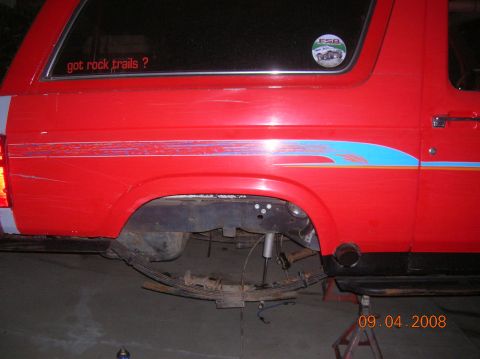

524 hits | 82.49 KB | Posted: 9/4/08

479 hits | 84.24 KB | Posted: 9/4/08

472 hits | 77.04 KB | Posted: 9/4/08

472 hits | 86.01 KB | Posted: 9/8/08

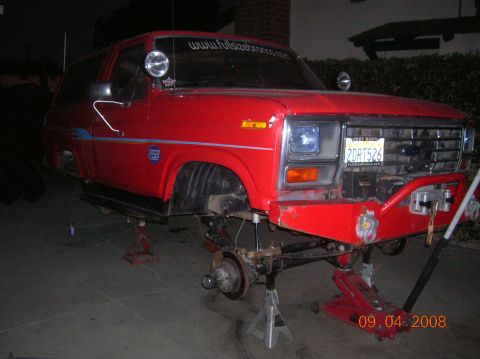

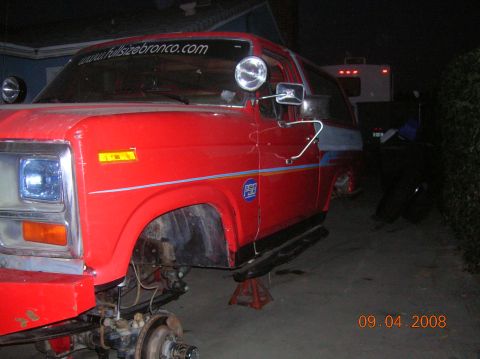

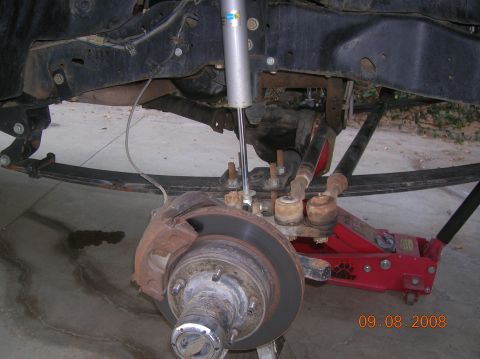

teardown begun on pass. side

462 hits | 87.51 KB | Posted: 9/8/08

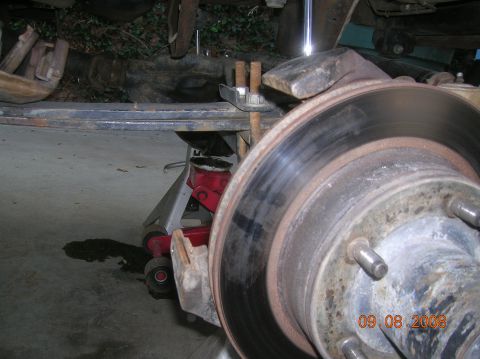

caliper removed

441 hits | 92.59 KB | Posted: 9/8/08

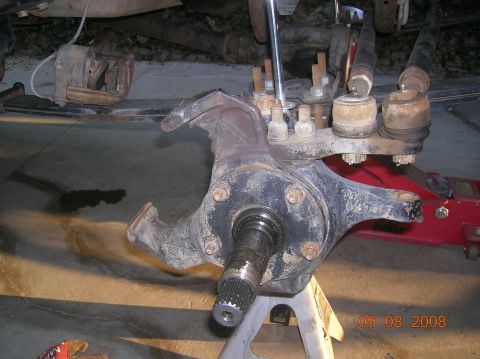

rotor removed

435 hits | 93.19 KB | Posted: 9/8/08

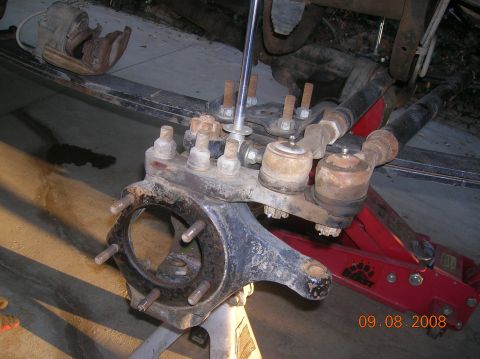

spindle removed

420 hits | 80.55 KB | Posted: 9/8/08

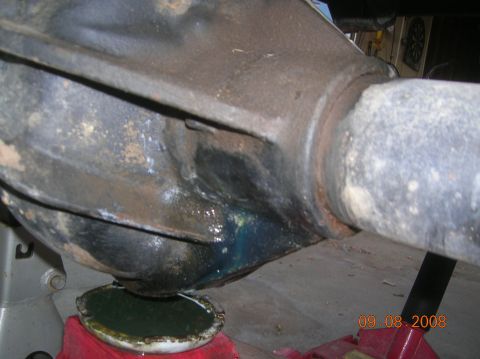

looks like I got a leak....the plug weld is leaking.

436 hits | 79.98 KB | Posted: 9/8/08

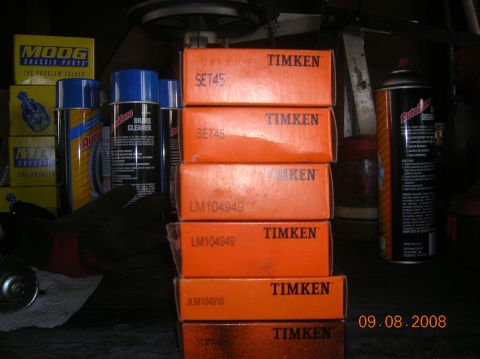

all new timken bearings for the front rotors.

445 hits | 75.63 KB | Posted: 9/8/08

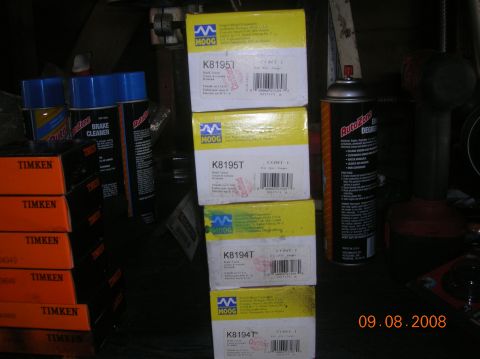

moog upper and lower ball joints.

495 hits | 88.29 KB | Posted: 9/8/08

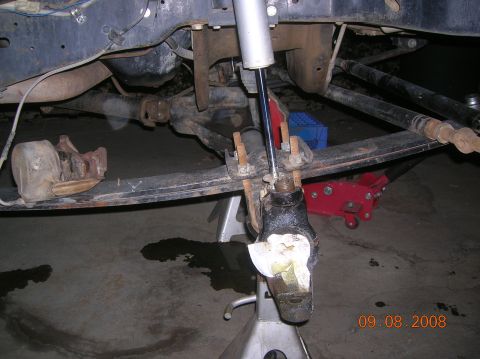

pass side complete torn down.

463 hits | 89.43 KB | Posted: 9/9/08

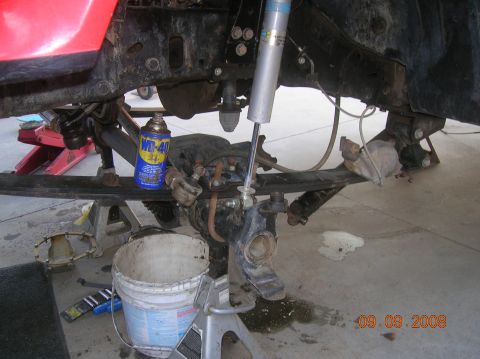

drivers side torn down.

441 hits | 81.66 KB | Posted: 9/9/08

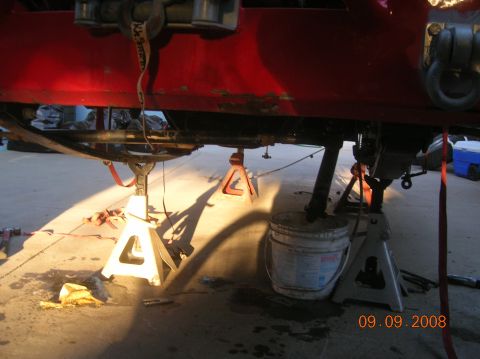

now there is no front axle

501 hits | 88.72 KB | Posted: 9/9/08

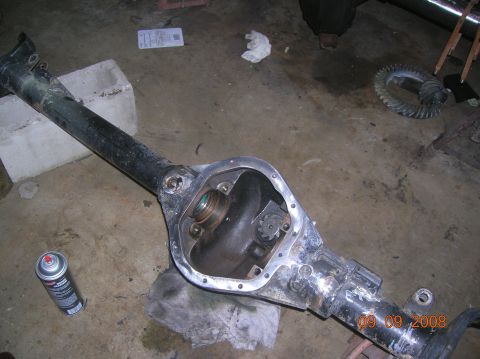

front carrier removed

469 hits | 102.9 KB | Posted: 9/9/08

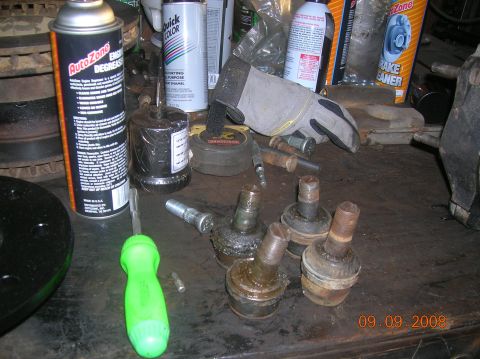

old ball joints

493 hits | 104.38 KB | Posted: 9/9/08

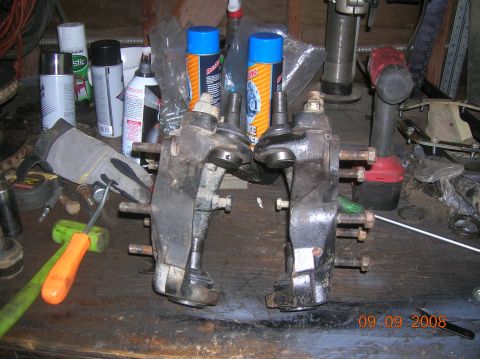

new ball joints pressed in....

469 hits | 90.03 KB | Posted: 9/9/08

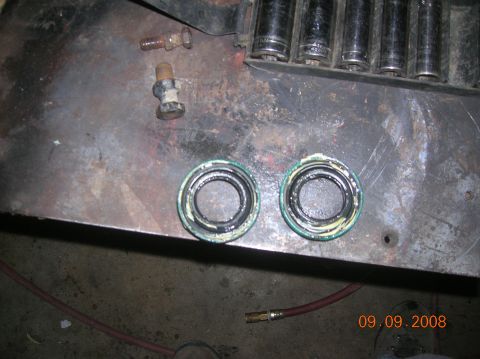

inner seals, you can see the one on the left is oblonged, most likely the reason for the oil leaking...

510 hits | 85.26 KB | Posted: 9/11/08

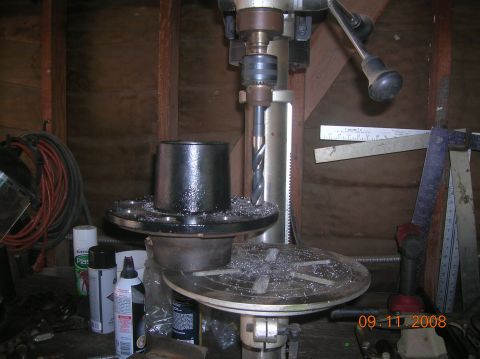

reamed the front hubs to fit 9/16th wheel studs

482 hits | 89.67 KB | Posted: 9/11/08

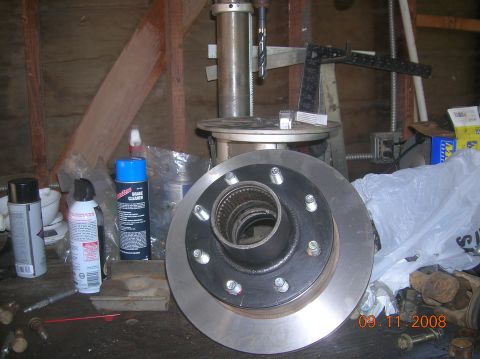

one rotor/hub back together.

499 hits | 82.45 KB | Posted: 9/11/08

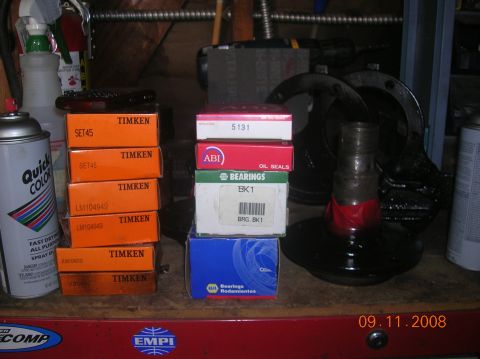

more parts....spindle bearing kits and inner dif seals.

479 hits | 77.85 KB | Posted: 9/11/08

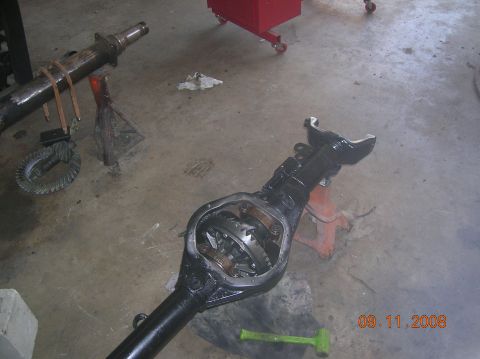

re-installed the carrier.

493 hits | 86.2 KB | Posted: 9/11/08

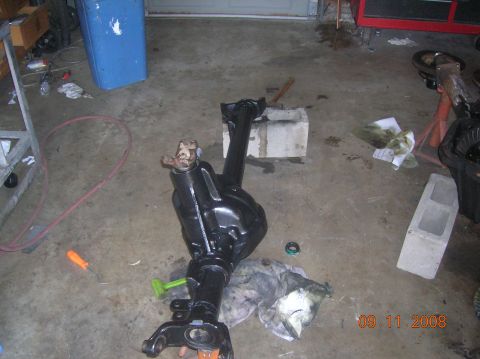

fresh coat of rattle can black.

492 hits | 80.53 KB | Posted: 9/11/08

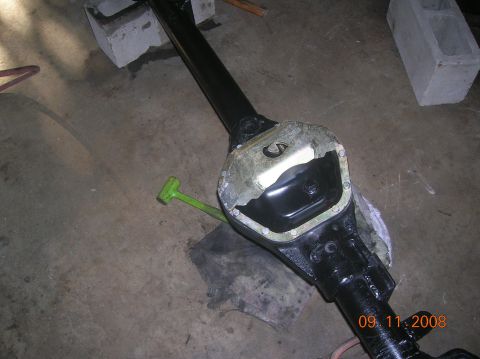

cover and extreme ring back on.

435 hits | 93.9 KB | Posted: 9/11/08

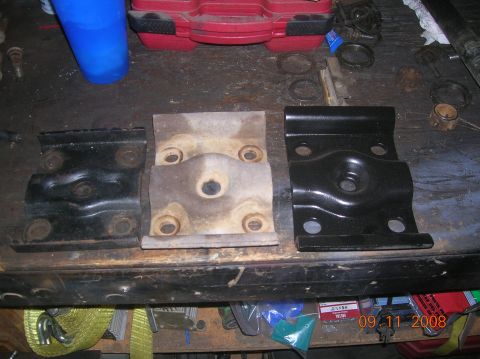

side by side shots of spring plates...
1. 79 D-44 2. 85 9in and 3. iirc D-60 rear

459 hits | 98.79 KB | Posted: 9/11/08

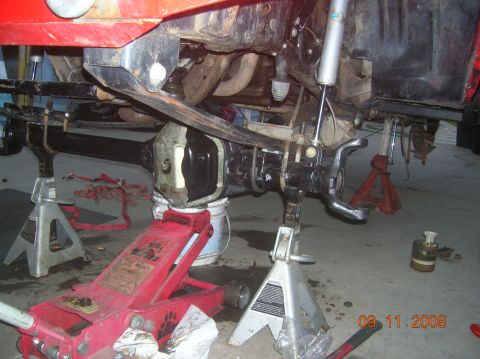

and its back under the truck I used the 9 inch spring plates since they were thicker and bigger then...

458 hits | 97.51 KB | Posted: 9/11/08

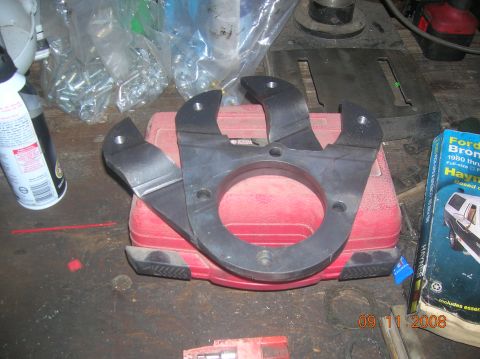

more goodies in the mail....ruffstuff 14blt disc brake brackets...Dan makes a killer product these t...

479 hits | 95.06 KB | Posted: 9/11/08

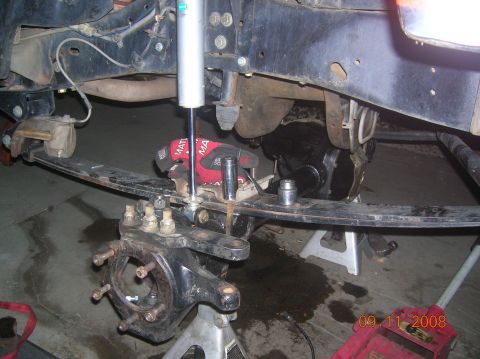

passenger side knuckle back on.

519 hits | 88.2 KB | Posted: 9/13/08

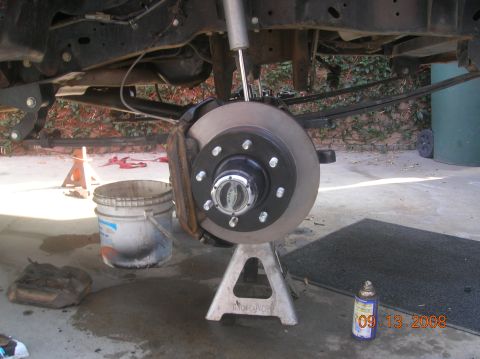

yay...passenger side assembled.

479 hits | 85.34 KB | Posted: 9/13/08

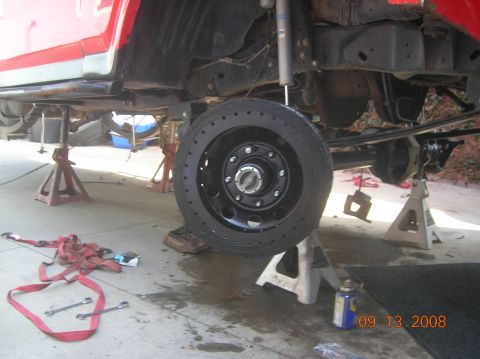

test fit rim

457 hits | 81.62 KB | Posted: 9/13/08

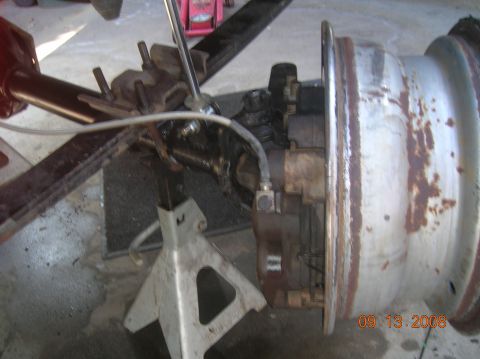

checking for clearance rr of wheel

486 hits | 74.84 KB | Posted: 9/13/08

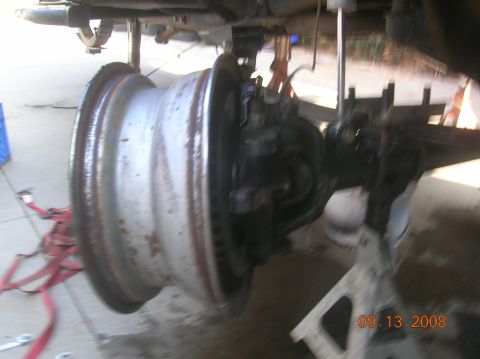

front clearance.

476 hits | 79.71 KB | Posted: 9/14/08

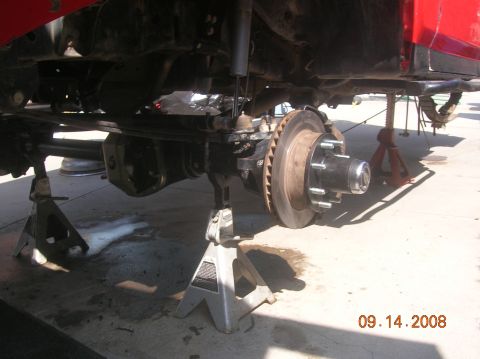

drivers side back together

479 hits | 83.49 KB | Posted: 9/14/08

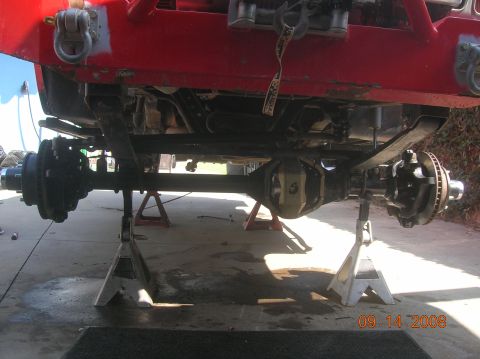

front shot of complete axle

506 hits | 90.69 KB | Posted: 9/14/08

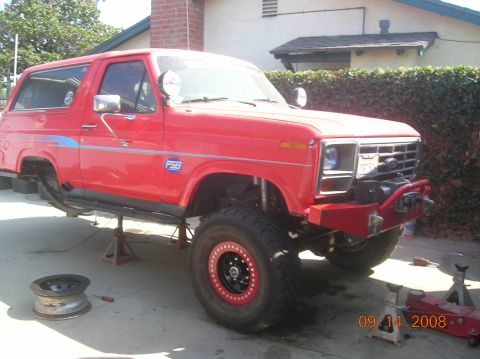

rt front shot, tire on and back on the ground

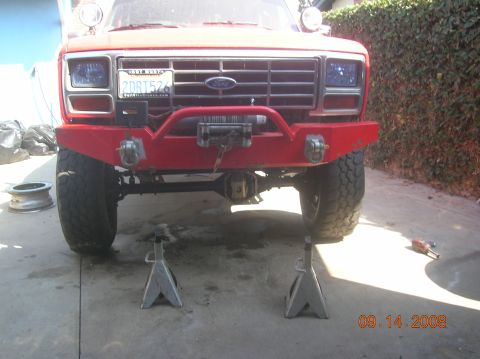

508 hits | 84.38 KB | Posted: 9/14/08
frt shot tires on and off the jack stands

485 hits | 81.41 KB | Posted: 9/14/08

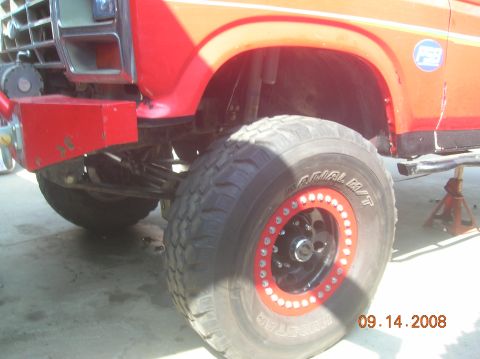

lt frt shot

459 hits | 85.34 KB | Posted: 9/15/08

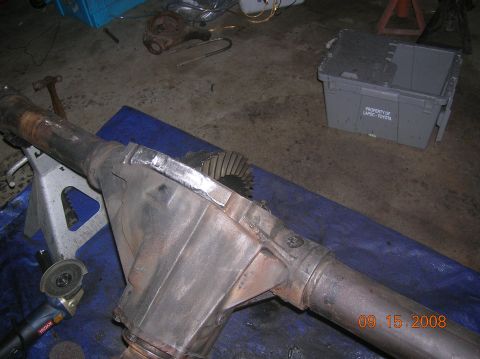

trimming the bottom of the 14 bolt.

478 hits | 77.46 KB | Posted: 9/15/08

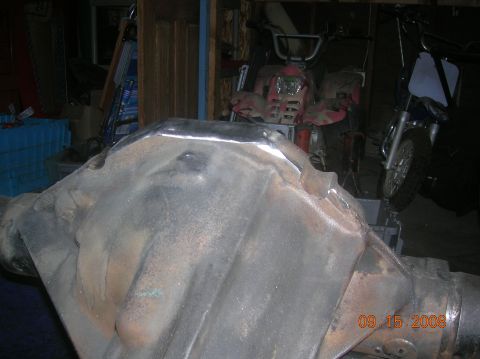

second pic, trimming the bottom off.

479 hits | 83.27 KB | Posted: 9/16/08

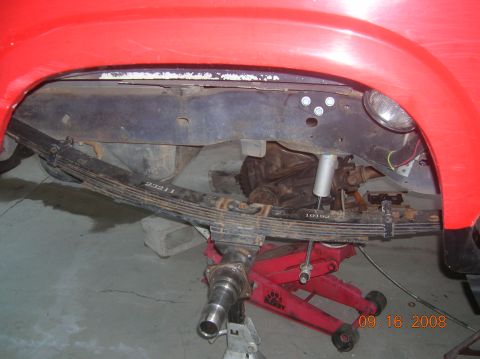

yay...rear axle housing installed

460 hits | 97.37 KB | Posted: 9/16/08

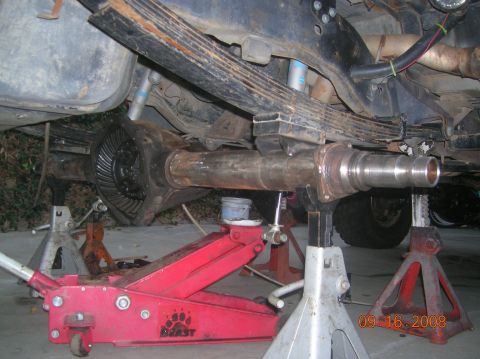

rear shot

478 hits | 91.04 KB | Posted: 9/16/08

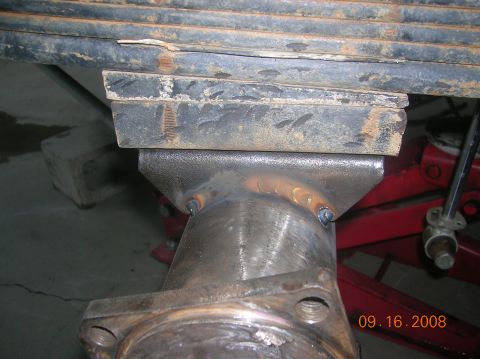

outer edges of spring pads welded

490 hits | 85.34 KB | Posted: 9/16/08

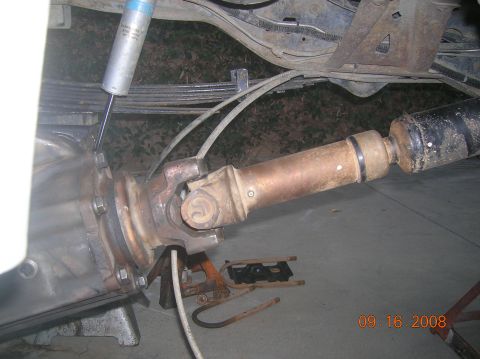

pinion angle

446 hits | 84.07 KB | Posted: 9/22/08

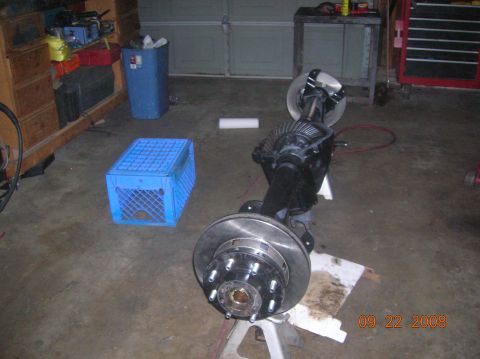

new rotors attached to hubs and back on axle.

441 hits | 93.13 KB | Posted: 9/22/08

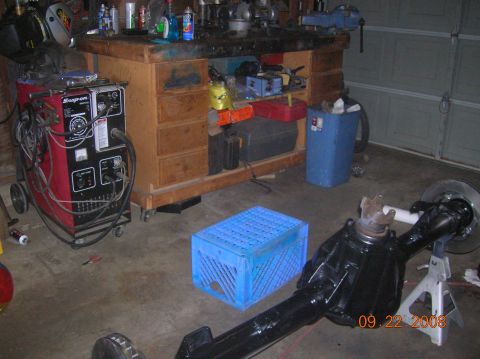

cleaned and painted the axle.

456 hits | 88.28 KB | Posted: 9/22/08

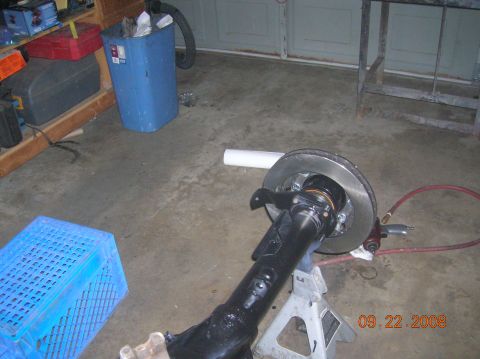

spring plates and shock mounts welded on.

458 hits | 80.07 KB | Posted: 9/30/08

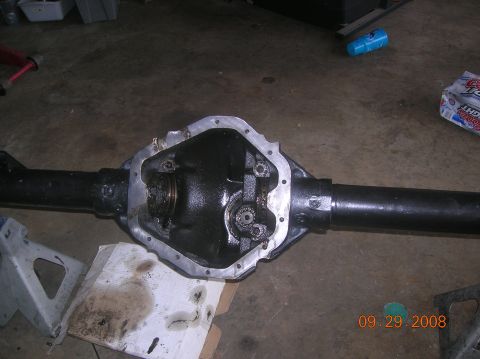

yanked out the carrier.

492 hits | 93.85 KB | Posted: 9/30/08

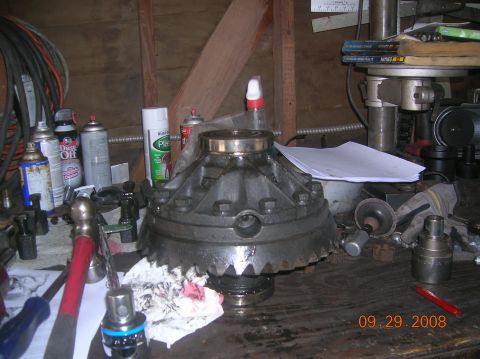

boy this thing is huge.

480 hits | 107.46 KB | Posted: 9/30/08

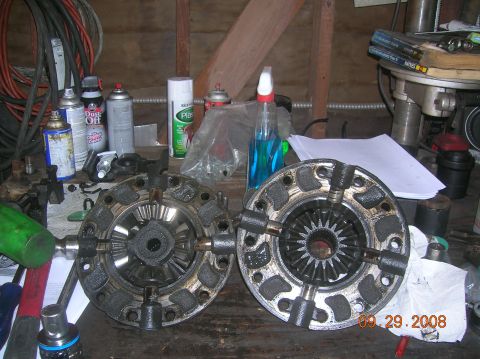

its 2 piece, heres with the spider gears removed.

497 hits | 82.81 KB | Posted: 9/30/08

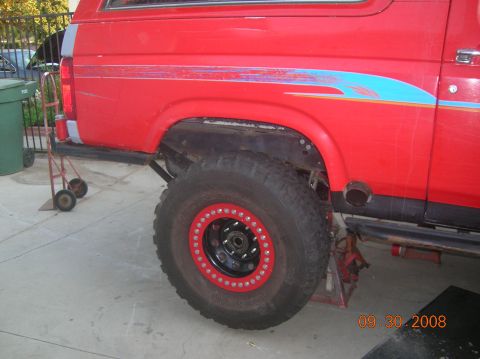

set the axle back in so I could measure for the driveshaft...looks like it needs to be shortened abo...

457 hits | 84.6 KB | Posted: 10/14/08

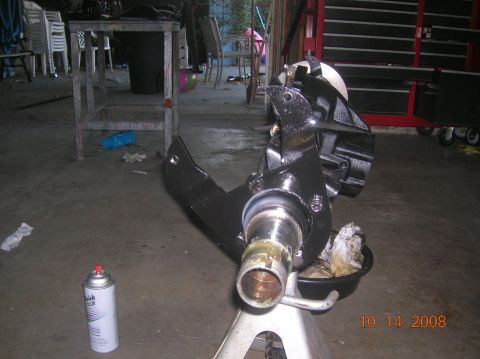

correct disc brake bracket.

439 hits | 83.33 KB | Posted: 10/14/08

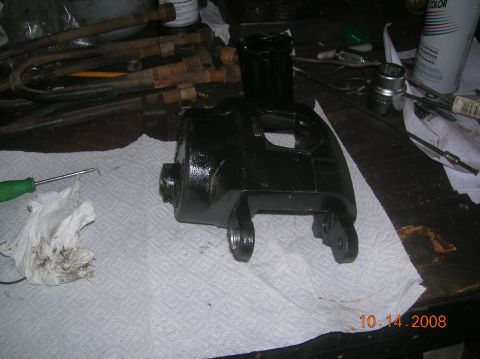

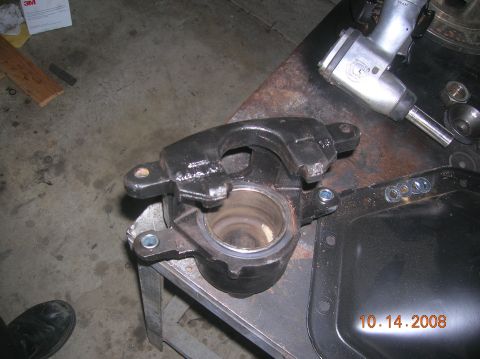

rebuilt the calipers with new seals.

450 hits | 87.92 KB | Posted: 10/14/08

417 hits | 86.9 KB | Posted: 10/14/08

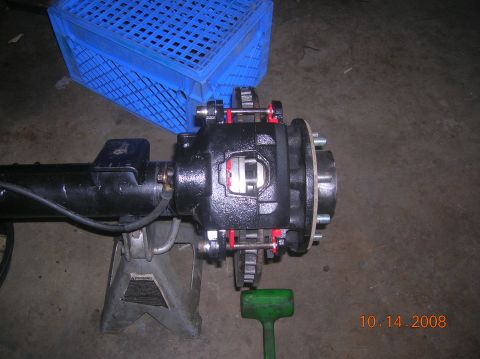

passenger side rr disc assembled with new pads

428 hits | 79.39 KB | Posted: 10/14/08

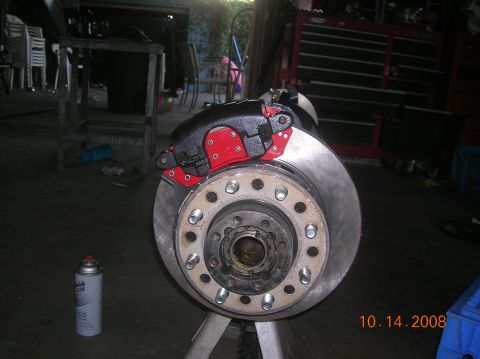

second shot.

429 hits | 87.79 KB | Posted: 10/14/08

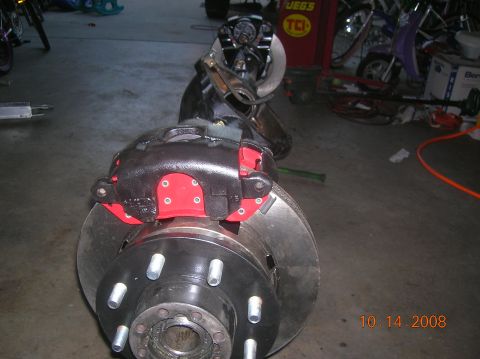

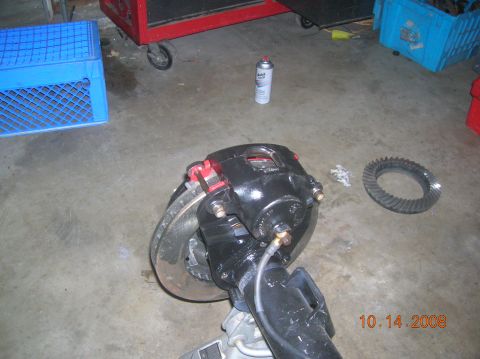

drivers side.

435 hits | 82.18 KB | Posted: 10/14/08
drivers side.

434 hits | 83.09 KB | Posted: 10/16/08

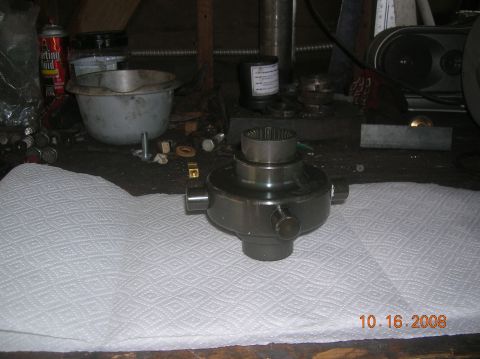

mini spool

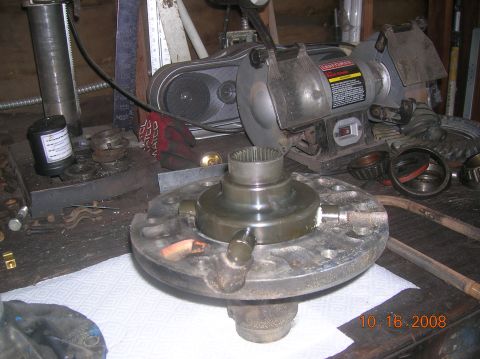

437 hits | 95.2 KB | Posted: 10/16/08
installed in case

416 hits | 91.66 KB | Posted: 10/16/08

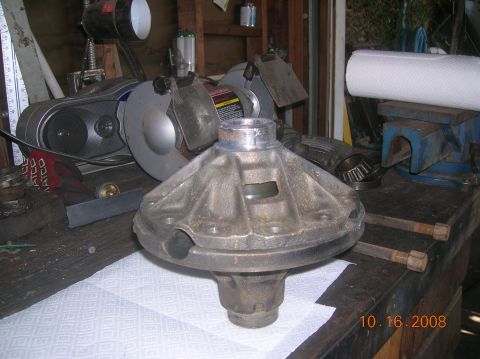

case back together.

420 hits | 82.66 KB | Posted: 10/18/08

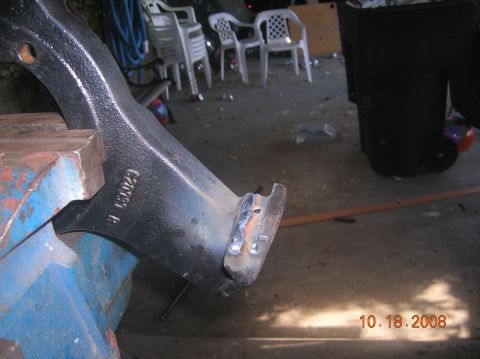

pulled the front back apart to fix the pass. side brake caliper bracket.

415 hits | 78.76 KB | Posted: 10/18/08

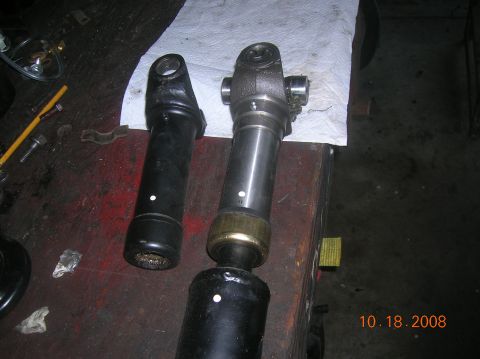

drive shaft reworked with a 1350 u-joint...next to it is the stock size.

490 hits | 69.08 KB | Posted: 10/18/08

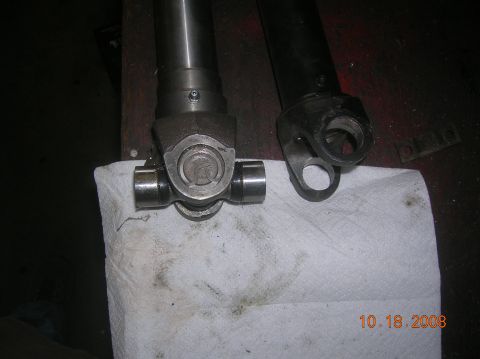

second pic

452 hits | 79.99 KB | Posted: 10/18/08

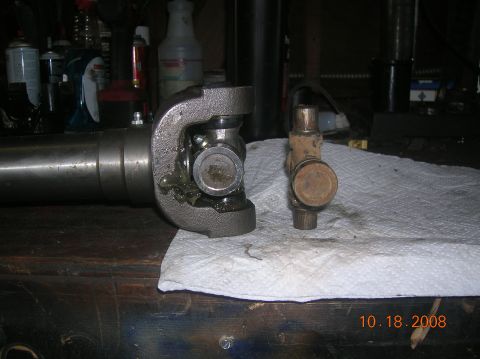

comparision of u-joints...1350 on left, stock on right.

499 hits | 77.09 KB | Posted: 10/18/08

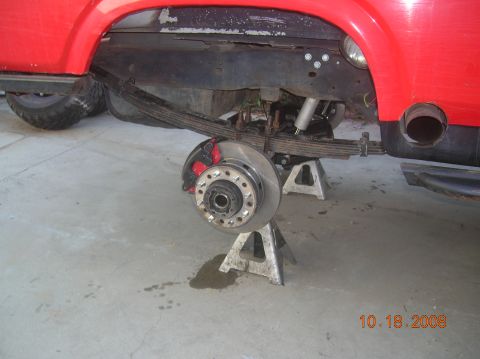

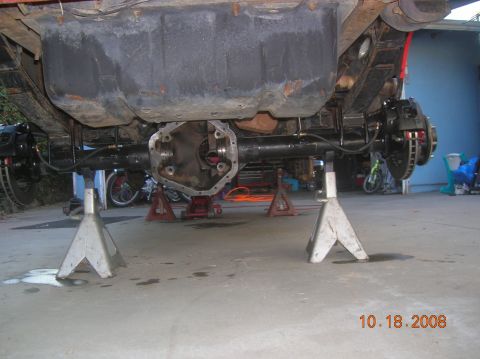

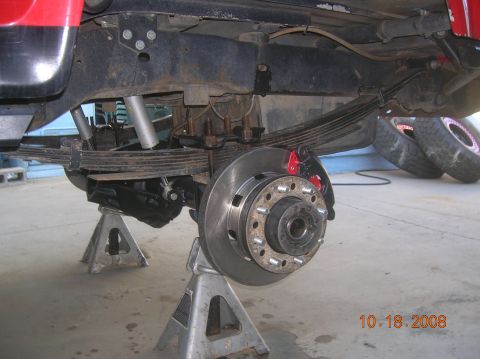

went ahead and reinstalled the rear axle while I am waiting on the gears.

424 hits | 84.46 KB | Posted: 10/18/08

413 hits | 85.98 KB | Posted: 10/18/08

422 hits | 86.35 KB | Posted: 10/18/08

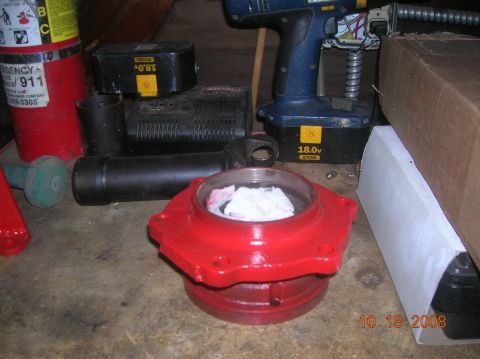

painted the pinion support

410 hits | 85.34 KB | Posted: 10/18/08

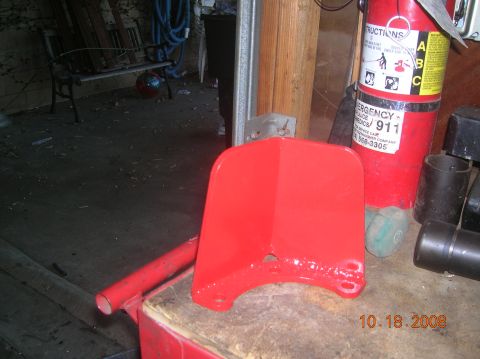

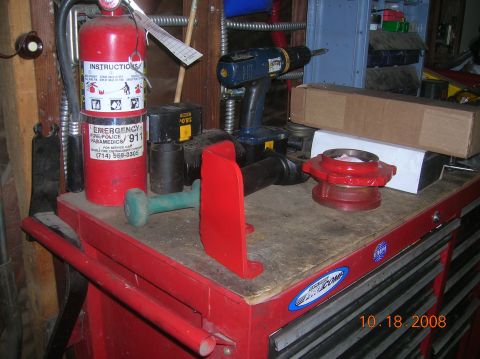

pinion guard, got it ffrom copperhead fab...comes in two pieces, you bend and weld it yourself.

429 hits | 98.07 KB | Posted: 10/18/08

450 hits | 70.38 KB | Posted: 10/22/08

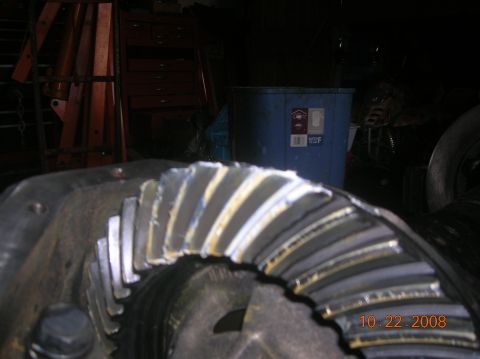

pattern check

464 hits | 86.6 KB | Posted: 10/22/08

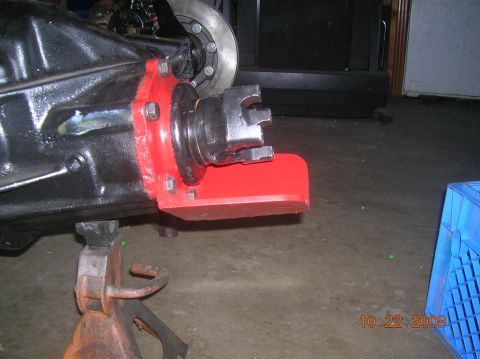

pinion guard on.

422 hits | 80.41 KB | Posted: 10/22/08

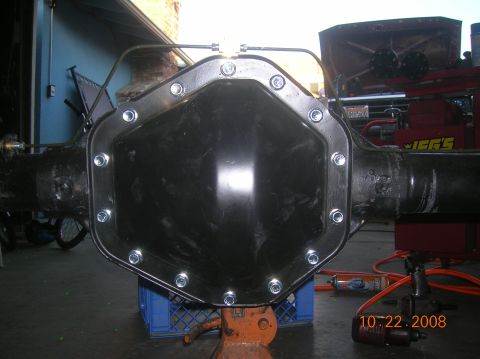

cover back on....and filled with gear oil.

476 hits | 80.73 KB | Posted: 10/22/08

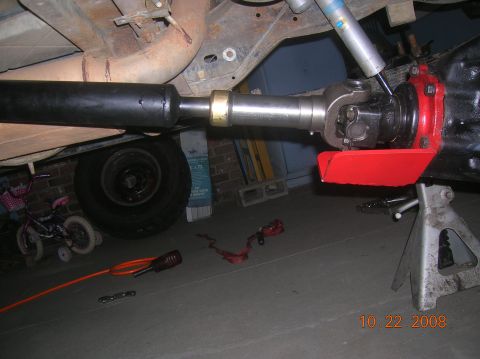

driveshaft in.

487 hits | 89.82 KB | Posted: 10/22/08

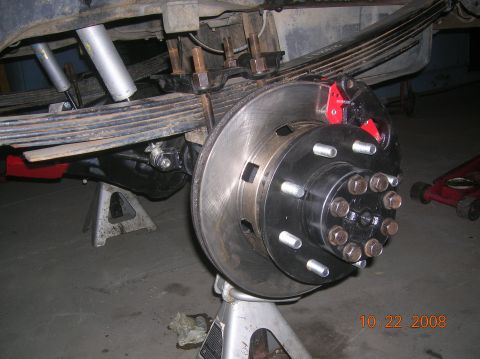

axle shafts in....

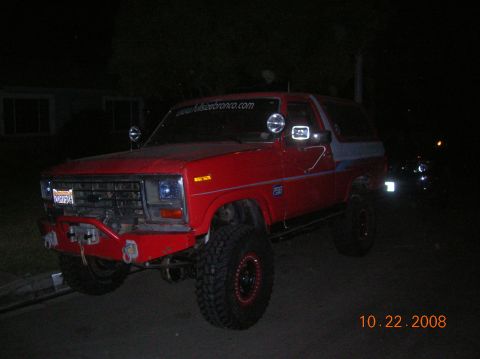

420 hits | 67.59 KB | Posted: 10/22/08

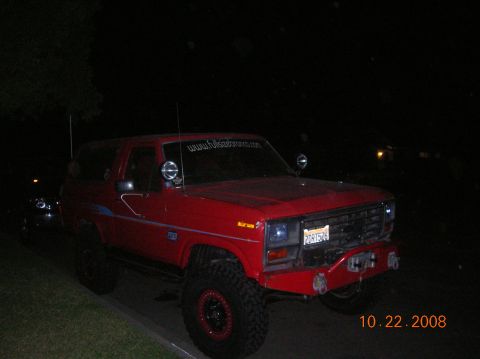

and would you believe it...back on 4 wheels....

452 hits | 66.52 KB | Posted: 10/22/08

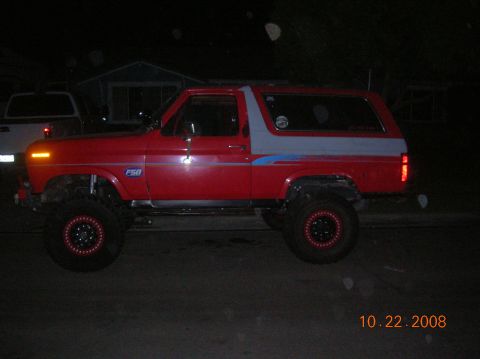

kinda dark will get better pics tomorrow.

473 hits | 64.29 KB | Posted: 10/22/08

504 hits | 81.34 KB | Posted: 10/22/08

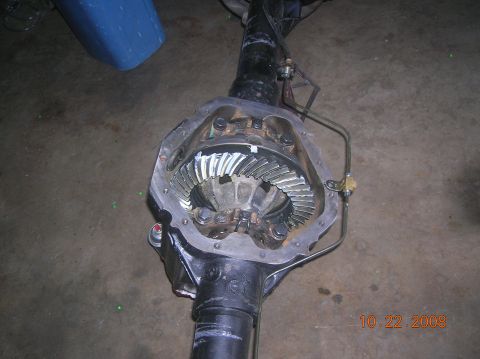

gear patterns

456 hits | 89.13 KB | Posted: 10/27/08

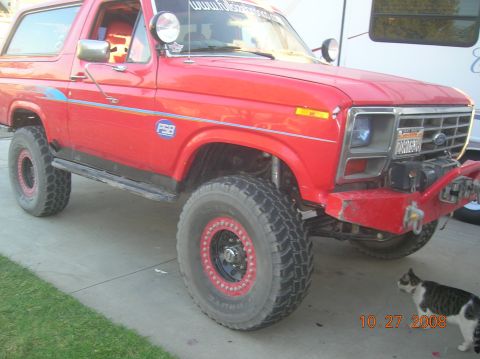

daytime photo

472 hits | 86.67 KB | Posted: 10/27/08

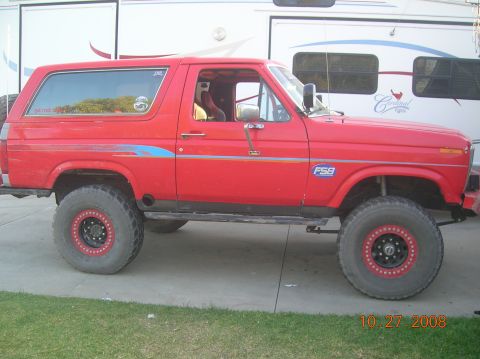

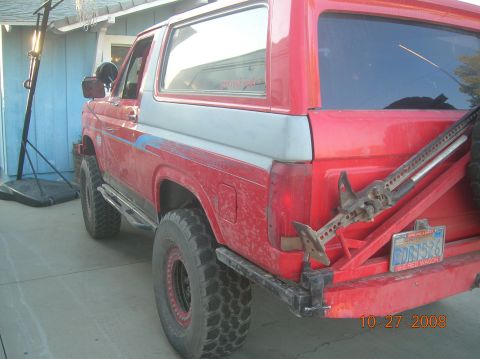

side shot.

415 hits | 87.52 KB | Posted: 10/27/08

393 hits | 78.81 KB | Posted: 10/27/08

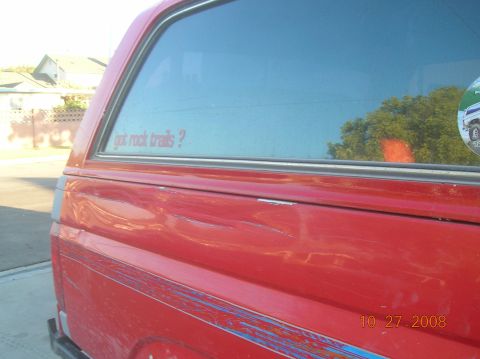

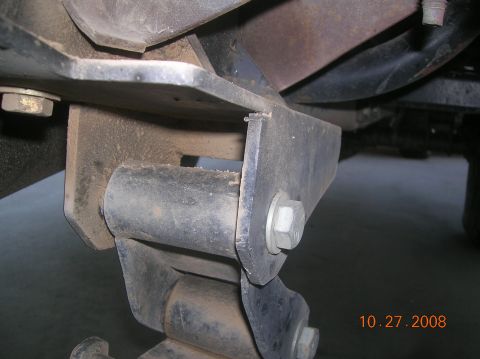

new damage

401 hits | 89.41 KB | Posted: 10/27/08

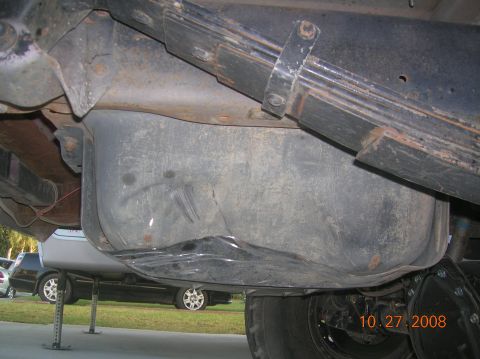

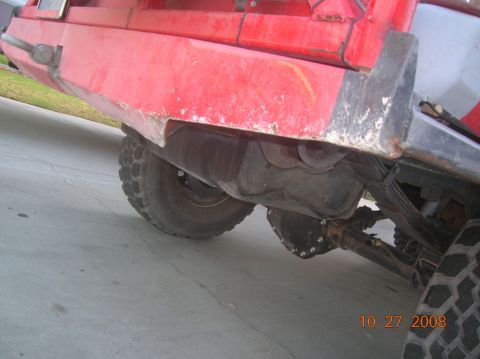

poor gas tank...

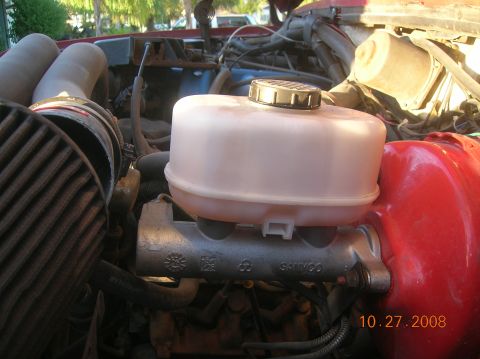

418 hits | 78.5 KB | Posted: 10/27/08

420 hits | 87.31 KB | Posted: 10/27/08

488 hits | 77.34 KB | Posted: 10/27/08
